U-Line WineCaptain 3036WCWC User manual
STAINLESS
FRAME
INTEGRATED
SOLID
STAINLESS FRAME
(LOCK)
STAINLESS FRAME
(HANDLELESS
PANEL)*
STAINLESS SOLID
(HANDLELESS
PANEL)*
INTEGRATED
FRAME
PERFORMANCE
• Volume of 7.0 cu ft holds up to 62 wine bottles (750 ml)
• U-Select®Control with digital OLED display
• Temperature range: 38°F - 65°F
•
the set temperature
• U-Select®Control has three distinct modes:
Sparkling Wine: 38°F - 50°F, White Wine: 45°F - 55°F,
Red Wine: 55°F - 65°F
• Independently controlled dual-zones
• Relative humidity inside the unit is approx. 50%
• Rubber mounted compressor virtually eliminates vibration
INTERIOR/EXTERIOR
• Black interior is illuminated with LED theater lighting that
stay on for 3, 6, or 24 hours
• Full extension black vinyl coated wine racks allow for easy access
and prevent bottles from shifting
• Wine racks accommodate a variety of bottle shapes and sizes;
champagne bottles
•
provides protection from harmful UV light
• Standard commercial stainless steel handle are interchangeable
with professional handle accessory
• Door lock model available
INTEGRATION
• Robust, concealed and covered hinges with built-in door stop and
closer
• Adjustable grille can be shifted front-to-back and up-and-down
•
accept U-Line Euro Style Handleless Stainless Panel Accessory
(must be ordered separately)
• Grille can accept an integrated toe-kick
• Four independently adjustable leveling legs; rear legs are
adjustable from the front for ease of installation
MODEL DETAILS
Model Voltage/Hz Door Swing Finish Shipping Weight
U-3036WCWCS-00B 115 / 60 Double Doors Stainless Frame 252 lb
U-3036WCWCS-13B 115 / 60 Double Doors Stainless Frame (Lock) 252 lb
U-3036WCWCINT-00B 115 / 60 Double Doors Integrated Frame 235 lb
U-3036WCWCINT-60B 115 / 60 Double Doors Integrated Solid 234 lb
ACCESSORIES
Model Description Finish Shipping Weight
23074 Stainless 2 lb
23073 Stainless 2 lb
U-ESPF45S* Stainless 6 lb
U-ESP45S* Stainless
*Installs on integrated models, 2 panels required.
3036WCWC • 36” Wine Captain®Model • Modular 3000 Series
QUICK REFERENCE GUIDE
FEATURES & BENEFITS
www.goedekers.com
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
This unit requires a grounded, polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Model 3036WCWC
Amps: Running 1.2
Capacity: Volume (cu ft) 7.0
Capacity: Wine Bottle (750 ml) 62
Control Type U-Select®
Dimensions: Product Depth
Dimensions: Product Height
Dimensions: Product Width
ENERGY STAR N/A
Panel Height
Panel Thickness
Panel Type
Panel Width
Product Weight: Max 226 lb
Refrigerant Type R600a
Yes
Temperature Range 38°F - 65°F
Residential
4"
(102 mm)
7"
(178 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet. 5/8"
(16 mm)
24"
(610 mm)
Metric measurements rounded and optimized.
35-5/8"
(905 mm)
38°-65° 38°-65°
COOLING SYSTEM
35-7/16"
(900 mm)
33-11/16" to 34-11/16"
(856 to 881 mm)
23-7/16" (590 mm)
3-5/8" to
4-5/8"
(92 to
118 mm)
Not Including Handle
Modular 3000 Series • 36” Wine Captain®Model • 3036WCWC
QUICK REFERENCE GUIDE
• Milwaukee, Wisconsin 53223 USA • Phone +1.414.354.0300 • • U-Line.com
DIMENSIONS SPECIFICATIONS
ELECTRICAL REQUIREMENTS
CABINET CUT-OUT
INSTALL ATION NOTES
Please visit U-Line.com to view this model’s User Guide.
www.goedekers.com
Table of contents
Other U-Line Kitchen Appliance manuals
U-Line

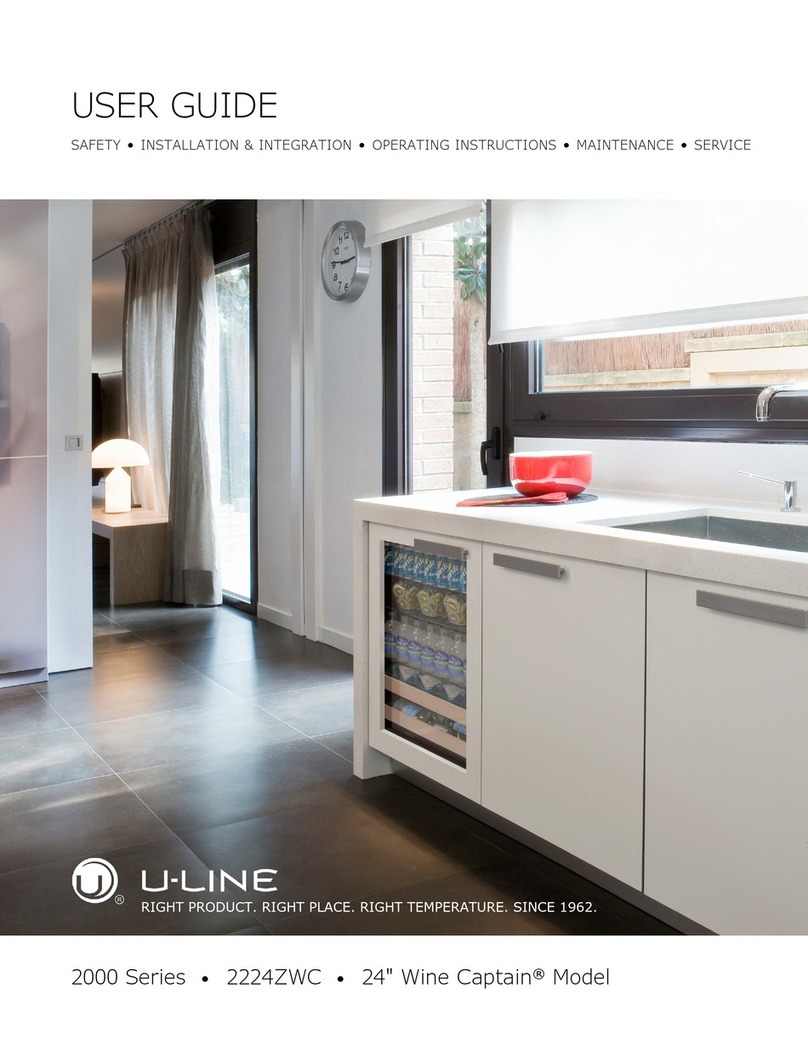

U-Line Wine Captain 2000 Series User manual
