USER GUIDE u-line.com

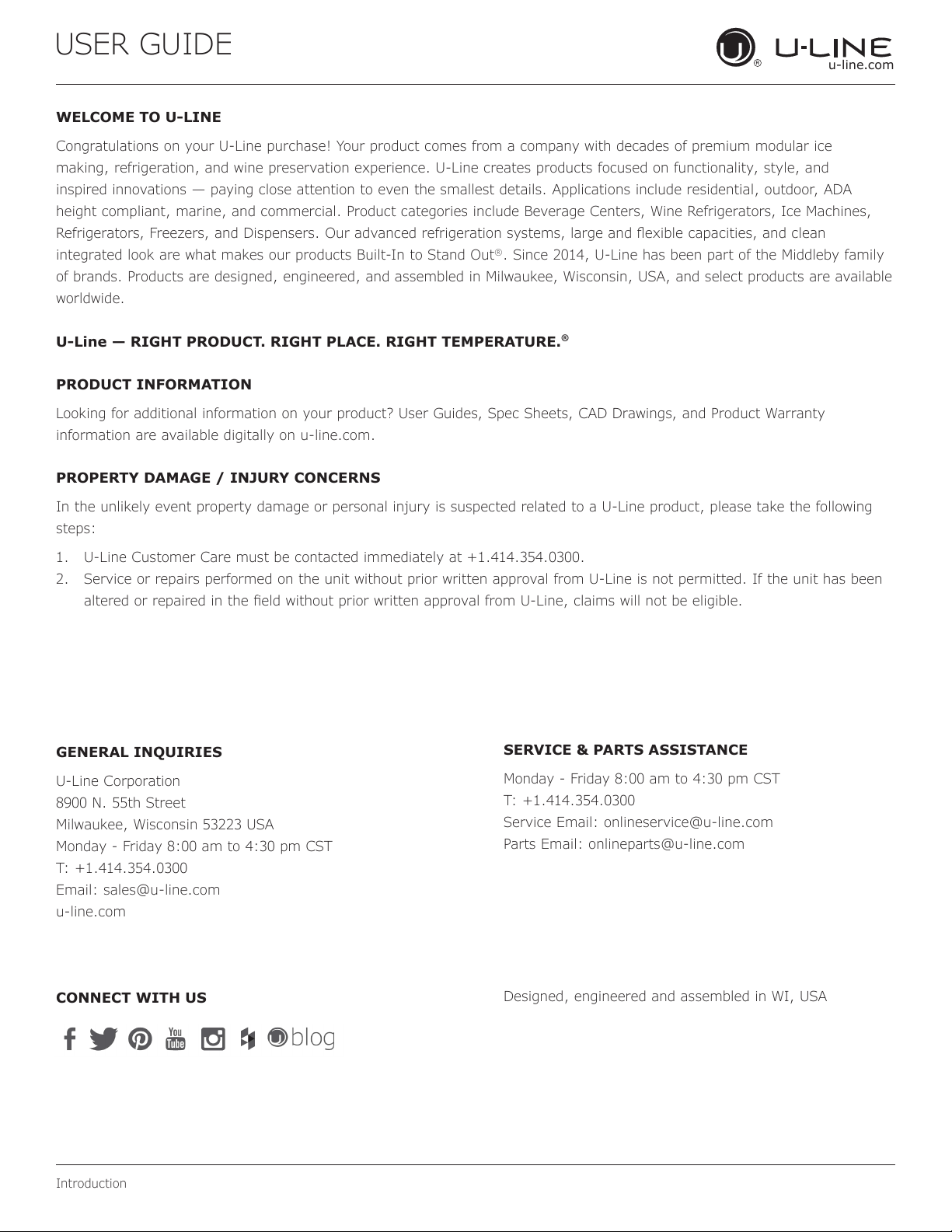

Introduction
WELCOME TO U-LINE
Congratulations on your U-Line purchase! Your product comes from a company with decades of premium modular ice
making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and
inspired innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA
height compliant, marine, and commercial. Product categories include Beverage Centers, Wine Refrigerators, Ice Machines,
Refrigerators, Freezers, and Dispensers. Our advanced refrigeration systems, large and exible capacities, and clean
integrated look are what makes our products Built-In to Stand Out®. Since 2014, U-Line has been part of the Middleby family
of brands. Products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products are available
worldwide.
U-Line — RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE.®
PRODUCT INFORMATION
Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, and Product Warranty
information are available digitally on u-line.com.
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following
steps:
1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.
2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been
altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.
GENERAL INQUIRIES
U-Line Corporation
8900 N. 55th Street
Milwaukee, Wisconsin 53223 USA
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Email: [e-mail]
u-line.com
CONNECT WITH US
SERVICE & PARTS ASSISTANCE
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Service Email: [e-mail]
Parts Email: [e-mail]
Designed, engineered and assembled in WI, USA
3

USER GUIDE u-line.com
Safety and Warning
Safety and Warning
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
Use this appliance for its intended purpose only and follow
these general precautions with those listed throughout this
guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning, or Caution based on the risk type:
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
Warning means that failure to follow this safety
statement could result in serious personal injury
or death.
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property, or equipment damage.
This unit contains R600a (Isobutane) which is a
ammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the
“R600a specications” section included in the
User Guide. Do not damage the refrigerant
circuit.
Service must be done by factory authorized
service personnel. Any parts shall be replaced
with like components. Failure to comply could
increase the risk of possible ignition due to
incorrect parts or improper service.
CALIFORNIA PROPOSITION 65
This product contains chemicals known to the
state of California to cause cancer and birth
defects or other reproductive harm.
www.P65warnings.CA.gov
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes.
DANGER
!
DANGER
!
WARNING
!
CAUTION
!
CAUTION
!
WARNING
!
4

USER GUIDE u-line.com
Disposal and Recycling
Disposal and Recycling
RISK OF CHILD ENTRAPMENT. Before you throw
away your old refrigerator or freezer, take o
the doors and leave shelves in place so children
may not easily climb inside.
If the unit is being removed from service for disposal,
check and obey all federal, state, and local regulations
regarding the disposal and recycling of refrigeration
appliances, and follow these steps completely:
1. Remove all consumable contents from the unit.
2. Unplug the electrical cord from its socket.
3. Remove the door(s)/drawer(s).
DANGER
!
5

USER GUIDE
Environmental Requirements
u-line.com
Environmental Requirements
This model is intended for indoor/interior applications only
and is not to be used in installations that are open/
exposed to natural elements.
This unit is designed to operate between 50°F (10°C) and
100°F (38°C). Higher ambient temperatures may reduce
the unit’s ability to reach low temperatures and/or reduce
ice production on applicable models.
For best performance, keep the unit out of direct sunlight
and away from heat generating equipment.
In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal. The condensation will
evaporate when the humidity drops.
CAUTION
!
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
6

USER GUIDE
Electrical
u-line.com
Electrical
WARNING
!
SHOCK HAZARD — Electrical Grounding
Required. Never attempt to repair or perform
maintenance on the unit until the electricity has
been disconnected.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Altering, cutting or removing power cord,
removing power plug, or direct wiring can cause
serious injury, fire, loss of property and/or life,
and will void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle
that has been placed by a qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current). An
individual, properly grounded branch circuit or circuit
breaker is recommended. A GFCI (ground fault circuit
interrupter) is usually not required for fixed location
appliances and is not recommended for your unit because
it could be prone to nuisance tripping. However, be sure
to consult your local codes.
See CUTOUT & PRODUCT DIMENSIONS for recommended
receptacle location.
7

USER GUIDE u-line.com

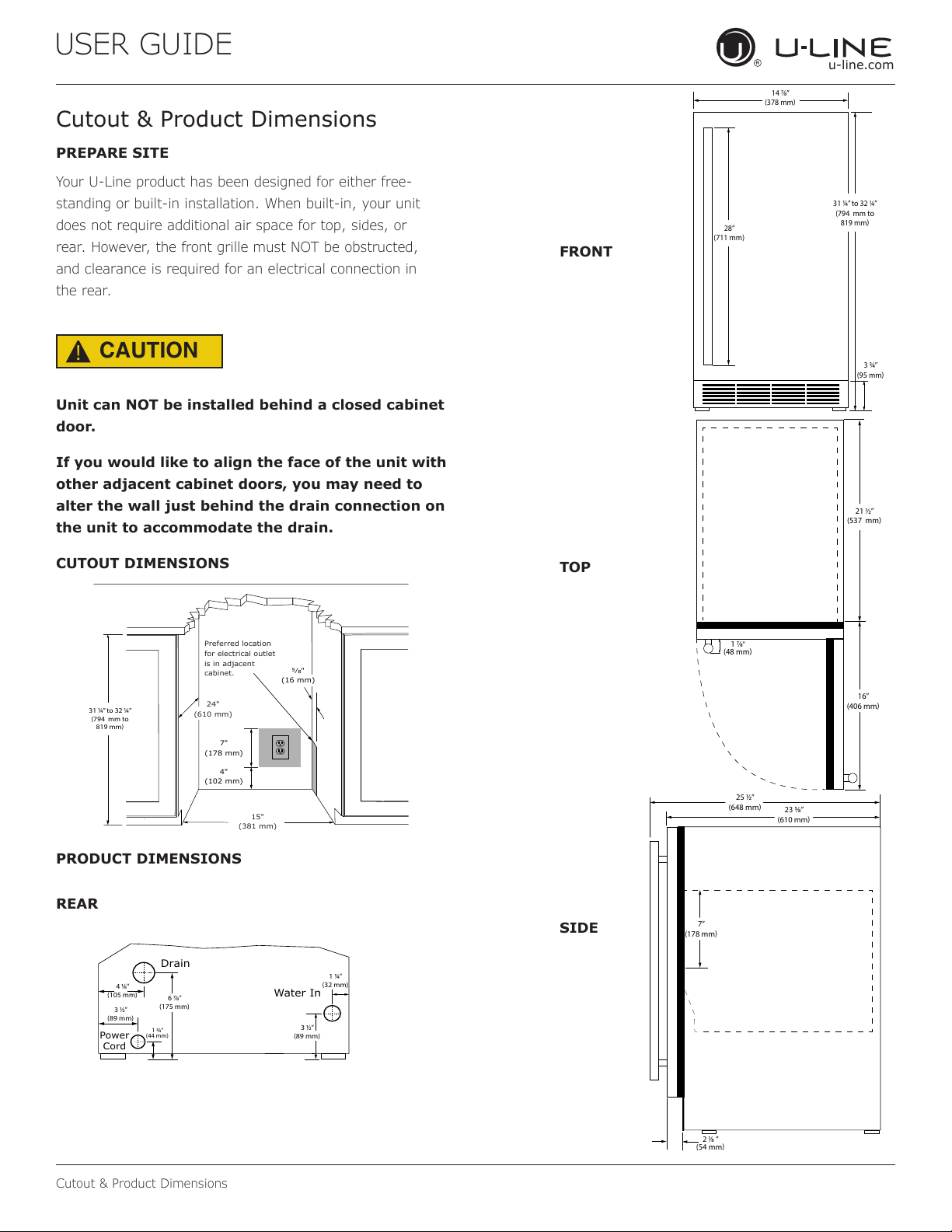

Cutout & Product Dimensions
Cutout & Product Dimensions
PREPARE SITE
Your U-Line product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides, or
rear. However, the front grille must NOT be obstructed,
and clearance is required for an electrical connection in
the rear.
CAUTION
!
Unit can NOT be installed behind a closed cabinet
door.
If you would like to align the face of the unit with
other adjacent cabinet doors, you may need to
alter the wall just behind the drain connection on
the unit to accommodate the drain.
CUTOUT DIMENSIONS
PRODUCT DIMENSIONS
REAR
FRONT
TOP
SIDE
4"
(102 mm)
7"
(178 mm)
15"
(381 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5⁄8"
(16 mm)
31 ⁄”to 32 ⁄”
(794 mm to
819 mm
3 ⁄”
(89 mm)
1 ⁄”
(32 mm)
Drain
Water In
Power
Cord
6 ⁄”
(175 mm)
3 ⁄”
(89 mm)
1 ⁄”
(44 mm)
4 ⁄”
(105 mm)
14 ⁄”
(378 mm
31 ⁄” to 32 ⁄”
(794 mm to
819 mm
3 ⁄”
(95 mm
28”
(711 mm)
21 ⁄”
(537 mm
16”
(406 mm
1 ⁄ ”
(48 mm
25 ⁄”
(648 mm
7”
(178 mm
23 ⁄”
(610 mm
2 ⁄ ”
(54 mm
8

USER GUIDE u-line.com

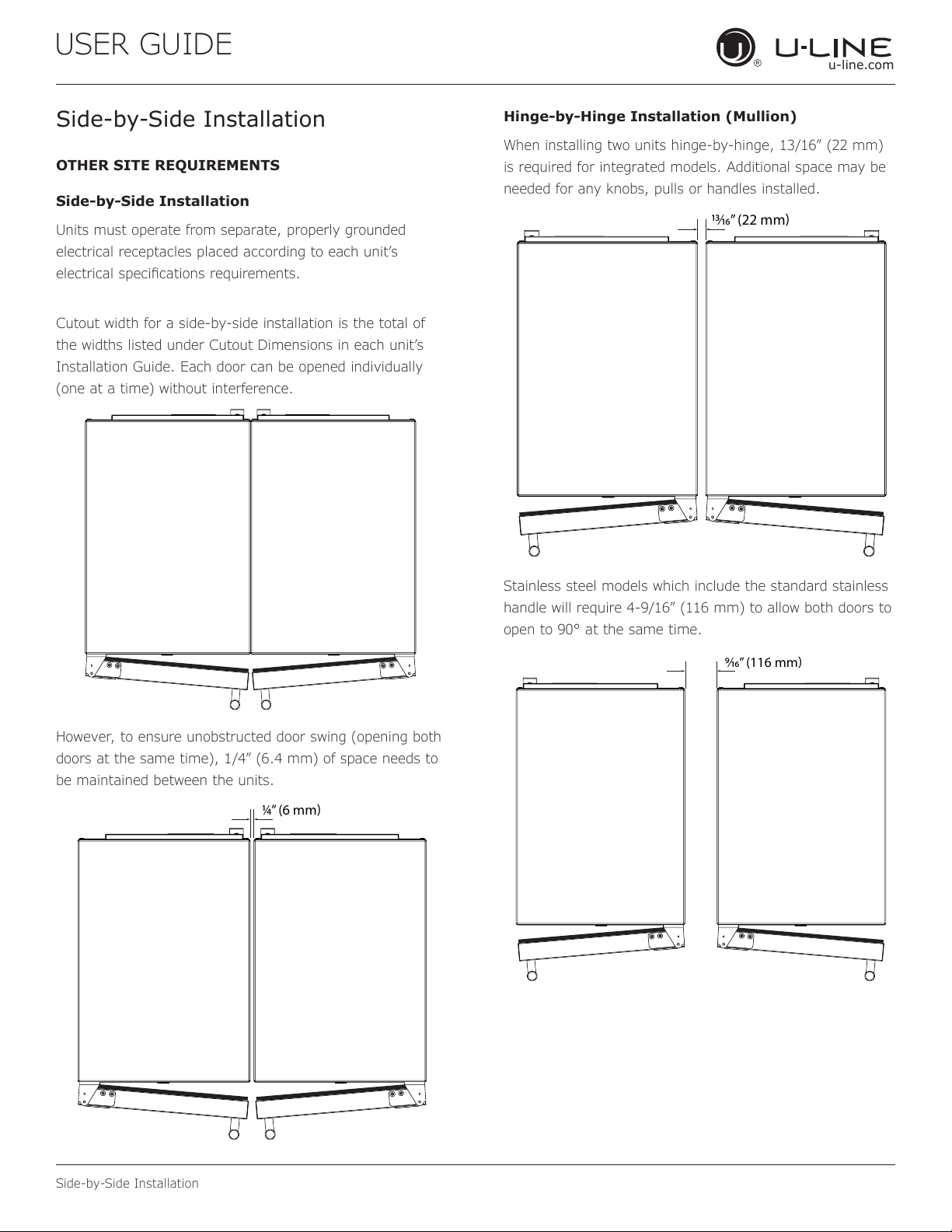

Side-by-Side Installation
Side-by-Side Installation
OTHER SITE REQUIREMENTS
Side-by-Side Installation
Units must operate from separate, properly grounded
electrical receptacles placed according to each unit’s
electrical specications requirements.
Cutout width for a side-by-side installation is the total of
the widths listed under Cutout Dimensions in each unit’s
Installation Guide. Each door can be opened individually
(one at a time) without interference.
However, to ensure unobstructed door swing (opening both
doors at the same time), 1/4” (6.4 mm) of space needs to
be maintained between the units.
Hinge-by-Hinge Installation (Mullion)
When installing two units hinge-by-hinge, 13/16” (22 mm)
is required for integrated models. Additional space may be
needed for any knobs, pulls or handles installed.
Stainless steel models which include the standard stainless
handle will require 4-9/16” (116 mm) to allow both doors to
open to 90° at the same time.
1⁄4” (6 mm)
⁄” (22 mm
⁄” (116 mm
9

USER GUIDE u-line.com
Water Hookup
Water Hookup
WATER SUPPLY
Observe and follow all local building codes when installing
this appliance.
This ice machine must be connected to a potable cold
water supply line. delivering water pressure between a
minimum of 20 psi and a maximum of 120 psi.
Use 1⁄4” copper tubing for your water supply which is
available at any local hardware or plumbing supply store.
Route the 1⁄4” copper tubing to suit your installation being
sure not to kink the tubing. Purchase enough copper
tubing length to allow a coil to be formed behind the unit
for a “service loop” which will allow the appliance to be
pulled out from the installation for servicing or cleaning.
(See Figure 11). Connect the copper tubing to the “top
side” of a cold water pipe to prevent the ice-maker from
plugging with sediment.
A shuto valve is recommended on the water supply line
to ease servicing the appliance. NOTE: A SELF-PIERCING
TYPE VALVE IS NOT RECOMMENDED as they are prone
to clogging with sediment which will create pressure drop
reducing the water supply to the unit.
Connect the copper tubing water supply to the water valve
inlet with a 1⁄4” compression nut tting.
IMPORTANT: Secure the water supply line to the back of
the cabinet with the screw and strain relief clamp provided
in the corner of the back panel.
Make certain all connections are watertight after
installation. Form the tubing so that it will not vibrate
against the cabinet body or kink when your appliance is
moved in and out of position.
This ice machine is designed to make clear ice from the
majority of water sources on a daily basis. If your results
are unsatisfactory, your water may need to be ltered or
treated. A water specialist can recommend proper water
treatment.
To prevent water leaks:
•The water line tting is to be used with copper tubing
only. Do not use with plastic tubing.
• Do not use any thread sealers on this water line
tting.
NOTE:
Reverse osmosis (RO) water, softened water, and
de-ionized water are not recommended as they
can adversely affect the quality and quantity of
the ice.
CAUTION
!
CAUTION
!
Water
Supply Line
Clamp and
Screw
Water Supply
Service Loop
to Shut-Off Valve
Water Valve
Inlet
Compression
Fitting
Water Supply
Line
10

USER GUIDE
u-line.com
Drain
The oor drain must be large enough to
accommodate drainage from all attached drains.
Follow these guidelines when installing drain
lines to prevent water from owing back into
the ice maker storage bin and/or potentially
owing onto the oor, which may result in
personal injury or property damage
Failure to connect water supply or drain line
connections properly can result in personal injury
and property damage. Gravity drain connections
must be routed downward from the rest of the
unit at the rate of 1/4” per foot (1 cm per 50 cm).
Drain can NOT be located directly below the
unit. Unit has a solid base that will not allow the
unit to drain below itself.
There is a possibility that hose connections may
have loosened during shipment.
Verify all connections and ttings are free from
leaks.
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes
DRAIN CONNECTION
NOTICE
Drain
CAUTION
!
CAUTION
!
CAUTION
!
Cold
Water
Hot
Water
Waste
Waste
Shut-Off
Valve
Air Gap
(Optional Hook-Up)
Cold
Water
Hot
Water
Waste
Shut-Off
Valve
The maximum lift for the drain pump is
10 feet. This must be done as close to the rear of
the unit as possible.
NOTICE
Waste
Cold
Water
Shut-Off
Valve
Hot
Water
Air Gap
(Optional Hook-Up)
Drain pump
vent tube.
Keep this open
to assure
air flows freely
as water
enters the
pump reservoir.
Drain line coiled and
secured to the back of the
cabinet. Uncoil, route to
an appropriate drain, and
and cut to length.
11

USER GUIDE
u-line.com
General Installation
General Installation
LEVELING INFORMATION
1. Use a level to
conrm the unit is
level. Level should
be placed along top
edge and side edge
as shown.
2. If the unit is not level, adjust the legs on the corners of
the unit as necessary.
3. Conrm the unit is level after each adjustment and
repeat the previous steps as needed.
INSTALLATION TIP
If the room oor is higher than the oor in the cutout
opening, adjust the rear legs to achieve a total unit rear
height of 1⁄8” (3 mm) less than opening’s rear height.
Shorten the unit height in the front by adjusting the front
legs. This allows the unit to be gently tipped into the
opening. Readjust the front legs to level the unit after it is
correctly positioned in the opening.
INSTALLATION
1. Plug in the power/electrical cord.
2. Gently push the unit into position. Be careful not
to entangle the cord or water and drain lines, if
applicable.
3. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments. The unit’s top
surface should be approximately 1⁄8” (3 mm) below
the countertop.
4. Remove interior packing material and wipe out the
inside of the unit with a clean, water-dampened cloth.
1
Turn to Adjust
12

USER GUIDE u-line.com
Integrated Panel Dimensions
Integrated Panel Dimensions
Integrated Door Panel for
15” (381mm) wide unit
14-⁄”
(375 mm)
⁄”
(16 mm)
to
⁄”
(19 mm)
30-⁄”
(773 mm)
NOTE
Panel thickness may be 5⁄8” or 3⁄4”. Center the unit in the
15” opening. If the hinge side of the unit is pressed against
the adjacent cabinet, use a 5/8” thick panel.
Maximum panel weight is 15 lbs.
13

USER GUIDE u-line.com
Integrated Panel Installation
Integrated Panel Installation
Cut and prepare panels according to the information
provided in the Integrated Panel Dimensions section.
It is important to use the factory provided grille that came
with the product to assure proper air ow is maintained
through the condenser. The use of a custom grille is not
recommended and will void the warranty.
REMOVE DOOR
See Door Adjustments section.
ASSEMBLE THE PANEL TO THE DOOR
1. With the door laying on a at
surface and starting at the corner
of the door, remove the magnetic
door gasket from the interior side
of the door. Set the gasket aside
on a at surface.
2. Align the panel to the door. Make sure the sides and
top are ush.
3. With bar clamps or “C” clamps, secure the panel to
the door
4. At each of the 10 holes in the gasket extrusion
channel, drill pilot holes into the wood panel. Use
the drill size from the chart in the table below being
careful not to drill through the front surface of the
panel.
5. Fasten the panel to the door with the 10 screws
provided in the literature pack.
6. Remove the clamps and replace the gasket in the
gasket extrusion channel. Some force may be required
to seat the gasket into the channel. Be sure the
gasket corners are seated correctly.
INSTALL THE DOOR
See Door Adjustments section.
CAUTION
!
Wood
Panel
Door/Drawer
Bar
Clamp
Bar
Clamp
Integrated panel
flush with top of
door.
Integrated panel
flush with side of
door.
Holes in gasket
extrusion channel
Material Type #10 Wood Screw
Hardwood 1⁄8” (3.2mm) Diameter Pilot Hole
Softwood 7⁄64”
(2.8mm) Diameter Pilot Hole
14

USER GUIDE u-line.com
Grille Installation
Grille Installation
REMOVING AND INSTALLING GRILLE
Disconnect electric power to the unit before
removing the grille.
When using the unit, the grille must be installed.
Do NOT touch the condenser ns. The condenser
ns are SHARP and can be easily damaged.
Removing the grille
1. Disconnect power to the unit.
2. Remove the two screws.
3. Remove grille from unit.
Installing the grille
1. Align cabinet and grille holes and secure, but do not
over tighten grille screws.
2. Reconnect power to the unit.
WARNING
!
WARNING
!
Condenser
Screws
15

USER GUIDE u-line.com

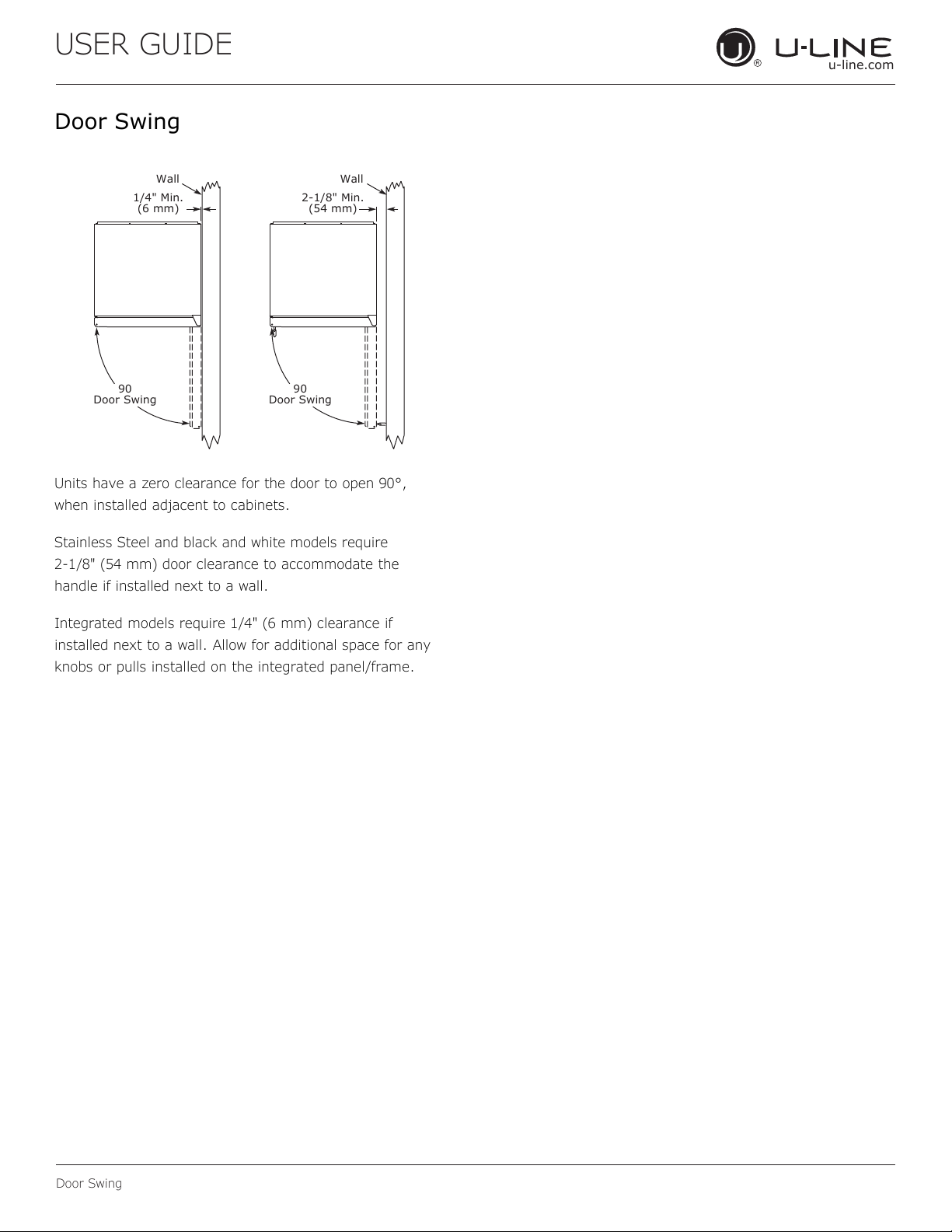

Door Swing
USER GUIDE
Door Swing 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Door Swing
Wall Wall
90
Door Swing
90
Door Swing
2-1/8" Min.
(54 mm)
1/4" Min.
(6 mm)
Units have a zero clearance for the door to open 90°,
when installed adjacent to cabinets.
Stainless Steel and black and white models require
2-1/8" (54 mm) door clearance to accommodate the
handle if installed next to a wall.
Integrated models require 1/4" (6 mm) clearance if
installed next to a wall. Allow for additional space for any
knobs or pulls installed on the integrated panel/frame.
16

USER GUIDE u-line.com
Door Adjustments
2. With a Phillips screwdriver, remove the bushing screw
and hing pin from the bottom hinge.
3. Remove the cam closer from the lower hinge bracket
and save.
4. Using a 5/32” hex key, remove the upper and lower
hinge brackets from the door, saving all components.
5. Remove black plugs from opposite side of door, ip the
upper hinge bracket and reattach the hinge bushing
and screw into place on the opposite side of door
(where
plugs were
removed.)
6. Reattach
the upper
and lower
hinges
and hinge
brackets
to the
opposite
sides.

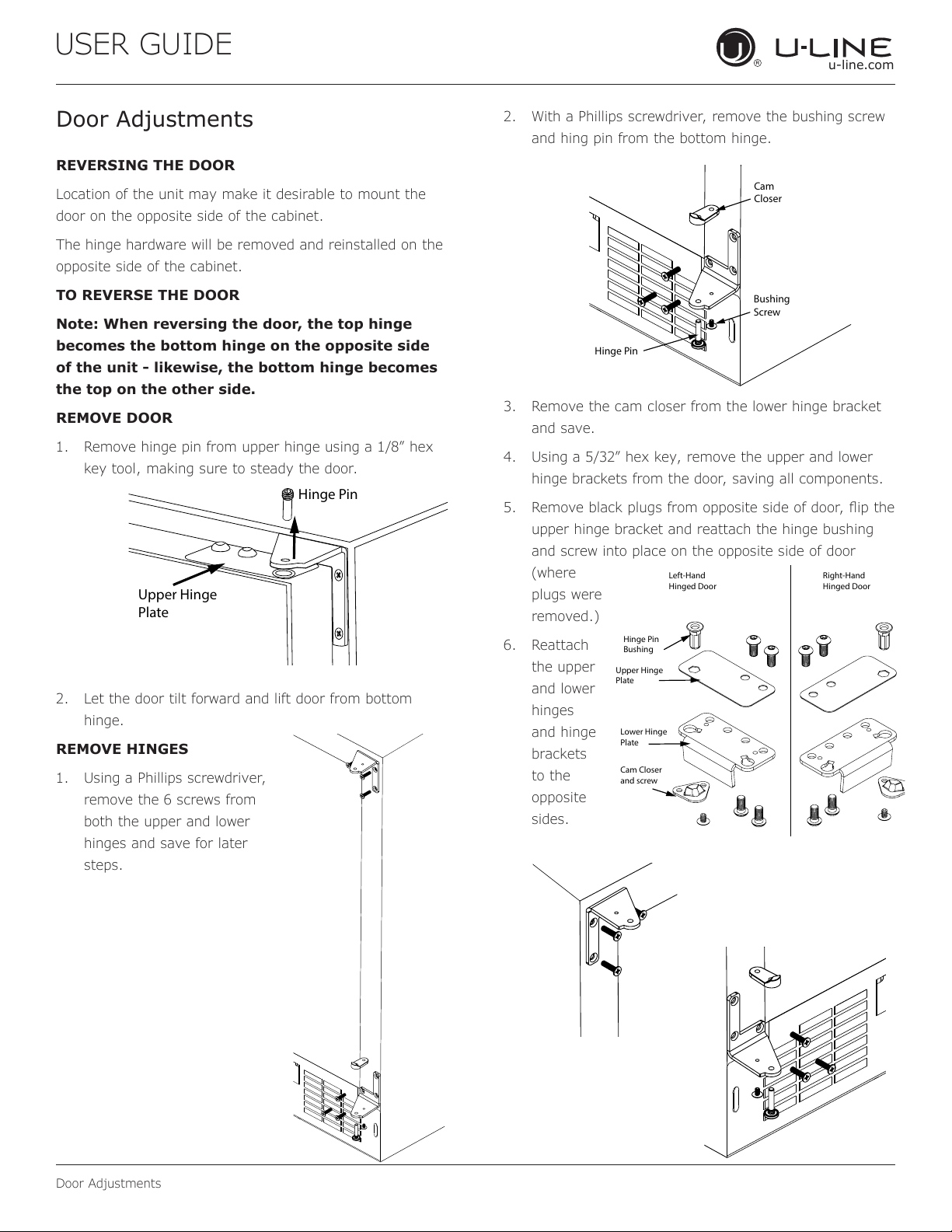

Door Adjustments
REVERSING THE DOOR
Location of the unit may make it desirable to mount the
door on the opposite side of the cabinet.
The hinge hardware will be removed and reinstalled on the
opposite side of the cabinet.
TO REVERSE THE DOOR
Note: When reversing the door, the top hinge
becomes the bottom hinge on the opposite side
of the unit - likewise, the bottom hinge becomes
the top on the other side.
REMOVE DOOR
1. Remove hinge pin from upper hinge using a 1/8” hex
key tool, making sure to steady the door.
2. Let the door tilt forward and lift door from bottom
hinge.
REMOVE HINGES
1. Using a Phillips screwdriver,
remove the 6 screws from
both the upper and lower
hinges and save for later
steps.
Hinge Pin
Upper Hinge
Plate
Hinge Pin
Bushing
Screw
Cam
Closer
Left-Hand
Hinged Door
Right-Hand
Hinged Door
Hinge Pin
Bushing
Upper Hinge
Plate
Lower Hinge
Plate
Cam Closer
and screw
17

USER GUIDE u-line.com
Door Adjustments
7. Using a Phillips screwdriver, remove the toe kick from
the door and attach it to the opposite side.
8. Reinstall the door.
Toe Kick
Reversal
18

USER GUIDE
First Use
u-line.com

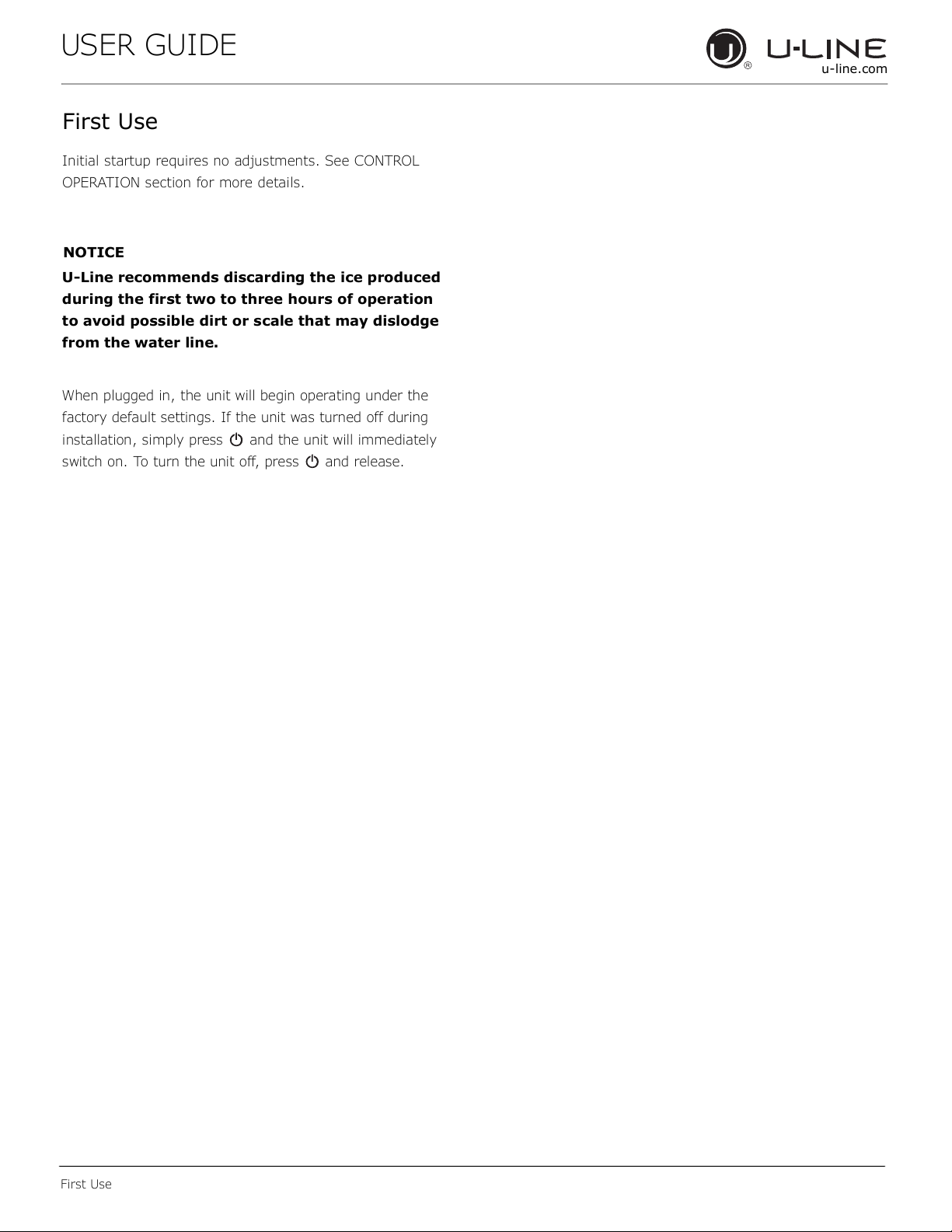

First Use
Initial startup requires no adjustments. See CONTROL
OPERATION section for more details.
NOTICE
U-Line recommends discarding the ice produced
during the first two to three hours of operation
to avoid possible dirt or scale that may dislodge
from the water line.
When plugged in, the unit will begin operating under the
factory default settings. If the unit was turned off during
installation, simply press and the unit will immediately
switch on. To turn the unit off, press and release.
19

USER GUIDE u-line.com
Control Operation

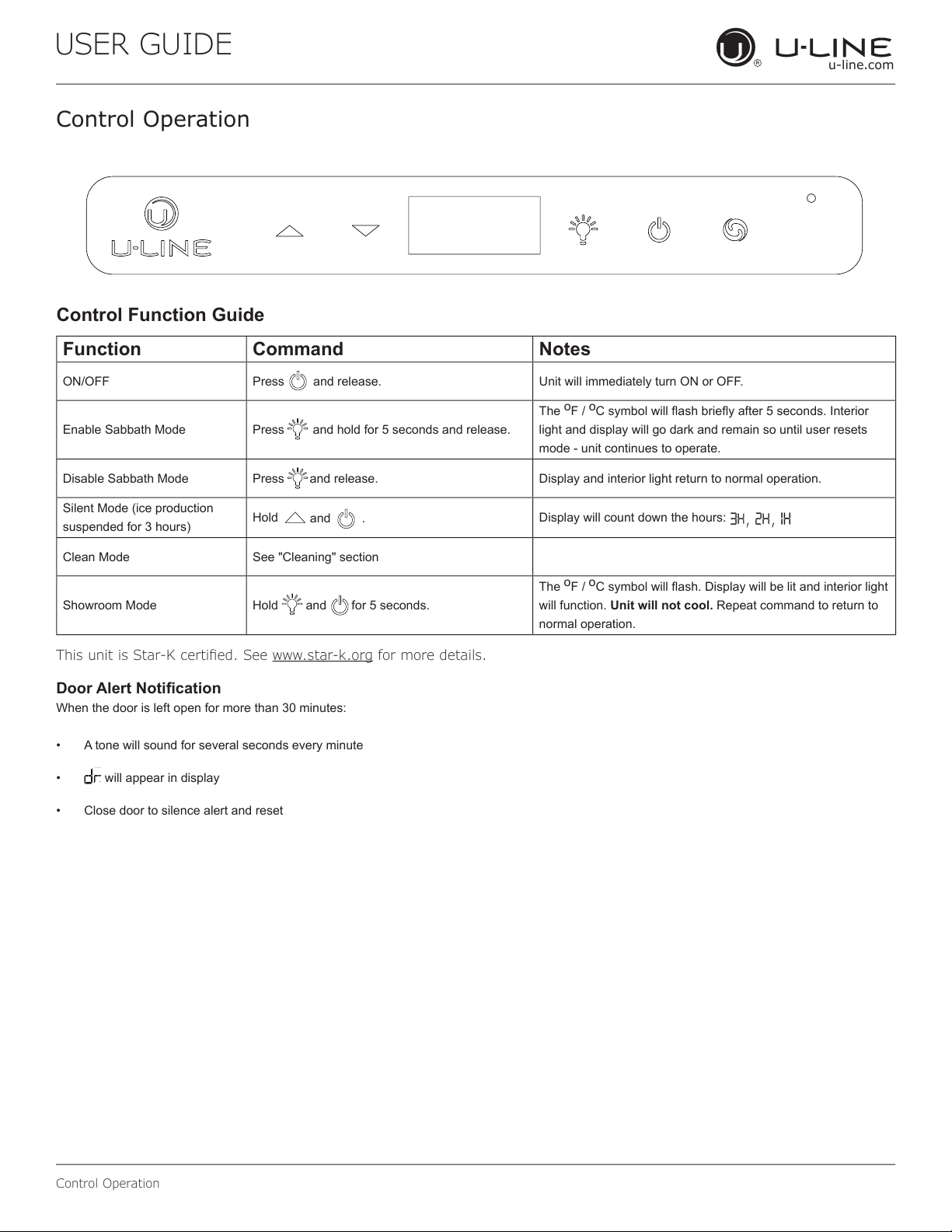

Control Operation
This unit is Star-K certied. See www.star-k.org for more details.
USING YOUR ELECTRONIC CONTROL
Control Function Guide
Function Command Notes
ON/OFF Press and release. Unit will immediately turn ON or OFF.
Enable Sabbath Mode Press and hold for 5 seconds and release.
The oF / oC symbol will ash briey after 5 seconds. Interior
light and display will go dark and remain so until user resets
mode - unit continues to operate.
Disable Sabbath Mode Press and release. Display and interior light return to normal operation.
Silent Mode (ice production
suspended for 3 hours) Hold and .Display will count down the hours:
Clean Mode See "Cleaning" section
Showroom Mode Hold and for 5 seconds.
The oF / oC symbol will ash. Display will be lit and interior light
will function. Unit will not cool. Repeat command to return to
normal operation.
Door Alert Notication
When the door is left open for more than 30 minutes:
• A tone will sound for several seconds every minute
• will appear in display
• Close door to silence alert and reset
First Use
Initial startup requires no adjustments. When plugged in, the unit will
begin operating under the factory default settings. If the unit was turned o󰀨
during installation, simply press and the unit will immediately switch on.
To turn the unit o󰀨, press .
Temperature displayed reects actual temperature inside unit. If the
temperature displayed is di󰀨erent than selected, the unit is progressing
towards the selected temperature. Time to reach set point varies based
upon ambient temperature, temperature of product loaded, door openings,
etc. Marvel recommends allowing the unit to reach set points before
loading.
NOTE
Electronic control
USING YOUR ELECTRONIC CONTROL
Control Function Guide
Function Command Notes
ON/OFF Press and release. Unit will immediately turn ON or OFF.
Enable Sabbath Mode Press and hold for 5 seconds and release.
The oF / oC symbol will ash briey after 5 seconds. Interior
light and display will go dark and remain so until user resets
mode - unit continues to operate.
Disable Sabbath Mode Press and release. Display and interior light return to normal operation.
Silent Mode (ice production
suspended for 3 hours) Hold and .Display will count down the hours:
Clean Mode See "Cleaning" section
Showroom Mode Hold and for 5 seconds.
The oF / oC symbol will ash. Display will be lit and interior light
will function. Unit will not cool. Repeat command to return to
normal operation.
Door Alert Notication
When the door is left open for more than 30 minutes:
• A tone will sound for several seconds every minute
• will appear in display
• Close door to silence alert and reset
First Use
Initial startup requires no adjustments. When plugged in, the unit will
begin operating under the factory default settings. If the unit was turned o󰀨
during installation, simply press and the unit will immediately switch on.
To turn the unit o󰀨, press .
Temperature displayed reects actual temperature inside unit. If the
temperature displayed is di󰀨erent than selected, the unit is progressing
towards the selected temperature. Time to reach set point varies based
upon ambient temperature, temperature of product loaded, door openings,
etc. Marvel recommends allowing the unit to reach set points before
loading.
NOTE
Electronic control
20
