U-Line H-2268 User manual

0715 IH-2268PAGE 1 OF 7
πH-2268
SANITAIRE UPRIGHT VACUUM
1-800-295-5510
uline.com
NOTE: When using an electrical appliance,
basic precautions should always be followed,
including the following: READ ALL INSTRUCTIONS
BEFORE USING THIS VACUUM CLEANER.
WARNING! To reduce the risk of fire,
electric shock, or injury:
• Do not use outdoors or on wet surfaces.
• Do not leave vacuum cleaner unattended when
plugged in. Turn off the switch and unplug the
electrical cord when not in use and before servicing.
• Do not allow to be used as a toy. Close attention is
necessary when used by or near children.
• Use only as described in this manual. Use only the
manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If vacuum
cleaner is not working as it should, has been
dropped, damaged, left outdoors, or dropped into
water, return it to a service center before using.
• Do not pull or carry by cord, use cord as a handle,
close door on a cord, or pull cord around sharp
edges or corners. Do not run vacuum cleaner over
cord. Keep cord away from heated surfaces.
• Do not use extension cords or outlets with
inadequate current-carrying capacity.
• Turn off all controls before unplugging.
• Do not unplug by pulling on cord. To unplug, grasp
the plug, not the cord.
• Do not handle plug or vacuum cleaner with
wet hands.
• Do not put any object into openings. Do not use with
any opening blocked; keep free of dust, lint, hair or
anything that may reduce airflow.
• This vacuum cleaner creates suction and contains a
revolving brush roll. Keep hair, loose clothing, fingers
and all parts of the body away from openings and
moving parts.
• Do not place cleaner on furniture or stairs as the
brush roll may cause damage. Place cleaner on
floor with the handle in storage position while using
attachments.
• Do not pick up anything that is burning or smoking,
such as cigarettes, matches, or hot ashes.
• Do not use without dust bag or filter(s) in place.
• Belt pulleys can become hot during normal use. To
prevent burns, avoid touching the belt pulley when
servicing the drive belt.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible
liquids such as gasoline, or use in areas where they
may be present.
• Store your cleaner indoors in a cool, dry area.
• Keep your work area well lighted.
• Unplug electrical appliances before vacuuming
them.
SAFETY

0715 IH-2268PAGE 2 OF 7

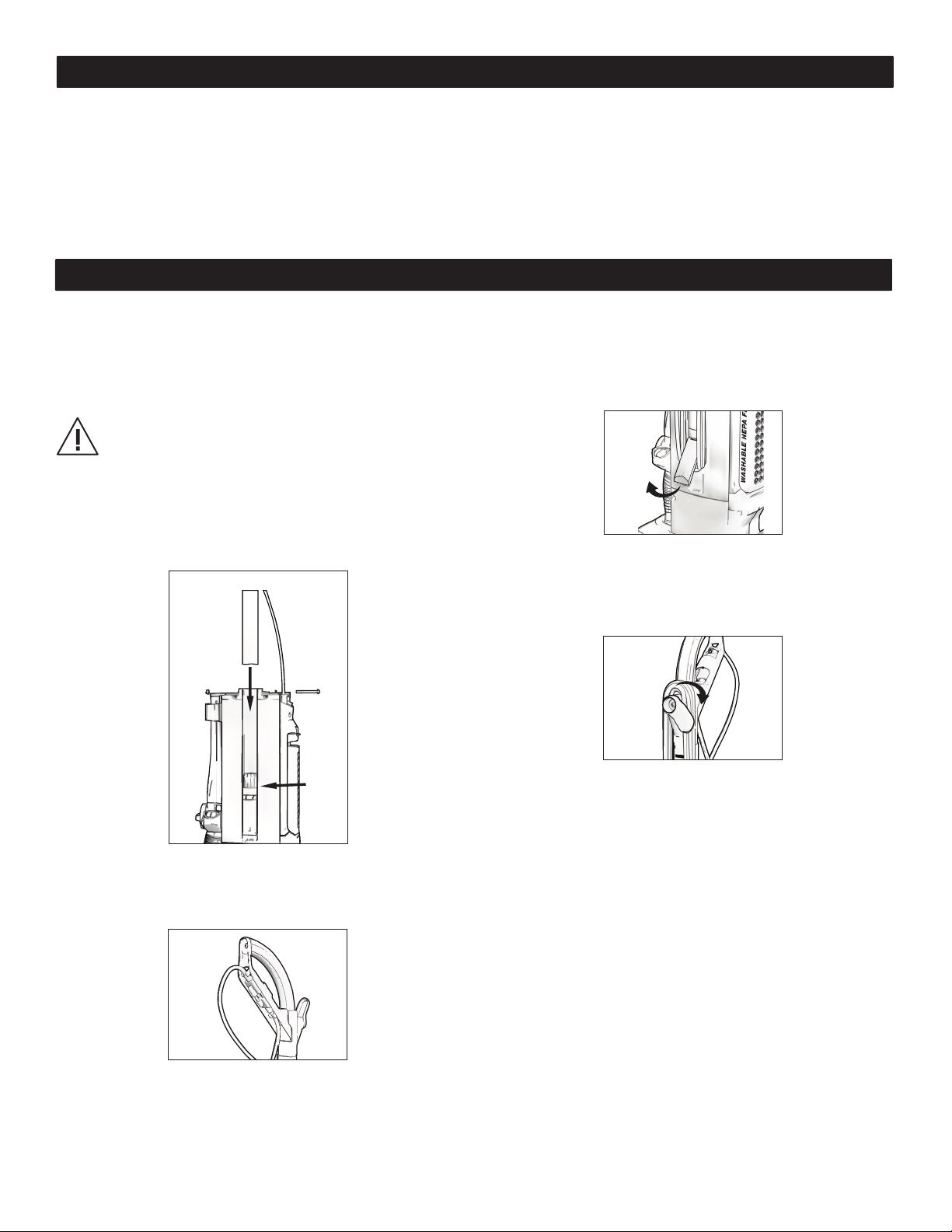

ASSEMBLY PACKET
The assembly packet is with the owner's guide. The
packet contains one machine bolt and nut to fasten the
handle assembly to the container.
CAUTION! Fully assemble the vacuum cleaner
before using.
1. Open the dust bag cover. Slide the metal portion of
the handle assembly down the channel until it fully
seats on the lower retainer. (See Figure 1) Insert the
machine screw through the housing and handle.
Twist on nut and tighten. Close dust bag cover.
2. Plug extension cord into the pigtail connection.
Secure the cord assembly into the retainers at the
back of the handle. (See Figure 2)
3. To store the power cord, lift out the lower cord hook
and wrap the cord around the upper and lower
cord hooks. (See Figure 3) The lower cord hook can
be stored flat on the cleaner when not in use.
4. The power cord can be quickly released by pivoting
the upper cord hook downward. Return the upper
hook to the upright position for cord storage.
(See Figure 4)
On models with cleaning attachments, place the wand
into the lower retainer. Make sure the suction valve is set
to the floor cleaning position. Secure the wand into the
wand clip.
GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should
malfunction or break down, grounding provides a path
of least resistance for electrical current to reduce the
risk of electric shock.
The appliance is equipped with a cord having an
equipment-grounding conductor and grounding plug.
The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance
with all local codes and ordinances.
SAFETY CONTINUED
ASSEMBLY
Figure 1
Figure 2
Figure 3
Figure 4

0715 IH-2268PAGE 3 OF 7
The upright vacuum cleaner is designed to be used on
multiple types of carpeting. Do not attempt to use the
upright cleaner with the brush roll operating on bare
floors, as damage to the floor covering may result.
HANDLE ADJUSTMENT
1. With the tip of the foot, press down on the left portion
of the handle release located at the left rear side
of the cleaner. Move the handle and adjust it to the
desired height. The unit can lay completely flat for
cleaning under low furniture. (See Figure 5)
POWER SWITCH
1. The power switch is mounted on the top of the filter
assembly on the left side of the cleaner. The power
is off with the switch at the center position. Press the
front of the switch for cleaning carpet, press on the
rear of the switch to clean bare floors. (See Figure 6)
CLEANER HEIGHT SETTINGS
1. The front of the cleaner has an adjustment that
raises or lowers the cleaner base to match type of
carpet. (See Figure 7)
2. To determine correct height setting, start with the
highest carpet setting.
3. Lower handle to operating position (to lower vacuum
head to floor).
4. Then lower the setting one notch at a time until you
hear the brush touching the carpet. This will be a
noticeable sound change.
NOTE: Vacuum should not be difficult to
push. Setting vacuum too low could cause
premature wear on belts, brushes and motor.
ATTACHMENT CLEANING
1. The cleaner easily converts to attachment cleaning.
The cleaner should be locked into the upright
position. Remove the wand assembly and rotate
the suction control valve towards the back of the
cleaner to the hose position. (See Figure 8)
2. The valve should be in a horizontal position with the
indicator pointing to the hose setting. (See Figure 9)
HOW TO USE
Figure 5
Carpet
Bare Floors
Figure 6
Recommended
Settings Example of Carpet
Hard Floors
Low Pile
Medium Pile
High Pile
Position 1
Position 2
Position 3
Position 4
Figure 7
Figure 8
Figure 9

0715 IH-2268PAGE 4 OF 7
3. To return to floor cleaning, rotate the valve towards
the front of the cleaner until the indicator points to
the floor setting. Replace the wand into the lower
retainer and secure into the wand clip. The cleaner
is equipped with a wand device that prevents the
wand from being stored until the suction control
valve is set to the floor position. (See Figure 10)
4. To extend the cleaning reach of the wand, push the
dark gray button nearest the handle, and pull down
on the outer wand section. Reverse the process
before returning the wand to the storage position.
(See Figure 11)
5. The wand assembly has a built-in crevice tool and a
permanently attached dusting brush.
6. To engage the dusting brush, press the dark gray
button and slide the brush over the crevice tool until it
locks. Reverse the process for storage. (See Figure 12)
CHANGING THE DUST BAG
1. Pull up on the dust bin cover latch release and fully
open the cover to expose the bag. (See Figure 13)
2. Pull the dust bag straight up to remove. Insert new
bag and close the cover, making sure the latch
locks into the handle. (See Figure 14)
NOTE: the dust bag cover will not latch without
a dust bag installed.
CAUTION! Turn off the switch and unplug the
electrical cord before maintenance.
IMPORTANT! Improper installation of the brush
roll or brush roll belt could cause carpet or
carpet or cleaner damage.
HOW TO REPLACE THE HEPA FILTER ASSEMBLY
1. Pull down on the filter assembly latch to release.
(See Figure 15)
HOW TO USE CONTINUED
Fig ur e 11
Figure 13
MAINTENANCE
Figure 14
Figure 15
Figure 12
Figure 10

0715 IH-2268PAGE 5 OF 7

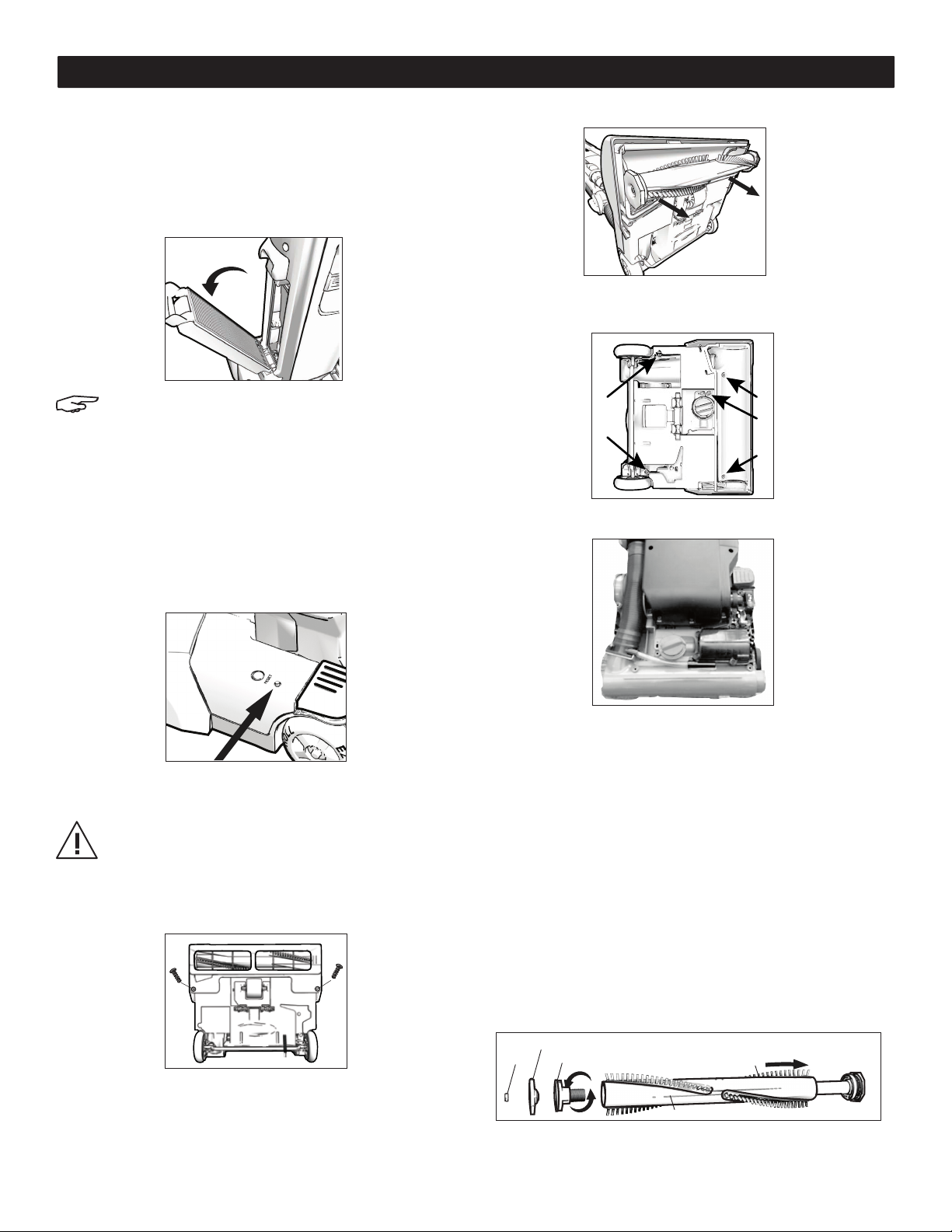

HOW TO REPLACE THE HEPA FILTER CONTINUED
2. Pivot the filter away from the machine and remove.
Install new filter by aligning the tabs at the bottom
of the filter with the slots with the exhaust area of the
cleaner and snap into place. (See Figure 16)
NOTE: This filter is washable and can be
cleaned by rinsing the assembly with warm
water. Be sure the filter is completely dry before
reinstalling in the cleaner.
BRUSH ROLL MOTOR PROTECTION RESET
The cleaner will automatically shut off the brush roll
motor if the brush roll stalls. This will be indicated by a
red light on the handle base near the handle release.
To reset the motor, clear any obstruction to the brush roll
and press the reset switch. (See Figure 17)
HOW TO CHANGE BELT AND SERVICE BRUSH ROLL
CAUTION! Belt pulleys can become hot during
normal use. To prevent burns, avoid touching
the belt pulley when servicing the drive belt.
1. Take out the 2 screws securing the sole plate and
remove. (See Figure 18)
2. Grasp both ends of the brush roll and pull out of the
machine. (See Figure 19)
3. To service the belt, remove five screws from
underneath the base. (See Figure 20)
4. Turn unit over to remove hood and belt. (See Figure 21)
5. At this time, clean any hair or string from brush roll,
removing end caps if necessary.
6. Reverse the steps to reinstall, making sure the new
belt is secure and that the end caps of the brush roll
are properly positioned to fully seat into the base.
HOW TO REPLACE BRUSH STRIPS
a. From the non-pulley end, unscrew locknut (A)
and remove end cap (B). Grasp outer sleeve
and twist bearing retainer (C) counterclockwise
to remove. Pull outer sleeve (D) off of remaining
assembly. Pull out worn brush strip (E) with pliers.
Slide in new same-length brush strip (rounded
end first). Fit track on either side of the brush strip
into the brush roll slot. (See Figure 22)
MAINTENANCE CONTINUED
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21
A
D
B
CCFigure 22

0715 IH-2268PAGE 6 OF 7
HOW TO REPLACE BRUSH STRIPS CONTINUED
b. Replace the second strip from opposite ends of
the brush roll. Replace shaft. Align indentation
on bearing pulley retainer (F) with brush strips
and press outer tube (D) into position. Screw
bearing pulley retainer (C) into inner tube
until tight. Reassemble remainder of brush roll,
making sure it turns freely, and secure to the
base. (See Figure 22)

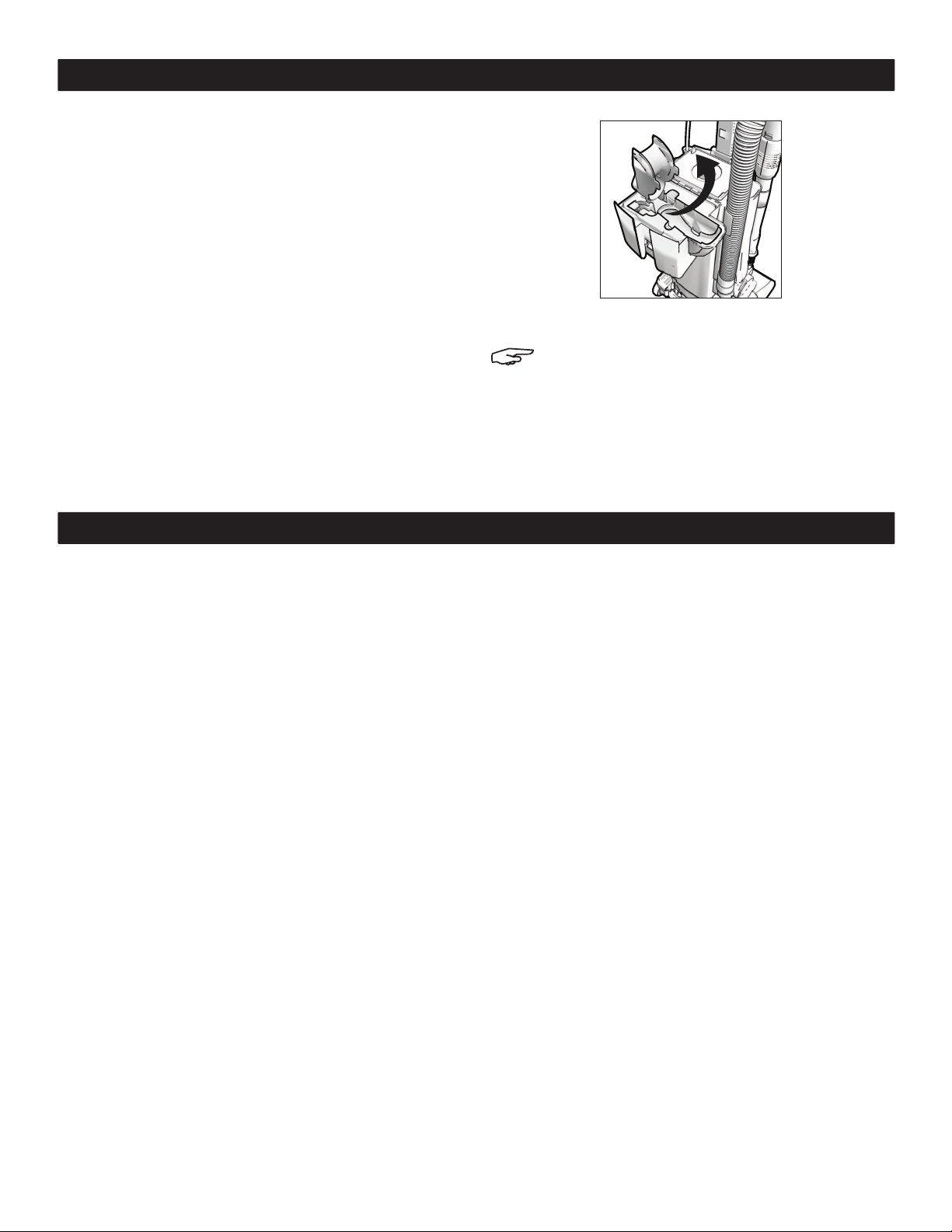

AIR PATH CLEANOUT
The cleaner is equipped with an air path cleanout,
located at the turn leading into the dust bag. To access,
open the dust bag cover and grasp the inlet assembly
at the air path opening. Pull up on the hinged assembly
to reveal the top of the air path. Clean out any debris
and snap the inlet assembly back into place.
(See Figure 23)
PRE-MOTOR FILTER
NOTE: Check the pre-motor filter located under
the dust bag. Check the filter each time the dust
bag is changed. Clean or replace as needed.
Shake filter to remove excess dust. If necessary,
the filter can be cleaned by vacuuming with
another cleaner or washing with mild detergent.
Reinstall filter when completely dry.
MAINTENANCE CONTINUED
Figure 23
ROUTINE MAINTENANCE
DAILY
1. Check Dust Bag – Before each use, check the
disposable dust bag and empty if three-quarters full
or more.
2. Belt Condition – Check the belt for signs of wear.
Change the belt when it is loose or has cuts or
cracks. Refer to the diagram on the underside of the
base for proper installation of belt and brushroll.
3. Supply Cord and Plug – Check supply cord and
plug for any cuts or damage. If damaged, have
the supply cord and plug assembly replaced by a
qualified Sanitaire repair center.
4. Motor – If there are unusual sounds or if poor
performance occurs, the motor should be inspected
immediately by a qualified Sanitaire repair center.
WEEKLY
1. Cloth Dust Bag – Inspect the dust bag assembly for
any unusual wear. Replace bent clips, stretched
springs or a worn bag with genuine Sanitaire
replacement parts.
2. Brushroll Bristle Strips – Check the bristles for wear
once a week. The bristle strips should be replaced
when the bristles are less than 1/4 inch in length.
3. Brush Roll Condition – Check for and remove
any loose material such as string or hair wrapped
around the brushroll.
4. Filter – Check the washable, reusable HEPA filter for
clogs and clean or rinse as needed.
MONTHLY
1. Cleaning – Inspect and clean the vacuum,
including the fan chamber and under the hood.
2. Electrical – Inspect the cord assembly for wear and
check for proper handle assembly.
3. Handle – Check the handle assembly for tightness,
and replace handle bolts if missing.
4. Motor – A qualified Sanitaire repair center should
make a routine check of the motor every 6 months.
Inspect the motor immediately if there are any
unusual sounds or if poor performance occurs.
5. Filter – Check the washable, reusable HEPA filter for
clogs and clean or rinse as needed.

0715 IH-2268PAGE 7 OF 7
πCHICAGO • ATLANTA • DALLAS • LOS ANGELES • MINNEAPOLIS • NYC/PHILA • SEATTLE • MEXICO • CANADA
1-800-295-5510
uline.com
OPERATING ISSUE RECOMMENDATIONS
Belts continue to break. 1. The agitator bar should be positioned so the belt lines up
with the grooves on the bottom frame of the vacuum.
2. Ensure that vacuum is set to correct carpet height setting.
If there is little or no suction. 1. There may be a clog in the hose. Take the hose apart at
the top and bottom and remove the clog.
2. Clean or replace the HEPA filter assembly and/or
pre-motor filter.
3. Ensure that vacuum is set to correct carpet height setting.
4. Check suction control valve to ensure it is set correctly.
Can be set to Hose or Floor Cleaning.
Vacuum turns off while in use. 1. The machine may turn off due to overheating.
2. Check to make sure nothing is caught on the brush roll
and check for clogs.
3. You will need to press the reset button to restart the brush.
Vacuum has a burning smell. 1. The belt may be damaged or something may be caught
in the brush roll.
2. Check brush roll for obstruction.
3. Replace belt.
Brushes aren't turning. 1. Check suction control valve to ensure that it is turned to
floor cleaning.
2. Make sure vacuum is lowered into cleaning position. (Will
not spin in upright storage position.)
TROUBLESHOOTING
