U.S. General 47860 User manual
BRAKE PRESSURE TEST KITBRAKE PRESSURE TEST KIT
BRAKE PRESSURE TEST KITBRAKE PRESSURE TEST KIT
BRAKE PRESSURE TEST KIT
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
Copyright © 2002 by Harbor Freight Tools®. All rights reserved. No portion of
this manual or any artwork contained herein may be reproduced in any shape
or form without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353
47860
Page 2SKU 47860
Specifications
Save This Manual
You will need the manual for the safety warnings and precautions, assembly instructions,
operating and maintenance procedures, parts list and diagram. Keep your invoice with this
manual. Write the invoice number on the inside of the front cover. Keep the manual and
invoice in a safe and dry place for future reference.
Safety Warnings and Precautions
WARNING: When using tool, basic safety precautions should always be followed to
reduce the risk of personal injury and damage to equipment.
Read all instructions before using this tool!
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power tools in damp or wet
locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically
powered tools in the presence of flammable gases or liquids.
3. Keep children away. Children must never be allowed in the work area. Do not let
them handle machines, tools, or extension cords.
4. Store idle equipment. When not in use, tools must be stored in a dry location to
inhibit rust. Always lock up tools and keep out of reach of children.
5. Use the right tool for the job. Do not attempt to force a small tool or attachment to
do the work of a larger industrial tool. There are certain applications for which this tool
was designed. It will do the job better and more safely at the rate for which it was
intended. Do not modify this tool and do not use this tool for a purpose for which it
was not intended.
6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in
moving parts. Protective, electrically non-conductive clothes and non-skid footwear
are recommended when working. Wear restrictive hair covering to contain long hair.
7. Use eye and ear protection. Always wear ANSI approved impact safety goggles.
8. Do not overreach. Keep proper footing and balance at all times. Do not reach over
or across running machines.
9. Stay alert. Watch what you are doing, use common sense. Do not operate any tool
when you are tired.
Page 3SKU 47860
10. Maintain tools with care. Keep tools sharp and clean for better and safer
performance. Follow instructions for lubricating and changing accessories. Inspect
tool cords periodically and, if damaged, have them repaired by an authorized
technician. The handles must be kept clean, dry, and free from oil and grease at all
times.
11. Check for damaged parts. Before using any tool, any part that appears damaged
should be carefully checked to determine that it will operate properly and perform its
intended function. Check for alignment and binding of moving parts; any broken parts
or mounting fixtures; and any other condition that may affect proper operation. Any
part that is damaged should be properly repaired or replaced by a qualified
technician.
12. Replacement parts and accessories. When servicing, use only identical
replacement parts. Use of any other parts will void the warranty. Only use accessories
intended for use with this tool. Approved accessories are available from Harbor
Freight Tools.
13. Do not operate tool if under the influence of alcohol or drugs. Read warning
labels on prescriptions to determine if your judgment or reflexes are impaired while
taking drugs. If there is any doubt, do not operate the tool.
14. Maintenance. For your safety, service and maintenance should be performed
regularly by a qualified technician.
15. Fire Prevention. Do not smoke in or around the general area of the vehicle service
area.
Warning: Follow all warnings in vehicles’s manual. The warnings, cautions, and instruc-
tions discussed in this instruction manual cannot cover all possible conditions and
situations that may occur. It must be understood by the operator that common sense
and caution are factors which cannot be built into this product, but must be supplied by
the operator.
Unpacking
When unpacking, check to make sure the following parts are included.
If any parts are missing or broken, please call Harbor Freight Tools at the number on the
cover of this manual as soon as possible.
20 - Various Fittings.
See Parts List for sizes.
2 - Pressure Gauges
with Hoses (1)
Pressure Adapter (3)
Teves Adapter (2)
Page 4SKU 47860
Operation
Warning: The brass components of this product contain lead, a chemical known to the
State of California to cause birth defects (or other reproductive harm). (California Health
& Safety Code 25249.5 et seq.)
1. Turn vehicle ignition off. Always activate the emergency brake when working on the
vehicle.
2. Depressurize brake system by pumping brake pedal (to the floor) at least 20 to 40 times.
When you feel a pronounced increase in pressure against your foot, pump the pedal
three more times.
3. Refer to the vehicle service manual to find the correct location to attach the test
assembly.
Caution: Wear approved safety glasses to avoid brake fluid from contacting the eyes. Do
not allow brake fluid from contacting and damaging the vehicle paint.
4. Attach the test adapter (See Parts Drawing for available sizes).

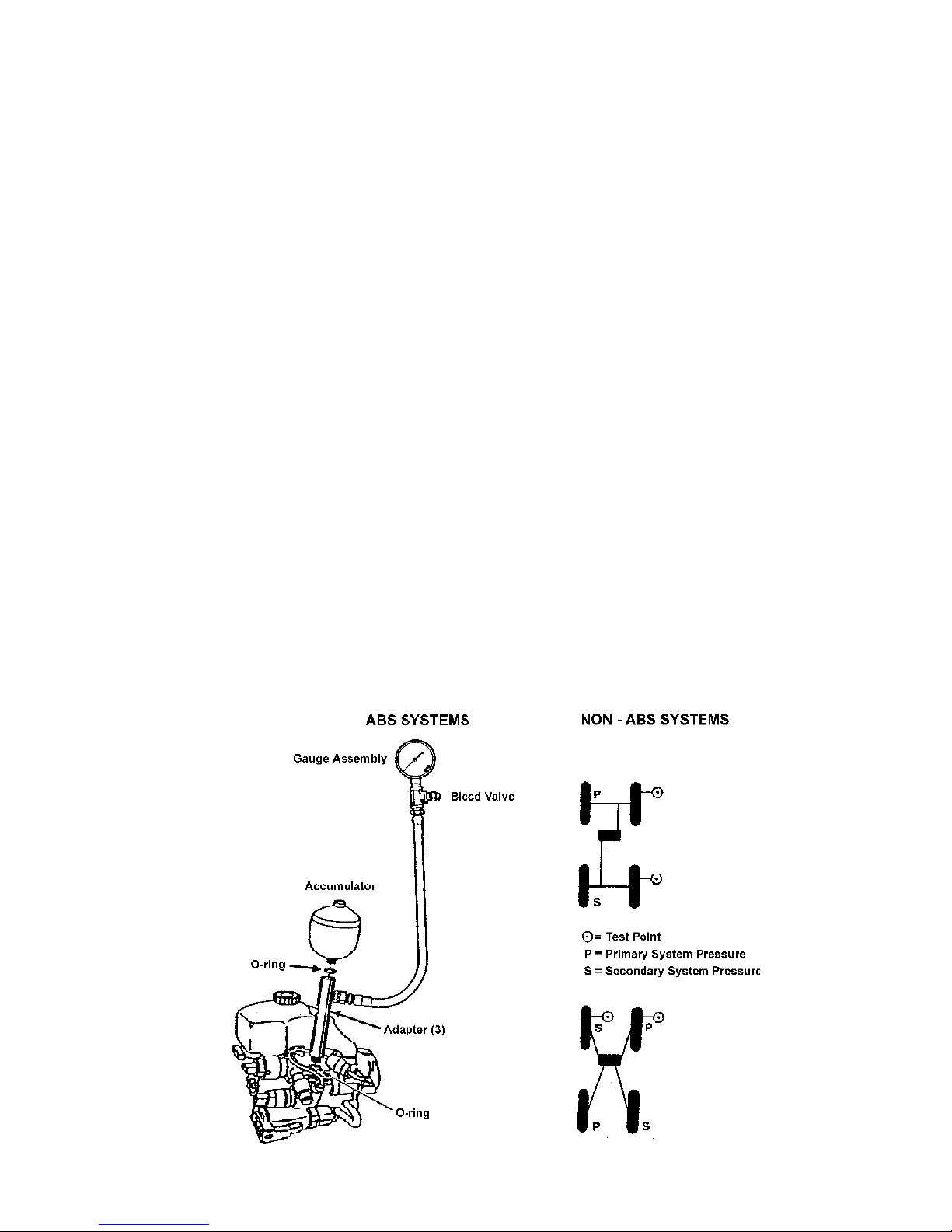

For Teves Systems:
a. Remove accumulator (with O-ring) from pump body.
b. Thread desired Adapter (shown below) into the pump body.
c. Install the accumulator onto the Adapter as shown.
Caution: The brake fluid is under extremely high pressure. When pressure testing Teves
Systems, do not open the bleed valve when the accumulator is charged. Check to be
sure that it is tightly closed before turning the ignition on to start the pump.
Page 5SKU 47860
4. Attach the test adapter (continued).
Bosch Systems:
a. Remove the bleeder screw from the caliper.
b. Thread the desired Adapter into the caliper only until seated (primary or secondary
test points).
5. Attach the Gauge Assembly hose to the Adapter and tighten.
6. Turn the ignition on to start the engine and run the pump.
7. Connect a short, clear tube to the Bleed Valve, and the other end in a container.
Alternately, place a rag over the Bleed Valve to prevent the brake fluid from spraying.
8. Open the Bleed Valve until all air is evacuated. Close Bleed Valve.
Verify proper system pressure on the Pressure Gauge. Review the vehicle service
manual procedure for testing hydraulic pressure.
9. Turn the engine off.
10. Depressurize brake system by pumping brake pedal (to the floor) at least 20 to 40
times.
When you feel a pronounced increase in pressure against your foot, pump the pedal
three more times.
Caution: Never disconnect the brake pressure testing components while under pres-
sure.
11. Remove the brake pressure testing components.
Clean and store them in the case.
Maintenance
1. Thoroughly clean all Brake Test Pressure Kit components after each use.
2. Store all components in the tester’s kit case.
3. Clean up all spilled brake fluid from vehicle and floor.
Never run a vehicle’s engine in an enclosed garage or any other type
of enclosed structure. Carbon Monoxide, an odorless, colorless
deadly gas may accumulate and cause serious injury or death.
Page 6SKU 47860
Parts List
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS
MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBU-
TOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER
AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS AND NOT BY THE
BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER
REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING
OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
NOTE: Some parts are listed and shown for illustration purposes only
and are not available individually as replacement parts.
Page 7SKU 47860

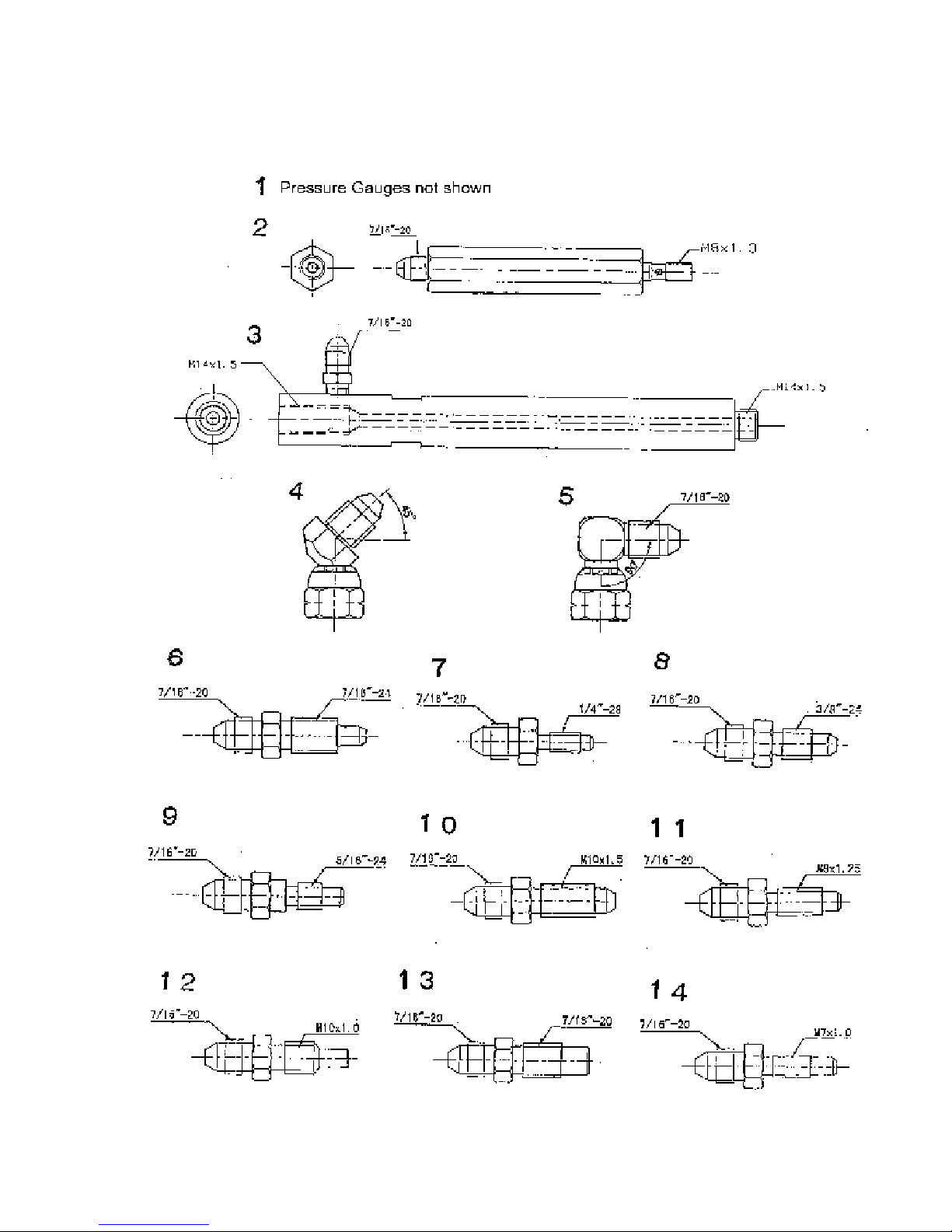

Parts Drawing
