SOLUS-310
EXTRACTOR
120V
INFORMATION
&
OPERATING
INSTRUCTIONS
DO NOT OPERATE MACHINE UNTIL YOU HAVE READ
ALL SECTIONS OF THIS INSTRUCTIONS
IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY
1. Always use a defoamer when foaming occurs to prevent vacuum motor damage.
2. Keep machine from rain and snow, extremes in temperatures, and store in a
heated location. Use the machine indoors. DO NOT let the machine freeze.
3. Do not let the pump run dry.
4. Use approved chemicals only. NO SOLVENTS.
5. Wear gloves or use rags when removing quick disconnects to prevent burns.
6. Never use water above 130 ºF/54 ºC in the solution tank.
11-SOLUS310.5.20.2008

2
IMPORTANT SAFETY INSTRUCTIONS
This machine is only suitable for commercial use, for example in hotels, schools, hospitals, factories,
shops and offices other than normal residential housekeeping purposes.
When using any electrical appliance, basic precautions should always be followed, including the following:
NOTE: Read all instructions before using this machine.
WARNING!
To reduce the risk of fire, electric shock, or injury:
•Do not leave the machine unattended when it is plugged in. Unplug the unit from the outlet when
not in use and before servicing.
•To avoid electric shock, do not expose to rain or snow. Store, and use, indoors.
•Do not allow to be used as a toy. Close attention is necessary when used near children.
•Use only as described in this manual. Use only the manufacturer’s recommended attachments.
•Never add water over 130º F/54º C to the solution tank.
•Do not use with damaged cord or plug. If the machine is not working as it should, has been
dropped, damaged, left outdoors or dropped into water, return it to a service center.
•Do not pull by the cord, use the cord as a handle, close a door on the cord, or pull the cord around
sharp edges or corners. Do not run the machine over the cord. Keep the cord away from heated
surfaces. To unplug, grasp the plug, not the cord.
•Do not handle the plug, the cord or the machine with wet hands.
•Extension cords must be 12/3 and no longer than 50 feet. Replace the cord or unplug immediately
if the ground prong becomes damaged.
•Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint,
hair, and anything that may reduce air flow.
•Keep loose clothing, hair, fingers, and all parts of body away from openings and moving parts.
•Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes, or
any health endangering dusts. Do not use to pick up flammable or combustible liquids such as
gasoline or use in areas where they may be present.
•Turn off all controls before unplugging.
•Use extra care when cleaning on stairs.
•Connect to a properly grounded outlet only.
•Liquid ejected at the spray nozzle could be dangerous as a result of its temperature, pressure,or
chemical content.

3
INSPECTION:
Carefully unpack and inspect your SOLUS-310R for shipping damage. Each machine is tested
and inspected before shipping. Any shipping damage incurred is the responsibility of the carrier.
You should notify the carrier immediately if you notice damage to the box or to the machine or
parts.
CLEANING SOLUTIONS:
We recommend liquid cleaning chemicals, such as our Magic Fabric Cleaner. Powder chemicals
may be used, but unless mixed very thoroughly they could cause a build-up in the pump, lines,
heat exchanger and/or quick disconnects. Any problem caused by a chemical build-up is not
covered by warranty. Use a neutral cleaner with a pH between 6 and 9 to avoid premature wear
of the pump, seals, and/or other components. Damage caused by the use of strong chemicals is
not covered by the warranty.
MAINTENANCE:
For optimum performance flush the machine with clear water at the end of each working day.
Once a month, minimum, run a flushing compound through the machine to break up any mineral
or chemical build-up that may have formed. U.S. Products’ “X-1500” is recommended. The
vacuum motor, pump motor, and the pump do not require any scheduled maintenance; however,
the motors may require replacement brushes after 1000 - 1500 hours, and the pump and bypass
valve may require rebuild kits after 1000 - 1500 hours, typically (refer to machine part list for
numbers). Clean the body with an all-purpose detergent, and protect it with an automobile
interior polish. Lubricate the wheels, castors, and quick disconnects with an all purpose silicone
spray.
PARTS AND SERVICE:
Repairs, when required, should be performed by your authorized distributor who maintains an
inventory of original replacement parts and accessories. Call the distributor from whom you
purchased this machine if you need parts and service. Be sure to specify the machine model.
Have your serial number handy.
(and be sure to register your warranty: go on-line to www.usproducts.com)
Serial Number: __________________
Model: SOLUS-310
Purchase Date:_____________
Write the name and phone number of your
distributor:
_____________________________________
_____________________________________

4
KNOW YOUR MACHINE
VACUUM LID -Thislidprovidesaccessintoyourrecoverytanksothatyoucancleanthetank. Thelidmust
beclosedbefore you trytoclean..
SOLUTION TANK FILL HOLE -This is where youfillthetankwith water and cleaning solution.
VACUUM HOSE BARB -Thisiswhereyou connectyourvacuumhoseto themachine.Atightconnectionis
necessaryto preventavacuum leakwhichwould reducetheamount ofsuction.
DRAIN HOSE -Thisis howyouemptythedirty waterfromyour recoverytank. Place thehoseover adrain,
andopenthecap. When cleaningout thetankattheendofajob,simplyplacethis hoseinto adrainanduse
cleanwater torinse outthedirtanddebrisfromthe tank. NOTE:be suretoclosethecaptightlybefore using
themachineagain.
HANDLES -Thehandles areusedtomove themachine. Thesehandlesallow you totiltthe machine back
ontoit’s12” wheelsforeasy maneuvering, and/orformoving on stairways.
DRAIN
HOSE
HANDLES
VACUUM
HOSE BARB
FAN
POWER CORD
RECEPTICLES
VACUUM
LID
12”
WHEELLATCH
SOLUTION HOSE
QUICK COUPLING
SWITCH
PLATE
CASTOR
SOLUTION
TANK FILL
HOLE
PSI
GAUGE
SWITCH PLATE - The switches are located on the rear of the machine, out of the way of water
FAN -Removeswarm air fromthecomponent compartment.
PSI GAUGE - indicates the pump pressure. Look at the pressure while you spray.
LATCH -Thelatch holds together thetankandthe base compartment.
SOLUTION HOSE QUICK COUPLING-Thisiswhereyouconnectthesolutionlinethatrunsfromthemachine
tothecarpet wand orhandtool.
POWER CORD RECEPTACLES - The receptacles are where the two power cords connect to the machine.
CASTOR -Swivelcastorprovideseasy maneuverability.
WHEEL-Therearwheelsare12inchesindiametertoprovidesuperioreaseoftransportationandstairclimbing.

5
VACUUM SWITCH (1):
This switch will illuminate when the vacuum motors are on.
The vacuum motors run off of cord #1
CIRCUIT LOCATOR (2):
When this light is on, it indicates that cord #2 (Identified by
the red “H” on the back of the extractor.) is on a separate line
from cord #1. Cord #2 supplies voltage to the heater
allowing it to heat to the temperature range indicated by the
Heat Control dial (5) on the switch plate.
BYPASS SWITCH (3):
The bypass switch will illuminate when it is activated and will
completely bypass the circuit locator system. Use the system
only when the circuit locator light will not turn on and you
know each cord is on a separate circuit.
HEAT MODE LIGHT (4):
This light will only illuminate when the heater is heating and
will turn off when it reaches operating temperature. During
normal operation, the “MODE” light will be on most of the
time.
CARPET UPHOLSTERY SWITCH (5):
This rocker switch activates a solenoid valve - when it is
turned to Upholstery - that allows most of the pump pressure
to recirculate back to the Holding tank. This allows you to
clean delicate material at low psi (about 75 psi). When the
switch is set to Carpet, the pump operates without the
solenoid and provides about 300 psi to the cleaning tool. The
pump runs off of cord #1. The pump spraying pressure will
be observable at the pressure gauge. This switch does not
light up.
PUMP ON/OFF SWITCH (6):
This switch turns the pump on and off. It will light up when it
is turned on.
CAUTION: WHEN THE BYPASS SWITCH IS ON, THE
CIRCUIT BREAKER CAN TRIP IF BOTH CORDS ARE ON THE
SAME CIRCUIT AND THE BYPASS SWITCH IS TURNED ON.
FIGURE #1
SWITCH PLATE
NEVER LET YOUR MACHINE OR YOUR WAND FREEZE
1
2
3
4
56

6
SET-UP:
1. Fill the holding tank with clear water and prespray with the detergent of your choice (we
recommend a CRI approved chemical). Mix well. Although this machine is designed to supply
instant hot water, the addition of warm water to the holding tank would increase heater
efficiency. Never use water above 130º F/54º C in the solution tank.
2. Turn off all the switches. Plug in cord #1. (This cord runs the pump and vacuum).
3. Attach the priming hose to the machine and place the open end into the tank (see Figure 2 on
previous page).
4. Turn on the pump (turn pump pressure dial all the way clockwise) and let it run until the pump
is fully primed (approximately 30 seconds to 1 minute). Once the pump is primed, turn off the
pump and disconnect the priming hose. Attach the cleaning hose and tool.
IF YOU WANT HEATED SOLUTION:
5. Plug in the the heater cord (identified by “H” on the back of the machine). NOTE: If the green
circuit indicator light does not illuminate when the heater cord is plugged in, then both cords are
on the same circuit. Try other outlets until the light comes on. See Bypass Switch section (below)
if you are unable to get a green light.
6. Turn on the pump and spray through your tool a few times to fill the lines with solution. Begin
cleaning.
7. Refill and empty the tanks as necessary.
8. When finished with the job, vacuum all unused solution into the recovery tank, and dump the tank.
Clean the tanks and filters. Clean the tool and hoses. Store the machine in a heated location.
ELECTRIC CIRCUIT LOCATOR:
This unique, patented “smart system,” operated by a solid state circuit, will inform the operator when the
two cords are plugged into separate lines by illuminating the green, indicator light. This helps prevent
tripping circuit breakers.
BYPASS SWITCH:
The bypass switch (#6) completely bypasses the circuit locator system. Use this feature when you
cannot get the green Locator light (#5) to come on and you believe that the two cords are on separate
circuits.
CAUTION: If the bypass switch is on when the two cords are plugged into the same
circuit, the breaker may trip.
AUTO VACUUM SHUTOFF:
When the recovery tank is full, the float system will shut off the vacuum motor to prevent the machine
from overflowing. The float may not work in foam. Always use a defoamer to prevent overflow. Once
the vacuum motor shuts off, the vac switch (#7) must be turned off, the recovery tank emptied, and
then the vacuum swtich turned back on (up position) to get the vacuum motor started again.
CAUTION: Always make sure the float is clean and travels freely before turning on the
machine. A float that is stuck will cause the vacuum motor to suck in water, resulting in
vac motor damage.
PUMP PRESSURE:
Make sure the cleaning tool is spraying when adjusting the pressure, otherwise the pressure reading will
be inaccurate.

7
SPECIFICATIONS:
Rotomolded Body:
Vacuum:
VAC Shutoff:
Pump:
Waterlift:
Heat:
Heater:
Wand:
Weight:
Dimensions:
Lifetime Warranty
Two 5.7”, 2-stage
Electronic
Positive displacement, fully adjustable 0-500 psi
86” -- 200 CFM
up to 212º F
2000 Watts
Stainless steel, double bend, twin tip
115 lbs.
24W x 28L x 41H (inches)
TROUBLE SHOOTING:
IF THIS OCCURS CHECK THIS
NO SPRAY
PUMP DOES NOT RUN
Solution tank is empty.
Clogged spray tip.
Pump not running or not primed.
Valve on wand not operating.
Check the brushes in the pump motor. Replace if necessary.
No power to pump. Test the Motor Speed Control Circuit Board and potentiometer.
Debris is plugging cleaning tool or vacuum hose.
Drain gate is not completely closed, or seals are damaged.
Vacuum dome is not seated or is damaged.
No power to motor.
Test the Electronic Float.
Test the switch.
Test the vacuum motor.
Test the Vacuum Circuit Board.
Spraying too long. Try spraying for 12-15 seconds, or about three strokes.
Heat exchanger needs to be flushed.
Wrong tool being used. Too much water passing through. Longer hose or larger
diameter hose, than standard.
Heat is not turned on. Either the green light must be on or the bypass switch must
be turned on.
No power in the wall outlet - check to see if the breaker has tripped.
No power to the bypass switch - check wiring for ‘opens.”
No power out of bypass switch, follow troubleshooting steps to isolate the problem.
Call your distributor for additional help.
LOW SUCTION
NO SUCTION
LOW HEAT
NO HEAT

8

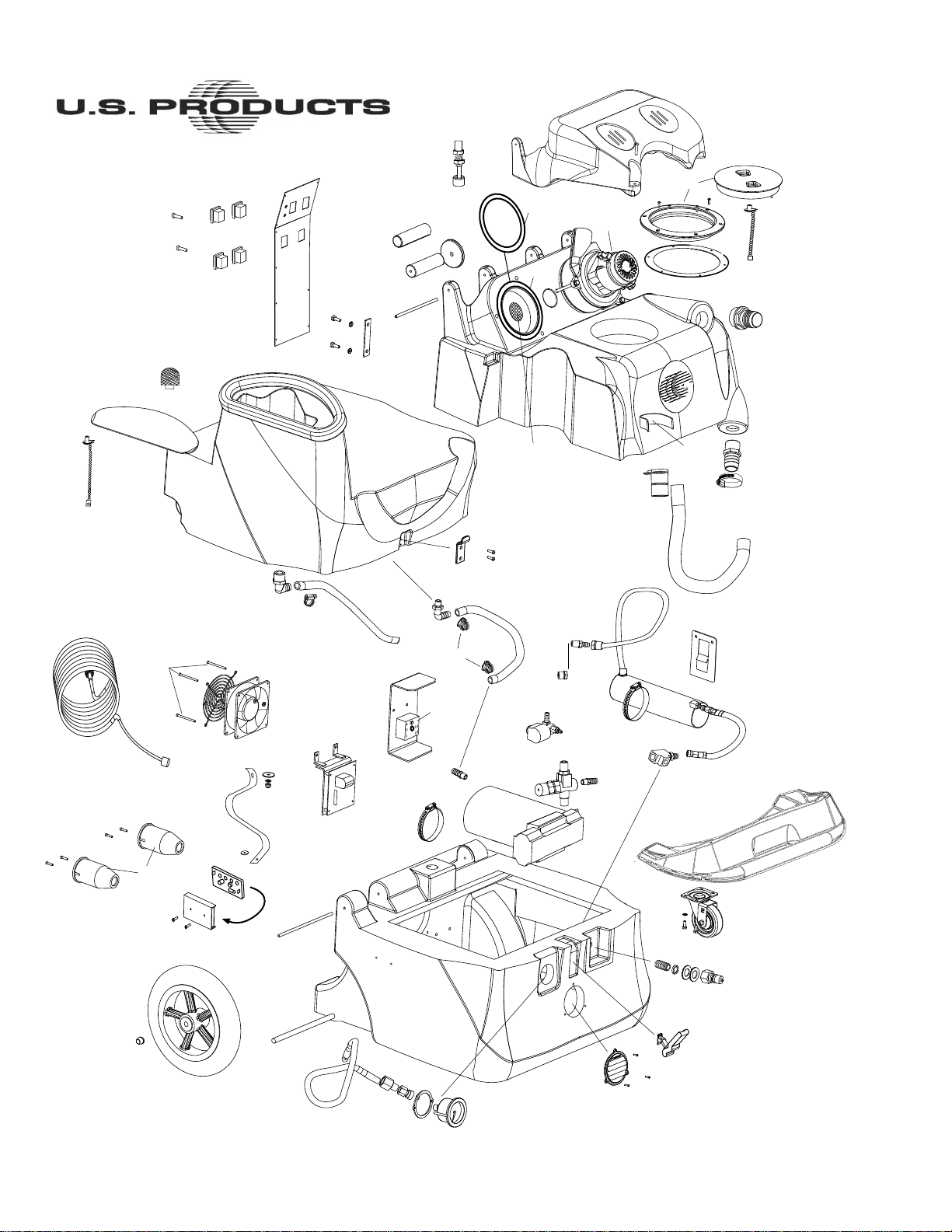

SOLUS-310 EXTRACTOR
PART LIST
1 78 Light, green indicator
2 FP312 Switch, SPDT
3 FP311A Switch, SPST, with cover
4 78B Light, red, indicator
7 2093C Switch plate, Solus 310
8 4404C Mating bar
9 2105 Wheel, handle
9A 2106 Handle
10 1590 Grip, Handle
11 FP478 Float assembly, electric, water level
12 801D Hinge pin
13 FP____ Tank, Vacuum
13A FP____ Cover, vacuum motors
14 2013A Gasket, vacuum
14A 2013 Gasket, vacuum
15 408 Vacuum motor, 120V
15A 1589 Screen, 1/8 S/S mesh, vac inlet
16 2086 Lid & ring, vacuum
17 1074 Gasket, vacuum lid
18 805 Chain, 8”
19 907 Hose barb, 1-1/2”
20 1130 Strap, Velcro, 9”
21 1060C Cap, drain hose
22 156 Hose Clamp
23 1060B Hose, drain
24 FP____ Tank, Holding
25 FP545 Lid and chain, Holding Tank
26 909A Latch strike
28 1113 Hose barb, 90°, 1/2” hose
28A 1115 Hose barb, 90°, 3/8” hose
29 925 Hose, 3/8” ID X 17”, bypass hose
31 166 Hose clamp
33 946 Hose, 1/2” ID X 20”, pump inlet hose
34 207A Filter, pump inlet
36 See Miscellaneous **
37 918 Heat Sink plate
39 3000 Bracket, solenoid mounting
40 FP225 Vacuum Motor Control PCB
41 2014 Fan, 120V
42 2015 Guard, fan
43 2B1 Screw, 6-32 X 2-1/4”
44 1057B Power Cord, 12/3, 25 ft
45 1062 Receptacle, AC power in
46 1476 Strap, 17”
47 2062 Solenoid, normally closed
49 FP336 PCB mounting track, 4”
50 923B Dual Cord Sensor PCB
ITEM PARTNo DESCRIPTION ITEM PART No. DESCRIPTION
120V
MISCELLANEOUS PARTS
**FP194E Heat repair kit includes thermistor control,
thermistor probe & cutout
950CP Pump rebuild kit, valves and o-rings
250 Pump rebuild kit, piston and seals
FP____ Pump & motor, complete, with bypass
11/9/2007
51 76A Hose Clamp
52 2060 Motor, AC, for pump
53 FP____ Pump complete, no mtr
54 FP542 Hose assembly, pump to gauge
54A 210 Snubber, pulsation dampening
55 801 Hinge pin
56 27A Axle Cap
57 2092 Wheel, 12”
58 910 Axle,
60 FP____ Base
61 FP____ Castor Plate, BLack
62 905 Castor, 4”
63 951A Gauge, Pump pressure, 300 PSI
64 928 Louver, 3”, gray
65 908 Latch
66 45 Quick Disconnect, male. 1/4 p.t.
67 116 Bushing, fiber
68 115 Washer, fiber
70 168 “T” Brass
71 92A Nipple, 1/4 p.t. S/S
72 FP___ Heat Exchanger, complete
73 455 Mount bracket, heater
74 945 Valve, bypass
77 1278A Hose, heater inlet
78 313 Hose, S/S, braided, heater outlet

9
SOLUS-310
21
33
8
25 18
26
28
31
45
36
37
40 51
46
55
57
56 58
62
60
64 65
66
68
53
52
73
71
72
51
05.20.2008
50
49
1
3
7
29
28A
31
24
12
16
18
15
14
19
20
23
19
13
17
11
10
70
77
PUMP
9A
34
63
54
54A
44 42 41
43
61
74
22
9
Pump
Inlet
Pumpto
Heater Hose
Heater to
Outlet Hose
Pump to
Gauge Hose
Bypass
Hose
13A
2
4
47
67
15A
{
14A
78

10
NOTES:
SOLUS-310
208-772-0573 •800-257-7982 •FAX: [phone]
Coeur d’Alene, Idaho
VISIT US AT: http://www.usproducts.com
