U.S.SAWS FSB-150
OPERATING MANUAL

Symbols & Labels
© 2011 ICS, Blount Inc. F/N 70944 May 2011
TITLE 633GC / 633F4 OPERATOR’S MANUAL
4

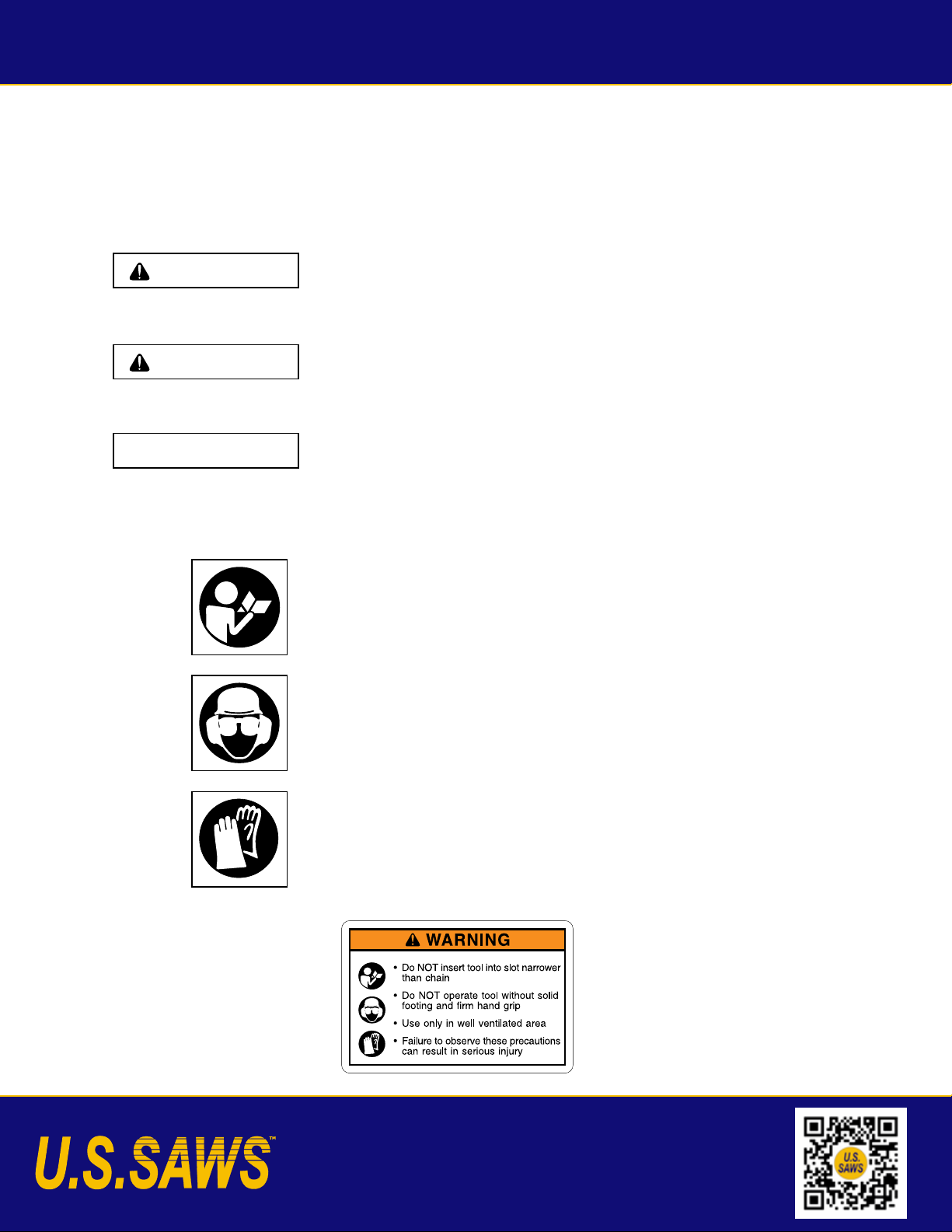

SYMBOLS & LABELS
THE FOLLOWING SYMBOLS & DEFINITIONS ARE FOUND THROUGHOUT THIS MANUAL AND
ARE DESIGNED TO MAKE YOU AWARE OF POTENTIAL HAZARDS OR UNSAFE PRACTICES.
A potentially hazardous situation exists which, if not avoided,
could result in death or serious injury.
A potentially hazardous situation exists which, if not avoided,
may result in minor or moderate injury or property damage.
A potential situation exists which, if not avoided, may result in
product or property damage.
THE FOLLOWING SYMBOLS & LABELS MAY BE FOUND IN THIS MANUAL OR ON THE SAW
Read the operator’s manual carefully and understand the
contents before you use this equipment.
Always use:
• Protective helmet
• Ear protection
• Protective glasses or full face protection
Wear hand protection
IMPORTANT
WARNING
CAUTION
Symbols & Labels
THE FOLLOWING SYMBOLS AND DEFINITIONS ARE FOUND THROUGHOUT THIS
MANUAL AND ARE DESIGNED TO MAKE YOU AWARE OF POTENTIAL HAZARDS OR
UNSAFE PRACTICES.
3
Air Powered Chain Saw
Dust Buggy
FSB - 150
Waterworks
Division
P: 866 987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
SYMBOLS & LABELS

SAFETY & OPERATIONS
Waterworks
Division
P: 866 987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
INTRODUCTION
The FS-150 walk-behind air saw is designed for simple operation and has been proven to be extremely useful and versatile. A 12” to
20” diameter diamond blade may be mounted on the saw if it is rated and approved for operation at 3,300 RPM. READ, AND CARE-
FULLY FOLLOW, THE OPERATING AND SAFETY INSTRUCTIONS OF THIS OPERATING AND SAFETY INSTRUCTION MANUAL BEFORE
USING THIS PRODUCT. Since safety regulations can vary between different countries and states, you must contact proper authorities
and follow all appropriate regulations
IMPORTANT SAFETY INSTRUCTIONS
No person should attempt to operate this saw without rst being trained in the operation of industrial cutting tools. These
instruc¬tions are not intended as a substitute for training and experience. The operator must observe safeguards that include, but
are not limited, to the following:
• DO NOT MODIFY ANY SAW FROM IT’S ORIGINAL DESIGN WITHOUT THE WRITTEN PERMISSION OF THE MANUFACTURER.
UN¬AUTHORIZED MODIFICATIONS CAN LEAD TO SERIOUS INJURY OR DEATH TO YOURSELF OR OTHERS.
• DO NOT use any blade marked for less than 3,300 RPM.
• DO NOT service the saw or change without rst disconnecting the power.
• DO NOT install a blade before inspecting the blade for damage.
• DO NOT operate saw with a damaged blade. A damaged blade may y apart and cause serious injury or death.
• Verify blade is correct for application before use.
• Verify blade rotation matches the direction arrow on blade guard.
• DO NOT apply power to the blade before spinning the blade by hand to check alignment.
• DO NOT operate with any lose nuts or bolts. Check all nuts and bolts for tightness.
• DO NOT operate without appropriate ear, eye, foot, hand, and breathing protection.
• DO NOT operate around any loose or foreign objects that may damage system.
• DO NOT operate if arbor shaft has excessive end play.
• DO NOT cut material that the blade is not designed for.
• DO NOT operate saw near combustible material or fumes.
• DO NOT force blade through material to be cut. Always ease blade through material.
FS-150 WALK-BEHIND AIR SAW OPERATING INSTRUCTIONS
A. BEFORE OPERATING THE SAW
1. Be sure all nuts and bolts are tight.
2. Check the air supply for the correct pressure (90 PSI Min) and rating (85 CFM Min).
3. Turn on air supply and check for leaks
4. Be sure to clean air hose to discharge any dirt, scale or moisture(and do so before each use).
5. Connect the air hose and ensure proper couplings are usedon air lines - typically no tting is smaller than 1/2”. Ensure the in-line
oiler is lled with pneumatic ice free oil.
B. WHILE OPERATING THE SAW
1. Before entering the blade into the material to be cut, squeeze the trigger and allow the saw to reach full speed.
2. Ease the saw blade into the material to be cut.
3. At the end of the cut, lift the saw until the blade is clear of the cut, then release the trigger.
4. Allow the blade to come to a complete stop before setting it down.
5. Check the in-line oiler for oil level after 2-3 hours of operation.
6. When the rear wheel behind the blade needs to be moved so it is not directly behind the blade, roll the saw onto it’s side and re-
move the “R” clip. Pull the axle out and retain the outboard position using the “R” clip.

OPERATIONS
Waterworks
Division
P: 866 987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
C. AFTER OPERATING THE SAW
1. Shut off air supply and disconnect from saw.
2. Remove the air line and t a protective cover over the air inlet.
3. Clean the saw by removing all accumulated dust.
4. Give the grease tting a couple shots of grease after every 40 hours of operation. (Gearbow saw only)
5. Pour a small amount of general purpose air tool oil into other hose connector on the handle to ush out any moisture and
lubricate the motor.
D. ASSEMBLY OF WATER TANK KIT
1. Attach the water tank frame to the saw’s chassis by sliding the frame from the front towards the back. A 3” bolt will secure
the top back of the frame to the handle quadrant and two 5/16” bolts will attach the front leg of the frame to the front of the
chassis.
2. Mount the plastic water tank to the frame and secure it with 4 “L” clamping brackets supplied. Attach one end of the water
feed hose with the control valve to the bottom of the water tank. The end with the “Y” should be attached to the two 16” clear
plastic tubings.
3. Attach one water feed nozzle to each side of the blade guard. Each nozzle should have a 16” clear plastic tubing attached
which is rested against the blade. In this way the water will be guided directly onto the cutting surface.
E. ASSEMBLY INSTRUCTIONS:
For shipping convienience, your saw (FS-60) may have been shipped without attaching the handle assembly,
jack assembly, and pointer.
1. INSTALL THE JACK ASSEMBLY: Release the 23/4” bolt on the jack bracket from the saw chasis and the
center bolt on the handle quadrant. Rotate the crank on the jack assembly counterclockwise so that the two
pivot tubes line up with the nut on the jack bracket and the holes of the center bolt. Notice that the upper
pivot tube has to face down and the lower pivot tube has to face up. First, insert the center bolt trough the
handle quardrant plates and the jack’s upper tube and tighten it. Then, insert and tighten the bolt on the jack
bracket through the lower pivot tube until thebot goes through the hole on the chasis.
2. INSTALL HANDLE ON THE HANDLE QUADRANT: Attach bar grip to handle assembly. Adjust the water valve
to a 45 degree position by losening the boltand adjusting the water valve bracket with the 45 degree cut para-
lel to the handle, tighten the bolt. Pull out the knob’s bolt and the edge bolt on the handle quadrant. Slide the
handle assembly between the two plates of the handle quadrant so that the two handle pivot tubes line up
with holes of the knob’s bolt and edge bolt. Bolt them up. Attach the longer air hose on the handle assembly
to the oiler on the saw.
3. INSTALL THE POINTER ON THE SAW: Pull out the 2 1/2” bolt on the pointer base bracket. Place the pointer
base bracket at the hole on the chasis in front of the motor which is parallel to the chasis base. Insert the bolt
all the way through the blade guard and tighten up.
4. INSTALL OR REPLAACE BLADE: Disconnect air supply. Remove arbor nut(left-hand threads) and outer ange
fom shaft. Place blade on shaft and check that the directional arrow points clockwise(counter-clockwise on
upcut saws) as you turn the shaft. Install outer ange and hand tighten arbor nut (lef-hand thread). Hold inner
ange with supplied 2” wrench and tighten the arbor nut using 1” or 1 1/2” wrench supplied.

PARTS
Waterworks
Division
P: 866 987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
Part Number Description
FS-150 US60050 Walk-behind air powered saw with gear box motor, 20” blade ca-
pacity, water feed kit, whip hose, oiler, wrenches, and one quarter
ice free air oil. 3,300 RPM saw cuts to 8” depth.
Air Tool Oil 02-17059 (1) Quart of petroleum based ice free oil
Oiler US15060 #5 - PF, 1/2” NPT

PARTS
Waterworks
Division
P: 866 987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]

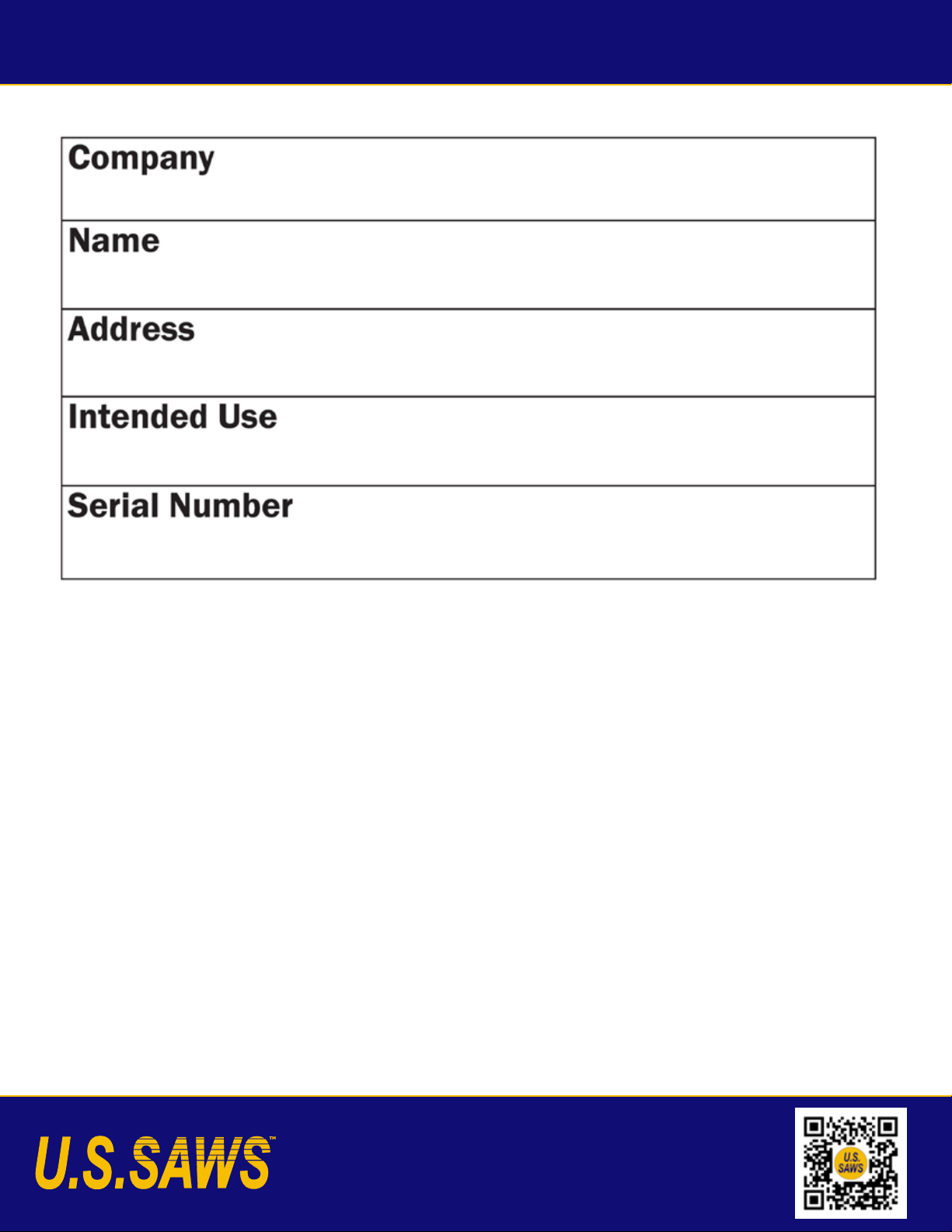

MACHINE WARRANTY INFORMATION CARD
Limited Equipment Warranty and Liability
U.S.SAWS and Blades Inc, herein referred to as U.S.SAWS, warrants that each new unit manufactured by U.S.SAWS to be free from
defects in material and workmanship in normal use and service for a period of (1) one year (except in the case of consumables) from the
date of delivery to the original buyer.
U.S.SAWS will, at it’s sole option, repair or replace, at the U.S.SAWS factory or at a point designated by U.S.SAWS, any part, which shall
appear to the satisfaction of U.S.SAWS inspection to have been defective in material or workmanship.
-e Warranty does not apply to failure occuring as a result of abuse, misuse, negligent repairs, corrosion, erosion, normal wear and tear,
alterations or modications made to the unit without the express written consent of U.S.SAWS or failure to follow the recommended
operating practices and maintenance procedures as provided in the product’s operating manual.
-Accessories or equipment furnished and installed on the product by U.S.SAWS but manufactured by others including, but not limited
to, engines, motors, electrical equipment, transmissions, etc., shall carry the accessory manufacturer’s own warranty.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, OR STATUTORY, INCLUDING ANY
WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE.
e remedies of the user set forth under provisions of warranty outlined above are the exclusive and total liability of U.S.SAWS with
respect to their sale of the equipment and service hereunder, in connection with the performance or breach thereof, or from the sale,
delivery, installation, repair, or technical direction covered by or furnished under the sale, whether based on contract, warranty, negli-
gence, indemnity, strict liability, or otherwise shall not exceed the purchase price of the equipment upon which such liability is based.
U.S.SAWS will not in any event be liable to the user, any successors in interest or any beneciary or assignee relating to this sale for
any consequential, incidental, indirect, special or punitive damages arising out of this sale of, any defects on, or failure of, or malfunc-
tion of the equipment under this sale based upon loss of use, lost prots or revenue, interest, lost good will, work stoppage, impairement
of other goods, loss by reason of shutdown or non operation, increased expenses of operation of the equipment, cost of purchase or
replacement of claims of users or customers of the user for service interuption whether or not such loss or damage is based on contract,
warranty, negligence, indemnity, strict liability, or otherwise. U.S.SAWS reserves the right to modify, alter, and improve any part or
parts without incurring any obligation to replace any part or parts previously sold prior to modication.
