U.S.SAWS

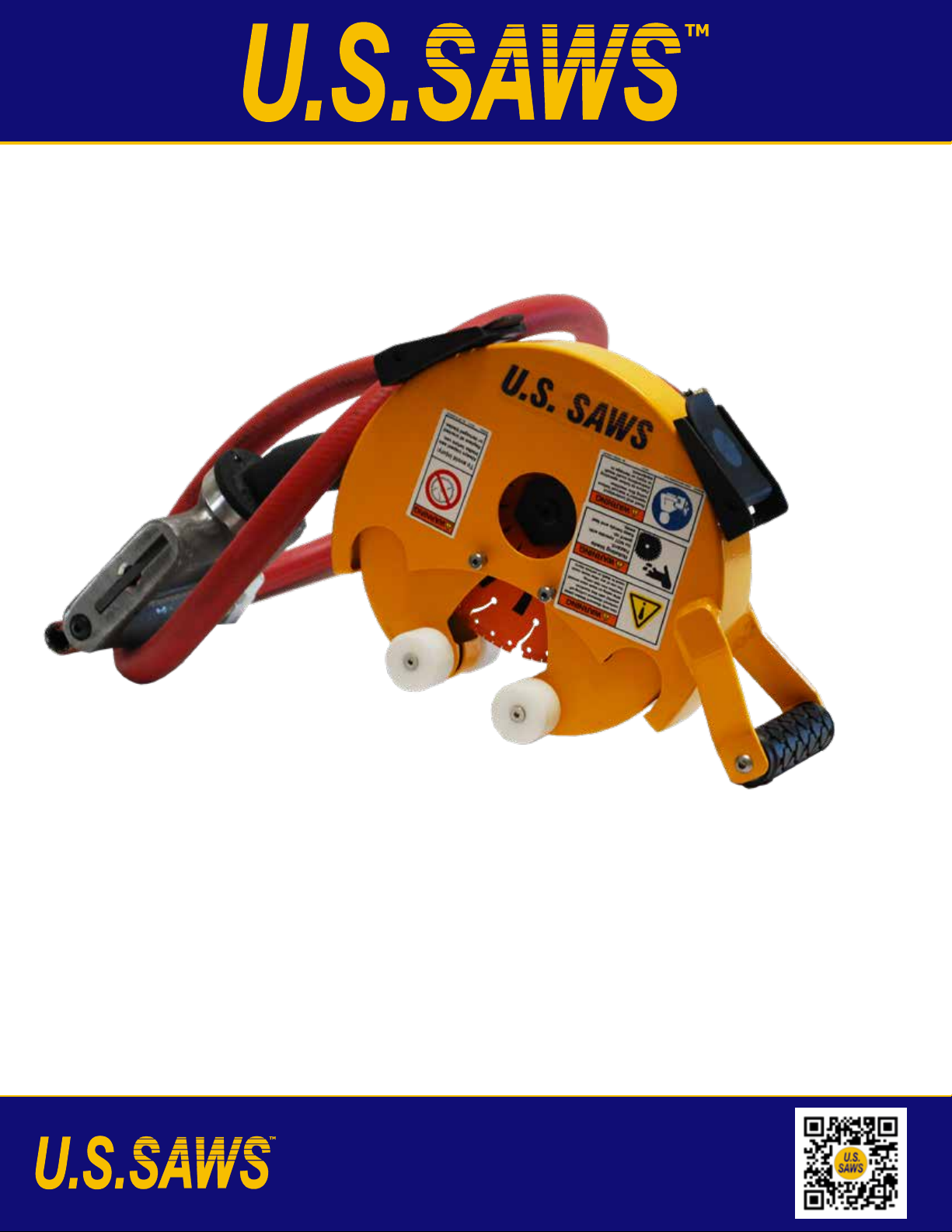

HYDRAULIC BELLY SAW
OPERATING MANUAL

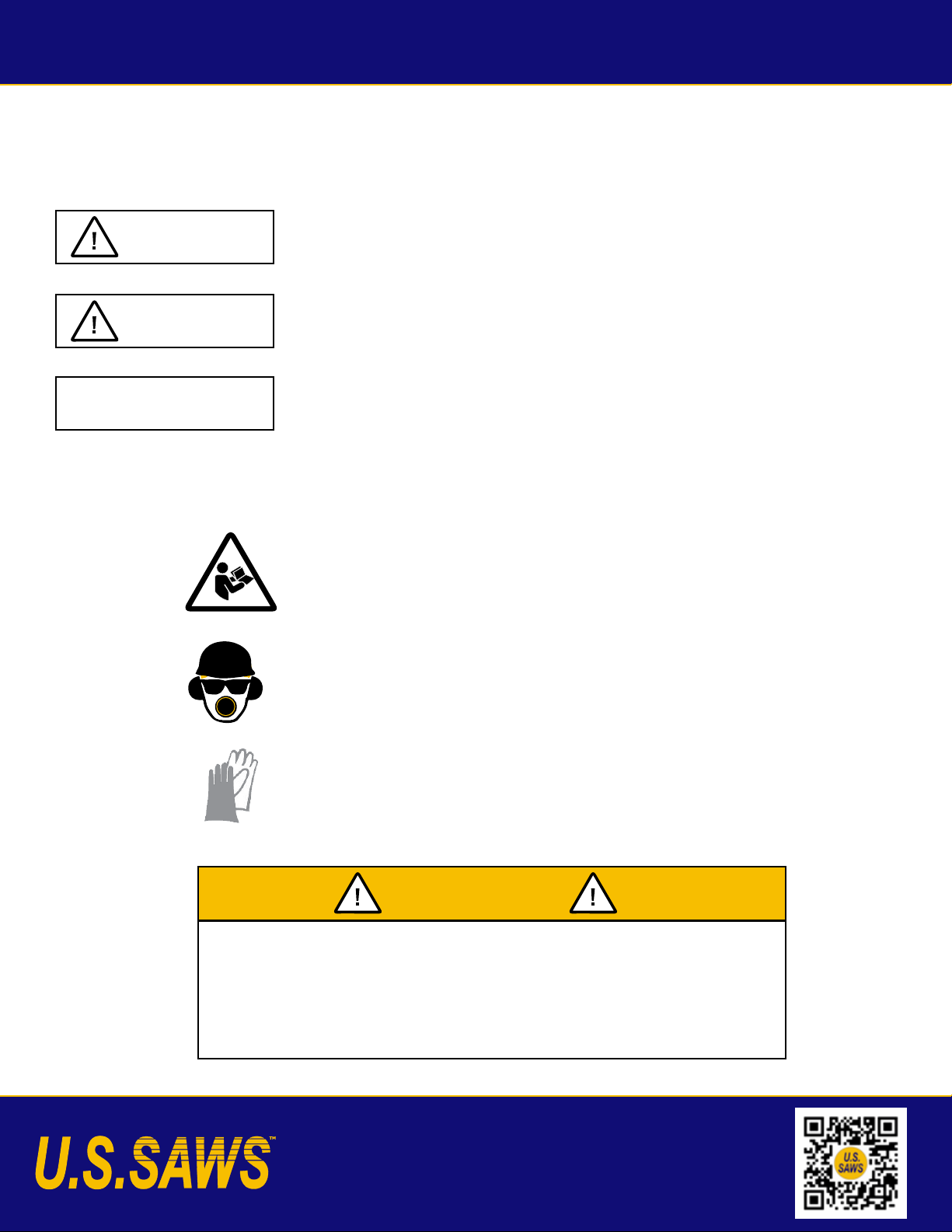

THE FOLLOWING SYMBOLS & DEFINITIONS ARE FOUND THROUGH-
OUT THIS MANUAL AND ARE DESIGNED TO MAKE YOU AWARE OF
POTENTIAL HAZARDS OR UNSAFE PRACTICES.
A potentially hazardous situation exists which, if not avoided,
could result in death or serious injury.
A potentially hazardous situation exists which, if not avoided,
may result in minor or moderate injury or property damage.
A potential situation exists which, if not avoided, may result in
product or property damage.
THE FOLLOWING SYMBOLS & LABELS MAY BE FOUND IN
THIS MANUAL OR ON THE SAW
Read the operator’s manual carefully and understand the contents
before you use this equipment.
Always use:
• Protective helmet
• Ear protection
• Protective glasses or full face protection
Wear hand protection
WARNING
CAUTION
IMPORTANT
WARNING
• Do NOT insert tool into slot narrower than chain
• Do NOT operate tool without solid footing and hand grip
• Use only in well in ventilated area
• Failure to observe these precaution can result serious injuries
Waterworks
Division
P: 866 987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
SYMBOLS & LABELS

General Safety Precautions
• Do not operate machine unless you have read the operations and maintenance manual carefully.
Read any additional instructions included from other manufacturers and organizations such as Honda
and the Masonry and Concrete Saw Manufacturers Institute. Learn the applications and limitations as
well as the specic potential hazards related to this tool.
• Do not operate this machine unless you have received operational and maintenance training from a
U.S.SAWS representative or from an authorized distributor for U.S.SAWS .
• Observe all applicable local, state, and federal safety regulations. Wear OSHA approved foot
protection.
• Observe all applicable local, state, and federal safety regulations. Wear OSHA approved safety
glasses.
• Breathable silica may be generated by use of this product. Silica can cause severe and permanent
lung damage, cancer, and other serious diseases. Do not breathe the dust. Do not rely on your sign
or smell to determine if the dust is in the air. Silica may be in the air without a visible dust cloud. If air
monitoring equipment for silica is not provided by your employer at your work site, you MUST wear
appropriate respiratory protection when using or servicing the machine. Consult your employer and
OSHA regarding the appropriate respiratory system.
• Observe all applicable local, state, and federal safety regulations. Wear OSHA approved hearing
protection.
• Do not wear loose clothing or jewelry that can be caught in moving parts. Wear protective hair
covering to contain long hair. Keep hair away from motor air vent. Rubber gloves and non-skid
footwear are recommended when working outdoors.
• Do not expose machine to rain. Do not use machine in wet conditions. Keep work area well lit.
When working at an elevated location, pay attention to articles and persons below.
• During normal operation as instructed, keep a rm hold on the handle grips and maintain control of
the machine until the blade completely stops.
• Never operate a blade in the wrong rotation. Check the rotation direction and blade direction when
mounting a blade.
• Check the maximum operating speed of the machine and blade. Never use a blade rated less than
the machine’s maximum speed rating.
• Never use a cracked, damaged, or misaligned blade. After mounting blade, rotate by hand to check
for proper alignment.
• Do not operate machine while under the inuence of drugs, alcohol or any medication.
• Do not operate machine with parts missing or improperly mounted.
• Verify all guards are in good condition and will function properly before using the machine. Check
for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other
conditions that may a󰀨ect machine operation. A guard, power switch, or other part that is damaged
should be properly repaired or replaced
SAFETY
Waterworks
Division
P: 866 987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]

• The cuto󰀨 saw is designed to provide safe and dependable service if operated according to instructions.
Read and understand this manual and any decals attached to the saw before operating. Failure to do so
could result in personal injury or equipment damage.
• New operator must start in a work area without bystanders. He/she must be familiar with all prohibited
work areas such as excessive slopes and dangerous terrain conditions.
• When using tools around energized transmission lines, be sure to use only hoses labeled and certied
non-conductive and follow all safety precautions.
• Know the location of buried or covered services before starting your work.
• Do not inspect or clean the tool with the power source operating or with operating pressure at the tool.
Accidental engagement of the tool can cause serious injury.
• Never wear loose clothing that can get entangled in the working end of the tool.
• Do not overreach. Maintain proper footing and balance at all times.
• Always connect the hoses to the tool hose couplers before energizing the power source. Be sure that all
hose connections are tight.
• Always hold the tool with both hands when the unit is running. Use rm grip.
• Keep all parts of your body away from a rotating cuto󰀨 wheel.
• Keep the wheel o󰀨 all surfaces when starting the saw.
• Always carry the tool with the wheel stopped.
• Make sure the wheel has stopped before setting down the tool.
• Keep the handles clean and free of oil at all times.
• All service must be preformed by experienced service personnel only.
• Always inspect wheels for possible damage before installation.
• Establish a training program for all operators to ensure safe operation.
• Do not operate the tool unless thoroughly trained.
• Never transport or store the tool with the wheel mounted on the saw.
• Do not operate the tool if it is damaged, improperly adjusted, or not completely and correctly assembled.
• Never cock, jam, or wedge the wheel during the cut.
• Never cause sparks in the vicinity of ammable materials.
• Do not operate the tool with the wheel guard removed.
• Do not start cutting until you have a clear work area and secure footing.
• Do not allow other persons near the tool when starting or cutting.
• Never operate the tool when you are tired or fatigued.
• Do not use a wheel that is cracked or otherwise damaged.
• Do not operate the tool if the wheel does not stop when the throttle trigger is released.
• Do not use the side of the wheel as the cutting surface.
• Never exceed the maximum operating speed marked on the wheel.
• Always use cuto󰀨 wheels that conform to the specications given in the OPERATION section of this
manual.
• Always wear safety equipment such as goggles, ear protection, safety shoes, and head protection at all
times when operating the tool.
SAFETY
Waterworks
Division
P: 866 987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]

Waterworks
Division
P: 866 987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]

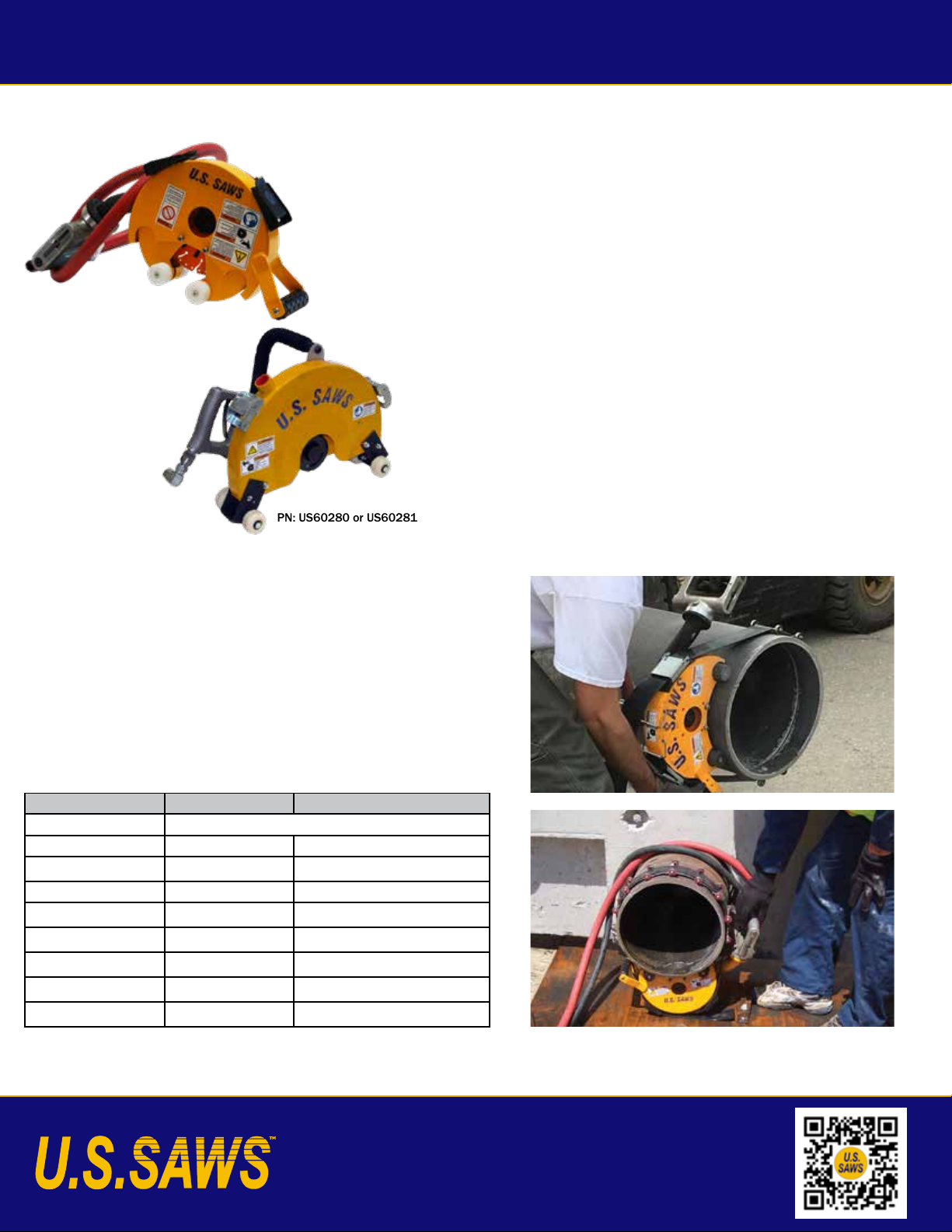

U.S.SAWS AIR POWERED BELLY SAW
The U.S.SAWS Air Powered Belly Saw is designed to provide a
safe alternative to other cutting methods that can be difcult
and dangerous because of the subgrade location of pipes. The
key factor that provides ease and safer operation is that the
tool is strapped to the pipe and is simply drawn around the
pipe creating a straight and efcient cutting process. Other Key
factors are that because of the use of air or hydraulic power
sources the tools can run in the wet conditions without failure.
Saw cuts easily through PVC‚ HDPE‚ ductile iron‚ cast iron and
more thanks to its Tiger Tooth blade. The saw’s protective
clamshell design shields you from the blade until the time of the
cut. Once contact is made‚ four spring-loaded wheels help guide
the saw for a straight cut.
Package Includes: Belly Saw, Tiger Tooth Blade, Strap Assembly,
Whip Hose with Oiler, (2) Wrenches, (1) Quart Ice Free Oil &
Storage Bag
Features:
• Provides the safest and most accurate cut
• Designed to cut the underside of pipes safely with minimal
clearance
• These saws will cut through any type of pipe when coupled
with our Tiger Tooth blade
• Models offered for cutting pipes form 8” to 60” in diameter
• Clamshell design shields blade until time of cut
• 4 spring-loaded wheels help operator to cut straight and
square
• Ideal for tight spaces
PN: US60280 or US60281
Model 8” to 24” Belly Saw Big Belly Saw
Power Source Direct Drive Air Motor
RPM 6,000 5,250
Max Pipe Diameter 24” 48” or 72”
Diameter Blades Used 8” 12”
Max Blade Width .125”
Strap Assembly 8” - 24” Up to 48” or 72”
Dimensions (LxWxH) 8.5” x 21” x 10.5” 10.5” x 24” x 12”
Weight 18 lbs 28 lbs
Part Number US60278 US60280 (48”) or US60281 (72”)
PN: US60278

Waterworks
Division
P: 866 987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
OPERATION
The US Saws Belly Saw is designed to provide a safe alternative to
other cutting methods that can be di󰀩cult and dangerous because of the
subgrade location of pipes. The key factor that provides ease and safer
operation is that the tool is strapped to the pipe and is simply drawn
around the pipe creating a straight and e󰀩cient cutting process. Other
Key factors are that because of the use of air or hydraulic power sources
the tools can run in the wet conditions without failure. To provide the
most accurate and time e󰀩cient cutting follow the procedures below.
The belly saw was originally designed to cut the bottom ¾ of a pipe. Many operators have determined that the
belly saw provides simple and easy cutting of the entire pipe. In order to ensure an accurate cut that nishes
where the cut begins several procedures must be taken. Once all job site safety conditions have been met
pressurize the tools lines. Ensure safety clips are used where required so lines do not disconnect accidentally.
One should take care to make sure proper clearance has been provided on all sides of the line being cut. If an
object creates interference during the cutting process there will be di󰀩culty completing the cut accurately. The
pipe must also be cleaned of rust, dirt, and unusually rough surface obstructions.

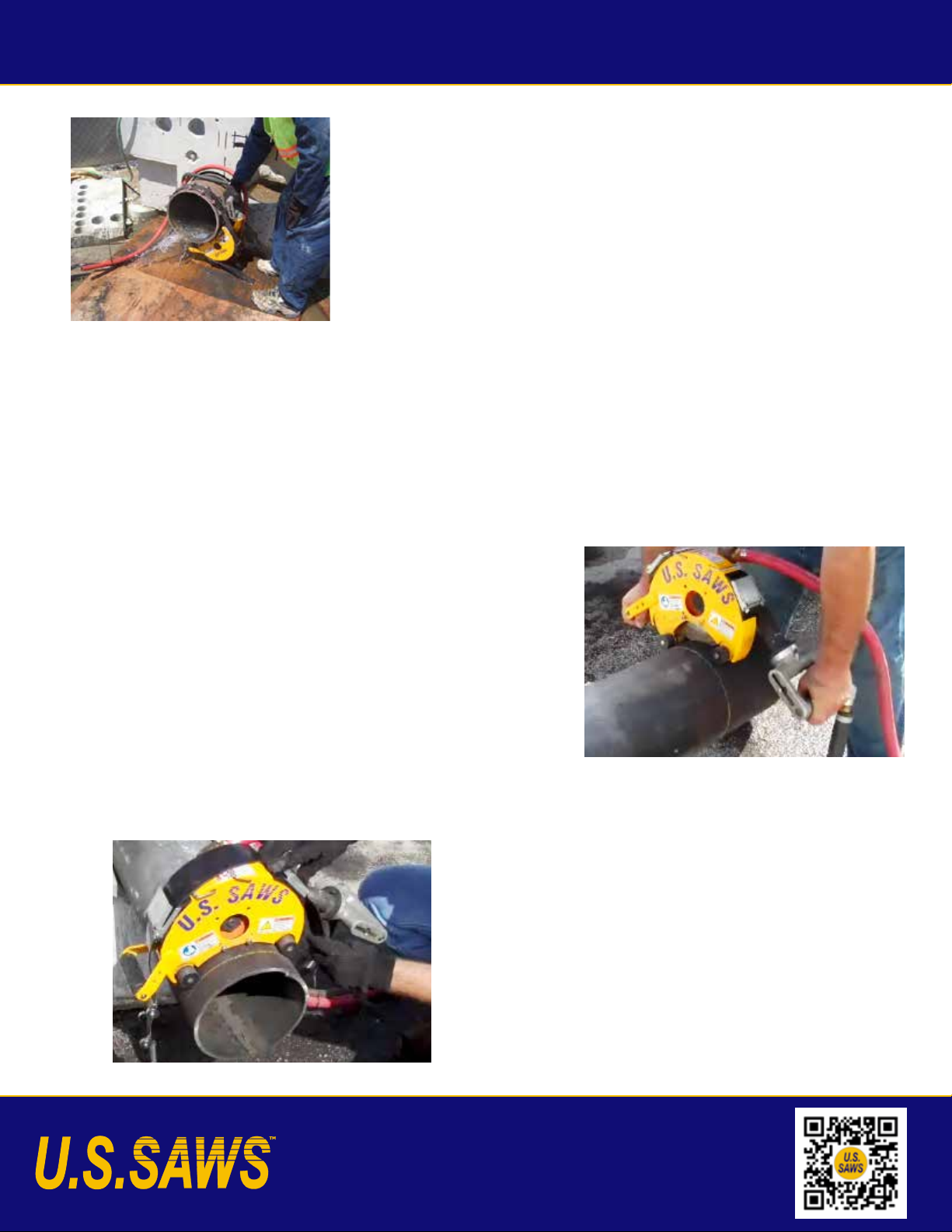

1. With the roller strap removed from the belly saw plunge cut
the tool in a free hand method. The tool will be pulled in the
direction of the handle that has the throttle/ control valve. For
that reason we recommend that the tool be plunged slightly
o󰀨 the 12 o’clock mark toward the throttle handle side. This
will help to ensure good visibility of the saw as you complete
the cut, near the 12 o’clock position of the pipe. It is also
should be noted that a line should be made from 10 to 2
O’clock over the top of the pipe. While plunging the tool into
the pipe reference this line with the edge of the cutting guard-
do not line up with the blade. Once the strap is installed you
will not be able to see anything directly in the path of the
blade or under the blade guard. As the cut is completed you will be able to see the reference mark at the
10 o’clock position and can make adjustments to the cut if you have tracked o󰀨 course during the cut.
2. Once the plunge cut has been made and the tools
alignment is satisfactory the strap must be installed. It will
also be time to add any additional reference marks to the
cutting surface to help aid in alignment start/ stop locations,
etc.

Waterworks
Division
P: 866 987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
PARTS
3. Pull belly saw in the direction of the throttle handle. This will provide the straightest cut. If the tool is
pushed from this handle the saw will track of course even if light pressure is applied. Once you reach
the termination of the cut you can release the strap and remove the saw. If the cut has not completed in
perfect alignment this would be the opportunity to adjust the cut in a freehand method. If the cut does
align perfectly use caution as pressure from ground shifting can cause the pipe to shift without notice and
with tremendous force. The weight of the cut pipe can pull the saw out of an operator’s hands when the
tool is strapped to that pipe. This is why we recommend not completing the cut until the saw is removed/
unstrapped from the pipe and a more visible nish cut is made.

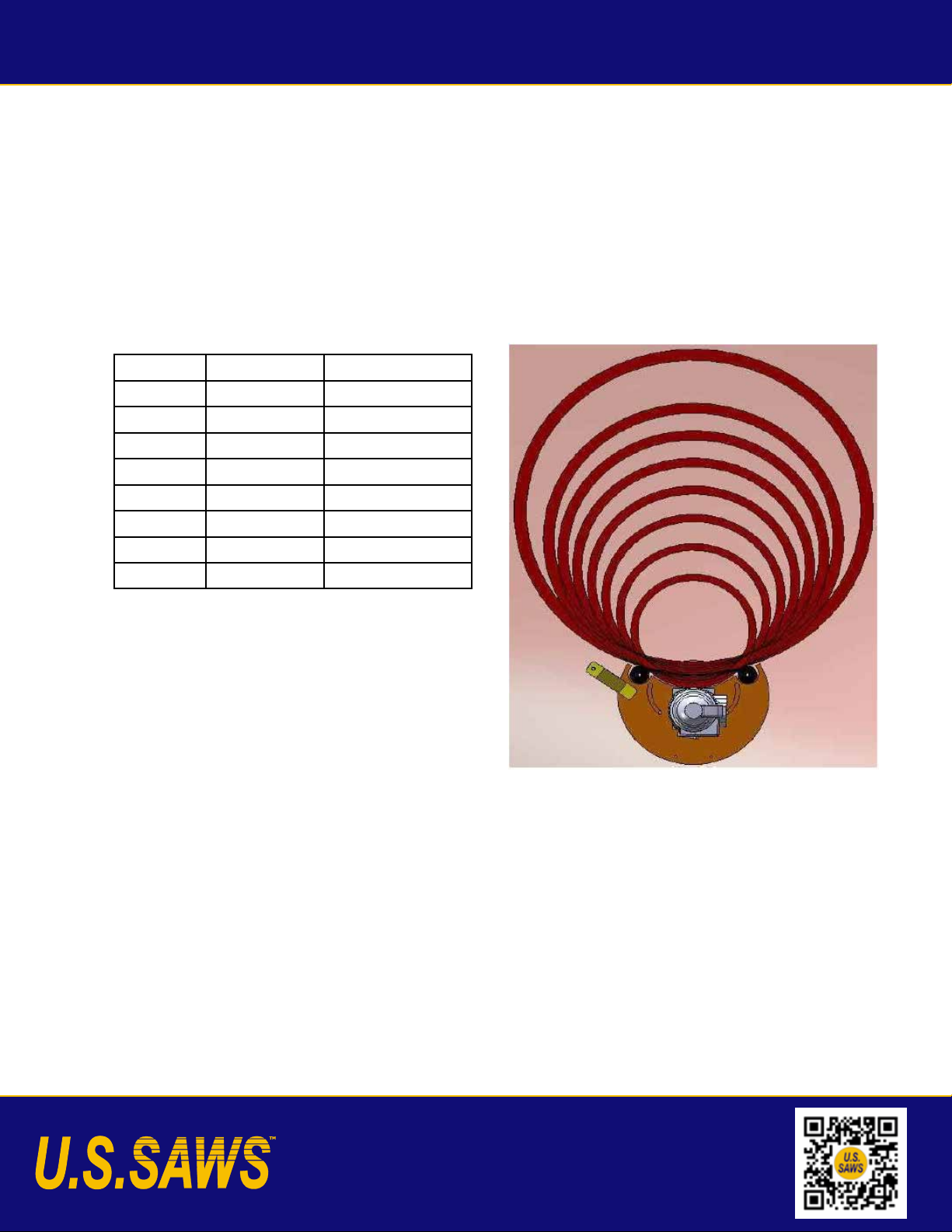

Pipe Size Depth of Cut* Number of Links
8 2.09 2 Long 1 Short
10 1.71 2 Long 1 Short
12 1.48 3 Long 1 Short
14 1.32 3 Long 1 Short
16 1.2 4 Long 1 Short
18 1.11 4 Long 1 Short
20 1.04 4 Long 1 Short
24 0.93 4 Long 1 Short
In certain situations the rollers may interfere
with the saw or on thick types of pipe the saws
strap may contact the pipe. This will hinder a
free moving tool during the cut. In these cases
you may spread the roller trucks apart for better
coverage around the pipe.
* Measured from outside diameter of pipe to tip of blade.

Waterworks
Division
P: 866 987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
MACHINE WARRANTY INFORMATION CARD
Limited Equipment Warranty and Liability
U.S.SAWS and Blades Inc, herein referred to as U.S.SAWS, warrants that each new unit manufactured by U.S.SAWS to be free from
defects in material and workmanship in normal use and service for a period of (1) one year (except in the case of consumables) from the
date of delivery to the original buyer.
U.S.SAWS will, at it’s sole option, repair or replace, at the U.S.SAWS factory or at a point designated by U.S.SAWS, any part, which shall
appear to the satisfaction of U.S.SAWS inspection to have been defective in material or workmanship.
-e Warranty does not apply to failure occuring as a result of abuse, misuse, negligent repairs, corrosion, erosion, normal wear and tear,
alterations or modications made to the unit without the express written consent of U.S.SAWS or failure to follow the recommended
operating practices and maintenance procedures as provided in the product’s operating manual.
-Accessories or equipment furnished and installed on the product by U.S.SAWS but manufactured by others including, but not limited
to, engines, motors, electrical equipment, transmissions, etc., shall carry the accessory manufacturer’s own warranty.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, OR STATUTORY, INCLUDING ANY
WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE.
e remedies of the user set forth under provisions of warranty outlined above are the exclusive and total liability of U.S.SAWS with
respect to their sale of the equipment and service hereunder, in connection with the performance or breach thereof, or from the sale,
delivery, installation, repair, or technical direction covered by or furnished under the sale, whether based on contract, warranty, negli-
gence, indemnity, strict liability, or otherwise shall not exceed the purchase price of the equipment upon which such liability is based.
U.S.SAWS will not in any event be liable to the user, any successors in interest or any beneciary or assignee relating to this sale for
any consequential, incidental, indirect, special or punitive damages arising out of this sale of, any defects on, or failure of, or malfunc-
tion of the equipment under this sale based upon loss of use, lost prots or revenue, interest, lost good will, work stoppage, impairement
of other goods, loss by reason of shutdown or non operation, increased expenses of operation of the equipment, cost of purchase or
replacement of claims of users or customers of the user for service interuption whether or not such loss or damage is based on contract,
warranty, negligence, indemnity, strict liability, or otherwise. U.S.SAWS reserves the right to modify, alter, and improve any part or
parts without incurring any obligation to replace any part or parts previously sold prior to modication.
