Uberhaus 87795012 User manual

87795012
MWL-10CRN1-BI5
WINDOW AIR CONDITIONER
Operator's manual
87795037
MWL-12CRN1-BI5

CONTENTS
Inside you will find many helpful hints on how to use and maintain your air
conditioner properly. Just a little preventive care on your part can save you
a great deal of time and money over the life of your air conditioner. You'll find
many answers to common problems in the chart of troubleshooting tips. If you
review our chart of Troubleshooting Tips first, you may not need to call for
service at all.
Contact the authorised service technician for repair or maintenance of this unit.
Contact Customer service with help with installation of this unit.
The air conditioner is not intended for use by young children or infirm persons
without supervision.
Young children should be supervised to ensure that they do not play with the air
conditioner.
If the power cord is to be replaced, replacement work shall be performed by
authorised personnel only.
Installation work must be performed in accordance with the national wiring
standards by authorised personnel only.
!CAUTION
Read This Manual
1. SAFETY PRECAUTIONS..................................................................2
2. IMPORTANT SAFETY INSTRUCTIONS ..........................................4
3. NORMAL SOUNDS ...........................................................................5
4. AIR CONDITIONER FEATURES .......................................................5
5. INSTALLATION INSTRUCTIONS......................................................10
6. CARE AND CLEANING ....................................................................19
7. TROUBLESHOOTING TIPS..............................................................20
9. WARRANTY ........................................................................ ................29
All the illustrations in this manual are for explanation purpose only.
Your air conditioner may be slightly different. The actual shape shall
prevail.
NOTE:
1
8. REMOTE CONTROLLER FEATURES AND OPERATION ..............22

To prevent injury to the user or other people and property damage, the following instructions
must be followed. Incorrect operation due to ignoring of instructions may cause harm or
damage. The seriousness is classified by the following indications.
Safety Precautions
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
!
!
WARNING
Always do this.
Never do this.
!
CAUTION
This symbol indicates the possibility of injury or damage to property.
Plug in power plug
properly.
Do not modify power cord
length or share the outlet
with other appliances.
Always ensure effective
Unplug the unit if strange
sounds, smell, or smoke
comes from it.
Keep firearms away.
Ventilate room before operating air
conditioner if there is a gas leakage from
another appliance.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
It may cause electric shock or
fire due to heat generation.
Incorrect g may cause
electric shock.
It may cause fire and electric
shock.
It may cause fire.
It may cause electric shock or fire
due to heat generation.
It may cause electric shock.
It may cause failure of machine
or electric shock.
It may cause fire and electric
shock.
It may cause fire and electric
shock.
It may cause electric shock or fire.
If the power cord is damaged, it
must be replaced by the manufac-
turer or an authorised service
centre or a similarly qualified per-
son in order to avoid a hazard.
This could damage your health.
Incorrect installation may cause
fire and electric shock.
It may cause electric shock.
It may cause an explosion or fire.
It may cause failure and electric shock.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
Do not operate with wet
hands or in damp
environment.
Do not allow water to run
into electric parts.
Do not use the socket if it is
loose or damaged.
Do not use the power cord
close to heating appliances.
Do not damage or use an
unspecified power cord.
Do not direct airflow at
room occupants only.
Always install circuit
breaker and a dedicated
power circuit.
Do not open the unit
during operation.
Do not use the power cord near
flammable gas or combustibles, such
as gasoline, benzene, thinner, etc.
Do not disassemble or modify unit.
!
!
!
!
!
!
WARNING
!
!!!
2
It may cause explosion, fire and burns.
grounding.
rounding

!
CAUTION
When the air filter is to be
removed, do not touch the
metal parts of the unit.
It may cause an injury.
Do not clean unit when
power is on as it may cause
fire and electric shock, it may
cause an injury.
Operation with windows
opened may cause wetting
of indoor and soaking of
household furniture.
When the unit is to be
cleaned, switch off, and turn
off the circuit breaker.
Stop operation and close
the window in storm or
hurricane.
Use caution when unpacking and
installing. Sharp edges could cause injury.
Do not clean the air
conditioner with water.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
This could injure the pet or
plant.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
Hold the plug by the head
of the power plug when
taking it out.
Ventilate the room well when
used together with a stove,
etc.
An oxygen shortage may occur.
Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects.
It may cause deterioration of
quality, etc.
It may cause failure of product
or fire.
Turn off the main power
switch when not using the
unit for a long time.
If water enters the unit, turn the unit off at the power
outlet and switch off the circuit breaker. Isolate
supply by taking the power-plug out and contact a
qualified service technician.
!
!
!
!
!
!
!
It may cause failure of
appliance or accident.
Appearance may be
deteriorated due to change
of product or
scratching of its surface.
Do not place obstacles
around air-inlets or inside
of air-outlet.
Do not use strong deter-
gent such as wax or
thinner but use a soft cloth.
If bracket is damaged, there
is concern of damage due to
falling of unit.
There is danger of fire or
electric shock.
Ensure that the installation bracket of
the outdoor appliance is not damaged
due to prolonged exposure.
power cord and ensure that the cord
is not compressed.
Operation without filters may
cause failure.
It contains contaminants and
could make you sick.
Always insert the filters
securely. Clean filter once
every two weeks.
Do not drink water drained
from air conditioner.
!
!
3
Do not place heavy objects on the
Failure to do so may cause
electric shock and damage.
colour
Do not use for any other
purpose than air cooling.

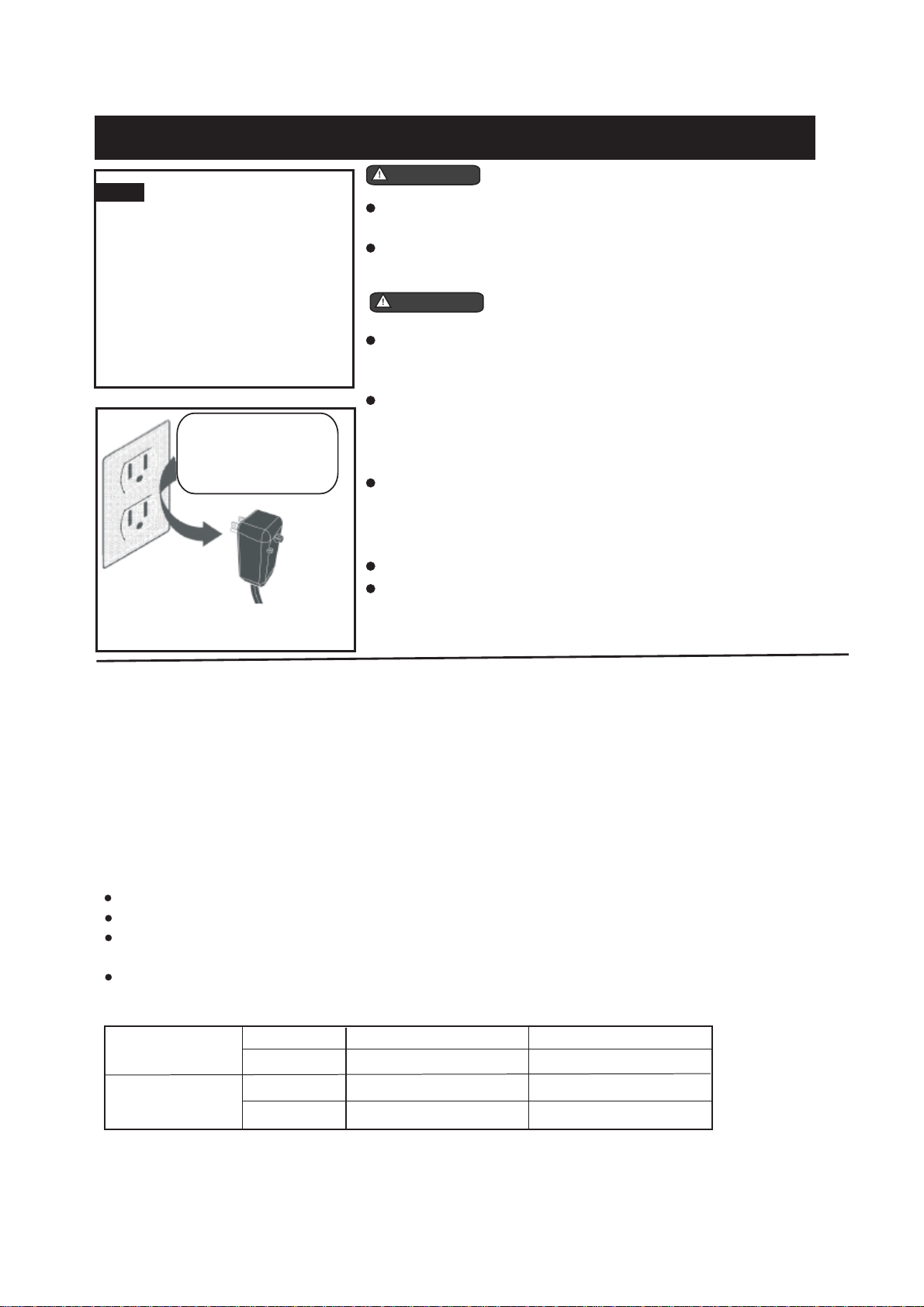

IMPORTANT SAFETY INSTRUCTIONS
Be sure the electrical service is adequate for the model you have
chosen. This information can be found on the serial plate, which
is located on the side of the cabinet and behind the grille.
Be sure the air conditioner is properly grounded. To minimize
shock and fire hazards, proper grounding is important. The power
cord is equipped with a three-prong grounding plug for protection
against shock hazards.
Your air conditioner must be used in a properly grounded wall
receptacle. If the wall receptacle you intend to use is not adequately
grounded or protected by a time delay fuse or circuit breaker,
have a qualified electrician install the proper receptacle.
Ensure the receptacle is accessible after the unit installation.
Do not run air conditioner without side protective cover in place.
This could result in mechanical damage within the air conditioner.
Do not use an extension cord or an adapter plug.
WARNING For your safety
Do not store or use gasoline or other flammable vapo rs and liquids in
the vicinity of this or any other appliance.
Avoid fire hazard or electric shock. Do not use an extension cord or an
adaptor plug. Do not remove any prong from the power cord.
WARNING Electrical Information
NOTE For some models, the power
supply cord with this air conditioner
contains a current detection device
designed to reduce the risk of fire.
Please refer to the section Operation
of Current Device for details.
In the event that the power supply
cord is damaged, it cannot be
repaired-it must be replaced with a
cord from the Product Manufacturer.
,
,
Do not, underany
circumstances, cut,
remove, or bypass
the grounding prong.
Power supply cord
and current detection device
Operation of Current Device
The power supply cord contains a current device that senses damage to the power cord. To test your power
supply cord do the following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST button, you will notice a
click as the RESET button pops out.
3. Press the RESET button, again you will notice a click as the button engages.
4. The power supply cord is now supplying electricity to the unit. (On some products this it also indicated by
a light on the plug head.)
NOTES:
Do not use this device to turn the unit on or off.
Always make sure the RESET button is pushed in for correct operation.
The power supply must be replaced if it fails reset when either the TEST button is pushed, or it cannot be
Cooling operation
Outdoor temp: O
18-43 C(T1Environment)
Indoor temp: O
17-32 C(T1Environment)
O
21-52 C(T3Environment)
O
17-32 C(T3Environment)
Heating operation
Outdoor temp: O
-5-24 C(T1Environment)
Indoor temp: O
0-27 C(T1Environment)
O
-7-24 C(T3Environment)
O
0-30 C(T3Environment)
Note: Performance may be reduced outside of these operating temperatures.
4
with 3-prong grounding plug
NOTE:This air conditioner is designed to be operated under the following conditions:
u
(On certain models only)
reset. Please contact Customer Service.
If power supply cord is damaged, it cannot be repaired. It MUST be replaced with a new cord - please
contact Customer Service.

NORMAL SOUNDS
AIR CONDITIONER FEATURES
Sound of Rushing Air
At the frontof the unit,you may
hear the sound of rushing air
being moved by the fan
High Pitched Chatter
High efficiency compressors
may have ahigh pitched chatter
during the cooling cycle.
Gurgle/Hiss
Gurgling or hissing noise may
be heard dueto refrigerant
passing through evaporator
during normal operation.
Pinging or Switching
Droplets of water hitting condenser
during normal operation may cause
pinging or switching sounds.
functions, then follow the symbol for the functions you desire. The unit can be controlled by the u
nit control alone or with the remote.
Vibration
Unit may vibrate and make noise
because of poor wall or window
ELECTRONIC CONTR
Exhaust
Mode
Auto Auto
Exhaust Selector
Echappement
Sets Mode Temp./Timer
Adjustment
Energy Saver
Mode
Activates Timer
Sleep Mode Activates Check
Filter
Sets Fan
Speed
Turns Unit
On/ Off
Remote Signal
Receptor
UNIT CONTROL PANEL
DISPLAYS
TEMPERATURE
5
construction or incorrect installation
OL OPERATING INSTRUCTIONS
OR TIME OR ERROR CODES
Before you begin, thoroughly familiarize yourself with the control panel and

A uto
AIR CONDITIONER FEATURES(CONTINUED)
TO TURN UNIT ON OR OFF:
NOTE: The following instructions represent the Unit Controls, the same instructions can be used
for the Remote Control.
TO CHANGE TEMPERA
SETTING:
Press the On/Off button.
DO THIS:
Press to raise
DO THIS:
Press to lower
Press or hold either Left( <) or Right (>) button
until the desired temperature is seen on the
display. This temperature will be automatically
maintained anywhere between 62 F(17 C) and
86 F(30 C). If you want the display to read the
actual room temperature, see To Operate on
Fan Only section.
NOTE:
TO ADJUST F
Press to select
appropriate fan
speed
DO THIS:
NOTE:
A uto
A uto
Note: This appliance provides a feature that will allow
Celsius
or Fahrenheit . To change the temperature display
on the main unit, press the Left( <) and Right (>) button
simultaneously for 3 seconds to alternate between
oo
the C & F scale.
Used to select the Fan Speed in four steps-
Auto, Low, Med or High. Each time the button
is pressed, the fan speed mode is shifted.For
under HEAT mode. On Dry mode,the fan speed
is controlled at Low automatically.
6
TURE
you to set and display temperatures in
some models, the fan speed cannot be adjusted
AN SPEED

Auto
Exhaust
Mode
Auto
Echappement
Exhaust
Mode
Auto
Echappement
TO SELECT THE
OPERATING MODE:
To choose operating mode, press the Mode
button. Each time you press the button, a mode
is selected in a sequence that goes from Auto,
Cool, Dry and Fan. The indicator light beside
mode is selected.
NOTE:
TO USE THE ENERGY
SAVER FEATURE:
NOTE:
NOTE:
Press the Mode
button.
DO THIS:
Press the button
DO THIS:
Press Sleep
button
DO THIS:
This function is available on COOL mode.The
fan will continue to run for 3 minutes after the
compressor shuts off.The fan then cycles on
for 2 minutes at 10 minute intervals until the
room temperature is above the set temperature,
at which time the compressor turns back on
To operate on Auto feature:
In this mode, the fan speed cannot be adjusted,
it starts automatically at a speed according to the
room temperature.
To operate on Fan Only:
Use this function only when cooling is not desired,
such as for room air circulation or to exhaust stale
vent during this function, but keep it closed during
choose any fan speed you prefer.
During this function, the display will show the
actual room temperature, not the set temperature
as in the cooling mode.
To operate on Dry mode:
in the form of a dehumidifier. Since the
some degree of cooling will continue.
When you set the air conditioner in AUTO mode, it
temperature.
The air conditioner will control room temperature
automatically round the temperature point set by you.
In Fan only mode,the temperature is not adjusted.
In this mode the selected temperature will
OO
mode is selected.The temperature will then
increase by another after an
additional 30 minutes. This new temperature will
be maintained for 6 hours before it returns to the
originally selected temperature. This ends the
Sleep mode and the unit will continue to operate
as originally programmed. The Sleep mode
program can be cancelled at any time during
operation by again pressing the Sleep button.
7
will be illuminated and will remain on once the
AIR CONDITIONER FEATURES (CONTINUED)
what temperature you have selected and the room
will automatically select cooling, heating(on some
models only), or fan only operation depending on
air(on some models). Remember to open the
cooling for maximum cooling efficiency. You can
In this mode, the air conditioner will operate
and Cooling starts.
increase by 1 C (2 F) 30 minutes after the
OO
1 C(2 F)
SLEEP FEATURE:
conditioned space is a closed or sealed area,
the

Auto
Exhaust
Mode
Auto
Echappement
Exhaust
Mode
Auto
Echappement
TIMER: AUTO START/
STOP FEATURE:
AIR CONDITIONER FEATURES(CONTINUED)
NOTE:
CHECK FILTER FEATURE:
This feature is a reminder to clean the Air Filter for
more efficient operation. The LED(light) will illumi-
nate after 250 hours of operation. To reset after
cleaning the filter, press the Check Filter button and
the light will go off.
NOTE:
Press Timer
button
DO THIS:
Press Check
Filter button
DO THIS:
- When the unit is on or off, first press the Timer button,
the TIMER ON indicator light illuminates. It indicates
the Auto Start program is initiated.
- Press or hold the UP or DOWN button to change the
0.5 hour increments, up to 10 hours,then
count down the time remaining until start.
- The selected time will register in 5 seconds, and the
system will automatically revert back to display the
previous temperature setting or room temperature when
- Turning the unit ON or OFF at any time or adjusting
the timer setting to 0.0 will cancel the Auto Start/Stop
timed program.
, press the
Timer button again, the TIMER OFF indicator light
illuminates. It indicates the Auto Stop program is
initiated.
DISPLAYS:
Displays
OO
Shows the set temperature in C or F and the
Auto-timer settings.While on Fan only mode,it shows
the room temperature.
DISPLAYS:
-Evaporator temperature sensor error-Unplug the
unit and plug it back in.If error repeats, call for
service.
HS -Electric heating sensor error-Unplug the unit and
plug it back in.If error repeats, call for service.
Error codes:
AS-Room temperature sensor error-Unplug the unit
and plug it back in.If error repeats, call for service.
NOTE:In Fan only mode,it will display LO or HI .
8
- When the time of TIMER ON is displayed
in 1 hour increments up to 24 hours. The control will
the unit is on.when the unit is off,there is no display.
Auto time in

YOU SHOULD KNOW
Now that you have mastered the operating procedure, here are more features in your control that
you should become familiar with.
The Cool circuit has an automatic 3 minute time delayed start if the unit is turned off and on
quickly. This prevents overheating of the compressor and possible circuit breaker tripping.
The fan will continue to run during this time.
To convert from one to the other, press and hold the Left and Right Temp/Timer buttonsat the
same time, for 3 seconds.
Exhaust Control
This Exhaust Control allows the air conditioner to either circulate inside air or exhaust
air to the outside .
The Closed position is used when maximum cooling is desired. It may also be used for air re-
circulation without cooling when the air conditioner is set in any FAN position.
The Open position removes stale air from the room and exhausts it to the outside. Fresh air is
drawn in through normal passages in the home.
4-Way Louvers
The 4-Way air directional louvers allow you to
direct air flow up or down, left or right throughout
the room as needed. To adjust the air directional
louvers side-to-side, use the center handle as you
move it side-to-side.
Exhaust
Mode
Auto Auto
Echappement
9
ADDITIONAL THINGS
The control can display temperature in Fahrenheit or Celsius.
