MWK-15CRN1-BJ7
USER MANUAL
1-866-206-0888
3
years/ans
warranty
garantie

CONTENTS
Inside you will find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time
and money over the life of your air conditioner. You'll find many answers to common
problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting
Tips first, you may not need to call for service at all.
Contact the authorised service technician for repair or maintenance of this unit.
Contact &XVWRPHUVHUYLFHIRUKHOSZLWKinstallation of this unit.
The air conditioner is not intended for use by young children or infirm persons
without supervision.
Young children should be supervised to ensure that they do not play with the air
conditioner.
If the power cord is to be replaced, replacement work shall be performed by
authorised personnel only.
Installation work must be performed in accordance with the national wiring
standards by authorised personnel only.
!CAUTION
Read This Manual
1. SAFETY PRECAUTIONS..................................................................2
2. IMPORTANT SAFETY INSTRUCTIONS ..........................................4
3. NORMAL SOUNDS ...........................................................................5
4. AIR CONDITIONER FEATURES .......................................................5

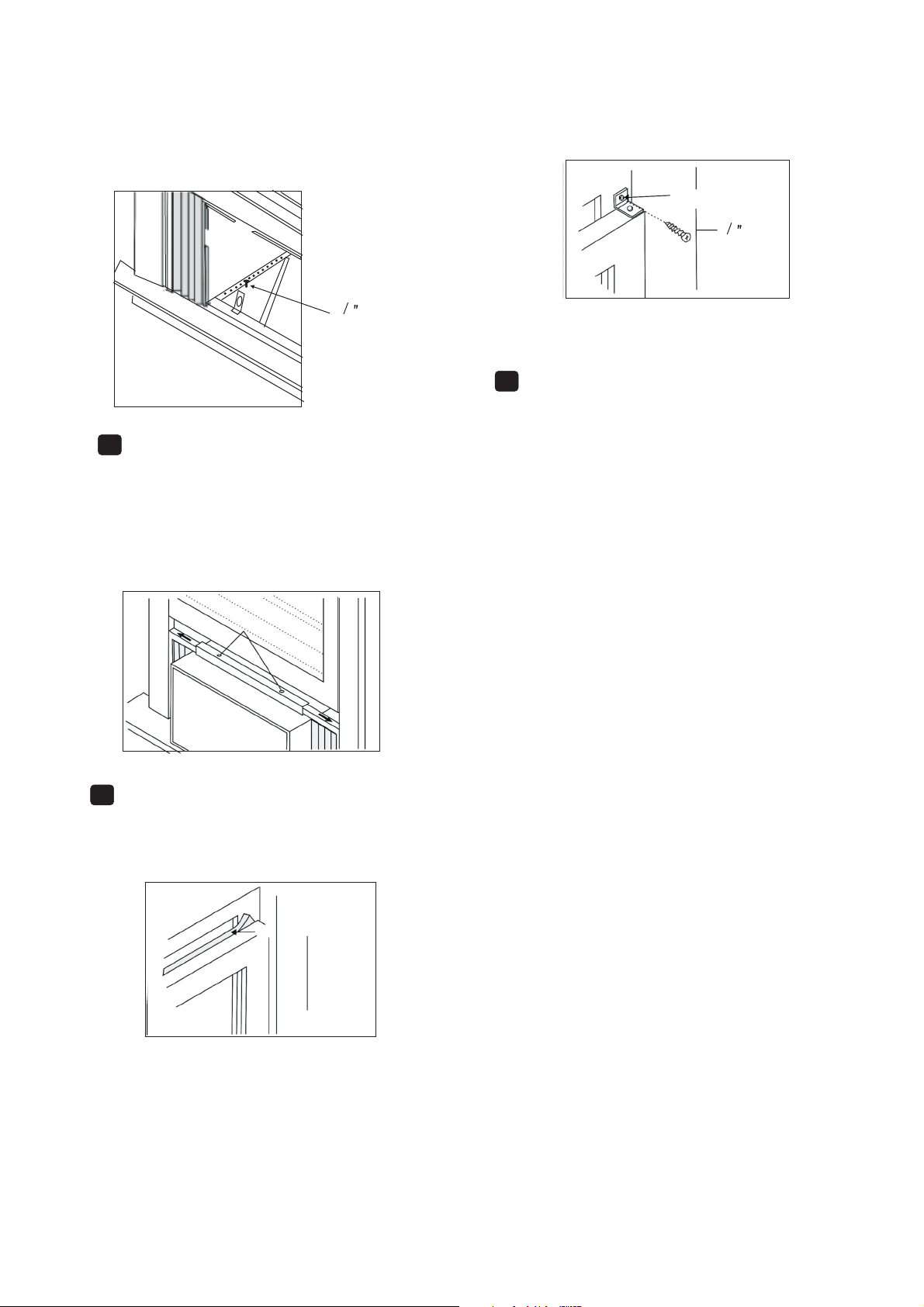

5. INSTALLATION INSTRUCTIONS......................................................10

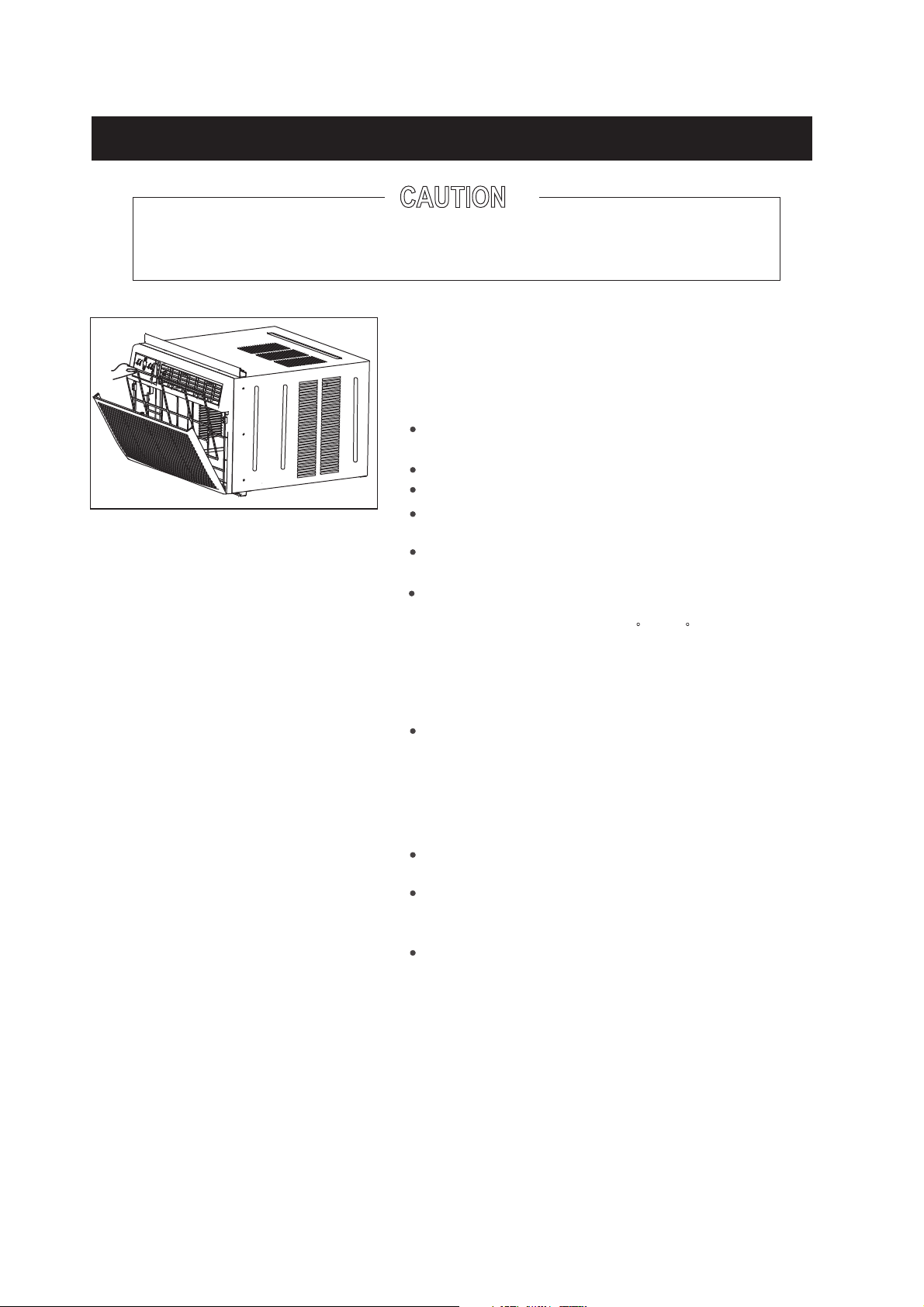

6. CARE AND CLEANING ....................................................................18
7. TROUBLESHOOTING TIPS...............................................................19
8. REMOTE CONTROLLER )($785(6$1'23(5$7,21.........................21
All the illustrations in this manual are for explanation purposes only. Your air
conditioner may be slightly different. The actual shape shall prevail.
NOTE:
1
9. WARRANTY........................................................................................28

To prevent injury to the user or other people and property damage, the following instructions
must be followed. Incorrect operation due to ignoring of instructions may cause harm or
damage. The seriousness is classified by the following indications.
Safety Precautions
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
!
!
WARNING
Always do this.
Never do this.
!
CAUTION
This symbol indicates the possibility of injury or damage to property.
Plug in power plug
properly.
Do not modify power cord
length or share the outlet
with other appliances.
Always ensure effective
Unplug the unit if strange
sounds, smell, or smoke
comes from it.
Keep firearms away.
Ventilate room before operating air
conditioner if there is a gas leakage from
another appliance.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
It may cause electric shock or
fire due to heat generation.
Incorrect grounding may cause
electric shock.
It may cause fire and electric
shock.
It may cause fire.
It may cause explosion, fire and burns.
It may cause electric shock or fire
due to heat generation.
It may cause electric shock.
It may cause failure of machine
or electric shock.
It may cause fire and electric
shock.
It may cause fire and electric
shock.
It may cause electric shock or fire.
If the power cord is damaged, it
must be replaced by the manufac-
turer or an authorised service
centre or a similarly qualified per-
son in order to avoid a hazard.
This could damage your health.
Incorrect installation may cause
fire and electric shock.
It may cause electric shock.
It may cause an explosion or fire.
It may cause failure and electric shock.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
Do not operate with wet
hands or in damp
environment.
Do not allow water to run
into electric parts.
Do not use the socket if it is
loose or damaged.
Do not use the power cord
close to heating appliances.
Do not damage or use an
unspecified power cord.
Do not direct airflow at
room occupants only.
Always install circuit
breaker and a dedicated
power circuit.
Do not open the unit
during operation.
Do not use the power cord near
flammable gas or combustibles, such
as gasoline, benzene, thinner, etc.
Do not disassemble or modify unit.
!
!
!
!
!
!
WARNING
!
!!!
2
grounding.

!
CAUTION
When the air filter is to be
removed, do not touch the
metal parts of the unit.
It may cause an injury.
Do not clean unit when
power is on as it may cause
fire and electric shock, it may
cause an injury.
Operation with windows
opened may cause wetting
of indoor and soaking of
household furniture.
When the unit is to be
cleaned, switch off, and turn
off the circuit breaker.
Stop operation and close
the window in storm or
hurricane.
Use caution when unpacking and
installing. Sharp edges could cause injury.
Do not clean the air
conditioner with water.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
This could injure the pet or
plant.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
Hold the plug by the head
of the power plug when
taking it out.
Ventilate the room well when
used together with a stove,
etc.
An oxygen shortage may occur.
Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects.
It may cause deterioration of
quality, etc.
It may cause failure of product
or fire.
Do not use for special
purposes.
Turn off the main power
switch when not using the
unit for a long time.
If water enters the unit, turn the unit off at the power
outlet and switch off the circuit breaker. Isolate
supply by taking the power-plug out and contact a
qualified service technician.
!
!
!
!
!
!
!
It may cause failure of
appliance or accident.
Appearance may be
deteriorated due to change
of product colour or
scratching of its surface.
Do not place obstacles
around air-inlets or inside
of air-outlet.
Do not use strong deter-
gent such as wax or
thinner but use a soft cloth.
If bracket is damaged, there
is concern of damage due to
falling of unit.
There is danger of fire or
electric shock.
Ensure that the installation bracket of
the outdoor appliance is not damaged
due to prolonged exposure.
Do not place heavy objects on the
power cord and ensure that the cord
is not compressed.
Operation without filters may
cause failure.
It contains contaminants and
could make you sick.
Always insert the filters
securely. Clean filter once
every two weeks.
Do not drink water drained
from air conditioner.
!
!
3
Failure to do so may cause
electric shock and damage.

IMPORTANT SAFETY INSTRUCTIONS
Be sure the electrical service is adequate for the model you have
chosen. This information can be found on the serial plate, which
is located on the side of the cabinet and behind the grille.
Be sure the air conditioner is properly grounded. To minimize
shock and fire hazards, proper grounding is important. The power
cord is equipped with a three-prong grounding plug for protection
against shock hazards.
Your air conditioner must be used in a properly grounded wall
receptacle. If the wall receptacle you intend to use is not adequately
grounded or protected by a time delay fuse or circuit breaker,
have a qualified electrician install the proper receptacle.
Ensure the receptacle is accessible after the unit installation.
Do not run air conditioner without side protective cover in place.
This could result in mechanical damage within the air conditioner.
Do not use an extension cord or an adapter plug.
WARNING For your safety
Do not store or use gasoline or other flammable vapours and liquids in
the vicinity of this or any other appliance.
Avoid fire hazard or electric shock. Do not use an extension cord or an
adaptor plug. Do not remove any prong from the power cord.

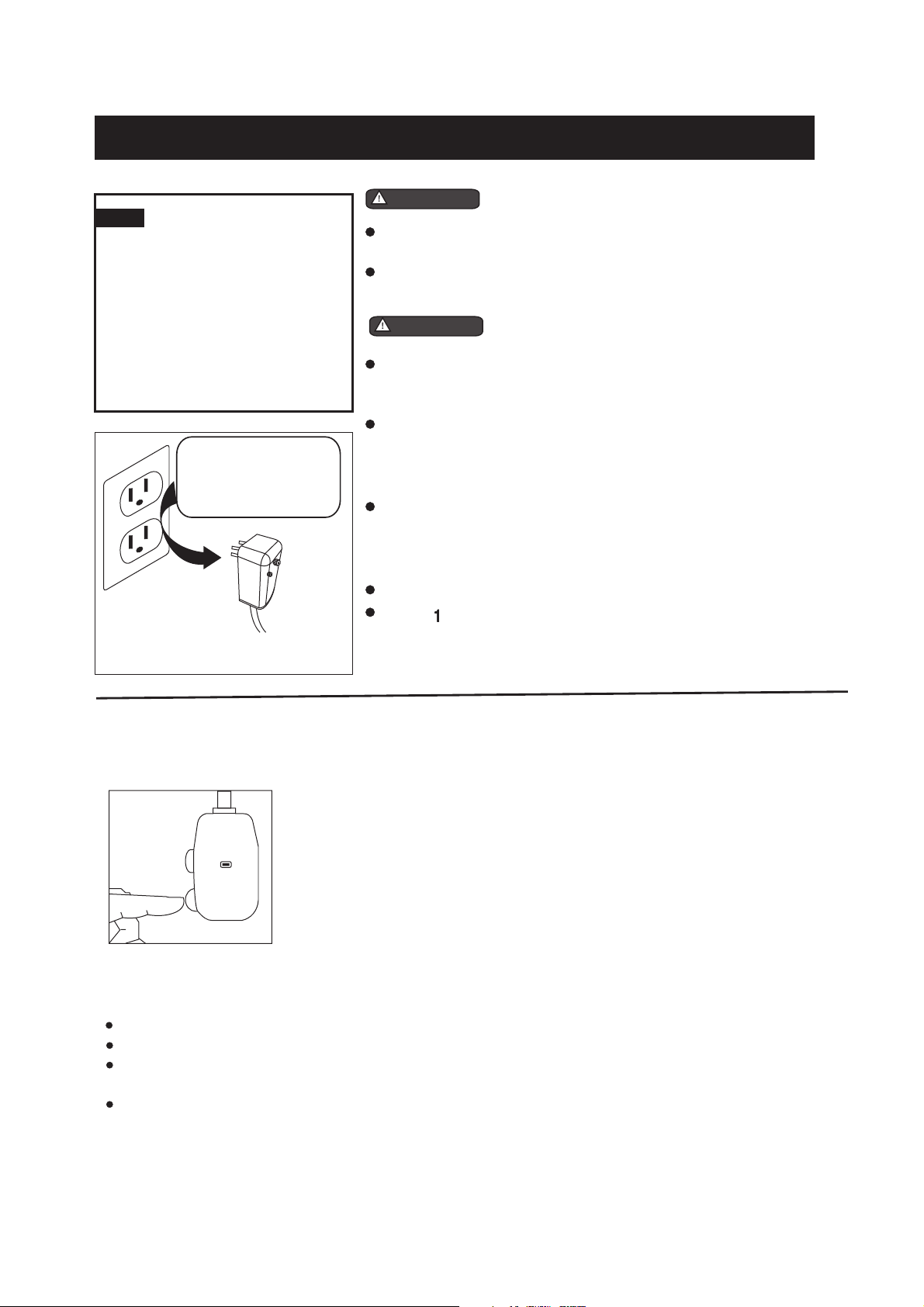

WARNING Electrical Information
NOTE The power supply cord with
this air conditioner contains a current
detection device designed to reduce
the risk of fire.
Please refer to the section Operation
of Current Device for details.
In the event that the power supply
cord is damaged, it cannot be
repaired-it must be replaced with a
cord from the Product Manufacturer.
,
,
Operation of Current Device
The power supply cord contains a current device that senses damage to the power cord. To test your power
supply cord do the following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head.
Press the TEST button, you will notice a click as the RESET
button pops out.
3. Press the RESET button, again you will notice a click as the button
engages.
4. The power supply cord is now supplying electricity to the unit.
(On some products this it also indicated by a light on the plug head.)
NOTES:
Do not use this device to turn the unit on or off.
Always make sure the RESET button is pushed in for correct operation.
The power supply must be replaced if it fails reset when either the TEST button is pushed, or it cannot be
reset. A new one can be obtained from the product manufacturer.
If power supply cord is damaged, it cannot be repaired. It MUST be replaced by one obtained from the
product manufacturer.
TEST
RESET
Plug in &
press RESET
NOTE: Some plugs have
buttons on the top.
Do not, under any
circumstances, cut,
remove, or bypass
the grounding prong.
Power supply cord
with 3-prong grounding plug
and current detection device
4

NORMAL SOUNDS

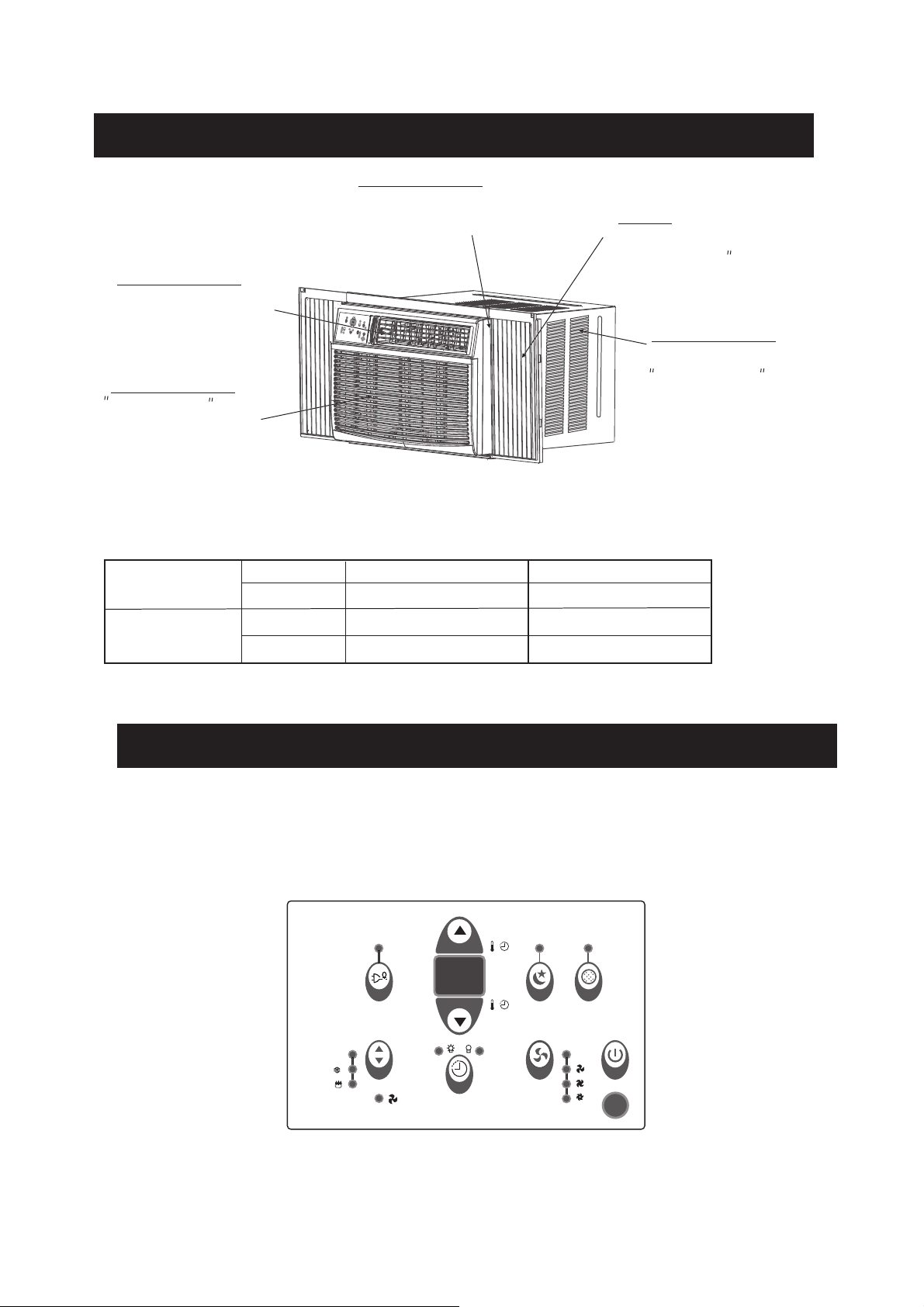

AIR CONDITIONER FEATURES
Sound of Rushing Air
At the front of the unit, you may
hear the sound of rushing air
being moved by the fan
High Pitched Chatter
High efficiency compressors
may have a high pitched chatter
during the cooling cycle.
Gurgle/Hiss
Gurgling or hissing noise may
be heard due to refrigerant
passing through evaporator
during normal operation.
Pinging or Switching
Droplets of water hitting condenser
during normal operation may cause
pinging or switching sounds.
Before you begin, thoroughly familiarize yourself with the control panel and remote and all its
functions, then follow the symbol for the functions you desire. The unit can be controlled
by the unit control alone or with the remote.
Vibration
Unit may vibrate and make noise
because of poor wall or window
construction or incorrect installation.
ELECTRONIC CONTROLS OPERATING INSTRUCTIONS
UNIT CONTROL
(Cooling Only Models)
Sleep
Check
Filter
Follow
Me
Auto
On/off
Fan High
Med
Low
Energy
Saver
on off
Timer
Auto
Fan
Cool
Dry
Mode
TEMP/TIMER
TEMP/TIMER
Heat
Cooling operation
Outdoor temp:
O
18-43 C(T1 Environment)
Indoor temp:
O
17-32 C(T1 Environment)
O
21-52 C(T3 Environment)
O
17-32 C(T3 Environment)
Heating operation
Outdoor temp:
O
-5-24 C(T1 Environment)
Indoor temp:
O
0 -27 C(T1 Environment)
O
-7-24 C(T3 Environment)
O
0-30 C(T3 Environment)
Note: Performance may be reduced outside of these operating temperatures.
NOTE:This air conditioner is designed to be operated under the following conditions:
AutoAuto
／／5

Auto

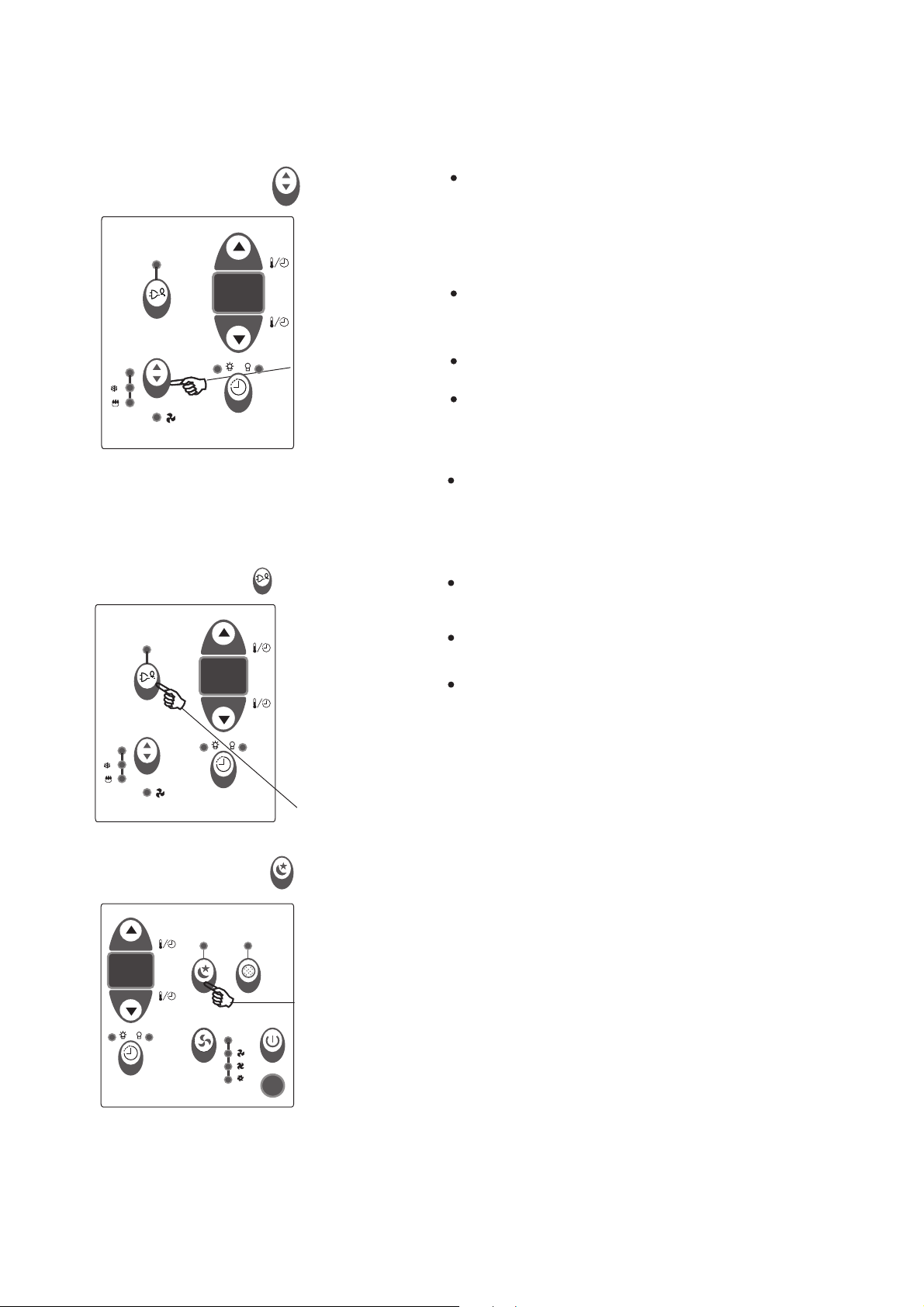

AIR CONDITIONER FEATURES(CONTINUED)
TO SELECT THE
OPERATING MODE:
e ModePress th
button.
DO THIS:
TO USE THE ENERGY
SAVER FEATURE:
SLEEP FEA TURE:
p
Press Slee
button
DO THIS:
In this mode the selected temperature will increase
(cooling) or decrease(heating) by 1ºC (or 1ºF) 30
minutes after the mode is selected.The temperature
will then increase(cooling) or decrease(heating) by
another 1ºC (or 1ºF) after an additional 30 minutes.
This new temperature will be maintained for 6 hours
before it returns to the originally selected temperature.
This ends the Sleep mode and the unit will continue to
operate as originally programmed. The Sleep mode
program can be cancelled at any time during operation
by again pressing the Sleep button.
NOTE:
To choose operating mode, press the Mode button.
Each time you press the button, a mode is selected
in a sequence that goes from Auto, Cool, Dry ,Heat
and Fan. The indicator light beside will be illuminated
and remained on once the mode is selected.
NOTE:
In this mode, the fan speed cannot be adjusted, it
starts automatically at a speed according to the
room temperature.
Use this function only when cooling is not desired,
such as for room air circulation or to exhaust stale
air(on some models). Remember to open the vent
during this function, but keep it closed during
cooling for maximum cooling efficiency. You can
choose any fan speed you prefer.
During this function, the display will show the actual
room temperature, not the set temperature as in the
cooling mode.
This function is available on COOL mode.The fan
will continue to run for 3 minutes after the compressor
shuts off.The fan then cycles on for 2 minutes at 10
minute intervals until the room temperature is above
the set temperature, at which time the compressor
turns back on and Cooling Starts.
NOTE:
In this mode, the air conditioner will operate
in the form of a dehumidifier. Since the
conditioned space is a closed area, some
degree of cooling will continue.
When you set the air conditioner in AUTO mode, it will
automatically select cooling, heating(on some models
you have selected and the room temperature.
The air conditioner will control room temperature
automatically round the temperature point set by you.
In Fan only mode, the temperature is not adjusted.
Auto
Auto
DO :
Press the button
THIS
6
To operate on Auto feature:
only), or fan only operation depending on what temperature
To operate on Fan Only:
To operate on Dry mode:

AIR CONDITIONER FEATURES(CONTINUED)
TURN UNIT ON
NOTE: The following instructions represent the Unit Controls, the same instructions can be used
for the Remote Control.
TO CHANGE TEMPERATURE
SETTING:
Press the On/Off button.
DO THIS:
Press to raise
DO THIS:
Press to lower
Press or hold either Up( ) or Down ( ) button
until the desired temperature is seen on the
display. This temperature will be automatically
maintained anywhere between 62 F(17 C) and
86 F(30 C).If you want the display to read
the actual room temperature, see Operate
on Fan Only section.
NOTE:
TO ADJUST FAN SPEEDS:
Press to select
appropriate fan
speed
DO THIS:
NOTE:
Auto, Low( ), Med( ) or High( ).
Each time the button
is pressed, the fan
speed mode is shifted.For some models,
the fan speed can not be adjusted under HEAT
On Dry mode,the fan speed is
controlled at Low automatically.
Auto
Auto
Auto
mode.
7
You may select the Fan Speed in four steps-

Auto
Auto
TIMER: AUTO START/
STOP FEATURE:
Press Timer
button
DO THIS:
AIR CONDITIONER FEATURES(CONTINUED)
NOTE:
CHECK FIL ER FEATURE
Press Check
Filter button
DO THIS:
This feature is a reminder to clean the Air Filter for
more efficient operation. The LED(light) will illumi-
nate after 250 hours of operation. To reset after
cleaning the filter, press the Check Filter button and
the light will go off.
NOTE:
- When the unit is on or off, first press the Timer button,
the TIMER ON indicator light illuminates. It indicates
the Auto Start program is initiated.
- When the time of TIMER ON is displayed, press the
- Press or hold the UP or DOWN button to change the
Auto time in 0.5 hour increments, up to 10 hours,then
in 1 hour increments up to 24 hours. The control will
count down the time remaining until start.
- The selected time will register in 5 seconds, and the
system will automatically revert back to display the
previous temperature setting or room temperature when
the unit is on.(When the unit is off,there is no display.)
- Turning the unit ON or OFF at any time or adjusting
the timer setting to 0.0 will cancel the Auto Start/Stop
timed program.
Timer button again, the TIMER OFF indicator light
illuminates. It indicates the Auto Stop program is
initiated.
O O
Shows the set temperature in C or F and the
Auto-timer settings.While on Fan only mode,it shows
the room temperature.
DISPLAYS:
-Evaporator temperature sensor error-Unplug the
unit and plug it back in.If error repeats, call for
service.
NOTE: is displayed as shown in the left picture.
HS -Electric heating sensor error-Unplug the unit and
plug it back in.If error repeats, call for service.
Error codes:
AS-Room temperature sensor error-Unplug the unit
and plug it back in.If error repeats, call for service.
NOTE:In Fan only mode,it will display LO or HI .
DISPLAYS
Displays
Auto
8
T

ADDITIONAL THINGS YOU SHOULD KNOW
Now that you have mastered the operating procedure, here are more features in your control that
you should become familiar with.
The Cool circuit has an automatic 3 minute time delayed start if the unit is turned off and on
quickly. This prevents overheating of the compressor and possible circuit breaker tripping.
The fan will continue to run during this time.
The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius.
To convert from one to the other, press and hold the Up and Down Temp/Timer buttons at the
same time, for 3 seconds.

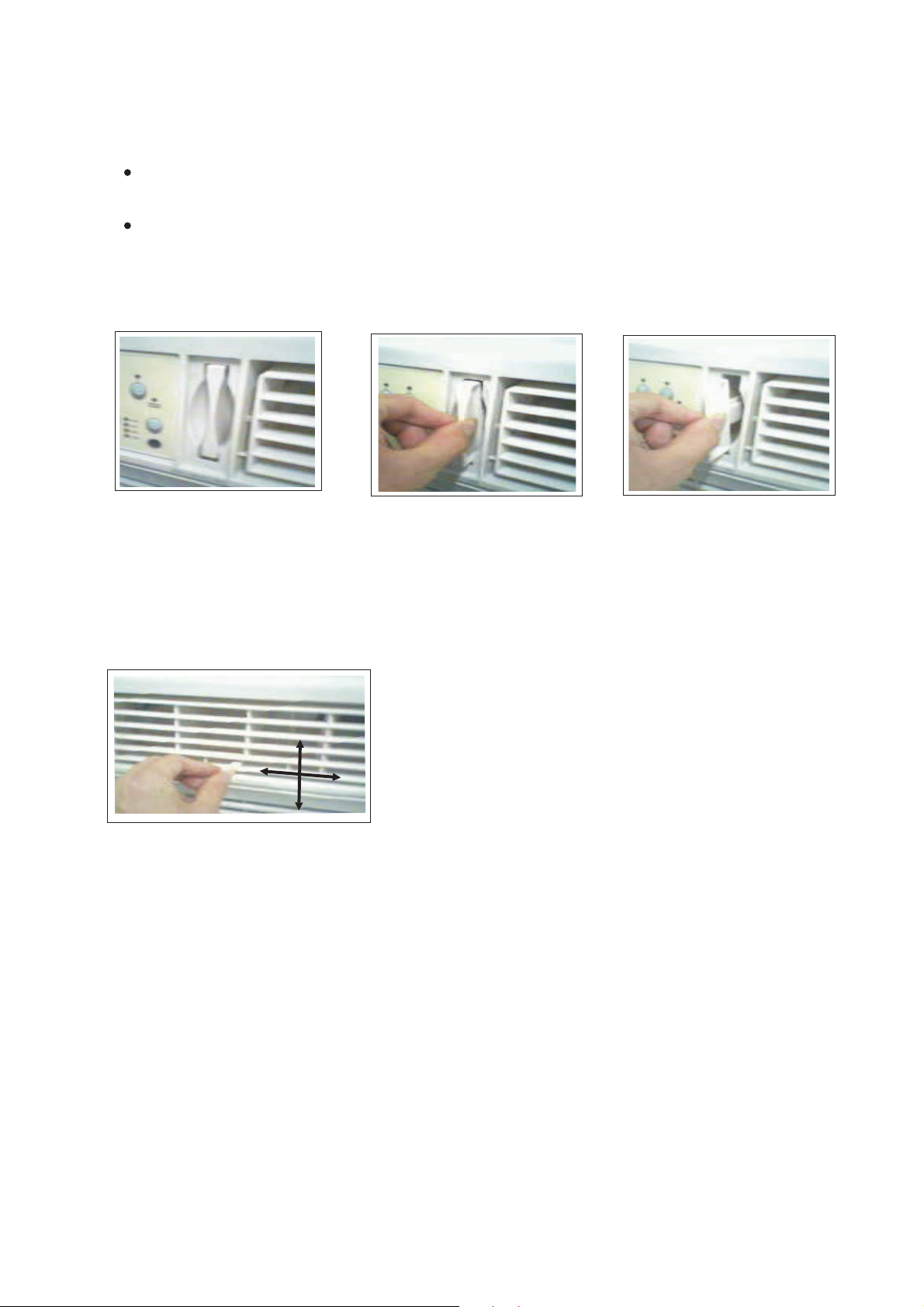

Fresh Air Vent Control(on some models):
Figure 1 (VENT CLOSED) Figure 2 (VENT OPEN)
The Fresh Air Vent allows the air conditioner to:
1. Recirculate air indoors - Vent Closed (See Fig.1)
2. Draw fresh air into the room- Vent Open (see Fig.2)
3. Exchange air from the room and draws fresh air into
the room - Vent and Exhaust Open (see Fig.3)
Figure 3
(VENT & EXHAUST OPEN)
Air Directional Louvers
The 4-way air directional louvers allow you to
direct the air flow up or down(on some models)
and left or right throughout the room as needed.
To adjust the air directional louvers side-to-side,
use the center handles as you move it side-to-side.
Air Direction(4- way)
9

INSTALLATION INSTRUCTIONS
Please read ALL instructions before installing. Two people are recommend to install this product.
If a new electrical outlet is required, have the outlet installed by a qualified electrician before
installing unit.
Preliminary Instructions
Do the following before starting to install unit.
See illustrations below.
Check dimensions of your unit to determine
model type:
Unit Height: 18 5/8 17 5/8
Unit Width:
Min. Window Opening:
Min. Window Width:
Max. Window Width:
26 23
12
/58
/
19 1812
/
31 2612
/
42 4012
/
1. Check window opening size-- the mounting
parts furnished with this air conditioner are
made to install in a wooden sill double-hung
window. The standard parts are for window
dimensions listed above. Open sash to a mini-
mum of 19 inches(483mm). See Fig.1.
2.Check condition of window-- all wood parts of
window must be in good shape and able to firmly
hold the needed screws. If not, make repairs
before installing unit.
3. Check your storm windows-- if your storm
window frame does not allow the clearance
required, correct by adding a piece of wood as
shown in FIG. 2,or by removing storm window
while room air conditioner is being installed.
4 .Check for anything that could block airflow--
check area outside of window for things such as
shrubs, trees, or awnings. Inside, be sure
furniture, drapes, or blinds will not stop proper
airflow.
5.Check the available electrical service- Power
supply must be the same as specified on the
unit serial nameplate. Power cord is 48 inches
long. Be sure you have an outlet near.
6.Carefully unpack air conditioner- Remove all
packing material. Protect floor or carpet from
damage. Two people should be used to move
and install unit.
SASH
/2 MIN.
1
19 MIN.
Storm Window Frame or
Other Obstruction Storm Window
Frame or Other
Obstruction
Board
Thickness
As Required,
Along Entire
Stool. Fasten
With Two Nails
Or Screws.
Fig.1 Fig.2
/2 MIN.
1/2 MIN.
1
19 MIN.
SASH
Window Sash Seal
Safety Lock and
3 /4 Long Hex
Head Screw
TopAngle
Foam Gasket
Washer Head
Locking screw
Frame
Assembly
(Left)
Side Retainer
Seal-bottom
Rail to Unit 1 /2 Long
Screw and
Locknuts
Locknut
3 /4 Long
Flat Head
Bolt Sill Angle
Bracket
Window Support
Bracket
Frame
Assembly
(Right)
1
/2
10

Tools Required
A large flat blade screwdriver
Tape measure
Adjustable wrench or pliers
Pencil
Level
Socket wrenches
Phillips Screwdriver
7/16" Locking
screw and Flat
washer for window
panels
3/4" Long
Hex-head Screw
Safety Lock
1/2" Long screw
and Locknut
3/4" Long Flat
Head Bolt and
Locknut
Sill Angle
Bracket
Long hex-head
locking screw
for top angle,
side retainer
5/16" Long
2 ea.
4
1
4ea.
2ea.
2
10
Hardware
(Packed with the unit)
11
(not included)

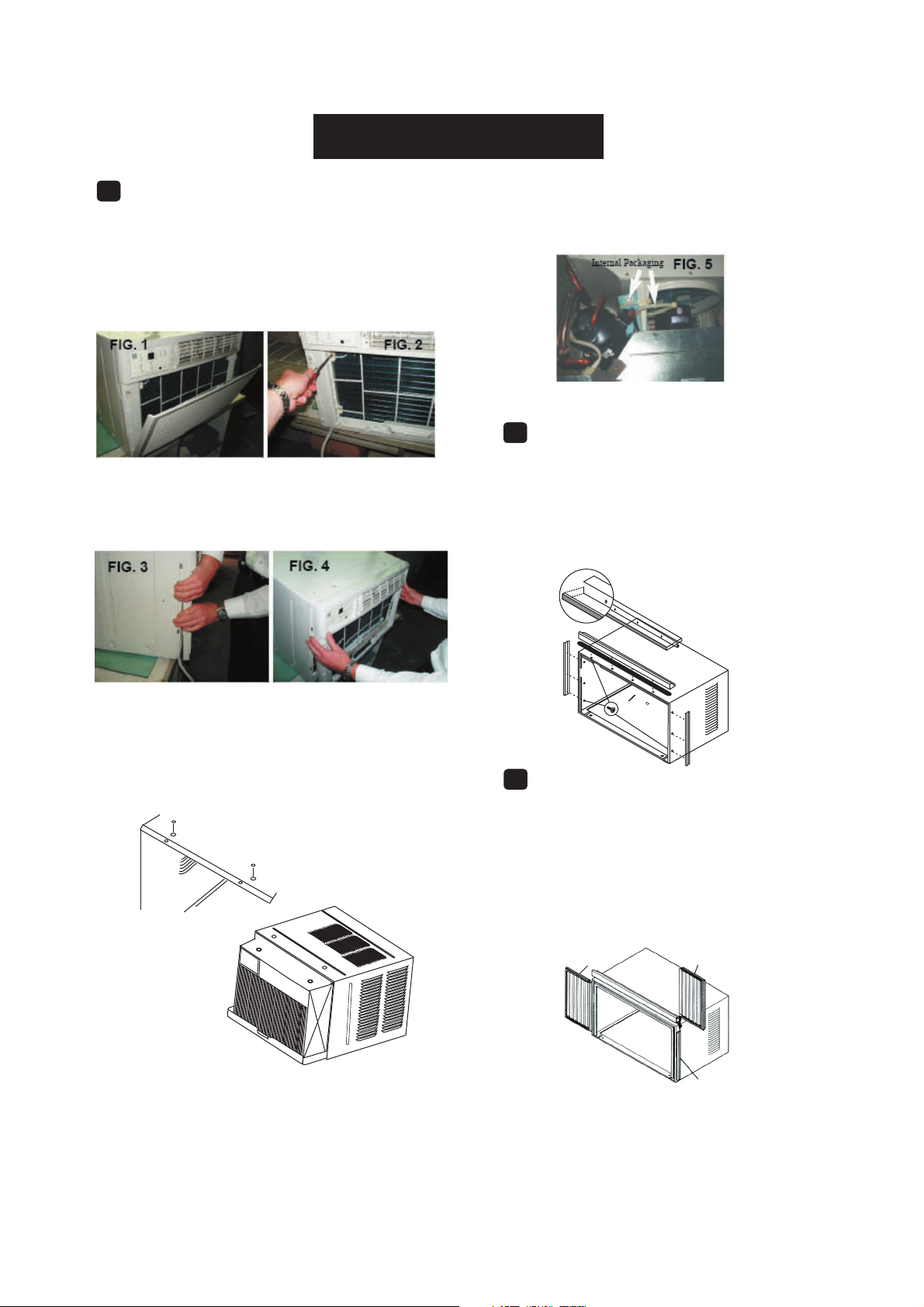

Window Mounting
1Remove Chassis
1. Pull down front panel and remove filter.
(See Fig.1).
2. Lift front upwards and place to one side.
3. Locate the four front screws and remove.
These screws will be needed to re-install
in the front later. (See Fig.2).
6. Remove shipping screws from top of unit and
also on the side by the base if installed.
7. Hold the cabinet while pulling on the base
handle, and carefully remove the unit.
8. Add two foam inserts to holes in top of cabinet
where shipping screws were removed from.
9. Your unit may come with internal packaging.
This packaging must be removed prior to
installing the air conditioner back into the
cabinet.(see Fig.5).
4. Pry away front from cabinet sides as shown in
Fig.3.
5. Gently lift front off unit and place to one side
(see Fig.4).
2Install Top Angle and
Side Bracket
1. Attach foam gasket to top angle
above holes as shown in Fig.6.
2. Install top angle and side retainers
to cabinet as shown in Fig.6.
3Assemble Window Filler Panels
1. Place cabinet on floor, a stable bench,
or a table.
2. Slide I section of window filler panel
into side retainer on the side of the
cabinet (see Fig.7). Do both sides.
,,
,,
Plastic
Frame
Window Filler
Panel
Side Retainer
Fig.7
Fig.6
5 16 long
hex-head
/
12

3. Insert top and bottom legs of window
filler panel frame into channel in the
top angle and bottom rail. Do both
sides.
4. Insert washer head locking screws
(2) into holes in top leg of filler panel
frame (see step 6). Do not tighten
Screws will be tightened after
completely. Allow leg to slide freely.
4Install Top Angle and
Side Bracket
3. Shift cabinet left or right as needed to line up
center of cabinet on center line marked on stool.
4. Fasten cabinet to window stool with 2 screws
(You may wish to pre-drill pilot holes).
5. Add bottom rail seal over screws to window stool.
1. Open window and mark center of window stool.
2. Place cabinet in window with bottom stool angle
firmly seated over window stool as shown. Bring
window down temporarily behind top angle to
hold cabinet in place.
Stool
Stool
Angle
5Install Support Bracket
1. Hold each support bracket flush against
outside of sill, and tight to bottom of cabinet
as shown below. Mark brackets at top level
of sill, and remove.
2. Assemble sill angle bracket to support
brackets at the marked position, as shown.
Hand tighten, but allow for any changes later.
Top
View
Air Conditioner
Cabinet Plastic
Frame
I Section Window
Filler
Panel
Locking
Screw
Hole
Bottom
Rail Seal
3 4 Long
Hex-head Screw
Mark
1 2 Long Screws
And Locknuts
Left
Right
Sill Angle
Bracket
Flat Head
Bolt
2 Each Required For
Each Support Bracket
Locknut
13
section 6.

3. Close window behind top angle.
6Extend Window Filler Panels
1. Carefully raise window to expose filler panel
locking screws. Loosen screws so filler panels
slide easily.
2. Extend panels to fill window opening completely.
Tighten locking screws on top.
3. Install support brackets(with sill angle
brackets attached) to correct hole in
bottom of cabinet as shown.
4. Tighten all 6 bolts securely.
1 2 Long Screws
and Locknuts
Locking Screw
7Install Window Lock and
Sash Seal
1. Trim sash seal to fit window width. Insert into
space between upper and lower sashes.
2. Attach right angle safety lock as shown.
Window Sash Seal
Safety Lock
3 4 Long
Hex-head
Screws
8Install Chassis into Cabinet
and Install Front to Unit
1. Lift air conditioner and carefully slide into
cabinet leaving 6 inches protruding.
2. DO NOT push on controls or finned coils.
3. Be sure chassis is firmly seated towards rear
of cabinet.
4. Installation of front is the reverse of removal
outlined in Section 1.
14

Through-Wall Installation
1Select Wall Location
The air conditioner has a slide-out chassis, so
that it can be installed through an outside wall
as specified below:
Max. Wall thickness: 12 or 10
IMPORTANT: Side louvers must never be blocked.
NOTE: All parts needed for Through-Wall Install-
tion are provided, except a wood frame, shims,
and 10 wood screws(#10-1 long minimum).
Select a wall surface that:
1. does not support major structural loads such
as the frame construction at ends of windows,
and under truss-bearing points, etc.
2. does not have plumbing or wiring inside.
3. is near existing electrical outlets, or where
another outlet can be installed.
4. is facing the area to be cooled without
blocage.
5. allows unblocked airflow from rear sides and
end(outside) of installed air conditioner.
Carefully measure and cut an opening with the
following dimensions depending on your model.
See Fig.1 and Fig.2.
WIDTH X = inside model width plus twice the
thickness of framing material used.
HEIGHT Y =inside model height plus twice the
thickness of framing material used.
Inside Frame Height: 18 (47.9cm) or18 (45.7cm)
Inside Frame Width: 26 (67.9cm) or 23 (60.6cm)
NOTE: Consult local building codes prior to
installation, or a qualified carpenter.
2Prepare Wall
1. Prepare wall in frame construction (including
brick and stucco veneer). Working from inside
the room, find wall stud nearest the center of
area where air conditioner will be installed
(by sounding wall, or by magnetically finding
nails).
2. Cut or knock out a hole on each side of center
stud.
3. Measure between inside edges of every other
stud as shown in Fig.1.
3-3/8 Min
(8.6cm)
Fig.1
7/
7/8
8
3/4
X
YInside
Frame
Height Inside
Frame
Width
Up to
8-12
/
Fig.2
4. Build a wooden frame with the INSIDE dimen-
sions of your model listed above. (Measure
twice). Frame depth should be the same as
wall thickness. Fill in the space from the
opening to the studs with wood spacers,
as shown.
5. Nail frame to spacers with front flush
with drywall.
Level
Nail Spacers To Studs
15

NOTE: If wall thickness is 8-1/2 or more, add
aluminum flashing over bottom of frame opening
to assure no water can enter area between inner
and outer wall.
Caulking
Required
Aluminum Flashing
Over Bottom Of Frame
Over
8-1/2
3Prepare and Install Cabinet
1. Slide chassis from cabinet. Refer back to Step
one of Window Mounting.
2. Place cabinet into opening with bottom rail
resting firmly on bottom board of wooden
frame.
3. Position cabinet to achieve proper slope for
water removal. (See Fig.1 below.)
Level
5/16
to 3/8
3 4 plus trim
thickness
See Para 5
/
Fig.1
4. Secure bottom rail to wood frame with two large
wood screws 1 (2.5cm) long using the two holes
in the bottom of the channel resting on frame.
(See Fig.2).
1 Long Wood
Screw
Fig.2
Refer to Step 4 of Window Mounting for assembly
of support brackets. A wooden strip nailed to the
outside wall should be used in conjunction with
sill support angle brackets.
Wooden
Strip
Support
Bracket
5. Screw or nail cabinet wooden frame using
shims if frame is oversized, to eliminate
distortion. Remember to maintain proper
slope as described in Step 3.
6. Install chassis into cabinet by following all
steps in Step 8 of Window Mounting.
16

OPTIONAL: Caulking and installation of trim on
interior wall may be done. You can buy wood from
your local number or hardware supply. On the
outside, caulk openings around top and sides of
cabinet, and all sides of wood sleeve to the opening.
NOTE: See Step 7, Item 3 of Window Mounting
Instructions for bottom rail seal location.
1. Cut or build a wall opening in the masonry wall
similar to the frame construction (refer to Step
2 of Through-wall Installation for a wall
thickness greater than 8-1/2 ).
2. Secure cabinet in place using masonry nails,
or the right masonry anchor screws. (Another
way to do this is to build an in-between frame
of 2x4 as shown in the Step 2 Prepare Wall
illustrations-but make it double framed on
either side, and install between masonry wall
opening and cabinet. Frame must be securely
anchored to masonry wall opening). This way
gives very good louver clearance on either
side of cabinet.
3. Install a lintel to support masonry wall above
cabinet. Existing holes in cabinet can be used
and/ or additional holes can be drilled to fasten
cabinet at various positions. Be sure that side
louver clearance is in accordance with Step 1
above.
4. Install exterior cabinet support brackets as
shown in Step 2 of Through-wall installation.
Caulk or flash if needed, to provide a weather-
tight seal around top and sides of cabinet.
5. To complete installation, apply wood trim
mouldings around cabinet on the inside of
Masonry Construction
17
the room.

CARE AND CLEANING
Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit
before cleaning to prevent chock or fire hazards.
CAUTION
Air Filter Cleaning
The air filter should be checked at least once a
month to see if cleaning is necessary. Trapped
particles in the filter can build up and cause an
accumulation of frost on the cooling coils.
Push the vent handle to the Vent Closed position
(where applicable).
Open the front panel.
Grasp the filter, pull up and out.
Wash the filter using liquid dishwashing deter-
gent and warm water. Rinse filter thoroughly.
Gently shake excess water from the filter. Be
sure the filter is thoroughly dry before replacing.
Or, instead of washing you may vacuum the
filter clean.
Note: Never use hot water over 40 C (104 F) to
clean the air filter. Never attempt to operate the
unit without the air filter.
Cabinet Cleaning
Be sure to unplug the air conditioner to prevent
shock or fire hazard. The cabinet and front may
be dusted with an oil-free cloth or washed with
a cloth dampened in a solution of warm water
and mild liquid dishwashing detergent. Rinse
thoroughly and wipe dry.
Never use harsh cleaners, wax or polish on the
cabinet front.
Be sure to wring excess water from the cloth before
wiping around the controls. Excess water in or around
the controls may cause damage to the air conditioner.
Plug in air conditioner.
If you plan to store the air conditioner during the winter,
remove it carefully from the window according to the
installation instructions. Cover it with plastic or return it
to the original carton.
Winter Storage
18

Before calling for service, review this list. It may save you time and expense. This list includes common
occurrences that are not the result of defective workman-ship or materials in this appliance.
Solution
Air conditioner
does not start
Wall plug disconnected. Push plug firmly into wall outlet.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type or
reset circuit breaker.
Plug Current Device Tripped. Press the RESET button.
TROUBLESHOOTING TIPS
Problem
Air from unit does
not feel cold
enough
Reset to a lower temperature.
Room temperature below 17 C (62 F). Cooling may not occur until room temperature
rises above 17 C (62 F).
Thermostat set too cold for night-time cooling. To defrost the coil, set to FAN ONLY
mode. Then, set temperature to a higher setting.
Temperature sensing element touching cold coil, located behind air filter. Straighten
tube away from coil.
Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost,
set to FAN ONLY mode.
Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section.
Unit recently turned on in hot room. Allow additional time to remove stored heat from
walls, ceiling, floor and furniture.
Control is OFF. Turn Control ON and set to desired setting.
OO
O
O
Air conditioner
cooling, but room
is too warm- ice
forming on cooling
coil behind
decorative front.
Outdoor temperature below 17 C (62 F). To defrost the coil, set FAN ONLY mode.
OO
Air conditioner
cooling, but room
is too warm- NO
ice forming on
cooling coil behind
decorative front.
Temperature is set too high, set temperature to a lower setting.
Air directional louvers positioned improperly. Position louvers for better air distribution.
Front of units is blocked by drapes, blinds, furniture, etc. - restricts air distribution.
Clear blockage in front of unit.
Doors, windows, registers, etc. are open- cold air escapes. Close doors, windows,
Compressor shut-off by changing modes. Wait approximately 3 minutes and listen for
compressor to restart when set in the COOL mode.
Air conditioner turns on
and off rapidly
Noise when unit is
cooling
Water dripping
INSIDE when
unit is cooling.
Improper installation. Tilt air conditioner slightly to the outside to allow water drainage.
Refer to installation instructions - check with installer.
Dirty air filter- air restricted. Clean air filter.
Air movement sound. This is normal. If too loud, set to a slower FAN setting.
Outside temperature extremely hot. Set FAN speed to a Higher setting to bring air past
cooling coils more frequently.
Window vibration - poor installation. Refer to installation instructions or check with
19
registers.
installer.
