Uberhaus 87795021 User manual

Model/modèle :
Customer Service / Service à la clientèle: 1-866-206-0888
Our Customer service staff is available to help you. For any problem with your purchase, or to receive further
information about this product, please call our toll-free number.
SAVE THIS MANUAL
Keep this manual and the original sales invoice in a safe, dry place for future reference.
Notre personnel du service à la clientèle est disponible pour vous aider. En cas de problème avec votre achat, ou pour
obtenir plus d’informations à propos de ce produit, veuillez composer notre numéro sans frais.
CONSERVEZ CE GUIDE
Conservez ce manuel avec la facture d’origine dans un endroit sûr et sec pour référence future.
87795021
MPN - CRN1-B (H)7 H010
PORTABLE AIR CONDITIONER
3
s
Operator's manual

Safety rules ......................................................................................................................................2
Operating conditions..........................................................................................................................2
Electrical information ........................................................................................................................3
Accessories ......................................................................................................................................3
Names of parts..................................................................................................................................4
Electronic control operating instructions ..........................................................................................5
Operating instructions ......................................................................................................................6
Location ...........................................................................................................................................8
Window kit installation .....................................................................................................................8
Exhaust hose installation ................................................................................................................
Water drainage ................................................................................................................................ 12
.............................................................................................. 13
..........................................................1
11
4
1
...
...........................................
SAFETY PRECAUTIONS
IDENTIFICATION OF PARTS
AIR CONDITIONER FEATURES
OPERATING INSTRUCTIONS
INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE .........
TROUBLESHOOTING TIPS .........
WAR ANTYR .................................
TABLE OF CONTENTS
.
.
.
.

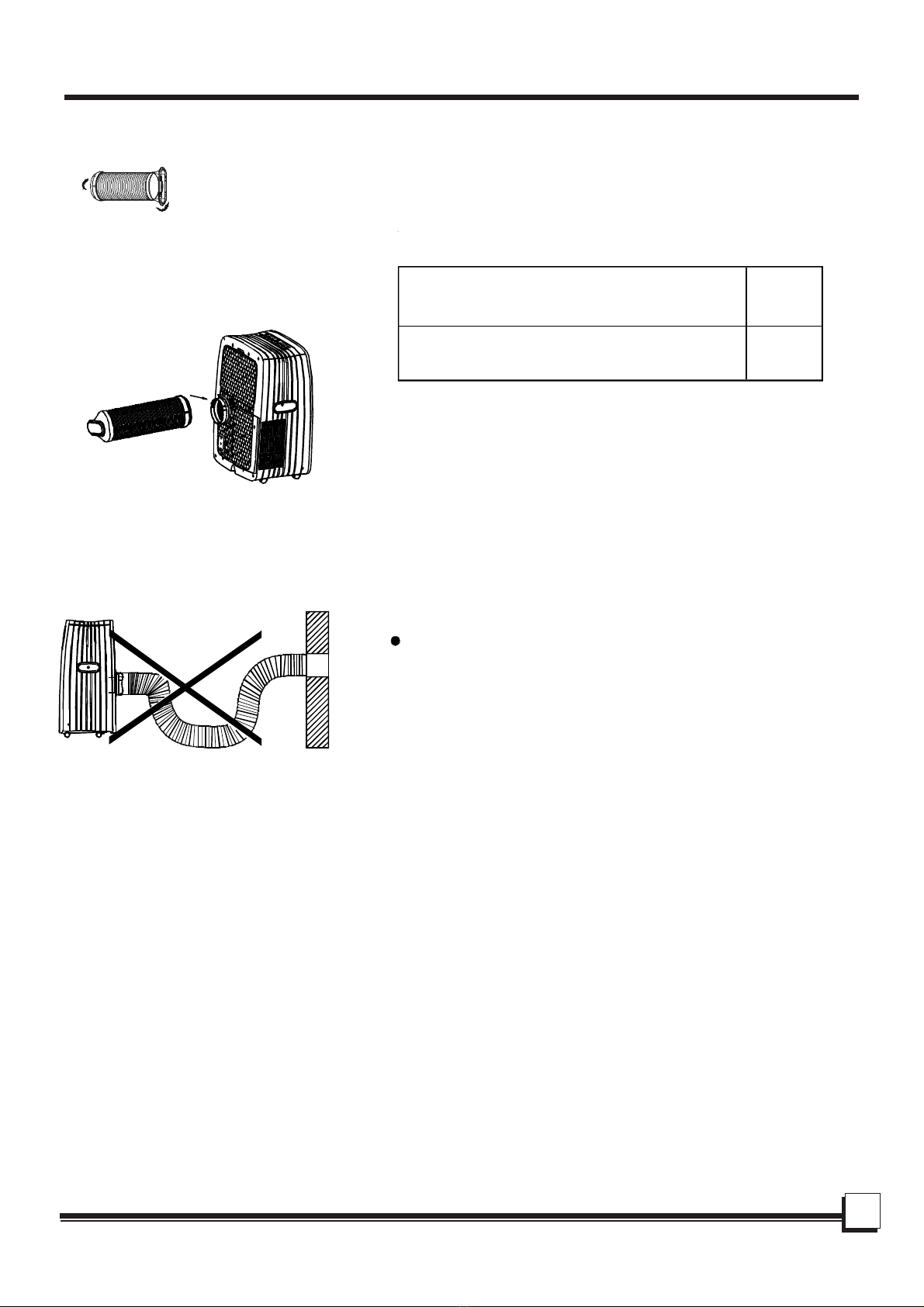

The rating data indicated on the rating label is based on the testing
condition of installing the un-extended air exhaust duct without adaptor
(The duct and the adaptor are listed in the accessories chart in this
Instruction Manual).
REMOTE CONTROLLER INSTRUCTIONS ........................................................................................15
.
......................................................................................................21

To prevent injury to the user or other people and property damage, the following instructions must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
Your air conditioner should be used in such a way
that it is protected from moisture. e.g. condensation,
splashed water, etc. Do not place or store your air
conditioner where it can fall or be pulled into water
or any other liquid. Unplug immediately.
Always transport your air conditioner in a vertical
position and stand on a stable, level surface during
use.
Turn off the product when not in use.
Always contact a qualified person to carry out
repairs. If the supply cord is damaged it must be
repaired by a qualified repairer.
Keep an air path of at least 1 ft (30 cm) all around the
unit from walls, furniture and curtains.
If the air conditioner is knocked over during use,
turn off the unit and unplug from the mains supply
immediately.
!
Always do this
Do not operate your air conditioner in a wet room
such as a bathroom or laundry room.
Do not touch the unit with wet or damp hands or
when barefoot.
Do not press the buttons on the control panel with
anything other than your fingers.
Do not remove any fixed covers. Never use this
appliance if it is not working properly, or if it has
been dropped or damaged.
Never use the plug to start and stop the unit.
Always use the switch on the control panel.
Do not cover or obsturct the inlet or outlet grilles.
Do not use hazardous chemicals to clean or come
into contact with the unit. Do not use the unit in the
presence o
f inflammable substances or vapours such
as alcohol, insecticides, petrol,etc.
Do not allow children to operate the unit
unsupervised.
Do not use this product for functions other than
those described in this instruction manual.
Never do this
Energy Saving Tips
Use the unit in the recommended room size.
Locate the unit where furniture cannot obstruct the air flow.
Keep blinds/curtains closed during the sunniest part of the day.
Keep the filters clean.
Keep doors and windows closed to keep cool air in and warm air out.
The air conditioner must be operated within the temperature range indicated below:
Operating conditions
Safety rules

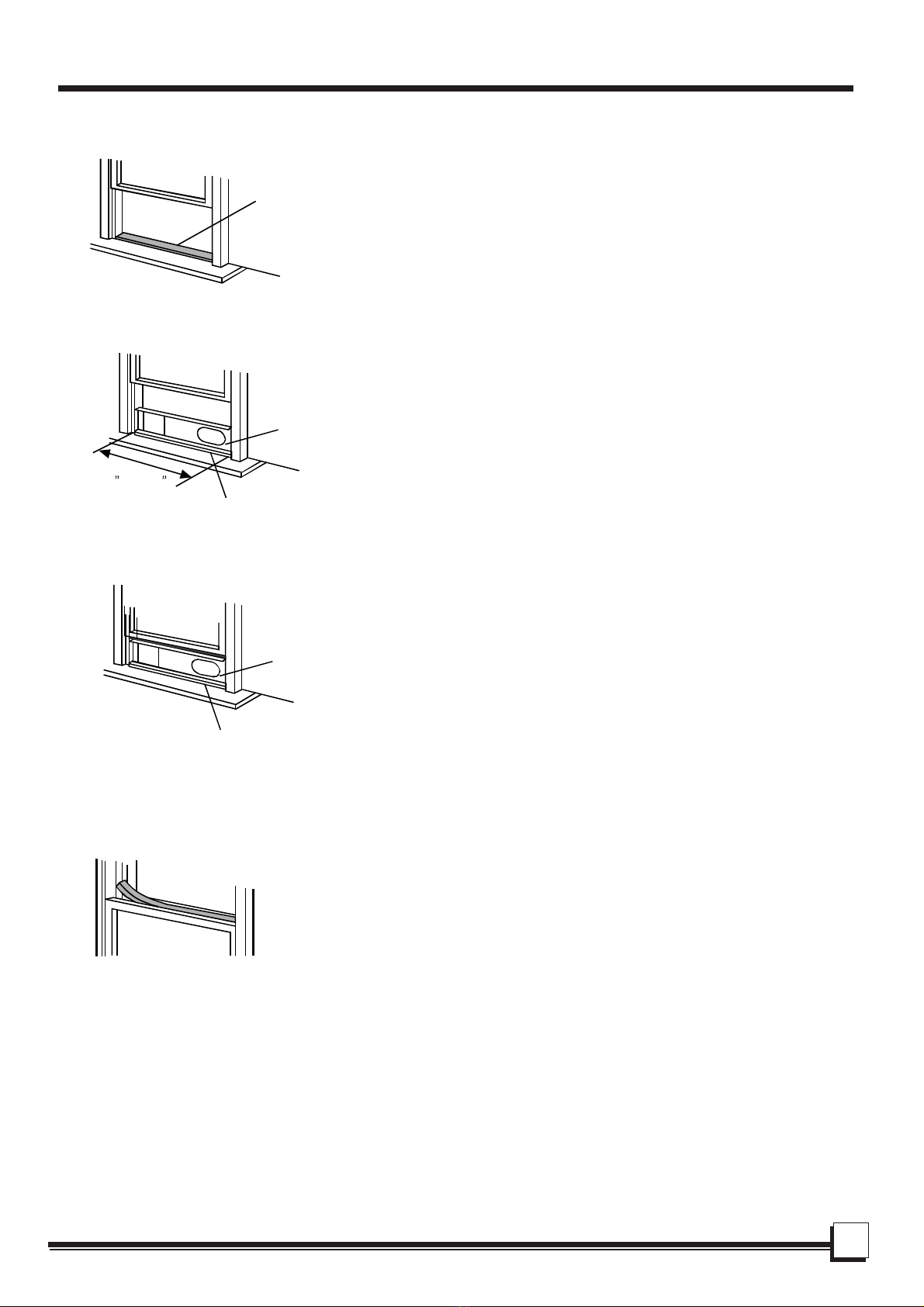

Suggested tools for window kit installation
1. Screwdriver(medium size Phillips)
2. Tape measure or ruler
3. Knife or scissors
4. Saw (In the event that the window kit needs to be cut down in size because
the window is too narrow for direct installation)
MODE OOM TEMPERATURE
COOL
DRY
HEAT(electrical heat type)
Note: Perform ance may be reduc ed outside of these operating temperatures.
2
SAFETY PRECAUTIONS

Be sure the electrical service is adequate for the model you have chosen. This information can be found
on the serial plate, which is located on the side of the cabinet and behind the grille.
Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper grounding is
important. The power cord is equipped with a three-prong grounding plug for protection against shock
hazards.
Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle you intend
to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified
electrician install a proper receptacle.
Ensure the receptacle is accessible after the unit installation.
WARNI NG For your safety
Do not store or use gasoline or other flammable vapours and liquids in the vicinity of this or any other
appliance.
Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove
any prong from the power cord.
WAR NI NG Electrical Information

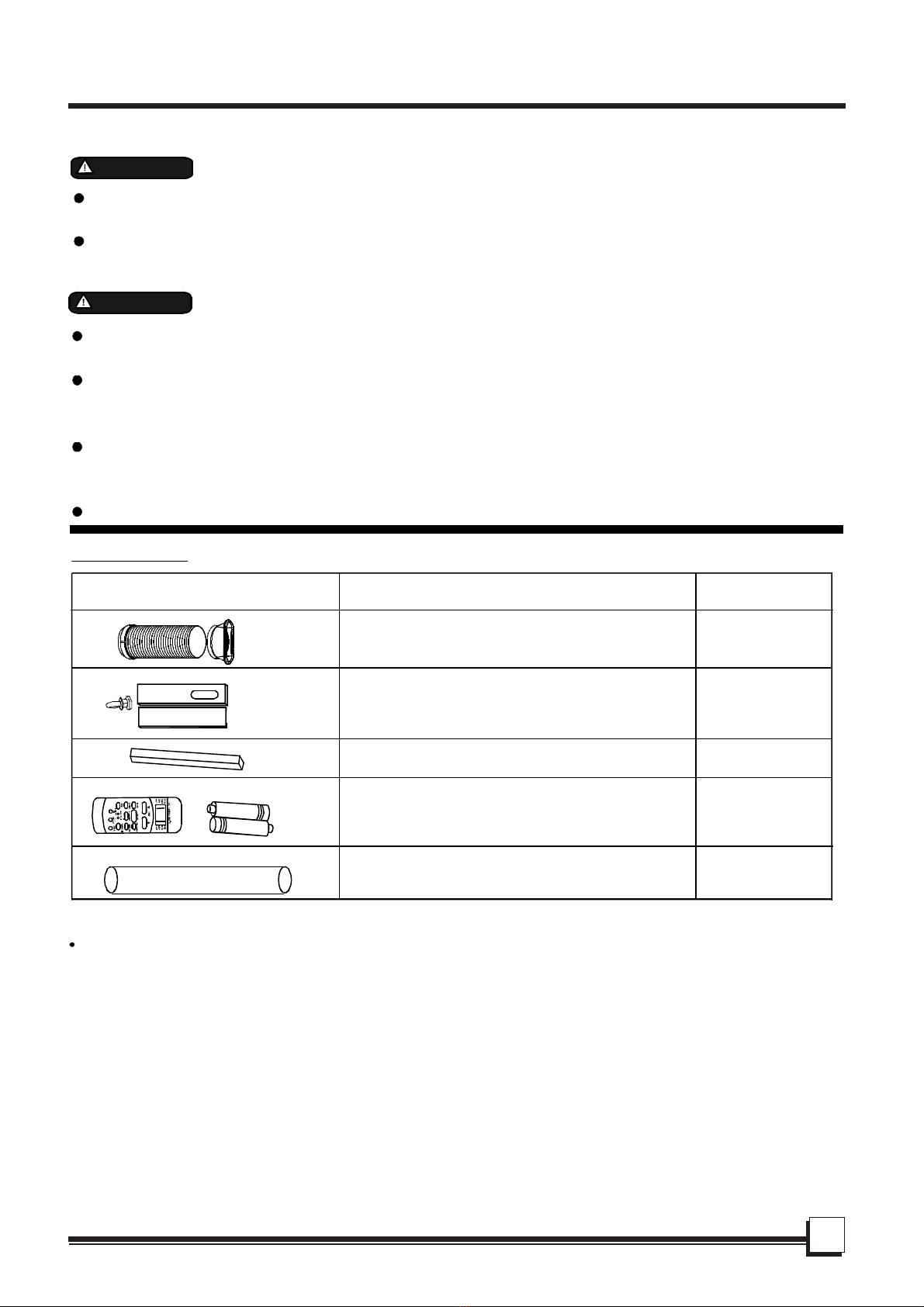

Check that accessories are included in the package and please refer to the installation instructions for
their usage.
All illustrations in this manual are for explanation purposes only. Your air conditioner
may be slightly different. The actual shape shall prevail.
Accessories
PARTS : :YTITNAUQ:EMANSTRAP
Foam seal 3 pcs
Remote Controller and Battery
(For remote control models only) 1 set
Drain hose
Exhaust hose (supplied), adapter
(flatmouth)
Window Slider Kit and bolt
IDENTIFICATION OF PARTS
3
1 set
1 set
1 pc
NOTE:

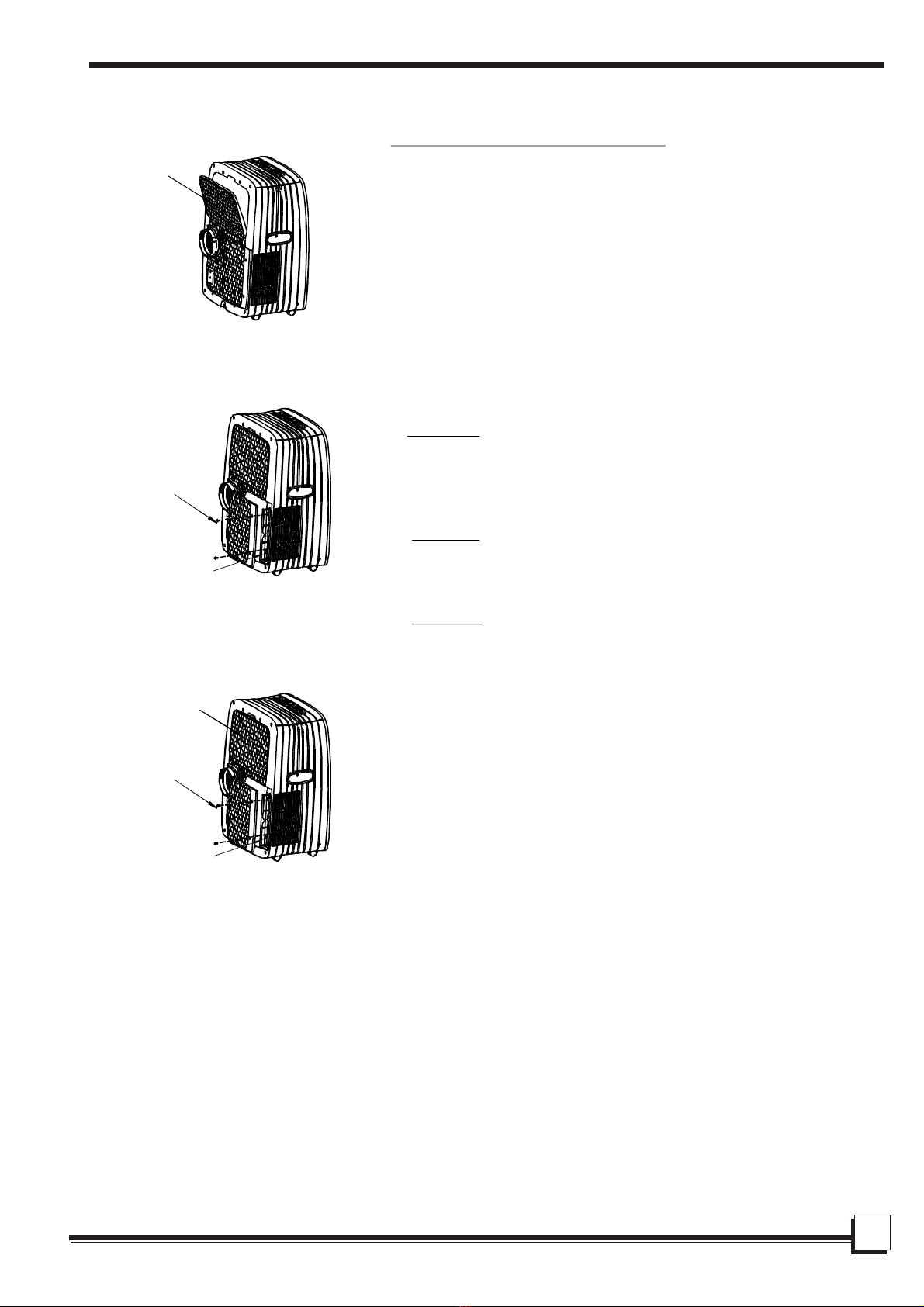

NAMES OF PARTS
Front
Operation Panel
Horizontal Louver Blade
(swings automatically)
Casters
Carrying Handle
(both sides)
Remote signal receptor
1
2
3
4
Fig.1
Fig.2
Rear
6
7
8
9
10
11
Upper Air Filter
(Behind the grille)
Air Outlet
Bottom tray drain outlet
Drain Outlet
Air intake
Air intake
Lower Air Filter
(Behind the grille)
Power cord outlet
12
69
7
10
11
12
8
1
2
3
4
5
5
13
13
IDENTIFICATION OF PARTS
4

Befo re you begin, th oroughly familia rize yourself wit h the control panel and remote c ontroller
and all its functions, then follow the symbol for the fu nctions desired.
The unit can be controlled by the unit control panel alone or with the remote controller.
ELECTRONIC CONTROL OPERATING INSTRUCTIONS
NOTE: This manual does not include Remote Controller Operations, see the <<Remote
Controller Instructions>> packed with the unit fo r details.
Sh ows th e s et temperature in C
O
" "
" "
or
F an d the Aut o-timer settings.
While on DRY and FAN modes, it sh ows
th e r oom te mp erat ure.
O
LED Display

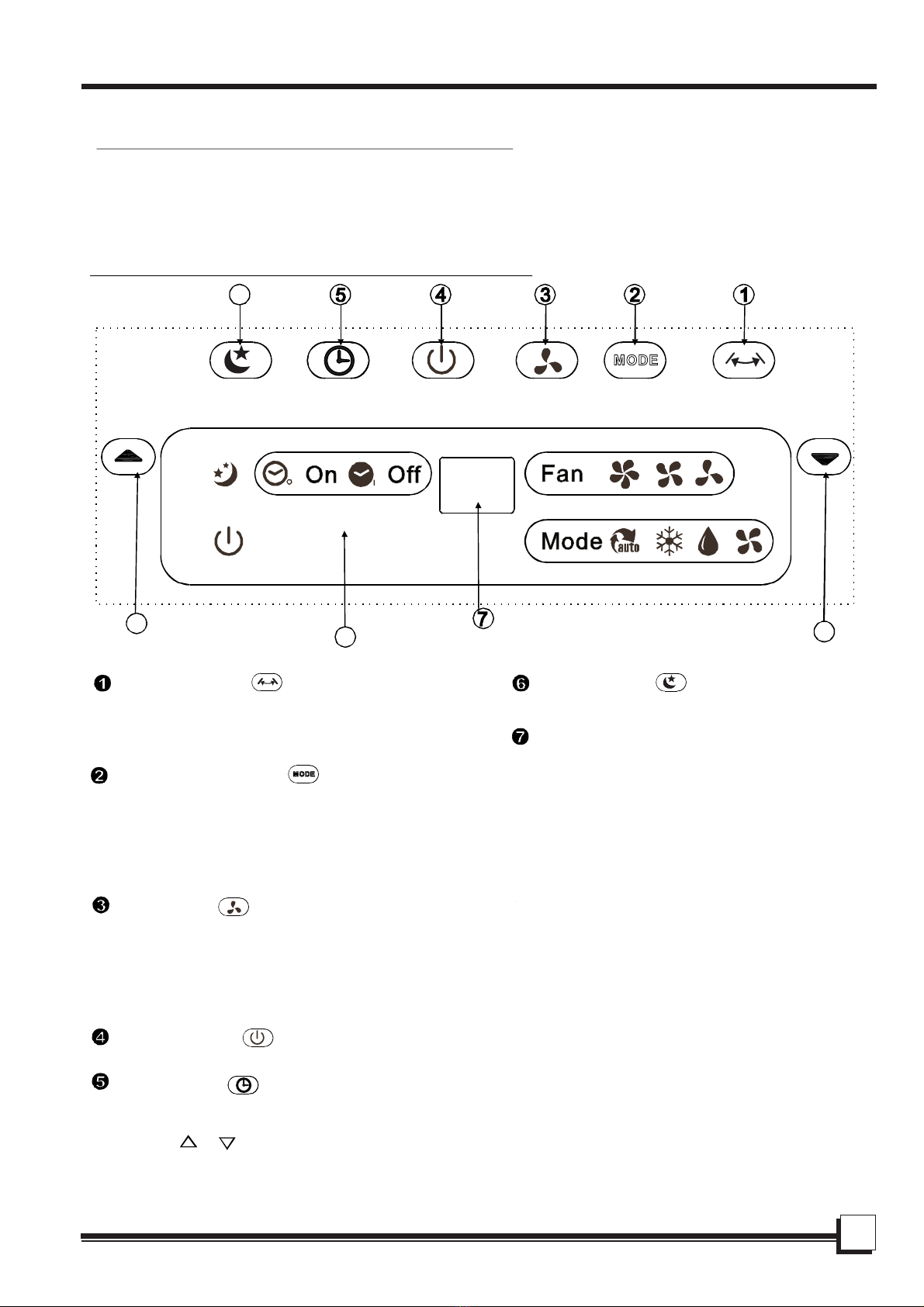

OPERATION PANEL OF THE AIR CONDITIONER
Fig.3
Used to initiate the SLEEP operation.
SLEEP button
E2-
E4-
E0-
Protection code:
P1-
Evaporator temperature sensor erro r-
Unplug the unit and plug it ba ck in.
If error repeats, call for service.
error-
Unplug the unit and plug it back in.
If error repeats, call fo r service.
Bottom tray is full - Connect the
drain h ose and drain the colle cted
water away. If error re peats, call
for ser vice.
Display panel communication
Unit m alfunction-- Unplug the unit an d
plug it back in. If error repeats, call for
service .
Error codes:
E1- Room temperature s ensor e rror-
Unplug the unit and plug it back in.
If error repeats, call for service.
AIR CONDITIONER FEATURES
8
Selects the appropriate operating mode.
Each time you press the button, a mode
is selected in a sequence that goes from
AUTO, COOL, DRY,and FAN. The mode
indicator light illuminates under the different
mode
settings (Fig.3).
MODE se lect
Used to initiate the AUTO ON start time and
AUTO OFF stop time program, in conjuction
with the & buttons.
TIMER
FAN bu tton
Controls the fan speed. Press to selec t the f an
speed in four st eps-LOW, MED, HI and AUTO.
The fan speed indicator light illuminates under
different fan settings except AUTO speed. Whenyou
select AUTO fan speed, all fan indicator lights turn
off.
Power switch on/off.
POWER
Use this butto n to initia te the aut o swing
fea ture or lo ck th e lou ver a t the d esir ed
position.
SW ING button
(Applicable to the models with auto swing feature only)
button
button
button
MODE
9
89
5
MODE

Operating Instructions
- Press the "MODE" button until the "COOL"
indicator light comes on.
- Press the ADJUST buttons " " or " " to
select your desired room temperature. The
temperature can be set within a range of
17 C-30 C/62 F-88 F.
- Press the "FAN SPEED" button to choose the
fan speed.
O
- Press the "MODE" button until the "DRY"
indicator light comes on.
- Under this mode, you cannot select a fan
speed or adjust the temperature. The fan
motor operates at LOW speed.
- Keep windows and doors closed for the
best dehumidifying effect.
- Do not connect the duct to window.
COOL operation
DRY operation
AUTO operation
- When you set the air conditioner in
AUTO mode, it will automatically select
cooling, heating (on some models only)
or fan only operation depending on what
temperature you have selected and the
room temperature.
Used to adjust (increasing/decreasing)
in a range of 17 C(62 F) to 30 C(88 F) or
the TIMER setting in a range of 0~24hrs.
UP ( ) and DOWN( ) button
NOTE: The screen can display temperature in Fahrenheit or
Celsius degrees. To convert from one to the other, press
and hold the Up and Down buttons at the same time, for 3
seconds.
FAN operation
SLEEP opera tion
- The air conditioner will control the room
temperature automatically to the
temperature point set by you.
- Under AUTO mode, you can not select
the fan speed.
Press this button, the selected temperature
will increase (cooling) or decrease (heating)
by 1 in 30 minutes.The temperature
will then increase (cooling) or decrease
(heating) by another 1 after an
additional 30 minutes. This new temper-
ature will be maintained for 7 hours
before it returns to the originally selected
temperature. This ends the Sleep mode
and the unit will continue to operate as
originally programmed.
This feature is unavailable under
FAN or DRY mode.
O O
O O
C/2 F
C/2 F
NOTE:
INDICATOR LIGHTS display
lights up when the POW ER is on.
light s up wh en SLE EP fun ction is set.
light s up wh en TIM ER ON function is set.
light s up wh en TIM ER OFF functio n is se t.
Fan:
lights up wh en HIG H FAN function is set.
light s up wh en MED FAN function is set.
light s up wh en LOW FAN f unction is set.
light s up wh en AUT O MOD E funct ion is set.
lights up wh en COO L MOD E funct ion is set.
lights up wh en DRY MODE function is set .
-
-
-
-
-
-
-
-
-
-
-light s up wh en FAN MODE functio n is set .
OPERATING INSTRUCTIONS
6
temperature settings(1 C/2 F increments)
Mode:
O
O O O O
O O O O
cannot

Other features
the unit will automatically restart, with the
Power Outage
Wait 3 minutes before resuming operation
Fig. 4
The louver can be adjusted automatically .
When the Power is ON, the louver opens fully.
Press the SWING button on the panel or
remote controller to initiate the Auto swing
feature.
The louver willl swing up and down
Adjust the air flow direction automatically
(Fig.4):
automatically.
Please do not adjust the louver manually.
Airflow direction adjustment
Swing automatically
TIMER operat ion
the TIMER OFF indicator light illuminates. It
indicates the Auto Stop program is initiated.
-
- Press or hold the UP or DOWN button to change
the Auto time by 0.5 hour increments, up to 10
hours, then at 1 hour increments up to 24 hours.
The control will count down the time remaining
until start.
- The selected time will register in 5 seconds and
the system will automatically revert back to
display the previous temperature setting.
- Turning the unit ON or OFF at any time or
adjusting the timer setting to 0.0 will cancel the
Auto Start/Stop timed program.
- When a malfunction (E1 or E2) occurs, the
Auto Start/Stop timed program will also be
cancelled.
When the unit is off, first press the Timer button,
the TIMER ON indicator light illuminates. It
indicates the Auto Start program is initiated.
OPERATING INSTRUCTIONS
7
In the case of a power outage or interruption,
After the unit has stopped, it cannot be restarted
in the first 3 minutes. This is to protect the unit.
Operation will automatically start after 3 minutes.
previous settings, after the power is restored..

INSTALLATION INSTRUCTIONS
LOCATION
Window Slider Kit Installation
If the window opening is less than the mentioned
minimum length of the window slider kit, cut that one
with a hole in it short to fit for the window opening.
Never cut out the hole in window slider kit.
Note:
Fig.5
bolt
Window slider kit
Window Slider Kit
Minimum:
Maxmum:
Horizontal
window
Horizontal
win do w
Window Slider Kit
Minim um:
Maxmum:
56.2 cm(1.84 ft).
98.2 cm(3.22f t).
56.2 cm(1.84 ft).
98.2 cm(3.22f t).
Fig.7a
Fig.6
Fig.7
The air conditioner should be placed on a firm
foundation to minimize noise and vibration. For
safe and secure positioning, place the unit on a
smooth, level floor strong enough to support the unit.
The unit has casters for easier placement, but it should
only be rolled on smooth, flat surfaces. Use caution
when rolling on carpet surfaces. Do not attempt to
roll the unit over objects.
The unit must be placed within reach of a properly
rated grounded socket.
Never place any obstacles around the air inlet or
outlet of the unit.
of space from the wall
for efficient air-conditioning.
Your window slider kit has been designed to fit most
applications. However, it may be necessary for you to
improvise/modify some aspects of the installation
procedures for certain types of window. Please refer
to Fig. 6& Fig.7 for minimum and maximum window
openings.Window slider kit can be fixed with a bolt
(see Fig.7a).
INSTALLATION INSTRUCTIONS (optional)
8
vertical
A:30cm-100c m B: 30cm
A
B
Allow at least 30cm to 100cm

1. Cut the foam seal (adhesive type) to the proper
length and attach it to the window sill. See Fig.8
2. Attach the window slider kit to the window sill.
Adjust the length of the window slider kit according
to the width of window, shorten the adjustable window
kit if the width of window is less than 22.1 inches.
Open the window sash and place the window slider
kit on the window sill. Fig.9
3. Cut the foam seal (adhesive type) to the proper
length and attach it on the top of the window. See
Fig.10.
4. Close the window sash securely against the
window.
5. Cut the foam seal to an appropriate length and
seal the open gap between the top window sash
and outer window sash. See Fig.11.
Foam seal A
(adhesive type)
Window kit
Window sill
22.1 ~ 38.6
Foam seal
Fig. 8
Fig.9
Fi g.10
Fig.11
Window kit
Window sill
INSTALLATION INSTRUCTIONS (optional)
Installation in a double-hung sash
window
9

Installation in a sliding sash window
1. Cut the foam seal (adhesive type) to the proper
length and attach it to the window frame. See Fig.12.
2. Attach the window slider kit to the window sill.
Adjust the length of the window slider kit according
to the width of window, shorten the adjustable window
kit if the width of window is less than 22.1 inches.
Open the window sash and place the window slider
kit on the window sill. See Fig.13.
3. Cut the foam seal (adhesive type) to the proper
length and attach it on the top of the window.
See Fig.14.
4. Close the sliding sash securely against the window.
5. Cut the foam seal to an appropriate length and
seal the open gap between the top window sash
and outer window sash. See Fig.15.
Foam seal
Foam seal A
(adhesive type)
Window
panel
Fig.12
Fig.13
Fig.14
Fig.15
INSTALLATION INSTRUCTIONS (optional)
10
22.1 ~ 38.6

Ex ha ust h ose inst allat ion:
The exhaust hose and adaptor must be installed or removed
in accordance with the installation of the unit.
The duct can be compressed or extended moderately
according to the installation requirement, but it is
desirable to keep the duct length to a minimum.
IMPORTANT:
DO NOT OVER BEND THE DUCT (SEE Fig.
Fig.17
Note:
Cover the hole using the adaptor cap when not in use.
Fig.16
COOL,HEAT(heat pump type) or AUTO
mode
FAN,DEHUMIDIIFY or HEAT (electrical heat type)
mode
Install
Remove
Fig
.
18
1. Install the window exhaust adaptor B onto the exhaust
hose as shown in Fig.1 Refer to the previous
pages for window kit installation.
2. Push the exhaust hose into the airoutlet opening along the
the arrow direction(See Fig.1
6.
7).
19)
INSTALLATION INSTRUCTIONS (optional)
11

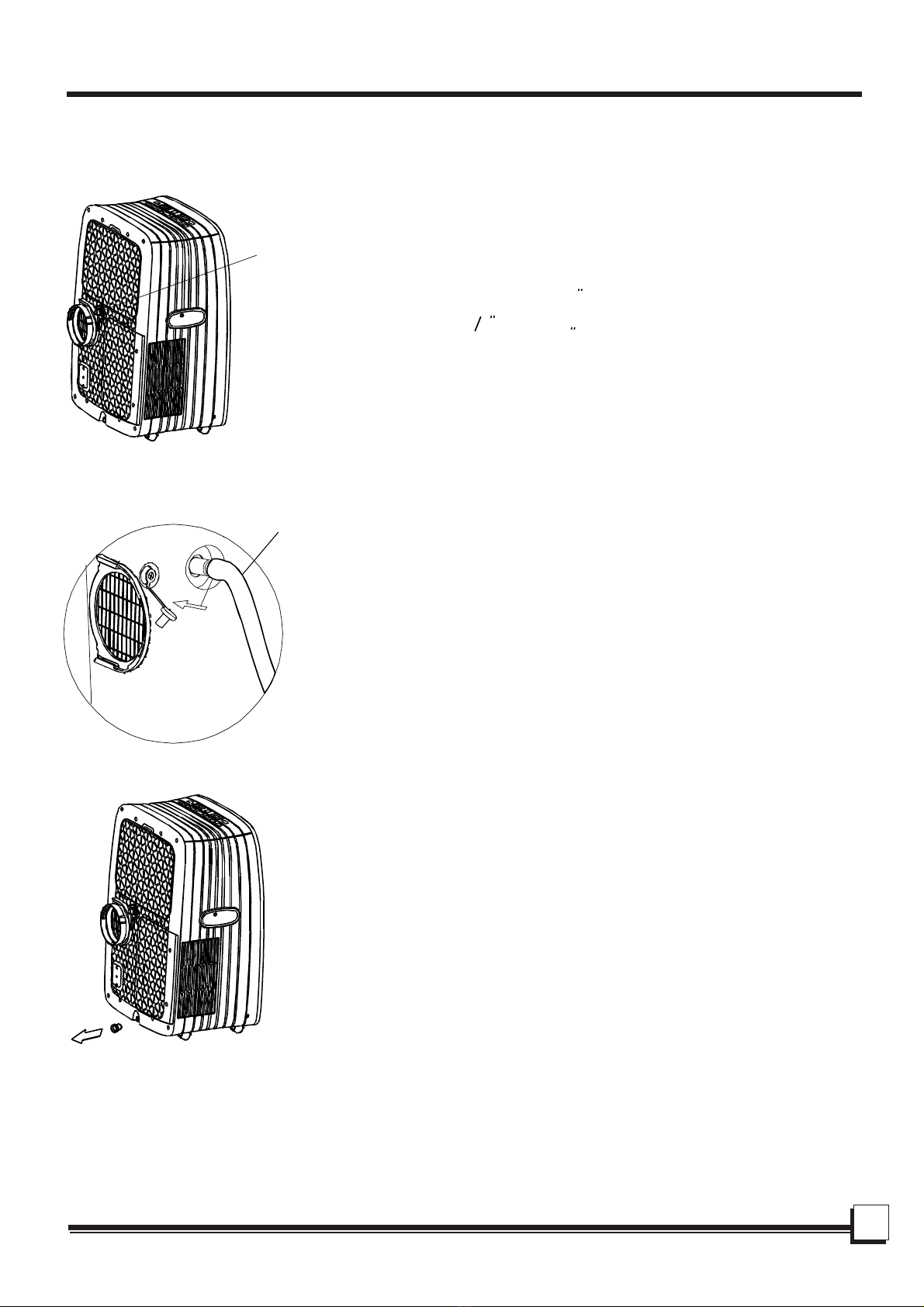

- During dehumidifying modes, remove the drain
plug from the back of the unit, install the drain
connector (5/8universal female mender) with
3 4 hose (locally purchased). For the models
without drain connector, just attach the drain
hose to thehole. Place the open end of the
hose directly over the drain area in your
basement floor. Please refer to Fig.21 & 22.
-
When the water level of the bottom tray reaches
a predetermined level,
Carefully move the unit to a drain location,
remove the bottom drain plug and let the
water drain away (Fig.23). Reinstall the bottom
drain plug and restart the machine until the P1
symbol disappears. If the error repeats, call for
service.
" "
the unit beeps 8 times,
the digital display area shows P1 . At this time
the air conditioning/dehumidification process will
immediately stop. However, the fan motor will
continue to operate (this is normal).
" "
Remove the
drain plug
Fig.21
Continuous
drain hose
Fig.22
Fig.23
INSTALLATION INSTRUCTIONS
12
Water drainage:

Fig .24
Fig .25
CARE AND MAINTENANCE
1) Be sure to unplug the unit before cleaning or servicing.
2) Do not use gasoline, thinner or other chemicals to clean
the unit.
3) Do not wash the unit directly under a tap or using a hose.
It may cause electrical danger.
4) If the power cord is damaged, it should be repaired by
the manufacturer or its authorized agent.
IMPORTANT:
1. Airfilter
- Clean the air filter at least once every two weeks to prevent
dust from impacting fan operation.
-
This unit has three filters. Take the upper filter out along the
the arrow direction (Fig.24), then take the filter down.
Remove the lower filter and the side filter by loosening the
screws, taking out the filters as shown in Fig.25.
-
Wash the air filter by immersing it gently in warm water
(about 40 C/104 F) with a neutral detergent. Rinse the filter
and dry it in a shady place.
-
Install the upper air filter after cleaning, then insert the side
filter into the unit and install the lower filter by using the
screws (see Fig.26).
Removal
Cleaning
Mounting
O O
2. Unit enclosure
- Use a lint-free cloth soaked with neutral detergent to clean
the unit enclosure. Dry enclosure with a clean cloth.
3. Is unit has been idle foralong time
,,
,,
- Remove the rubber plug at the back of the unit and attach
a hose to drain outlet
(See Fig.21 & 22).
- Remove the plug from the bottom drain outlet, all water
in the bottom tray will drain out (See Fig.23).
- Keep the appliance running on FAN mode for half a day
in a warm room to dry the appliance's inner parts and
prevent mold.
- Stop the appliance and unplug it, wrap the cord and
bundle it with the tape. Remove batteries from
the remote controller.
- Clean the air filter and reinstall it.
. Place the open end of the hose
directly over the drain area in your basement floor
Upper filter
(take out)
Remove the
screws ,then
take the lower
filter dow n and
the side filter
out.
S ide filter
(take out)
NOTE: The upper (lower) grills and the upper (lower)air filters
are connected and can be separated.
Fig .26
Upper filter
(install)
Install th e
lower filt er
by using the
screws.
Side fi lter
(insert into)
CARE AND MAINTENANCE
13

TROUBLESHOOTING
1. Unit does not
start when
pressing on/off
button
TROUBLES POSSIBLE CAUSES SUGGEST REMEDIES
Reset the temperature.
Make sure all the windowsand
doors are closed.
Remove the heat sources if possible.
Connect the duct and make
sure it can function properly.
Decrease the set temperature.
Clean the air filter.
- Room temperature is lower than
the set temperature.(Cooling mode)
- The windows or doors in the room
are not closed.
- There are heat sources inside the
room.
- Exhaust air duct is not connected or
blocked.
- Temperature setting is too high.
- Air filter is blocked by dust.
2. Air is not cool enough
Place the unit on a flat, level
ground if possible.
This sound is normal.
- The ground is not level or not flat
enough.
- The sound comes from the flowing
of the refrigerant inside the
air-conditioner.
4. Noise or vibration
5. Gurgling sound
Switch on again after the unit
has cool down.
-Caused by the unit's overheating
protection.
When the
temperature at the air out let
exceeds 70 C/158 F,the unit
wi ll stop .
O O
6. Power shut off in
heating mode
- P1 appears in the display window Drain the water in the bottom tray.
TROUBLESHOOTING TIPS
14

Model:
INSTRUCTIONS
Celsius Scale( C), RG51B31/CE
RG51B31/CE
RG51B31/CE
15

8
9
12
4
3
6
5
7
8
9
10
11
12
10
11
12
SET TEMPERATURE
OO OO
display.
TEMP
AUTO
MODE
TEMP.( C)
screen
Model:
INSTRUCTIONS
RG51B31/CE
16

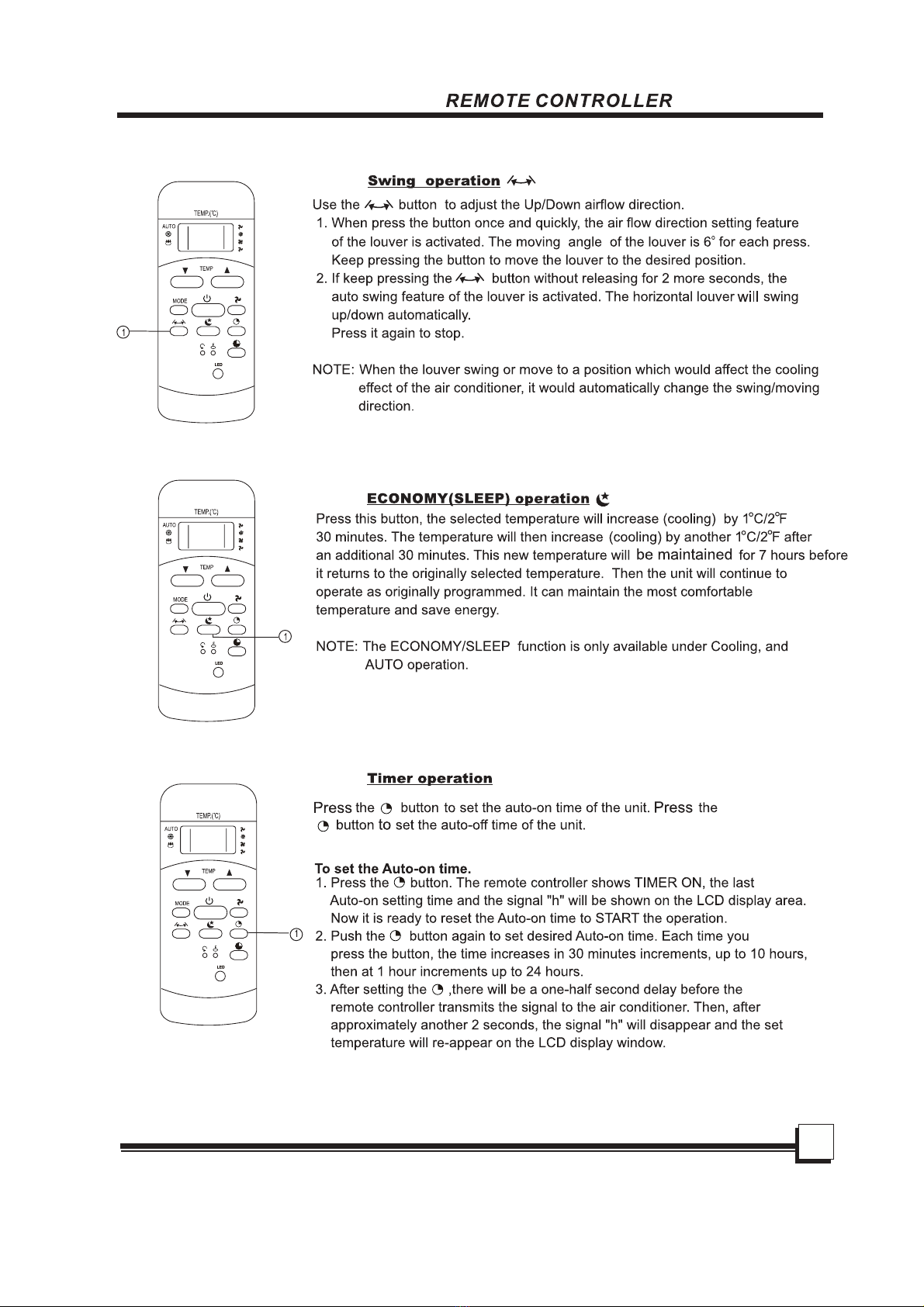

NOTE: While the unit is running under SLEEP mode,
it would be cancelled
if ON/OFF, FAN SPEED,SLEEP or MODE button is pressed.

MODE
TEMP
NOTE
MODE
TEMP
3
1
2
controlled.
NOTE
4
3
1
2
MODE
TEMP
NOTE
3
1
2
TEMP
AUTO
MODE
TEMP.( C)
TEMP
AUTO
MODE
TEMP.( C)
TEMP
AUTO
MODE
TEMP.( C)
INSTRUCTIONS
17

INSTRUCTIONS
18

INSTRUCTIONS
19
3. Wait for about 3 seconds and the digital display
area will show the temperature
again. Now this
function is activated.
