Uberhaus 70005014 User manual

70005014
780-0003
Pro
p
ane Gas Barbecue
Barbecue au gaz propane

2
TABLE OF CONTENTS
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odour continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
WARNING
1. Do not store or use gasoline or other
flammable liquids or vapours in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
Safety Information….…………………………………………………....………………...…… 3
Hardware Contents List……………………………………………………………………..…..7
Preparation……………….…………………. ……………………….…………….……………7
Assembly Instructions…………………………………………………………….…..…..…… 8
Installation Instructions…………………………………………………………….....…….…..18
Operating Instructions…….………………………………………………….…….…..…….…21
Care and Maintenance………………………………………………………………………….23
Troubleshooting…………………………………………………………………..……….….…24
Replacement Parts List………………….…...……………………………………..…….……26
Warranty………………………………….…………………………………………..……..……28

3
SAFETY INFORMATION
WARNING – Hazards or unsafe
practices which could result in severe
personal injury or death.
CAUTION – Hazards or unsafe practices
which could result in minor personal
injury.
WARNING
CAUTION
WARNING
Do not try lighting this appliance without first reading
the “LIGHTING INSTRUCTIONS” section of this
manual.
WARNING
Do not use the grill if the odour of gas is present. Contact customer service at 1-866-206-0888.
WARNING
Never attempt to use damaged equipment. See your local liquid propane dealer for repair.
WARNING
Check all gas supply fittings for leaks before each use. Do not use the grill until all connections have been
checked and do not leak. Do not smoke while leak testing. Never leak test with an open flame.
WARNING
Do not install this unit into combustible enclosures.
There should be a minimum clearance of 24 inches
（61cm）from all sides to combustible materials.
WARNING
This grill is not intended to be installed in or on
recreational vehicles and/or boats. WARNING
When lighting, keep your face and hands as far
away from the grill as possible.
WARNING
Maximum LP gas tank size is 12 inches in diameter
by 18-1/2 inches tall. Do not use a tank without an
Overfill Prevention Device (OPD), which prevents
the tank from being overfilled and possibly
damaging your grill.
WARNING
Do not store grill indoors unless the cylinder is
disconnected. Do not store cylinder in a building,
garage, or any other enclosed area, and keep out
of reach of children at all times.

4
BEFORE LIGHTING
Inspect the gas supply hoses prior to turning on the gas. If there is evidence of cuts, wear, or abrasion, hoses
must be replaced prior to use.
Only the pressure regulator and hose assembly supplied with the unit should be used. Never substitute
regulators for those supplied with the grill. Contact customer service for proper replacement.
Screw the regulator (type QCC1) onto the cylinder. Leak check the hose and regulator connections with a soap
and water solution before operating the grill (See “Leak Testing” instructions on page 19).
Do not turn on the gas at the LP gas cylinder unless the gas hose is properly connected to the side burner gas
pipe system and all burner valves are in the “OFF” position.
Keep a spray bottle of soapy water near the grill and check the connections before each use.
WARNING
Do not leave the grill unattended while cooking.
WARNING
Failure to properly place the burner over the orifice
could cause a fire to occur behind and beneath the
valve panel, thereby damaging the grill and making
it unsafe to operate.
WARNING
Spiders and insects can nest inside the burners
of the grill and disrupt gas flow.
Inspect the grill at least twice a year.
CAUTION
When using a match to light the grill, make sure to
use the attached lighting rod.
CAUTION
Before cleaning, make sure the gas supply and
control knobs are in the “OFF” position and the
burners have cooled.
CAUTION
The grill body is heavy and will require two or
more people to lift and position onto grill cart.
LP GAS CYLINDER WARNING
1. Do not store or use gasoline or other flammable vapours and liquids in the vicinity of this or any other
appliance.
2. A liquid propane cylinder not connected for use should not be stored in the vicinity of this or any other
appliance.
3. Do not store spare liquid propane gas cylinders under or near this appliance.
4. Never fill the cylinder beyond 80 percent capacity.
5. Liquid propane cylinders must be provided with a listed overfilling prevention device.
6. If the information above is not followed exactly, a fire resulting in death or serious injury could occur.

5
SAFETY PRACTICES TO AVOID INJURY
When properly cared for, your grill will provide safe, reliable service for many years. However, extreme care
must be used as the grill produces intense heat that can increase accident potential.
When using this appliance basic safety practices must be followed, including the following:
Do not repair or replace any part of the grill unless specifically recommended in this manual. All other service
should be referred to a qualified technician.
The grill is for outdoor use only.
The grill is not intended to be installed in or on recreational vehicles and/or boats.
Children should not be left alone or unattended in an area where the grill is being used. Do not allow children
to sit, stand or play on or around the grill at any time.
Do not store items of interest to children around or below the grill or cart. Do not allow children to crawl inside
the cart.
Never let clothing, pot holders or other flammable materials come in contact with or too close to any grate,
burner or hot surface until it has cooled. The fabric could ignite, causing serious personal injury.
For personal safety, wear proper apparel. Loose fitting garments or sleeves should never be worn while using
this appliance. Some synthetic fabrics are highly flammable and should not be worn while cooking.
Only certain types of glass, ceramic, earthenware, or other glazed utensils are suitable for grill use. Other
types of materials may shatter with sudden temperature changes. Use only low or medium heat settings in
accordance with the manufacturer’s guidelines.
Do not heat unopened food containers as a build-up of pressure may cause the containers to burst.
Use a covered hand when opening the grill lid. Never lean over an open grill.
When lighting a burner, always pay close attention to what you are doing. Make certain you are aware of
which burner you are lighting so that your body and clothing remain clear of open flames.
When using the grill, do not touch the grill rack, burner grate or immediate surroundings as these areas
become extremely hot and could cause burns. Use only dry potholders. Moist or damp potholders on hot
surfaces may cause steam burns. Do not use a towel or bulky cloth in place of potholders. Do not allow
potholders to touch hot portions of the grill rack.
Grease is flammable. Let hot grease cool before attempting to handle it. Do not allow grease deposits to
collect in the grease tray at the bottom of the grill’s body. Clean the grease tray often.
Do not use aluminum foil to line the grill racks or grill bottom. This can severely upset combustion airflow or
trap excessive heat in the control area.
WARNING
Do not try lighting this appliance without first
reading the “LIGHTING INSTRUCTIONS” section
of this manual.
CALIFORNIA PROPOSITION 65 WARNING
The burning of gas fuel generates some by-
products, which are known by the State of
California to cause cancer or reproductive harm.
To minimize exposure to these substances, always
operate this unit according to the care and use
manual, ensuring you provide good ventilation
when cooking with gas.
TESTED IN ACCORDANCE WITH ANSI Z21.58a
LATEST STANDARD and CGA 1.6a-2008
STANDARD FOR OUTDOOR COOKING GAS
APPLIANCES. THIS GRILL IS FOR OUTDOOR USE
ONLY.
Check your local building codes for the proper method
of installation. In the absence of local codes, follow
either the National Fuel Gas Code, ANSI Z223.1/NFPA
54, or CAN/CGA-B149.1, Natural Gas and Propane
Installation Code, Electrical Code, ANSI/NFPA 70

6
WARNING
Do not install this unit in combustible enclosures. There should be a minimum clearance of 24 inches
（61cm）from all sides to combustible materials.
For proper lighting and performance of the burners, keep the burner ports clean. It is necessary to clean them
periodically for optimum performance. The burners will only operate in one position and must be mounted
correctly for safe operation.
Exercise caution when cleaning grill. To avoid steam burns, do not use a wet sponge or cloth to clean the grill
while it is hot. Some cleaners produce noxious fumes or can ignite if applied to a hot surface.
Never use a dented or rusty propane cylinder.
Turn off all control knobs and make certain the grill is cool before using any type of aerosol cleaner on or
around it. The chemical that produces the spraying action could, in the presence of heat, ignite or cause metal
parts to corrode.
Do not use the grill to cook excessively fatty meats or other products, which promote flare-ups.
Do not operate the grill under unprotected combustible constructions. Use only in well ventilated areas. Do not
use in buildings, garages, sheds, breezeways or other such enclosed areas.
This unit is intended for outdoor use only.
Keep the areas surrounding the grill free from combustible materials including, fluids, trash, and vapours such
as gasoline or charcoal lighter fluid. Do not obstruct the flow of combustion and ventilation air. If the unit is
stored indoors, make sure it has cooled before moving it and the LP-gas cylinder has been disconnected.
This liquid propane gas grill is designed for optimum performance without the use of briquettes. Do not place
briquettes on the flame tamers as this will block the vent to the grill burners. Adding briquettes can damage
ignition components, thus voiding the warranty. Do not use briquettes of any kind in the grill.
Keep the back of the cart free and clear from debris. Keep any electrical supply cord and the fuel supply hose
away from any heated surface.
Never use the grill in extremely windy conditions. If located in a consistently windy area (oceanfront,
mountaintop, etc.), a windbreak will be required. Always adhere to the clearance specifications.
PLACEMENT OF THE GRILL
Outdoor cooking appliances should not be used under overhead combustible construction.
When determining a suitable location take into account concerns such as exposure to wind, proximity to traffic
paths, and keeping gas supply lines as short as possible.
Place the grill in well-ventilated areas. Never place the grill in a building, garage, breezeway, shed or other
such enclosed areas. During heavy use, the grill will produce a lot of smoke.

7
Pack Description Required for
assembly Extra hardware Total
AA 5/32-in. x 10-mm Truss Head Screw 14 pcs. 2 pcs. 16 pcs.
BB 5/32-in. Locking Washer 14 pcs. 2 pcs. 16 pcs.
CC 1/4-in. x 15-mm Truss Head Screw 62 pcs. 2 pcs. 64 pcs.
DD 1/4-in. Locking Washer 62 pcs. 2 pcs. 64pcs
EE Tank Bolt 1 pc. -- 1 pc.
FF 1/4-in. Axle Flat Washer 62 pcs. 1 pc. 63 pcs.
GG 1/4-in. Flat Washer 62 pcs. 2 pcs. 64 pcs.
Before beginning assembly, make sure all parts are present. Compare parts with package contents list
and diagram above. If any part is missing or damaged, do not attempt to assemble the product. Contact
customer service for replacement parts.
Estimated assembly time: 50 minutes
Tools required for assembly:
Phillips Screwdriver (not included) and Wrench (not included)
Note: The right and left sides of the grill are designated as if you are facing the front of the grill.
HARDWARE CONTENTS
PREPARATION
AA
BB CC DD EE FF
Philli
p
s Screwdriver Wrench
GG

8
1. Wheel Assembly
Use 16pc 1/4-20*15 (A) screws to lock nuts into Bottom panel (T)
As shown in Fig.1.
2.Bottom Panel Assembly
a) Use 4pcs 1/4-in. x 61-mm Truss Head Screws ,4pcs 1/4-in. Locking Washers, 4pcs 1/4-in.Flat
Washers to connect the bottom of the right cart legs to the Bottom Panel. Make sure the cart legs are
flush with the Bottom Panel and tighten the screws.
As shown in Fig. 2
ASSEMBLY INSTRUCTIONS
Fig. 1
Fig. 2
A
T

9

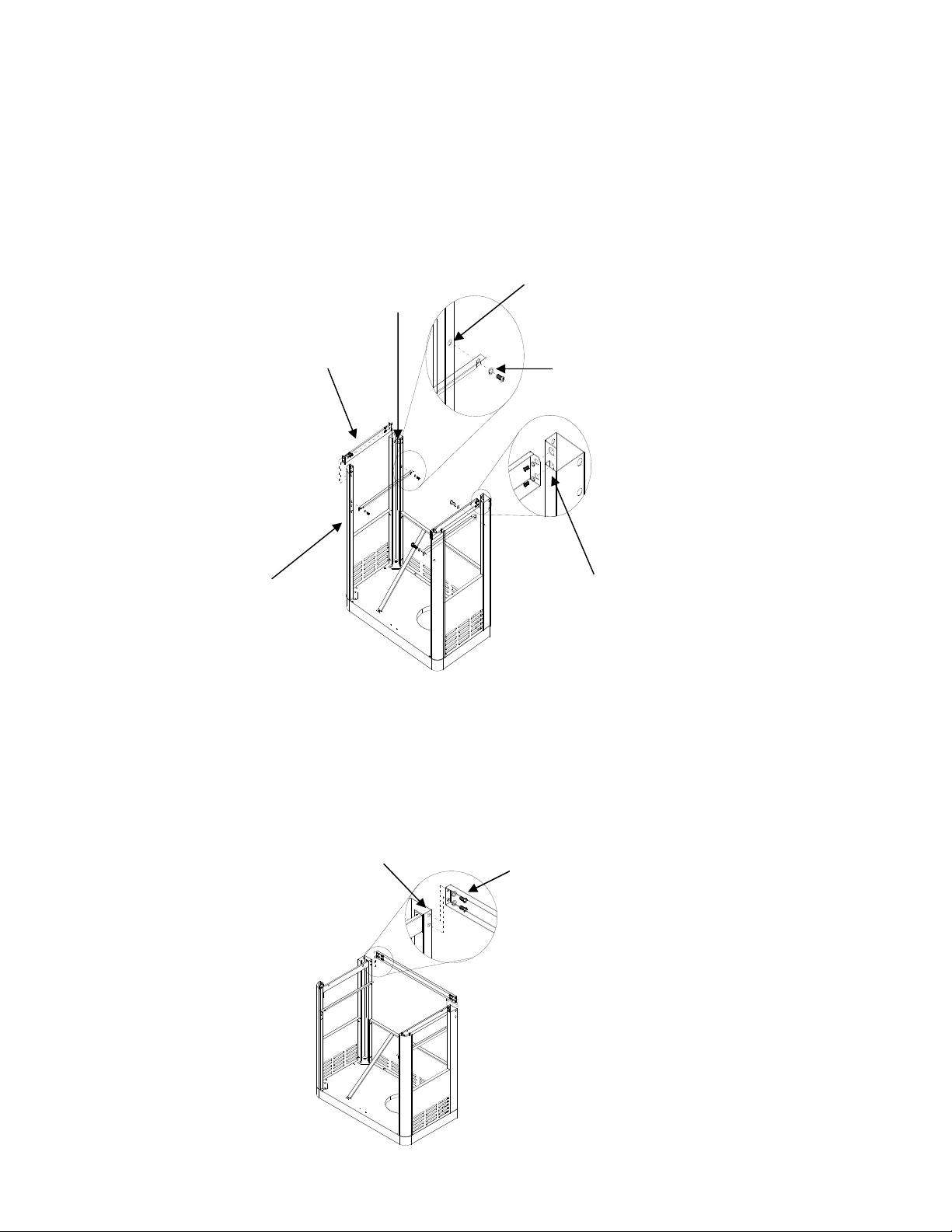

b) Use 8pcs 5/32-32*10 screws to attach left side panel into Cart leg. As shown in Fig 3.
C).Use 2pcs 5/32-32*10 screws to attach gas tank support into bottom panel. As shown in Fig.4.
Fig. 3
Fig. 4

10
3.Cart Assembly
a) Attach Cart Leg, Front Left (F) and Cart Leg, Back Left (G) with Cart Frame (H)
using four 1/4-in. x 15-mm Truss Head Screws (CC) and four 1/4-in. Locking
Washers (DD). Make sure the flat side of Cart frame (H) faces out to the right when
attached. As shown in Fig. 5.
Repeat step 3a) to attach Cart Frame to the Cart Leg (BB).
b) Use 4pcs 5/32-32*10 screws to attach cart frame beam(A) into Back panel, Top(B). As shown in Fig.6
G
Fig. 6
A
B
Fig. ５
CC
F
H
DD
BB

11
c) Align door hole hinge with rod of bottom panel,then put door hinge rod of door beam into the door
hole,finally use 4pcs 1/4*15 screws and 1/4 flat washer to attach cart trim panel. As shown in Fig.7
4.Front Panel Assembly
1.Use 4pcs 5/32-32*10 screws(AA) Locking washers(SS) to attach Door Handle(CC) into Front door
(DD).
As shown in Fig.8
Fig. 7
Fig. 8
AA
SS
CC DD

12
2.. Right and left side shelf panel: use 3pcs 5/32*10 screws and 5/32 washers to lock the side shelf and
side shelf handle.
3. Side panel triangle bracket: use 2pcs 5/32*10 screws to lock the side shelf on the left and right.
5. BBQ body Assembly
a) Remove the BBQ body Assembly (A) from the carton and carefully place onto the grill cart. Lid
handle must face front and be above Condiment Tray (T).As shown in Fig.10.
NOTE: We suggest that two persons lift the BBQ body when assembling. Be sure the hose and
regulator are placed inside the cart when placing BBQ body (A). Be sure to remove all packaging
material before assembly.
.
Fig. 9
Fig. 10
A
D

13
b) Lift the lid and from inside the BBQ body (A) , then
attach the Cart Frame (H) using four ¼-in. x 15-mm Truss
Head Screws (CC), four ¼-in. Locking Washers (DD), and
four ¼-in. Flat Washers (KK). As shown in Fig. 13.
c) From the left and right sides of the BBQ body (A)
exterior secure the BBQ body (A) to the rear leg
with two 5/32-in. x 10-mm Truss Head Screws (AA),
two 5/32-in. Locking Washers (BB), and two ¼-in.
Flat Washers (KK). As shown in Fig. 13.
6.Left Side Shelf Assembly
Repeat Step 7 to assemble Left ,Side Shelf (E) and Triangle,Bracket, Left (O).as shown in Fig.12.
Fig. 12
CC
DD
A
BB
AA
KK
H
KK
Fig. 11
EO

14
7. Right side Shelf Assembly
Use four 5/32-in. x 10-mm Truss Head Screws and four 5/32-in Locking Washers to assemble the Triangle
Bracket, Right to the bottom rear of Side Burner Shelf and Cart Leg, Back Right.As shown in Fig 13.
8. Side Burner Installation

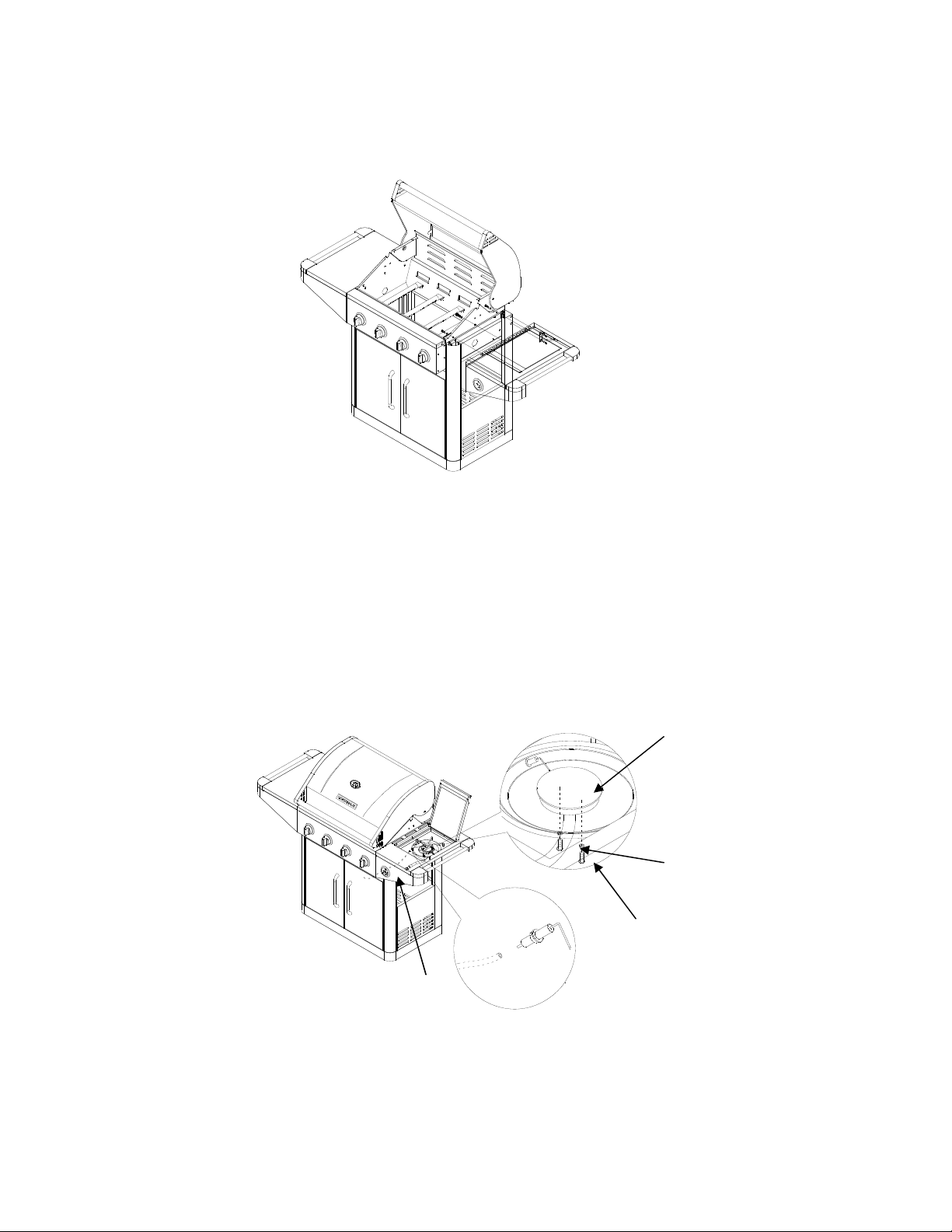

a) Open side burner lid and place the Side Tube Burner (U) through the opening.
Place the Side Tube Burner (U) tube over the side burner gas valve and make sure Side Burner
gas valve is inserted into side burner tube. As shown in Fig.14. Then with two 5/32-in. x 10mm Truss
Head Screws (AA) and two 5/32-in. Locking Washers (BB) secure the side burner from underneath to the
Side Burner Shelf (D). As shown in Fig. 14.
b) Connect ignition wire from BBQ body (A) control panel to the side burner igniter pin from underneath
the Side Burner Shelf & Control Panel (D).
Note: After completing side burner installation, make sure
there is no more than a 3 mm gap between igniter pin and
burner.
Fig. 13
Fig. 14
BB
AA
U
D

15
b) Insert Side Burner Control Knob (M) onto the valve (L) stem and tighten it. As shown in Fig. 16.
9. Side Burner Valve Installation
a) Remove the two 4mm screws with locking washers that are pre-attached
to the valve. Then place the Bezel (L) on the Side Burner Shelf (D) control
panel. From underneath, insert the side burner valve into the Side Burner Shelf (D)
control panel and Bezel (L). Align the holes in the Bezel (L) with holes in
the valve and attach with two 4mm screws. The two screws hold the bezel, control panel,
and valve together. As shown in Fig. 15.
Fig. 15
D
L
M
Fig. 16
L

16
10. Electronic Igniter Battery Installation
Unscrew the electronic igniter button and place the battery (V) into the housing with the positive terminal
(+) facing outward. Replace the ignition button after the battery has been installed.
As shown in Fig. 17.
11.Install the Grease Tray
Install the Grease Tray (X) from the rear of the grill by sliding the tray on the glides at the rear of the
grill until centered under the cooking area .As shown in Figure 18
V
Fig. 17
Fig. 18
X

17
12.Position Flame Tamers and Cooking Grids
a) The Flame Tamers (ZA) are shipped in the main BBQ body.Please check their location
and make sure the Flame Tamers (ZA) in the channels to ensure the Flame Tamers are centered over the
burners.
b) The Cooking Grids (ZB) are also shipped in the BBQ body (A). Place the Cooking Grids (ZB) in the
main BBQ body before using your grill. The Cooking Grids (ZB) should be positioned from the front of the
BBQ to the rear for a proper fit.
13. Liquid Propane Tank Installation
From rear of grill place the liquid propane tank into the Bottom Panel (B) hole and tighten the Tank Bolt
(EE) to secure in place. As shown in Fig.20.
Fig. 20
Tank Bolt
Fig. 19
ZA
ZB

18
14 Liquid Propane Hook-Up
Attach the regulator to the propane cylinder by
turning the regulator handle clockwise as shown
in Fig. 21. If the outdoor cooking appliance is not
in use, the gas must be turned “OFF” at the Liquid
Propane Cylinder.
Check all gas supply fittings for leaks before
each use. Do not use the grill until all connections
have been checked and do not leak (see “Leak Testing” instructions on page 19).
INSTALLATION INSTRUCTIONS
GAS HOOK-UP
Only the pressure regulator and hose assembly supplied with the grill should be used. Any replacement
pressure regulator and hose assembly must be specified by the grill manufacturer.
This grill is configured for Liquid Propane only. Do not use a Natural Gas supply.
Total gas consumption (per hour) with all burners set on “HIGH”:
Main burners 4 12,000 BTU/Hr.
Side burner 10,000 BTU/Hr
Total 58,000 BTU/Hr.
The installation of this appliance must conform with local codes or, in the absence of local codes, with
either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, National Gas Propane Installation Code, CSA
B149.2.
Installation in Canada must be in accordance with the Standard CAN/CGA-B149.2 (installation code for
gas burning appliances and equipment) and local codes.
LIQUID PROPANE CYLINDER REQUIREMENTS
(20-lb. 9 kg Cylinder)
A dented or rusty Liquid Propane Cylinder may be hazardous and should be checked by your supplier.
Never use a cylinder with a damaged valve. The Liquid Propane Cylinder must be constructed and
marked in accordance with the specifications for Liquid Propane Cylinders by the National Standard of
Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods
Commission.
The 20-lb. 9 kg Cylinder must have a shut off valve terminating in a valve outlet specified, as applicable,
for connection type QCC1 in the standard for compressed gas cylinder valve outlet and inlet connection
ANSI/CGA-V-1.
Storage of an outdoor cooking gas appliance indoors is permissible only if the cylinder is disconnected
and removed from the outdoor cooking gas appliance. The Cylinder system must be arranged for vapour
withdrawal. The cylinder must include a collar to protect the Cylinder valve.
Fig. 21
Regulator
Always keep the LP cylinder
standing upright (90º) to provide
vapour withdraw.
Propane Cylinder

19
Manifold pressure: (operating) 10 inches water column (W.C.), (non-operating) 11.2 inches water column
(W.C.).
Liquid Propane Cylinders must be provided with a listed overfilling prevention device.
Remove the plastic valve cover from the Liquid Propane Cylinder. Make sure the grill gas hoses do not
contact the grease pan or grill body when the Liquid Propane Cylinder is placed into the cart.
CONNECTING THE LIQUID PROPANE CYLINDER
To connect the Liquid Propane Gas Supply Cylinder:
a) The cylinder valve should be in the “OFF” position. If not, turn the valve
clockwise until it stops.
b) Make sure the cylinder valve has the proper type-1 external male thread
connections per ANSI Z21.81.
c) Make sure the burner valves are in the “OFF” position.
d) Inspect the valve connections, port and regulator assembly. Remove debris and inspect the hose
for damage.
e) When connecting the regulator assembly to the valve, use your hand to tighten the nut clockwise
until it stops. Use of a wrench could damage the quick coupling nut and result in a hazardous
situation.
f) Open the cylinder valve fully by turning the valve counterclockwise.
g) Before lighting the grill, use a soap and water solution to check all the connections for leaks.
h) If a leak is found, turn the cylinder valve “OFF” and do not use the grill until a local Liquid Propane
dealer can make repairs.
WARNING
Never attempt to use damaged or obstructed equipment. See your local Liquid Propane dealer for repair.
DISCONNECTING THE LIQUID PROPANE CYLINDER
1. Turn the grill burner valves “OFF” and make sure the grill is cool.
2. Turn the Liquid Propane Cylinder valve “OFF” by turning clockwise until it stops.
3. Detach the regulator assembly from the cylinder valve by turning the quick coupling nut
counterclockwise.
4. Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of
dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or
plugs may result in leakage of propane.
LEAK TESTING
GENERAL
Although gas connections on the grill are leak tested prior to shipment, a complete leak test must be
performed at the installation site. Before each use, check all gas connections for leaks using the
procedures listed below.
If the smell of gas is detected at any time, you should immediately check the entire system for leaks.
Please make sure the cylinder valve connection device
properly and safely mates with the connection device
attached to the inlet of the
p
ressure re
g
ulator.

20
BEFORE TESTING
Make sure all packing materials have been removed from the grill, including the burner tie-down straps.
WARNING
Check all gas supply fittings for leaks before each use. Do not use the grill until all connections have been
checked and do not leak. Do not smoke while leak testing. Never leak test with an open flame.
Make a solution of one part liquid detergent and one part water. You will need a spray bottle, brush, or
rag to apply the solution to the fittings. For the initial leak test, make sure the Liquid Propane Cylinder is
80% full.
TO TEST
1. Turn the burner valves off.
2. Turn the Liquid Propane Cylinder valve counterclockwise to open the valve.
3. Apply the soap solution to all gas fittings. Soap bubbles will appear where a leak is present.
4. If a leak is present, immediately turn the gas supply “OFF” and tighten leaky fittings.
5. Turn the gas back “ON” and recheck.
6. Should the gas continue to leak from any of the fittings, turn the gas supply “OFF” and contact
customer service at 1-866-206-0888
7. If there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced prior to the
outdoor cooking gas appliance being put into operation.
Only those parts recommended by the manufacturer should be used on the grill. Substitutions will void
the warranty.
INSTALLATION FINAL CHECK
Maintain specified clearance of 24 inches(61 cm) from combustible materials and construction.
All internal packaging has been removed.
The hose and regulator are properly connected to the Liquid Propane Cylinder.
The unit has been tested and is free of leaks.
The gas supply shutoff valve has been located.
All burners are installed.
Keep the instruction manual for future reference.
WARNING
1. Storage of an outdoor cooking gas appliance indoor is permissible only if the cylinder is disconnected
and removed from the outdoor cooking gas appliance.
2. Cylinder must be stored outdoors out of the reach of children and must not be stored in a building,
garage or any other enclosed area.
WARNING
1. Do not store spare Liquid Propane Cylinders under or near this appliance.
2. Never fill the cylinder beyond 80 percent capacity.
3. If the information above is not followed exactly, a fire, possibly causing serious injury or death, may
occur.
