2.6 Transmitter Calibration
2.5 Remote Control Antenna Angle
(1) Adjust the angle of the remote control antenna and try to face the flight
direction of the aircraft as much as possible.
(2) Long-distance state, the distance between the two antennas is properly
tightened to maintain the antenna directivity.
(3) Closer Sate, the two antennas are properly separated to maintain a wide
receiving range.
(4)Do Not Form an occlusion or cross between the antennas.
Start Calibration: Push and hold both sticks to the upper left corner as shown in picture
below, and power on the transmitter, the transmitter will enter calibration state and start
Beeping; release the power button and sticks.
Calibrate Sticks: Rotate both sticks in circles to their maximum travel for at least
three times, and release the sticks
Exit and save calibration: long-press any button except the power button until the
remote controller stops beeping and the screen lights on

3.1 Download The X-HUBSAN 2.0 App
Before flying, download and install the
X-HUBSAN 2.0 APP. Download the APP for
free by scanning the code at right or search
in APP Store (IOS) Or Goggle Play.
3 Flight
X-HUBSAN 2.0
3.2 Main Interface Guide
12
FPV
(Video)
Signal
Aircraft
GPS
Signal
Aircraft
Battery
Level
Home Page
Flight Status
Sport Mode
Switch Motor
Status Setting
Camera
Setting
Photo /
Video Switch
Take Photo /
Video
Gallery
Gimbal Pitch
Location
zoom
00.000000 , -000.0000
45.877503 , -106.123984，65m
SPEED 0.0M/S
H: 0.0m D: 0.0m
Altitude DistanceTransmitter GPSAltitude Ball
Aircraft SpeedAircraft GPS
Auto Takeoff / Auto RTH
Flight Mode
Not Connected N 100%
Remote
Control
Signal
1.0x
Gimbal Horizontal
Correction

3.3 Pairing The Aircraft
(1) Run X-HUBSAN 2.0 APP, and select the aircraft model.
(2) Short press, the aircraft power button, then press and hold for a few seconds
to turn it on.
(3) Short press the transmitter power button, then press and hold for a few
seconds to turn it on, connect the transmitter to your mobile device with the
RC cable.
To use the aircraft for the first time, you need to activate the aircraft first :
① Press battery switch to power on the aircraft.
② Press the remote control switch to connect to the mobile phone, and
wait for the remote control to connect the aircraft in success.
③ Open the mobile phone X-HUBSAN 2.0 APP, it will automatically jump
out of the activation interface.
④ The new user can register an account as the activation account, and the
old user who has logged in to the APP before can directly enter the
password to activate it.
13
Before Pairing After Pairing
Not connected N
N00.0000000,E000.0000000
45.877503 , -106.123984，65mPitch 0° Yaw 0°Ro ll 0°
Speed 0.0m/s
H: 0.0mD: 0.0m
N00.0000000,E000.0000000
45.877503 , -106.123984，65mPitch 0° Yaw 0°Ro ll 0°
Speed 0.0m/s
H: 0.0mD: 0.0m
Not connected N

14
(4) Start binding (This step is only required when first binding or replacing
the transmitter, you need to do it manually.)

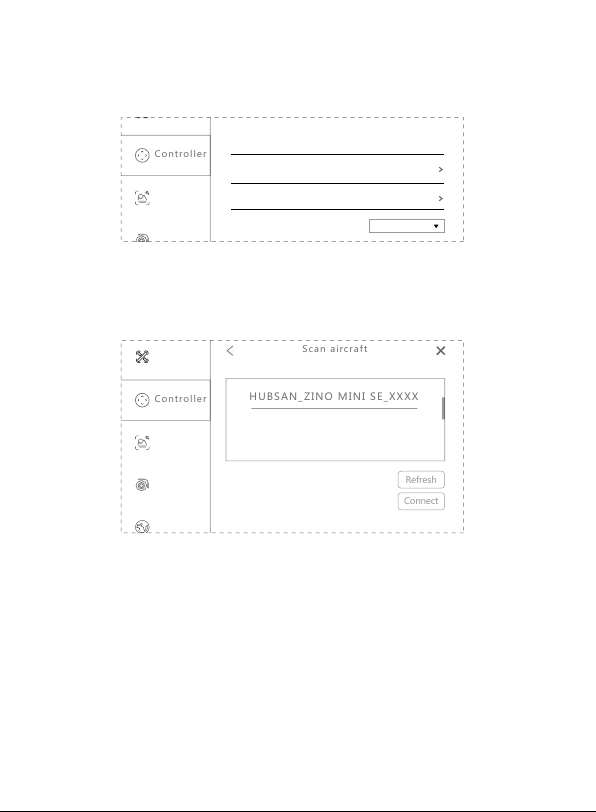

1. Go to APP - Setting - Controller, transmitter connection method: SyncLeas2
Controller
Transmitter model
Joystick setting
Custom button Fn No function
Set transmitter and aircraft connection
SyncLeas2
2. Long press the aircraft bind button to enter the binding mode.
3. Select "Set transmitter and aircraft connection" and scan aircraft.
4. Select the aircraft and connect.
Scan aircraft
HUBSAN_ZINO MINI SE_XXXX
Tips:
1. Long press the bind button to enter Bind Mode;
2. Click "Refresh" to refresh the aircraft list,
please make sure the your mobile device and
transmitter is connected before refreshing;
3. Select the aircraft and connect.
Controller
Refresh
Connect
You have to complete the binding process on APP, only when first time using
the drone or if replacing the new transmitter.
Tips:
-The binding process has been completed in the factory. Generally, user only
need to do the first 3 steps.
-After entering binding mode, the Image Indicator(yellow) flash rapidly and
become solid (yellow) after binding is successful.
-Please keep the remote controller at least 1 meter away from drone during
binding process.
