3
The product user guide contains product features, how to use, and the operating
procedure. Read the user manual carefully to get the best experience and avoid
unnecessary damage. Keep this manual for future reference. If you have any questions
or comments about the device, please contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

4
DISCLAIMER & WARNING
All users must read product operating instructions as well as this liability disclaimer
before using any Hubsan product. By using a Hubsan product(s), users are accepting the
terms and conditions of Hubsan liability and operational guidelines. This product is not
suitable for minors under 14 years of age. While operating a Hubsan product (s), users
also accept all liability and responsibility for their own behavior, actions as well as any
consequences resulting thereof while using a Hubsan product(s). These products may
only be used for purposes that are proper and in accordance with local regulations,
terms and any applicable policies / guidelines Hubsan may make available. Users agree
to comply with these terms and conditions, along with any and all relevant policies /
guidelines set forth by Hubsan.Part of the details of this document may change with the
upgrade of theproduct software version. Please read the upgrade details carefully
before upgrading the software version. The instructions will not be notified again.
INSTRUCTIONS
Some product flight functions are restricted in certain areas. Once you use this product,
you are deemed to have read carefully the relevant ICAO regulations, local airspace
control provisions and the regulations governing UAVs. You assume all liability for any
non-compliance with the foregoing, are responsible for the consequences for your
actions as well as any indirect and / or direct liability that arises as a result of these
limitations.
FLIGHT ENVIRONMENT REQUIREMENTS
•Select an open environment devoid of high rise buildings and tall obstructions
(such as trees and poles). Near buildings and obstacles, flight control signals and
GPS signals can be severely weakened; GPS functions such as GPS mode and
Return to Home may not function properly.
•Do not fly in bad weather conditions (such as in wind, rain or fog).
•Fly the aircraft in ambient temperatures of 0-40 ℃.
•When flying, please stay away from obstructions, crowds, high voltage lines,
trees, water, etc.
•To avoid remote control signal interference, do not fly in complex
electromagnetic environments (such as venues with radio stations, power plants
and towers).
•The aircraft cannot be used in or near the Arctic circle or Antarctica.
•Do not fly in no-fly zones.
•Do not operate the aircraft near high pressure lines, airports or areas with severe
magnetic interference.

5
IMPORTANT SAFETY INFORMATION
OPERATION
Be extremely careful and responsible when using the aircraft. Small electronic
components can be damaged due to crashes or exposure to moisture / liquid. To avoid
any injuries, do not use the aircraft with broken or damaged components.
MAINTENANCE
Do not try to open or repair the units by yourself. Please contact Hubsan or Hubsan
authorized dealers for service. For more information, please visit the official website at
www.hubsan.com.
BATTERY
Do not disassemble, squeeze, impact, burn, drop or trample the battery. Do not short-
circuit or put the battery terminal in contact with metal. Do not expose the battery to
temperatures above 60 ° C. Charge the aircraft battery prior to flight. Use a Hubsan
dedicated charger for charging. Keep the battery out of the reach of children and away
from any kind of moisture.
FLIGHT
Please be mindful of personal safety and the safety of others while flying.
•Do not fly in bad weather conditions.
•Do not attempt to catch the aircraft while it is in flight.
•This product is intended for experienced pilots over the age of 14.
•After every flight, completely disarm the aircraft motors and disconnect the
aircraft from power. Then, you may power off the remote control.
READ THE DISCLAIMER AND SAFETY GUIDELINES FIRST BEFORE USE.
Symbol Explanation:
Prohibited operation Instruction
Important Notice Explanation / reference
USAGE ADVICE
(Hubsan has the following operational and safety materials):
Quick Start Guide

6
HUBSAN AIRCRAFT USES SMART BATTERY
•If you do not plan to fly the aircraft for a long time, store the battery ~50%
charged to maintain battery performance and life.
•Please use Hubsan chargers for battery charging.
•Discharge the battery at 5C current or below. To avoid discharge related battery
damage, do not prolong the discharge time.
•Do not charge on carpet to avoid fire.
•Batteries need to be recharged if unused for over 3 months.
•Do not disassemble or reassemble the battery.
•Do not short-circuit the battery.
•Do not use or charge near sources of heat.
•Do not put the battery in contact with water or any kind of liquid.
•Do not charge batteries under sunlight or near fire.
•Do not puncture or subject the battery to force of any kind.
•Do not throw or manhandle the battery.
•Never charge a battery that has been damaged, become deformed or swelled.
•Do not solder on or near the battery.
•Do not reverse charge or over discharge the battery.
•Do not reverse charge or reverse the battery polarities.
•Do not connect the battery to a car charger / cigarette lighter or any kindof
unconventional power source.
•This battery is prohibited for non-designated devices.
•Do not mix other types of batteries with lithium batteries.
•Do not exceed the specified charging time.
•Do not place the battery in a microwave or in areas of high pressure.
•Do not expose the battery to the sun.
•Do not fly in places with strong interference（high-voltage line, powerstations,
base stations, high-speed rail lines, signal towers, etc.）19. Do not use or charge
in temperatures below 0 ℃and above 45 ℃.
•If a newly purchased battery is used, leaking, possesses a bad smell orother
abnormalities, return immediately to the vendor.
•Keep away from the reach of children.
•Use a dedicated battery charger and follow all charging requirements.
•Minors who use the battery and its dedicated unit must be supervised byan adult
at all times.

7
1. Aircraft
1.1 Aircraft Diagram
1. Propeller A
2. Propeller B
3. LED indicator
4. Motor
5. Body shell
6. 4K HD Camera
7. Micro-SD/TF Slot
8. Gimbal
9. Power
10. Gimbal Protection Guard
1.2 Aircraft Battery
Aircraft Lithium, Battery Capacity: 5000mAh, 11.4V lithium battery equipped with a
standard charger, charging time is about 3 hours. Charging operation: First insert the
smart charging adapter into the battery and then plug the power cord of the adapter
into the “IN” interface of the charging head as shown in illustration
Note: Zino Pro+ cannot use Zino and Zino Pro batteries, otherwise it will damage
the mainboard.
Adapter
Smart charging
adapter
Aircraft Battery
When charging, the indicator light
of the smart charging adapter
flashes. After full, t
he indicator
light is always on.

8
1.3 Aircraft Battery Installation
Extend the front arms first then extend the rear arms to the maximum angle. Pinch the
sides of the battery and push the battery in until you hear a click. Make sure the battery
is locked in. To remove the battery, hold the head of the aircraft and pinch the sides of
the battery then pull the battery out.
Note: To avoid sharp objects piercing the battery core. The bottom of t he battery core
has a glass fiber board to protect the battery core. If there are scratches or depressions
on the bottom, it will not affect normal use.
Note: To ensure the arm unfold
in place
Note: After the battery is inserted into the
aircraft, please strictly check if the buckle is
in place.

9
1.4 Propellers
Before installing the propeller, please carefully check the letters beside the aircraft
motor and the letters on the propeller. The two letters must be the same when
installing; When the blade is damaged or needs to be replaced, remove the screw
counterclockwise to remove the propeller.
Use the only HUBSAN original Propeller, because it comes with screw glue to prevent
losing propellers. (HUBSAN Standard accessories come with original screws)
2. Remote Controller
2.1 Names Of Remote
Controller Components
(1) Throttle / Aileron Stick
(2) Elevator / Rudder stick
1) Throttle / Rudder stick
2) Elevator / Aileron Stick
3) Return to Home (Aircraft Returns to
Takeoff Point)
4) Power (Long press)
5) Auto Takeoff / Land
6) Expert / Normal Mode
7) Power Status LEDs
8) Photo
9) Video
10) Gimbal Adjustment Wheel
11) Charging / Adapter Port
12) Wi-Fi Antenna
13) Adapter cable
When installing the mobile device, place the device in its dedicated frame and avoid
pressing the device's buttons with the frame.
HUBSAN brand new propeller screws
come with screw glue (blue)
.

10
2.2 Remote Controller Features
S/N
Key / Switch
Function
(1)
Throttle / Rudder
Stick
Push the stick forward or backward and the quad
copter will fly forwards or backwards (respectively).
Push the stick left or right and the quadcopter will
rotate counterclockwise or clockwise (respectively).
(2)
Elevator / Aileron
Stick
Push the stick forward or backward and the quadcopter
will ascend or descend (respectively). Push the stick left
or right and the quadcopter will fly left or right
(respectively).
1 Throttle / Aileron
Stick
Push the stick forward or backward and the quadcopter
will fly forwards or backwards (respectively). Push the
stick left or right and the quadcopter will fly left or right
(respectively).
2
Elevator / Rudder
Stick
Push the stick forward or backward and the quadcopter
will ascend or descend (respectively). Push the stick left
or right and the quadcopter will rotate
counterclockwise or clockwise (respectively).
3
Return to Home
Long press to enter the return mode, short press
to exit one button to return to the air;
During the flight, the re mote control "Beep...
Beep..." prompt (once every three seconds) (RTH in
the aircraft GPS normal and search.
Can only be enabled when there are 6 or more
stars)
4
Power Switch
Long press to power on or off
5
Auto Takeoff /
Land
Long Press to auto takeoff or land.
6
Normal / Sport
Mode
Normal mode (left): The aircraft flies at the
maximum speed set by the APP
Expert mode (right): The maximum flight speed of
the aircraft is 10m/s
7
Power Status
LEDs
The 4 LEDs are battery indicators. Each LED represents
25% of the battery.
8
Short press to take photos.
9
Video
Long press to start recording, short press to end
recording
10 Gimbal Adjustment
Wheel
Controls the angle of the gimbal.
11
Remote control
charging / patch
cord interface
(1) Remote control charging interface
(2) Mobile device patch cord interface

11
S/N
Key / Switch
Function
12
Low Battery Warning
Low battery warning for the aircraft or remote control:
Remote control "Beep...Beep..." prompt (one time per
second)
13 Standby Protection The remote control has no operation for 10 minutes
after standby, the remote control "Beep...Beep..." Tips
(once every three seconds)
After 3 minutes of prompting the sound, the remote
control will automatically shut down, and there will be
operation within 3 minutes, and the prompt tone will
stop

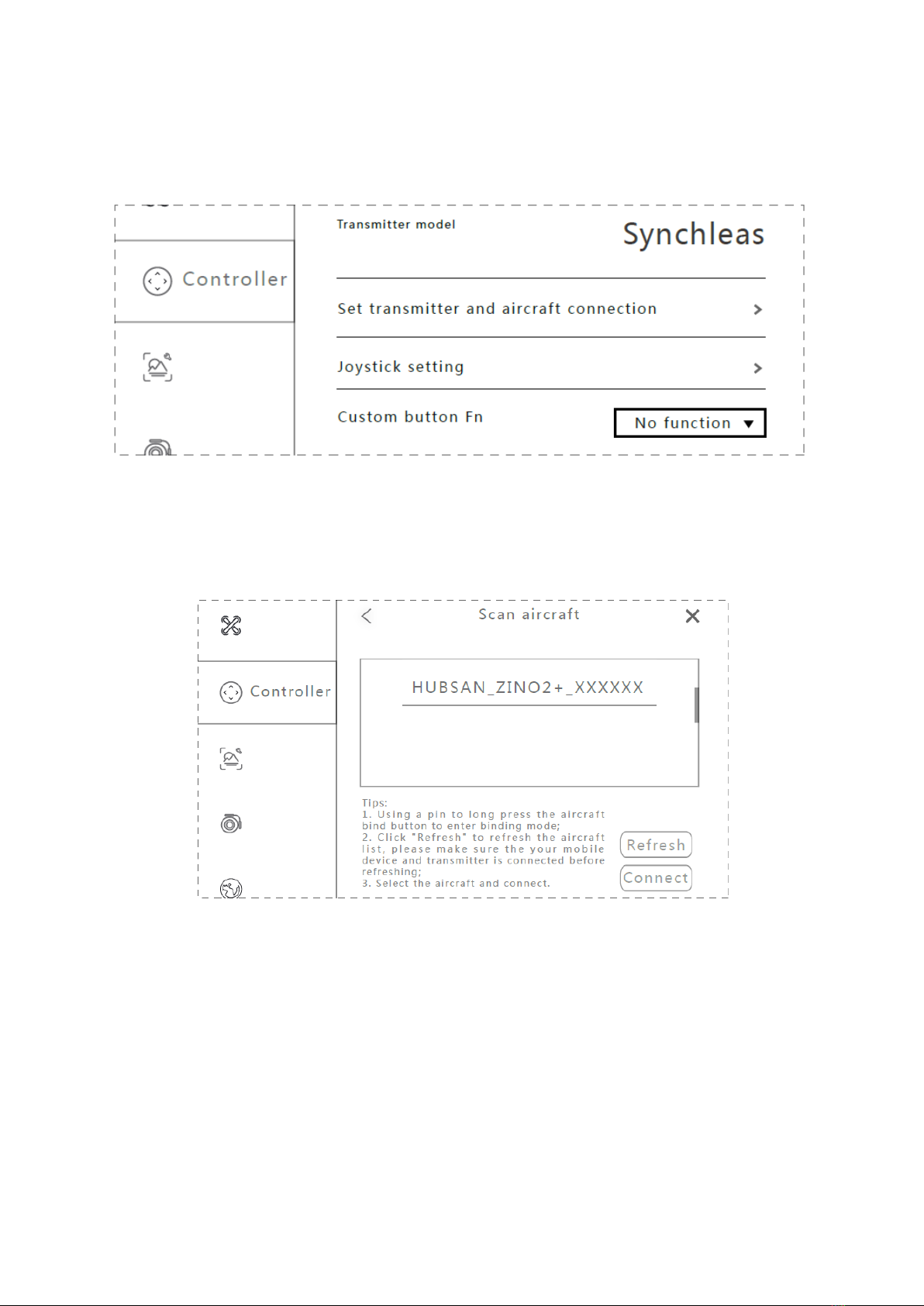

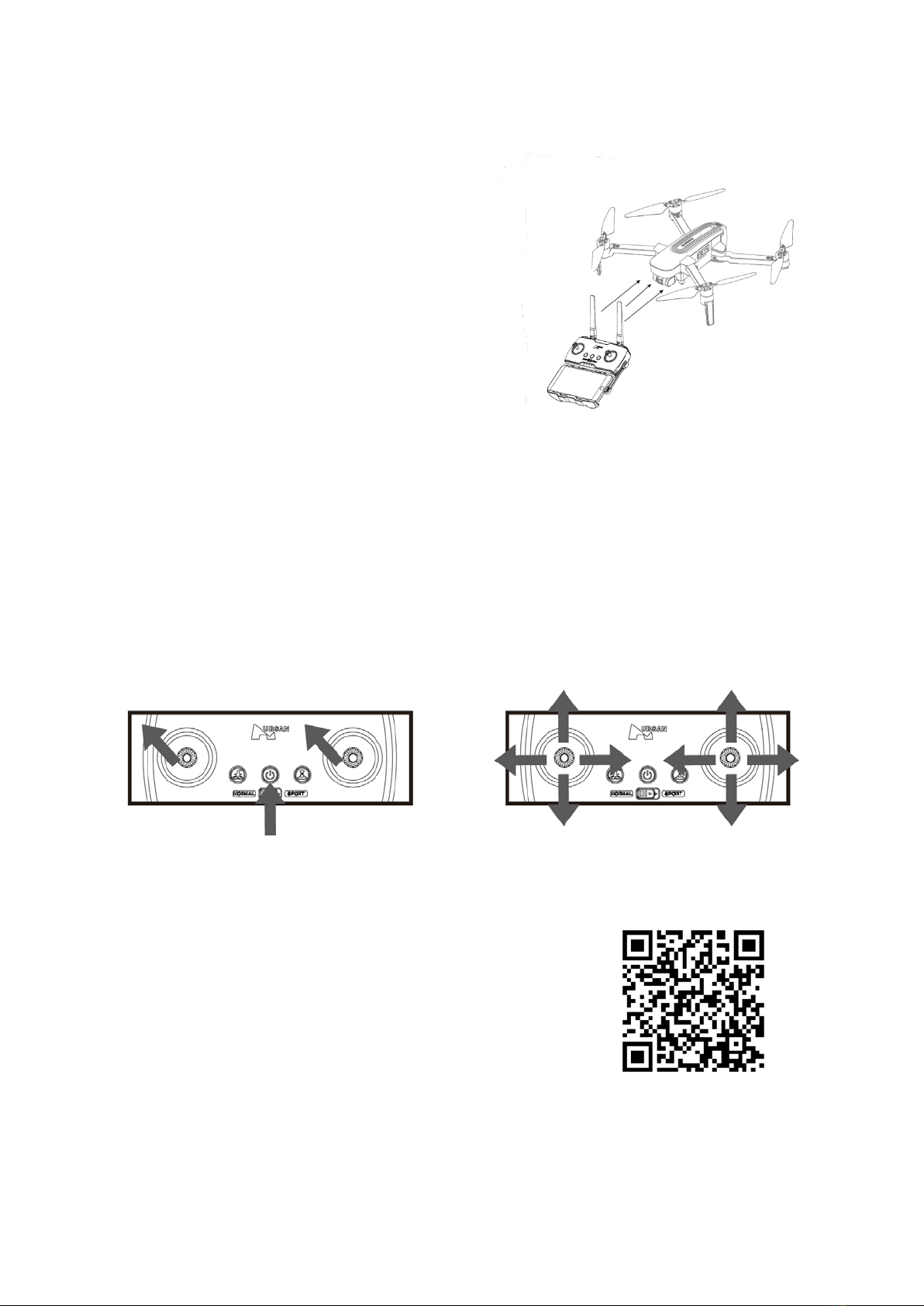

2.3 Connecting Your Mobile Device
2.4 Charging Remote Controller
The remote is charged using the Micro USB cable as shown:
The remote control charging time is about 2.5 hours. The remote control battery
indicator light flashes during charging. When charging is complete, the LEDs will be solid
green.

12
2.5 Remote Control Antenna Angle
•Adjust the angle of the remote control
antenna and try to face the flight direction
of the aircraft as much as possible;
•Long-distance state, the distance between
the two antennas is properly tightened to
maintain the antenna directivity;
•Closer Sate, the two antennas are properly
separated to maintain a wide receiving
range;
•Do Not Form an occlusion or cross
between the antennas.
2.6 Transmitter Calibration
Enter: Push both sticks to the upper left corner and power on the transmitter
simultaneously, the transmitter tips "Beep"..., which indicates enter the Calibration
Mode; release the power button during calibration.
Exit: Rotate both sticks in circles to the utmost extent for three times, then release the
stick, long-press any button except the power button until the remote control stops
“Beep”...，which indicates the calibration ends, the remote control automatically exit
Calibration Mode.
3 Flight
3.1 Download The X-hubsan 2.0 App
Before flying, users must download the X-Hubsan 2.0 APP.
Download the APP for free by scanning the code as shown or
by download it via APP Store (IOS) Or Goggle Play (Android).
X-Hubsan 2.0

13
3.2 Main Interface Guide
3.3 Pairing The Aircraft
1. Run X-Hubsan 2.0 APP, choose the aircraft model.
2. Short press the aircraft power button and then long press for a few seconds to
turn it on.
3. Short press the transmitter power button and then long press for a few seconds
to turn it on, connect the transmitter to your mobile device with the RC cable.
Home Page
Sport Mode
Switch
Flight Status
Motor
Status
FPV
(Video)
Signal
Remote
Control
Signal
Aircraft
GPS
Signal
Aircraft
Battery
Level
Setting
Camera
Setting
Photo /
Video Switch
Take Photo /
Video
Gallery
Aircraft GPS
Aircraft Speed
Auto Takeoff / Auto RTH
Flight Mode
Headless On / Off
Gimbal Pitch
Location
Altitude Ball
Transmitter GPS
Altitude
Distance
Note: This is the interface in Map mode

14
4. Start binding (This step is only required when first binding or replace the
transmitter, do it manually.)
1. Go to APP - Setting - Controller, transmitter connection method: Synchleas
2. Using a pin to long press the aircraft bind button to enter binding mode.
3. Select "Set transmitter and aircraft connection" and scan aircraft.
4. Select the aircraft and connect.
You have to complete the binding process on APP when first use or replace the
transmitter, and then you can fly the aircraft with the transmitter directly without
connecting to the APP.
Tips:
- The binding process has been completed in the factory. Generally, user only need to do
the first 3 steps.
- After entering binding mode, all 4 LEDs flash rapidly and become solid after binding
successfully.
- Please keep the distance between the aircraft and transmitter within 1 meter when
binding.

15
3.4 Aircraft Calibration
3.4.1 Horizontal Calibration
During the flight, when the aircraft has a significant horizontal deviation, please land the
drone, lock the motor, and place it on the horizontal ground. Then enter the APP setting
interface, select horizontal calibration, the aircraft will automatically perform the
calibration, the four heading lights will flash, and it will stay on after the calibration is
completed. Do not move the aircraft during calibration process.
3.4.2 Compass Calibration
When using for the first time, the compass calibration will pop out before takeoff. Follow
the instructions on your screen, rotate the aircraft horizontally the n point the aircraft
nose down and rotate it clockwise. The compass calibration message will disappear once
it is completed. You must complete the compass calibration before flying the aircraft for
the first time.
The compass is susceptible to interference from other electronic devices and causes
abnormal flight data. Regular calibration can keep the compass in the best state, aft er
entering the APP setting interface, Then select " Aircraft" followed by "Compass
Calibration".

16
3.4.3 GPS Accuracy Test
After entering the APP interface, tap on "Aircraft", select "GPS Accuracy Test" then tap on
"Enable / Restart GPS Accuracy Test".
The aircraft will automatically proceed to test. If the GPS signal of the mobile phone or
the aircraft is poor that may cause the GPS accuracy test to fail.

17
3.5 Starting / Stopping the Motors
Motor starting condition
1. The aircraft, remote control and mobile phone have been connected;
2. The aircraft has been calibrated by the compass (four Orientation lights are always
on);
3. The aircraft must be placed horizontally
4. It is not recommended to take off forcefully when the GPS satellite signal is ≥6 stars.
Starting the Motors
Push both stick to the bottom outer corners to start the motors. Once the motors have
started spinning, Release both sticks simultaneously.
Stopping the Motors
When the motor is running, Push both stick to the bot tom outer corners to stop the
motors. Release both sticks once motors stop.
Forced to Stop
When flying in the air, the motor can be forced to stop in 2 seconds with outer eight bar.
Use this function with caution, as it can cause the aircraft to fall and may endanger
personal safety.

18
4 Flight Controller
4.1 Flight Control Mode
Hover mode
Hover mode works best when the GPS signal is strong.
Attitude mode
When GPS and optical flow effects are weak, the only manual
flight is available, and intelligent mode is prohibited. In attitude
mode, the aircraft's fixed point is abnormal. Please land as soon
as possible.
Sport mode
The maximum flight speed is 10m/s.
Normal mode APP set tings - control - maximum speed settings can be adjusted
10% - 100%, The aircraft flies at the speed set by the APP. The
maximum flight speed is 8m/s.
4.2 Flight Orientation Indicator
(Single-Color Lamp)
Calibration
Power On And
Start Up
All 4 LEDs flash slowly
Compass
Calibration
Calibrate Compass 1:All 4 LEDs flash in cycle
Calibrate Compass 2:All 4 LEDs flash in vertical pairs alternately
Horizontal
Calibration
All 4 LEDs flash slowly
Flight Mode
Normal Mode
All 4 LEDs are solidly lit
Low Power
Indicator
Fore / frontal blue LEDs stay solidly lit and the rear red LEDs flash
rapidly
Loss Of Flight
Control Indicator
The front Orientation light flashes slowly in blue, and the rear
Orientation light is steady red. (When there is a conflict with low
battery, priority is displayed.)
Headless Mode
Fore/front blue LEDS flash in vertical pairs alternately and rear red
LEDs stay solidly
Rear red LEDs flash once
Video
Rear red LEDs flash alternately
Light-Off
Long press the camera button.
4.3 Return-to-home (Rth)
There are three types of RTH: One-key RTH, Low Battery RTH, and Failsafe RTH. When
taking off, GPS ≥ 6 stars, the aircraft successfully recorded to the return point. If there is
no GPS signal forced take-off, the position with the latest GPS ≥ 6 stars is recorded as
the return point.
One-key RTH
APP one-Key RTH / remote control one-Key RTH

19
RTH-Process
1. Record "Home Point"
2. Trigger return conditions
3. Adjust the direction of the head
4. Return to the return altitude set by APP
(1) Regardless of the current height of the aircraft, if the aircraft is within 5 meters of
the horizontal distance, land directly;
(2) If the horizontal distance is 5 meters away and within 20 meters, return at the
current altitude;
(3) In 20 meters away, if the altitude of aircraft is more height than the return altitude,
it will return directly; If no, it will rise to up to the return altitude ,and then RTH;
5. Search for the drone apron during the landing process (Make sure this function is
on).
Low Battery RTH
The flight controller will display a notice when a low battery warning is triggered. The
aircraft will automatic ally return to the Home Point if the current power is
enough,otherwise it will land directly. when without GPS signal or signal is not strong
that will land directly.
Performance requirements:
(1) The appropriate low-voltage protection voltage is automatically calculated
according to the altitude and distance of the flight.
(2) After the low power forced landing or crash, if the power is lower than 10%, enter
the protection mode: turn off the picture transmission, but save normal data
communication.
Failsafe RTH
When the aircraft loses connection with the remote control for more ® than 5
seconds, the aircraft automatically returns or land directly. Performance
requirements:
(1) After the aircraft loses control for 5 seconds, it triggers automatic return.
(2) If the connection is restored during the return flight, the return flight can be
cancelled.
(3) Landing directly when there is no GPS signal or the signal is not strong.

20
4.4 Search The Drone Apron
When the aircraft landed or returned to a height of about 10 meters from the ground, it
will automatically enter the search for the drone apron function
(1) The gimbal overlooks the search for the drone apron [H], Apron requirements: 1
Sharp contrast, 2 white "H" lettering, 3 Apron without obstruction.
(2) The aircraft will first pan to the top of the apron and locks the apron, then descend
smoothly after successful recognition. When landing to a height of less than 3 meters,
the aircraft pan/tilt will resume normal view and no longer adjust the posit ion of the
aircraft and land directly. If an error is identified or other unexpected circum stances
occur, press the stop button to exit the function.
(3) If the aircraft has not been found to the apron or critical low battery when it has
landed 5 meters, the aircraft will land directly.
(4) The search for the drone apron function cannot be performed in video mode.
(5) If needn't, please turn it off in the settings.
