UeRON 3G-9443 User manual

UeRON INTERNATIONAL COMPANY
http://www.ueron.com.tw
Broadcast 3G SDI Monitor
3G-9443
User Guide
V1.001

INDEX
1.Electrical Specification….………………. …...01
2. On Screen Control Function….…..………….03
3. Menu Functions ……………………….…….04
4. Rear view of connectors……………………..06
5.Tally Control ..……………..………………...06
6.Mechanical Dimension…..…………………. 07
7.Accessories…………………………………..08

1. Specification
Input
1 x D-SUB
VGA IN
1 x BNC
3G/HD/SD SDI Auto-switch
1 x HDMI
HDMI IN
3 x BNC
YPbPr
1 x RCA
Analog Input
1 x Mini-Din
S-Video
1 x D-SUB( 9 pin)
Tally Input
Output
1 x BNC
3G/HD/SD SDI Channel (Active Through Out)
Input
Signal
Analog
Composite (CVBS) / S-Video 0.8Vpp
SD-SDI
270Mbps, 525i (60/ 59.94) / 625i (50)
3G-SDI
1080P/50/59.94/60Hz
HD-SDI
1080P/30Hz, 1080P/29.97Hz,
10801080P/25Hz
1080P/25Hz,1080P/24Hz, 1080P/23.98Hz
1080i/60Hz, 1080i/59.94Hz, 1080i/50Hz
1035i/60Hz,1035i/59.94Hz
720P/60Hz, 720P/59.94Hz, 720P/50Hz
HDMI
1080P/1080i/720P/525i/625i
VGA
640 X 350 (70 )
720 X 350 (70 )
640 X 400 (56/ 70)
720 X 400 (70)
640 X 480 (60/ 66/ 72/ 75)
800 X 600 (56/ 60/ 70/ 72 / 75)
1024 X 768 (60/ 70/ 72/ 75)
01

LCD
Size
4.3"
Display Area
93 x 55.8 mm
Resolution
800 x 480 (16:9)
Dot Pitch
0.297 mm
Color
16.7M colors
Luminance of White
200cd/㎡
Contrast
400:1
Response time
20 msec
Viewing Angle (Typical)
H: 160 degrees ; V: 130 degrees
Power
AC 100 - 240V (50 / 60Hz)
Power Consumption (Approx.)
45 Watts
Operating Temperature
0 °C to 85 °C
Storage Temperature
-20 °C to 95 °C
Dimensions (W x H x D)
483.5 x 132 x 150 mm ( 3U )
Accessory
Power supply /AC Power Cord
Gross Weight
6.5Kg + 500 g
02

TALLY indicator
2. On Screen Control Function
1. PC: Select VGAinput.
2. V1: Select Video 1 ( Composite Video ) input.
3. V2: Select Video 2 ( S-Video ) input.
4. YPbPr: Select YPbPr ( Component ) input.
5. HDMI: Select HDMI input.
6. SDI: Select 3G/HD or SD input ( auto-switch).
7. MENU: Show function menu list, when you push this key.
8. : Increase the degree of the function that you selected.
9. : Decrease the degree of the function that you selected.
10. Power On/Off button: When you push this button, it will Power On or
Off of LCD.
03

3. Menu Functions
Brightness
Adjust the brightness of screen.
Adjustment range 0~15.
Contrast
Adjust the contrast of screen.
Adjustment range 0~100.
Color Mode
Adjust independent R.G..B Color level.
Color- R
Color- G
Color- B
Saturation
Adjust the Saturation of screen.
Adjustment range 0~100.
Hue
Adjust the Hue of screen.
Adjustment range 0~100
Sharpness
Adjust the Sharpness of screen :
Adjustment range 0~14.
Blue Only
Select only Blue channel for display of image.
Display Mode
4:3 and 16:9 video mode for user selection.
04

Marker On/Off
Select 4:3/16:9 Safe Area marker.
Reset
Reset the setting back to factory default.
Exit
Save your personal setting and exit to menu mode.
05

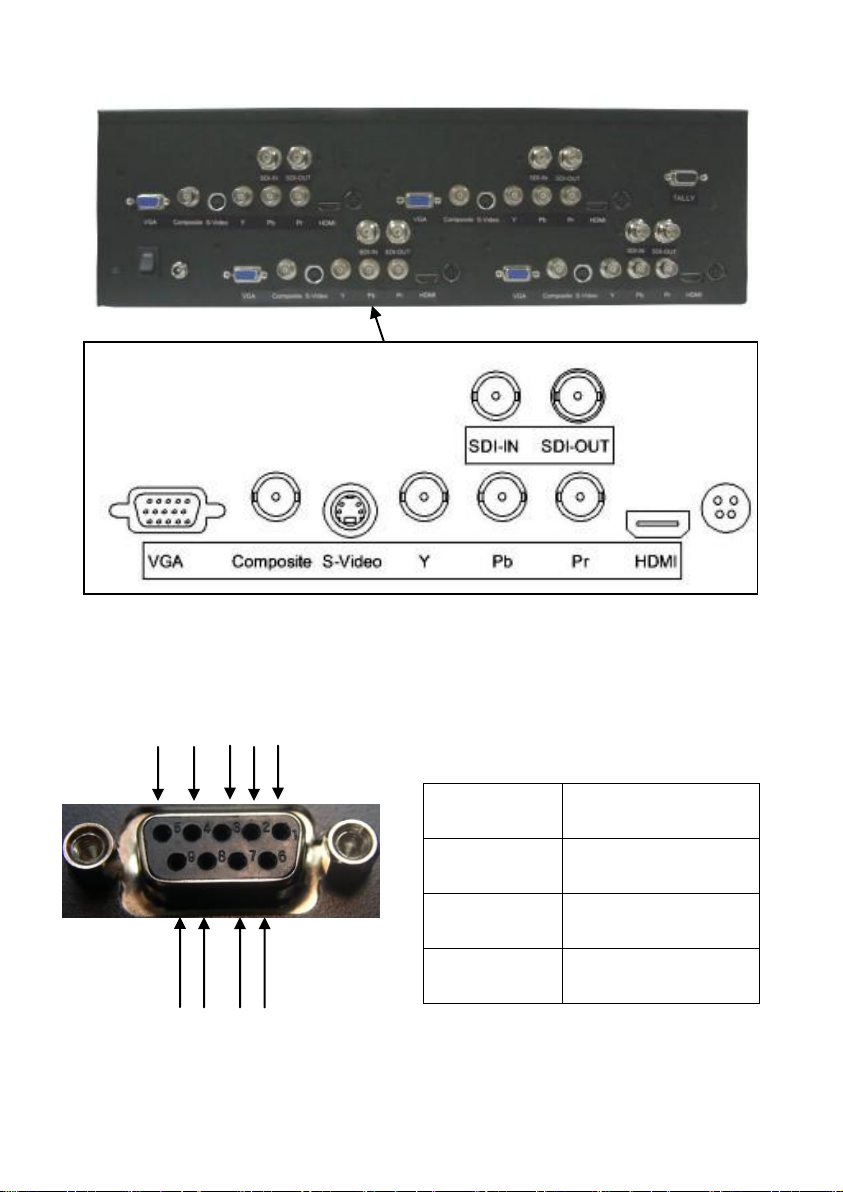

4. Rear View of connectors
5. Tally Control Pin define
A:Direction of Dub 9 pin. B: Configuration of Tally.
P5 P4 P3P2 P1
Display 1
Pin 1 & Pin 6
Display 2
Pin 2 & Pin 7
Display 3
Pin 3 & Pin 8
Display 4
Pin 4 & Pin 9
P9 P8 P7 P6
06

6. Mechanical Dimension
07
Unit:mm

7. Accessories
1. Power Supply 12V/5Ampere
2. Power core ( US or Europe Lead )
08
