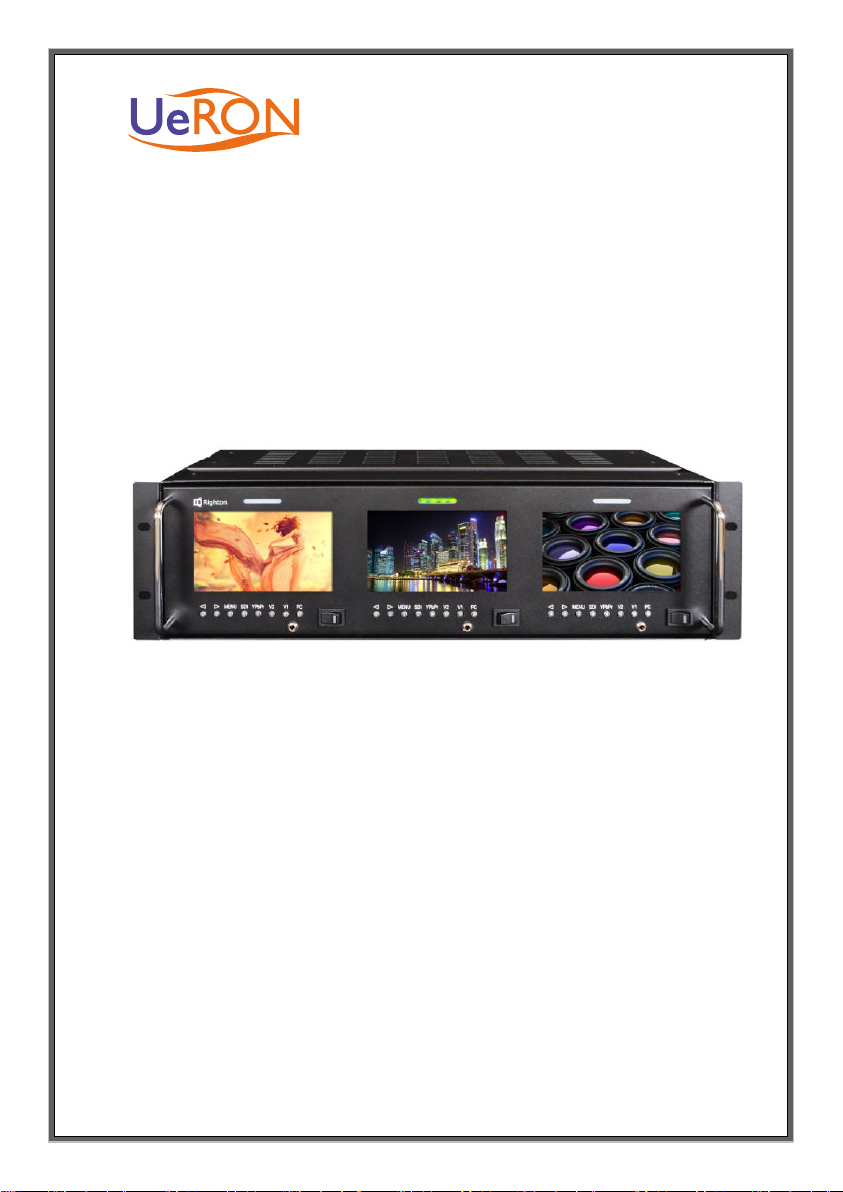

UeRON HD-9350-AU User manual

UeRON INTERNATIONAL COMPANY
http://www.ueron.com.tw
Broadcast HD Monitor
HD-9350-AU
User Guide
V1.001

INDEX
1.Electrical Specification….………………. …...01
2. On Screen Control Function….…..………….03
3. Menu Functions ……………………….…….04
4. Rear view of connectors……………………..06
5.Tally Control ..……………..………………...07
6. Mechanical Dimension…..…………………. 08

1. Specification
Video
Input
1 x D-SUB
VGA IN
1 x BNC
HD/SD SDI Auto-switch
3 x BNC
YPbPr
1 x RCA
Analog Input
1 x Mini-Din
S-Video
1 x D-SUB( 9 pin)
Tally Input
Audio
Input
1 x BNC
AES Input
2 x BNC
Analog Audio L / R
Output
1 x BNC
SDI Channel (Active Through Out)
1 x Headphone jack
Φ3.5mm stereo
Input
Signal
Analog
Composite (CVBS) / S-Video 0.8Vpp
SD-SDI
270Mbps, 525i (60/ 59.94) / 625i (50)
HD-SDI
1080P/30Hz, 1080P/29.97Hz,
10801080P/25Hz
1080P/25Hz,1080P/24Hz, 1080P/23.98Hz
1080i/60Hz, 1080i/59.94Hz, 1080i/50Hz
1035i/60Hz,1035i/59.94Hz
720P/60Hz, 720P/59.94Hz, 720P/50Hz
VGA
640 X 350 (70/ 85)
720 X 350 (70/ 85)
640 X 400 (56/ 70/ 85)
720 X 400 (70/ 85)
640 X 480 (60/ 66/ 72/ 75/ 85)
800 X 600 (56/ 60/ 70/ 72 / 75/ 85)
1024 X 768 (60/ 70/ 72/ 75/ 85)
01

LCD
Size
5"
Display Area
108 x 64.8 mm
Resolution
800 x 480 (16:9)
Dot Pitch
0.135 mm
Color
16.7M colors
Luminance of White
300cd/㎡
Contrast
600:1
Response time
25 msec
Viewing Angle (Typical)
H: 170 degrees ; V: 170 degrees
Power
AC 100 - 240V (50 / 60Hz)
Power Consumption (Approx.)
36 Watts
Operating Temperature
0 °C to 50 °C
Storage Temperature
-10 °C to 60 °C
Dimensions (W x H x D)
483.5 x 132 x 150 mm ( 3U )
Accessory
Power supply /AC Power Cord
Gross Weight
6Kg + 500 g
02

TALLY indicator

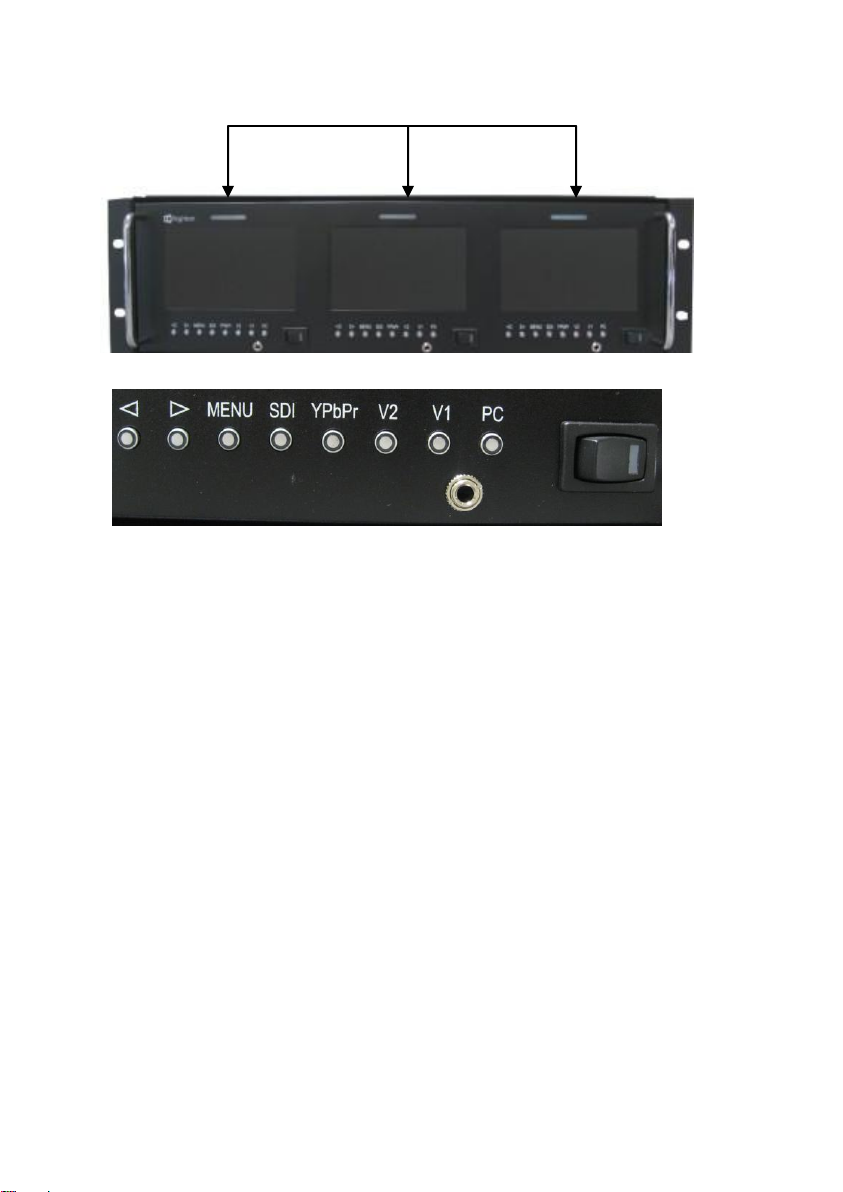

2. On Screen Control Function
1. PC: Select VGAinput.
2. V1: Select Video 1 ( Composite Video ) input.
3. V2: Select Video 2 ( S-Video ) input.
4. YPbPr: Select YPbPr ( Component ) input.
5. SDI: Select HD or SD input ( auto-switch).
6. MENU: Show function menu list, when you push this key.
7. : Increase the degree of the function that you selected.
8. : Decrease the degree of the function that you selected.
9. ø3.5mm headphone jack: select AES/Analogue or SDI audio output.
10. Power On/Off button: When you push this button, it will Power On or
Off of LCD( LED green light up).
03

3. Menu Functions
Display Mode
4:3 and 16:9 video mode for user selection.
Brightness
Adjust the brightness of screen.
Adjustment range 0~15.
Contrast
Adjust the contrast of screen.
Adjustment range 0~127.
Color Mode
Adjust independent R.G..B Color level.
Color- R
Color- G
Color- B
Saturation
Adjust the Saturation of screen :
Adjustment range 0~255.
HUE
Adjust the HUE of screen :
Adjustment range 0~255.
Sharpness
Adjust the Sharpness of screen :
Adjustment range 0~15.
Blue Only
Select only Blue channel for display of image.
04

H/V delay
Used for displaying Sync and Blanking timing.
Marker
Select 4:3 or 16:9 safe area of screen ( this feature support to SDI mode only ).

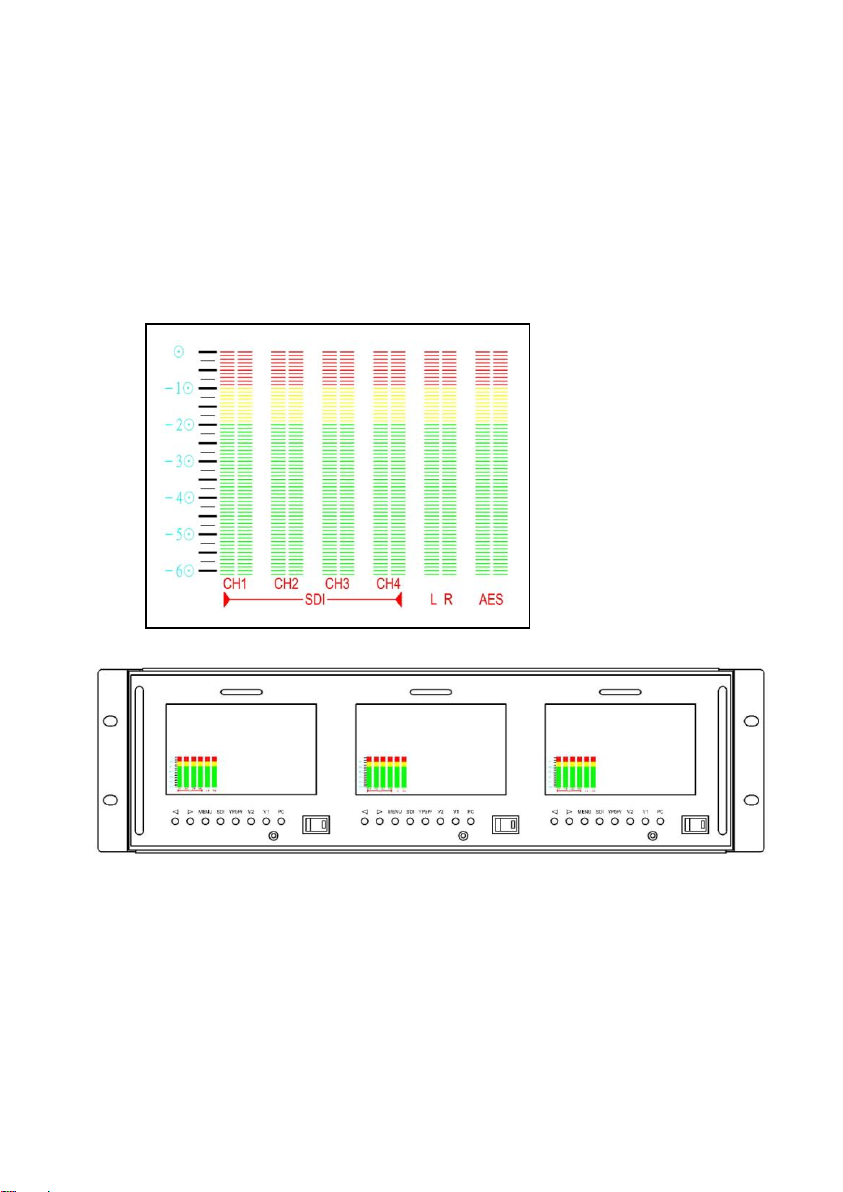

VU Meter
Select VU Meter on/off ( including 3 sources SDI, AES and Analogue L/R).
Audio Out
Select the front panel ø3.5mm stereo headphone jack output on /off.
-Audio Out CHI ~CH4
Select embedded audio CH1~CH4 < support Max 8 channels >.
Level meter scale is adjustable from -60 to 0 dBfs.
05

-Audio Out AES
Select AES audio output.
Level meter scale is adjustable from -60 to 0 dBfs.
-Audio Out L/R
Select Analogue L/R audio output.
Level meter scale is adjustable from -60 to 0dBfs.
■■Support 1* Audio out only, user use this menu to select embedded Audio/
AES or Analogue L/R assignments
Reset
Save your personal setting and exit to menu mode.

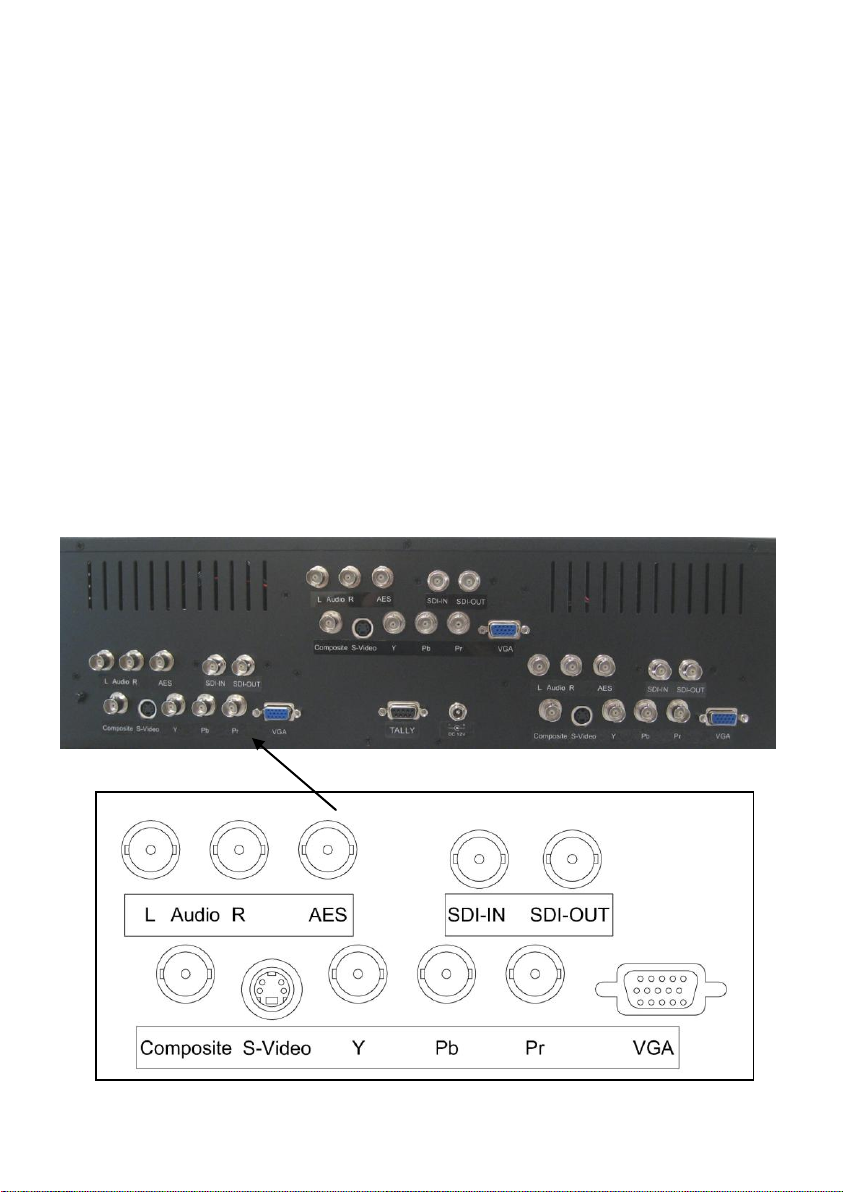

4. Rear View of connectors
06

5. Tally Control Pin define
A:Direction of Dub 9 pin.
P5 P4 P3 P2 P1
P9 P8 P7 P6
B:
Display 1
Pin 1& Pin 6
Display 2
Pin 2 & Pin 7
Display 3
Pin 3 & Pin 8
07

6. Mechanical Dimension
08
Unit：mm
