uhlmann & zacher CX8936 User manual

CX8936
Online module with
Bluetooth®Low Energy
Operating and
installation instructions

CX8936 TABLE OF CONTENTS
1
Legal Notice
Operating and installation instructions (original language)
CX8936 Online module with Bluetooth®Low Energy
Document number: 1519
Version: 1.2
Date: 13.02.2023
Manufacturer
Uhlmann & Zacher GmbH
Gutenbergstraße 2–4
97297 Waldbüttelbrunn
Germany
Tel.: [phone]
Email: [email protected]e
www.UundZ.de
These operating and installation instructions are protected by copyright. The in-
formation contained here may not be reproduced, distributed or used for compet-
itive purposes or provided to third parties. It is also prohibited to manufacture any
component using these instructions without prior written consent.

CX8936 TABLE OF CONTENTS
2
Table of contents
1About this document ........................................................................ 3
1.1 Warnings ............................................................................................3
1.2 Symbols..............................................................................................3
2Safety ............................................................................................ 4
2.1 Proper use ..........................................................................................4
2.2 Improper use.......................................................................................4
2.3 General safety information ...................................................................4
3Product description .......................................................................... 5
3.1 Functional description ..........................................................................5
3.2 Layout and scope of delivery.................................................................5
3.3 Versions..............................................................................................6
3.4 Technical data ....................................................................................6
3.5 Dimensions .........................................................................................7
4Installation.....................................................................................10
4.1 General installation information..........................................................10
4.2 Installation ........................................................................................10
4.3 Pin assignment ..................................................................................11
5Commissioning and operation .........................................................12
5.1 Connecting locking units ....................................................................12
5.2 Configuring the online module ...........................................................13
5.3 Operation.........................................................................................13
5.4 Resetting...........................................................................................13
5.5 Resetting the configuration (factory reset) .............................................14
5.6 Firmware updates ..............................................................................14
5.7 Signaling ..........................................................................................14
5.8 Malfunctions during operation/error signaling......................................14
6Maintenance and cleaning...............................................................15
6.1 Maintenance .....................................................................................15
6.2 Cleaning...........................................................................................15
7Disassembly and disposal ................................................................16
7.1 Disassembly ......................................................................................16
7.2 Disposal ...........................................................................................16
8Glossary........................................................................................17

CX8936 ABOUT THIS DOCUMENT
3
1About this document
These operating and installation instructions describe the CX8936 online module
with Bluetooth®Low Energy. They are part of the product and contain important
information required for correct operation and maintenance.
These operating and installation instructions apply for all versions of the CX8936
and are intended both for specialist personnel responsible for assembly and dis-
assembly and for end customers.
To ensure trouble-free and safe operation, read these operating and installa-
tion instructions carefully and observe the information contained there before
putting the door handle into operation.
Keep the operating and installation instructions.
After installation, give the instructions to the end customer and familiarize
them with operation.
Uhlmann & Zacher GmbH accepts no liability for malfunctions, such as impossi-
ble access to injured persons, operational malfunctions, damage to property or
other damage resulting from non-observance of these operating and installation
instructions or from incorrectly configured door handles.
If you still have any questions after reading these operating and installation
instructions, please contact your specialist dealer or Uhlmann & Zacher
GmbH directly.
1.1 Warnings
Warning notices warn of hazards that may occur when using the product. There
are two hazard levels, recognizable by the signal word:
Signal word
Meaning
CAUTION
Indicates a low-risk hazard that may result in minor or moderate
injury if not avoided
ATTENTION
Indicates a hazard that results in damage to property
1.2 Symbols
The following symbols may appear in this manual:
This symbol marks an instruction that has to be carried out by the user.
This symbol marks an entry in a list.
This symbol indicates useful and important information.

CX8936 SAFETY
4
2Safety
2.1 Proper use
The product is intended for use solely with Bluetooth® -capable devices. It is de-
termined for use in the system Clex public and can be operated with locking units
from other systems by Uhlmann & Zacher.
The device is designed for the surface mounting in secured indoor areas. Only
components approved by the Uhlmann & Zacher GmbH may be used for installa-
tion and maintenance.
Installation may only be carried out by trained specialist personnel.
Any other use is considered improper and may result in damage to property or
even personal injury.
2.2 Improper use
The product must not be used to lock up aids that are vital in an emer-
gency (for example, defibrillators, emergency medication, fire extinguish-
ers, etc.).
The product must not be used in potentially explosive atmospheres.
If the housing or the electronics are damaged, the product must not be
operated any longer. Modifications or additions to the product are not
permitted. Usage outside the stated specifications is not permitted.
2.3 General safety information
Observe the following basic safety instructions when handling the wall mounted
reader:
No modifications of any kind are permitted to the product, with the ex-
ception of those described in this manual.
Installation may only be carried out by trained specialists in accordance
with these instructions.
The product must only be operated in the defined temperature range.
There is an increased risk of injury (electric shock!) if the connecting ca-
bles are touched when the power supply is switched on. Only perform in-
stallation and maintenance work when the power supply is switched off.
Observe VDE guidelines!
These instructions should be passed on to the user by the person carrying
out the installation.
The product must not be brought into contact with paints or acids
To avoid malfunctions and damage, only use original parts and accesso-
ries from Uhlmann & Zacher GmbH.

CX8936 PRODUCT DESCRIPTION
5
3Product description
3.1 Functional description
The online module in Clex public system is the interface (2.4 GHz) between the
Uhlmann & Zacher products and a third-party system. From the third-party system
you can, for example, read transponder data or control Clex locking units via the
online module. To this purpose up to 8 locking units are coupled with the online
module depending on the device version.
No external antenna is required for the connection.
3.2 Layout and scope of delivery
Layout using the example of the grey housing version. Other housing versions
similar:
1. Housing cover and screw(s)
1 screw for Part number 8936 0000 0000
4 screws for Part numbers 8936 0000 0004 and 8936 0000 0005
2. Housing bottom with electronics
3. Opening for cable feeding
4. Screw terminal for connection pins 1-8 (connection block pluggable)
5. Screw terminal for connection pins 9-16 (connection block pluggable)
6. Rotary switch
7. Button
8. LEDs
9. Mounting holes screws not included in the scope of delivery)

CX8936 PRODUCT DESCRIPTION
6
3.3 Versions
Configuration versions:
For RS485 and Clex public protocol (phg_crypt)
For RS485 and OSDP
For Wiegand/clock data
Housing versions:
Housing in grey
Oval housing in white
Rectangular housing in white
3.4 Technical data
3.4.1 General technical data
Designation
Value
Number of cou-
pleable locking units
(depending on
versions)
For data transfer via RS485: 8
For Wiegand/clock data: 1
Frequency range
2402 to 2480 MHz
Power supply
Supply voltage 5-24 VDC
Power consumption
Max. 0.4 W
3.4.2 Ambient conditions
Designation
Value
Operating tempera-
ture
+10 °C to +55 °C
Storage temperature
-40 °C to +65 °C
Installation location
Indoors

CX8936 PRODUCT DESCRIPTION
7
3.5 Dimensions
Grey housing

CX8936 PRODUCT DESCRIPTION
8

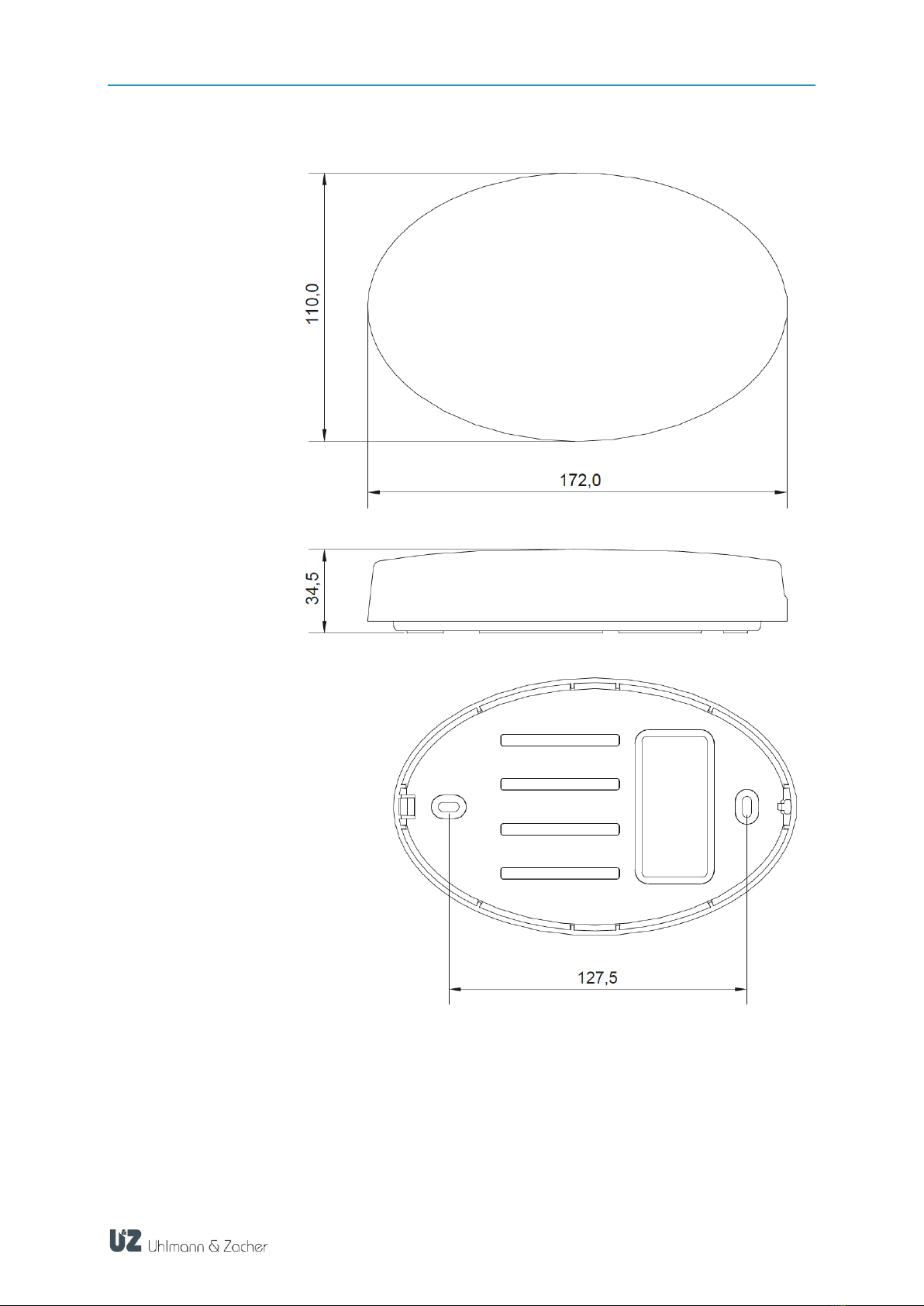

White oval housing

CX8936 PRODUCT DESCRIPTION
9
White rectangular
housing

CX8936 INSTALLATION
10
4Installation
4.1 General installation information
The valid national regulations for electronic installations
(e.g. VDE regulations) must be observed.
The connecting cables must be available and laid.
Only operate the device at the correct operating voltage.
If possible, disconnect the load and operating circuits.
In the case of installation on metal surfaces or in direct proximity to metals,
the range as well as the communication between product and connected
locking units may be influenced negatively.
Avoid direct exposure to strong electromagnetic fields
Do not paint over, paste over or cover the online module.
4.2 Installation
Specify the mounting position. Ensure that the surface is smooth, dry and firm
enough. Do not place the units close to each other to avoid radio interfer-
ences.
Mark the fastening points through the bottom of the housing
(No. 9 in layout diagram).
If required, drill mounting holes into the mounting surface.
Insert the connection cables through the opening on the bottom into the
housing and cut and strip to a suitable length.
Hand-tighten the lower part of the device at the intended location using suit-
able flat-head screws. Installation material is not included in the scope of de-
livery. In case of cable feeding from the side, use additional fitting rubber or
plastic spacers. Ensure that the cable is not pinched.
Wire cables according to the respective pin assignment specified in the next
chapter. The two 8-pin connection blocks can be removed for easier installa-
tion.
Perform commissioning (see the "Commissioning" chapter).
Put on the housing cover and screw it tight.

CX8936 INSTALLATION
11
4.3 Pin assignment
Contact number
Pin assignment
1
+ power supply 5-24 VDC
2
–power supply (ground)
3
Input ground (together with pin 6/7/8 insulated against
ground connection) (not used)
4
Wiegand 0
5
Wiegand 1
6+7+8
Input (potential 5-24 V) (not used)
9
+ power supply 5-24 VDC
(can be used alternatively to 1)
10
–power supply (ground)
(can be used alternatively to 2)
11
RS485A
12
RS485B
13
RS485A (not used)
14
RS485B (not used)
15 + 16
Relay (DC max. 48 V/0.7 A –AC: max. 32 V/0.5 A)
(not used)

CX8936 COMMISSIONING AND OPERATION
12
5Commissioning and operation
5.1 Connecting locking units
To connect a locking unit with the online module, you have to perform the follow-
ing steps:
Bring the locking unit which you want to connect into the service mode by
holding the service key in front of the locking unit.
Use a screwdriver or a similar tool to turn the rotary switch (6) so that the
arrowhead points to Position 8. Then briefly press the button (7) to switch to
the pairing mode and teach in the locking unit within reach.
6) Rotary switch
7) Button
8) LEDs
If successful, the green LED lights up several times and the lock leaves the service
mode directly. If not successful, the red LED lights up several times and the lock
remains in the service mode.
The yellow LED flashes additionally to confirm the button input. The blue LED
flashes to signal the BLE activity.
Turn the rotary switch back to the home position.
Rotary switch position
Function
0
Home position
For Wiegand: Sends a test sequence via Pins 4 and 5
when the button (7) is pressed.
4
Briefly press the button (7) to set the online module into
the service mode.
8
Briefly press the button (7) to perform the pairing of the
online module with the locking unit that is in reach and
in service mode or to delete an existing paired locking
unit.
9
Briefly press the button (7) to delete all the saved locking
units and parameters.
Any
If you keep the button (7) pressed longer than 4 s and
then release it, the online module switches to the service
mode (as at Position 4).

CX8936 COMMISSIONING AND OPERATION
13
5.2 Configuring the online module
The configuration of the online mode normally takes place through the connected
third-party system and the corresponding function of the respective protocols.
Individual parameters of the online module can also be set directly via a BLE
connection or bus commands in the service mode.
Use a screwdriver or a similar tool to turn the rotary switch (6) so that the
arrowhead points to Position 4 (service mode). Then briefly press the button
(7) to switch to the service mode.
The active service mode is signaled by the green LED. In addition, the blue
LED flashes to signal BLE activity. In the case of an existing BLE connection
the blue LED lights up continuously.
Carry out the settings (e.g. LAN/WLAN communication) by means of the
associated software tool (details are available in the respective protocol de-
scription).
You can end the service mode at any time by again pressing the button (7) or
by changing the position of the rotary switch (6).
The program "Clex UZReader Test Tool (ClexUzRdrTT)" as of Version 2.8.6.2 can
be used to set up and test the connection via the Clex public UZ Reader protocol.
The parameters for the Wiegand connection can also be set with this tool. Con-
tact your Integration partner to purchase the software.
The "ClexSer OSDP Test Tool (ClexOsdpTT)" program can be used to set up and
test the OSDP connection. Contact your Integration partner to purchase the soft-
ware.
5.3 Operation
If an authorized transponder is held in front of the connected locking unit, a BLE
connection is established with the online module and, depending on the version,
the authorization is requested via the corresponding protocol of the third-party
system.
If no BLE connection can be established, for example in case of a power failure
or a wireless attack, the electronics of the locking unit drops back into offline
mode. In this mode the door can be opened with any transponder with offline
authorization.
In this case the electronics of the locking unit warns the user, however, before
opening with a distinctive visual and acoustic signaling.
When the locking unit is woken up, for example by a knob cylinder being turned
or a door handle or knob module being actuated, a wireless connection is also
established.
5.4 Resetting
Disconnect the device from the power supply.
Versions Clex public
protocol (phg_crypt)/
Version Wiegand
Version OSDP

CX8936 COMMISSIONING AND OPERATION
14
5.5 Resetting the configuration (factory reset)
If you want to reset all the settings, proceed as follows:
Use a screwdriver or a similar tool to turn the rotary switch (6) so that the arrow-
head points to Position 9. Briefly press the button (7) to delete all the saved lock-
ing units and parameters.
5.6 Firmware updates
To update the firmware you have the update tool
“Clex FW Prog” available. Contact your respective Integration partner.
5.7 Signaling
LED
Meaning
Blue
slow flashing
Device scans for paired locks
Blue
flashing
BLE activity with connected locking units
Blue
constant lighting up
All paired locking units are connected
Blue
rapid flashing
Device tries to wake up a locking unit in the "wake on
radio" mode (WOR)
Yellow
Button input
Red
Active online connection
Green
Received bus command
Red/green
flashing alternatingly
Connected with the locking unit in service mode
Green constant light-
ing + blue flashing
Service mode
After reset: One-time
all colors consecutive-
ly
Device has completed the initialization
5.8 Malfunctions during operation/error signaling
LED
Meaning
Red and yellow flash
after a reset; after that
service mode
Mode wrong for the available firmware:
Perform a firmware update or set the mode manually.
Yellow lights constant-
ly after a reset
Micro-controller of the device is in the boot loader. Per-
form a suitable firmware update.

CX8936 MAINTENANCE AND CLEANING
15
6Maintenance and cleaning
6.1 Maintenance
Since the device is not protected specially against dust, the product should be
checked regularly for dust deposits. The frequency depends on the dust level at
the operation site.
6.2 Cleaning
Clean the housing with a soft, lint-free and only slightly moistened cloth. When
cleaning do not use corrosive liquids or liquids that decompose plastic such as
benzine, turpentine, etc. Sharp detergents may damage or discolor the surface.
Do not use any detergents which act on a mechanical basis (e.g. scouring milk,
scouring sponge).
Free the electronics from dust with a suitable brush or by careful use of com-
pressed air at a sufficient distance.

CX8936 DISASSEMBLY AND DISPOSAL
16
7Disassembly and disposal
7.1 Disassembly
7.2 Disposal
Do not dispose of the device with household waste, but at a municipal col-
lection point for special electrical waste in accordance with European Di-
rective 2002/96/EC.
Dispose of packaging as environmentally friendly recycling.

CX8936 GLOSSARY
17
8Glossary
Term
Meaning
BLE
Bluetooth®Low Energy
VDE
German "Verband der Elektrotechnik" [Registered Asso-
ciation of the Electrical, Electronic and Information
Technology]
phg_crypt
Standard protocol of the company phg Peter Hengstler
GmbH + Co. KG, Deißlingen in Germany
