ULTIMATE SPEED HG07154 Installation and operating instructions

IAN 384227_2107
HEAVY DUTY RATCHET
STRAP SET
Assembly and safety advice
SÆT MED
SKRALLEGJORDE TIL
TUNG LAST
Montage- og
sikkerhedsanvisninger
TENDEURS À CLIQUET
POUR CHARGES
LOURDES
Instructions de montage et
consignes de sécurité
ZWARE LAST-
RATELSPANBANDEN-SET
Montage- en veiligheidsinstructies
SCHWERLAST-
RATSCHENSPANNGURTE-
SET
Montage- und
Sicherheitshinweise
HEAVY DUTY RATCHET STRAP SET

GB/IE/NI Assembly and safety advice Page 5
DK Montage- og sikkerhedsanvisninger Side 19
FR/BE Instructions de montage et consignes de sécurité Page 33
NL/BE Montage- en veiligheidsinstructies Pagina 47
DE/AT/CH Montage- und Sicherheitshinweise Seite 61

HG07154
HG04646/HG04647 - Use
Mentioned in the manual content
On the fold-out page
HG04648 - Use
HG07155
HG04646/HG04647 - Use
Mentioned in the manual content
On the fold-out page
HG04648 - Use

I
HG04646/HG04647 - Use
Mentioned in the manual content
On the fold-out page
HG04648 - Use
II
HG04646/HG04647 - Use
Mentioned in the manual content
On the fold-out page
HG04648 - Use

5GB/IE/NI
Introduction .................................Page 6
Intended use ................................Page 6
Technical data ...............................Page 7
Safety instructions..........................Page 8
Safety instructions for lashing straps ................Page 8
Practical use and care information..................Page 10
Use............................................Page 13
Attaching the lashing strap........................Page 14
Releasing the lashing strap........................Page 15
Cleaning and care ..........................Page 16
Disposal......................................Page 16
Warranty ....................................Page 17

6 GB/IE/NI
HEAVY DUTY RATCHET STRAP SET
Introduction
We congratulate you on the purchase of your new product. You have
chosen a high quality product. Familiarise yourself with the product
before using it for the first time. In addition, please carefully refer to
the operating instructions and the safety advice below. Only use the
product as instructed and only for the indicated field of application.
Keep these instructions in a safe place. If you pass the product on to
anyone else, please ensure that you also pass on all the documentation
with it.
Intended use
The manufacturer and the dealer of this product are not liable for any
damages if the product is not used according to the warnings and
instructions of this instruction manual. The product is not intended for
commercial use. The product is only suitable for private use, to secure
loading on vehicles. Any usage which does not conform with this
manual can lead to injuries or damages.

7GB/IE/NI
Technical data
HG07154:
Length: LGF (length– fixed end): 0.2‒1.1m
LGL (length– adjustable end): 2‒50m
Permissible load (LC): 1000daN (10000N=
Newton/1000kg(m/s2)/ SHF 50daN)
Material: Polyester (PES)
HG07155:
Length: LGF (length– fixed end): 0.2‒1.1m
LGL (length– adjustable end): 2‒50m
Permissible load (LC): 350daN (3500N=
Newton/350kg(m/s2)/ HF25daN)
Material: Polyester (PES)

8 GB/IE/NI
Safety instructions
KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE
PLACE FOR FUTURE REFERENCE!
Safety instructions for lashing straps
Keep the product away from children.
Check that all parts have been assembled correctly. Improper
assembly may result in injury.
Check the product for damages prior to each use. Do not use the
product anymore if it is damaged.
Carefully check the product for dirt, contamination, corrosion or
other material damages.
Do not use the product if it is damaged in any way:
– Broken threads or cuts in the thread (especially if the edges have
been nicked).
– Missing/illegible labelling. Only legibly marked and labelled
lashing straps may be used.
– Damage to connections. Deformation due to exposure to heat
(friction, radiation).
– Material deformations on any component
– Damages due to the effect of corrosive substances.
– After accidental contact with chemical products, the lashing strap
must be removed from service and the manufacturer or supplier
consulted.
Never exceed the permissible tensile load of the lashing strap as
stated on the label (see also “Technical data”).

9GB/IE/NI
Choose the most suitable lashing strap in accordance with the
intended load that needs to be lashed down, the tensile load and
loading surface (see label).
Check that the vehicle parts you wish to strap the load to are sturdy
enough.
Make sure that the lashing straps are not twisted/knotted and that
the load is distributed across their entire width.
Keep lashing strap away from hot surfaces.
Evenly distribute the lashing straps on the load to be secured.
Never use the lashing straps to lift loads.
m CAUTION! DANGER OF ACCIDENT! Always choose suitable
lashing straps, lashing points and lashing methods. The size, shape
and weight of the cargo as well as the intended mode of use, the
transport environment and the type of cargo determine the correct
choice.
Do not exceed the roof load indicated by the vehicle manufacturer.
m CAUTION! DANGER OF ACCIDENT! When lashing down, pay
attention to the required pre-load force. At least 2lashing straps
are required. For reasons of stability, at least 2lashing straps of the
same kind must be used for lashing down and 2pairs of lashing
straps of the same kind used for diagonal lashing.
m CAUTION! DANGER OF ACCIDENT! During transportation,
regularly check that the cargo is correctly lashed and tighten the
lashing strap if necessary.

10 GB/IE/NI
Practical use and care information
1. In selecting and using lashing equipment, you must consider the
required lashing force, the mode of use and the type of cargo to
be lashed. The size, shape and weight of the cargo as well as the
intended mode of use, the transport environment and the type of
cargo determine the correct choice. For stability reasons, at least
2lashing straps must be used for lashing down and 2pairs of
lashing straps used for diagonal lashing.
2. The selected web lashings shall both be strong enough and of the
correct length for the mode of use. Basic lashing rules:
– Plan the fitting and removal operations of lashing before starting
a journey;
– Keep in mind that during journeys parts of the load may have to
be unloaded;
– Calculate the number of web lashings according to
EN 12195-1:2010;
– Only those web lashings designed for frictional lashing with STF
on the label are to be used for frictional lashing;
– Check the tension force periodically, especially shortly after
starting the journey.
3. Due to different characteristics and because of different changes in
length under load, only identical lashing device combinations (e.g.
lashing chains and lashing strap made of synthetic fibres) may be
used in parallel for lashing the same load.
4. Consideration shall also be given to ancillary fittings (components)
and lashing devices in the load restraint assembly are compatible
with the web lashing.
5. During use, flat hooks must engage over the entire width of the
bearing surface of the hook.

11GB/IE/NI
6. Release of the web lashing: Care should be taken to ensure
that the stability of the load is independent of the lashing equipment
and that the release of the web lashing shall not cause the load to
fall off the vehicle, thus endangering the personnel. If necessary
attach lifting equipment for further transport to the load before
releasing the tensioning device in order to prevent accidental falling
and/or tilting of the load. This applies as well when using tensioning
devices which allow controlled removal.
7. Before starting to unload, you must loosen the lashing until the load
is free.
8. During loading and unloading attention has to be paid to proximity
of any low overhead power lines.
9. The materials from which lashing straps are made have selective
resistance to chemical attacks. Seek the advice of the manufacturer
or supplier if exposure to chemicals is anticipated. It should
be noted that the effects of chemicals may increase with rising
temperatures. The resistance of man-made fibres to chemicals is
summarized below.
– Polyamides are virtually immune to the effects of alkalis. However,
they are attacked by mineral acids.
– Polyester is resistant to mineral acids but is attacked by alkalis.
– Polypropylene is little affected by acids and alkalis and is suitable
for applications where high resistance to chemicals (other than
certain organic solvents) is required.
– Solutions of acids or alkalis which are harmless may become
sufficiently concentrated by evaporation to cause damage. Take
contaminated webbings out of service at once, thoroughly soak
them in cold water, and dry naturally.

12 GB/IE/NI
10. This product is suitable for use for the following temperature ranges:
–40to +80°C. This range may vary in a chemical environment.
In that case the advice of the manufacturer or supplier shall be
sought. Changing the environmental temperature during transport
may affect the forces in the lashing. Check the tension force after
entering warm areas.
11. Lashing straps shall be rejected or returned to the manufacturer for
repair if they show any signs of damage.
The following criteria are considered to be signs of damage:
– Only lashing bearing identification labels shall be repaired;
– If there is any accidental contact with chemical products, lashing
straps shall be removed from service and the manufacturer or
supplier shall be consulted;
– for lashing straps (to be rejected): tears, cuts, nicks and breaks in
load bearing fibres and retaining stitches; deformations resulting
from exposure to heat;
– for end fittings and tensioning devices: deformations, splits,
pronounced signs of wear, signs of corrosion.

13GB/IE/NI
12. Care should be taken that the lashing is not damaged by sharp
edges of the load on which it is used.
A visual inspection before and after each use is recommended.
13. Only legibly marked and labelled web lashings shall be used.
14. Lashing straps must not be overloaded: The maximum hand force
25daN for model HG07155; 50daN for model HG07154
(1daN ≈ 1kg) may be applied. Mechanical aids such as bars or
levers etc. may not be used unless they are part of the tensioning
device (HG07154 / HG07155).
15. Lashings shall never be used when knotted.
16. Damage to labels shall be prevented by keeping them away from
sharp edges of the load and, if possible, from the load.
17. Webbing must be protected against friction, abrasion and damage
from loads with sharp edges by using protective sleeves and/or
corner protectors.
Use
Lashing down (HG07154 / HG07155):
With lashing straps stretched over it, the load is pressed down onto the
loading area (Fig.I).
Diagonal lashing (HG07155):
The load is secured by 4lashing straps and directly connected to the
vehicle (Fig.II).

14 GB/IE/NI
Attaching the lashing strap
HG07154:
Fasten the hooks on both sides. Insert the
free end of the strap through the slot in the
ratchet. Pull through the ratchet until it sits
snug around the load.
Tighten the strap by pumping the handle up
and down until the strap is tight. Then, fully
close the handle.
HG07155:
Fasten the hooks on both sides. Insert the
free end of the strap through the slot in the
ratchet. Pull through the ratchet until it sits
snug around the load.
Tighten the strap by pumping the handle up
and down until the strap is tight. Then, fully
close the handle.

15GB/IE/NI
Releasing the lashing strap
HG07154:
Pull back the quick release button and hold.
Pull the handle up to an open, flat position.
The slot in ratchet will be free to turn. The
webbing is released now.
HG07155:
Pull back the quick release button and hold.
Pull the handle up to an open, flat position.
The slot in ratchet will be free to turn. The
webbing is released now.

16 GB/IE/NI
Cleaning and care
Note: Regular care will maintain the quality and functionality of the
lashing strap.
Clean the lashing strap with lukewarm water and pH-neutral
cleaning agents. Avoid corrosive detergents.
The ratchet tensioner should be regularly cleaned and then lightly
greased. When greasing it, make sure that parts that come into
contact with the webbing are not greased.
Store the lashing strap in a dry, well-ventilated cool place.
Avoid contact with chemicals, acids and alkalis as they may
damage the lashing strap.
Disposal
The packaging is made entirely of recyclable materials, which you may
dispose of at local recycling facilities.
Contact your local refuse disposal authority for more details of how to
dispose of your worn-out product.

17GB/IE/NI
Warranty
The product has been manufactured to strict quality guidelines and
meticulously examined before delivery. In the event of product defects
you have legal rights against the retailer of this product. Your legal
rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase.
The warranty period begins on the date of purchase. Please keep the
original sales receipt in a safe location. This document is required as
your proof of purchase.
Should this product show any fault in materials or manufacture within
3 years from the date of purchase, we will repair or replace it – at
our choice – free of charge to you. This warranty becomes void if the
product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This
warranty does not cover product parts subject to normal wear, thus
possibly considered consumables (e.g. batteries) or for damage to
fragile parts, e.g. switches, rechargeable batteries or glass parts.

18 GB/IE/NI
Warranty claim procedure
To ensure quick processing of your case, please observe the following
instructions:
Please have the till receipt and the item number (IAN 384227_2107)
available as proof of purchase.
You will find the item number on the rating plate, an engraving, on the
front page of the instructions for use (bottom left), or as a sticker on the
rear or bottom of the product.
If functional or other defects occur, please contact the service
department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service
address that will be provided to you. Ensure that you enclose the proof
of purchase (till receipt) and information about what the defect is and
when it occurred.
Service
Service Great Britain
Tel.: 08000569216
Service Ireland
Tel.: 1800 200736
Service Northern Ireland
Tel.: 0800 0927852

19DK
Indledning .................................... Side 20
Forskriftsmæssig anvendelse .............. Side 20
Tekniske data ................................ Side 21
Sikkerhedsanvisninger ..................... Side 22
Sikkerhedsanvisninger for bæltestropper .............. Side 22
Praktiske råd til anvendelse og vedligeholdelse......... Side 24
Betjening...................................... Side 27
Bæltestroppen anbringes .......................... Side 28
Bæltestroppen løsnes ............................. Side 29
Rengøring og vedligeholdelse ............. Side 30
Bortskaffelse ................................. Side 30
Garanti........................................ Side 31

20 DK
SÆT MED SKRALLEGJORDE TIL TUNG LAST
Indledning
Hjerteligt tillykke med købet af deres nye produkt. Du har besluttet dig
for et produkt af høj kvalitet. Gør Dem fortrolig med apparatet inden
første ibrugtagning. Læs derfor den efterfølgende brugsvejledning og
sikkerhedsanvisningerne omhyggeligt. Brug kun produktet som beskrevet
og kun til de angivne anvendelsesområder. Opbevar denne vejlledning
på et sikkert sted. Hvis De giver produktet videre til andre, skal alle
dokumenter følge med.
Forskriftsmæssig anvendelse
Fabrikanten og forhandleren af dette produkt påtager sig ikke
ansvar for skader, som måtte opstå hvis produktet ikke anvendes i
overensstemmelse med advarsler og vejledninger i brugsanvisningen.
Produktet er ikke beregnet til erhvervsmæssig anvendelse. Produktet
er udelukkende tilladt at anvende til privat brug– til sikring af last på
køretøjer. Enhver anvendelse, som ikke følger denne vejledning, kan
medføre kvæstelser eller skader.
This manual suits for next models
1
Table of contents
Languages:
Other ULTIMATE SPEED Power Tools manuals
Popular Power Tools manuals by other brands

Birchmeier

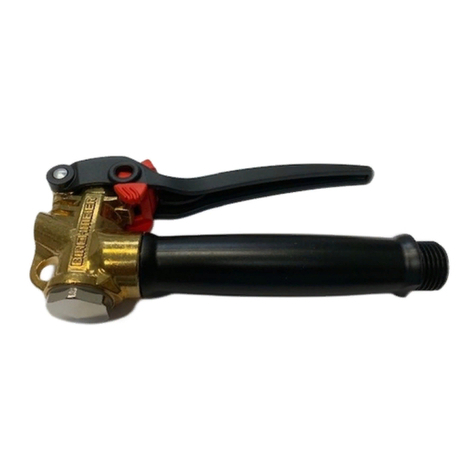

Birchmeier LB 12047501-SB quick start guide

Pattfield Ergo Tools

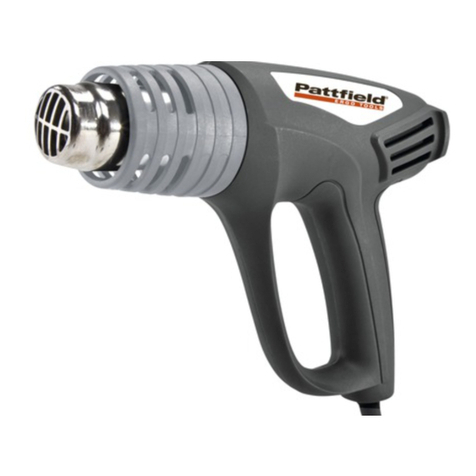

Pattfield Ergo Tools PA-2000HP Original instructions

Amada

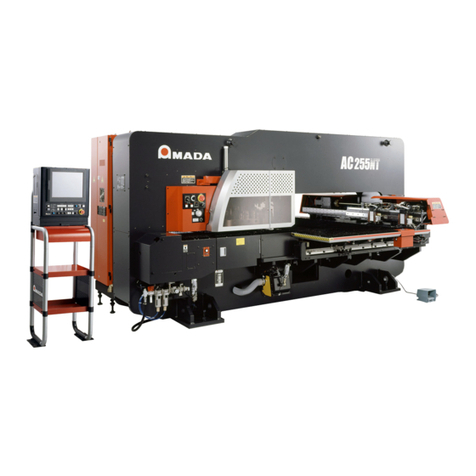

Amada Acute NT Series installation manual

Taili
Taili 813B instructions

Parkside
Parkside PSTDA 20-Li A1 Translation of the original instructions

Parkside
Parkside PUB 500 A1 Translation of the original instructions
