Ultra Plus 980HD miCro PVR User manual

User's Manual
980HD miCro PVR
High Definition Digital Satellite PVR

3
INDEX
INDEX...................................................................................................................................3
Precautions .........................................................................................................................5
1. Important Safety Instructions......................................................................................................5
2. Notice .........................................................................................................................................5
3. Copyright....................................................................................................................................6
4. Disclaimer...................................................................................................................................6
5. Trademarks ................................................................................................................................6
Before You Begin................................................................................................................7
1. Main Features ............................................................................................................................7
2. Accessories................................................................................................................................8
Hardware Description.........................................................................................................9
1. Front Panel Configuration ..........................................................................................................9
2. VFD(Vacuum Fluorescent Display)..........................................................................................10
3. Rear Panel Configuration.........................................................................................................11

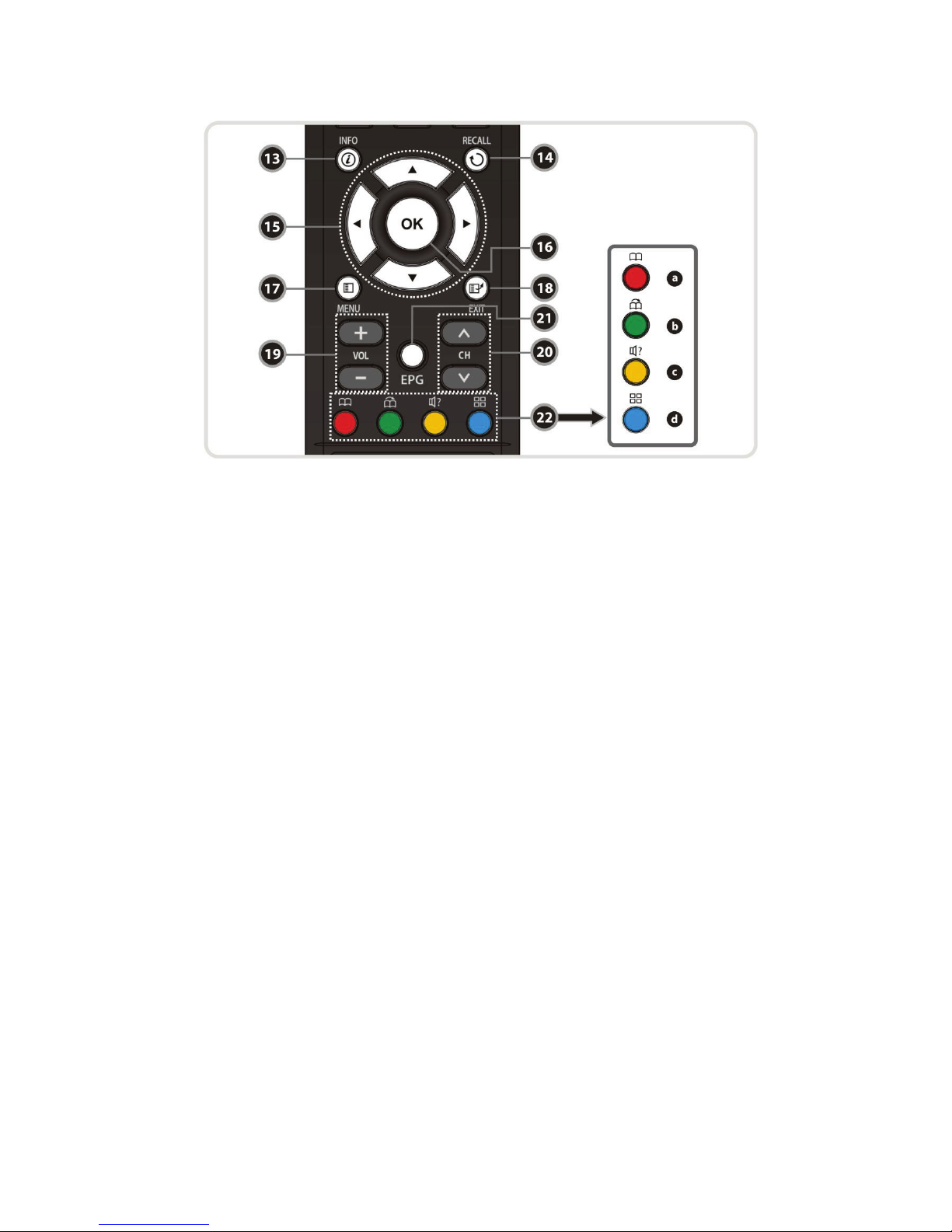

4. Remote Control Unit.................................................................................................................12
Connections Diagram.......................................................................................................15
1. Receiver to TV with Digital A/V Output.....................................................................................15
2. Receiver to TV With Analog A/V Output...................................................................................16
3. Connecting to Dish...................................................................................................................16
3.1 Using Single DISH ..............................................................................................................16
3.2 Using DiSEqC switch ..........................................................................................................17
3.3 Using DiSEqC motor...........................................................................................................17
Guide of Functions ...........................................................................................................18
1. Selecting a Service...................................................................................................................18
1.1 Using CH UP/DOWN buttons..............................................................................................18
1.2 Using Service List ...............................................................................................................18
1.3 Using Instant Service List....................................................................................................18
1.4 Using Recent Service List...................................................................................................19
2. Information Window..................................................................................................................19
3. Multi-Picture Display. (*)...........................................................................................................19
4. Electronic Program Guide (EPG).............................................................................................19
5. Favorite Group .........................................................................................................................20
6. Volume Control.........................................................................................................................20
7. Pause .......................................................................................................................................20
8. Subtitle......................................................................................................................................20
9. Audio Track ..............................................................................................................................21
10.Teletext.....................................................................................................................................21
11. PIP (Picture in Picture).............................................................................................................21

4
PVR (Personal Video Recorder) Function.......................................................................23
1. Recording.................................................................................................................................23
1.1 Recording methods.............................................................................................................23
1.2 Recording Edit.....................................................................................................................25
1.3 Long Time recording ...........................................................................................................25
1.4 Pause during recording.......................................................................................................25
2. Time Shifting.............................................................................................................................27
3. Playback (Play List)..................................................................................................................28
3.1 Recorded Files....................................................................................................................28
3.2 Imported Files .....................................................................................................................29
3.3 Music...................................................................................................................................29
3.4 Photo...................................................................................................................................29
4. Bookmark .................................................................................................................................29
5. Trick mode................................................................................................................................30
Menu Map..........................................................................................................................31
Main Menu of Guide..........................................................................................................32
1. System Tools............................................................................................................................32
1.1 Storage Manager.................................................................................................................32
1.2 Timer Settings .....................................................................................................................32
1.3 Service List Manager ..........................................................................................................33
1.4 Data Transfer.......................................................................................................................34
2. Configuration............................................................................................................................35
2.1 Recording Option................................................................................................................35
2.2 Parental Control ..................................................................................................................35
2.3 Display Setting ....................................................................................................................36
2.4 Time Setting........................................................................................................................36
2.5Language Setting................................................................................................................36
2.6 A/V Output Setting ..............................................................................................................37
3. Installation ................................................................................................................................38
3.1 Dish Setting.........................................................................................................................38
3.2 Positioner Setting................................................................................................................38
3.3 Service Search....................................................................................................................39
3.4 Network Setting...................................................................................................................40
3.5 System Recovery................................................................................................................40
3.6 System Information .............................................................................................................41
4. Utilities......................................................................................................................................41
4.1 Calculator............................................................................................................................41
4.2 Calendar..............................................................................................................................41
4.3 CAS (Conditional Access System)......................................................................................41
Troubleshooting................................................................................................................42
Specifications....................................................................................................................43

5
Precautions
1. Important Safety Instructions
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Do not alter the mains plug in any way. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
WARNING : To Prevent fire or shock hazard do not expose the set to rain or moisture.
2. Notice
These servicing instructions are for use by qualified service personnel only. To reduce the risk of
electric shock, do not perform any servicing other than that contained in the operating instructions
unless you are qualified to do so.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
The mains plug is used as the disconnect device. The disconnect device shall remain readily operable.

6
To reduce the risk of electric shock, do not remove
the cover (or back).
No user serviceable parts are inside.
Refer servicing to qualified service personnel.
The Lightning Flash with arrowhead symbol
within an equilateral triangle, is intended to
alert the user to the presence of un-insulated
"dangerous voltage" within the product
enclosure that may be of sufficient magnitude
to constitute a risk of shock to persons
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the product
3. Copyright
This manual is protected by copyright laws.
Copy, use and reproduction of this manual in part or whole without Manufacturer’s prior written
approval are prohibited.
4. Disclaimer
The manufacturers, distributors and agents are not liable to any kind of damage caused by the
use of the information contained in this manual.
The instruction and descriptions which this manual contains are based on the time of this
manual's production.
The manufacturer constantly updates it with new functions and technology.
All the specifications are subject to change without prior notice.
5. Trademarks
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.

7
Before You Begin
1. Main Features
Digital Satellite receiver & PVR Ready
Supports H.264 / MPEG4 / MPEG2 – HD/SD, DVB-S2/DVB-S
Embedded Linux OS
Recording & Playback with External USB 2.0 Devices
Supports Recording and Time Shifting Simultaneously
Supports Recording and Playback Simultaneously
Powerful Extended EPG supports Event Recording
USB 2.0 Host Support (MP3 Player & JPEG Viewer)
Xvid file play back supported
Ethernet port Supported
True Blind Scan & Multi-Satellite Search
Premium Grade White VFD Display (8 Digit Alphanumeric)
HDMI Video & Audio Output (576i, 576p, 720p, 1080i)
PIP(Picture-in-Picture) & Multi-picture Display (*)
Multi-LNB support via DiSEqC 1.0, 1.1, 1.2 and USALS
Full HD On-Screen Display
Favorite Service Groups
Powerful Service with Favorites, Lock, Skip, Move and Delete Functions
Service Sorting by Alphabet, Transponder and CAS
User Friendly & Multi-language Supported (OSD & Menu)
Teletext Support
Maximum 10,000 Services Programmable
Parental Lock / System Lock / Installation Lock
Supports Y/Pb/Pr(component) Output in HD
CVBS(composite) Video & Audio Output via RCA
Optical Output for Digital Audio(SPDIF)
Software & Service channel Database upgrade via USB & RS-232C port
1 Smart card reader and 2 Common Interface Slots
1W Stand-by Power Consumption
NOTE : (*) This feature(PIP) only works with services broadcast on the same TP. This
feature(Multi-picture Display) may not be available until a new firmware version is
installed. Please refer to your local dealer / distributor for clarification.

8
2. Accessories
User's Manual
AAA size Batteries X2
Remote Control
HDMI Cable (Option)

9
Hardware Description
1. Front Panel Configuration
1. POWER BUTTON :Press to switch between STANDBY and POWER ON modes.
2. STANDBY Indication LED( RED ) : The LED(RED) lights in standby mode
3. CH Up/Down button :Press to change services in normal mode, or to move the highlighted-bar in
menu mode.
4. VFD Display : The VFD consists of 8-digits and various icons. These letters and icons display the
current status of receiver such as the service name, service information and so on.
5. SMART CARD READER : Insert a smart card for encrypted service access.
6. PCMCIA : To receive pay-tv services you may need to use a CA-Module and a smart card from the
service provider.

10
2. VFD(Vacuum Fluorescent Display)
1. (EURO) : Indicates that current channel is an encrypted channel.
2. (PLAY) : Turned on during playback.
3. (REWIND) : Turned on during rewind in playback mode.
4. (PAUSE) : Indicates that current channel is paused.
5. (F.F) : Turned on during fast forward in playback mode.
6. (REC) : Turned on during recording.
7. (Small Arrow) : Turned on when you press a button on the remote controller.
8. (Clock1) : Indicates that the sleep timer is set up.
9. (Clock2) : Indicates a timer has been activated.
10. (CARD) : Indicates that a smart card is inserted.
11. (KEY) : Indicates that current channel is locked.
12. (USB) : Indicates that an external USB device is connected.
13. (DVB) : Turned on during live mode.
14. (HDD) : Indicates that the set-top box is accessing files on the external USB device.
15. (AUDIO) : Indicates that current channel is a radio channel.
16. (VIDEO) : Indicates that current channel is a TV channel.
17. (DOLBY) : Indicates that current channel supports Dolby digital audio.
18. (DIGIT) : Display channel name, time and other information.

11
3. Rear Panel Configuration
1. LNB IN
Connects to a satellite antenna cable.
2. LNB OUT
Connects to another STB for loop-through.
3. SPDIF : Connects to an audio system using an S/PDIF cable. (digital audio)
4. VIDEO : Connects to the TV or VCR using an RCA cable. (Composite video output / Yellow)
5. AUDIO L/R : Connects to the TV or VCR using an RCA cable. (Stereo audio output / White, Red)
6. Component : Connects to the TV or VCR using a component cable. ( YPbPr)
7. USB : Connects to an external USB storage device.
8. HDMI : Connects to the TV using an HDMI cable, use this connection to obtain the best quality picture
and audio possible.
9. Ethernet : Local area network port for direct computer connection.
10. RS-232C : Serial port for firmware update and data transfer.
11. A/C Switch : Power switch

12
4. Remote Control Unit
1. POWER : Turns the STB On/Off.
2. MUTE : Turns the sound On/Off.
3. V.Format : You can switch the Display Format (4:3 / 16:9)
4. Sleep : To adjust the sleep timer.
5. TV/RADIO : Switches between TV and Radio.
6. Resolution : To select the resolution format. Each time you press the Resolution button, the
resolution changes in the following sequence: 576i > 576p > 720p > 1080i
7. Page Up& Down : Move to the next or previous page if more than one page are available. This button
also is change the location of sub picture in PIP.
8. Subtitle : To show subtitles.
9. Teletext : To show the digital teletext.
10. Numeric : Allows numerical data entry and changing of services directly.
11. Favorite : To display the satellite and favorite groups.
12. Play List : To show the file for the external HDD or USB Storage Device.

13
13. Information : Shows the information about the current program. If you press it twice, the detailed
information box will be shown.
14. Recall : Moves to previous service.
15. ARROW Buttons
a. Up & Down Buttons : To change the value of a selected item with preprogrammed values in the
menu.
b. Left & Right Buttons : To move the cursor left and right in menu.
16. OK or Service List : Show the service list in non-menu mode and select an item or confirm in menu
mode.
17. Menu : To enter the main menu or to move to the previous menu.
18. EXIT : Exit from the menu or pop-up window.
19. Volume Up & Down : To change the Volume.
20. Channel Up & Down: To change the channel.
21. EPG(Electronic Program Guide) : Shows the TV/Radio program guide.
22. Color Buttons
a. RED : Used for special functions in the menu. The RED key is used to sort lists in the service list or
go to the previous day search in the EPG or make/delete the current position as a bookmark.
b. GREEN : Used for special functions in the menu. The Green key is used to set the favorites setting in
the service list or go to the next bookmark position.
c. YELLOW : Used for special functions in the menu. The Yellow key is used to find services in the
service list or change the audio track.
d. BLUE : Used for special functions in the menu. The Blue key is used to set service list options in the
service list or display Multi-Picture.(*)
NOTE : (*) This Feature(Multi-Picture) may not be available until a new firmware version is
installed. Please refer to your local dealer / distributor for clarification.

14
23. Rewind : Rewinds at high speed. Each time you press this button the rewind speed is increased.
24. Play / Time shift : Displays the progress bar during playback when no progress bar is displayed it
starts playback at normal speed. It also returns to normal speed from trick mode.
25. Pause : This key is used to pause the video. Press once more to resume the video.
26. Fast Forward : Fast forwards at high speed. Each time you press this button the speed is increased.
27. Previous File : Used to play the previous MP3 file in MP3 play mode. This button is also used to jump
back to the beginning of a recording during a playback.
28. STOP :To stop time shifting, play back or recording.
29. Recording : To start Recording.
30. Next File : To play the next file. This button is also used to jump to end of recording during playback.
31. Repetition (*):This key is used to play back a recording repeatedly.
32. PIP Buttons
a. PIP(Picture in Picture) : To activate the PIP window.
b. PIP Swap : Switches between main-picture and sub-picture
c. PIP(Picture in Picture) Service List : To shown the sub-picture service list.
NOTE : (*) Repetition may not be available until a new firmware version is installed. Please
refer to your local dealer / distributor for clarification.

15
Connections Diagram
1. Receiver to TV with Digital A/V Output
Connect the satellite antenna cable to LNB IN.
Connect the HDMI Cable to the HDMI Connector of the TV.
Connect SPDIF to the Digital audio input of the equipment(Digital Audio)
NOTE : Depending on the A/V equipment you own, there are various ways you can connect
the STB. To choose the best connection option, please refer to the manual of the
equipment you would like to connect to. To get High Definition playback of High
Definition content, we recommend that you connect your high definition display
with a HDMI cable. HDMI supports standard, enhanced or high-definition video
and multichannel audio in a single cable.

16
2. Receiver to TV With Analog A/V Output
Connect the satellite antenna cable to LNB IN.
Connect the Component to the Component input of the TV.
Connect the RCA to the RCA input of the TV.
NOTE : The component connection(YPbPr) is recommended for Digital TV.
The composite connection(RCA cable) is recommended for analogue TV
3. Connecting to Dish
3.1 Using Single DISH
Connect the Satellite Antenna cable to LNB IN.

17
3.2 Using DiSEqC switch
Connect the cable from the DiSEqC switch to LNB IN.
3.3 Using DiSEqC motor
Connect the cable of the DiSEqC motor to LNB IN.

18
Guide of Functions
1. Selecting a Service
To select the desired service (channel), please refer to the instructions below.
1.1 Using CH UP/DOWN buttons
You can navigate between services by pressing CH UP/DOWN buttons. Whenever you press the CH
UP(DOWN) button, current service will be changed to next/previous service. Please press CH UP or CH
DOWN button until you fine the service you want to watch.
1.2 Using Service List
To select the desired service in the service list, you should firstly
display the service list by pressing the OK button.
Use the ARROW buttons to select a desired service and press
the OK button.
You can see that the service is changed in the small screen on
the top-right.
To watch that service, press the OK button once more.
To watch the previous service, press the EXIT button.
In the Service List window, you can also select additional
functions with the COLOR buttons.
Press the RED button lets you sort the services alphabetically, or by Transponder(TP), Group, Tuner and
CAS (Conditional Access System).
Press the GREEN button, and you can add the services to one of 10 Favorite List.
Press the YELLOW button, and you can search & find the service via a virtual keyboard.
Press the BLUE button, and you can adjust service list option.
1.3 Using Instant Service List
If you press NUMERIC buttons or UP/DOWN ARROW button,
instant service list will be displayed.
Select the desired service by using the ARROW button, and
press OK button to watch.
You can also enter the service number directly by using the
NUMERIC button.

19
1.4 Using Recent Service List
To return to the previous service that you were watching,
press RECALL button for a short time.
To display recent service list, press the RECALLbutton for a
little bit longer time.
To chose the service from the recent service list, use the
ARROW button to select, then press the OK button.
Press EXIT button to exit from the recent service list.
2. Information Window
If you want to view the information of the current service that you
are watching, press INFO button. Then the Information window
will be displayed.
This Information window is automatically displayed when
changing between the services. This window contains a lot of
useful information such as service number, service name,
scrambled types of service, teletext, subtitle, Audio indication for
Dolby Digital, Time duration of the service and so on.
By pressing the INFO button once again, you can get more
detailed information about the service.
3. Multi-Picture Display. (*)
Press the BLUE button to display multiple pictures and use the
RED button to select the display options for 9 or 12 multiple
pictures.
NOTE : (*)This feature may not be available until a new
firmware version is installed. Please refer to your local
dealer / distributor for clarification.
4. Electronic Program Guide (EPG)
The Electronic Program Guide (EPG) helps you to navigate through
all the possible viewing options. And the EPG supplies additional
information about each channel, such as program listings, start/end
times and detailed information about the program listings for all
available services.
The availability and size of information of these program details can
vary, depending on the particular broadcasters, individual services.
E.g. Freeview provides a full 7 day EPG, with full descriptions of
programs broadcast.

20
Press the EPG button, then the EPG menu will be displayed.
Use the ARROW buttons to move to other services or to see previous/next guide.
Press the EPG button once to view full EPG with multi service list, and press it twice to view the
additional EPG information of a specific channel service.Keep pressing the EPG button to toggle
between the full and detailed menus of EPG.
Press the GREEN button to view next day EPG and the RED button to view EPG for a previous day.
Select the program by using the ARROW buttons then set the event timer by pressing OK.
You can schedule a recording with the EPG menu as follows.
-Press RECORD button to schedule the event. This reservation can be checked in the Timer Manager,
which is accessible from the System tool menu.
-To cancel the schedule of the recording, press the OK button for the appointed event.
-To edit the schedule of the recording, press the RECORD button for the appointed event.
5. Favorite Group
Select the FAV (Favorite) to view all favorite ten groups such as
sports, movie, drama, satellite group and so on. Scroll through the
various favorite group using the ARROW buttons, and select the
desired favorite group by pressing OK.
6. Volume Control
To adjust the audio volume, press the VOL UP/ DOWN
buttons.
Audio volume control bar will be displayed at the top of the
screen and disappear after 4 seconds.
When necessary, press the MUTE button to turn on/off the
audio sound.
NOTE : The mute function remains set while you change
services.
7. Pause
The PAUSE button is used to freeze the video. Press the PAUSE button once more to resume the video.
8. Subtitle
You can select the language for a Subtitle, if the program provides subtitle information.
Press the SUBTITLE button on your remote control unit.
Select the desired subtitle language then press OK button.
