Ultra Steel AP00973S User manual

ULTRASTEEL
18
VOLT
Cordless Power Tool Combo Kit
INSTRUCTION MANUAL
4 PIECE
CAUTION: Before using this product, read this manual and follow all Safety Rules
and Operational Instructions.
Go to www.ultrasteeltools.com to register your product.
Please read before returning this product to store for any reason:
If you have questions or experience a problem with your Ultra Steel purchase,
go to http://www.ultrasteeltools.com for instant answers 24 hours a day.
If you can’t _nd the answer or don’t have internet access, call 1-800-840-
7856 from 8 a.m. to 5 p.m. Eastern time Monday through Friday
AP00973S
15
The RBRCTM Seal (Rechargeable Battery Recycling Corporation) on the
nickle-cadmium battery (or battery pack) indicates that the cost of
recycling the battery or battery pack have already been paid by Ultra
Steel. In some areas, it is illegal to place spent nickle-cadmium batteries in
the trash or municipal solid waste stream and the RBRC program provides an environ-
mentally conscious alternative.RBRC in cooperation with Ultra Steel and other battery
users, has established programs in the United States and Canada to facilitate the
collection of spent nickle-cadmium batteries. Help protect our environment and
conserve natural resources by contacting your local recycling center for information on
where to drop o_ the spent battery, or call 1-877-2-RECYCLE.
THE RBRC TM SEAL
FULL ONE YEA HOME USE WARRANTY
Ultra Steel warrants this product for one year against any defects in material or
workmanship. The defective product will be replaced or repaired at no charge in
either of two ways:
1) Return the product to the store in which it was purchased - this will result in an
exchange only.
Returns should be made within the time frame of the retailer’s policy for exchanges
(usually 30 to 90 days after the sale). Proof of purchase is required. Please check with
the store from which your purchase was made to determine policy regarding returns
that are beyond the time limit specied for exchanges.
2) Send the product to Ultra Steel for repair or replacement (whichever Ultra Steel
determines is the best option) and include your proof of purchase.
This warranty does not apply to accessories. This warranty gives you specic
legal rights and you may have other legal rights which vary from state to state
or province to province. For questions, call Ultra Steel at 1-800-840-7856.
This product is not intended for commercial use.
SERVICE INFORMATION:
For technical advice, repair, or genuine replacement parts,
call 1-800-840-7856 or visit www.UltraSteeltools.com
FREE WARNING LABEL REPLACEMENT:
If your warning labels become illegible or are missing, call 1-800-840-7856 for free
replacement.
Ultra Steel is a registered trademark of and distributed by Test Rite Products
Corporation, 1900 S. Burgundy Place, Ontario, CA. 91761, U.S.A.,
Made in China

READ ALL INSTRUCTIONS BEFORE USING THIS TOOL
1. KEEP WORK AREA CLEAN. Cluttered areas invite injuries.
2. CONSIDER WORK AREA ENVIRONMENT. Don’t use power tools in damp, wet, or
poorly lit locations. Don’t expose your tool to rain. Keep the work area well lit.
Don’t use tools in the presence of flammable gases or liquids.
3. KEEP CHILDREN AWAY. All children should be kept away from the work area.
Don’t let them handle machines, tools or extensions cords.
4. STORE IDLE EQUIPMENT. Store equipment in a dry area to inhibit rust. Equipment
also should be in a high location or locked up to keep out of reach of children.
5. DON’T FORCE THE TOOL. It will do the job better and more safely at the rate
for which it was intended.
6. USE THE RIGHT TOOL. Don’t force a small tool or attachment to do the work of
a larger industrial tool. Don’t use a tool for a purpose for which it was not intended.
7. DRESS PROPERLY. Don’t wear loose clothing or jewelry, they can be caught in
moving parts. Protective, non-electrically conductive gloves and non-skid footwear
are recommended when working. Wear protective hair covering to contain long
hair and keep it from harm.
8. USE EYE PROTECTION. Use a full face mask if the work you’re doing produces
metal filings, dust or wood chips. Goggles are acceptable in other situations. Wear a
clean dust mask if the work involves creating a lot of fine or coarse dust.
9. DO NOT TOUCH BIT WITH HANDS AFTER DRILLING. Bit can become extremely
hot after job is completed.
10. SECURE WORK. Use clamps or a vise to hold the work if possible. It’s safer than
using your hands and it frees both hands to operate the tool.
11. DON’T OVERREACH. Keep proper footing and balance at all times. Do not reach
over or across machines which are running.
12. MAINTAIN TOOLS WITH CARE. Keep tools bits & blades sharp and clean for better
and safer performance. Follow instructions for lubricating and safe performance.
Follow instructions for lubricating and changing accessories. Keep handles dry,
clean and free from oil and grease.
13. REMOVE ADJUSTING KEYS AND WRENCHES. Although your cordless drill has a
convenient keyless chuck, make it a habit to check that keys and adjusting wrench
es are removed from any rotating tool before using.
14. AVOID UNINTENTIONAL STARTING. Don’t carry tool with a finger on the switch.
Be sure the direction switch is in the NEUTRAL position when not in use or when
changing bits.
15. STAY ALERT. Watch what you are doing & use common sense. Don’t operate any
tool when you are tired.
16. CHECK FOR DAMAGED PARTS. Before using a tool, any part that is damaged
should be carefully checked to determine that it will operate properly and perform
its intended function. Check for alignment of moving parts, binding of moving
parts, breakage of parts, mountings, and other conditions that may aect its
operation. Check bits to make sure they are sharp and not chipped. Inspect screws
and tighten any ones that are loose. Any part that is damaged should be properly
repaired or replaced by an authorized service center unless otherwise indicated
elsewhere in the instruction manual. Have defective switches replaced by an
authorized service
17. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded surfac
es: pipes, radiators, ranges, and refrigerator enclosures. When drilling into walls,
floors, or wherever “live” electrical wires may be encountered, try to ascertain
whether there is a danger of shock. Even so, DO NOT TOUCH THE CHUCK OR ANY
METAL PARTS OF THE DRILL. Hold the tool only by the plastic handle or the side
grip to prevent electric shock if you hit a live wire.
18. REPLACEMENT PARTS. When servicing, use only identical replacement parts.
19. USE EAR PROTECTION. Use hearing protection, particularly during extended
periods of operation of the tool, or if the operation is noisy.
20. USE AUXILIARY HANDLES SUPPLIED WITH THE TOOL. Loss of control can cause
personal injury.
IMPORTANT SAFETY INSTRUCTIONS
1 2
WARNING: When using electric tools, machines or equipment, basic safety
precautions should always be followed to reduce the risk of fure, electric shock,
and personal injury.
PRECAUTIONS FOR BATTERY AND CHARGER
CHARGE BATTERIES FULLY before inital use.
1. CHARGE AT ROOM TEMPERATURE. Room temperature must be higher than 0°C
(32°F) and lower than 50°C (122°F).
2. DO NOT CHARGE IF CHARGER’S CORD OR PLUG IS DAMAGED. Charging with
damaged cord may result in fire or electrical shock. If charger is damaged in any way,
have it repaired by a qualified serviceman.
3. DO NOT SHORT ACROSS TERMINALS OF BATTERY. Take care that metal such as
paper clips, nails, the sides of a metal tool box do not cause a short in your battery.
Extremely high temperatures and fire can result.
4. DO NOT INCINERATE BATTERY.

SPECIFICATIONS
3 4
Cordless Drill
Model No.: AP00965G
Voltage: 18 volts DC
No Load Speed 0-350/0-1100 RPM
Variable Speed Trigger
With Electric Brake
3/8 In. Keyless Chuck
22 + Position Adjustable
Torque Clutch
Built-in LED Work Light Built-in
Magnetic Holder
Conforms to UL STD No. 60745-1,
UL STD No. 60745-2-1, UL STD No.
60745-2-2
Certied to CAN/CSA-C22.2 STD No.
60745-1-07, CAN/CSA-C22.2 STD
No. 60745-2-1-04, CAN/CSA-C22.2
STD No. 60745-2-2-04
A B
C
D
EF
G
H
I
J
K
Cordless Circular Saw
Model No.: AP00964G
Voltage: 18 volts DC
No Load Speed 4500 RPM
Safety Lock Trigger Switch
5-3/8 In. 24-Tooth Carbide Teeth Blade
3/8 In. Arbor Size
Adjustable Bevel Range Up To 50 Degrees
Adjustable Cutting Depth - Up To 1-1/2 In.
@ 90 Degrees, Up To 1 In. @ 45 Degrees
Conforms to UL STD No. 60745-1, UL STD No.
60745-2-5
Certied to CAN/CSA-C22.2 STD No.
60745-1-07, CAN/CSA-C22.2 STD No.
60745-2-5-12
A Auxiliary Handle
B Lock Off Button
C Main Switch
D Rubber-covered Handle
E Battery Pack
F Upper Guard
G Base Plate
H Lower Guard
I Flanges
J Spindle Lock Button
K Battery Lock Button
A3/8in.(10mm) Chuck
BTorque Regulation Ring
CTorque Indicator Scale
DMechanical Gear Switch
ELed Work Light
FForward/reverse Switch
GVariable Speed Trigger
HRubber-covered Handle
IBattery Pack
JBattery Lock Button
KDouble-ended Driver Bit
Cordless Sander
Model No.: AP00963G
Voltage: 18 volts DC
No Load Speed 4400 RPM Trigger
Switch
3-1/2 In. Sanding Pad
Conforms to UL STD No. 60745-1, UL
STD No. 60745-2-4
Certied to CAN/CSA-C22.2 STD No.
60745-1-07, CAN/CSA-C22.2 STD No.
60745-2-4-04
A B
C
D
E
A Pivoting Light Head
B Switch
C Rubber-covered Handle
D Battery Pack
E Battery Lock Button
Cordless Flashlight
Model No.: AP00962G
Voltage: 18 volts DC 8W Halogen
Bulb Pivoting Light Head
Conforms to ANSI/UL STD No. 73
Certied to CSA-C22.2 STD No.
12-1982
Battery charger
Charger input: 100-240V~, 50/60Hz, 0.5A;
Charger output: 24.0V, DC , 0.35A;
Charger type: 4 hour, Class 2, stand charger;
Will charger battery type: 18V, Ni-cd, AP00965G -B.
Accessories:
2 - 18V. Ni-cd battery packs (1.3Ah)
2 - Double-ended screwdriver bits (Equipped in Drill)
1 - Magnetic bit holder
6 - Screwdriver bits: PH1, PH2, PZ1, PZ2, 5/32", 3/16"
6 - Drill bits: 3/32", 1/8", 5/32",3/16",7/32",1/4"
1 - Circular saw rip fence
1 - 5-3/8 In. 24-Tooth saw blade (Equipped in circular saw)
1 - Circular saw blade wrench (Equipped in circular saw)
9 - Sanding paper: 3pcs 60 grit, 3pcs 80 grit, 3pcs 120 grit
1 - Storage case
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
A
B
C
D
E
A Sanding Base
B Switch
C Rubber-covered Handle
D Battery Pack
E Battery Lock Button
A
B
D
F
J
I
G
H
CE
K

OPERATING NOTES FOR BATTERY PACK
5 6
1. Battery must be fully charged before the first use. Batteries will reach full perfor
mance after about five charge/discharge cycles.
2. Always have drill rotation switch in neutral position when removing or inserting
battery to avoid unintentional starting.
3. To remove battery pack, press the lock spring buttons and pull out.
4. To insert, simply push pack in until lock spring clicks.
5. To charge, plug the charger’s AC input plug into a 120V 60Hz household current.
The step of the battery pack has positive and negative terminal marking on it. Align
these with the identical markings on the top of the charger base and insert pack
into base (Pack will not insert properly if reversed)
6. When the charger is plugged into the wall receptacle and NO battery is on the
charger stand, the green indicator light will turn ON indicating the charger is “live”.
When a discharged battery is installed on the charger, the red indicator light will
turn on indicating the battery is charged. If the red indicator light does not come
ON, check to make sure battery pack is slid fully onto the charger and the electrical
outlet is working properly.
7. Normal charging time is approximately 4 hours. The red charging indicator light will
turn o once charging is complete.
8. When charging more than one pack in succession, allow 15 minutes between
charges.
9. The battery discharges slowly overtime, even when not used, and may require
recharging before you use the tool.
10. After many charge/discharge cycles, your batteries will lose their ability to hold a
charge. They should then be replaced. Dispose of batteries at an appropriate waste
disposal facility. They contain cadmium, so do not throw batteries away in common
trash receptacles.
11. For use only with Ultra Steel AP00965G -B Ni-cd battery.
OPERATING NOTES FOR DRILL OPERATING NOTES FOR CIRCULAR SAW
VARIABLE SPEED
1. You can vary the spindle rotation speed by modulating finger pressure on the
trigger.
2. Selecting high or low gear.
• Move the gear selector switch forward, exposing the ‘HI’ legend, to work in the
high-speed range.
• Move the gear selector switch backward, exposing the ‘LO’ legend, to work in the
low speed range.
• In the low gear (low-speed range), the drill turns with more torque, especially good
for operations that require more power than speed, such as driving screws.
ROTATION DIRECTION
Your drill is equipped with a 3-position forward/reverse switch through the housing
above the trigger.
1. When it is pushed toward the right, rotation is forward (clockwise).
2. When pushed in from the right to the left side, rotation is reversed
(counter-clockwise).
3. When in center position, it is locked in neutral and the trigger is blocked.
4. Do not push the rotation direction switch until the chuck stops turning.
TORQUE REGULATOR
This is a 21-position dial situated just before the chuck.
1. When dial indicator reads 1, torque is at minimum before the clutch disengages the
chuck from the drive; when indicator is just past 19, output is at maximum before it is
disengaged.
2. This is useful in driving screws into dierent types of material. More torque will set a
screw deeper into material; less torque will prevent it stripping. Larger screws require
more torque to drive than small ones. A little trial and error will show you which is the
optimum setting for the situation.
3. Release the trigger when the clicking sound indicates the chuck will not turn further.
4. For drilling, always use the drill setting, indicated by a drill bit. At this setting, the
drive does not disengage from the chuck.
KEYLESS CHUCK
1. Center the rotation direction switch to prevent the motor accidentally starting.
2. Note there are two rings on the chuck. Turning the endmost knurled ring of the
chuck clockwise by hand while with the other hand, holding the second ring (closer
to the rear of the tool) to prevent the motor turning; closes the jaws of the chuck.
Turning that same endmost knurled ring counter-clockwise opens the jaws.
3. Open the jaws to accept a bit and then close the jaws so they clamp the bit tightly.
WARNING: Hold power tools by insulated gripping surfaces when performing
an operation where the ctting tool may contact hidden wiring or
its own cord.
WARNING: Tum o your saw at once, remove the battery and inspect it for
serious problems if:
•Moving parts get stuck
•Speed drops to an abnormally low level
•The mitor ousing gets hot
•Sparks or odours emit from the casing
CAUTION: Do not put hands directly in front of, behind, or below the saw
blade when cutting.

7 8
1. Always grasp the saw with both hands on the handles and push the saw through
the material.
2. Be sure there are no nails or any other foreign objects in, on the work piece, or in the
path of the blade. They could cause damage to the saw blade, injury from kickback
or even injury from flying debris.
3. Make sure the work piece is properly supported at all times. Plan so that it is proper
ly supported during the cut.
4. Whenever possible, secure the work piece with clamps or in a vise. Do not hold
short pieces by hand while cutting.
5. When making cuts parallel to existing straight edges, whenever possible, insert the
rip fence into the slots at the front of the saw. Fasten it in place at the desired
distance, with the screw clamp provided, and use it to help keep the cut as straight
and parallel as possible.
6. Mark the line of the cut clearly. Adjust the cutting depth to the thickness of the
workpiece.
7. Make sure you are fully prepared to begin your cut before squeezing the trigger
switch. Do not reach underneath the workpiece.
8. Set the base plate against the work piece.
9. Hold the tool firmly. Motor torque will cause the tool to twist, so a firm grip is
imperative. Check to make sure that saw blade travel is not obstructed. Squeeze the
trigger switch.
10. Allow the saw blade to reach full speed before pushing it into the work piece.
11. Do not force the saw blade into the work piece. Apply moderate pressure, allowing
the blade to cut without being forced.
12. Never hold piece being cut in your hands or across your leg. Secure the workpiece
to a stable platform.
13. When ripping always use a rip fence or straight edge guide.
14. This tool is designed to make straight cuts only. Do not attempt to cut curves with it.
Twisting the saw to either side while cutting will cause the blade to bind in the work
piece, perhaps causing kickback, personal injury, damage to the work piece, and /or
damage to the saw.
15. If it becomes necessary to back out of an incomplete cut, turn o the saw.
16. To turn o the saw, release pressure on the Trigger Switch. Always allow the blade
to come to a stop before putting the tool down.
DANGER – Keep hands and body away from and to the side of the blade. Contact
with blade will result in serious injury.
WARNING – To reduce the risk of injury, check guarding system. It must cover the
blade instantly! Hold saw with both hands. Support and clamp work.
Wear eye protection.
DANGER – Keep hands away from cutting area and the blade. Keep your second
hand on auxiliary handle, or motor housing.
CHANGING THE BLADE
1. Use the wrench that is included with the kit.
2. Press the spindk lock button.
3.Turn the nut clockwise to loosen.
4. Remove the blade and replace with the new blade.
5. Place nut back on and turn counterclockwise to tighten.
NOTE:
1. Always use blades with correct size and shape (diamond versus round) of arbour holes.
2. Never use damaged or incorrect blade washers or bolt.
1. Remove the battery from the sander
2. Turn the tool upside down
3. Place the paper, fuzzy side down, on the sanding pad so that the paper aligns with
the pad.
4. Press down on the paper in the pad.
5. When removing sandpaper, do so slowly and gently. Tearing the paper o quickly
can shorten the life of the small plastic hooks on the sanding pad and result in the
sandpaper discs falling o in use.
6. The sandpaper tends to wear fastest at the front point. Rotate the paper from time to
time to allow it to wear more evenly.
7. During use, check the sandpaper regularly for tears, cracking, and other damage.
Damaged paper can allow the pad beneath to be damaged, particularly the hooks.
NOTE: Because of the operator vigilance required in this respect, the pad is considered
a consumable part and is not covered under warranty.
CAUTION: Do not put hands directly in front of, behind, or below the saw
blade when cutting.
WARNING: Always remove the battery pack from your Cordless tools when you
are assembling parts, making adjustments, assembling or removing blades,
cleaning or when not in use. Removing the battery pack will prevent accidental
starting that could cause serious personal injury.
OPERATION NOTES FOR DETAIL SANDER
ON/OFF
To turn the light ON / OFF, insert the battery pack and press the trigger with your finger.
TO SWIVEL THE WORKLIGHT
1. Hold the worklight with two hands. One hand should be around the body of the light;
the other hand should be around the head of the worklight.
2. Using the hand that is holding the head of the worklight, twist the head clockwise.
Continue to adjust the light until it is adjusted to the angle that works for your job.
3. To return the worklight to its original position, twist the worklight in a counter-clock
wise direction.
OPERATION NOTES FOR LIGHT
MAINTENENCE

WARNING: Some of the following symbols may appear on the tool. Study these
symbols and learn their meaning. Proper interperetation of these symbols will
allow for more ecirnt and safer operation of this tool.
NOTE: Due to continuous product improvement, we reserve the right to change
theproduct specication without prior notice.
9 10
• Keep the tool clean using a soft damp (not wet) cloth. Do not use solvents on the
plastic parts.
• Lubrication is not necessary. After long use, have an authorized service centre main
tain and lubricate the tool.
• Should the chuck require replacement
1. Keep the tool housing and handle clean and free of oil and grease using mild soap
and a damp (not wet) cloth. Do not let solvents like brake uid, gasoline, petro
leum-based products, etc., contact plastic parts of the housing.
Cleaning with these substances can harm the plastic and compromise the integrity of
the double insulating system.
2. Keep the vents clear of dust and debris. This will help prevent possible electric
shorts and ensure proper cooling.
3. Avoid overloading your tool. Do not force the tool, otherwise it will become hot and
lose eciency. Running it free of load for a minute or two will allow it to cool itself to
normal temperature.
4. Lubrication for these tools is done at the factory and should not be necessary again
under normal use.
5. An authorized repair centre should do any repairs, modication, or maintenance
that involve opening or disassembling tools.
6. Any damage to the tools should be corrected at an authorized repair centre.
PARTS LIST FOR CORDLESS DRELL
SYMBOLS
3
3N
Volts
Amperes
Hertz
Watts
Kilowatts
Microfarads
Liters
Kilograms
Hours
Newtons per square
centimeter
Pascals
Oscillations per minute
Minutes
Seconds
Class II construction
Splash-proof construction
Watertight construction
Pa
OPM
Min
S
V
A
Hz
W
kW
µF
L
kg
H
N/cm2
Alternating current
Direct current
No load speed
Alternating or direct
current
Three-phase alternating
current
Revolutions or reciprocations
per minute
Protective grounding at
grounding terminal, Class I tools
Three-phase alternating
current with neutral
Diameter
O position
Arrow
Warning symbol
This symbol designates that this tool s listed with U.S. requirements by
ETL Testing Laboratories, Inc.
Conforms to UL Std.
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
Qty
2
2
1
1
1
1
1
1
1
1
1
1
1
Unit
PCS
PCS
PCS
PCS
PCS
PCS
SET
PCS
SET
PCS
PCS
PCS
SET
English Name
Double-ended bit
Bit clip
Logo label
Housing support
Chuck retaining screw
Chuck
Gear box assembly
Transparent cover
Working light ass'y
F/R button
Shift button
Husing cover
Switch assembly
Item
13.1
13.2
13.3
14
15
16
17
18
19
20
21
22
23
Qty
1
2
1
1
5
1
1
2
1
1
1
7
1
Unit
PCS
PCS
PCS
SET
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
SET
English Name
Switch
Line
Battery clip assembly
Back cover
Screw
Wire
Wire
Heat shrink pvc tube
Magnet
Data label
Belt
Screw
Battery assembly
WARNING: Repairs should be made by an authorized repair center.
Opening this tool could invalidate your warranty.
1
2
3
4
5
6
7
8
9
13
19
15
22
21
20
23
12
14
16
15
18
17
11 10
1
2
9.1
13.1
13.2
13.3
9.2
9.39.4 9.5

NOTE: Due to continuous product improvement, we reserve the right to change
theproduct specication without prior notice.
11 12

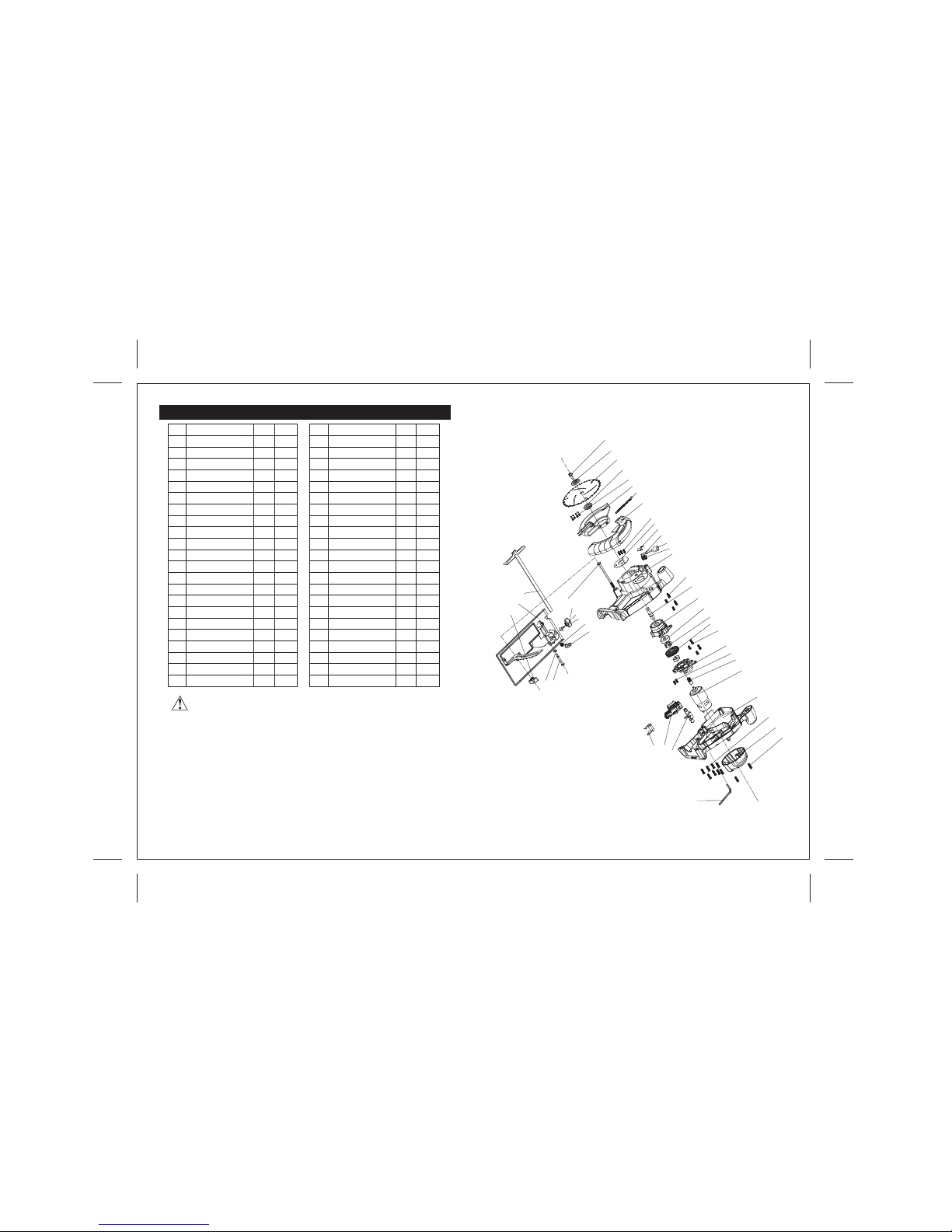

PARTS LIST FOR CIRCULAR SAW
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Qty
1
1
1
1
3
1
1
1
3
1
1
1
1
1
1
4
1
1
1
1
1
6
Unit
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
English Name
Screw M6x16
Upper platen
Saw blade
Lower platen
Screw M4x12
Adjustable guade
Spring
Fixed guade
Screw M4x12
Active shield plate
Dustproof plate
Self locking pole
Self-locking Knob
Sping
Left Housing
Screw M4x12
Shaft
Gear box(front)
Bearing
Slef-locking
Big Gear
Screw M4x12
Item
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Qty
1
2
1
1
1
12
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Unit
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
English Name
Gear box(rear)
Screw M4x12
Small Gear
Motor
Right housing
Screw ST3.9x16
Motor cover
Screw ST3.9x16
Wrench
Switch
Switch lock button
Battery connector
Screw M6x100
Knob
Screw M6x100
Sping
Knob
Rip fence
Base
Knob
Screw M5
Pin
WARNING: Repairs should be made by an authorized repair center.
Opening this tool could invalidate your warranty.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
22
23
24
25
26
27
28
29
30
31
32
3334
36
37
38
39
40
41
42
35
21
43 44

13 14
PARTS LIST FOR CORDLESS DETAIL SANDER
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Qty
1
9
1
1
7
1
1
1
1
1
1
1
1
1
1
1
Unit
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
English Name
Loge label
Screw
Housing cover
Sand paper
Screws
Magic sticker
Rubber pad
Plastic bracket
Small nylon beam
Big nylon beam
Bearing
Deexion block
Bearing
Main shaft
Driven gear
Powder metal bush
Item
17
18
19
20
21
21.1
21.2
21.3
21.4
21.5
21.6
22
23
24
25
Qty
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
Unit
PCS
PCS
PCS
SET
SET
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
English Name
Driving gear
Motor
Housing support
Logo label
Switch assembly
Switch
Wire
Wire
Wire
Wire
Battery clip
Heat shrink pvc tube
Belt
Battery pack
Screws
NOTE: Due to continuous product improvement, we reserve the right to change
theproduct specication without prior notice.
WARNING: Repairs should be made by an authorized repair center.
Opening this tool could invalidate your warranty.
1
2
4
5
6
7
5
8
9
10 11
12
13
14 15
16
17
18
25
22
23
21
21.1
21.2 21.3
21.4
21.5
21.6
19
20
24
3
PARTS LIST FOR CORDLESS LIGHT
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
Qty
1
1
1
1
1
1
2
1
1
1
1
1
1
Unit
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
English Name
Housing (support )
Left head cover
Light head
Transparent cover
Rubber pad
Reector
Bulb
Anode spring
Cathode spring
Stent
Switch
Spring
Switch button
Item
14
15
15.1
15.2
15.3
16
17
18
19
20
21
22
23
Qty
1
1
1
1
1
1
1
5
2
2
1
1
1
Unit
PCS
SET
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
SET
PCS
PCS
English Name
Right middle cover
Battery clip assembly
Battery clip
Wire
Wire
Housing cover
Hang belt
Screws
Heat shrink tube
Data Label
Battery pack
Screw
Wire
NOTE: Due to continuous product improvement, we reserve the right to change
theproduct specication without prior notice.
WARNING: Repairs should be made by an authorized repair center.
Opening this tool could invalidate your warranty.
1
2
3
4
5
6
7
8
9
10
11
12
13
23
14
15
15.2
15.1
15.3
21
20
19
16
17
18
22
