Umec SY832 User manual

SY832 WiFi Video Handset
User Manual
1/11 Version 1.0
SY832 WiFi Video Handset User Manual
SY832
WiFi Video Handset
User Manual

Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. To maintain compliance
with FCC RF exposure compliance requirements, please follow operation
instruction as documented in this manual.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands
are country dependent and are firmware programmed at the factory to match
the intended destination. The firmware setting is not accessible by the end
user.

SY832 WiFi Video Handset
User Manual
2/11 Version 1.0
SY832 WiFi Video Handset User Manual
1. Introduction
SY832 is a VoIP video handset which support WiFi standard (IEEE 802.11b/g), you can
use it to make a phone call as you are in a WiFi hot spot, for example, airports, school,
coffee shops etc,. SY832 provides you two calling mechanisms:
-If you are subscribing to a service provider and get a phone number, you can use it just as
an IP phone.
-If you are not a subscriber of either service provider, you can also use IP direct call,
however, you have to use a fixed IP address first.
SY832 is not only a video handset; it indeed is a triple-play handheld device. It builds in
media player to let you see media or video clips; Web browser provides you the facility to
go to the Internet. Besides, it also has some functions such as datebook、calculator、task
schedule that give you a more convenient personal information management(PIM).
2. Network Topology
WLAN (a/b/g)
LAN
VOIP gateway
WiFi VideoPhone
IP Phone
IP Phone
WiFi VideoPhone
SIP Server
Hot Spot

SY832 WiFi Video Handset
User Manual
3/11 Version 1.0
SY832 WiFi Video Handset User Manual

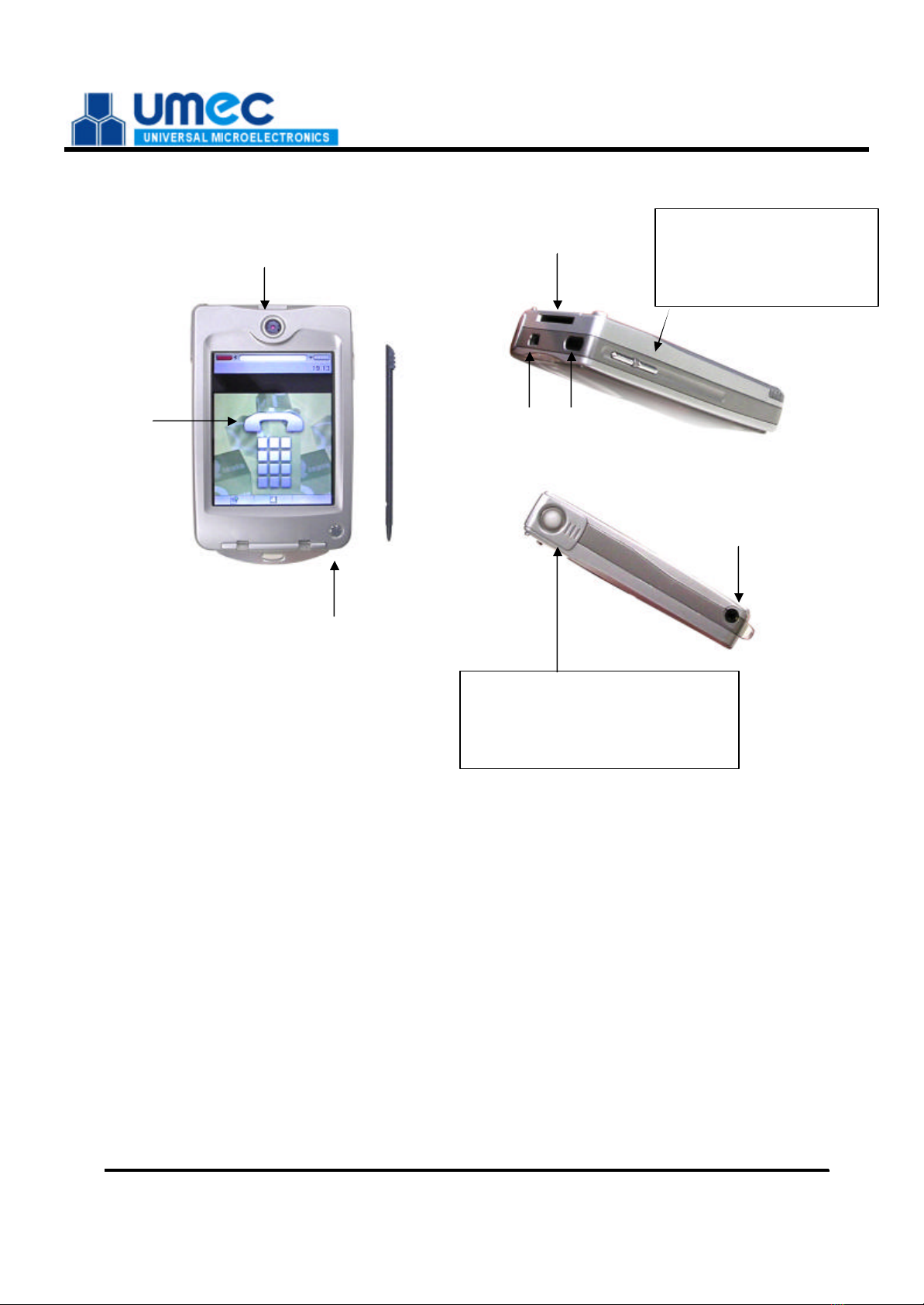

3. Out looking
CMOS Camera
2.8”/2.6”LCD
with Touch
Power button
SD Card Slot
IrDA
Mini
USB
Tracking ball
The ball will light up while charging
Volume control while you are on a call
Headset jack
Side Buttons, you can
push these buttons to
make or cancel a call

SY832 WiFi Video Handset
User Manual
4/11 Version 1.0
SY832 WiFi Video Handset User Manual
4. Quick Setup your SY832
Following steps as below setting up your SY832.

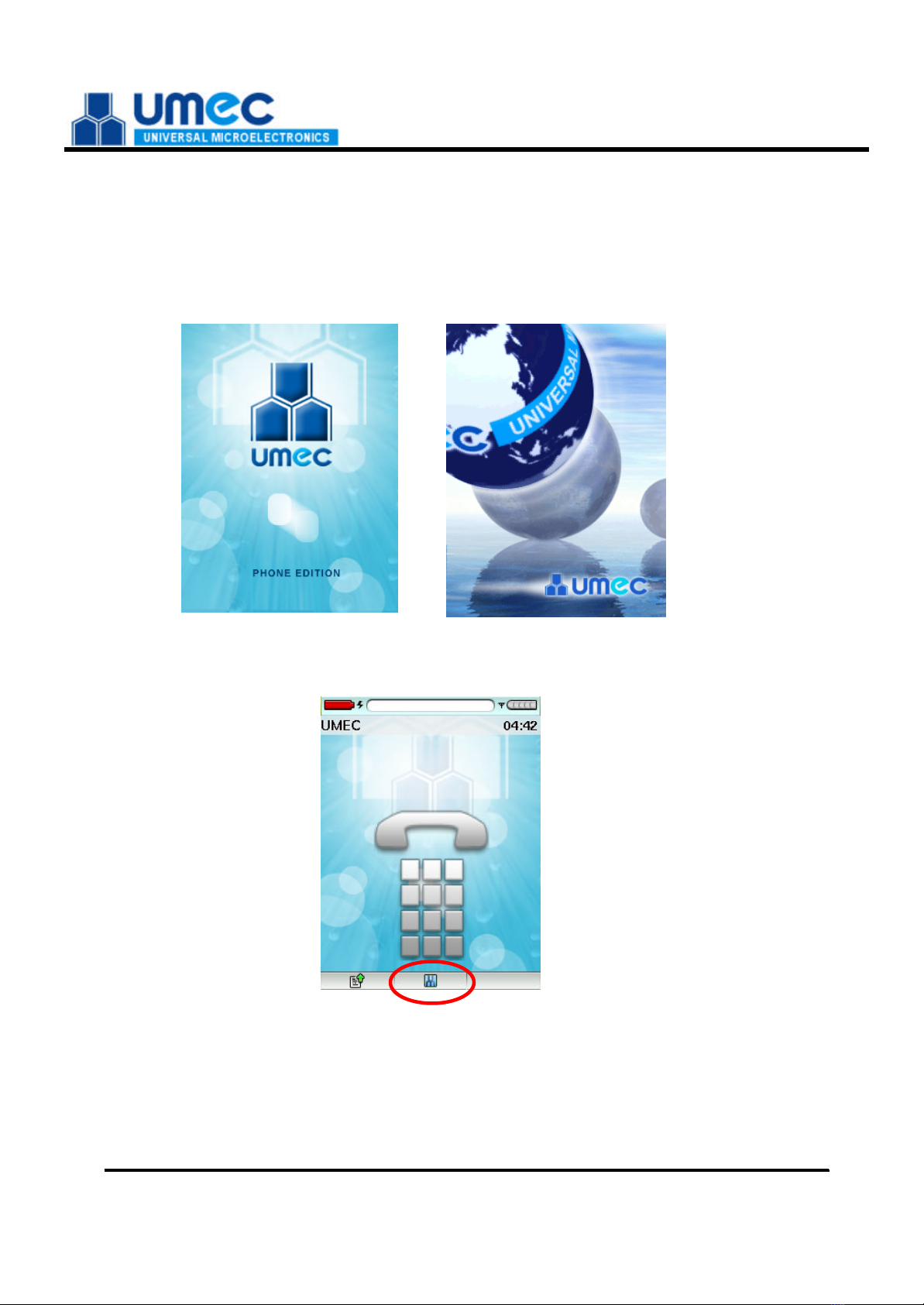

4.1 Turn on power, and two welcome screen will be shown (about 30 seconds)
4.2 After power up, you can enter application page by touch the icon in the bottom of the
main page.

SY832 WiFi Video Handset
User Manual
5/11 Version 1.0
SY832 WiFi Video Handset User Manual
4.3 Click to enter VOIP set up page. Other functions in this page as below,
4.4 This is the first page when you enter VoIP Setting, SY832
uses profile-based configuration thus reduce your
configure time. You can create or edit profile and active a
profile by pressing, an submenu will popup then you
can edit or delete selected profile, or create a new profile.
4.5 By click , the profile you selected in the page will be
active. SY-832 will connect to access point and sip server,
which you configure in profile. You can also see current
active profile in this screen
Date Book
Calculator
Task Scheduler
Calibration
Applications
Games
MultiMedia
Setup

SY832 WiFi Video Handset
User Manual
6/11 Version 1.0
SY832 WiFi Video Handset User Manual
4.6 Select (or add) a profile, push EDIT to enter the setting
page, you can change profile name at Profile tab.
4.7 Setting your wirelesses connection at Wireless tab. You can scan and select an access
point by clicking
4.8 You might need to provide the Security type and Key if
the selected access point has define security policy such as
WEP , WPA. Please get these information from your
network service provider.

SY832 WiFi Video Handset
User Manual
7/11 Version 1.0
SY832 WiFi Video Handset User Manual

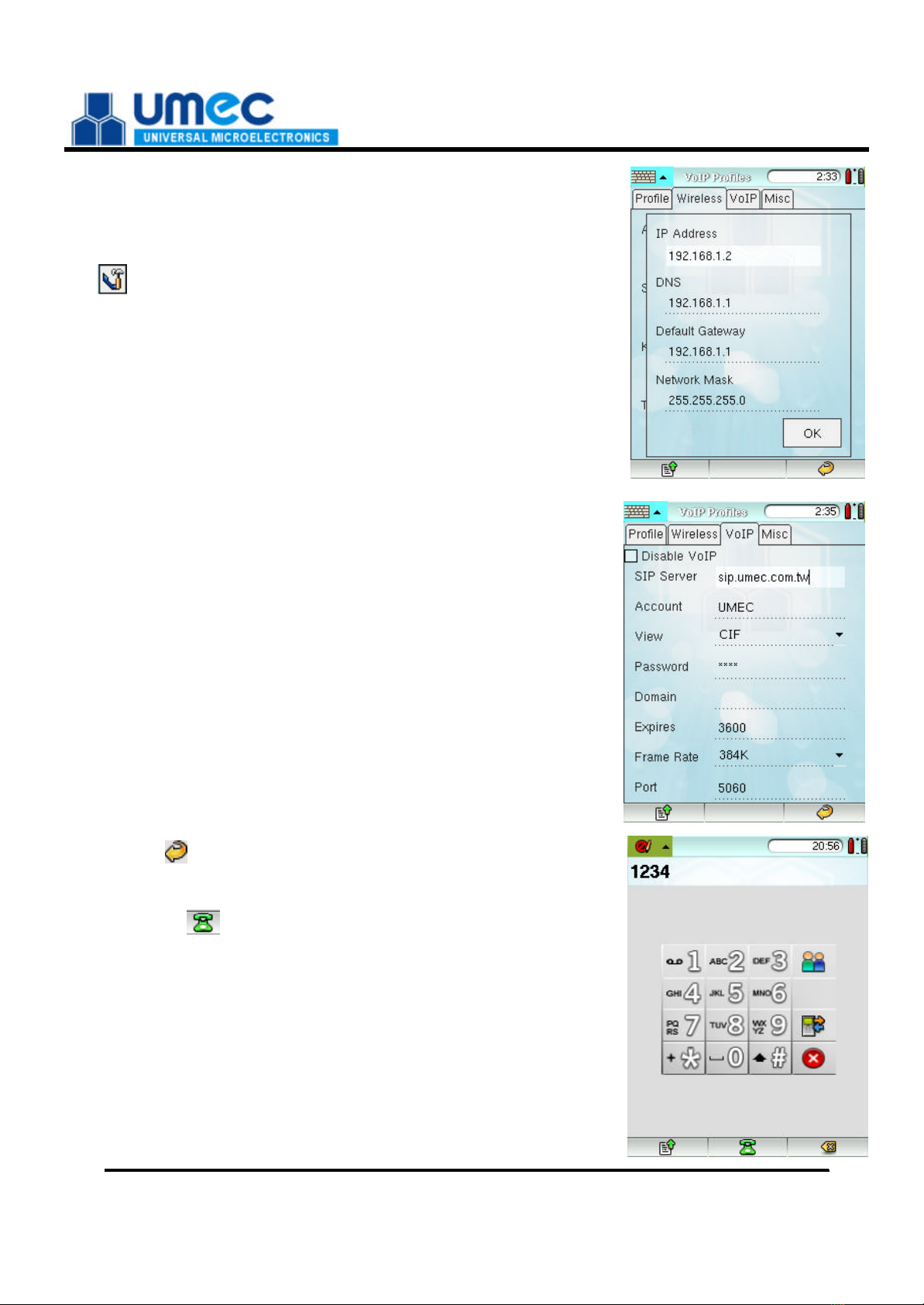

4.9 You can click the DHCP to get the IP from access point. Or
provide static IP address and gateway information by click
.
4.10 You can setup the SIP parameters in VoIP tab, please get
these information from your VoIP service provider.
Server: SIP server IP address
Account: Your account (SIP phone number)
Password: capital sensitive
Domain: Domain Name Server IP address
View: CIF/QCIF
Expires: default is 3600
Frame Rate: recommend is 256K at least
Port: default is 5060
4.11 Click to apply this profile. In main page, click the
screen to enter dial page. You can dial the phone number
and click to make a call.

SY832 WiFi Video Handset
User Manual
8/11 Version 1.0
SY832 WiFi Video Handset User Manual

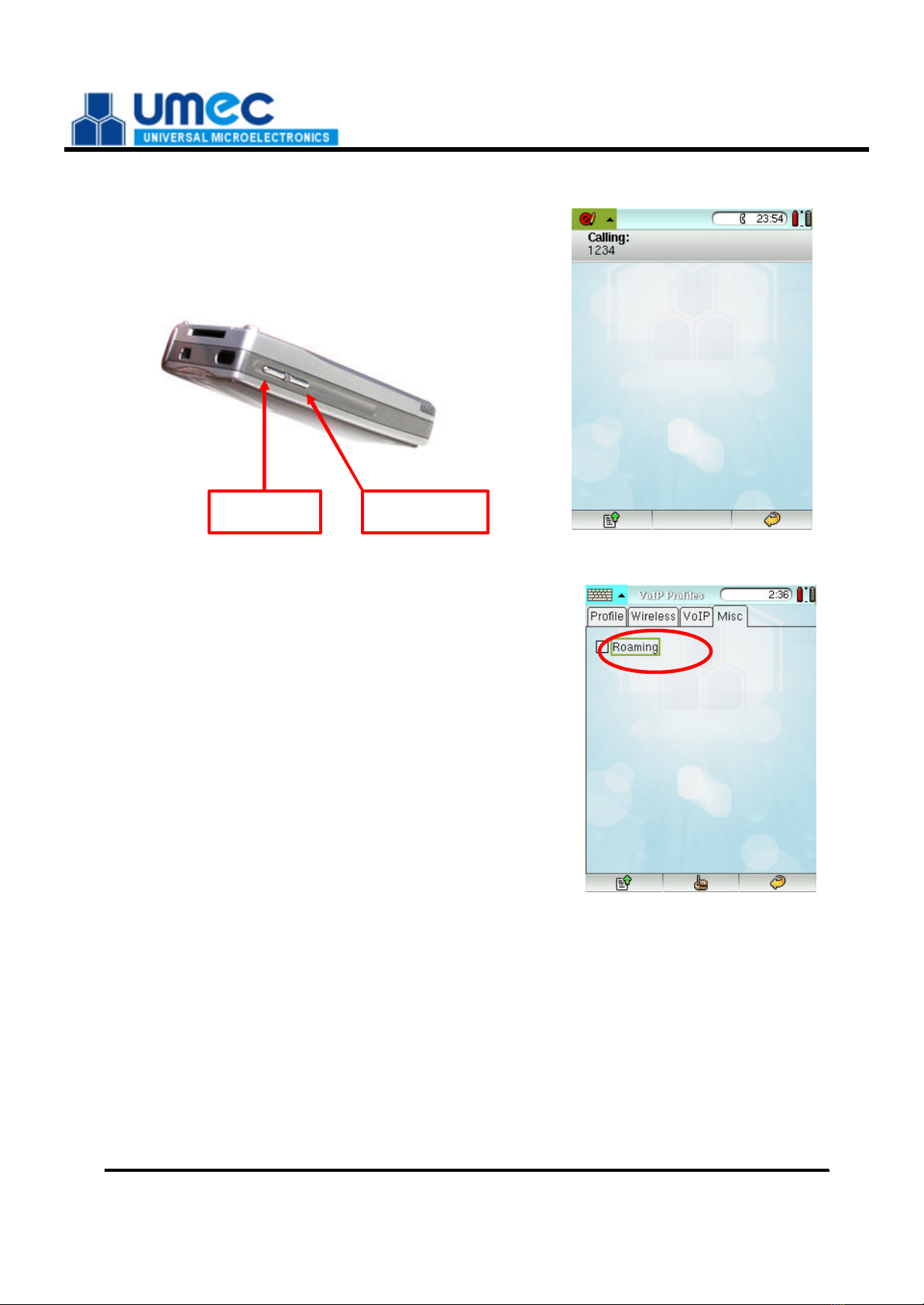

4.12 You can take incomming call by pressing upper
side button. To finish or cancel a cll by click lower
side button.
4.13 You can enable the Roaming function in Misc tab. It
allows SY832 switch between access points those
you’ve ever connected.
Take a call Cancel a call

SY832 WiFi Video Handset
User Manual
9/11 Version 1.0
SY832 WiFi Video Handset User Manual
5. Other useful functions in SY832
You can find these application by click in application page.
5.1 Web Browser
SY832 provides a web browser let you connection to every homepage on internet.
-Click the Web Browser, you’ll see the browser page.
-Provide URL and click to access this web page.
5.2 Remote Update
SY832 provide remote update feature by two methods:
From SD card：
From Wireless：
Server: your TFTP server IP address
Username: your authenticated account to the server
Password: accoutn’s password
Then press Update button!
Please don’t power off SY832 when update in progress.

SY832 WiFi Video Handset
User Manual
10/11 Version 1.0
SY832 WiFi Video Handset User Manual

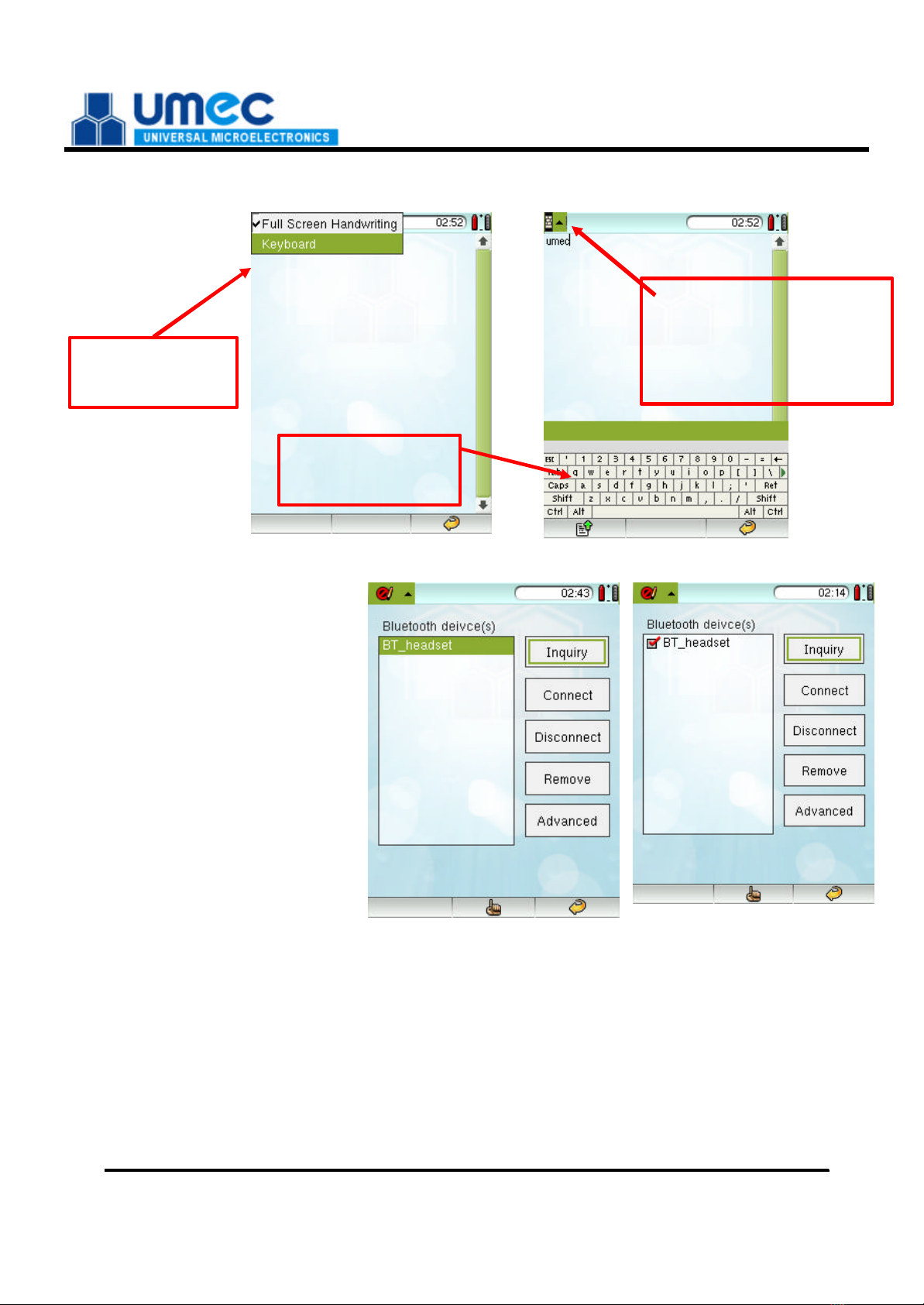

5.3 How to use soft keyboard?
5.4 Connect to your Bluetooth
Headset
-Please follow your Bluetooth
Headset maunul to set up
bluetooth headset in inquiry
mode.
-Click Inquiry button to
search bluetooth headset near
by.
-Click the heaset you want to
connect, click Connect
button to setup connection.
-You might need to provide
the Pin code for setting up connection. Usually PIN code is 0000, if not, please get this
information from your bluetooth headset manual.
-As connect successfully, it will show a þsign
1. Click here and
select Keyboard
2. You will see a
keyboard is shown
3. if you want to hide the
keyboard, also click here and
select Full Screen
Handwriting

SY832 WiFi Video Handset
User Manual
11/11 Version 1.0
SY832 WiFi Video Handset User Manual
6. Spec
Model SY832
VoIP Protocol IETF RFC3261 SIP
Processor ARM926 @ 266MHz
Memory 32 MB SDRAM
32MB FLASH
Display/Capture 2.6”LCD with Touch Panel
300K pixels CMOS Camera
System
Interfaces WiFi 802.11g WLAN x 1
Bluetooth calss 2 x 1
Mini USB x 1
Phone Jack x1
IrDA x 1
Side buttons x 2
Five directions tracking ball
Video Format H.263
MPEG4
H.264 (optional)
Resolution CIF 352x288 pixels
QCIF 176x144 pixels
Video
Transmitting Rate CIF up to 30 fps
Voice Codec G.711/ G.726
G.723.1/G.729ab (optional)
Voice Quality
Control CNG/AEC/AGC
Voice
Voice Input/Output Wired/Bluetooth headset
Network Features TCP/UDP/IP/PPPoE/DHCP
STUN
Call Functions Hold/Forward/Transfer/Wait
Redial/Mute/Transfer/Auto answer/DTMF
PIM Functions Task Schedule/Calendar/Document Handle
Video/Voice/Data Triple play
Phone
Functions
Address book 500 sets(extendable)
Accessories Mini USB Adapter/Charger
Stereo Wired headset
Battery Pack(inside)
Dimension 90mm x 56mm x 19mmNet Weight 190 g
Temperature operation 0℃to 45℃
storage -20℃to 70℃
Humidity operation 15% to 85%
storage 10% to 90%
Certification CE/FCC/CCC
Power max 2 W(peak)
Environment
Power Supply 3.7V, 1700 mA/hr Battery Pack
