Uni-Fi US-24 User manual

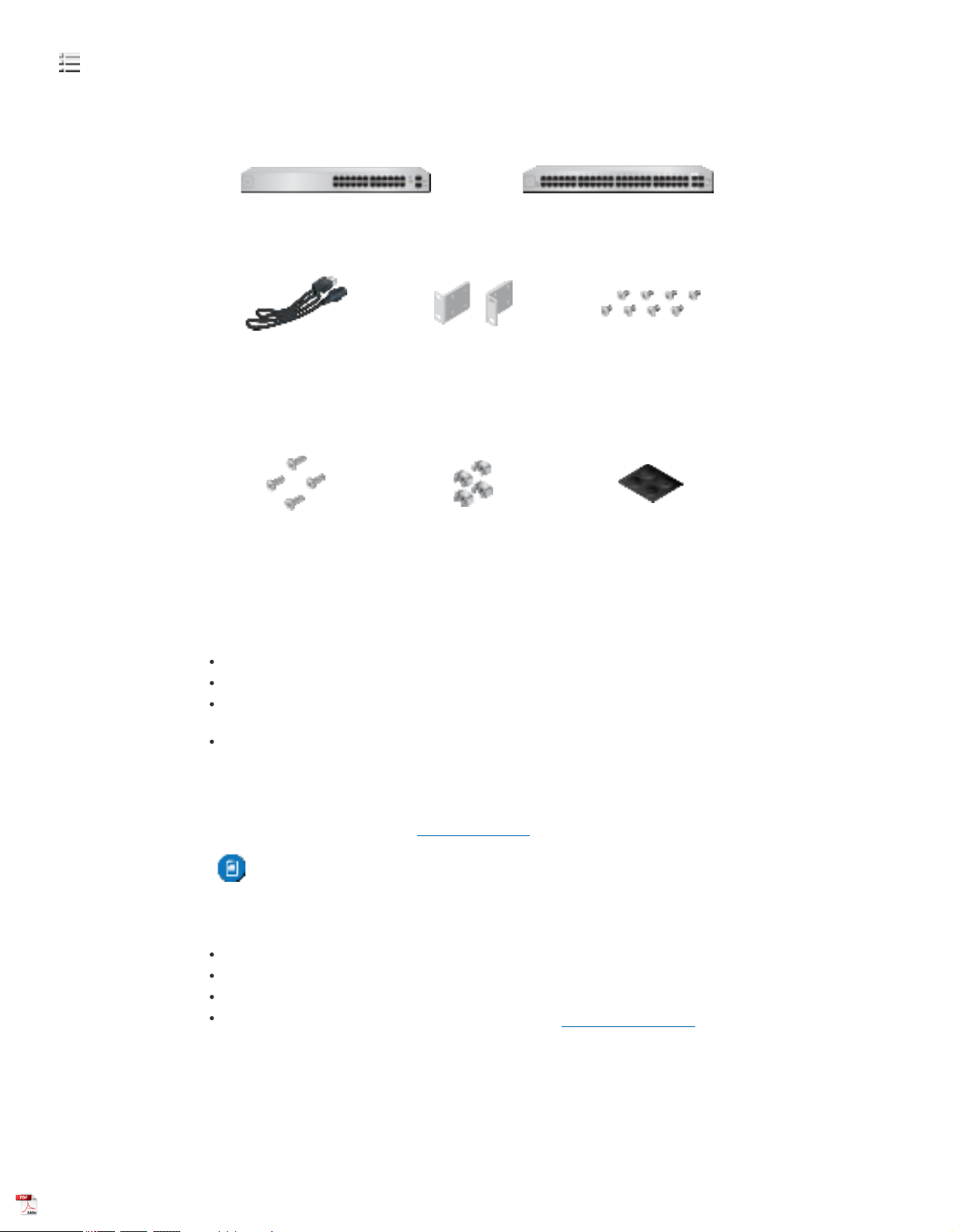

Power Cord Rack-Mount Brackets (Qty. 2) Bracket Screws (Qty. 8)
Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Rubber Feet (Qty. 4)
Package Contents
US-24
OR
US-48
Installation Requirements
Phillips screwdriver
Standard-sized, 19" wide rack with a minimum of 1U height available
For indoor applications, use Category 5 (or above) UTP cabling approved for indoor
use.
For outdoor applications, shielded Category 5 (or above) cabling should be used for
all wired Ethernet connections and should be grounded through the AC ground of the
power supply.
We recommend that you protect your networks from harmful outdoor environments
and destructive ESD events with industrial-grade, shielded Ethernet cable from
Ubiquiti. For more details, visit: ui.com/toughcable
Note: Although the cabling can be located outdoors, the UniFi Switch itself
should be housed inside a protective enclosure.
System Requirements
Linux, Mac OS X, or Microsoft Windows 7/8/10
Java Runtime Environment 1.6 (1.8 or newer recommended)
Web Browser: Google Chrome (Other browsers may have limited functionality.)
UniFi Controller software v4.8.5 or newer (available at: ui.com/download/unifi)

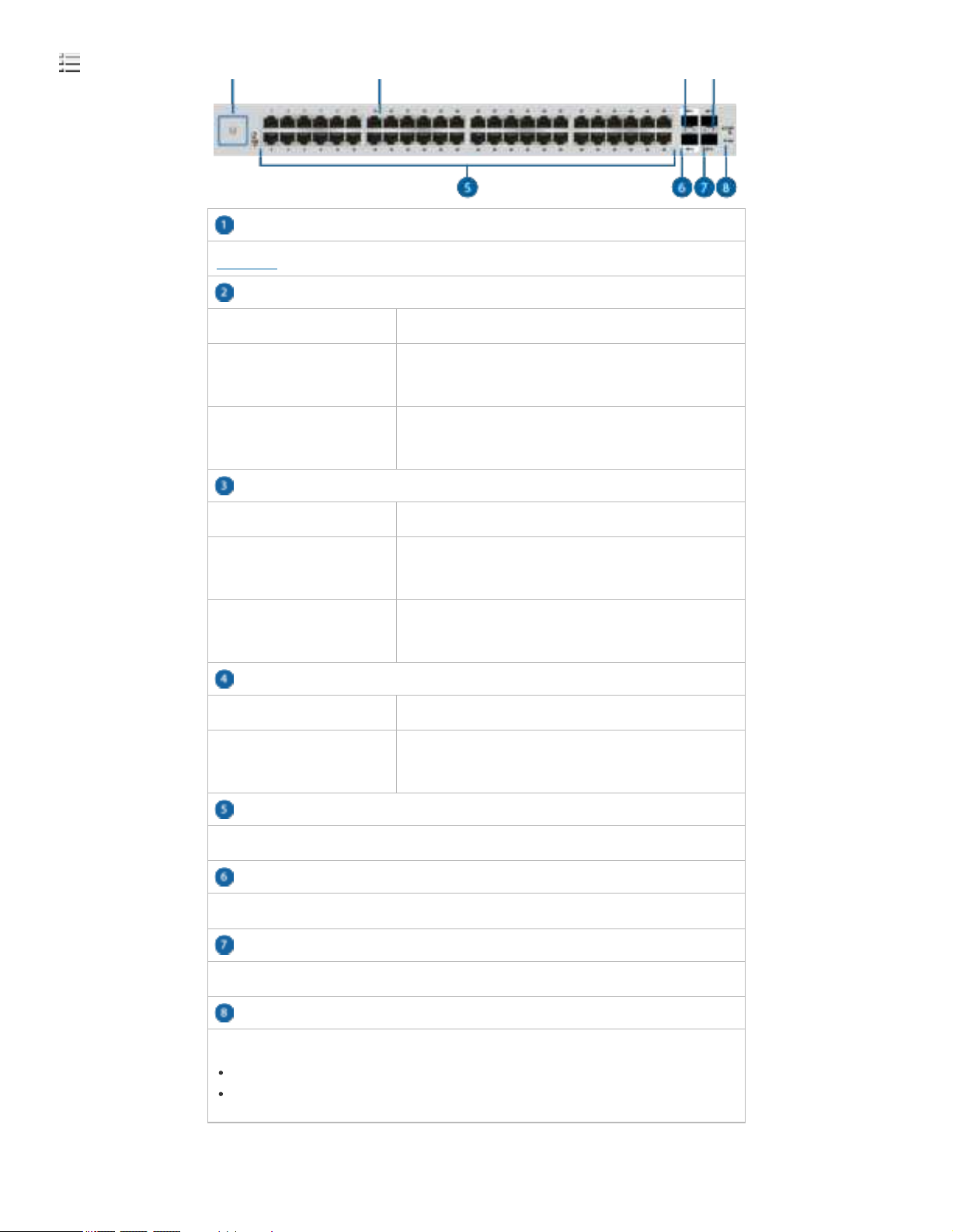

Hardware Overview
US-24, US-48 Quick Start Guide

System LED
RJ45 Link/Speed/Activity LED
SFP+ Link/Speed/Activity LED (US-48 only)
SFP Link/Speed/Activity LED
RJ45 Ports
SFP+Ports (US-48 only)
SFP Ports
Reset Button
Click here for detailed descriptions.
Off No Link
Amber
Link Established at 10/100 Mbps
Flashing Indicates Activity
Green
Link Established at 1000 Mbps (1 Gbps)
Flashing Indicates Activity
Off No Link
Green
Link Established at 1 Gbps
Flashing Indicates Activity
White
Link Established at 10 Gbps
Flashing Indicates Activity
Off No Link
Green
Link Established at 1 Gbps
Flashing Indicates Activity
RJ45 ports support 10/100/1000 Ethernet connections.
Hot-swappable SFP+ ports support 10 Gbps connections.
Hot-swappable SFP ports support 1 Gbps connections.
This button serves two functions for the UniFi Switch:
Press and release the Reset button to restart the device.
Press and hold the Reset button (for at least five seconds) to restore the device to
its factory default settings.
Back Panel Ports
US-24, US-48 Quick Start Guide

Console Port
DC Input
Power Port
RJ45 serial console port for Command Line Interface (CLI) management. Use an
RJ45-to-DB9, serial console cable, also known as a rollover cable, to connect the
Console port to your computer. Then configure the following settings as needed:
Baud rate 115200
Data bits 8
Parity NONE
Stop bits 1
Flow control NONE
The 25VDC input can connect a redundant or stand-alone DC power source (not
included) with minimum power: 25W (US-24) or 56W (US-48), 25 to 16V, and 2.5
mm DC power inline connector.
Note: You can use the redundant DC power source as a hot spare; if the
internal AC/DC power supply no longer provides power, then the UniFi
Switch will switch to the DC power source without interrupting its operation.
Connect the included Power Cord to the Power port.
Hardware Installation
Mounting in a Rack (Optional)
1.
2.
US-24, US-48 Quick Start Guide

OR
US-24, US-48 Quick Start Guide

Connecting Power
1.
2.

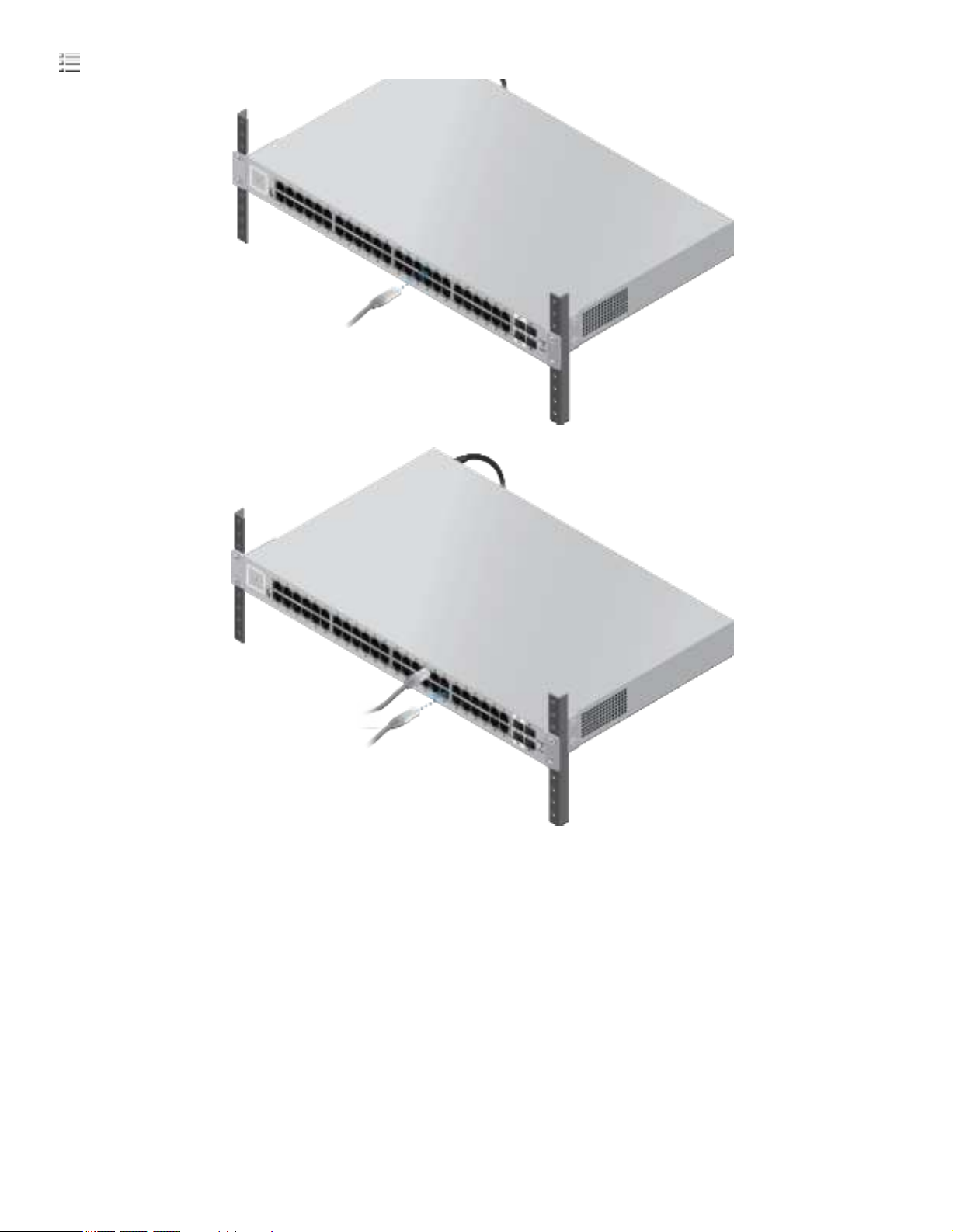

Connecting Ethernet
1.
US-24, US-48 Quick Start Guide

2.
Using SFP Ports
1.
US-24, US-48 Quick Start Guide

2.
3.
US-24, US-48 Quick Start Guide

For information about compatible fiber SFP modules, visit: community.ubnt.com/unifi
Software Installation
Download and install the latest version of the UniFi Controller software at
ui.com/download/unifi and follow the on-screen instructions.
Note: If you already have UniFi Controller v5.4.x or higher installed, go to the
section, Adopting the UniFi Switch.
After you have installed the software and run the UniFi Installation Wizard, a login
screen will appear for the UniFi Controller management interface. Enter the username
and password that you created and click Sign In.
You can manage your network and view network statistics using the UniFi Controller
management interface.
To adopt the UniFi Switch, proceed to the section, Adopting the UniFi Switch.
For information on configuring and using the UniFi Controller software, refer to the User
Guide on the website: ui.com/download/unifi
Adopting the UniFi Switch
1. From the UniFi Controller dashboard, click Devices in the left menu bar.
US-24, US-48 Quick Start Guide

2. Locate the UniFi Switch in the list of devices under the Model column. Click Adopt.
3. The System LED on the UniFi Switch will turn blue to confirm that it has been
successfully adopted.
Specifications
US-24
Dimensions 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Weight
Rack-Mount Brackets Included 2.60 kg (5.70 lb)
Rack-Mount Brackets Excluded 2.51 kg (5.53 lb)
Enclosure Characteristics SGCC Steel
Max. Power Consumption 24W
Total Non-Blocking Line Rate 26 Gbps
Power Method
AC 100-240 VAC / 50-60 Hz Universal Input
DC DC 25W, 25 to 16V, with 2.5 mm
DC Power Inline Connector
Power Supply AC/DC Internal 20W DC
ESD/EMP Protection Air ± 24 kV, Contact ± 24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Non-Condensing
US-24, US-48 Quick Start Guide

US-24
Shock and Vibration ETSI300-019-1.4 Standard
Interfaces
Networking (24) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management (1) RJ45 Serial Out-of-Band, Ethernet In-Band
LEDs Per Port
RJ45 Data Ports Speed/Link/Activity
SFP Data Ports Speed/Link/Activity
Rack Mount Yes, 1U
Certifications CE, FCC, IC
US-48
Dimensions 443 x 43 x 286 mm (17.44 x 1.69 x 11.26")
Weight
Rack-Mount Brackets Included 3.65 kg (8.06 lb)
Rack-Mount Brackets Excluded 3.56 kg (7.85 lb)
Enclosure Characteristics SGCC Steel
Max. AC Power Consumption 56W
Total Non-Blocking Line Rate 70 Gbps
Power Method
AC 100-240 VAC / 50-60 Hz Universal Input
DC DC 56W, 25 to 16V, with 2.5 mm
DC Power Inline Connector
Power Supply AC/DC Internal 56W DC
ESD/EMP Protection Air ± 24 kV, Contact ± 24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Non-Condensing
Shock and Vibration ETSI300-019-1.4 Standard
Interfaces
Networking (48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management (1) RJ45 Serial Out-of-Band, Ethernet In-Band
LEDs Per Port
RJ45 Data Ports Speed/Link/Activity
SFP Data Ports Speed/Link/Activity
Rack Mount Yes, 1U
Certifications CE, FCC, IC
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20
mm of clearance next to the ventilation holes for adequate airflow.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
WARNING: Do not use this product in location that can be submerged by water.
WARNING: Avoid using this product during an electrical storm. There may be a remote
risk of electric shock from lightning.
US-24, US-48 Quick Start Guide

Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current requirements indicated
on the manufacturer’s label. Connection to a different power source than those specified may
result in improper operation, damage to the equipment or pose a fire hazard if the limitations are
not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided only
by a qualified service technician.
3. This equipment is provided with a detachable power cord which has an integral safety ground
wire intended for connection to a grounded safety outlet.
a. Do not substitute the power cord with one that is not the provided approved type. Never use
an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding
wire.
b. The equipment requires the use of the ground wire as a part of the safety certification,
modification or misuse can provide a shock hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there are questions about the installation
prior to connecting the equipment.
d. Protective earthing is provided by Listed AC adapter. Building installation shall provide
appropriate short-circuit backup protection.
e. Protective bonding must be installed in accordance with local national wiring rules and
regulations.
Limited Warranty
ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and,
where applicable, specify arbitration instead of jury trials or class actions.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions.
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operations of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
ISED Canada
CAN ICES-3(A)/NMB-3(A)
Australia and New Zealand
Warning: This equipment is compliant with Class A of CISPR 32. In a residential
environment this equipment may cause radio interference.
CE Marking
CE marking on this product represents the product is in compliance with all directives that are
applicable to it.
WEEE Compliance Statement
US-24, US-48 Quick Start Guide

Declaration of Conformity
Online Resources
