Uni-Fi USW-Industrial User manual

UniFi Switch Screws (Qty. 6) Screw Anchors (Qty. 6)
Power Cord
Package Contents
Installation Requirements
Drill with 6 mm drill bit
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

System LED
Phillips screwdriver
Cat5/6 UTP cable for indoor installations. Plenum-rated cabling for plenum spaces.
System Requirements
Linux, Mac OS X, or Microsoft Windows 7/8/10
Java Runtime Environment 1.8 or above recommended
Web Browser: Google Chrome (Other browsers may have limited functionality)
UniFi Controller software v5.10.x (or newer), available at: ui.com/download/unifi
Hardware Overview
Flashing White Initializing.
Steady White Factory defaults, waiting for adoption.
Alternating White/Blue Device is busy; do not touch or unplug it. This usually
indicates that a process such as a firmware upgrade
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

PoE LED
Link/Speed/Activity LED
Ports 1 - 8
is taking place.
Steady Blue Successfully adopted by a network and working
properly.
Flashing Blue
This is used to locate a device.
When you click Locate in the UniFi Controller
software, the System LED will flash blue. The
software will also display the location of the UniFi
Switch on the map.
Off PoE Disabled
Amber 802.3af/at/bt PoE
Off No Link
Amber
Link Established at 10 or 100 Mbps
Flashing Indicates Activity
Green
Link Established at 1000 Mbps (1 Gbps)
Flashing Indicates Activity
RJ45 ports support 10/100/1000 Ethernet connections and 802.3af/at/bt PoE output.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Ports 9 - 10
Reset Button
RJ45 ports support 10/100/1000 Ethernet connections.
This button serves two functions for the UniFi Switch:
Restart Press and release the Reset button quickly.
Restore to Factory Default Settings Press and hold the Reset button for more than
five seconds.
Hardware Installation
You have two options for mounting:
Screws and Screw Anchors You can use the included Screws and Screw Anchors.
Go to "Wall Mounting".
Machine Screws You can use eight M4 machine screws (not included), which must
be long enough to extend 6 mm into the Switch.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Wall Mounting
1.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

3.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

4.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Connecting Power
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

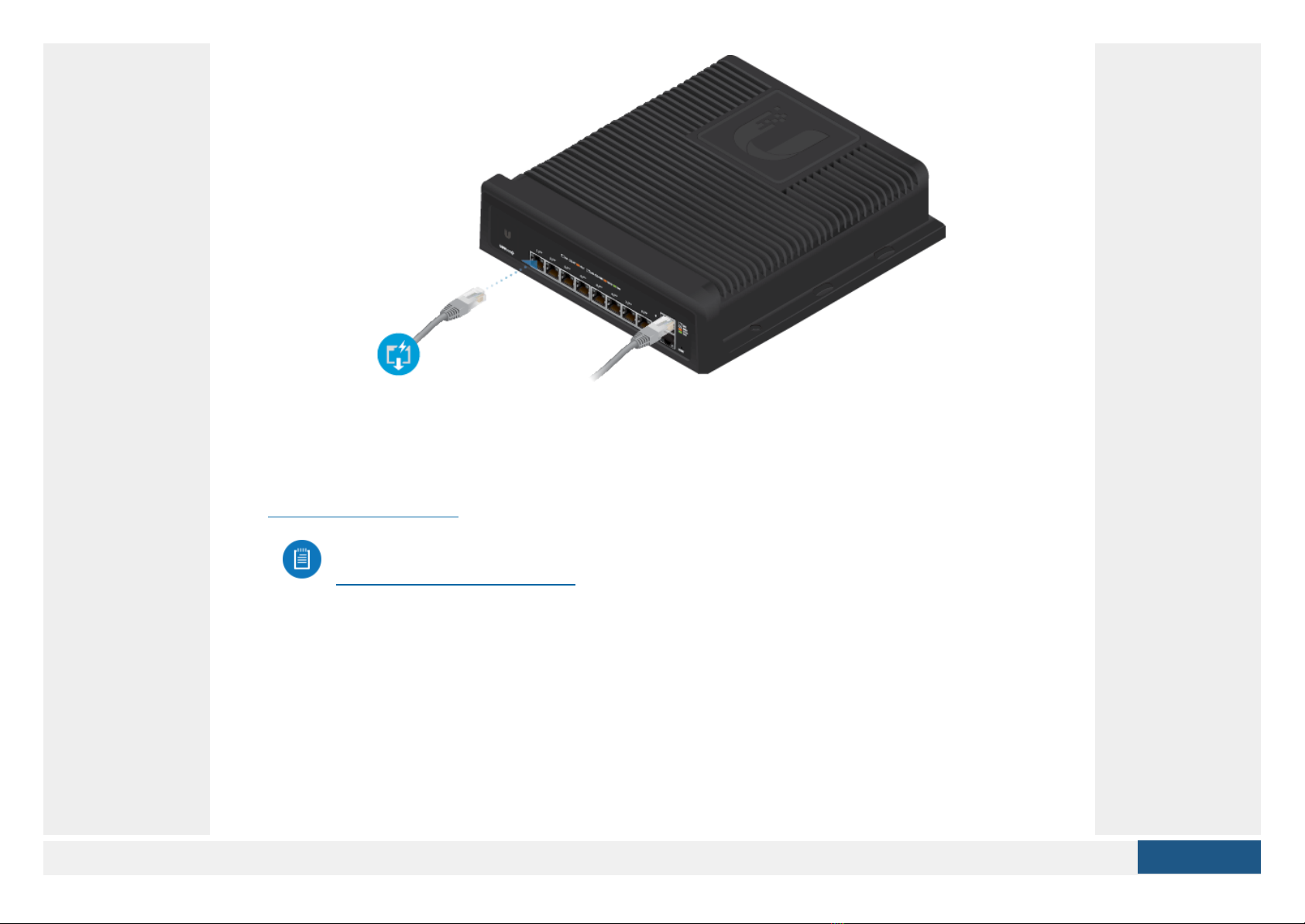

Connecting Ethernet
1.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Software Installation
Download and install the latest version of the UniFi Controller software at
ui.com/download/unifi and follow the on-screen instructions.
Note: If you already have UniFi Controller v5.10.x or newer installed, skip to
"Adopting the UniFi Switch".
After you have installed the software and run the UniFi Installation Wizard, a login
screen will appear for the UniFi Controller management interface. Enter the admin
name and password that you created and click Sign In.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

You can manage your network and view network statistics using the UniFi Controller
management interface.
To adopt the UniFi Switch, proceed to "Adopting the UniFi Switch".
For information on configuring and using the UniFi Controller software, refer to the User
Guide on the website: ui.com/download/unifi
Adopting the UniFi Switch
1. From the UniFi Controller dashboard, click Devices in the left menu bar.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2. On the Devices screen, locate the UniFi Switch in the list of devices under the Model
column. To adopt the UniFi Switch, click Adopt.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

3. The System LED on the UniFi Switch will turn blue to confirm that it has been
successfully adopted.
Specifications
USW-Industrial
Dimensions 254 x 235 x 60 mm
(10 x 9.25 x 2.36")
Weight 3.85 kg (8.49 lb)
Interfaces
Networking (8) 10/100/1000 802.3bt PoE RJ45 Ports
(2) 10/100/1000 RJ45 Ports
Management Ethernet In-Band
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

USW-Industrial
Power Method 100 - 240 VAC, 50/60 Hz Universal Input
Power Supply AC/DC, Internal, 450W DC
Supported Voltage Range AC Input: 100 to 240VAC, Max. 6A
Max. Power Consumption
(Excluding PoE Output)
20W
LEDs
System Status
RJ45 Ports PoE, Speed/Link/Activity
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature
Internal AC/DC @ 450W -40 to 50° C (-40 to 122° F)
Internal AC/DC @ 240W -40 to 60° C (-40 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20
mm of clearance next to the ventilation holes for adequate airflow.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

moisture.
WARNING: Do not use this product in location that can be submerged by water.
WARNING: Avoid using this product during an electrical storm. There may be a remote
risk of electric shock from lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current requirements indicated
on the manufacturer’s label. Connection to a different power source than those specified may
result in improper operation, damage to the equipment or pose a fire hazard if the limitations are
not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided only
by a qualified service technician.
3. This equipment is provided with a detachable power cord which has an integral safety ground
wire intended for connection to a grounded safety outlet.
a. Do not substitute the power cord with one that is not the provided approved type. Never use
an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding
wire.
b. The equipment requires the use of the ground wire as a part of the safety certification,
modification or misuse can provide a shock hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there are questions about the installation
prior to connecting the equipment.
d. Protective earthing is provided by Listed AC adapter. Building installation shall provide
appropriate short-circuit backup protection.
e. Protective bonding must be installed in accordance with local national wiring rules and
regulations.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Limited Warranty
ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and,
where applicable, specify arbitration instead of jury trials or class actions.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions.
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operations of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
ISED Canada
CAN ICES-3(A)/NMB-3(A)
Australia and New Zealand
Warning: This equipment is compliant with Class A of CISPR 32. In a residential
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

environment this equipment may cause radio interference.
CE Marking
CE marking on this product represents the product is in compliance with all directives that are
applicable to it.
WEEE Compliance Statement
Declaration of Conformity
Online Resources
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

© 2020 Ubiquiti Inc. All rights reserved.
