Uni-Fi USW-24-POE User manual
UniFi Switch Rack-Mount Brackets (Qty.
2)
Bracket Screws (Qty. 8)
Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord
Package Contents
System Requirements
Linux, MacOSX, or Microsoft Windows 7/8/10
Java Runtime Environment 1.6 (1.8 or newer recommended)
Web Browser: Google Chrome (Other browsers may have limited functionality.)
UniFi Controller software v5.11.x (or newer), available at: ui.com/download/unifi
IMPORTANT: We strongly recommend using UPS backup and power
regulation to prevent equipment damage due to stability issues with local
AC power.

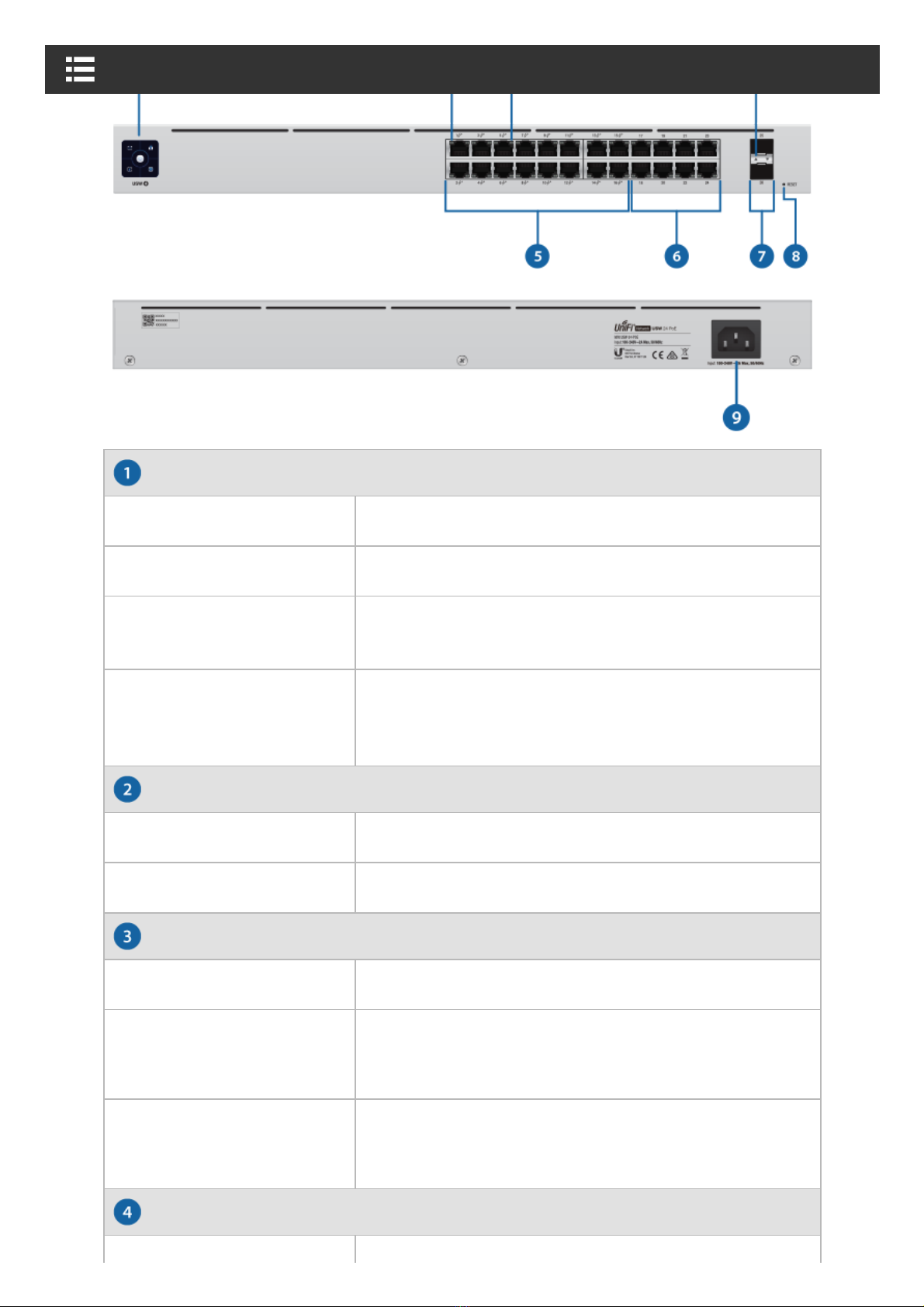

Hardware Overview
USW-24-POE Quick Start Guide
Touchscreen Display
RJ45 PoE LED (Ports 1 - 16)
RJ45 Speed/Link/Activity LED (Ports 1 - 24)
SFP Speed/Link/Activity LED (Ports 25 - 26)
Bootup Animation Initializing.
Steady White Factory defaults, waiting for adoption.
Steady Blue Successfully adopted by a network and working
properly.
Location Animation
This indicates that you clicked Locate in the UniFi
Controller software. The software will also display
the location of the device on the map.
Off No PoE
Amber 802.3af/at PoE
Off No Link
Amber
Link Established at 10/100Mbps
Flashing Indicates Activity
Green
Link Established at 1000Mbps
Flashing Indicates Activity
USW-24-POE Quick Start Guide
RJ45 (Ports 1 - 16)
RJ45 (Ports 17 - 24)
SFP (Ports 25 - 26)
Reset Button
Power Port
Off No Link
Green
Link Established at 1Gbps
Flashing Indicates Activity
RJ45 ports support 10/100/1000 Ethernet connections and 802.3af/at PoE
output.
RJ45 ports support 10/100/1000 Ethernet connections.
Hot-swappable SFP ports support 1 Gbps connections.
This button serves two functions for the UniFi Switch:
Restart Press and release the Reset button quickly.
Restore to Factory Default Settings Press and hold the Reset button for
more than five seconds.
Connect the included Power Cord to the Power port.
Installation Requirements
Phillips screwdriver
Standard-sized, 19" wide rack with a minimum of 1U height available
For indoor applications, use Category 5 (or above) UTP cabling approved for
indoor use.
For outdoor applications, shielded Category 5 (or above) cabling should be used
for all wired Ethernet connections and should be grounded through the AC
ground of the power supply.
We recommend that you protect your networks from harmful outdoor
environments and destructive ESD events with industrial-grade, shielded
Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable
Note: Although the cabling can be located outdoors, the UniFi Switch
itself should be housed inside a protective enclosure.

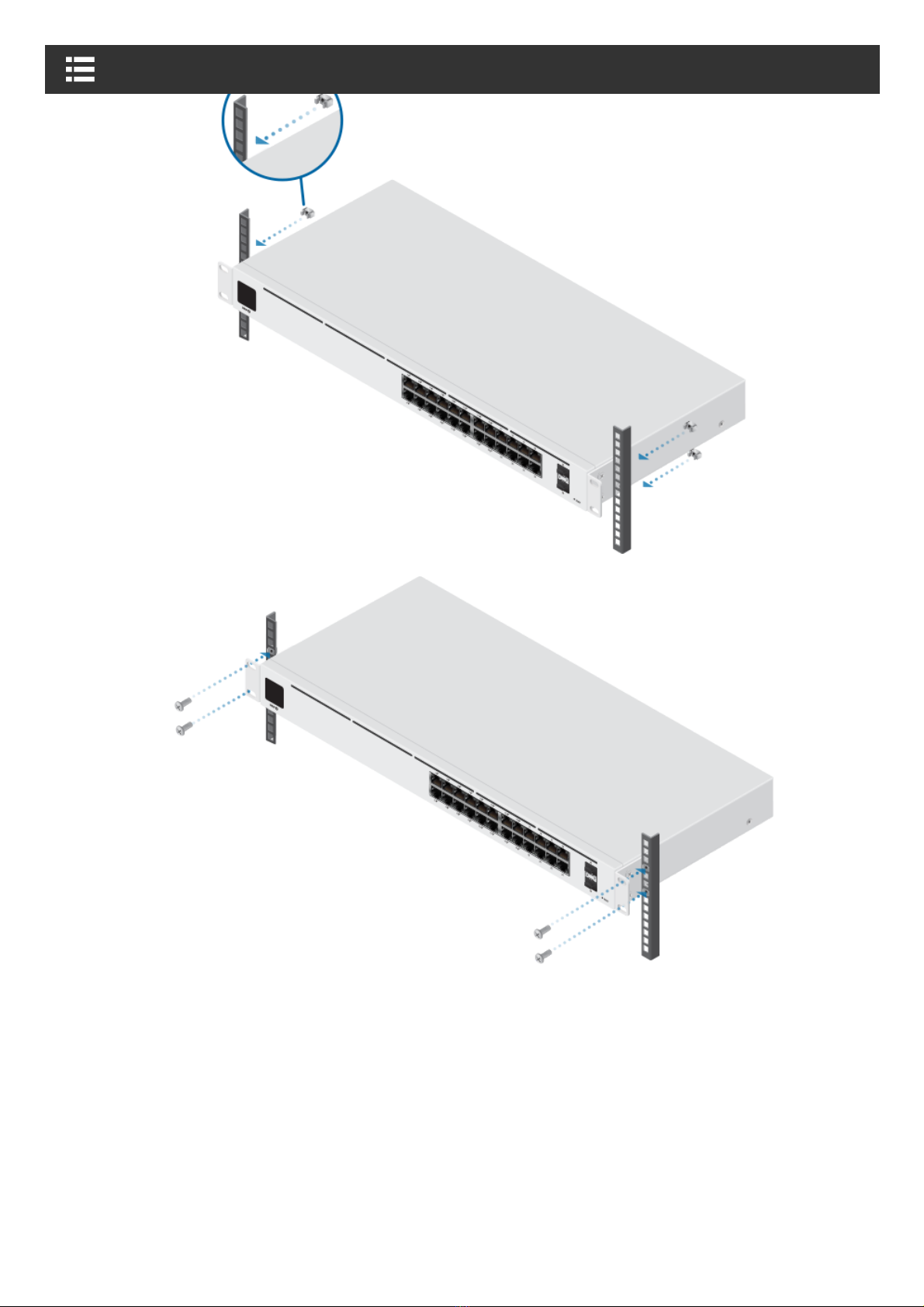

Hardware Installation
USW-24-POE Quick Start Guide
IMPORTANT: Fanless switches must not be stacked. Do not place this
UniFi Switch on top of another switch. Do not place anything on top of this
UniFi Switch.
1.
2.
OR
USW-24-POE Quick Start Guide

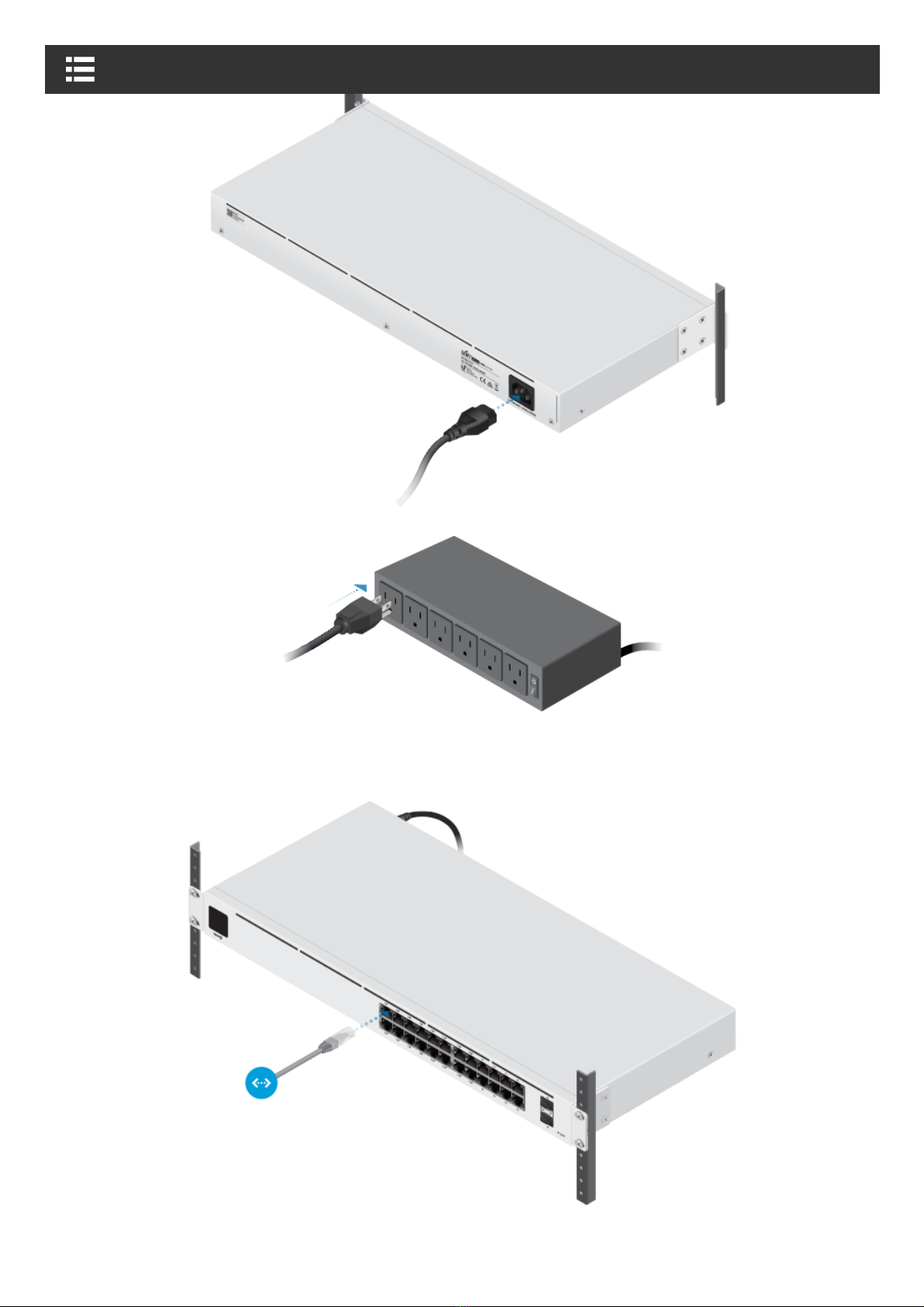

Connecting Power
1.
USW-24-POE Quick Start Guide
2.
Connecting Ethernet
Note: If you are connecting PoE devices, check the display to see how
USW-24-POE Quick Start Guide
much PoE wattage is available.

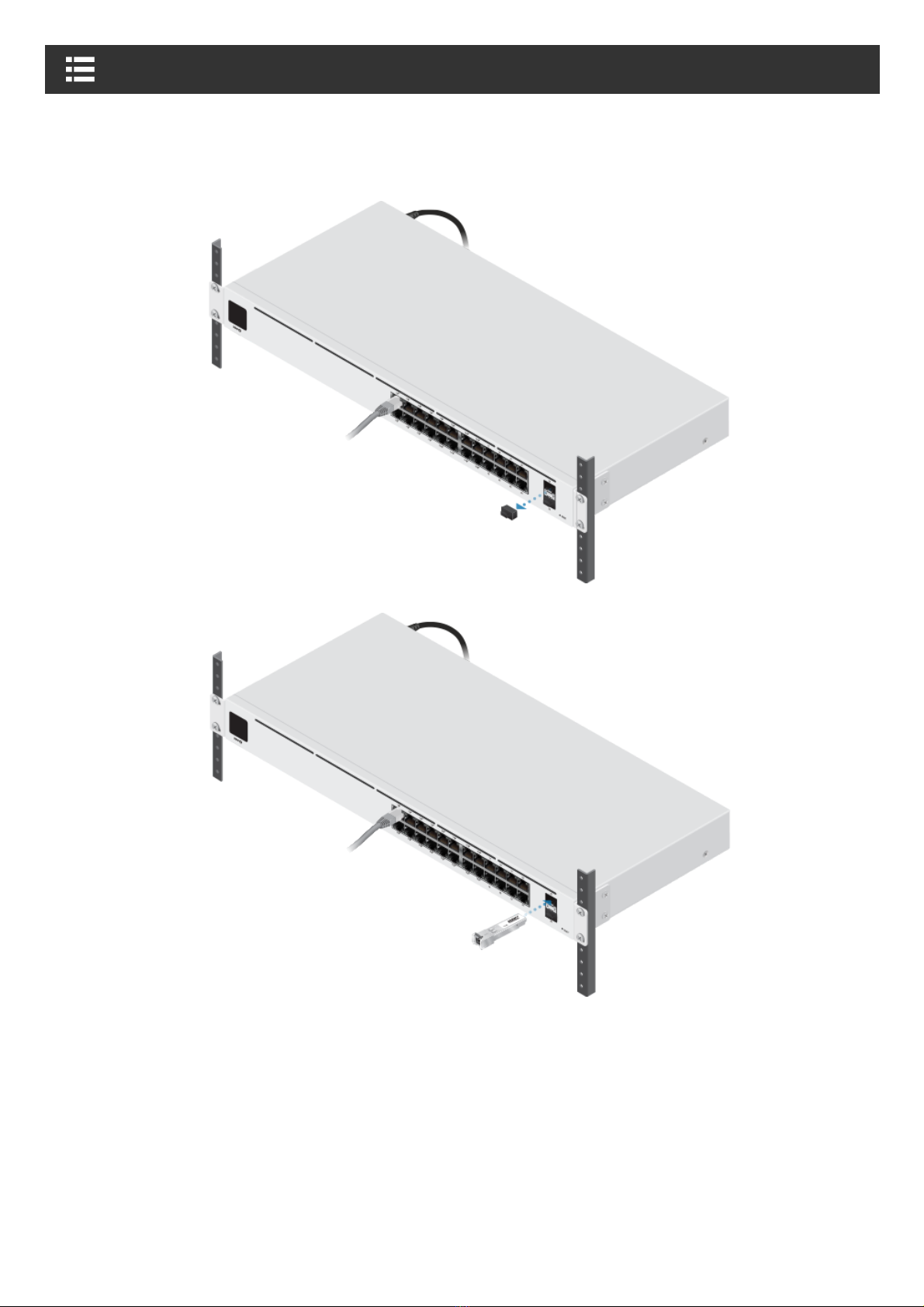

Connecting SFP
1.
2.
3.
USW-24-POE Quick Start Guide
For information about compatible fiber SFP modules, visit:
ubnt.link/UniFi_SFP_DAC_Compatibility
Software Installation
Download and install the latest version of the UniFi Controller software at
ui.com/download/unifi and follow the on-screen instructions.
Note: If you already have UniFi Controller v5.11.x or newer installed, skip
to “Adopting the UniFi Switch”.

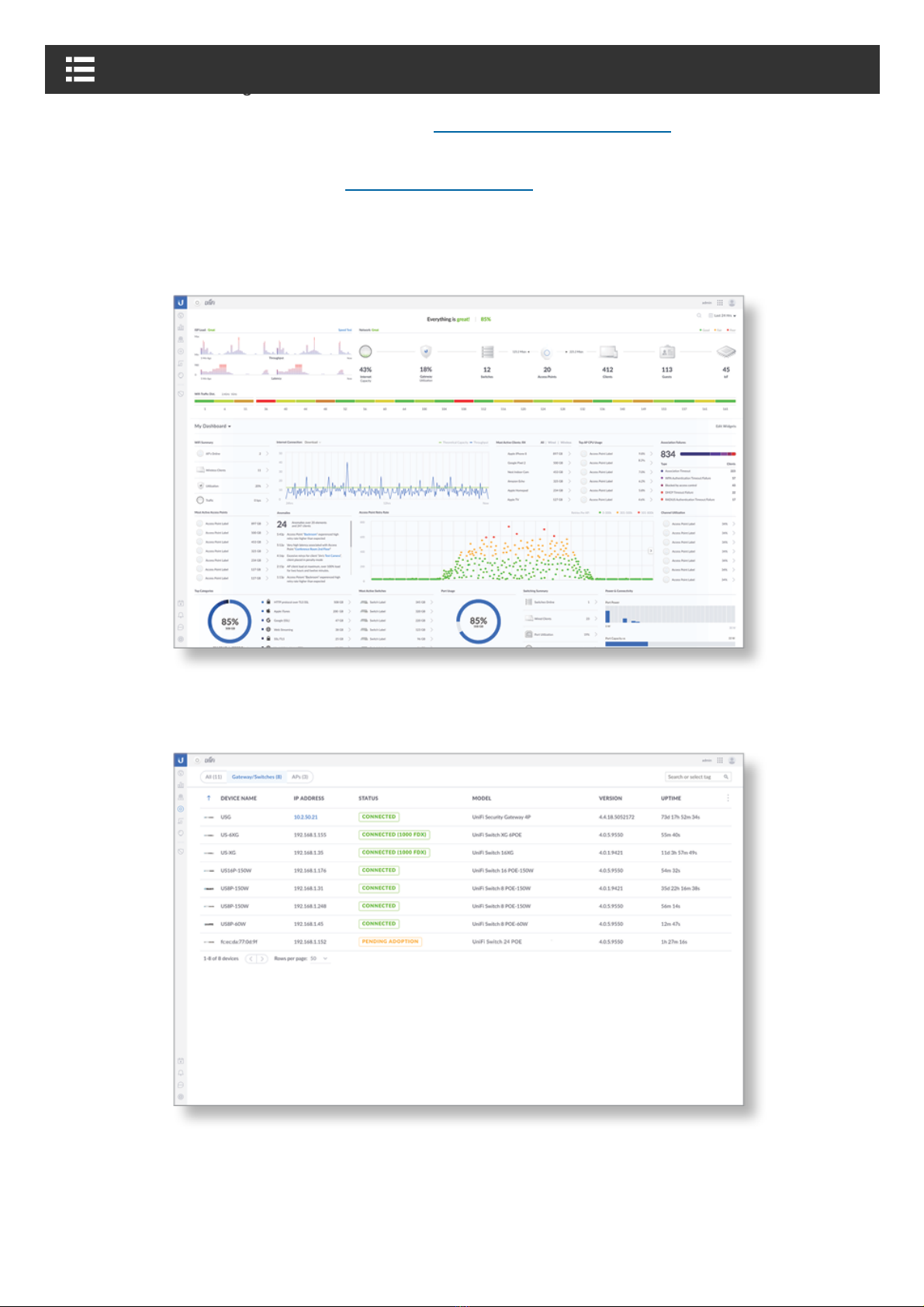

After you have installed the software and run the UniFi Installation Wizard, a login
screen will appear for the UniFi Controller management interface. Enter the admin
name and password that you created and click Sign In.
USW-24-POE Quick Start Guide
You can manage your network and view network statistics using the UniFi
Controller management interface.
To adopt the UniFi Switch, proceed to “Adopting the UniFi Switch”.
For information on configuring and using the UniFi Controller software, refer to the
User Guide on the website: ui.com/download/unifi
Adopting the UniFi Switch
1. From the UniFi Controller dashboard, click Devices in the left menu bar.
2. On the Devices screen, locate the UniFi Switch in the list of devices under the
Model column. To adopt the UniFi Switch, click Adopt.
3. The System LED on the UniFi Switch will turn blue to confirm that it has been
successfully adopted.
Specifications
USW-24-POE Quick Start Guide
USW-24-POE
Dimensions 442.4 x 200 x 43.7 mm
(17.42 x 7.87 x 1.72")
Weight 3.00 kg (6.61 lb)
With Rackmount Brackets 3.09 kg (6.81 lb)
Interfaces
Networking (24) 10/100/1000 RJ45 Ports
(2) 1G SFP Ethernet Ports
Management Ethernet In-Band
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 120W
Supported Voltage Range 100 to 240VAC
Max. Power Consumption
(Excluding PoE Output)
25W
LEDs
System Status
RJ45 Data Ports PoE; Speed/Link/Activity
SFP Data Ports Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
PoE
PoE Interfaces
Ports 1-16 POE+ IEEE 802.3af/at
(pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by
PSE
802.3at 32W
Voltage Range 802.3af Mode 44-57V
Voltage Range 802.3at Mode 50-57V
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least
20 mm of clearance next to the ventilation holes for adequate airflow.
USW-24-POE Quick Start Guide
WARNING: To reduce the risk of fire or electric shock, do not expose this product to
rain or moisture.
WARNING: Do not use this product in location that can be submerged by water.
WARNING: Avoid using this product during an electrical storm. There may be a
remote risk of electric shock from lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current requirements
indicated on the manufacturer’s label. Connection to a different power source than those
specified may result in improper operation, damage to the equipment or pose a fire hazard if
the limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided
only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has an integral safety
ground wire intended for connection to a grounded safety outlet.
a. Do not substitute the power cord with one that is not the provided approved type. Never
use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the
grounding wire.
b. The equipment requires the use of the ground wire as a part of the safety certification,
modification or misuse can provide a shock hazard that can result in serious injury or
death.
c. Contact a qualified electrician or the manufacturer if there are questions about the
installation prior to connecting the equipment.
d. Protective earthing is provided by Listed AC adapter. Building installation shall provide
appropriate short-circuit backup protection.
e. Protective bonding must be installed in accordance with local national wiring rules and
regulations.
Limited Warranty
ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis,
and, where applicable, specify arbitration instead of jury trials or class actions.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions.
1. This device may not cause harmful interference, and
USW-24-POE Quick Start Guide
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operations of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
ISED Canada
CAN ICES-3(A)/NMB-3(A)
Australia and New Zealand
Warning: This equipment is compliant with Class A of CISPR 32. In a residential
environment this equipment may cause radio interference.
CE Marking
CE marking on this product represents the product is in compliance with all directives that are
applicable to it.
WEEE Compliance Statement
Declaration of Conformity
Online Resources
USW-24-POE Quick Start Guide
© 2020 Ubiquiti Inc. All rights reserved.
USW-24-POE Quick Start Guide
