Uniden BTSC1100 User manual

BTSC1100
Bluetooth® Car Kit
For more exciting new products please visit our website:
Australia: www.uniden.com.au
New Zealand: www.uniden.co.nz
BTSC1100 OM_16.8.10.indd 1 18/8/10 10:41:02 AM

2

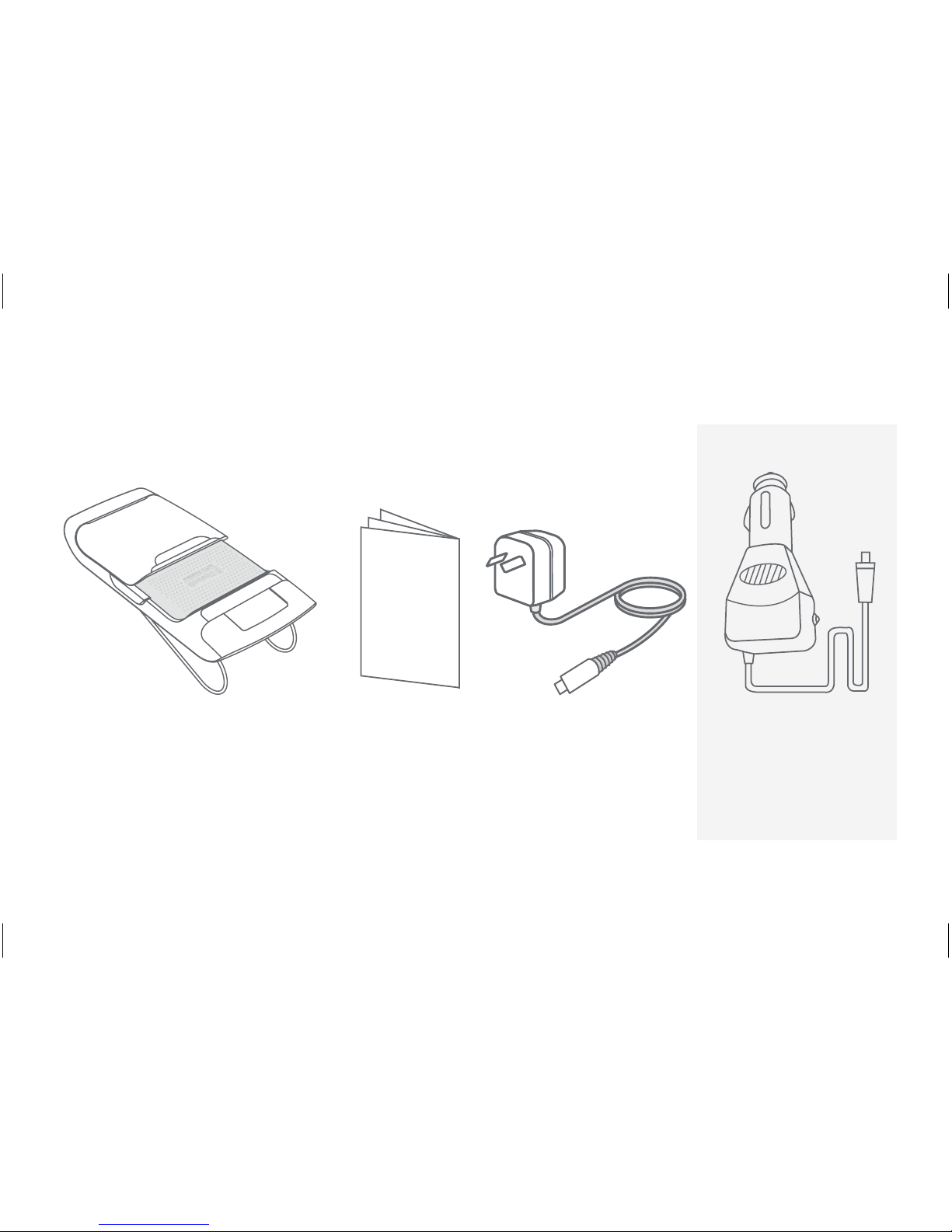

What’s in the box?
Optional
BTSC1100 Owners
Manual
AC Adapter
(AAD1500)
12VDC - 24VDC
DC (car) power
adapter
(CL1500)
BTSC1100 OM_16.8.10.indd 2 18/8/10 10:41:04 AM

3

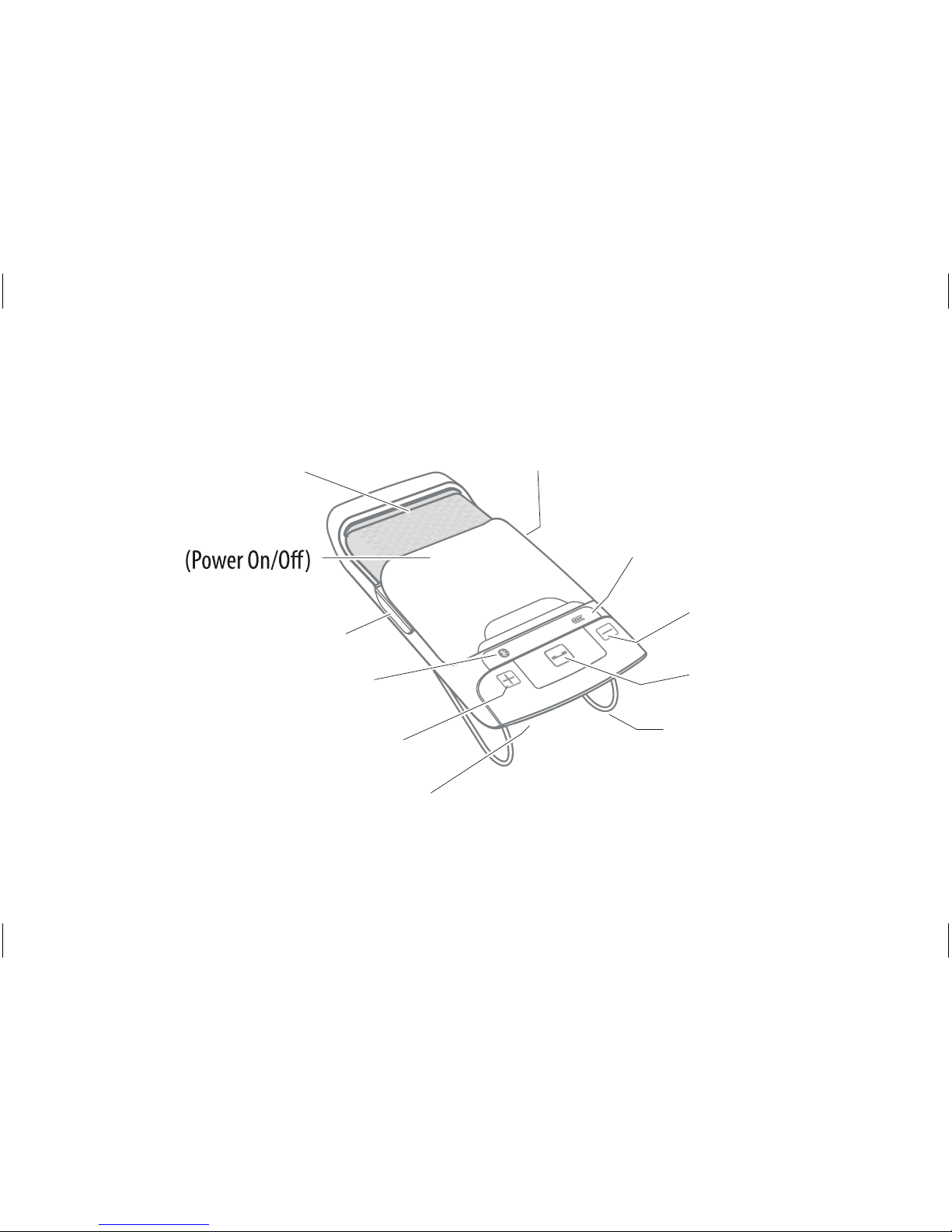

Getting to Know the BTSC1100
Multi-Function button
Volume up button
Charging status icon
Charging port
Sun visor metal clip
Sliding switch
Volume down button
Speaker
MIC
Mute/Special Function button
Bluetooth status icon
BTSC1100 OM_16.8.10.indd 3 18/8/10 10:41:06 AM

4
LED (Status Icon) and Tone Indicators
Status Icon Indication
Power On Bluetooth Status Icon blinks 3 times
Pairing Mode Bluetooth Status Icon blinks repeatedly
Connectable Mode Bluetooth Status Icon blinks 1 time every 5 seconds
Connected Mode Bluetooth Status Icon blinks 2 times every 5 seconds
While Calling Bluetooth Status Icon blinks 3 times every 5 seconds
Status Beep Indication
Power On Turn-on Melody (no connection), Turn-on Melody + 2 short beeps (easy pairing mode)
When connected 2 Short beeps
Incoming Call Melody
Active call 2 Rising Beeps
Ending Call 2 Falling Beeps
Low Battery Alert Melody every 30 seconds
BTSC1100 OM_16.8.10.indd 4 18/8/10 10:41:06 AM

5
Charge the Battery
Before using the unit, charge the battery for at least 3 hours.
Charging the battery completely (and keeping it charged)
will help you get the longest possible talk and standby time
out of the battery. On average, the battery provides about
10 hours of talk time and about 400 hours of standby time.
Connect an adapter to the power connector on the side of
the BTSC1100 and plug it into any standard; i) 12VDC-24VDC (DC adaptor), or ii) 240VAC
(AC adaptor) power outlet.
When charging is completed, the Charging status icon is turned o .
[Note] Use only the power adapter supplied with the unit. Using any other adapter could
damage your unit, create a re hazard, or cause a risk of electric shock.
Low Battery Warning
X
When the battery requires charging, the unit beeps every 20 seconds. The unit will
power o unless charged within approximately 10 minutes.
BTSC1100 OM_16.8.10.indd 5 18/8/10 10:41:07 AM

6
Pair your Phone to the BTSC1100
Power On/O
Slide the cover up to turn power on, slide the cover down to turn power o.X
Pairing
Before using the car kit, it must be paired with a mobile phone rst.
Slide the cover up to turn power on.1)
Press and hold the Multi-Function button2) for 3 seconds until the Bluetooth status icon
ashes constantly.
On your phone, start a search for Hands-free devices (This process may take several seconds,3)
and it will be dierent for each mobile phone: see your phone’s owner’s manual for detailed
instruction).
Your phone should discover a device.When your phone asks if you want to pair with this device,4)
answer Yes.
Enter PIN number“0000”(4 zeros).5)
BTSC1100 OM_16.8.10.indd 6 18/8/10 10:41:07 AM

7
Automatic ConnectionX
This unit supports Auto-Connection which makes it possible to be automatically
connected to the last connected device after turn on. To manually reconnect, press
the Multi-function button momentarily.
Easy Pairing:
XThis unit goes into the Pairing Mode automatically when it is turned on
for the rst time.
Simple Pairing:
XYou can pair this unit with your mobile phone without entering the
pin number(0000), if your mobile phone supports Bluetooth version 2.1.
Make and Receive Calls
Making a Call
To dial the last number;1)
Press the Multi-Function button .
To voice dial;2)
Press the Multi-Function button for 2 seconds.
Voice Dialing is activated on the phone. When you hear a beep, you can use any command you
BTSC1100 OM_16.8.10.indd 7 18/8/10 10:41:07 AM

8
have already programmed into your phone. If you want to cancel Voice Dialing,
press the Multi-Function button during the Voice Dial Mode.
[Note] Please make sure that your phone supports the Voice Recognition rst (See your
phone’s owner’s manual for detailed instructions)
Answering a Call
Press the Multi-Function button while the call is ringing.
Rejecting an Incoming Call
Press and hold the Multi-Function button for 2 seconds until you hear a beep.
Ending a Call
Press the Multi-Function button momentarily during the call or just press the “End”
button on the mobile phone.
Transferring a Call
To transfer a call from the unit to your mobile phone and vice versa, press the Multi-
Function button on the Hands-Free Unit during the call for 2 seconds.
BTSC1100 OM_16.8.10.indd 8 18/8/10 10:41:07 AM

9
Adjusting the Volume
You can adjust the Volume by pressing the Volume Up(+) or Down(-) button.
MIC Mute
Press the Mute/Special Function button momentarily, during a call, to activate or
deactivate the MIC Mute. A beep sounds every 10 seconds when MIC Mute is on.
Call Waiting
To use this feature, you must subscribe to Call Waiting through your service provider, and
your phone must support the hands-free prole. When another call comes in while you
are talking on the phone, this unit sounds a tone.
To put your current call on hold and switch to the waiting call, press and hold Volume Up(+) for1)
about 3 seconds When you release the button, you’ll be connected to the waiting call.When you
want to switch back to the current call, press and hold volume up again for 3 seconds.
To hang up your current call and switch to the waiting call, press and hold Volume Down(-) for2)
about 2 seconds. When you release the button, you’ll be connected to the waiting call.
BTSC1100 OM_16.8.10.indd 9 18/8/10 10:41:07 AM

10
[Recommended] Alternatively, press the “SEND” button of your mobile phone to activate the Call Waiting
function.
[Note] Some features may not be compatible with certain mobile phones.
Pairing a Second Bluetooth Device
The unit supports simultaneous connection with 2 mobile phones with full control of
each unit. Just pair the BTSC1100 to the rst phone following the instructions on page 6.
When the rst phone is successfully paired, pair the BTSC1100 to the second phone.
[Note] This feature may not be compatible with certain mobile phones.
Multi-point Connect1)
When the BTSC1100 is turned on it will seek simultaneous connection with the 2 mobiles phones.X
Making a call [via the second mobile phone]2)
Press the Mute/Special function button for last call-redialing from the second mobile phone.X
Press the Mute/Special function button for 2 seconds until you hear a beep sound.Voice Dialing is activated onX
the second phone.
BTSC1100 OM_16.8.10.indd 10 18/8/10 10:41:07 AM

11
[Note] Making a call via the rst mobile phones, please follow the same instruction as
described on “MAKING A CALL”.
Receiving a call - You can hear the ring tones from the unit when incoming call. Press the Multi-3)
Function button to receive call.
[Note] Each mobile phone plays dierent ring tones. When you are on the line, the link
with the other phone will be disconnected. But it will be automatically re-connected
when you terminate the call.
Resetting your BTSC1100
If you are having some trouble with this unit or you want to delete all your information
(paired device information, etc.), you can reset it. Press and hold Volume Up(+) and
Volume Down(-) for about 5 seconds.
[Note] Resetting is only possible when in standby mode after disconnecting with your mobile phones.
SAFETY AND GENERAL INFORMATION
Please read this manual carefully and follow the instruction.1)
To avoid damage or malfunction of the unit, do not drop it from a high place.2)
BTSC1100 OM_16.8.10.indd 11 18/8/10 10:41:07 AM

12
Keep the unit away from humidity, water and any other liquid. If the unit is exposed by water,3)
moisture or other liquid directly, then do not operate it to avoid electrical shock, explosion and
damage to the unit.
Do not place or keep the unit near heat sources such as direct sunlight, radiators, stoves or other4)
apparatus which produce heat. It may cause explosion, degrade performance and reduce battery
life.
Do not modify, repair & disassemble the unit (especially the battery).5)
Do not place heavy objects on the unit.6)
Use only the supplied and approved charger.7)
Replacement or service must be done at a qualied service centre or manufacturer.8)
Unplug this unit when unused for long periods of time or during lightning storms.9)
[CAUTION] ELECTRIC SHOCK HAZARD
The battery used in this device may present a risk of re or chemical burn if mis-treated.
BTSC1100 OM_16.8.10.indd 12 18/8/10 10:41:07 AM

13
Specications
Model Name BTSC1100
Bluetooth Core Spec Bluetooth Speci cationV2.1+EDR
Prole Headset, Hands-free
Carrier Frequency 2402 MHz to 2480 MHz
Audio Output 1 W(8Ω)
Modulation Method GFSK, 1Mbps, 0.5BT Gaussian
Maximum Data Rate Asynchronous: 2178.1kbps / 177.1kbps
Synchronous: 1306.9kbps / 1306.9kbps
Bluetooth Class Class 2
Hopping 1600hops / sec, 1MHz Channel Space
Transmit Power 1 dBm
Coverage Range 10 Metres
BTSC1100 OM_16.8.10.indd 13 18/8/10 10:41:07 AM

14
Specications
Receiver Sensitivity -80 dBm / 0.1% BER
Continuous Talk Time 10 Hours
Stand-by Time 400 Hours
Weight 65g
Dimension 51.2 mm (W) X 112.9 mm (H) X 15.7 mm (D)
Charging Voltage DC 5.0V
Charging Time MAX 3 Hours
OperatingTemperature -20° to +70°C
Storage Temperature -40° to +85°C
Battery Lithium Polymer 3.7V 600mAH
BTSC1100 OM_16.8.10.indd 14 18/8/10 10:41:07 AM

15
WARRANTY
Two Year Limited Warranty
UNIDEN BTSC1100
IMPORTANT Evidence of the original purchase is required for
warranty service.
Warrantor: Uniden Australia Pty Limited ABN 58 001 865 498
Uniden New Zealand Limited
Elements of Warranty: Uniden warrants to the original
retail owner for the duration of this warranty its BTSC1100
(hereinafter referred to as the Product), to be free from defects
in materials and craftsmanship with only the limitations or
exclusions set out below.
Warranty Duration: This warranty to the original retail owner
only is only valid in the original country of purchase and shall
be of no further eect 2 years after the date of original retail
sale. This warranty will be deemed invalid if the Product is:
(A) Damaged or not maintained as reasonable and necessary,
(B) Modied, altered or used as part of any conversion kits,
subassemblies, or any congurations not sold by Uniden, (C)
Improperly installed, (D) Repaired by someone other than an
authorized Uniden Repair Agent for a defect or malfunction
covered by this warranty, (E) Used in conjunction with any
equipment or parts or as a part of a system not manufactured
by Uniden. (F) Only available in the original country of sale.
Parts Covered: This warranty covers for two (2) years, the
Product and included accessories.
Statement of Remedy: In the event that the Product does
not conform to this warranty at any time while this warranty
is in eect, the warrantor, at its discretion, will repair the
defect or replace the Product and return it to you without
charge for parts and service. This warranty does not provide
for reimbursement or payment of incidental or consequential
damages. This EXPRESS WARRANTY is in addition to and does
not in any way aect your rights under the TRADE PRACTICES
ACT 1974 (Cth) (Australia) or the CONSUMER GUARANTEES
ACT (New Zealand).
Procedure for obtaining performance or warranty: in the
event that the Product does not conform to this warranty, the
Product should be shipped or delivered, freight prepaid, with
evidence of original purchase (e.g. a copy of the sales docket)
to the warrantor at
UNIDEN AUSTRALIA
PTY LTD
Service Division
345 Princes Highway,
Rockdale, NSW 2216
Fax [phone]
www.uniden.com.au
UNIDEN NEW ZEALAND LTD
Service Division
150 Harris Road, East Tamaki,
Manukau 2013
Fax [phone]
www.uniden.co.nz
