Uniden BW6101R Series User manual

1
BW6101R Series
For more exciting new products please visit our website:
Australia: www.uniden.com.au
5.0” LCD Portable Wireless
Baby Monitoring System

2
IMPORTANT SAFETY INSTRUCTIONS
This manual contains important information about this product’s operation. If you
are installing this product for others, you must leave this manual or a copy with the
end user.
When using your equipment, always follow basic safety precautions to reduce the
risk of fire, electric shock and injury to persons, including the following:
• This equipment is NOT waterproof. DO NOT expose it to rain or moisture.
• DO NOT immerse any part of the product in water. Do not use this product near
water, e.g., near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
• To avoid any risk of electric shock from lightning, avoid handling any electronic
devices during an electrical storm.
• Use only the power cord and/or batteries indicated in this manual. Never dispose
of any batteries in a fire: they may explode. Check with local codes for possible
special disposal instructions.
• Never tug or pull on any power cord: be sure to leave some slack in the cord
when placing your equipment, and always use the plug to unplug cord from the
wall outlet.
• Never leave power cords where they can become crushed, cut, or frayed; when
running power cords, avoid letting them rub against any sharp edges or lie
across any high traffic areas where people might trip over them.
• Do not use the device if the adaptor cords or plugs have been damaged, the unit
has been exposed to liquids, or the unit has been dropped or is damaged.
Monitor
Keep the screen clean by wiping it with a microfiber cloth to remove fingerprints,
dust, etc.
Camera
When dust and grime builds up on the camera lens and glass, it affects the
camera’s “vision.” Use a microfiber cloth to regularly clean the cameras or when
night vision video is cloudy or unclear.
MAINTAINING YOUR SYSTEM

3
Failure to follow these warnings and the assembly instructions could result in
serious injury or death. This product is not designed or intended for use as a
medical monitor, nor should this product be used as a substitution for medical or
parental supervision. Always be sure that both the transmitter and receiver are
working properly, and are within range of each other.
STRANGULATION HAZARD. Keep the adaptor cords out of the reach of children.
WARNING: KEEP OUT OF THE REACH OF CHILDREN.
Allow for proper ventilation when units are in use. Do not cover the camera or
receiver with any object such as a blanket. Do not place it in a drawer or in any
location which would muffle the sound or interfere with the normal flow of air.
Warning to Parents and Other Users
To avoid damage to your equipment, follow these simple precautions:
• Do not drop, puncture or disassemble any part of the equipment. There are no
user-serviceable parts inside.
• Do not expose the equipment to high temperatures, and avoid leaving the
equipment in direct sunlight for more than a few minutes. Heat can damage the
case or electrical parts.
• Do not place heavy items on top of the equipment or expose the equipment to
heavy pressure.
• Remove the power adaptor during long periods between usages.
• Clean only with a dry cloth.
Failure to follow the instructions in this operating manual will void the
warranty. Uniden assumes no liability for damages to property or injury to
persons caused by improper handling or failure to comply with these safety
instructions.
SAVE THESE INSTRUCTIONS!
For best results

4
CONTENTS
WHAT’S IN THE BOX? .......................................................................................5
GETTING STARTED .............................................................................................6
INSTALLATION..................................................................................................10
MONITOR INSTALLATION ..................................................................................................................... 10
CAMERAINSTALLATION...........................................................................................................................10
PAIRING ............................................................................................................12
PAIRING TWO CAMERAS.................................................................................13
USING THE BABY MONITOR ...........................................................................14
PANAND TILT...............................................................................................................................................14
VOLUME ..................................................................................................................................................... 14
MONITOR BRIGHTNESS ......................................................................................................................... 14
PHOTO ......................................................................................................................................................... 14
VIDEO ........................................................................................................................................................... 14
GALLERY......................................................................................................................................................15
LULLABIES .................................................................................................................................................. 15
NIGHT LIGHT .......................................................................................................................................... 16
SYSTEM MENUS ...............................................................................................17
SPECIAL FEATURES ........................................................................................ 21
REMOTE VIEWING VIA APP ................................................................................................................. 21
LIVEVIEW.....................................................................................................................................................26
HISTORY ...................................................................................................................................................... 27
TROUBLESHOOTING .......................................................................................28
SPECIFICATION . ........................................................................................... 29
TWO-YEAR LIMITED WARRANTY ....................................................................30

5
• If any item is missing or damaged, contact your place of purchase immediately.
Never use damaged products!
• Need help? Get answers at our website:
www.uniden.com.au for Australian model
WHAT’S IN THE BOX?
All trademarks are registered trademarks of their respective owners.
BW6100
Monitor
BW610R
Camera*
AC Adaptor* Screws & Anchors
USB-C Cable*
Reset Pin
Model Name 5.0” Monitor Camera Adaptors
BW6101R 1 1 2 x USB Cable
2 x AC Adaptor
BW6101R+1 1 2 3 x USB Cable
3 x AC Adaptor
* Refer to the table below.
Mounting
Template

6
GETTING STARTED
Camera
4
5
1
2
3
6
7
8
9
10
11
12
13
14

7
Item What it does
1LED night light bars.
2Status Light:
Solid Red: Camera is malfunction.
Slow Blinking Red: Waiting for network configuration.
Fast Blinking Red: Waiting for network connection/ Fail to connect to the
network.
Solid Blue: Camera connected to the network.
3Lens: Camera lens.
4Microphone: Receives sounds for the area near the camera, and
transmitssound from the camera to the monitor.
5Mouting Clip: This fastener can attach the camera to shelves or ledges.
6Temperature and humidity sensor: Detects the temperature and
humidity of the environment.
7Speaker: Produces the sound transmitted from the monitor.
8Power: Press and hold to turn the camera ON or OFF.
9Night Light: Press to turn the night light on or off.
10 Pair: Press and hold until the prompt tone is heard to start pairing.
Video: Press to activate video call feature through the app. Camera
requires internet connection.
11 Reset: Insert and hold the reset pin until the prompt tone is heard to reset
the camera.
12 MicroSD Card Slot: Insert microSD card (up to 128GB) to record video.
13 USB-C Port: Connects the USB cable to the camera.
14 Charging LED:
Red = Charging
Green = Fully charged

8
Monitor
4
1
2
37
6
5
8
9
10
11
12
15
13
14
16
17

9
Item What it does
1 5.0 inch LCD screen.
2Microphone: Capture sounds and transmits it to the camera.
3Charging Status LED:
Orange: Charging.
Green: Fully Charged.
If the monitor unplugged from the power, this LED turns off.
4Power Status:
Off: Monitor is powered Off.
Orange: Monitor is powered On.
5ZOOM:
Single View Mode: Press to zoom the image in 1X, 2X or 4X in single view
mode.
Dual View Mode: Press the zoom key to enter camera selection mode to
select between channel 1 and channel 2.
6MENU: Press to display the menu options.
Press and hold to enter settings interface.
7Up/Down/Left/Right:
Menu: Navigate menu and adjust the settings.
8OK: Press to confirm selection.
Dual View Mode: Press to enter the full screen after channel selection.
9TALK: Activate Intercom function.
10 Return: Press to return/back one level.
Press and hold to stop playing lullaby.
11 Antenna: Receives video and audio signals from the camera(s).
12 POWER: Press and hold to turns on the monitor on. Press and hold until a
screen prompt appear on the screen to shut down the monitor to power off
the monitor.
13 Stand
14 MicroSD Card Slot: Insert microSD card (up to 128GB) to record video.
15 Speaker:
16 Reset: Insert and release the reset pin to reset the monitor.
17 USB-C Port: Connects the USB cable to the monitor.

10
INSTALLATION
Place the monitor in a location with clear reception from your camera(s). If you are
using the monitor as a stand-alone unit, ip out the stand on the back of the monitor
and extend the antenna.
1. Insert one end of the USB-C cable to the USB-C port on the side of the monitor.
2. Connect the other end of the USB cable into the USB power adaptor.
3. Connect the USB power adaptor into a 240 volt AC (standard indoor) power
outlet.
Press and hold the POWER button to turn the unit on or off. Let the monitor charge
for 6 hours prior to rst time use so the built-in rechargeable monitor battery is fully
charged. DO NOT remove the USB cable from the monitor during the initial charge
process. After the initial charge, recharge the monitor as needed.
#We recommend that the device should be fully charged once every three months
with the monitor switched off in order to prolong the device’s battery life.
CAMERA INSTALLATION
The camera and the mounting clip are a complete unit. The camera can be placed
on a shelf or the included mounting clip has two slots that t over screws to mount
or clip the camera on ledges and shelves the unit on the wall.
Placement Considerations
• The camera included with your monitor is NOT weatherproof; it is an indoor
camera.
• The clearest line-of-sight between the camera and monitor is best. Walls,
especially brick and concrete, can affect reception quality.
• Avoid having a direct light source in view of the camera (ceiling or floor lamps).
• Carefully plan where and how the camera will be positioned, and where you will
route the cable that connects the camera to the power adaptor.
• When you are positioning the camera, bring the monitor along; it’s much easier
to get the camera into the right position when you have the display handy. Check
the image on the monitor before you install the camera.
#You can install a maximum of 2 cameras. When adding cameras
that were not included in the original box, you will need to pair the
cameras with the monitor.
MONITOR INSTALLATION

11
Powering the Camera
1. Insert one end of the USB-C cable to the USB-C port on the camera (at the
back of the camera).
2. Connect the other end of the USB cable into the USB power adaptor.
3. Connect the USB power adaptor into a 240 volt AC (standard indoor) power
outlet.
4. Switch on the plug and allow the camera to power up. The pairing indicator will
flash momentarily.
Wall Mount
The camera mounting clip has two slots that t over screws to mount the unit on the
wall.
1. Install the screws to the wall according to the position of the drill template. Do
not tighten the screws to the end, as you need to leave a gap for hanging the
camera.
2. Place the mounting clip over the installed screws and push it downwards,
locking it into place.
3. Adjust the camera as needed.
Clip Mount
Clip the camera on ledges and shelves.
1. Press the mounting clip as shown.
2. Place the unit over the mounting surface
and release.
3. Adjust the camera as needed.

12
Viewing the Camera on Monitor
After the camera and the monitor are powered on, the camera will connect to the
monitor automatically. The camera(s) and the monitor are already paired from
the factory. The viewing range is limited to no more than 150m in line of sight.
Other factors such as house walls, layout and electronic devices will affect the
transmission range.
If the camera is not paired to the monitor or additional camera is added, please pair
the camera to the monitor.
Pairing the camera to the monitor:
1. Press the Menu button on the monitor, and select > Camera Management.
2. Press and hold the pairing button on the camera until you hear the prompt tone.
3. Press OK button on the display screen to start pairing.
Unpair the camera from the monitor:
1. Press the Menu button on the monitor, and select > Camera Management.
2. Press and hold OK button on the monitor to unpair the camera.
PAIRING

13
The BW6101R baby monitor supports up to two camera connections and able to
display two camera feeds at the same time.
To set parameters or enable functions of one of the cameras, you will need to select
the camera first.
Camera Selection:
Press the zoom key on the home page to enter the camera selection mode. The
camera icon will always appear on the live view screen. Press the zoom key to
select the camera to be controlled and press OK to select the camera.
To enjoy one camera view, please press OK again after selecting the camera.

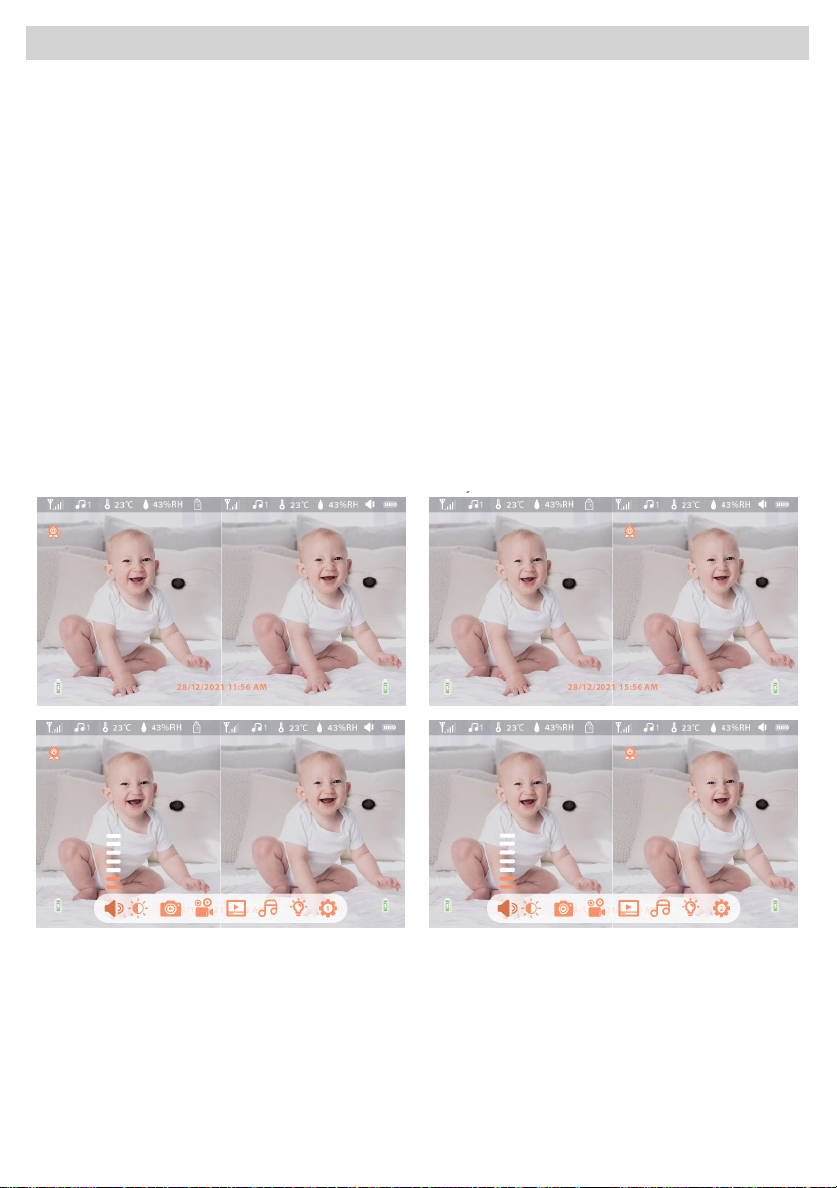

The below interfaces are for reference only.
In addition, the battery level of the camera appearing on each camera view.
PAIRING TWO CAMERAS

14
Volume
This option allows you to adjust the volume level for the monitor.
1. Press Menu button on the monitor and select .
2. Press UP and DOWN direction buttons to adjust to adjust the monitor volume
level.
Monitor Brightness
This option allows you to adjust the brightness level for the monitor.
1. Press Menu button on the monitor and select .
2. Press UP and DOWN direction buttons to adjust to adjust the monitor
brightness.
Take a photo to capture an interesting scene of your baby. Please ensure a micro
SD Card is inserted to take a photo.
Press Menu button on the monitor, select and press OK to take a photo.
Video
Manually record video to capture an interesting scene of your baby. Please ensure a
micro SD Card is inserted to start recording.
1. Press Menu button on the monitor, select and press OK to start recording
2. Press OK again to manually stop the recording.
USING THE BABY MONITOR

15
Gallery
Access recorded video and photo in the micro SD Card.
1. Press Menu button on the monitor, select and press OK enter the interface.
2. Select the camera and date, select the photo or video you want to view,and
press OK to view photo or playback video.
* For a video, press OK to play or pause in the preview mode.
* Press Return button to exit preview or return to main menu.
Lullabies
The monitor comes with four lullabies including white noise audio. Play the lullabies
to sooth your baby when baby is crying or sleeping.
1. Press Menu button on the monitor, select and press OK enter the interface.
2. You can control play, stop, repeat or shuffle the lullabies from the monitor. You
may also adjust the camera speaker volume from the monitor.

16
Night light
This option allows you to switch On/Off the LED indicator and the camera night light
and brightness level for the monitor.
1. Press Menu button on the monitor and select .
2. Press UP and DOWN direction buttons to select either Status Indicator or night
light and press LEFT or RIGHT to switch is On/Off.

17
Feeding Reminder
Set up a reminder alert to feed your baby, or to feed the baby on scheduled time.
1. Press the MENU button on the monitor, and select > Feeding Reminder.
2. Press UP and DOWN direction buttons to select between 4 time options, and
press OK to set the alert time.
3. When setting up the feeding time, press LEFT and RIGHT direction buttons
to change options between hour, minute, second and On/Off; press UP and
DOWN direction buttons to change values or toggle the On/Off switch.
4. Press OK to save settings. You can set up to 4 feeding alert for one day. And
when the set time is up, a feeding alert icon will appear on the screen.
Temperature and Humidity Detection
The baby monitor is able to provide ambient room temperature and humidity level
around the camera as a reference only. If the temperature or humidity falls outside
of a preset range, the system alerts you. Temperature and humidity alert range lets
you set that range.
1. Press the MENU button on the monitor, and select > Temperature and
Humidity Detection.
2. Press UP and DOWN direction buttons to select options between temperature
range, humidity range and out of range reminder, and press OK to confirm
selection.
3. Press LEFT and RIGHT direction buttons to change options, and press UP and
DOWN direction buttons to change values and units.
4. Press OK to save settings.
5. For Out of range reminder option, select to turn on or off the alarm when the
temperature and humidity are out of range.
#Please note that the temperature and humidity indicated in this way should
be used only as a reference, not as an accurate measurement. For a proper
measurement, please use a thermometer or humidity sensor.
SYSTEM MENU

18
Smart Care
Motion Detection detects any movement within camera view; Noise Detection
(VOX) and Cry Detection identifies the volume of the baby’s sound or crying.
When any of the detection is above the set threshold, the monitor screen will lit up
when it is in sleep mode or the screen is in standby mode.
1. Press the MENU button on the monitor, and select > Smart Care.
2. Press UP and DOWN direction buttons to select between motion detection,
noise detection, cry detection and alarm volume, and press OK to confirm
selection.
3. When setting up any the detection mode, press UP and DOWN direction buttons
to adjust sensitivity or turn On/Off.
4. When set up the alert volume, UP and DOWN direction buttons to set the
volume level.
5. Press OK to save settings.
6. There will be an alert when the detection is triggered, press OK to stop the alert.
Sleep Mode
Set the monitor to automatically enter sleep mode according to the length of time
set to increase the monitor standby time.
The Power Saving option will NOT turn on the screen if there is alert triggered
on the camera after the monitor enters sleep mode. The microphone on the
monitor is muted. Press OK or power button to turn on the screen.
The Ordinary option allows any alert triggered to turn the LCD back on and alert
and be heard when the monitor enters sleep mode. The audio from the camera is
active in the background.
Any alert triggered will turn the LCD back on. If none of the detection is active,
press the POWER button on the monitor to turn the LCD back on. The Ordinary
option allows you to listen to the audio from the camera when the monitor enters
sleep mode.
1. Press the MENU button on the monitor, and select > Sleep Mode.
2. Press LEFT and RIGHT direction buttons to select the options between Power
saving or Ordinary. or No and then press OK to proceed with the selection.
3. Press OK to save settings.
4. Press the DOWN, then press UP and DOWN direction buttons to select the time
length settings desired for the monitor to enter sleep mode.
5. Press OK to save settings.

19
Light
Set the camera status LED indicator on or off, and turn on night light if required
or set the lighting mode or the light colour for the night light.
1. Press the MENU button on the monitor, and select > Light.
2. Press UP and DOWN Direction buttons to select between Status light or Night
light, and press OK to confirm selection.
3. Press direction buttons to select options or change settings.
4. Press OK to save settings
SD Card
View the total capacity and the free space left in the micro SD Card if it is inserted
to the monitor. The monitor only supports up to 128GB micro SD Card and only
recognise fat32 type micro SD Card. You may format the SD Card as required and
be sure to backup important files before formatting the micro SD Card.
1. Press the MENU button on the monitor, and select > SD Card
Management.
2. Press OK to format the micro SD Card.
3. Press LEFT and RIGHT direction buttons to change options between Yes or No
and then press OK to proceed with the selection.
Wallpaper
Set the wallpaper of the monitor from the system gallery or you may upload your
preferred wallpaper to the micro SD card and select your favourite image as
wallpaper. The supported format in the micro SD Card is jpeg.
1. Press the MENU button on the monitor, and select > Wallpaper.
2. Press directional buttons to select your preferred wallpaper. Select “+” if you
wish to choose the wallpaper from the micro SD Card.
3. Press LEFT and RIGHT direction buttons to change options between Yes or No
and then press OK to proceed with the selection.

20
Date and Time
Set the monitor to automatically enter sleep mode according to the length of time
set to increase the monitor standby time. Any of the detection triggered will turn
the LCD back on. If none of the detection is active, press the power button on the
monitor to turn the LCD back on.
1. Press the MENU button on the monitor, and select > Date and Time.
2. Select the time length desired for the monitor to enter sleep mode.
3. Press OK to save settings.
Power Save
To extend the battery operating time for the battery powered camera, you may use
this function if the camera solely connected to the monitor.
To view the camera using an app, please ensure the power saving settings for the
camera is turned off. If having issue viewing the camera feed using an app, please
check the camera power saving settings on the monitor or reset the camera and
add it in the Baby Watch Plus app again.
The battery powered camera unit will have the battery level icon indicated on the
home screen of the monitor. Please charge the battery level is low.
Reset
This option allows you to restore your system to factory setting. The monitor will
reboot and all menu settings, WILL be affected by the reset.
1. Press the MENU button on the monitor, and select > Reset.
2. Press OK to reset the monitor.
3. Press LEFT and RIGHT direction buttons to change options between Yes or No
and then press OK to proceed with the selection.
Device Information
1. View the monitor and camera firmware version.
2. Press the MENU button on the monitor, and select > Device Information.
3. Press LEFT and RIGHT direction buttons to toggle between the monitor and
camera firmware information.
