Uniden X76 User manual

X76
Remote Speaker MIC
UHF CB Transceiver
For more exciting new products please visit our website:
Australia: www.uniden.com.au
X76 OM_r5.indd 1X76 OM_r5.indd 1 3/03/2021 5:01:17 PM3/03/2021 5:01:17 PM

Introduction 3
Controls & Connectors 4
Indicators 6
Included with your X76 Transceiver 7
Connecting the Microphone 8
Mounting the MIC Hanger 9
Operation 12
Turning on the Power 12
Setting the Auto Squelch | Monitor 13
Selecting a Channel 14
Transmitting 14
Programming the Instant Priority Channel 15
Recalling the Instant Channel 15
EMG (Emergency Button) 15
Call Function 15
DUAL Watch 16
Using Repeater Channels 16
Operating the UHF CB Radio in Duplex Mode 17
Scanning 18
Open Scan (OS) Mode 18
Group Scan (GS) Mode 19
Priority Watch 20
Add/Remove Channels from OS/GS Scan Memory 20
Selecting the Call tone 21
Busy Channel Lockout 21
Roger Beep 22
CTCSS (Continuous Tone Coded Squelch System) 22
DCS (Digital Coded Squelch) 23
Backlight Colour 23
Backlight Brightness (Dimmer) 23
Key Beep On/Off 24
Speaker Selection 24
CTCSS & DCS Codes Tables 25
UHF CB Channel Guidelines 27
UHF CB Channels & Frequencies 28
Warranty 30
2
Contents
UNIDEN X76 UHF CB Transceiver
X76 OM_r5.indd 2X76 OM_r5.indd 2 3/03/2021 5:01:17 PM3/03/2021 5:01:17 PM

The Uniden X76 is designed to provide you with years of trouble
free service. Its rugged components and materials are capable of
withstanding harsh environments. Please read this Operating Manual
carefully to ensure you gain the optimum performance of the unit.
NOTE
The citizen band radio service is licenced in Australia by
ACMA Radio-communications (Citizen Band Radio Stations)
Class Licence and in New Zealand by MBIE General User
Licence for Citizen Band Radio and operation is subject to
conditions contained in those licenses.
Features
• Narrow Band (NB) 80 Channel
Radio*
• Compact Black Box
• Remote LCD Speaker
Microphone (Remote SPK/MIC)
• 12V DC Power Input
• Transmission Power 5W
• LCD Display with Backlight
• LCD Backlight brightness control
• Signal Strength/ Power Meter
• One touch Instant Emergency
Channel (CH05/CH35)
• Instant Channel Programming
• One touch Instant Channel recall
• Dual Watch
• Duplex Capability*
• Group Scan with Priority Watch
• Open Scan
• Scan Channel Memory for Open
Scan and Group Scan
• Channel Select
• Busy Channel Lock-out Function
• Roger Beep Function
• 5 Different Call Tones
• 50 Built-in CTCSS (Continuous
Tone Coded Squelch System)
and 104 additional DCS (Digital
Coded Squelch) codes
• Volume Control
• Base Speaker
• External Base Speaker Jack
• External Remote Speaker
/MIC Jack
• Power On/Off Push Switch
• Front MIC Jack
• Auto Squelch
• Under and over voltage alert
function
* Refer to p.27 - p.29 for channel
information
3
Introduction
UHF CB TransceiverUNIDEN X76
X76 OM_r5.indd 3X76 OM_r5.indd 3 3/03/2021 5:01:17 PM3/03/2021 5:01:17 PM

4

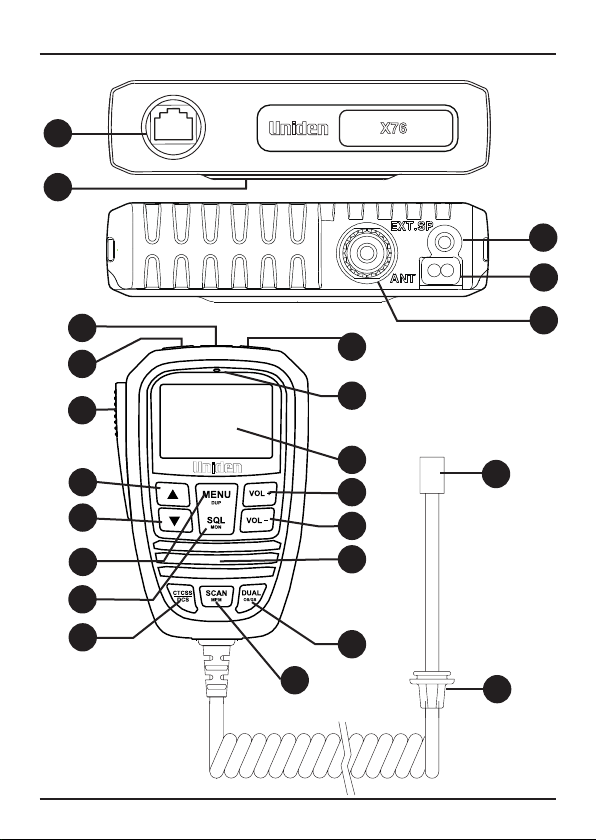

Controls & Connectors
UNIDEN X76 UHF CB Transceiver
6
8
9
16
17
22
23
10
18
19
15
7
3
4
5
2
11
12
1
20
14
13
21
X76 OM_r5.indd 4X76 OM_r5.indd 4 3/03/2021 5:01:17 PM3/03/2021 5:01:17 PM

1MIC Jack
2Base Speaker
3EXT SP - External Speaker
Jack (Base)
4Power Input Connection
(13.8VDC)
5UHF Antenna Connection
6POWER - Power ON/OFF
Button
7INST - Instant Channel
Button
8EMG - Emergency CH 05/35
| CALL - Call Tone
9PTT - Push To Talk Button
10 - Channel/Select Up
Button
11 - Channel/Select Down
Button
12 MENU - Menu/Select Button
| DUP - Duplex Mode
(Repeater)
13 SQL - Auto Squelch Select
| MON - Monitor Mode
14 DCS/CTCSS - DCS &
CTCSS Button
15 Microphone
16 Liquid Crystal Display (LCD)
17 VOL+ Volume Up Button
18 VOL- Volume Down Button
19 Speaker
20 DUAL - Dual Watch Button
| OS (Open Scan)/GS (Group
Scan) Select
21 SCAN - Scan Button
| MEM - Add/Remove CH
from Scan Memory
22 RJ45 plug to Base
23 MIC Jack Cover
5
Controls & Connectors
UNIDEN X76 UHF CB Transceiver
|- Indicates 2nd function
(press & hold)
X76 OM_r5.indd 5X76 OM_r5.indd 5 3/03/2021 5:01:17 PM3/03/2021 5:01:17 PM

UHF CB Transceiver
6
UNIDEN X76
Indicators
7CTCSS/DCS - CTCSS and
DCS Privacy Code Setting
8BCL - Busy Channel Lockout
9Signal Strength Meter
10 RX/TX - Receive/ Transmit
Indicator
11 EM - Emergency Channel
(CH05/CH35)
12 DW - Dual Watch Mode
1Channel Number
2DUP - Duplex Channel
(Repeater)
3PRI - Priority (INSTANT)
Channel
4M- Channel is in (OS/GS)
Memory
5SC - Scanning OS/GS
Channel Memory
6OS/GS - Scan Mode
(Open Scan / Group Scan)
6
11
8
7
2
4
1 3
9
10
5
12
X76 OM_r5.indd 6X76 OM_r5.indd 6 3/03/2021 5:01:18 PM3/03/2021 5:01:18 PM

UHF CB Transceiver
7
UNIDEN X76
Included with your X76 Transceiver
Optional Accessories:
• UHF Antenna
• External Speaker
• Earpiece Mic
Visit the X76 page on the website for more information on the
availability of optional accessories;
www.uniden.com.au for Australia
Remote LCD Speaker
Microphone
Owner’s Manual Microphone Hanger
with screws, washers
Mounting Bracket with
mounting screws
DC Power Cord
with fuse
X76
UHF Mobile Radio
For more exciting new products please visit our website:
Australia: www.uniden.com.au
X76 OM_r5.indd 7X76 OM_r5.indd 7 3/03/2021 5:01:18 PM3/03/2021 5:01:18 PM

MIC Jack
Before connecting the Microphone Jack decide if you need to use the
Extension Cable - simply connect the MIC plug into the jack end of the
Extension Cable
Push the MIC plug or Extension Cable plug into the MIC jack of the radio
until the connection locks into place. Gently tug the MIC or Extension
Cable cord to test that the connection is locked. Use the rubber cover
which is on the cord to seal the MIC jack entry from dust.
Disconnecting the MIC from the MIC Jack
Pull back the rubber cover and move it down along the cord. Using the
at blade of a screwdriver or similar object carefully push the lock tab of
the MIC plug towards the MIC cord and at the same time tug on the MIC
cord to draw back the MIC plug.
8
Connecting the Microphone
UNIDEN X76 UHF CB Transceiver
X76 OM_r5.indd 8X76 OM_r5.indd 8 3/03/2021 5:01:18 PM3/03/2021 5:01:18 PM

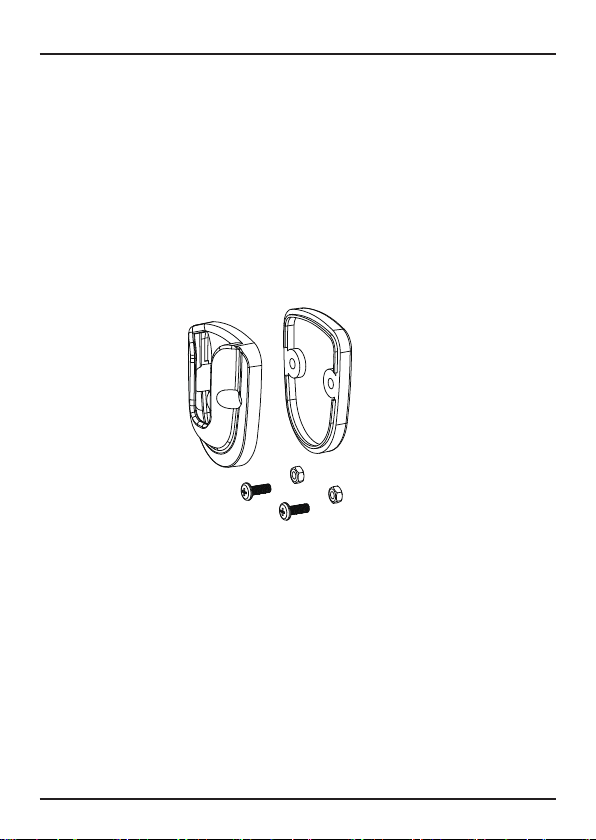

The Microphone Hanger comes in two parts. How and where you mount
the MIC hanger will determine which parts to use.
Conventional Mounting with Screws
Use the front part of the MIC Hanger only.
Locate a suitable mounting position and mark and drill two 3mm holes.
Fix the MIC Hanger into place with screws.
9
Mounting the MIC Hanger
UNIDEN X76 UHF CB Transceiver
X76 OM_r5.indd 9X76 OM_r5.indd 9 3/03/2021 5:01:18 PM3/03/2021 5:01:18 PM

10
UNIDEN X76
Conventional Mounting with Double Sided Tape
(not supplied)
Secure the front and back pieces of the MIC Hanger using the supplied
binding screws.
Locate a suitable mounting position.
Remove (peel off) the plastic covering the adhesive tape on the at area
of the MICHanger back piece and then press rmly to the mounting
position.
Mounting the MIC Hanger
UHF CB Transceiver
X76 OM_r5.indd 10X76 OM_r5.indd 10 3/03/2021 5:01:18 PM3/03/2021 5:01:18 PM

11
this page blank
UNIDEN X76 UHF CB Transceiver
X76 OM_r5.indd 11X76 OM_r5.indd 11 3/03/2021 5:01:18 PM3/03/2021 5:01:18 PM

12
Turning on the Power
Press and hold the [POWER] button.
NOTE
Low-Voltage/High-Voltage Alert
If the power supply voltage exceeds 16VDC, an alert tone
sounds and HI DC ashes for 5 seconds. The power source
must not exceed 25VDC otherwise permanent damage
may occur to your radio, which may not be covered by the
manufacturer’s warranty.
If the input voltage falls below 10VDC, LO DC ashes for 5
seconds. The power turns off automatically if voltage falls
below 8.5VDC.
Switch your X76 OFF and disconnect it from the power source,
before locating the cause of the power supply problem.
UNIDEN X76
Operation
UHF CB Transceiver
X76 OM_r5.indd 12X76 OM_r5.indd 12 3/03/2021 5:01:18 PM3/03/2021 5:01:18 PM

13
Setting the Auto Squelch
The Squelch function is the radio’s signal lter. It determines when the
radio’s speakers turn on, based on the strength of received signals.
This avoids background noise and undesired signals constantly coming
through the speakers.
The Auto Squelch feature has an Off setting and 9 preset squelch levels:
oF (off) - squelch is fully open to noise & signals. Equivalent to Monitor Mode
1 - max sensitivity (min squelch): Weak (distant) signals can open the squelch.
5 - med sensitivity (med squelch): Medium and strong signals can open the squelch.
9 - min sensitivity (max/tight squelch): Strong/nearby signals can open the squelch.
It requires no adjustment.
1. Press [SQL].
The squelch setting ashes.
2. Press / to change the setting.
3. Press [SQL] again to store the setting.
Monitor
The Monitor mode is basically the
squelch function turned off.
Press and hold [SQL] to open the
squelch and receive all weak signals.
Press and hold [SQL] to cancel.
UNIDEN X76
Operation
UHF CB Transceiver
X76 OM_r5.indd 13X76 OM_r5.indd 13 3/03/2021 5:01:19 PM3/03/2021 5:01:19 PM

14
UNIDEN X76

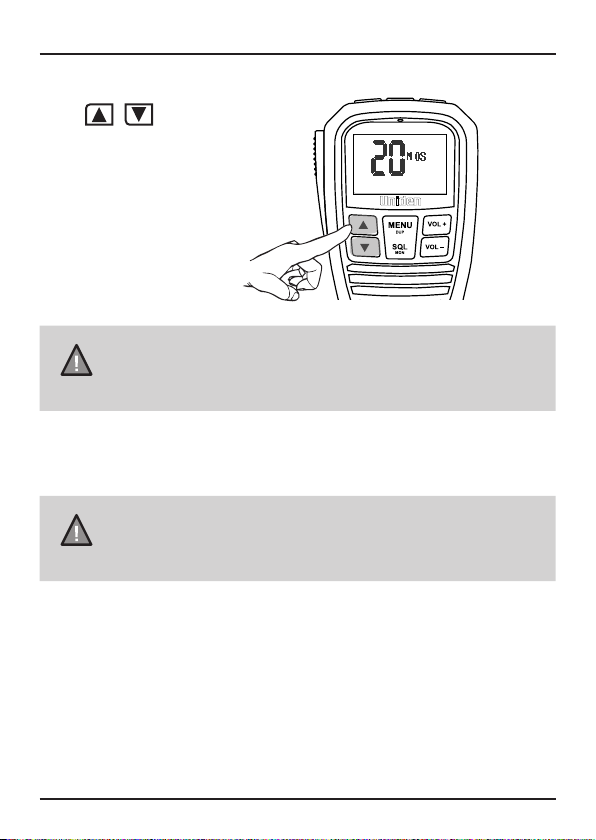

Selecting a Channel
Press / to select the desired
channel.
NOTE
For your reference a list of the available channels,
corresponding frequencies and guidelines for their use is
printed on p.27 - p.29. For Australia, Channels 05 and 35
are reserved for Emergency Calls.
Transmitting
The UHF CB Radio uses UHF-CB Channels.
NOTE
For your reference a list of the available channels,
corresponding frequencies and guidelines for their use and
selection is printed on p.27 - p.29. For Australia, Channels
05 and 35 are reserved for Emergency Calls.
Select the desired channel. Listen to the channel to make sure there is
no activity.
Hold the microphone approx. 7cm from your mouth.
Press the microphone’s [PTT] button and speak in a normal volume
across (not into) the microphone.
Release the [PTT] button to end the transmission and listen for a reply.
Operation
UHF CB Transceiver
X76 OM_r5.indd 14X76 OM_r5.indd 14 3/03/2021 5:01:19 PM3/03/2021 5:01:19 PM

15
UNIDEN X76
Operation

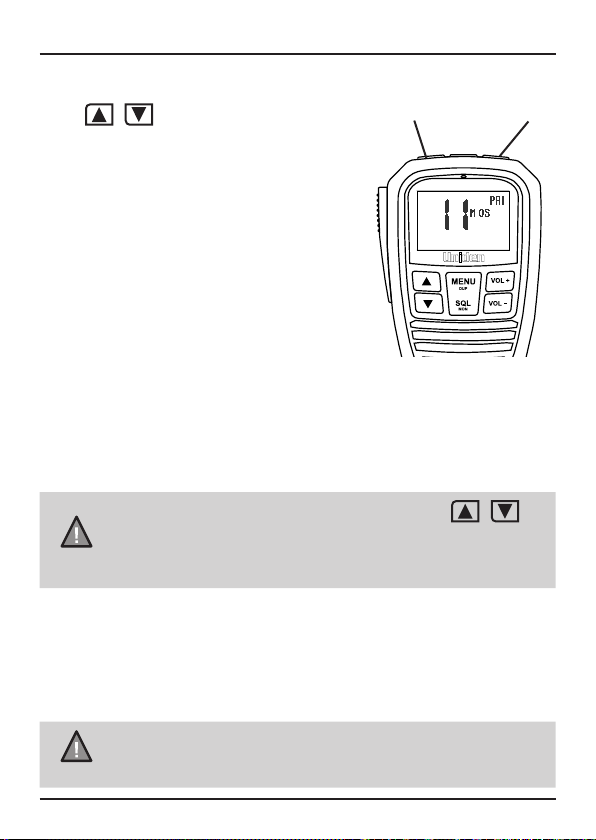

Programming the Instant Priority Channel
Press / to select the Priority
Channel you prefer. Press and hold [INST]
button on the microphone for 2 seconds to
store the new setting. PRI icon appears
for this channel. By default the road channel,
CH11, is the instant priority channel.
Recalling the Instant Channel
Momentarily press the [INST] button on
the microphone at any time to return to
the Instant (PRI) Channel. Press [INST]
again to return to the previous channel.
EMG (Emergency Button)
Press [EMG] to toggle between the current channel and the emergency
channels 05 and 35.
In EMG mode CH 05 and CH35 ash, and the EM icon displays.
NOTE
When in EMG CH05 or EMG CH35 mode, the / ,
[INST], [DCS/CTCSS] and [SCAN] buttons are disabled.
Press [EMG] again to exit EMG mode and return to the
current channel.
Call Function
Press and hold the microphone [CALL] button. A three second ‘wake-up’
ringing tone will be transmitted.
You may select from 5 types of tones (see p.21).
NOTE
Current regulations require calling tones to be restricted to
one transmission per minute. If a second transmission is
attempted within one minute then an error tone will sound.
UHF CB Transceiver
EMG / CALL INST
X76 OM_r5.indd 15X76 OM_r5.indd 15 3/03/2021 5:01:19 PM3/03/2021 5:01:19 PM

16
UNIDEN X76
Operation
DUAL Watch
Dual watch will continuously monitor the Instant channel no matter what
other channel is on (see Programming the Instant Priority Channel p.15).
Press and hold [DUAL]. DW icon appears and a short tone beep is heard.
To cancel DUAL Watch press and hold [DUAL]. DW icon disappears.
Using Repeater Channels
UHF CB repeaters are used to retransmit or relay your signal. Repeaters
will extend the range of your radio and overcome the shielding effect
caused by solid obstructions. In normal Simplex operation, your radio
transmits on one particular frequency and receives on that same
frequency.
If there is a barrier that partially blocks your transmitted signal, the
probability of another radio receiving the signal is very slim. Hills, tall
buildings, metallic structures,...etc tend to act as a screen between radios.
Standard Operation without the aid of a Repeater station.
UHF CB Transceiver
X76 OM_r5.indd 16X76 OM_r5.indd 16 3/03/2021 5:01:19 PM3/03/2021 5:01:19 PM

17
UNIDEN X76
Operation
Operation with the aid of a Repeater Repeater Station (Duplex).
The signal coming from your radio is received by the Repeater Station
and the re-transmitted at the same time on another channel. This
operation is called “Duplexing”.
For example,
CH01 on Duplex Mode will Receive on CH01 but Transmit on CH31
CH02 on Duplex Mode will Receive on CH02 but Transmit on CH32
etc...
If you transmit on CH01 Duplex mode, you are actually transmitting
on CH31. The repeater station down-coverts your signal and
retransmits on CH01.
Operating the UHF CB Radio in Duplex Mode
1. Select a channel you wish to use in Duplex (Repeater) Mode.
Only channels 01 - 08 and 41 - 48 are available for Duplex.
2. Press and hold [MENU]. DUP icon
appears, indicating the current
channel is now in Duplex mode.
3. Press and hold [MENU] again on the
repeater channel to disable Duplex mode.
NOTE
Check with your local Retailer or ACMA (AUS) / RSM (NZ)
website for information on available repeaters.
UHF CB Transceiver
X76 OM_r5.indd 17X76 OM_r5.indd 17 3/03/2021 5:01:19 PM3/03/2021 5:01:19 PM

18
UNIDEN X76
Operation
Scanning
The UHF CB Radio has a scanning feature
that allows you to search for active channels
automatically.
Furthermore, the UHF CB Radio provides two
memory groups to scan from; Open Scan group
(OS) and Group Scan group (GS), to give you
exibility. Channels can be added or removed
from the memory groups, see p.20. Channels in
memory are indicated by the Micon.
Press [SCAN] and scanning of the current
memory group will start. SC ashes during scan.
The scan direction can be changed at any time by pressing / .
Open Scan (OS) Mode
Allows continuous scanning of all channels. By default, all channels are
stored in the Open Scan memory. During Scan, if an active channel is
found, scanning will stop on that channel. If the received signal ceases,
the unit will wait 3 seconds for the signal to return, otherwise scanning
resumes.
After transmission in scan mode, the unit will wait 20 seconds for the
signal to return, otherwise scanning resumes.
To skip the active channel, press / momentarily.
To activate or deactivate SCAN, press [SCAN].
NOTE
If SCAN is deactivated while on an active channel, the UHF
CB Radio will stay on that active channel. If no channels are
active, the UHF CB Radio will reinstate the starting channel.
UHF CB Transceiver
X76 OM_r5.indd 18X76 OM_r5.indd 18 3/03/2021 5:01:20 PM3/03/2021 5:01:20 PM

19
UNIDEN X76
Operation
Group Scan (GS) Mode
Allows scanning of channels added into the Group Scan memory. By
default, the GS memory is empty and channels need to be added before
GS scan can be activated.
To use GS Mode, press and hold [OS/GS].
GS (or OS) appears on the display.
Group Scan includes the accessory feature
Priority Watch, which allows you to monitor
the Instant Priority Channel while scanning
(see p.15 for setting Instant Priority Channel
and p.20 to turn Priority Watch On or Off).
If the Priority Channel becomes active the
radio will stay on that channel for as long as
the signal is present. If the received signal
ceases, Priority Scanning continues after
3 seconds.
If scanning stops on a channel which is not a Priority Channel, the UHF
CB Radio will continue monitoring the Priority Channel for activity while
listening to the active one.
To activate or deactivate SCAN, press [SCAN].
NOTE
If GS Scanning is initiated when there are no channels
programmed in GS memory, an error tone will be heard and
scanning will not start (see Add/Remove Channels from OS/
GS Scan Memory, p.20).
UHF CB Transceiver
X76 OM_r5.indd 19X76 OM_r5.indd 19 3/03/2021 5:01:20 PM3/03/2021 5:01:20 PM

20
UNIDEN X76
Operation
Priority Watch
To switch Priority Watch On/Off;
1. Press [MENU] two times.
The Priority Watch setting ashes.
2. Press / on the Remote SPK/MIC
to change the setting between ON or OFF.
3. Press the PTT button to save &
exit from the menu mode.
NOTE
If SCAN is deactivated while it is tuned to an active channel,
the UHF CB Radio will stay on that active channel.
If none of the channels are active, the UHF CB Radio will
reinstate the scan start channel.
Add/Remove Channels from OS/GS Scan Memory
Select the scan mode (OS or GS) you wish
to add/remove channels from scan memory.
Select the channel you want to add/remove.
Press and hold [MEM] to add/remove.
The mem icon appears or disappears
and a short tone sounds.
UHF CB Transceiver
X76 OM_r5.indd 20X76 OM_r5.indd 20 3/03/2021 5:01:20 PM3/03/2021 5:01:20 PM
