Uniden UH810S-2 User manual

Handheld UHF-CB Transceiver
For more exciting new products please visit our website:
Australia: www.uniden.com.au
UH810S, -2, -2TP
UH820S, -2, -2TP

LITHIUM ION BATTERY PACK WARNING
•This equipment contains a Lithium Ion Battery Pack.
• The Lithium Ion Battery Pack contained in this equipment may
explode if disposed of in a fire.
• Do not short-circuit the Battery Pack.
• Do not charge the Lithium Ion Battery Pack used in this equipment in
any charger other than the one designed to charge this Battery Pack.
Using another charger may damage the Battery Pack or cause the
Battery Pack to explode.
• Lithium Ion batteries must be disposed off properly.
USER LICENSE INFORMATION
NOTE
The citizen band radio service is licensed in Australia by
ACMA Radio-communications (Citizen Band Radio
Stations) Class Licence and in New Zealand by MED
General User Licence for Citizen Band Radio and
operation is subject to conditions contained in those
licenses.
2
Warning
UNIDEN UH810S/UH820S Handheld UHF-CB Transceiver

Introduction 4
Included in your Package 5
Controls and Indicators 6
Getting Started
Connect Drop-in Charger with the AC Adaptor 7
Attaching the Antenna 7
Attaching the Battery Pack 8
Attaching the Beltclip 8
Charging the Battery Pack 9
Battery Level Display 10
Accessory Jack Cover 11
Connecting the SPKR/MIC 11
Operation
Power On/Off 12
Volume 12
Setting the Squelch 12
Selecting Channel 13
To Transmit and Receive 13

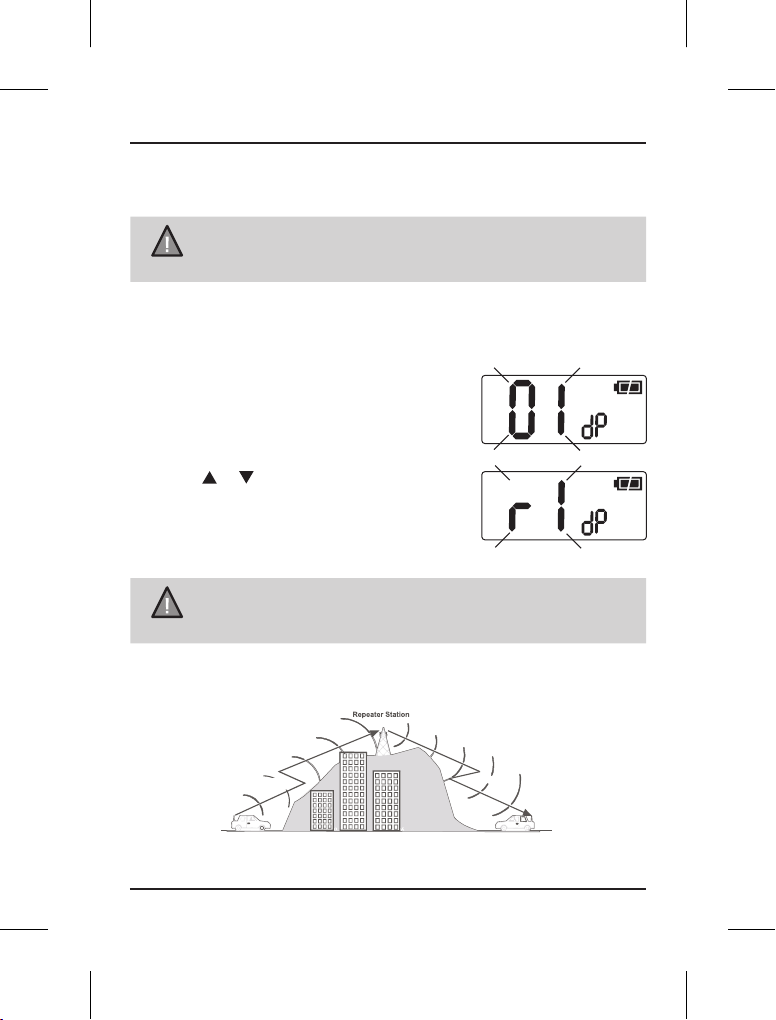

To Operate in Duplex Mode 14
Transmit Power Select 15
Smart-key Function 15

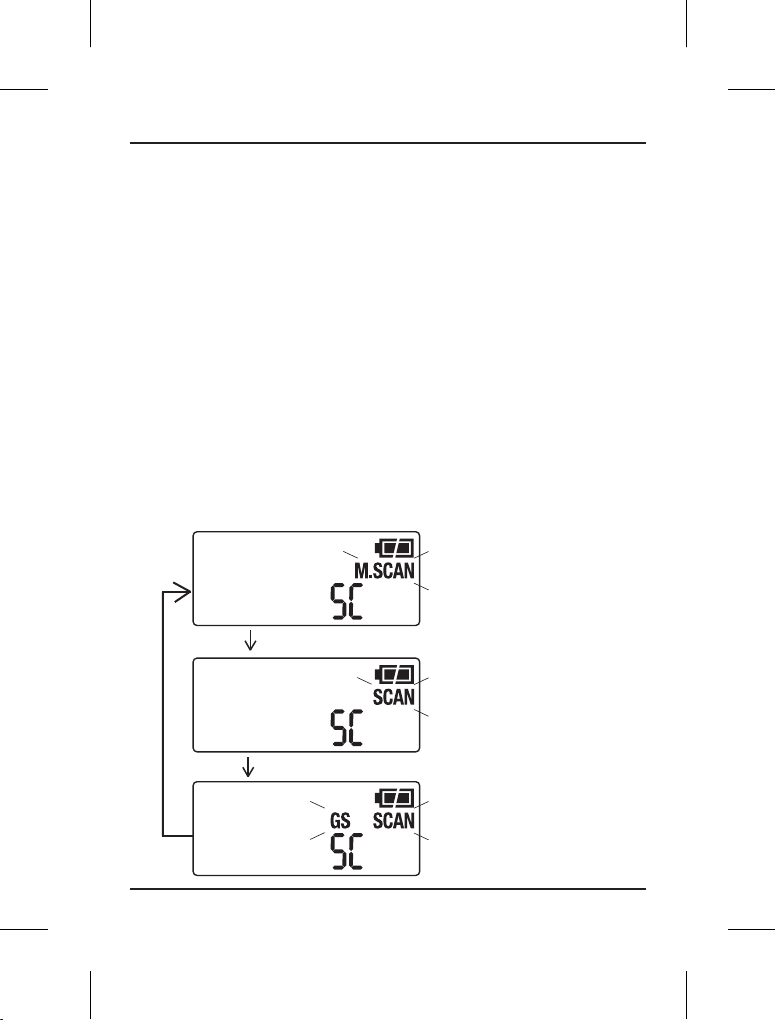

Scanning 15

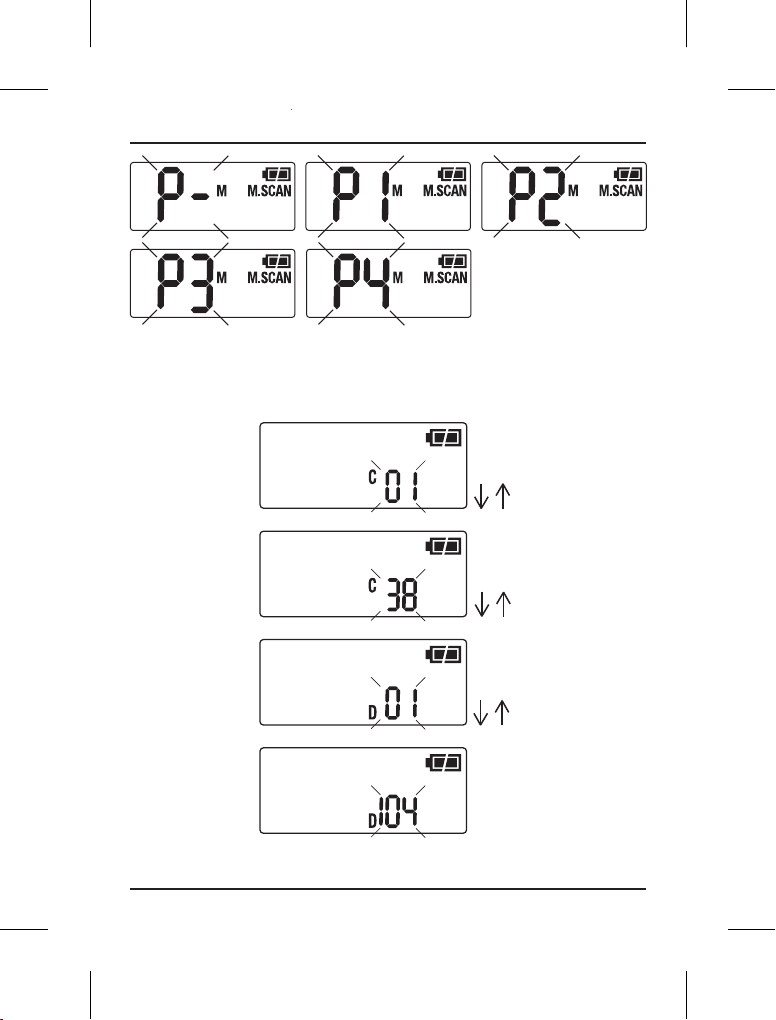

Master Scan (M.SCN) Mode 17
Open Scan (OS) Mode 20
Group Scan (GS) Mode 21
Priority Channel 22
Drop-Out Delay 22
Instant Priority Channel 22
Monitor 23
CTCSS 23
DCS 24
VOX 24
Busy Channel Lock-out (BCL) 25
Call Tone 25
Roger Beep 26
Key Beep 26
Keypad Lock 27
Backlighting
Voice Enhancer (EQL) Setting
27
27
CTCSS Codes and Frequencies 28
DCS Codes Table 29
UHF-CB Channel Guidelines 30
UHF-CB Channels and Frequencies 31
Warranty 33
3
Contents
Handheld UHF-CB Transceiver
UNIDEN UH810S/UH820S

4
Introduction
Handheld UHF-CB Transceiver
The UH810S/UH820S Series is a portable two-way UHF-CB radio. Its
compact, rugged and ts easily in your hand. This hand held UHF-CB
radio will give you consistent, outstanding performance in general
conditions and situations. To ensure that you get the most from the radio
features, please read this operating guide carefully before using the unit.
FEATURES
ŸDesigned and Engineered in Japan
Ÿ80 Narrowband Channels¹
Ÿ2.0 Watt Maximum TX Output Power (UH820S series)
Ÿ1.0 Watt Maximum TX Output Power (UH810S series)
ŸLong Life 1600mA Lithium-ion Battery (UH820S series)
Ÿ1000mA Lithium-ion Battery (UH810S series)
Ÿ4-Way Voice Enhancer
ŸOne-Touch Smart Key
ŸRange Extender (Duplex) Capability
ŸVOX Hands Free Capable
ŸInterference Eliminator (CTCSS)
ŸDigital Coded Squelch (DCS)
ŸBacklit LCD Display
ŸAuto Battery Save
ŸOpen Scan
ŸGroup Scan
ŸMaster Scan
ŸRapid scan speed
ŸBattery Level Indicator
ŸBusy Channel Lockout Function
ŸRoger Beep
ŸKeypad Lock
1 Refer to p.30 - p.32 for channel information
UNIDEN UH810S/UH820S

ITEM UH810S UH810S-2 UH810S-2TP UH820S UH820S-2 UH820S-2TP
UH820S
UHF Radio -- -- -- 1 2 2
UH810S
UHF Radio 1 2 2 -- -- --
1600mAh Li-Ion
Battery Pack (BT820) -- -- -- 1 2 2
1000mAh Li-Ion
Battery Pack (BT810) 1 2 2 -- -- --
Belt Clip 1 2 2 1 2 2
Drop-In Charger (DT820A) -- 1 1 -- 1 1
AC Adaptor
(PS-S05C0BU4) 1 1 1 1 1 1
USB-DC (Cigar)
ADAPTOR (AD-1243) -- -- -- -- 1 1
USB Cable 1 1 1 1 1 1
External Speaker MIC. -- -- -- -- -- 2
Earpiece MIC. -- -- 2 -- 2 2
Battery Jacket -- 1 2 1 2 2
OWNERS MANUAL 1 1 1 1 1 1
Carry Case -- -- 1 -- -- 1
Extra Face Plate -- -- -- -- -- 2
5
Included in your Package
Handheld UHF-CB Transceiver
NOTE
If any of these items are missing from the box, contact your
place of purchase, immediately.
UNIDEN UH810S/UH820S
Optional Accessories
External Speaker MIC (SM-800)
Heavy Duty Earpiece MIC with VOX switch (EM-800)
Air Tube Headset with VOX switch (TM-800)

6
Controls and Indicators
Handheld UHF-CB Transceiver
1 Antenna
2 SCAN/MON
3 Rotary Vol/Power Knob
4 Speaker
5 Accy Speaker MIC Jack
6 Microphone
7 LCD Display
8 USB Charge port
9 UP and DOWN Keys
10 MENU [MEM] Key
11 LED
12 PTT KEY
13 SMART KEY
A Transmit
B Channel Indicator
C Scan CH Memory
D Equalizer indicator
E Group Scan and
Master Scan
F Key Lock
G Master Scan
H Battery Indicator
I Scanning
J VOX
K Busy Channel
Lockout
L CTCSS/DCS
Code Indicator
M Digitally Coded
Squelch
N Continuous Tone
coded Squelch
System
O Priority Watch
P High Power
1
2
3
4
5
6
7
9
11
10
12
13
A B C D E F HG
I
J
K
P
O
N M L
UNIDEN UH810S/UH820S
8

7
Getting Started
Handheld UHF-CB Transceiver

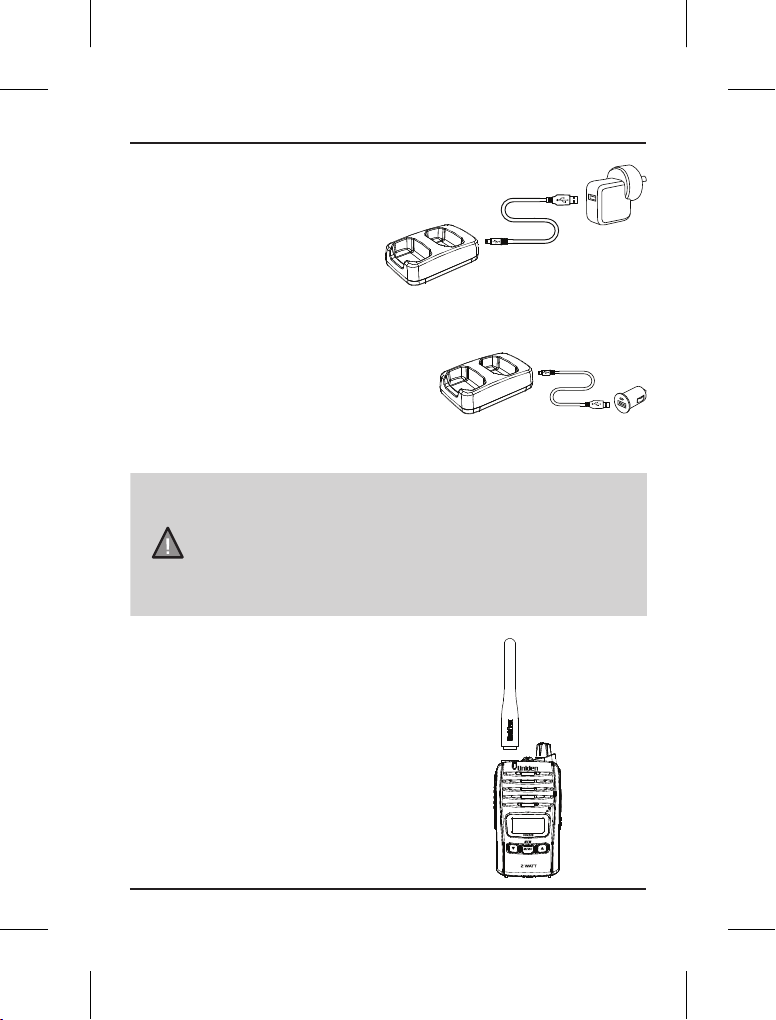

Connect Drop-in Charger with AC Adaptor
Plug one end of the USB cable into
the drop-in charger and the other
end to the AC adaptor. Plug the
AC adaptor into the wall outlet.
Connect the USB cable to the DC Adaptor
OR...
UNIDEN UH810S/UH820S
Included only with the UH820S-2/UH820S-2TP
and connect the DC Adaptor to a
Cigarette Lighter Jack.
Connect the USB cable directly to the charge jack of the radio.
OR...
Attaching the Antenna
Attach the antenna to the radio.
Be sure the antenna is firmly seated.
The drop-in charger and DC charging adaptor are not water
NOTE
proof. Ensure the radio is dry before connecting to the
charger. Don’t use the chargers when the ambient
temperature is below 5º C (37º F) or above 40º C (108º F)
Input Voltage (Cigarette Lead Charger): +12VDC to
+24VDC. If Charge LED didn’t light up, please confirm the
above temperature.

8
Getting Started
Handheld UHF-CB
Attaching
Transceiver
the Battery Pack
Avoid exposing the Lithium Ion battery, attached or
CAUTION
unattached to the radio, in direct sunshine, heated cars, or
in areas with temperatures below –20°C (–4°F) or above
+60°C (+140°F).
Exposing the chemicals contained within the battery pack to
temperatures above +60 °C (+140°F) may cause the battery
to rupture, fail or reduce performance.
In case of exposure to cell contents, wash the affected area
thoroughly, and seek medical attention.
Additional battery cautions should be applied as described
on p.2.
To Attach the Belt Clip:
Slide the belt clip into the catch until it snaps into place.
To Remove the Belt Clip:
Pinch and hold the belt clip latch and then slide the belt clip up
and out of the catch.
UNIDEN UH810S/UH820S
The UH810S and UH820S series radios can be
powered with a lithium ion battery pack or with
optional 3xAA batteries tted into the battery jacket.
1. Remove COVER BATTERY
2. Place the battery pack onto the back of the
radio. It will only t one way.
3. While holding down the locking hook, slide
COVER BATTERY onto the back of Radio.
4. Completely slide in and then release the locking hook.
NOTE
The radio can be charged in the drop-in cradle on only
when the rechargeable lithium-ion battery is tted.

9
Getting Started
Handheld UHF-CB Transceiver
Your radio is powered by a specially designed Lithium Ion battery pack.
• Before operating the radio, charge the Lithium Ion battery pack for
4 hours (UH820S) or 3 hours (UH810S) without interruption in the
drop-in charger.
The drop-in charger can charge the Lithium Ion battery pack attached to
the radio, in the front charging slot.
1. Place the radio, in the drop-in charger.
2. The red LED illuminates and stays ON, until fully charged.
• The charger won’t overcharge the battery packs.
3. The green LED illuminates and stays ON after charging is
completed.
• Do not transmit when the radio is charging; in the drop-in
charger or when connected to the DC adaptor!
• You can monitor incoming calls while the radio is in the drop-in
charger.
Charging the Battery Pack
For the initial battery charge, make sure the radio is off for
NOTE optimum charging.
UNIDEN UH810S/UH820S

Getting Started
10 Handheld UHF-CB Transceiver

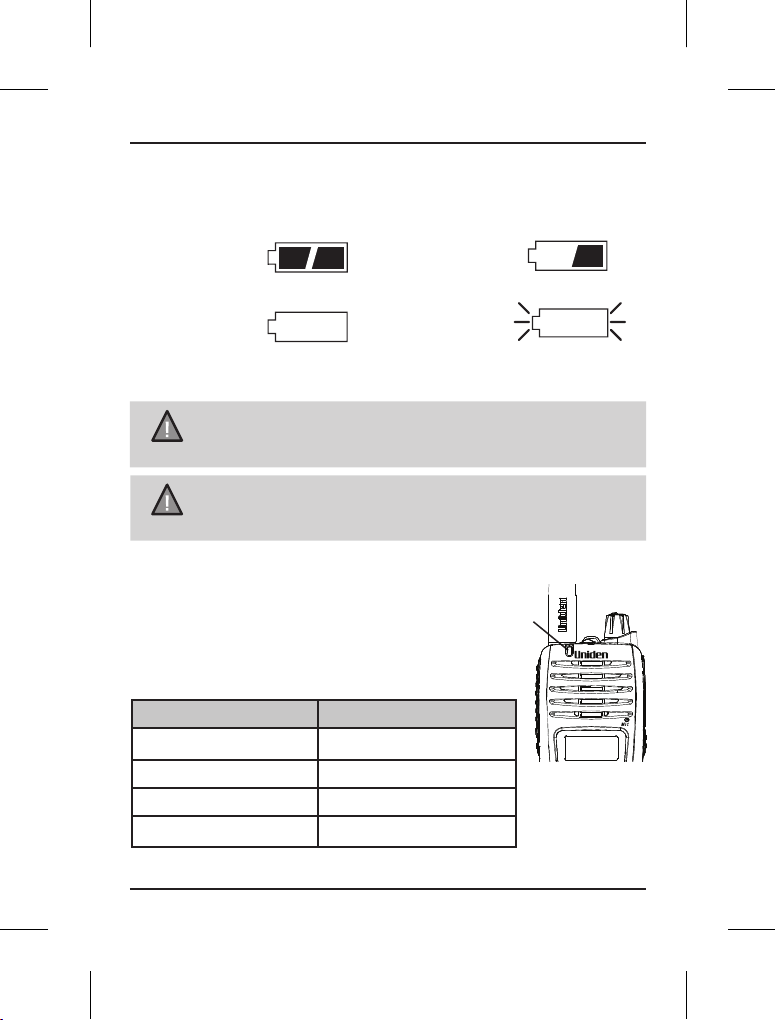

Battery Level Display
When (PTT) is pressed at Level 1, an error tone sounds
NOTE
and transmission is disabled. Once at Level 1 the unit
will automatically shutdown after 30 seconds.
NOTE
Recharge the battery at any time. When the battery is
empty, it will take up to 4 hours (UH820S) or 3 hours
(UH810S) to fully charge.
Battery Life: More than; 21 hours (UH820S) or 15 hours (UH810S)
This is based on the following Duty Cycle:
Transmit (Low Power) 5%
Receive 5%
Stand-by 90%
LED Status
LED What it Indicates
Green Start Up/Power on
Green Flash Monitor mode
Green Receiving Signal
Red Transmitting signal
LED
UNIDEN UH810S/UH820S
The BATTERY icon at the top of the screen indicates the battery level at
all times. The battery level is displayed in 4 levels.
LEVEL 4 LEVEL 3
Battery 100% full Battery approx.
40% capacity
LEVEL 2 LEVEL 1
Low Battery (ashing)
Empty Battery
At LEVEL 2, low battery alert will be sounded every 15 minutes.

11 Handheld UHF-CB Transceiver
Getting Started
Accessory Jack Cover
Make sure the Accessory Jack Cover is rmly pushed in to maintain
submersible rating.
Connecting the Earpiece MIC or SPKR/MIC.
UNIDEN UH810S/UH820S
Release the Accessory Jack Cover to plug in the Earpiece MIC
or SPKR/MIC.

12
Operation

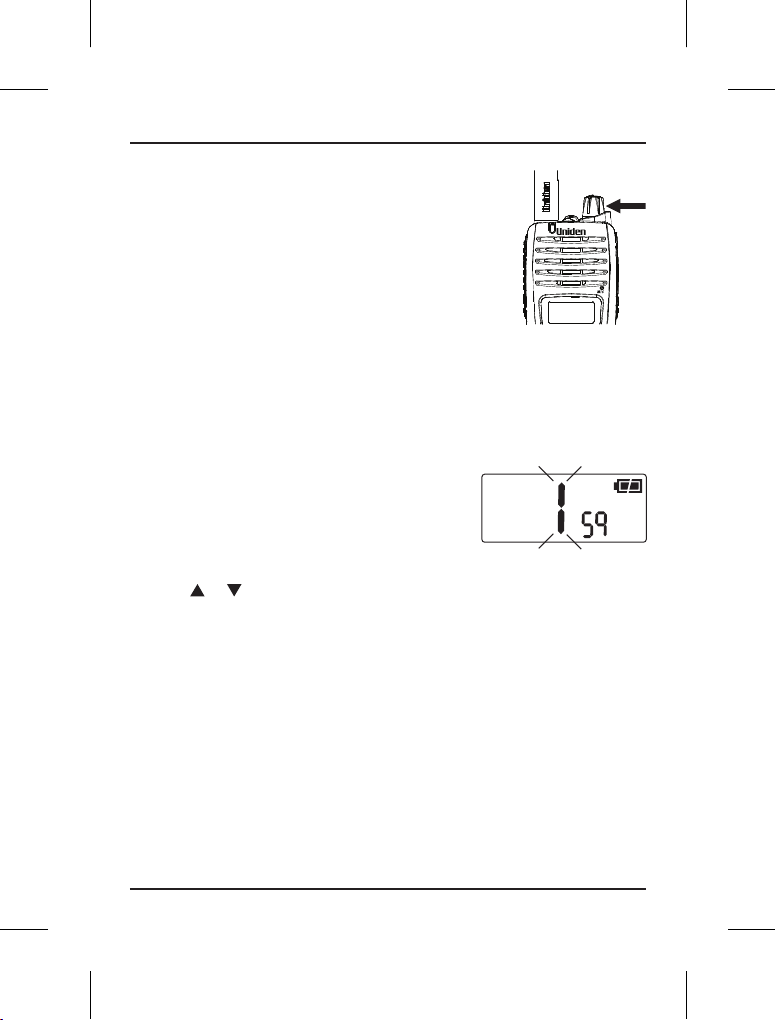

Power On/Off
Handheld UHF-CB Transceiver
1. To turn the unit ON, rotate the [ON/OFF VOL]
knob clockwise. A channel number and battery
level should appear on the display.
2. To turn the unit OFF, rotate the [ON/OFF VOL]
counter-clockwise. The display will disappear.
Volume
Rotate the [ON/OFF VOL]
speaker volume to desired listening level.
Setting The Squelch
The squelch is used to eliminate any annoying background noise when
there are no signals present.
Auto/Sq 1 - max sensitivity (min squelch)
Sq 5 - min sensitivity (max/tight squelch)
1.
current squelch level will ash on the display.
2. Use or to change the squelch level from
Auto/1 to 5.
3. Press & hold [MENU/MEM] to save and exit.
knob clockwise or counter-clockwise to adjust
Press [MENU/MEM] 2 times. Sq and the
UNIDEN UH810S/UH820S

13 Handheld UHF-CB Transceiver
Operation
Selecting A Channel
Press or to select the desired channel.
NOTE
If you press and hold or the
channel numbers will scroll rapidly.
To Transmit and Receive
The radio uses the UHF-CB Channels.
For your reference a list of the available
channels and corresponding frequencies
is printed on p.31 - p.32. (Channels 22
and 23 are for telemetry and
telecommand applications, channels 61,
62 and 63 are for future use. TX is
inhibited on these channels.)
The maximum RF transmit power of

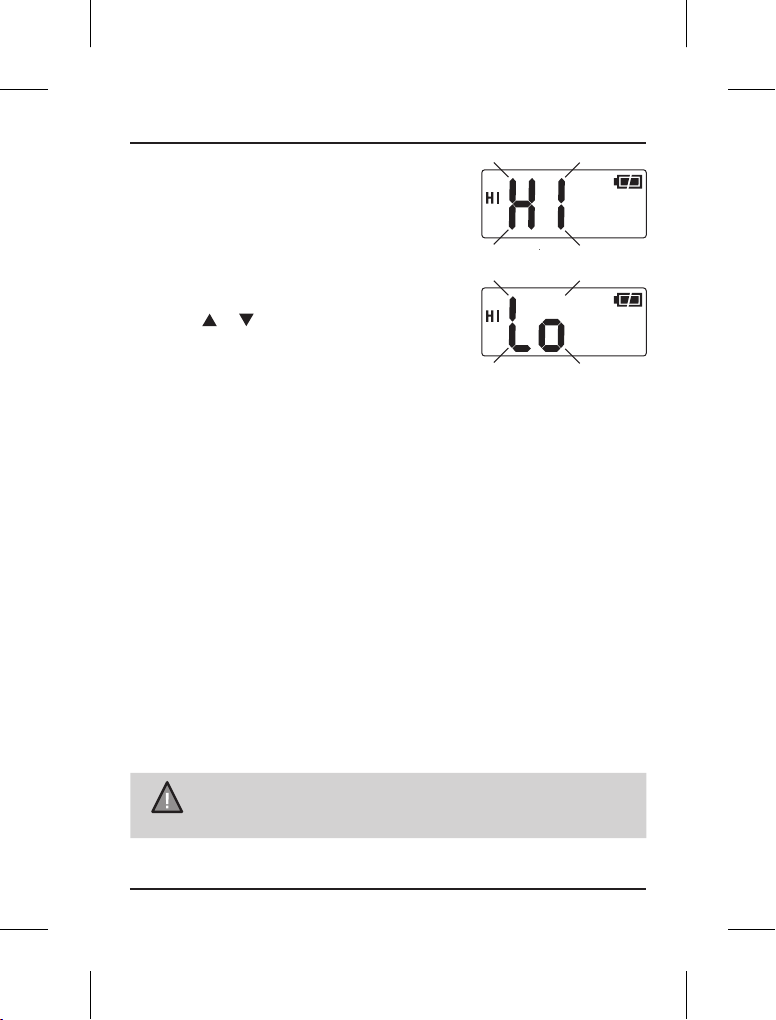

UH810S is 1.0W and UH820S is 2.0W. (see Transmit Power Select, p.15.)
1. Before you transmit, listen for activity on the selected channel.
2. When the channel is clear;
- Press [PTT] to transmit at the selected Hi/Lo transmit power,
TX appears on the LCD and LED lights red during transmit.
Hold the radio with microphone approximately 5cm in front of your mouth
with the antenna at approximately 45° angle away from your head.
Speak in a clear, normal conversational voice.
4. When you have finished speaking, release [PTT] and listen for a
response then TX disappears on the LCD. LED lights green while
receiving a signal.
UNIDEN UH810S/UH820S

14
Operation
Handheld UHF-CB
To
Transceiver
Operate In Duplex Mode (Repeaters)
The Duplex function enables you to access local repeater stations.
NOTE
You can only activate Duplex on CH01-CH08
and CH41-CH48.
UHF CB Repeaters are used to retransmit or relay your signal. Repeaters
will extend the range of your radio and overcome the shielding effect
caused by solid obstructions.
Eg. CH01 is being used in your area
for repeater use.
1. Press [MENU/MEM] 4 times.
2. Press or to change the selection.
r appears for CH01-CH08 and n appears
for CH41-CH48 when duplex is selected.
3. Press & hold [MENU/MEM] to save and exit.
NOTE
Contact your retailer for a list of repeaters
available in your area.
Operation with the aid of a Repeater
UNIDEN UH810S/UH820S

15 Handheld UHF-CB Transceiver
Operation
Transmit Power Select
This radio has two transmit power levels:
Hi: 1.0 Watt (UH810S) / 2.0 Watt (UH820S)
Lo: 0.5 Watt.
To change your transmit power level:
1. Press [MENU/MEM].
2. Press or to change the
setting to Hi or Lo.
3. Press & hold [MENU/MEM] to save and exit.
Scanning
There are 3 scanning modes;
Open Scan (OS),
Group Scan (GS) and
Master Scan (M.SCN) (a special case Group Scan)
During SCAN the radio only checks channels or frequencies that are
in the SCAN Memory, which are indicated by the M (memory) icon. The
radio maintains two SCAN Memories; one for Open Scan (OS) mode
and the other for Group Scan (GS) mode, to give you flexibility and allow
you to use the radio more effectively.
NOTE
TX Power Low
TX Power High
Smart-key Function
The smart key [S] provides one touch access to one of these functions;
Instant Channel, Call Tone, Voice Enhancer or Key Lock.
Press & hold [S] to change the smart key function between the four
options.
UNIDEN UH810S/UH820S
Group Scan and Master Scan modes share the same
SCAN Memory.

16
Operation
Handheld UHF-CB Transceiver
To initiate scanning,
1. Press [SCAN/MON] to start Scanning.
2. The SCAN icon flashes.
3. The scan direction can be changed at any time by pressing ▼or ▲.
4. Press [SCAN/MON] to start Scanning.
To select scan mode,
1. Press [MENU/MEM] 7 times.
2. Press ▲ or ▼ to change the setting to M.SCAN (Master Scan),
SCAN (Open Scan) or GS SCAN (Group Scan)
3. Press & hold [MENU/MEM] to save and exit.
The selected scan mode appears on the display.
MS (Master Scan)
OS (Open Scan)
GS (Group Scan)
Press ▲ or ▼ to change the setting
UNIDEN UH810S/UH820S
Press ▲ or ▼ to change the setting

17 Handheld UHF-CB Transceiver
Operation
Add/Remove Channels from Memory
1. Select which Scanning Mode you wish to use on the channel OS, GS
or M.SCAN Mode.
NOTE
OS is indicated by the absence of the GS or M.SCAN icon.
2 . Select the channel you want to store by pressing ▼or ▲.
3. Press and hold [MENU/MEM] to store.
4. To remove the channel from Memory, Press and hold [MENU/MEM]
to remove. M icon disappears.
MASTER SCAN Mode
MASTER SCAN is the default scan mode and is enabled to allow
continual communication across congested channels.
Master Scan scans channels stored into GS Memory and only opens the
squelch for signals with the correct subcode (CTCSS or DCS tone).
To achieve this, all radios in your group must have the same channels
in GS memory (group channels) and use the same Subcode (CTCSS or
DCS tone).
By scanning only group channels, radios in the network will be able to
detect and receive group transmissions- continual communication with-
out interruption. When transmitting in this mode, the radio switches to
an unused group channel if it detects another signal with no code, or the
wrong code, on the channel last used by the group. In this way, all group
users will be able to have continual communication to or from other
users.
CH09-CH20 are stored into GS Memory and CTCSS01 is set for
MASTER SCAN Subcode by default. The GS memory can be changed,
UNIDEN UH810S/UH820S

18
Operation
channel by channel, if desired, but for Master Scan to work effectively
each radio in the group must have the same channels in its GS memory.
To add/remove channels from GS SCAN Memory, refer the section
above.
RX only Channels (CH22, CH23, CH61, CH62 and CH63)
NOTE
will not be included in MASTER SCAN Mode even though
stored into GS Memory. Also channels for which Duplex
Setting are On will be skipped in MASTER SCAN Mode.
To operate in MASTER SCAN mode,
1. Press [MENU/MEM] 7 times.
2. Press ▲ or ▼ to change the setting to M.SCAN (Master Scan),
SCAN (Open Scan) or GS SCAN (Group Scan)
3. Press & hold [MENU/MEM] to save and exit.
Handheld UHF-CB Transceiver
To change MASTER SCAN settings,
1. Press [MENU/MEM] key 8 times. The M.SCAN setting ashes.
2. Change to the following setting by pressing or .
P-: Master Scan uses current CH in GS memory
P1: Master Scan uses CH09-20 in GS.
P2: Master Scan uses CH21-30, 39, 40 in GS.
P3: Master Scan uses CH49-60 in GS.
P4: Master Scan uses CH61-70, 79, 80 in GS.
▼ ▲
UNIDEN UH810S/UH820S

19 Handheld UHF-CB Transceiver
Operation
UNIDEN UH810S/UH820S
3. Press [MENU/MEM] one more time.
4. Select the desired Subcode (CTCSS DCS) or by pressing or .▼ ▲

20
Operation
5. Press and hold the [MENU/MEM] to save and exit from the Menu
Mode.
If a button is not pressed within 10 seconds the UHF CB
NOTE Radio will automatically exit the Menu Mode.
Open Scan (OS) Mode
All UHF-CB have been added to the OS SCAN Memory for convenience.
To add/remove channels from OS SCAN Memory, refer to p.17.
Allows continuous scanning of all selected channels. If an active channel
is found, scanning will stop on that channel. If the received signal
ceases, the unit will wait 2 seconds for the signal to return, otherwise
scanning re s u mes.
After transmission in scan mode, the scan mode will be cancelled.
To select OS scan mode,
1. Press [MENU/MEM] 7 times.
2. Press ▲ or ▼ to change the setting to SCAN (Open Scan).
3. Press & hold [MENU/MEM] to save and exit.
NOTE
OS Mode is indicated by the absence of the
GS and M.SCAN icons.
If SCAN is deactivated while on an active channel, the
NOTE
radio will stay on that active channel. If no channels are
active, the radio will reinstate the starting channel.
Handheld UHF-CB Transceiver
UNIDEN UH810S/UH820S
