Uniden PRO5050 User manual

PRO5050
AM-CB Transceiver
For more exciting new products please visit our website:
Australia: www.uniden.com.au

Introduction 3
Controls & Connectors 5
Indicators 7
Included with your PRO5050 8
Optional Accessories 9
DIN Installation 10
Connecting the Microphone 12
Mounting the MIC Hanger 13
Operation 14
Turning on the Power 14
Setting the Volume 14
Setting the Manual Squelch 15
Monitor 15
Selecting a Channel 16
Programming the Instant Priority Channel 16
Recalling the Instant Channel 16
Transmitting 16
Call Tone Function (Wake Up Tones) 17
DUAL Watch 17
Scanning 18
Open Scan (OS) Mode 19
Group Scan (GS) Mode 19
Priority Watch 20
Add/Remove Channels from SCAN Memory 20
Selecting the Call Tone 21
Busy Channel Lockout 21
Roger Beep 22
Key Beep On/Off 22
Backlight Level 23
Backlight Colour 23
ANL/NB (Automatic Noise Limiter + Noise Blanker) 23
AM CB Channels & Frequencies 24
Warranty 25
Contents
2
UNIDEN PRO5050 AM-CB Transceiver

Introduction
3
UNIDEN PRO5050 AM-CB Transceiver
The Uniden PRO5050 is designed to provide you with years of trouble free service. Its
rugged components and materials are capable of withstanding harsh environments.
Please read this Operating Manual carefully to ensure you gain the optimum
performance of the unit.
NOTE
The citizen band radio service is licenced in Australia by ACMA
Radio-communications (Citizen Band Radio Stations) Class Licence
and in New Zealand by MBIE General User Licence for Citizen Band
Radio and operation is subject to conditions contained in those licenses.
Features
• Transmit & Receive 40 channels (AM-CB
• Transmission Power 5W
• LCD Display with Backlight
• LCD Backlight brightness control
(HI/LO/OFF)
• Mobile DIN Size
• Front Speaker
• Signal Strength and RF Power (S/RF)
Meter
• Automatic Noise Limiter + Noise Blanker
(ANL/NB)
• Instant Priority Channel Programming
• One touch Instant Priority Channel
recalling
• Dual Watch with Instant Priority Channel
• Group Scan and Priority Watch
• Open Scan
• Scan Channel Memory On/Off separately
with Open Scan, Group Scan
• Rotary Channel Select
• Busy Channel Lock-out Function
• Roger Beep Function On/Off
• 5 Different Call Tones
• Front and Rear MIC Jacks for increased
mounting options
• Channel Monitor
• 12/24 Volt input
• Battery Voltage Alert

Introduction
Preventive Maintenance
The following system checks should be made every six to twelve months:
• Check the Standing Wave Ratio (SWR).
• Inspect the tightness of all electrical connections.
• Inspect the antenna coaxial cable for wear or breaks on the shielding.
• Inspect the tightness of all screws and other mounting hardware.
Troubleshooting
Should the unit malfunction or perform poorly, follow these procedures:
If the transceiver is completely inoperative: Check the power cord and fuse.
If there is trouble with receiving: Check the VOLUME control setting. Be sure the
SQUELCH is adjusted properly. Possibly the radio is over-squelched.
If there is trouble with transmitting: Check that the transmission line (coaxial cable)
is securely connected to the ANTENNA connector. Check that the antenna is fully
extended for proper operation. Check that all transmission line (coaxial cable)
connections are secure and free of corrosion.
4
UNIDEN PRO5050 AM-CB Transceiver

Controls & Connectors
5
UNIDEN PRO5050 AM-CB Transceiver

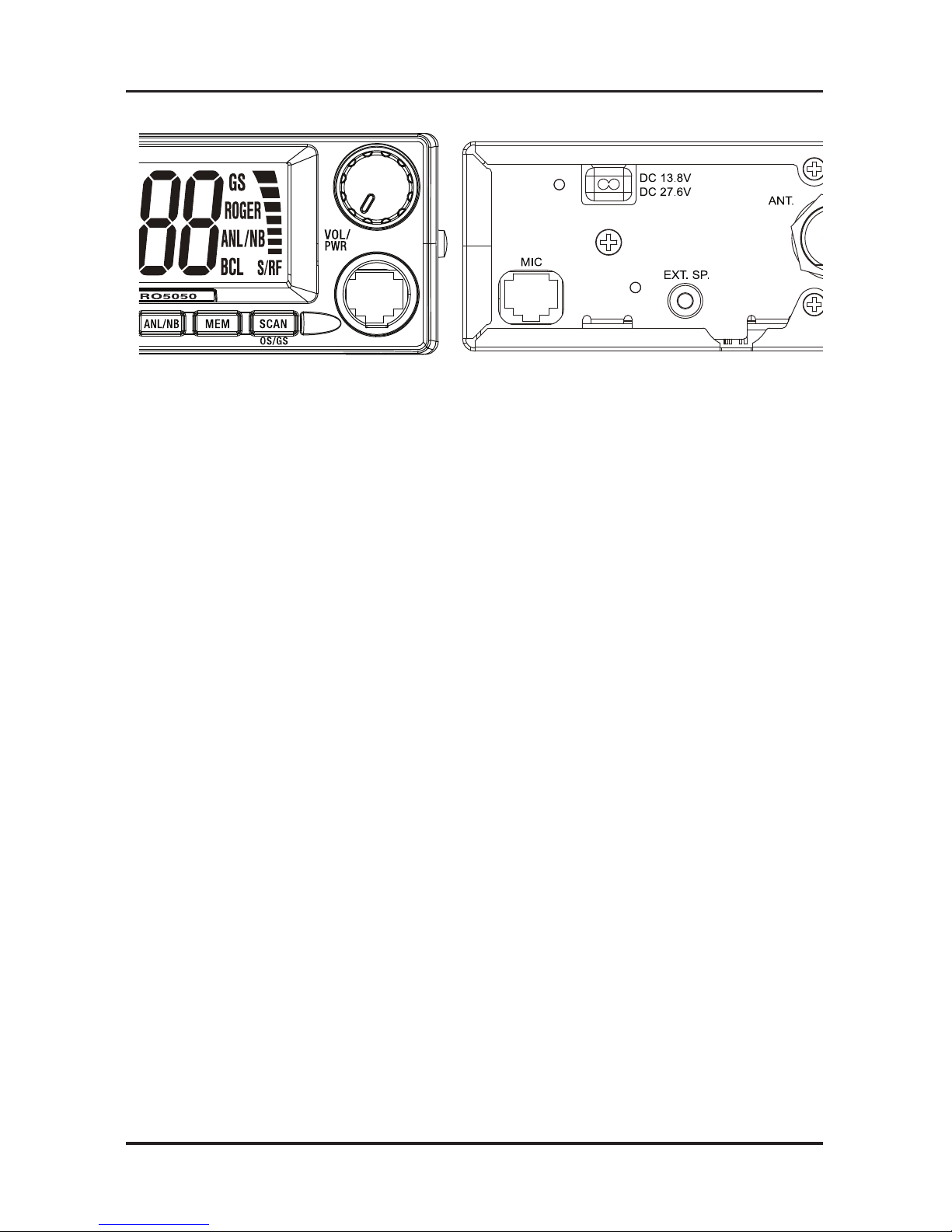

PRO5050 Base Front View
234567 8
19
1 CH - Rotary CHANNEL Selector
2 SQ - Rotary Squelch control
3 MENU/ENTER - Menu and Select button
4 DUAL/MON- Dual watch and Monitor
button
5 ANL/NB - Automatic Noise Limiter+ Noise
Blanker
11
12 13 14
6 MEM - Memory Scan Channels
7 SCAN - Scan On/Off
OS/GS - Open or Group Scan
8 MIC - Front Microphone Jack
9 VOL/PWR - Rotary Volume Control
Power On/Off Push control
10 Liquid Crystal Display (LCD)
Controls and Connectors
Connectors
11 Power Input Connection
12 Rear MIC Jack
13 External Speaker Jack
14 Antenna Connection
PRO5050 Base Rear View
10

CALL INST
UH7700 NB Series Standard Microphone
Standard Microphone
15 CALL - Call Tone Button
16 INST - Instant Channel Button
17 PTT - Push To Talk Button
18 MICROPHONE
19 RJ45 type plug
20 Front MIC Jack Cover
Controls and Connectors
6
UNIDEN PRO5050 AM-CB Transceiver
Controls & Connectors
15 16
17
20
19
18

Indicators
7
UNIDEN PRO5050 AM-CB Transceiver
1 TX - Transmit
2BUSY - Busy
3 PRI M- Priority Channel Watch
Channel in Memory
4 Channel Number
5 GS - Group Scan
6 Signal Power Level
7 ROGER - Roger Beep
8 ANL/NB - Automatic Noise Limiter+Noise
Blanker
9 S/RF- Receive Signal or Transmit
10 BCL - Busy Channel Lockout
11 Channel Frequency
12 INST - Instant Channel
13 DUAL - Dual Watch
14 SCAN - Scanning
23456
7
8
1
11
12
14
13
9
10

8
UNIDEN PRO5050 AM-CB Transceiver
Included with your PRO5050 Transceiver
Standard Microphone
(MK800(s))
Owner’s Manual Microphone Hanger with
screws, washers
DC Power Cord
with fuse
PRO5050
AM CB Transceiver
For more exciting new products please visit our website:
Australia: www.uniden.com.au
Din Mount Sleeve,
Removable Bracket &
Screws
CALL INST
UH7700 NB Series Standard Microphone

Optional Accessories
9
UNIDEN PRO5050 AM-CB Transceiver
External Speaker (MS100)
Extension Cable
(EC 770)

10
UNIDEN PRO5050 AM-CB Transceiver
DIN Installation
Mounting Using the DIN Bracket
If you are unsure about how to install your radio in your vehicle using the DIN
bracket, consult your automobile manufacturer, dealer, or a qualied installer. The DIN
bracket is made up of a sleeve and a frame.
Before installing, conrm that your radio ts in the desired mounting area and you have
all the necessary materials to complete the task.

DIN Installation
11
UNIDEN PRO5050 AM-CB Transceiver

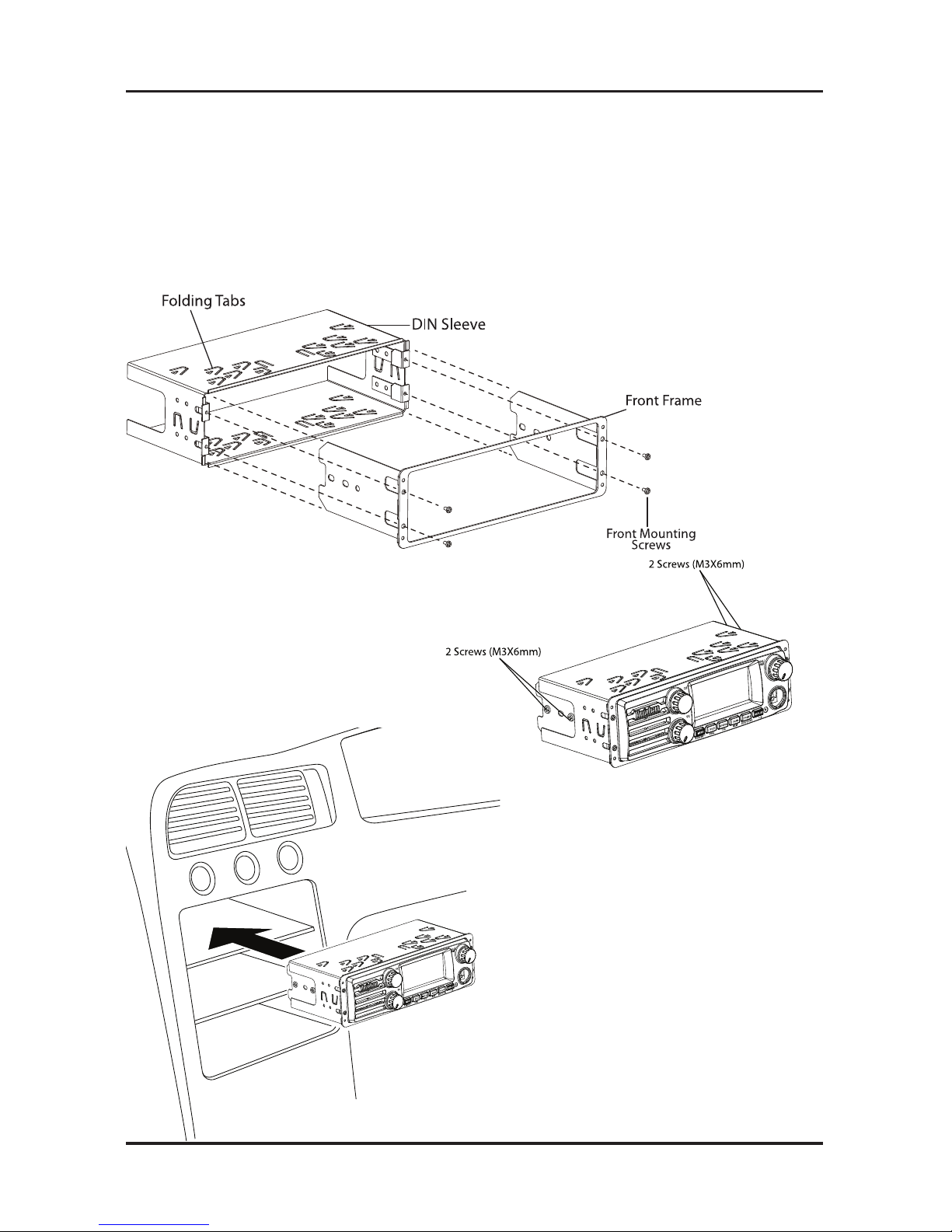

Installing the DIN Bracket
1. Remove the 4 front mounting screws to separate the front frame from the DIN
sleeve.
2. Install the DIN sleeve into the DIN slot of your dashboard and secure it by bending
the top and bottom folding tabs.
3. Slide the PRO5050 into the front frame. Ensure the threaded holes on PRO5050 line
up with holes on the front frame.
4. Secure PRO5050 onto the front frame using 4 pieces of 6mm screws.
5. Attach the DC power leads to PRO5050 and your vehicle. RED goes to a positive (+)
connection on your fuse block while BLACK connects to the vehicle chassis ground
(-).
6. Attach the antenna cable, rear MIC and rear speaker to the back of PRO5050 if
using.
7. Make sure all the connections are routed away from any potentially pinching or
slicing sheet metal.
8. Slide the front frame (with PRO5050 attached and all cable connections done) back
into the DIN sleeve and secure it using 4 front mounting screws.
NOTE
If you plan to use the Rear MIC Jack or connect an external speaker
at a later time, expect to remove the unit for ease of making those
connections.

Connecting the Microphone
Front MIC Jack
Push the MIC plug at the end of the microphone into the MIC jack until the connection
locks into place. Gently tug the MIC cord to test that the connection is locked. Use the
Front MIC Jack cover which is threaded onto the MIC cord to seal the MIC jack entry
from dust.
Disconnecting the MIC from the Front MIC Jack
Pull away the threaded rubber collar and move it down along the cord. Using the at
blade of a screwdriver or similar object carefully press the lock tab at the bottom of the
MIC plug and push it upwards. At the same time tug on the MIC cord to draw back the
MIC plug.
Rear MIC Jack
Use the Rear MIC Jack if the main base is mounted where a front MIC connection is
intrusive.
Peel the dust cover from the rear MIC jack. Push the MIC plug at the end of the
microphone into the MIC jack until the connection locks into place. An optional 2m
extension cable kit is available to enable mounting the main base in a hidden location.
12
UNIDEN PRO5050 AM-CB Transceiver

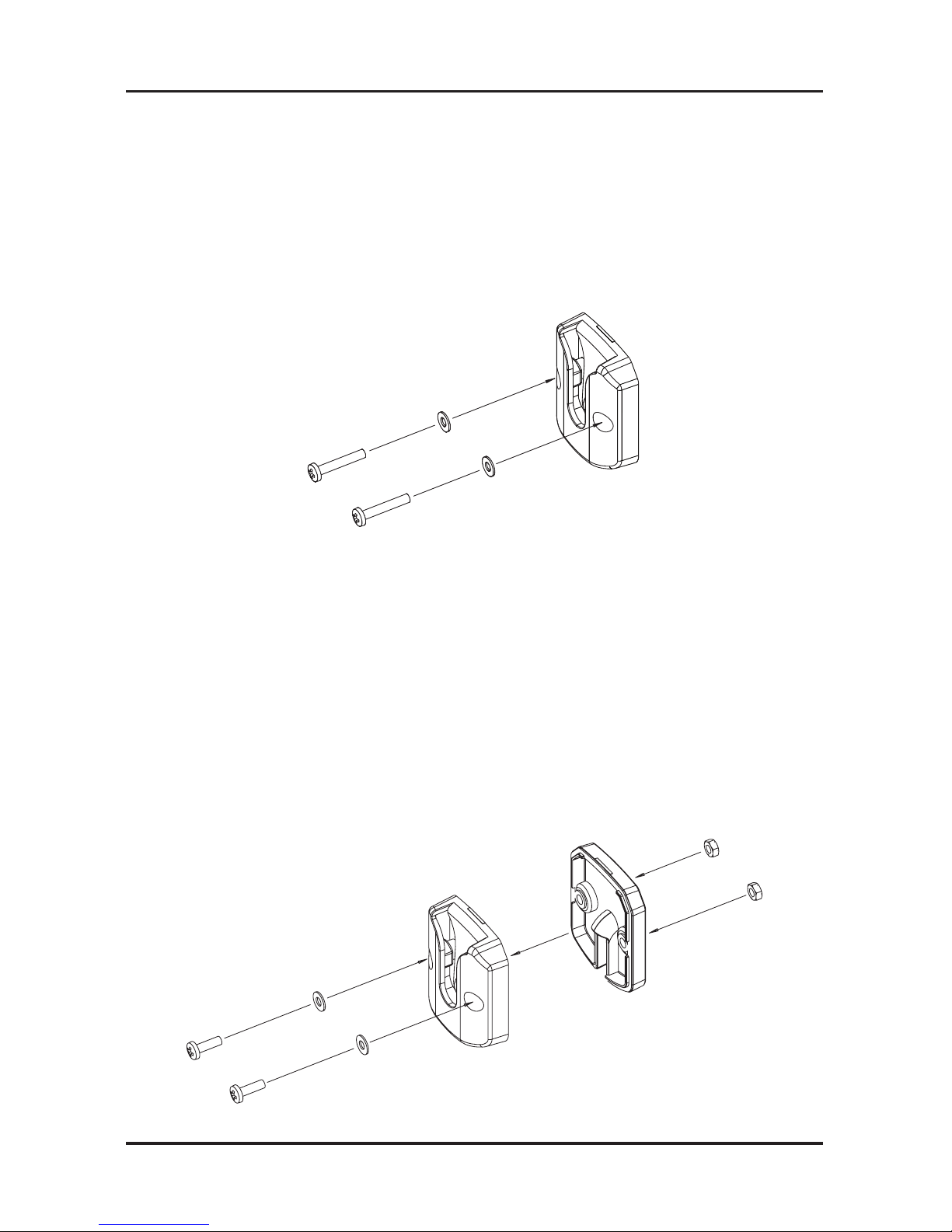

Mounting the MIC Hanger
13
UNIDEN PRO5050 AM-CB Transceiver
Conventional Mounting with Double Sided Tape
(not supplied)
High quality Double-Sided tape can be found at good retail stores.
Secure the front and back pieces of the MIC Hanger using the supplied binding screws.
Locate a suitable mounting position.
Apply high quality Double-Sided tape onto the at area of the MIC Hanger
back piece and then press rmly to the mounting position.
The Microphone Hanger comes in two parts. How and where you mount the MIC
hanger will determine which parts to use.
Conventional Mounting with Screws
Use the front part of the MIC Hanger only.
Locate a suitable mounting position and mark and drill two 3mm holes.
Fix the MIC Hanger into place with screws.

Turning on the Power
Press and hold [VOL/PWR] control at the base.
NOTE
Low-Voltage/High-Voltage Alert
The PRO5050 can operate on 12VDC (13.8V) or 24VDC (27.6V) power
supply, with the range between 10.2VDC to 28.8VDC.
If the power supply voltage exceeds 28.8VDC, an alert tone sounds and
HI DC ashes for 5 seconds. The power source must not exceed 32VDC
otherwise permanent damage may occur to your radio, which may not be
covered by the manufacturer’s warranty.
If the input voltage falls below 10.2VDC, LO DC ashes for 5 seconds. The
power turns off automatically if voltage falls below 9.0VDC.
Switch your PRO5050 OFF and disconnect it from the power source, before
locating the cause of the power supply problem.
Operation
14
UNIDEN PRO5050 AM-CB Transceiver
Setting the Volume
Turn the volume control at the base.

Operation
15
UNIDEN PRO5050 AM-CB Transceiver
Setting the Manual Squelch
Turn the rotary of the SQ control at the base to adjust the Squelch.
NOTE
You must select a channel which is not in use before setting the
SQUELCH control. (see p.16 for “Selecting a Channel”).
Think of the squelch con-
trol as a gate. If you turn
Squelch fully clockwise it
raises the‘Squelch gate’
so high that no signals get
through.
If you turn Squelch fully
counter clockwise it low-
ers the ‘Squelch gate’
so low that noise gets
through.
To set the ‘Squelch Gate’
to the desired level,
turn the squelch knob
counterclockwise until you
hear noise. Then care-
fully turn the Squelch knob
clockwise until the noise
fades. Now only strong
signals get through.
Monitor
Press and hold [DUAL/MON] at the base to open the
squelch and receive all weak signals. Press and hold
[DUAL/MON] at the base to cancel.

Selecting a Channel
Turn the Rotary Channel Selector at the
base to select the desired channel.
NOTE
For your reference a list of the available channels, corresponding
frequencies and guidelines for their use is printed on p.24.
Operation
16
UNIDEN PRO5050 AM-CB Transceiver
Programming the Instant Priority Channel
Turn the Rotary Channel Selector at the base to select
the Priority Channel you prefer.
Press and hold [INST] for 2 seconds to store the
new setting. INST icon appears to designate the
Instant channel.
Recalling the Instant Channel
Momentarily press [INST] to return to
the Instant Channel. Press [INST] again to
return to the previous channel.
Transmitting
The PRO5050 transmits only on 40 AM-CB Channels.
Select the desired channel. Press the microphone’s [PTT] button an speak normally
into the microphone. Hold it approx. 7cm from your mouth. Release [PTT] to end the
transmission and listen for a reply.
CALL INST
UH7700 NB Series Standard Microphone
INSTCALL
PTT

Operation
17
UNIDEN PRO5050 AM-CB Transceiver
Call Tone Function (Wake Up Tones)
Press the microphone [CALL] Button. A three second wake up ringing tone
will be transmitted.
You may select from 5 types of tones (see p.21).
NOTE
Current regulations require calling tones to be restricted to one
transmission per minute. If a second transmission is attempted within
one minute then an error tone will sound.
DUAL Watch
Dual watch will continuously monitor the
Instant channel and the current channel for
activity (see Programming the Instant Priority
Channel, p.16).
Press [DUAL/MON]. DUAL icon appears
and two beeps will sound.
To cancel DUAL Watch press [DUAL/MON].
DUAL icon disappears.
NOTE
• Every 1.5 seconds the Instant channel is monitored for 100msec.
• Dual watch function stops temporarily when receiving a signal.
• Dual watch function is invalid in Scan mode.

Scanning
The AM CB Radio has a scanning feature that allows you to search for active channels
automatically.
Furthermore, the AM CB Radio is designed to have two types of scanning; Open Scan-
ning (OS) and Group Scanning (GS), to give you exibility and allow you to use
the radio more effectively.
Press [SCAN/OS/GS] and Scanning starts.
The SCAN icon appears.The scan direction can be changed at any time by rotating the
channel selector left or right.
Operation
18
UNIDEN PRO5050 AM-CB Transceiver
NOTE
By default, all channels will be added into scan memory
for OS and no channels will be added for GS. Please add/
remove channels according to your preference, see p20.

Operation
19
UNIDEN PRO5050 AM-CB Transceiver
Open Scan (OS) Mode
Allows continuous scanning of all selected channels. If an active channel is found,
scanning will stop on that channel. If the received signal ceases, the unit will wait 3
seconds for the signal to return, otherwise scanning resumes.
After transmission in scan mode, the unit will wait 20 seconds for the signal to return,
otherwise scanning resumes. To skip the active channel, turn the Rotary Channel Se-
lector at the base. To deactivate SCAN, press [SCAN/OS/GS].
NOTE
If SCAN is deactivated while on an active channel, the AM CB Radio will
stay on that active channel. If no channels are active, the AM CB Radio
will reinstate the starting channel.
NOTE
OS Mode is indicated by the absence of the GS icon.
Group Scan (GS) Mode
Includes the accessory feature Priority Watch which allows you to monitor the Instant
Priority Channel while scanning (see
p.16 for setting Instant Priority Channel
and p.20 to turn on Priority Watch).
To use GS Mode Scanning, press and
hold [SCAN/OS/GS]. GS icon appears
on the display.
GS Scanning checks the Instant Priority
Channel for activity regularly when Priority
Watch is ON.
If the Priority Channel becomes active the radio
will stay on that channel for as long as the signal
is present. If the received signal ceases, Priority
Scanning continues after 3 seconds.
If scanning stops on a channel which is not a Priority Channel, AM CB Radio will continue
monitoring the Priority Channel for activity while listening to the active one. To deactivate
SCAN, press the [SCAN/OS/GS] button.

Operation
20
UNIDEN PRO5050 AM-CB Transceiver
Priority Watch
To switch Priority Watch On/Off;
1. Press [MENU/ENTER].
The Priority Watch setting ashes.
2. Turn the Rotary Channel Selector to
change the setting between ON or OFF.
3. Press and hold [MENU/ENTER] to save
& exit from the menu mode.
NOTE
If SCAN is deactivated while it is tuned to an active channel, the
PRO5050 will stay on that active channel. If none of the channels are
active, the PRO5050 will reinstate the scan start channel.
NOTE
If OS/GS Scanning is initiated when there are no channels programmed
in OS/GS memory, an error tone will be heard and scanning will not start
(see Add/Remove Channels from SCAN Memory).
Add/Remove Channels from Scan Memory
Select which Scanning Mode you wish to
use - OS or GS.
Press and hold [SCAN/OS/GS] to switch
between scanning mode.
Select the channel you want to store.
Press to [MEM] store. [M] icon appears
and a short tone beep is heard.
To remove the channel from SCAN memory, press [M] once more.
The MEM icon disappears.
