Unimax EASY PAINTER KH-EP02 User manual

???
??????
WARRANTY CARD
Product: EASY PAINTER PAINT SPRAY SET
Type: KH-EP02
Date of manufacture:
Date of sale, stamp, signature:
Serial number (product series):
Repair centre notes:
Without the correctly filled warranty card or without proof of purchase receipt, including
the product type (invoice, purchase receipt) no warranty claim will be processed.
1. KH Trading machines and tools are covered by 6/24 months warranty, starting on the date of
purchase, as described in the Civil Code (proof of purchase or invoice receipt must be
enclosed with the warranty card when making a claim).
2. This warranty does not cover defects caused by unprofessional handling, machine overloads, not
complying with instructions contained in this manual, using accessories that are not approved,
unauthorized repair, regular wear and tear and damages occurred during transport. Further, this
warranty does not cover parts and accessories such as the motor, carbon brushes, seals and
hot-air operated parts and parts that need to be changed regularly.
3. If the repair is to be found as not covered by the warranty policy, all costs including the repair and ship-
ping to and from the repair centre will be paid by the customer, according to valid price list. See www.
4. When making a claim, you must present the warranty card, showing the date of the purchase, the
serial number of the machine, vendor stamp and signature of sales clerk, as well as the proof of
purchase receipt.
5. Warranty claim shall be made at the vendor shop where you bought your machine or you may mail
it to a service centre. The vendor is obligated to fill out the warranty card (date of sale, serial
number, vendor stamp and signature). All these information must be filled in at the time of sale.
6. The warranty period will be extended for the period of time for which the machine has been in the
service centre possession. If the repair or defect is not covered by the warranty policy, all costs including
the repair and shipping will be paid by the owner of the machine / tool. We recommend sending the
machine in its original packaging. Please, also enclose brief description of the defect with the packaging.
7. Before sending the machine for repair, clean it thoroughly. If the received machine is dirty, it may
be rejected by the service shop or you may be charged a cleaning fee.
SERVICE
Logistic centre Klecany
Topolová 483
250 67 Klecany
Czech Republic
Claim department phone number: 266 190 156 T-mobile: [phone]
266 190 111 O2: 601 218 255
Fax: [phone] Vodafone: 608 227 255
http://www.KHnet.cz
Email: ser[email protected]
EEAASSYYPPAAIINNTTEERRPPAAIINNTT
SSPPRRAAYYSSEETT
USER'S MANUAL
KH - EP02

2
Dear customer. Thank you for purchasing equipment from KH Trading, s.r.o.
Our company is ready to offer you our services - before, during and after you buy our product.
If you have any question, comment or idea, please contact our business centre. We will do our best to address
your comment or question in timely matter.
Before first use, please read this manual carefully. It is your responsibility to study all instructions,
necessary for safe use and operation and to understand all risks that may be involved during the use
of power machines.
WARNING! Do not try to use this machine before reading this entire manual and before you know
how to handle it. Keep this manual for future reference.
Pay special attention to safety instructions. Not complying with safety rules may cause injury to the
operating person or to people standing by or it may cause damage to the machine or to the work
piece.
Pay special attention to safety notes and safety labels on the machine.
Never remove or damage them.
Please, write information such as the invoice number
and the number of the sale receipt here in this box.
Multi-stage centrifugal compressor, together with HVLP spraying pistol create a sophisticated machine,
excellent for precision painting jobs. Operation is very simple and completely safe thanks to the lower air
pressure (0.15 bar). This machine is mainly used with water mixing types of paints. Other type of paints and
paint thinners contain dangerous, explosive or corrosive chemicals. Lower spraying effect contributes to the
environment protection and utilizes better the paint, which make using this machine more economical.
ALL THESE ADVANTAGES ARE AVAILABLE THANKS TO THE HVLP SYSTEM THAT USES LARGE VOLUME
OF LOW-PRESSURE AIR AND APPLIES THE PAINT COAT USING CONSTANT PRESSURE AND AIR
CONSUMPTION.
The package contains:
Multi-stage centrifugal compressor
Air pressure hose
Couplings for inflating and blowing
Viscometer
HLVP spraying pistol
The accuracy of instructions, graphs and information contained herein, depends on the printing date. Due to
continuous product improvement, the manufacturer reserves the right to change technical parameters of the
product, without prior customer notification.
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .~230V
Power output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .450 W
Air intake volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1,500 l/min
Maximum pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 kPa
Acoustic level noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68 dB(A)
Acoustic output level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82 dB(A)
Gross weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.3 kg
DESCRIPTION
TECHNICAL SPECIFICATION
REPAIR AND MAINTENANCE REPORT
Report and maintenance report:
DATE SERVICE SHOP REPAIR AND MAINTENANCE REPORT

REVISION REPORT
The user is obligated to perform tests and revisions of electrical equipment of the machine
in accordance with valid rules and regulations. Result report:
DATE REVISION TECHNICIAN
Number / SIGNATURE
REVISION REPORT
3
???
•This device may be used by a qualified person, 18 years or older who has been
trained in work and environmental safety procedures.
•Any person using this equipment must possess a medical certificate
demonstrating his eligibility to operate this equipment.
Symbols used in this manual
Warning!
This symbol informs you about the risk of personal injury or damage to the machine
or materials.
Caution! You are using electrically powered machine!
Risk of injuries by electrical current.
Warning!
Danger of damage.
Note:
Additional information.
Use personal protective gear.
Do not use open fire during work.
Do not smoke during work.
General instructions
•Make sure you know how to control your tool or machine and that you are familiar with its operating
procedure. Know the hazards that may occur, if not used correctly.
•If other person is using this machine make sure that he knows how to safely operate this equipment and
that he is familiar with hazards and risk that may occur, if not used correctly.
•Pay special attention to safety notes and safety labels on the machine. Do not remove or damage them.
If the warning label becomes unreadable, please contact your vendor.
•Dirty and disorganized workplace may cause accidents.
•Never work in poorly lit, narrow or too crowded rooms. Always keep stable posture.
•Maintain your tools clean and in safe working conditions.
•Handles must be kept free of grease and dirt.
•Make sure no children, unauthorized persons or animals have access to your workshop.
•Use only for purposes for which it has been designed.
•Use personal protective gear such as safety goggles, ear protection, respirator, safe working shoes etc.
•Do not overreach, use both hands.
•Never work under the influence of alcohol or other drugs.
•Do not use the machine/tool if you feel dizzy or week.
•Any modifications or improvements to the machine are strictly prohibited. DO NOT USE if you discover
bent part, crack or other damage.
SAFETY PRECAUTIONS

4
•Never perform any maintenance during operation.
•If you see any unusual sign or hear any strange sound, switch off the machine immediately.
•Do not forget to remove all wrenches and screwdrivers from the machine after use.
•Before use, make sure all screws are tightened securely.
•Perform maintenance regularly. Before use make sure the machine is in good working conditions
and without any damage.
•Use only original spare parts during repairs.
•Using extension pieces or accessories not approved by the manufacturer may cause injuries to
the operating personnel.
•Use suitable tool for particular type of work. Do not overload tools, accessories or the machine. For large
work volume use more powerful machine.
•Do not overload your device. Measure the work load in such way, so it could be done with comfortable
speed. Damages due to machine overload are not covered by the warranty policy.
•Do not expose to extremely high temperature or direct sunlight.
•This machine is not designed for use in humid environments or under water.
•If you are not using your machine, store it in a dry and safe place, out of reach of children.
•Before use make sure that all safety elements work correctly and efficiently. Make sure all moving parts
are in good working conditions.
•Before use make sure that no part is cracked or stuck, Make sure all parts are attached and assembled
as designed. Beware of all other conditions that may have a negative effect on the proper functioning of
your machine.
•If not stated otherwise in this manual, all damaged parts and safety elements must be repaired or changed.
Fine mechanics
•Never use a vise to hold you device.
•Protect your machine from fall and impact.
Assembly
•Do not use the machine unless completely assembled.
Electrical equipment
•Observe all basic safety rules when using electrical equipment to prevent risk of fire, injuries by electrical
shock and other hazards. Before using this device, read this manual entirely and follow all safety instructions.
•Make sure the power cable plug is plugged into the correct wall outlet. Voltage in the wall outlet must be
the same, as shown on the specification label of your machine.
•When you finished your work, disconnect the power plug from the wall outlet and switch off the main switch.
•Never carry electrical tools and appliances by their power cord. When disconnecting the plug from the
wall outlet, never pull the cable by its cord.
•Protect the power cable from high temperatures, oils, paint thinners and make sure that the cable is not
hanging over sharp edges.
•Inspect the power cable regularly. If damaged have it replaced by qualified technician. Inspect extension
cables regularly. If damaged, have it replaced.
•If you need to use an extension cable, use cable with appropriate power rating. Use only completely unwound.
Inspect extension cables for damages regularly. Damaged cable must be repaired or changed immediately.
•Before performing any maintenance, repair or adjustment, disconnect the power cable from the wall outlet.
•Do not use in humid environments or if wet.

12

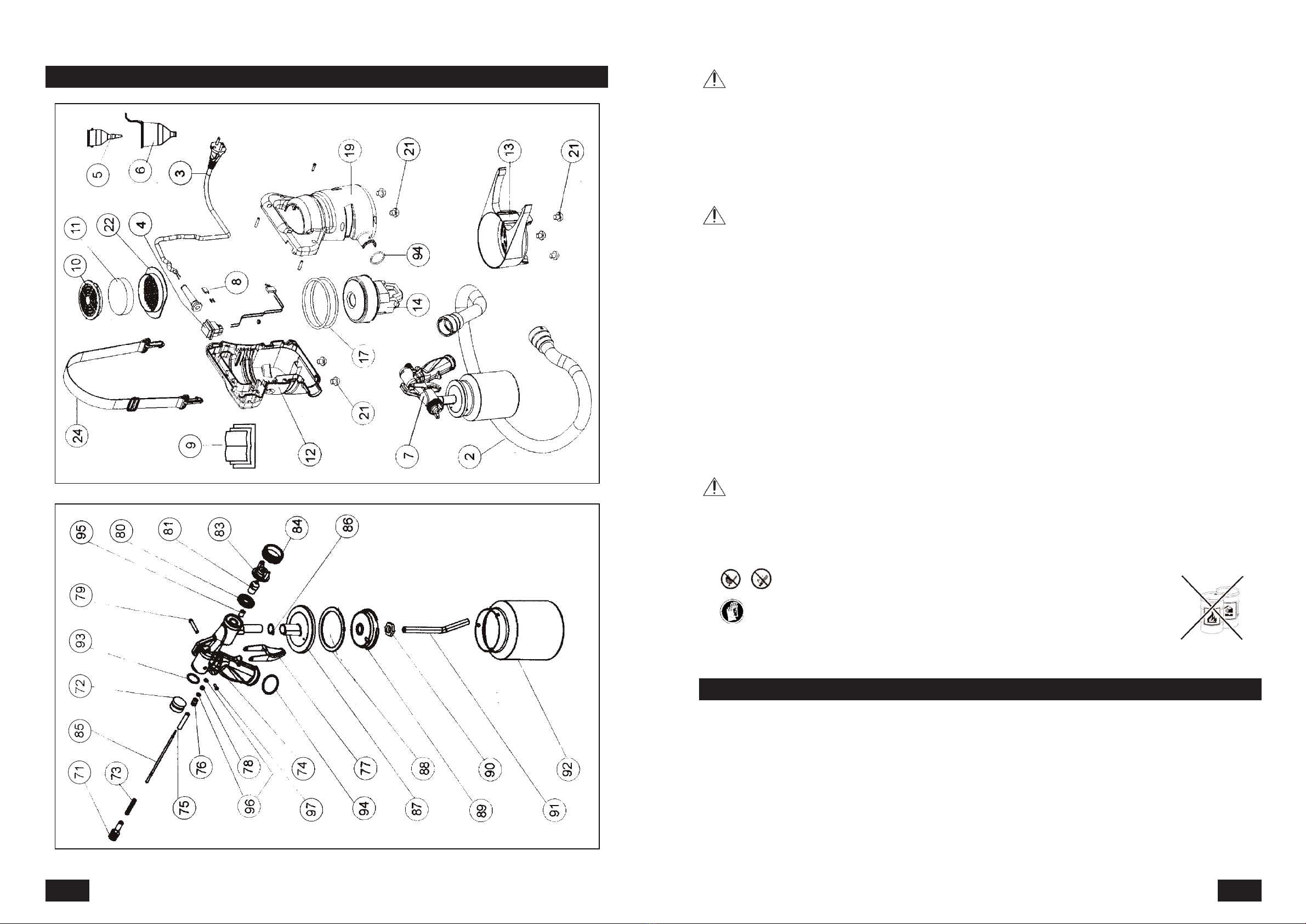

DETAILED PART DRAWING
5
Paint spraying
•Read the specification label on the paint container carefully.
•We recommend to wear protective mask and gloves during work and cleaning.
•Use only in well-ventilated rooms.
•Follow all instructions carefully. Use only products with inflammation point above 22°c.
•Do not smoke during work and do not use device that produce heat or sparks. Paints and paint thinners
contain flammable chemicals.
Compressed air
•Make sure no dirt can enter the inside of the machine. Keep inlet and outlet openings clean.
•Before uncoupling compressed air piping or hose, turn off the air pressure supply. Wait until the pressure
equalizes.
•Before starting your work, inspect all couplings and piping for leakage. If leak is found repair it immediately.
Leakage puts an extra strength on the compressor and increases the operational cost.
•Inspect the pressure hoses and piping system regularly. If you discover damage or leak, stop working
immediately and have the damaged part changed or repaired immediately.
•Pressure hoses must not be twisted. Observe the line on the surface of the hose that must not be twisted.
•Pressurized hoses may not be run through structures where they may get cut or get damaged.
•Before installing a new hose blow compressed air through it first.
•If you have to run the hose through various structures, use bushings to protect the hose from damages.
Inspect the hose regularly.
•Use protective caps and plugs to prevent dirt from entering the system.
•Do not aim compressed air flow at people or animals.
Power equipment
•Before performing any maintenance on hydraulic or air equipment, turn of the air supply and make sure to
lower the air pressure slowly. Let the pressure equalize.
•If your machine is equipped with depressed springs, use suitable device to release them slowly and safely.
•Do not smoke or work with an open fire during work.
•Use personal protective gear such as gloves, goggles and respirator according to
the recommendation of the paint manufacturer.
•Make sure no part is left inside the packaging box before throwing the packaging materials out. If so, take
it out and install it. Use the part listing for check-up and the installation drawing for guidance.
•Unpack the multi-stage compressor and make sure that it is not damaged. Carefully inspect and organize
the documentation and accessories supplied with your machine.
ASSEMBLY

6
•This machine is mainly used with water mixing paint types. Other type of paints and paint thinners contain
dangerous, explosive or corrosive chemicals.
Multi-stage centrifugal compressor.
•This compressor is equipped with double-insulation to improve the operational safety. Your compressor
does not need to be grounded.
•The power source voltage (wall outlet) must be the same as shown on the specification label of your machine.
•The switch (4) must be in position 0.
•Connect the power cable (3) to extension cable with minimum rating of 1,200 W.
•Connect the hose (2) to the multi-stage compressor (1), see pic. 2.
Using your machine.
•Read the safety instructions carefully.
•Switch on the switch (4) to activate the diffuser (or the multi-stage compressor).
Type of paints and used materials.
•This Easy painter machine may be used with paints with viscosity between 10 - 35 (35 DIN-S).
•Higher viscosity paints may be used ONLY with water diluted paints designed for OUTER AND INNER
WALL painting applications. THE QUALITY AND TYPE OF THE PAINT PLAY A VERY IMPORTANT ROLE
IN THE FINAL RESULTS.
The important and most common viscosity values are shown below:
•Filling agent 10 - 20 no dilution
•Organic paint 15 - 35 no dilution
•Two- component paint, oil based paint 20 - 35
see the manufacturer instructions
•
•Paint manufactures usually specify the dilute ratio in %: it is usually true for brush and roll-on painting jobs.
paint must be diluted (before diluting the entire paint container, test the dilute ratio with small amount of paint).
Viscosity
•Viscosity is a technical term, telling you how thin or how thick the paint consistency is. In the first case the
viscosity is low and in the other case the viscosity is high.
•Viscosity is measured in seconds.
•Fill the supplied viscosity meter (6) with the paint, as seen on pic. 1 and observe and record how long it
will take for the paint to run out.
•The measured value is the viscosity value expressed in DIN-S.
Paint preparation
•Shake well.
•Use a wooden stick for mixing.
•
OPERATION
Pour the paint in the paint tank of the spraying pistol (92) till it reaches 3/4 of the maximum tank volume.
If the paint is used in spray gun the percentage must be higher. It is good idea to tell the paint manufacturer /
(ranges between 5 - 50%).
See the manufacturer instructions regarding the type and the amount of required paint thinner in %
supplier that you will use his product in HVLP spraying pistol (High volume and low pressure). In such case the
11
Changing the tank seal (88) and (86):
•Unscrew the hexagonal nut (90).
•Remove the cover (89), located below the nut.
•Remove the seal (88).
CAUTION: during the assembly of the cover, make sure the position of the seal (86) is correct.
Lubrication
Lubricate working surfaces with suitable grease regularly.
When the operational life of your device is over, dispose off it in accordance with valid rules and regulations.
Your product is made of metal and plastic parts that may be recycled when separated.
1. Disassemble all parts.
2. Separate all parts according to the material they are made of (e.g. metals, rubber, plastics, etc.).
Take the separated parts to the recycling facility near you.
3. Electrical waste (used electrical power tools, electric motors, recharging equipment, electronics,
accumulators, batteries etc.).
Dear customer. In accordance with the valid regional rules and regulations describing the management of
electrical waste, electrical waste is considered dangerous.
Disposal of electrical waste must be therefore handled as dangerous waste in accordance with waste
management rules valid in the state you are in.
It is prohibited to mix electrical waste with regular household waste.
You may return your used electrical appliance to a recycling facility near you. More information about
electrical and dangerous waste disposal may be obtained from your local authority or from the Internet.
If the machine breaks down, send it back to the vendor for quick repair.
Please, enclose brief description of the defect. That makes repair easier. If the machine is still covered by
warranty, enclose the warranty card and proof of purchase receipt. After the warranty period expires, we
repair your machine for a special price.
To prevent possible damages during shipping, packed the machine carefully or use the original packaging
material. We are not liable for shipping damages due to incorrect packaging of your machine. If making
a claim at the shipping company the level and method of packaging plays a major role during claim evaluation
process.
Note: Pictures and contents in this manual may slightly differ from the actual product or accessories.
It is due to continuous improvement of our products. Such small differences have no effect on the product
functionality.
DISPOSAL
CAUTION

10
MULTI-STAGE, CENTRIFUGAL COMPRESSOR MAINTENANCE AND CLEANING
(must be disconnected from the power source).
The diffuser requires minimum maintenance.
•First, disconnect the power cable from the wall outlet.
•Clean the body with cloth (if needed, dip the cloth in water or alcohol).
•Remove the filter cover and lift the inner clips, see pic. 9.
•Wash or blow-clean the filter (11). If needed, change the filter for new one.
Pistol cleaning and maintenance
•Clean the pistol thoroughly after each use.
•If you let the paint dry inside the pistol, the cleaning will be difficult or even not possible and you may not
be able to use the pistol again.
•Use paint thinner, recommended by the paint manufacturer for cleaning.
•Clean the pistol in well-ventilated room.
•Follow all safety instructions described above.
Pistol cleaning procedure
•Remove the tank (92).
•Pour out the remaining paint and store it in airtight container for further use.
•Pour a small amount of paint thinner in the tank; shake the pistol and spray out the pant thinner in to any
container used for cleaning purposes. REPEAT THE ABOVE STEPS UNTIL THE PAINT THINNER COMES
OUT COMPLETELY CLEAN.
•Clean all paint residue on the inner or outer tank walls.
•Clean the seal under the tank lid.
Nozzle and needle
•Unscrew the ring (84).
•Remove the chocking nozzle (83).
•Completely loosen the setting screw (71).
•Remove the spring (73).
•Push out the needle (85): do not use a tool to push it out. If the needle cannot be pushed out easily,
loosen the lid nut (76). (The needle ring must stay inside).
•Use the special wrench to unscrew the inner nozzle (81).
•Take out the flat washer (80).
•Place the disassembled parts into a container and clean with paint thinner and brush.
•You must also clean the inside of the pistol and the hose (91).
•Before assembly, blow dry all parts with the multi-stage centrifugal compressor.
CAUTION: Assemble the part in reverse order.
•We recommend to assemble the inner nozzle (81) first, and THEN the needle (85).
•Lubricate the lid nut (76) with small amount of grease. Tighten the loose nut carefully. The needle must
move freely.
7
•Dilute the paint according to the manufacturer instructions.
•If needed, add more paint thinner AND PERFORM TESTING ON A PIECE OF CARDBOARD OR WOOD.
Once you find out the correct consistency of the paint, dilute the entire container accordingly.
Surface preparation for painting
•The best results will be achieved if you CLEAN the surface of the work piece thoroughly before applying
any paint.
•Remove any residue of old paint, rust and dirt from the surface. Use suitable sanding paper.
•Cover dents or scratches with potty compound or sand it with sanding paper if needed.
•Remove dust, dirt and other imperfections from the surface.
•Make sure that no oil or grease stains are present on the surface.
Spraying pistol HVLP
•Place the paint tank (92) on the pistol and secure it in place.
•Connect the hose (2) to the pistol handle (7) as seen on the picture 5.
•To select the required paint spray shape (pic. 6), release the adjusting ring (84) and set the nozzle
position (83): HH = horizontal spraying, VV = vertical spraying, CC = round spraying (pic. 6).
•Seal (80) has four position notches that help you to set the position of the chocking nozzle (83).
The position is fixed in place by the clamp that is protruding upwards from the bottom.
•After you choose the spraying shape, tighten the adjusting ring (84).
•Use the horizontal and vertical settings (HH - VV) when painting large areas. The round or circular shape is
used to paint small objects or to paint in hard-to-reach areas such as corners, edges etc.
Function and use of the multistage centrifugal compressor
•The compressor supplies the compressed air that is necessary to operate your tool.
•The air travels through the chocking nozzle (83). The paint is sprayed out only if you press the trigger (77).
FUNCTION AND USE OF THE SPRAY PISTOL
The diffuser may be adjusted easily. See picture 3.
•Close the adjusting screw (71) completely, by turning it to the right.
•Press the trigger (77) and slowly open the paint supply screw (71) until the amount of the paint is correct.
•Move the spray pistol continuously and keep CONSTANT DISTANCE from the painted surface. About
10 - 30 cm based on the paint setting. It is also necessary to move the pistol along the painted area
parallel to each other.
•Warning: Never use circular motion during painting. The quality of the coat is reduced significantly.
(See pic. 7).
•At the end of each spray motion release the trigger (77) and press it again at the beginning of the next
motion. That way the borders of each painted path will melt together and will not be seen. This is very
important when painting large areas. (See pic. 8).
•The spray motion must be horizontal if you use spraying shape VV (pic. 6) and vertical if you use spraying
shape HH. (Also pic. 6).
•If you use the (CC) shape, keep the pistol at greater distance from the painted surface.
ALWAYS PERFORM TEST PAINTING ON A PIECE OF CARDBOARD OR WOOD BEFORE ACTUAL PAINTING.
Additional use of the multistage centrifugal compressor.
•After you have connected the adapter piece (5) with the hose (2), you may use the compressor for
pressure cleaning or for inflating various objects.

8

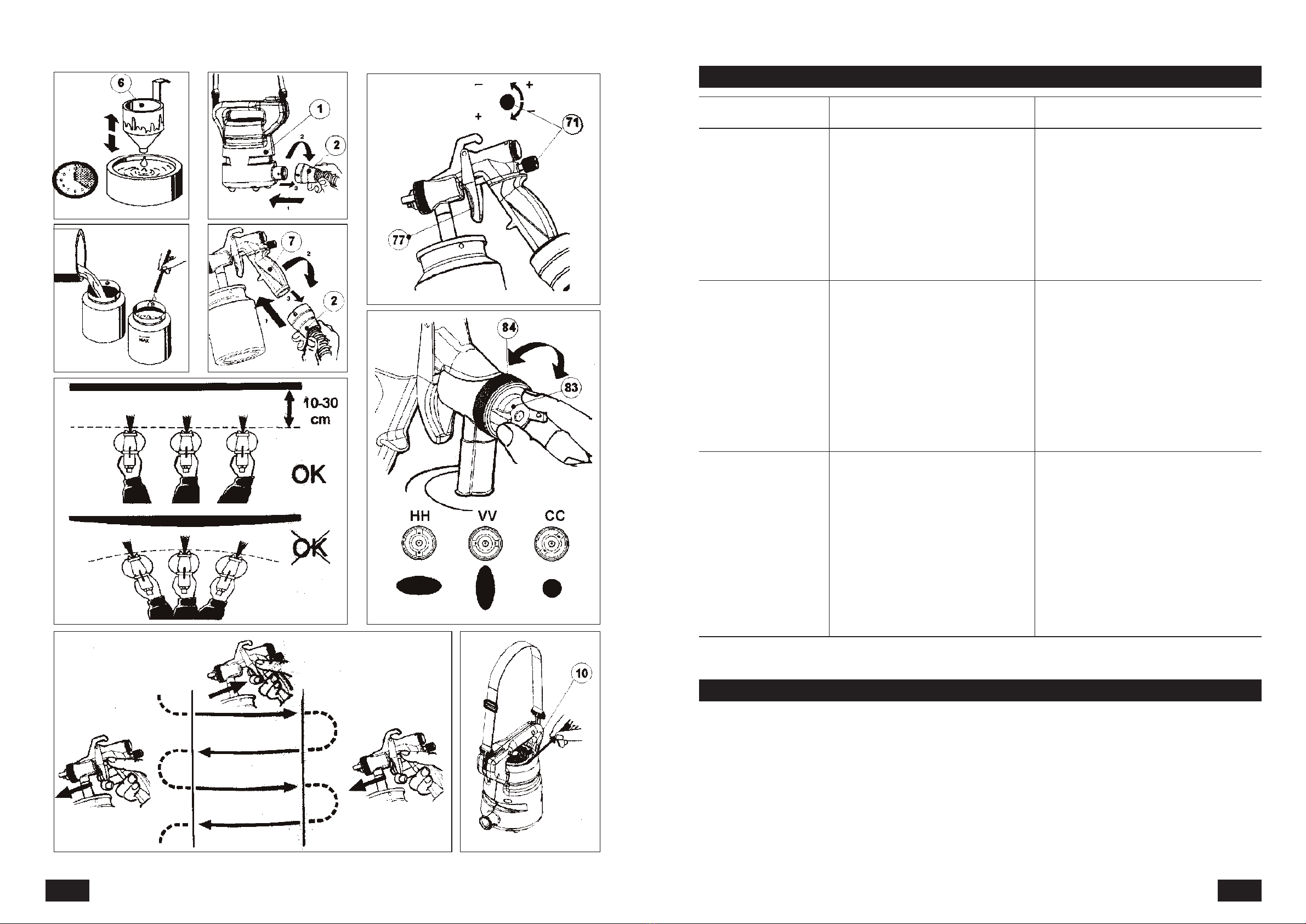

Fig.1
Pic. 1 Pic. 3
Pic. 2
Pic. 5
Pic. 4
Pic. 6
Pic. 7
Pic. 8
Pic. 9
9
TROUBLESHOOTING
MAINTENANCE
•Keep your tools clean. Dirt may enter the inner mechanism of your machine and cause damage.
•Do not use aggressive cleaning solution or paint thinners to clean the machine.
•Clean plastic parts with cloth dipped in soup water.
•Clean and lubricate metal surfaces with a cloth dipped in paraffin oil.
•If you are not using your machine, lubricate it with suitable grease and store it in a dry place to prevent
corrosion.
PROBLEM
Paint drops are seen
on the painted surface
Weak of uneven paint
coat
The paint coat does not
cover the surface
sufficiently
SYMPTOM
- Too watery (diluted) paint
- Incorrect spray setting
- Too slow motion during spraying
- The pistol trigger remains pressed
down
- Incorrect pistol distance from the
surface
- Paint is diluted too much
- Incorrect spray setting
- Too fast motion during painting
- Clogged pistol
- Incorrect pistol distance from the
surface
- Paint not diluted enough
- Too thick paint, viscosity too high
- Clogged pistol
- Broken or damaged hose (2)
- Clogged air filter
- Lumpy paint
- Improperly closed lid of the paint tank
REMEDY
- Add undiluted paint
- Lower the paint flow by tightening the
screw (71)
- Move the pistol faster during spraying
- Release the trigger during reverse
motion
- Increase the distance between the pistol
nozzle and the painted surface
- Add more paint thinner
- Increase the paint flow by turning the
setting screw (71)
- Move the pistol slower
- Clean the pistol (see section 9), clean
the inner nozzle (81). Use non-metal
stick for cleaning.
- Increase the distance between the pistol
nozzle and the painted surface
- Add more paint thinner
- Check the viscosity of the paint
(see section 4.2)
- Clean the pistol (section 9) and clean
the inner nozzle (81). Use non-metal
stick for cleaning.
- Change the hose
- Change the filter (section 8)
- Filter out the paint. Use filter or strainer
- Clean the seal and close the tank
