Unique UGP-24V PC1 S/S Installation instructions

UGP-24V PC1 S/S
UGP-24V PC1 W
UGP-24V PC1 B
24” (60.9 cm)
PRESTIGE GAS RANGE
(NG & LPG convertible)
INSTALLATION
AND OWNER’S MANUAL
SERIAL NUMBER:
JUNE17V1
READ AND SAVE THESE INSTRUCTIONS
File Number:
4009900
NOV17V2

UNIQUE 24” PRESTIGE MODEL
GAS RANGE - NG & LPG CONVERTIBLE
READ AND SAVE THESE INSTRUCTIONS
Have the dealer where you purchase your new range install it or have him recommend
a qualied installer. Installation must conform with local codes. In the absence of local
codes, the installation must conform with the National Fuel Gas Code, ANSI Z223. 1-Lat-
est Edition in the U.S.A. or the CAN/CGA B149.1 or .2 Installation Codes in Canada.
Installation & Owner’s Manual
This manual contains information for:
Important Safeguards
Installation
Use and Care
Certain ranges come equipped with special features. Determine from a study of
your range which of the instructions given in this booklet pertain to your range.
This booklet gives valuable instructions covering the installation, adjustment
and use of your range.
How to Obtain Service and/or Parts
When your range does not operate in accordance with the instructions in the manual,
you should contact the dealer in your immediate vicinity for service. Or, the purchaser
may contact the service organization noted on the warranty.
Important
TO THE OWNER OF THE RANGE: Retain this owner’s manual for future reference.
TO THE INSTALLER: Leave this owner’s manual with the range.
Read and Save These Instructions

2245 Wyecroft Road #5
Oakville, Ontario, Canada L6L 5L7
Ph: 905-827-6154 Toll Free: 1-877-427-2266 Fax: [phone]
www.UniqueOffGrid.com
MANUFACTURED & CERTIFIED BY
Unique Gas Products Ltd
X2

4
05 Important safety instructions
14 Energy saving ideas
15 Installation instructions
16 How to install the backsplash
17 Gas connections
20 Wall clearances
22 Gas range conversion
27 Adjustingthetopburnerandovename
30 Operation of range
36 Alignments and adjustments
37 Cleaning the range
39 Care and maintenance
44 Troubleshooting
46 Wiring diagram
47 Contact us
47 Warranty
48 Parts diagram
49 Parts list
52 Appliance information
53 Notes
UNIQUE GAS RANGE
Table of Contents

5
BEFORE USING YOUR GAS RANGE
WARNING
HAVE THIS RANGE INSTALLED BY A QUALIFIED INSTALLER.
Improper installation, adjustment, alteration, services, or maintenance can cause injury or prop-
ertydamage.Consultaqualiedinstaller,serviceagency,orthegassupplier.
BEFORE USING YOUR GAS RANGE:
•Removetheexteriorandinteriorpacking.
•Removetheprotectivelmonsteelandaluminumparts.
•Checktobesureyouhaveallofthepartslistedbelow.
• 1 backsplash
• LP gas conversion packet (injectors for LP gas, 6pcs)
• 2 anti-tip brackets
• 2 pan supports
• 2 oven racks
• 4 caps and bases in the burner assembly
• 1 broiler grid
• 1 broiler tray
• 1 regulator (pre-installed)
• 5 screws for backsplash
• 1 instruction/installation manual
•Cleantheinteriorsurfacewithlukewarmwaterusingasoftcloth
•Havetheinstallershowyouthelocationoftherange’sgasshut-offvalveandhowtoshutit
off if necessary.
•Haveyourrangeinstalledandproperlygroundedbyaqualiedinstallerinaccordancewith
the installation instructions.
•Donotattempttorepairorreplaceanypartofyourrangeunlessitisspecicallyrecommend-
ed in this manual.
•Besureyourrangeiscorrectlyadjustedbyaqualiedservicetechnicianorinstallerforthe
type of gas (natural or LP) that is being used.
•Donotremovepermanentlyafxedlabels,warnings,orplatesfromtheunit.Thismayvoid
the warranty.
•Theinstallershouldleavetheseinstructionswiththeconsumerwhoshouldretainforlocal
inspector’s use and for future reference.
•Pleaseobservealllocalandnationalcodesandordinances.

6
Welcome & Congratulations
Congratulations on your purchase of a UNIQUE range! We are very proud of our product – and
are completely committed to providing you with the best service possible. Your satisfaction is
our #1 priority. Please read this manual very carefully. It contains valuable information on how to
properly maintain your new Unique gas range.
We know you will enjoy your new range and Thank You for choosing one of our Unique Gas
Products! We hope you will consider us for future purchases.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
This appliance is designed and manufactured solely for the cooking of domestic (household)
food and is not suitable for any non-domestic application and therefore CANNOT be used in a
commercial environment.
The appliance guarantee will be void if the appliance is used within a non-domestic environment
i.e. a semi commercial, commercial or communal environment..
PLEASE READ AND SAVE THESE INSTRUCTIONS
Thismanualprovidesspecicoperationinstructionsforyourmodel.Useyourrangeonlyas
instructed in this manual. These instructions are not meant to cover every possible condition and
situation that may occur. Common sense and caution must be practiced when installing, operat-
ing and maintaining the appliance
Record in the space provided below the Model No. and Serial No. of this appliance.
These numbers are found on the serial plate located at the back of the range.
Model No. ________________________ Type Number _______________________
Serial No. ________________________ Purchase Date________________________
Record these numbers for future use.
IMPORTANT: Keep a copy of your bill of sale. The date on the bill establishes the warranty
period should service be required. If service is performed, it is in your best interest to obtain and
keep all receipts.
PLEASE DO THIS NOW!
The PRODUCT REGISTRATION CARD should be lled in completely, signed and
returned. This information will register your product and help us to serve you quickly in
the future if necessary.

7
READ ALL IMPORTANT SAFEGUARDS AND
ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
IF YOU SMELL GAS:
•Openwindows
•Don’ttouchelectricalswitches
•Extinguishanyopename
•Immediatelycallyourgassupplier
FOR YOUR SAFETY:
•Keepapplianceareaclearandfreefromcombustiblematerialsgasolineandotherammable
vapors and liquids.
WARNINGS
Destroythecartonandplasticbagsaftertherangeisunpacked.Childrenshouldnotusepack-
aging material for play. Cartons covered with rugs, bedspreads, or plastic sheets can become
airtight chambers. Remove all staples from the carton. Staples can cause severe cuts and
destroynishesiftheycomeincontactwithotherappliancesorfurniture.
Be safety conscious. The preparation of food in an oven requires temperatures that could
cause severe burns. Before using this new appliance, carefully read and follow all instructions.
TheCaliforniaSafeDrinkingWaterandToxicEnforcementActof1986(Proposition65)requires
the Governor of California to publish a list of substances known to the State of California to
cause cancer or reproductive harm. In addition, businesses must warn customers of potential
exposure to such substances.
Users of this appliance are hereby warned that the burning of gas can result in low-level expo-
sure to some of the listed substances, including formaldehyde, benzene, soot and carbon mon-
oxide. This is caused primarily from the incomplete combustion of natural gas or LP fuel.
Properly adjusted burners will minimize incomplete combustion. Exposure to these substances
can also be minimized by properly venting the burners by opening a window or using a ventilat-
ing hood or fan.
WARNING

8
Notice: Never keep pet birds in the kitchen. Birds have a very sensitive respi-
ratory system. Fumes released from cooking oil, fat, margarine or overheat-
ed non-stick cookware may be harmful or fatal to birds.
PROPER INSTALLATION: Besureaqualiedtechnicianinaccordancewiththe
National Fuel Gas Code ANSI Z223.1/NFPA54 properly installs your appliance.
Install only per installation instructions provided in the literature package for this
range. Be sure leveling legs are in place at the bottom corners of the range. If nec-
essary, raise or lower the leveling legs at the base of the range by turning clock-
wise or counter clockwise to insure a level range.
Askyourdealertorecommendaqualiedtechnicianandanauthorizedrepairser-
vice. Have the technician familiarize you with the locations of the manual gas shut
off valve and gas meter in the event it is necessary to shut off gas supply to the
unit during an emergency.
The following situations may cause serious bodily harm, death or property
damage.

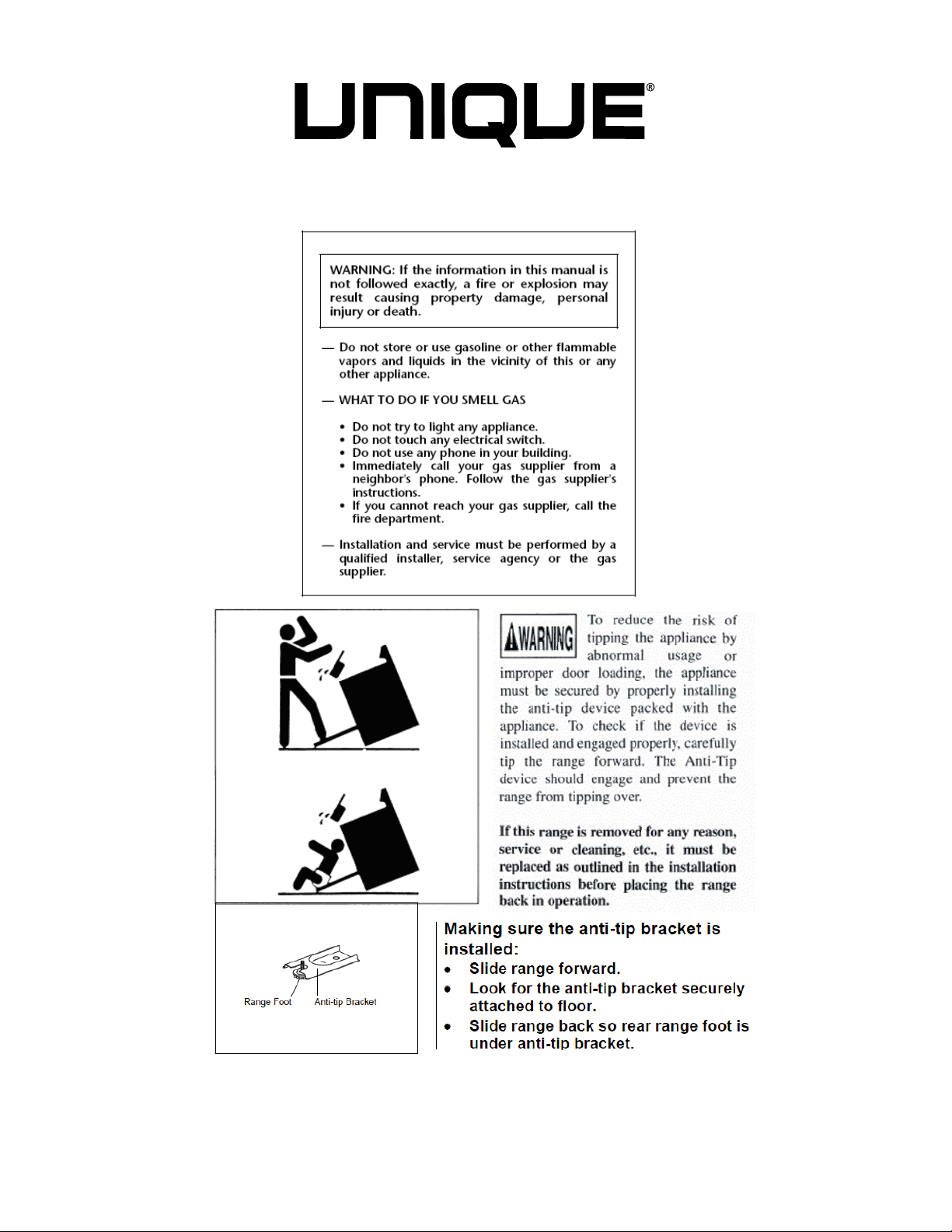

TO REDUCE THE RISK OF TIPPING OF THE RANGE, THE RANGE MUST
BE SECURED BY A PROPERLY INSTALLED ANTI-TIP BRACKET PROVIDED
WITH THE RANGE. TO CHECK IF THE DEVICE IS INSTALLED AND ENGAGED
PROPERLY, CAREFULLY TIP THE RANGE FORWARD. THE ANTI-TIP DEVICE
SHOULD ENGAGE AND PREVENT THE RANGE FROM TIPPING OVER. RE-
FER TO THE INSTALLATION INSTRUCTIONS PACKAGED WITH THE ANTI-TIP
BRACKET FOR PROPER ANTI-TIP BRACKET INSTALLATION.
• Never leave children alone or unattended in the area where an appliance is
in use. They should never be allowed to sit or stand on any part of the appliance.
Never leave the oven door open when the range is unattended.
• Do not store items of interest to children in the cabinets above a range or
on the backguard of a range. Children climbing on the range to reach the items
could be seriously injured.
Do not allow children to climb or play around the range. The weight of a child
on an open oven door may cause the range to tip, resulting in serious burns or
other injury.
IMPORTANT: Observeallgoverningcodesandordinances.Donotobstructowof
combustion and ventilation air.

9
USER SERVICING: Donotrepairorreplaceanypartoftheapplianceunless
specicallyrecommendedinthisowner’sguide.Onlyaqualiedtechnician
should do all other servicing. This will reduce the risk of personal injury and dam-
age to the range.
Storage in or on appliance: Flammable materials should not be stored in an
oven, near surface burners or in the broiler section. This includes paper, plastic
andclothitems,suchascookbooks,plasticwareandtowels,aswellasammable
liquids.Donotusetheovenforstorage.Donotstoreexplosives,suchasaerosol
cans, on or near the range.
Remove the oven door from any unused range if it is to be stored or discarded.
Stepping, leaning or sitting on the doors or broiler section of this range can
result in serious injuries and cause damage to the range.
The following situations could cause bodily injury or
property damage.
DO NOT TOUCH SURFACE BURNERS, AREAS NEAR THESE BURNERS,
OVEN BURNERS OR INTERIOR SURFACES OF THE OVEN. Both surface burn-
ersandovenburnersmaybehoteventhoughtheameisnotvisible.Areasnear
surfaceburnersmaybecomehotenoughtocauseburns.Duringandafteruse,do
nottouch,orletclothingorotherammablematerialstouchtheseareasuntilthey
havehadsufcienttimetocool.Amongtheseareasaretherange,surfacesfacing
the range, the oven vent openings and surfaces near these openings, oven door
and windows.
NEVER use this appliance as a space heater to heat or warm the room.
Doingsomayresultincarbonmonoxidepoisoningandoverheatingofthe
oven.
Wear proper apparel. Loosettingorhanginggarmentsshouldneverbeworn
whileusingtheappliance.Donotletclothingorotherammablematerialscontact
surfaceburnersorinteriorsurfacesoftheovenuntiltheyhavehadsufcienttime
to cool.
Never modify or alter the construction of the range. Donotremoveleveling
legs, panels, wire covers, anti-tip brackets or any other permanent part of the prod-
uct.
When heating fat or grease, watch it closely. Fatorgreasemaycatchreifal-
lowed to become too hot.

10
Do not use water or our on grease res. Smothertherewithapanlid,baking
soda or use a dry chemical or foam-type extinguisher.
Operation of the Surface Burners. Whentheburnersareoperatedfortherst
time, a small amount of smoke may be generated due to tape residue or manufac-
turing lubrication, this is not dangerous.Operatetheburnersforaboutvemin-
utes to rid the burners of this material before cooking.
Use only dry potholders. Wet or damp potholders on hot surfaces could result in
burnsfromsteam.Donotletthepotholdertouchhotheatingareas.Donotusea
towel or other bulky cloth instead of a potholder.
Use proper ame size. Adjustamesizesoitdoesnotextendbeyondtheedge
of the cookware. The use of undersized cookware will expose a portion of the
burnerameandmayresultinsevereburnsordirectcontactandignitionofcloth-
ing.Also,properrelationshipofcookwaretoburnerwillimproveefciency.
NEVER cover any slots, holes or passages in the oven bottom or cover
an entire rack with materials such as aluminum foil. Doingsoblocksair
owthroughtheovenandmaycausecarbonmonoxidepoisoning.Aluminumfoil
liningsmayalsotrapheat,causingarehazard.Refertothecleaningsectionof
this manual for more information on the use of aluminum foil.
Placement of oven racks: Always place an oven rack in the desired location
while the oven is cool. If a rack must be moved when the oven is hot, use pothold-
ersandgrasptherackwithbothhandstoreposition.Donotletpotholderscontact
hot oven walls. Remove all cookware from the rack before moving.
Do not heat unopened food containers. Build-up of pressure may cause the
container to burst and result in injury.
Keep the oven vent duct unobstructed. The oven vent is located along the bot-
tom of the back guard. Touching the surfaces in the vent area when the oven is
being operated may cause severe burns. Also, do not place plastic or heat-sensi-
tive items on or near the oven vents. These items could melt or ignite. The range
requiresfreshairforproperburnercombustion.Donotblocktheowofairaround
the base or beneath the lower front panel of the range.
Use care when opening oven door: Stand to the side of the oven when open-
ing the oven door. Slowly open the door to allow hot air or steam to escape
before removing or replacing food.
Know which knob controls each burner. Place a pan of food on the burner be-
fore turning it on, and turn the burner off before removing the pan. Always turn to
thefullpositionwhenignitingtopburners.Thenadjusttheamesizesoitdoesnot
extend beyond the edge of the cookware.
