UniqueTek Light-Load II User manual

Light-Load II™
Shellplate Illuminator
Item #: T1731
Primary Features
i Ultra-compact size is easy to carry for various applications
i Electronic side switch for easy one-hand operation
i High CRI (90+, Nichia), max 550 lumens (CREE)
i Powered by 130mAh Li-polymer rechargeable battery
i Built-in Micro USB charging port with indicator
i Quick charge in 45 minutes
i Low battery indicator
i Temp er a t u re c o n t ro ll e r t o p r ot e ct th e co r e co mp on e nts a n d t he u s e r
i Clip slots designed into body and a two-way clip included
i IP65 weather resistance
Dimensions
Length: 53.9mm
Diameter: 14.5mm
Weight: 11.8g
Accessories: Lanyard, Bead Chain, Stainless Steel Clip, USB Cable,
Neoprene Toolhead Adapter Bushing and User Manual.
Battery specifications
Polymer Li-ion
battery
Dimensions
Standard
voltage
Capacity
Rechargeable
501030
4.2 V
130 mAh
Product Parameters
LED: CREE: XP-G3 S5 6500K
Mode
Specification
Ultra-
Low
Low †
Med
High
Strobe
2 Lm
22 Lm
230 Lm
550 Lm
550 Lm
7-8
Hours
150
Minutes
55
Minutes
38
Minutes
/
980 cd
80m
1.5m
IP65 water resistance
Notes:
† The Low brightness mode is recommended for reloading.
Times are based on maintaining the rated light output. Usabel light levels can
be expected for longer times depending on setting.
Note: The above-mentioned parameters are approximate and may
vary between flashlight and environments.
User Manual
User Interface
Operation/LED
Function
Momentary ON
Press and hold
Constant On
Double click
Cycle through (Click)
Low-Med-High-Strobe
Turn off
Long press for 0.5s
Single Click after using at any mode over 60s
* Note:
1. The output will step down to 65 lumens in 2 minutes working on High
mode due to the heat the high mode produces, and the output will be
adjusted real time by the temperature controller.
2. 3 clicks from off to access the hidden Ultra-Low mode.
Product Illustration
Front
Back
Back
V2
vv
On / Off Switch
Polyamide Body
Stainless Steel Bezel for LED
Front View
Back View
Grooves
Micro USB Port
Lanyard Hole
Pocket Clip

Micro USB Charging Instructions
i Open the Micro USB cover and connect a cable to charge as shown
in the diagram below
i Charging indicator: Red is charging, Blue is fully charged
i Charging time: 45 minutes (350 mA / 5V)
i When the battery voltage is lower than 2.6V, the indicator will be
constantly on as a reminder to charge the light
i When the battery voltage is lower than 2.4V the light will stop working
i Do Not Over Charge. Leaving it plugged in continuously will shorten
battery life.
Please fully recharge the flashlight first before you use it.

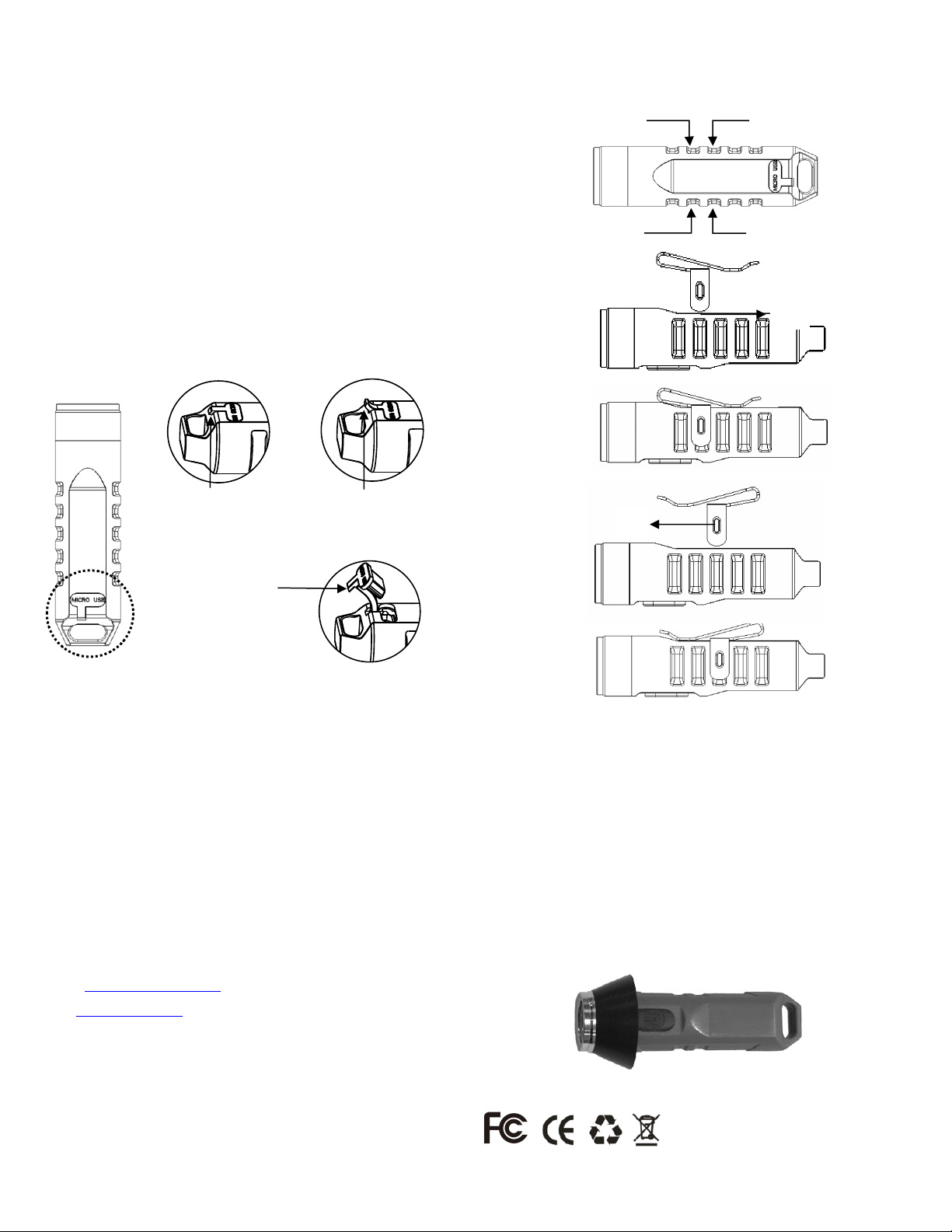

How to open the Micro USB cover
Battery Replacement
The battery can only be replaced by a professional technician.
.
Warning!
i Do not look directly into the light when it is switched on.
i Do not point the light at human or animal eyes.
i Do not permit children to use the flashlight unsupervised.
Warranty
i Two-year manufacturer’s warranty.
UniqueTek, Inc.
Website: http://www.uniquetek.com/
E-mail: [e-mail]
Address: 540 W. Iron Ave., Suite 118
Mesa, AZ 85210
Phone: [phone]
Clip Instructions
The clip can be attached in the forward or backward position.
Note:
1. It is recommended to clip the light at the designated grooves to
avoid covering the USB port.
Toolhead Adapter Bushing Instructions
The neoprene bushing should be installed as shown in the photo below.
The bushing supports the light when installed in Dillon 550, 650 or 750
toolheads or Hornady Lock-N-Load® AP™ die plates.
Do not install the bushing far enough to cover the switch.
The bushing is not needed if you are using the light as a keychain or
pocket light.
Rev 0
A. Grooves for backward clip
A. Grooves for backward clip
B. Grooves for forward clip
B. Grooves for forward clip
A
B
1. Look on the edge of
the metal body where it
looks like a rubber hinge.
2. Grab the edge of that
little rubber tip with your nail.
3. Pull it up and the USB
cover will easily pop out.
