United Chargers GRIZZL-E SMART Installation and operating instructions

User Manual
& Installation Guide
™
EV Charger
GRIZZL E
SMART

2
Model Numbers:
GRS-6-24-P
GRS-14-24-P
GRS-14-24-AB
Grizzl-E Smart Manual v. 10.2

3
Grizzl-E Smart Home EV Charging Station
The Grizzl-E Smart is the Wi-Fi connected smart EV Charger built from the proven Grizzl-E
design. Grizzl-E Smart has Wi-Fi connectivity and can work with any OCPP 1.6 application. It is
a simple, powerful, heavy-duty, and portable electric vehicle charging station made in Canada
and built to withstand the harshest conditions.
The Grizzl-E Smart comes exclusively with a 24ft Premium cable. Internal design and
components of the charger have been selected to provide maximum operational life of the
device and be able to withstand the elements.
Grizzl-E Smart provides up to 10 KW of power to your vehicle. Maximum current output can
be set through DIP Switches to provide 16 Amps, 24 Amps, 32Amps or 40 Amps adjustable
maximum current.
IMPORTANT SAFETY INSTRUCTIONS
This document contains instructions and warnings that must be followed when installing and
using the Grizzl-E Smart Electric Vehicle Supply Equipment (EVSE). Before installing or using
the EVSE, read this document including any WARNING and CAUTION symbols.
Warning: risk of personal injury
Warning: risk of electric shock
Warning: risk of fire
Caution: risk of damage to equipment
• This document provides instructions for the charging station and should not be used for
any other product. Before installation or use of this product, review this manual carefully
and consult with a licensed contractor, licensed electrician, or trained installation expert to
ensure compliance with local building codes and safety standards.
• Consult a licensed electrician to ensure that you can safely install and use this product.
• Ensure that the materials used, and the installation procedures, follow local building codes
and safety standards.
• The information provided in this manual in no way exempts the user of responsibility to
follow all applicable codes or safety standards.
The Symbols Used Have the Following Meanings

4
Repair and Maintenance Clause
• All United Chargers products do not require routine maintenance however, periodic
inspections should be conducted to ensure that all parts remain in good working order
and no damage exists.
• Do not attempt to open, disassemble, repair, tamper with, or modify any components of
the products. Contact United Chargers for any repairs.
• Read all the instructions before using this product.
• Children should not use this device.
• Do not put fingers into the EV connector.
• Do not touch live electrical parts.
• Do not use this product if the flexible power cord or EV cable is ragged, has broken
insulation, or any other signs of damage.
• Do not use this product if the enclosure or the EV connector is broken, cracked, open,
or shows any other indication of damage.
• Improper connection of the equipment grounding conductor can result in a risk of electric
shock. Check with a licensed electrician if you are in doubt as to whether the product is
properly connected and grounded.
Basic precautions should always be followed when using electrical products, including the
following:
WARNING: This equipment is intended only for charging vehicles
that do not require ventilation during charging. Please refer to your
vehicle’s owner’s manual to determine ventilation requirements.

5
Product Features
GRIZZL-E™ Smart Electric Vehicle Charging Station (EVSE)
• J1772 AC Level 2 (208-240 VAC), 40A Continuous Rated (9.6 kW)
• Adjustable Maximum Current Output (40A, 32A, 24A, 16A) to Support Multiple Circuit
Ratings (50A, 40A, 30A, 20A)
• Extreme Duty, Rigid & Compact Design:
• Robust and heavy-duty aluminum cast case; airtight enclosure for indoor or outdoor use
• Wi-Fi Connectivity. Smart Charging Features.
• Compatible with all OCPP 1.6 applications.
• EasyEvPlug™ Holster or Tesla EasyEVPlug™ Holster with cable Management System.
• Plug-in Configuration for easy portability.
• Wall Mount with security features (including single stud mount), Pedestal, Bollard/Pole
(Single & Dual Port) available from United Chargers.
• UL Certified
Self-Monitoring and Recovery | Power Outage Recovery
When a charging session is interrupted due to a temporary error condition, the charging
station will automatically restart charging when the cause of the temporary error condition
returns to normal. Refer to Chapter 10.3 Self-Monitoring and Recovery (Auto Restart) on page
27 for more information.
Adjustable Maximum Current Output to Support Multiple Circuit Ratings
The GRIZZL-E™ Electric Vehicle Charging Station features the ability to adjust the maximum
charging station current output to allow the use of a 50A, 40A, 30A, or 20A Dedicated Circuit
as follows:
50A Circuit Rating: To support 40A (9.6kW) Maximum Charging Station Output
40A Circuit Rating: To support 32A (7.68kW) Maximum Charging Station Output
30A Circuit Rating: To support 24A (5.76kW) Maximum Charging Station Output
20A Circuit Rating: To support 16A (3.84kW) Maximum Charging Station Output
The Default Factory Setting is 40A (9.6kW). To change the maximum current output, refer to
Chapter 3.1 Adjust Maximum Current Output on page 11.. If you are unsure of the circuit
ratings in your home consult a licensed electrician.
Security and Tamper Feature
In addition to the included security pin that secures the charging station to the wall mount
bracket, a coupler lock and key with a length of 90mm and diameter of 7mm can also be used
to lock and secure the Grizzl-E Charging Station to the wall mount.

6
Product Specifications
United Chargers GRIZZL-E™ Electric Vehicle Charging Station (EVSE)
Description Specifications
Model Numbers
EVSE Level
Max Output
Rating
Alternate
Adjustable Output
Ratings
Charge Cable
Length
Electrical Circuit
/ Input Power
Requirements
Input Power
Connection
Installation Rating
Operational Ratings
GRS-6-24-P
GRS-14-24-P
GRS-14-24-AB
SAE J1772; AC Level 2
40A; 9.6 kW Maximum Output – For use with 50A Circuit Rating
32A; 7.68 kW Maximum Output – For use with 40A Circuit Rating
24A; 5.76 kW Maximum Output – For use with 30A Circuit Rating
16A; 3.84 kW Maximum Output – For use with 20A Circuit Rating
24 ft.
Circuit Requirement: Dedicated Single Phase 208-240VAC, 50/60 Hz.;
Branch Breaker: Double pole;
Circuit Conductors: Line 1, Line 2, Earth / Ground
Standard: Plug-in, NEMA 6-50 or NEMA 14-50 Plug.
Plug is removable for Hardwire Connection.
NEMA 4, Indoor/Outdoor Rated
Temperature: -22⁰F to 122⁰F (-30⁰C to 50⁰C); Humidity: 95% RH
non-condensing
Mounting Wall or Pedestal Installation
Overall Dimensions
Display & Indicators
EVSE: 10.25 x 6.25 x 3.75 inches (26.0 x 16.0 x 9.3 cm)
LED Charge Status Indicators (Power/Ready, Charging, Fault)
Cable Management
Standards &
Compliance
EasyEvPlug™with cable management
UL Certified

7

8
INSTRUCTIONS Manual
Table of Contents
1. Introduction & Unpacking ............................................................................... 9
2. Installation Planning and Service Wiring: .................................................... 10
2.1 Electrical Source Requirements ............................................................... 10
2.2 Grounding Instructions ............................................................................. 10
3. Adjustable Maximum Current Output .......................................................... 11
3.1 Adjust Maximum Current Output............................................................. 11
4. Installation ....................................................................................................... 14
4.1 Tools & Parts Required for Installation ................................................... 14
4.2 Install the Charging Station ...................................................................... 15
5. Input Wiring Connection (Optional Hardwire Connection) ........................ 18
6. EasyEvPlug Holster and Cable Management System................................... 19
7. Set Up Smart Functionality............................................................................. 20
7.1 Check Wi-Fi Connection ............................................................................ 20
7.2 Connect the Grizzl-E to your Wi-Fi ........................................................... 21
7.3 Connect to United Chargers OCPP Network ........................................... 22
7.4 Connect to Third Party OCPP Network .................................................... 22
8. Re-Set Wi-Fi Board ........................................................................................... 23
8.1 Change OCPP Network ............................................................................. 24
9. Charging Status Indicators and Buzzers ....................................................... 25
9.1 Charging Status Indicators ........................................................................ 25
9.2 Fault Indicators .......................................................................................... 26
10. Operation ....................................................................................................... 27
10.1 Connect and Charge ................................................................................ 27
10.2 Stop Charging ........................................................................................... 27
10.3 Self-Monitoring and Recovery (Auto Restart) ...................................... 27
11. General Product Care and Use Information .............................................. 28
12. Warranty ........................................................................................................ 29

9
This user manual applies to the GRIZZL-E™ Smart EVSE for Plug-in Hybrid Electric Vehicles
(PHEVs) and Electric Vehicles (EVs).
Charging Station with input and
output cable (x1)
Mounting Bracket (x1)
Security Pin (x1)
Phillips-head
Screws (x4)
Holster (x1)
Robertson Head
Screws (x2)
1. Introduction & Unpacking
Socket Cap Screw
Anchor (x4)

10
WARNING: Disconnect the power supply to the charging station
before installing, adjusting, or repairing the charging. Failure to do so
may result in physical injury or damage to the power supply system
and the charging station.
2. Installation Planning and Service Wiring:
• Prior to mounting, locate an available electrical source that can support the following
Input Requirements for the Charging Station Per local Electrical Safety Code requirements:
»40A Maximum Output Setting (Default Factory Setting): a DEDICATED CIRCUIT rated
for 50A; 208-240 VAC, 50-60 Hz, Single Phase must be used.
»32A Maximum Output Setting (Optional Setting): a DEDICATED CIRCUIT rated for 40A;
208-240 VAC, 50-60 Hz, Single Phase must be used.
»24A Maximum Output Setting (Optional Setting): a DEDICATED CIRCUIT rated for 30A;
208-240 VAC, 50-60 Hz, Single Phase must be used.
»16A Maximum Output Setting (Optional Setting): a DEDICATED CIRCUIT rated for 20A;
208-240 VAC, 50-60 Hz, Single Phase must be used.
• A Double Pole Circuit Breaker of the circuit rating must be used.
• The Charging Unit has a built in GFCI protection; do not provide any additional GFCI
protection upstream of the charging unit.
• The Charging Stations can connect a Standard NEMA 14-50 Receptacle, or the unit can be
hardwired
2.2 Grounding Instructions
The charging station must be implemented equipment grounding through a permanent
wiring system or an equipment grounding conductor. Use a cable with a dedicated grounding
conductor connected to the equipment ground terminal block.
CAUTION: To reduce the risk of fire, connect only to a circuit
provided with the minimum branch circuit overcurrent protection
requirements in accordance with the National Electrical Code ANSI/
NFPA 7- and the Canadian Electrical Safety Code, Part 1, C22.1. If
you are unsure if your circuit meets these requirements consult a
licensed electrician.
2.1 Electrical Source Requirements

11
3. Adjustable Maximum Current Output
The GRIZZL-E Smart charging station features the ability to adjust the maximum Charging
Station current output to support 50A, 40A, 30A, or 20A Dedicated Circuit ratings as follows:
Circuit Rating Maximum Charging Station Output
50A 40A (9.6 kW)
40A 32A (7.68 kW)
30A 24A (5.76 kW)
20A 16A (3.84 kW)
• The Charging Station Default Factory Maximum Current Output Setting is 40A (9.6 kW) for
use with a 50A Circuit Rating.
• The Circuit must be a DEDICATED CIRCUIT 208-240 VAC, 50-60 Hz, Single Phase.
• Requirements govern that only 80% of the circuit rated load may be utilized, hence the
higher Circuit Ratings Requirement relative to maximum Charging Station output.

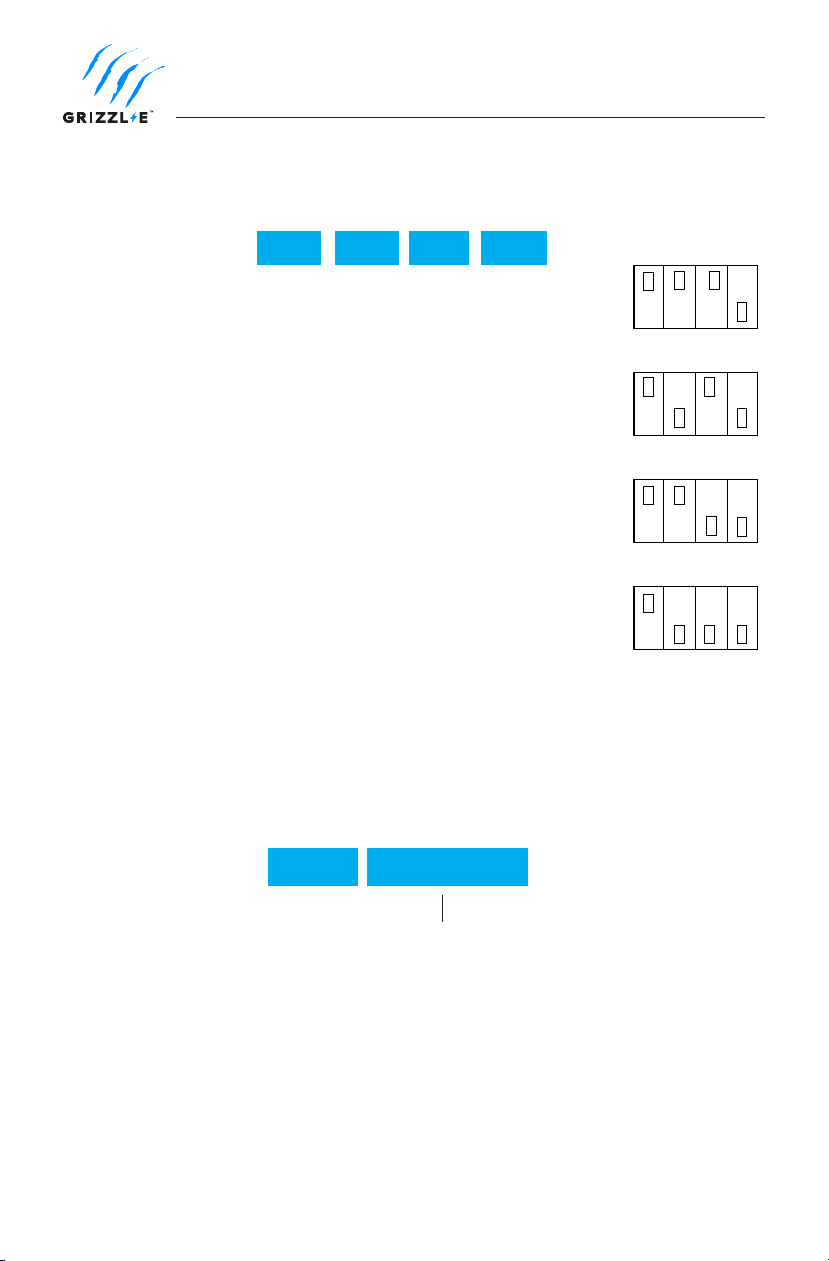

To adjust the Maximum Current Output Setting:
1. Place the Charging Station on a flat surface with the front cover facing up.
2. Remove the front cover by removing the 4 screws at each corner of the charging station.
Use a M4 Allen Key to remove the screws.
3.1 Adjust Maximum Current Output

12
3. With the front cover placed to the side, locate the DIP switch on the charging station circuit
board. The DIP switch is a 4-position switch on the main circuit board, located directly to
the left of the LED.
UP DOWN
WARNING: Do not touch live electrical parts. Disconnect the power
supply to the charging station and verify no power is present before
adjusting the DIP Switches. A non-conductive object MUST be used to
adjust the DIP switch settings. Failure to do so may result in physical
injury or damage to the power supply system and the charging station.
UP UP
CAUTION: The LED pipe is attached to the front cover. When the
front cover is removed, place it on a flat surface facing down to avoid
damage to the LED pipe.

13
40A Maximum Current Output
(Factory Default Setting)
32A Maximum Current Output
24A Maximum Current Output
16A Maximum Current Output
UP DOWN UP UP
UP DOWN DOWN
DOWN DOWN
DOWN DOWN DOWN
UP
UP UP
UP
Switch 1 Switch 2 Switch 3 Switch 4
4. Using a non-conductive object adjust the Maximum Current Output to either 32A, 24A or
16A, using the following combination of DIP switch settings:
5. Once the DIP Switch Setting is adjusted, reassemble the charging station. Reinstall the top
cover to the charging station using the following torque force to secure the 4 socket cap
screws:
Screw Torque
M6 16 kgf-cm 13.88 lb-in

14
4.1 Tools & Parts Required for Installation
Tool Size Source of Supply Remark
Mounting Bracket
Robertson-Head Screw
(x2)
Phillips-Head Screw
(x4)
Anchors
(x4)
Holster/Tesla Holster™
Socket cap screw
(x4)
Allen key
Philips Screwdriver
255 x148 x 36 mm
#14
#8
#8
58 x 58 x 70 mm
5/16”
PH3
M4
Included with Product
Included with Product
Included with Product
Included with Product
Included with Product
Included with Product
Commercially Available
Commercially Available
For mounting the charging
station to the wall/structure
For installing the Mounting
Bracket to the wall/structure
For installing the
EasyEvPlug™to the wall/
structure
For installing the EasyEvPlug™
to the wall/structure
To store the EV charging Plug
and Cable
For securing the charging
station to the Mounting
Bracket
For Charging Station Cover
Screws
For Holder Installation and
Optional Hardwire Install
Allen key 3/16” Commercially Available For installing the enclosure
plate to the back of the
station body.
4. Installation
Prior to mounting, determine the location of an acceptable mounting support. All charging
station products must be anchored into a mounting support such as a 2” x 4” stud or a solid
concrete wall. DO NOT mount this unit directly to a stucco/drywall/wall board.

15
4.2 Install the Charging Station
1. Separate the front and back piece of the mounting bracket by pushing down on the
notch.
2. Attach the front piece of the mounting bracket to the back of the charging station
using the Socket-cap screws. Ensure the top of the mounting bracket is matched with
the top of the charging station.
Back Piece
Front Piece
TOP

16
The back piece of the mounting bracket has 3 holes to support attachment to various
surfaces. Use the top two holes to attach the mounting bracket to a wall stud.
Mounting Screw Recommendations:
• For finished walls supported by wood studs, use #14 or M6 tapping screws. (Included).
• For masonry walls, use M6 mechanical screws. (Commercially available)
• Use following torque force:
Screw Torque
M6
1/4”
50 kgf-cm
50 kgf-cm
43.4 lb-in
43.4 lb-in
3. Secure the back piece of the mounting bracket to the wall or other suitable structure
using the Robertson-head screws.
Mount the unit between 24 inches (0.6 m) and 48 inches (1.2 m) from the ground. The NEMA
outlet should be located no less than 20~26” from the ground or as defined by applicable,
local electrical safety codes and standards.

17
4. Mount the charger on the wall by securing the front piece of the mounting bracket to the
back piece of the mounting bracket.
5. Secure the charger in place by inserting either the security pin or the outdoor security lock
into the mounting bracket.
6. Plug in the power cord to the NEMA 14-50 or NEMA 6-50 Wall Outlet/Receptacle. Ensure
the indicator light alternates between Blue and Purple, indicating the charger is ready and
disconnected.

18
18
5. Input Wiring Connection (Optional Hardwire Connection)
1. Choose the appropriate conduit in accordance with all applicable, local, and electrical
safety codes and standards.
2. Using the appropriate tool, clamp the wire terminal to the copper wire. For non-insulated
terminals, use heat shrink tube to cover the non-insulated portion of the terminal.
3. Remove the front cover by removing the 4 screws at each corner of the charging station.
For more information on how to remove the front cover refer to Chapter 3.1 Adjust
Maximum Current Output on page 11.
4. With the front cover placed to the side, use Philips screwdriver to release terminal screws
of the 6-50 or 14-50 Plug cable. Loosen the Strain Relief Fitting for plug and remove the
plug.
5. Remove the Strain Relief connector.
6. Insert the wire end passing through the conduit and insert them into the input wiring hole.
(Use Red wire for L1, Black wire for L2, Green wire for G). Attach the copper wire on the
corresponding terminal block. Use the following wire and torque force when connecting to
input terminal block.
Model Terminal Conductor Rating Torque
GRIZZL-E
Smart
90C,
copper wire
L1, L2, G 8 AWG 16 kgf-cm 13.88 lb-in
7. Once the input wiring and conduit are connected, reinstall the charging station font cover.

19
6. EasyEvPlug Holster and Cable Management System
The EasyEVPlug™ Holster or Tesla EasyEVPlug™ Holster is the new innovative method to pro-
tect your plug and manage your cord. It has the following features:
• No need to aim – awless plug even in the dark.
• Your EV holster will always be in a convenient location.
• Saves space – special angle for less wall clearance.
• Integrated cable management – holds up to 25 feet of cable.
The EasyEvPlug holster can be installed at any location near the charging station.
(x4)
1. Hold back of holster against the mounting
surface. Fasten Phillips head screws through
back holes. Use anchors if attaching directly to
drywall.
2. Insert charging connector into holster.
3. Wrap cable on top of EasyEvPlug.

20
7. Set Up Smart Functionality
7.1 Check Wi-Fi Connection
To check the strength and Encryption type of the Wi-Fi signal:
1. Plug in the charger. Ensure indicator light is alternating Blue and Purple.
2. Open the W-Fi settings on your phone or desktop.
3. Select the network UC_Smart_[ChargerSerial#].
4. Open the internet browser on your device.
5. Enter the IP address 192.168.4.1 into the browser search bar.
6. A webpage will load select the Show Available Networks button.
7. A list of available networks will display with RSII Strength and Encryption Type.
RSII in dBm Signal Strength
50 Excellent
60 Very Good
70 Good
80 Low
90 Very Low
0 No Signal
Note: The RSSI must be between 50-79 to update the charger and use smart features.
If the RSSI reading is above 80 install a Wi-Fi repeater to increase the signal strength or
move the Wi-Fi router closer to the charger.
Signal Strength
Encryption Level Encryption Type
0 WIFI_AUTH_OPEN
1 WIFI_AUTH_WEP
2 WIFI_AUTH_WPA_PSK
3 WIFI_AUTH_WPA2_PSK
4 WIFI_AUTH_WPA_WPA2_PSK
5 WIFI_AUTH_WPA2_ENTERPRISE
Note: The Grizzl-E Smart does not support 5Gz frequency. Ensure your router uses 2.4
Ghz frequency.
Encryption Type
