United Chargers GRIZZLE GR1-06-18 Installation and operating instructions

Model Numbers:
GR1-06-18 GR1-06-24
GR1-14-18 GR1-14-24
User Manual
& Installation Guide
™
EV charger
GRIZZL E

Model Numbers:
GR1-06-18
GR1-06-24
GR1-14-18
GR1-14-24
2

IMPORTANT SAFETY INSTRUCTIONS
Repair and Maintenance Clause
This document contains instructions and warnings that must be followed when installing
and using the Electric Vehicle Supply Equipment (EVSE). Before installing or using the EVSE,
read this entire document as well as WARNING and CAUTION markings in this document.
• All United Chargers products do not require routine maintenance however, periodic
inspections should be conducted to ensure that all parts remain in good working order and
no damage exists. Do not attempt to open, disassemble, repair, tamper with, or modify
any components of the products – the products are not user serviceable. Contact United
Chargers for any repairs.
• Only licensed electricians can repair or maintain the charging station. It is forbidden for
general users to repair or maintain it. Turn off input power before performing any repairs or
maintenance to the charging station.
• The charging station must be installed, adjusted, and repaired only by a licensed
electrician.
• Make sure that the materials used, and the installation procedures follow local building
codes and safety standards.
• The information provided in this manual in no way exempts the user of responsibility to
follow all applicable codes or safety standards.
• This document provides instructions for the charging station and should not be used for
any other product. Before installation or use of this product, review this manual carefully and
consult with a licensed contractor, licensed electrician, or trained installation expert to make
sure of compliance with local building codes and safety standards.
• CAUTION: To reduce the risk of fire, connect only to a circuit provided with the minimum
branch circuit overcurrent protection requirements in accordance with the National Electrical
Code, ANSI/NFPA 70, and the Canadian Electrical Safety Code, Part I, C22.1.
Warning: risk of personal injury
Warning: risk of electric shock
Warning: risk of fire
Caution: risk of damage to
the equipment
The symbols used have the following meaning:
FCC Declaration of Conformity
• This charging station complies with part 15 of the FCC Rules. Changes or modifications the
charging station not expressly approved by the manufacturer could void FCC compliance.
3

• Operation is subject to the following two conditions: (1) This charging station may not cause
harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
OVERALL WARNINGS & CAUTIONS
• Read all the instructions before using this product.
• This device should be supervised when used around children.
• Do not put fingers into the EV connector.
• Do not use this product if the flexible power cord or EV cable is ragged, has broken
insulation, or any other signs of damage.
• Do not use this product if the enclosure or the EV connector is broken, cracked, open,
or shows any other indication of damage.
• Improper connection of the equipment grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded.
• Do not touch live electrical parts.
• Incorrect connections may cause electric shock.
Warning: risk of electric shock
Basic precautions should always be followed when using electrical products,
including the following:
WARNING: This equipment is intended only for charging vehicles that do not require
ventilation during charging. Please refer to your vehicle’s owner’s manual to determine
ventilation requirements.
4

PRODUCT FEATURES
United Chargers GRIZZL-E™ Electric Vehicle Charging Station (EVSE)
• J1772 AC Level 2 (208-240 VAC), 40A Continuous Rated (9.6 kW)
• Adjustable Maximum Current Output (40A, 32A, 24A, 16A) to Support Multiple Circuit
Ratings (50A, 40A, 30A, 20A)
• Extreme Duty, Rigid & Compact Design:
EVSE form factor smaller than a standard sheet of letter-size paper
• Robust Construction, designed for Outdoor Use:
Robust and heavy duty aluminum cast case; airtight enclosure for indoor or outdoor use.
• Simple Operation:
No user interface required with EVSE, simply Plug-in to your EV to initiate charging
• Cable & Connector Management:
EasyEvPlug™with cable Management System.
• Portable:
Standard NEMA 6-50 (Models GR1-06-18 and GR1-06-24)
or NEMA 14-50 (Models GR1-14-18 and GR1-14-24)
Plug-in Configuration for easy portability depending on model.
• Simple, Flexible Mounting Options:
Wall Mount with security features (including single stud mount), Pedestal, Bollard/Pole
(Single & Dual Port) available from United Chargers.
• UL certified components.
Adjustable Maximum Current Output to Support Multiple Circuit Ratings
The GRIZZL-E ™ charging station product features the ability to adjust the maximum Charging
Station current output to allow the use of a 50A, 40A, 30A, or 20A Dedicated Circuit as follows:
50A Circuit Rating: To support 40A (9.6 kW) maximum Charging Station output
40A Circuit Rating: To support 32A (7.68 kW) maximum Charging Station output
30A Circuit Rating: To support 24A (5.76 kW) maximum Charging Station output
20A Circuit Rating: To support 16A (3.84 kW) maximum Charging Station output
Notes on Circuit Requirements and Amperage settings:
• The Charging Station Default Factory Maximum Current Output Setting is 40A (9.6 kW) for
use with a 50A Circuit Rating – Please refer to Adjusting Maximum Current Output on page
12 when using a 40A or 30A or 20A Circuit Rating.
5

• To obtain the fastest charging capability of 40A, a 50A Circuit Rating must be used.
• The Circuit must be a DEDICATED CIRCUIT 208-240 VAC, 50-60 Hz, Single Phase.
• Per only 80% of the circuit rated load may be utilized, hence the higher Circuit Ratings
Requirement relative to maximum Charging Station output.
• Temporary error condition include: Overcurrent, Overvoltage, Undervoltage, Missing diode,
Ground fault and Over Temperature.
• For Over Current (OC) conditions: The charging session will be stopped while OC occurs.
After recovery from OC for 30 seconds, the charging station will automatically restart charging
for 4 times.
• When charging session stopped due to Ground Fault (GFCI) trip, the charging station will
try to restart after 15 minutes for 4 times. After 4 times, the charging station buzzer will stay
on continuously, and status indicator will stay RED. The user should plug-out and plug-in the
power cable of the charging station.
The ability to utilize alternate circuit ratings can be beneficial in the instance the location
of installation cannot support a 50A circuit, or in instance where an existing 40A
or 30A or 20A dedicated circuit is already installed.
Security and Tamper Feature
Self-Monitoring and Recovery | Power Outage Recovery
In addition to the pin that secures the GRIZZL-E ™ charging station to the wall mount bracket
(Refer to Section 2.3, Paragraph 3., Installing the Charging Station), if desired, a feature is
included as part of the charging station and wall mount bracket to replace provided pin with
the coupler lock with the minimum parameters:
Length: 90mm, Diameter: 7mm
for added security and tamper benefits.
When a charging session is interrupted due to a temporary error condition, the charging
station will automatically restart charging when the cause of the temporary error condition
returns to normal. The status indicator lights remain flashing RED until the error condition
is resolved.
6

PRODUCT SPECIFICATIONS
United Chargers GRIZZL-E™ Electric Vehicle Charging Station (EVSE)
Description Specifications
Model Numbers
Connector / EVSE
Level
Max Output
Rating
Alternate
Adjustable Output
Ratings
Charge Cable
Lengths
Electrical Circuit
/ Input Power
Requirements
Input Power
Connection
Charging Station
Color
Installation Rating
Operational Ratings
GR1-06-18: GRIZZL-E ™EVSE, 18 ft. J1772 Cordset, Plug-in: NEMA 6-50 Plug
GR1-06-24: GRIZZL-E ™ EVSE, 24 ft. J1772 Cordset, Plug-in: NEMA 6-50 Plug
GR1-14-18: GRIZZL-E ™ EVSE, 18 ft. J1772 Cordset, Plug-in: NEMA 14-50 Plug
GR1-14-24: GRIZZL-E ™ EVSE, 24 ft. J1772 Cordset, Plug-in: NEMA 14-50 Plug
SAE J1772; AC Level 2
40A; 9.6 kW Maximum Output – For use with 50A Circuit Rating
32A; 7.68 kW Maximum Output – For use with 40A Circuit Rating
24A; 5.76 kW Maximum Output – For use with 30A Circuit Rating
16A; 3.84 kW Maximum Output – For use with 20A Circuit Rating
18 ft. (5.5m) for GR1-06-18 and GR1-14-18
24 ft. (7.2m) for GR1-06-24 and GR1-14-24
Circuit Requirement: Dedicated Single Phase 208-240VAC, 50/60 Hz.;
Branch Breaker: Double pole;
Circuit Conductors: Line 1, Line 2, Earth / Ground
Standard: Plug-in, NEMA 6-50 or NEMA 14-50 Plug.
Plug is removable for Hardwire Connection.
Standard: Black
NEMA 4, Indoor/Outdoor Rated
Temperature: -22⁰F to 122⁰F (-30⁰C to 50⁰C); Humidity: 95% RH
non-condensing
Mounting Wall or Pedestal Installation
Overall Dimensions
Display & Indicators
EVSE: 10.25 x 6.25 x 3.75 inches (26.0 x 16.0 x 9.3 cm)
LED Charge Status Indicators (Power/Ready, Charging, Fault)
7

Cable Management
Standards &
Compliance
EasyEvPlug™with cable management
UL certified components
8

INSTRUCTIONS MANUAL
CONTENTS
United Chargers GRIZZL-E ™ Electric Vehicle Charging Station (EVSE)
1 Introduction & Unpacking ......................................................................................
1.1 Unpacking ............................................................................................................................
2Installation ................................................................................................................
2.1 Before Installation ..............................................................................................................
2.1.1 Installation Planning & Service Wiring .............................................................................
2.1.2 Grounding Instructions ......................................................................................................
2.1.3 Adjusting the Charging Station Maximum Current Output Setting (Optional)............
2.2 Tools & Parts Required for Installation ............................................................................
2.3 Install the Charging Station ...............................................................................................
2.4 Input Wiring Connection (Optional Hardwire Connection Only) ..................................
2.5 Install the EasyEvPlug™......................................................................................................
3Operations .................................................................................................................
3.1 Charging Status Indicators and Buzzers .........................................................................
3.2 Charging your Electric Vehicle (EV) ...................................................................................
3.2.1 Connect and Charge ...........................................................................................................
3.2.2 Stop Charging ......................................................................................................................
3.2.3 Self-Monitoring and Recovery (Auto Restart) ..................................................................
3.3 General Product Care and Use Information ...................................................................
4 Warranty .................................................................................................................
4.1 EV Residential Charging Stations 3 Years Limited Warranty .........................................
10
10
11
11
11
12
12
15
16
17
20
21
21
22
22
22
22
23
24
24
9

1. INTRODUCTION & UNPACKING
1.1 Unpacking
This user manual applies to the GRIZZL-E ™ EVSE for Plug-in Hybrid Electric Vehicles
(PHEVs) and Electric Vehicles (EVs).
Unpackage all items and confirm the contents as noted below.
PLEASE NOTE:
The Mounting Fasteners for both the Charging Station Mounting Bracket and Connector
& Cable Holder are packed inside transparent plastic bags.
1 2 3
Charging Station with input and output cable
Accessories
mounting bracket
screws (4) to mount bracket
security pin (1)
Robertson head screws (2)
User Manual
1
2Holder
EasyEvPlug™
Philips head screws (4) to mount and
anchors(4)
3
10
Description

2. INSTALLATION
2.1 Before Installation
2.1.1 Installation Planning & Service Wiring
• Do not touch live electrical parts.
• Incorrect connections may cause electric shock.
• Disconnect the power supply to the charging station and verify no power is present before
installing, adjusting, or repairing the charging station. Failure to do so may result in physical
injury or damage to the power supply system and the charging station.
The charging station must be installed only by a licensed electrician in accordance with the
provisions of the local electrical industry construction and should comply with national
electrical codes and standards.
Before installing the charging station, make sure you have read these instructions in this
manual and fully understand its contents.
Appropriate protection is required when connecting to a main panel/switchboard. The tools
and parts used as outlined in the section “Tools & parts required for installation”.
Prior to mounting, determine location of an acceptable mounting support. All charging
station products must be anchored into a mounting support such as a 2” x 4” stud or a solid
concrete wall, using mounting hardware that is appropriate for the surface on which you are
mounting. DO NOT mount this unit directly to a stucco/drywall/wall board. If installing to a
wood stud, use the lag screws provided and ensure the mounting plate is positioned on the
centerline of the stud. If mounting onto a concrete, block, or brick wall, use an appropriate
anchor for the type of wall on which you are installing the unit.
Prior to mounting, locate an available electrical source that can support the following Input
Requirements for the Charging Station Per local Electrical Safety Code requirements:
• 40A Maximum Output Setting (Default Factory Setting): a DEDICATED CIRCUIT rated for
50A; 208-240 VAC, 50-60 Hz, Single Phase must be used.
• 32A Maximum Output Setting (Optional Setting): a DEDICATED CIRCUIT rated for 40A;
208-240 VAC, 50-60 Hz, Single Phase must be used.
• 24A Maximum Output Setting (Optional Setting): a DEDICATED CIRCUIT rated for 30A;
208-240 VAC, 50-60 Hz, Single Phase must be used.
• 16A Maximum Output Setting (Optional Setting): a DEDICATED CIRCUIT rated for 20A;
208-240 VAC, 50-60 Hz, Single Phase must be used.
Note: Please refer to Adjusting Maximum Current Output on page 12.
Warning: risk of electric shock
11

• Additionally, a Double Pole Circuit Breaker of the circuit rating must be used. The Charging
Unit has a built in GFCI protection; do not provide any additional GFCI protection upstream of
the charging unit.
• The Charging Stations can connect (plug into) a Standard NEMA 6-50 or 14-50 Receptacle or
the unit can be hardwired
Caution:
The service wiring in this section are specific to North America only. Before installing
the Charging Station, identify the type of utility service connection available onsite. If
you are unsure about the type of connection available at the service panel, contact
your utility service provider.
2.1.2 Grounding Instructions
2.1.3 Adjusting the Charging Station Maximum Current Output
Setting (Optional)
The charging station must be implemented equipment grounding through a permanent
wiring system or an equipment grounding conductor. Use a cable with a dedicated grounding
conductor connected to the equipment ground terminal block.
• Do not touch live electrical parts.
• Incorrect connections may cause electric shock.
• Disconnect the power supply to the charging station and verify no power is present before
installing, adjusting, or repairing the charging station. Failure to do so may result in physical
injury or damage to the power supply system and the charging station.
• Electrical Power MUST remain OFF and DISCONNECTED before setting or changing the DIP
switch. A non-conductive object MUST be used to adjust the DIP switch settings, failure to do
so may result in risk of electrical shock and damage to the equipment.
The GRIZZL-E ™ charging station product features the ability to adjust the maximum Charging
Station current output to allow the use of a 50A, 40, 30A, or 20A Dedicated Circuit as follows:
Warning: risk of electric shock
50A Circuit Rating: To support 40A (9.6 kW) maximum Charging Station output
40A Circuit Rating: To support 32A (7.68 kW) maximum Charging Station output
12

30A Circuit Rating: To support 24A (5.76 kW) maximum Charging Station output
20A Circuit Rating: To support 16A (3.84 kW) maximum Charging Station output
The Charging Station Default Factory Maximum Current Output Setting is 40A (9.6 kW) for use
with a 50A Circuit Rating. To adjust the Maximum Current Output Setting when using a 40A or
30A or 20A Circuit Rating:
1. Place the Charging Station on a flat surface, front cover up.
2. Remove the Charing Station front cover by loosening the (4) Cap screws at each corner of the
charging station.
Figure 2-1. Four screws locations to remove the Charging Station Cover.
3. With the front cover placed to the side, locate the DIP switch on the charging station circuit
board. The DIP switch is a 3-position switch on the main circuit board, located directly to the
left of the LED.
Caution:
The LED pipe is attached to the charging station front cover. When front cover is
removed, place the front cover on the surface with front cover down and LED pipe
up. Placing front cover on LED pipe might damage or break LED pipe.
13

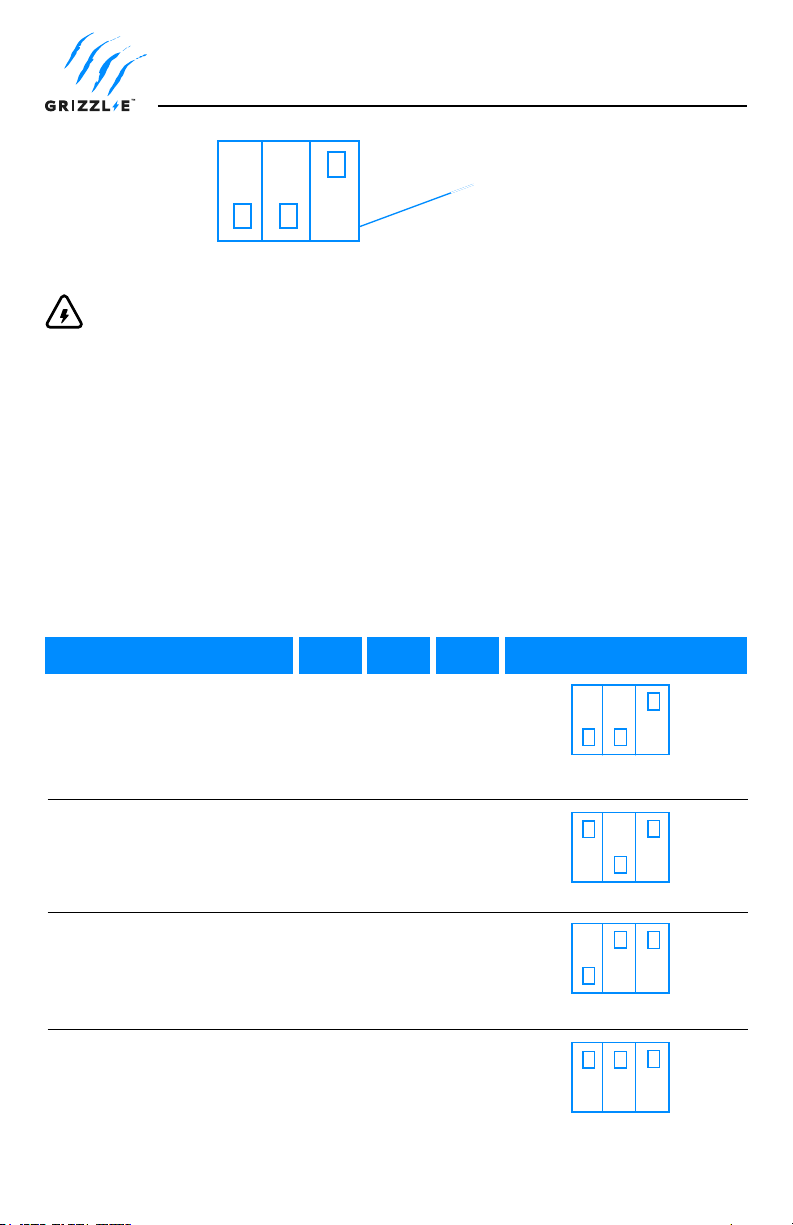

Figure 2-2. 3-Position DIP Switch
ONOFF OFF
• Do not touch live electrical parts.
• Incorrect connections may cause electric shock.
• Disconnect the power supply to the charging station and verify no power is present before
installing, adjusting, or repairing the charging station. Failure to do so may result in physical
injury or damage to the power supply system and the charging station.
• Electrical Power MUST remain OFF and DISCONNECTED before setting or changing the DIP
switch. A non-conductive object MUST be used to adjust the DIP switch settings, failure to do
so may result in risk of electrical shock and damage to the equipment.
4. To Adjust the Maximum Current Output to either 32A or 24A or 16A, use a non-conductive
object to adjust the DIP switch settings as follows
Warning: risk of electric shock
Maximum Current Output DIP 1 DIP 2 DIP 3 DIP Switch Setting (Picture)
40A Maximum Current Output
(Factory Default Setting)
32A Maximum Current Output
24A Maximum Current Output
16A Maximum Current Output
ON
ON
ON
ON
ON
ON
ONON
OFF
OFF
OFF
OFF
Figure 2-3
Figure 2-4
Figure 2-5
Figure 2-6
14

5. Once the DIP Switch Setting is adjusted, reassemble the charging station.
Reinstall the top cover to the charging station using the following torque force to secure the (4)
socket cap screw:
Screw Torque
M6 16 kgf-cm 13.88 lb-in
2.2 Tools & Parts Required for Installation
Table 2-1 Tools & parts required for installation
Tool Size Source of Supply Remark
Mounting Bracket
Mounting Screw
x2
Mounting Screw
x4
Anchors
x4
EasyEvPlug™
Socket cap screw
x4
Allen key
Philips Screwdriver
255 x148 x 36 mm
#14
#8
#8
58 x 58 x 70 mm
5/16”
PH3
M4
Included with Product
Included with Product
Included with Product
Included with Product
Included with Product
Included with Product
Commercially Available
Commercially Available
For installing charging station
to the wall/structure
For installing the Mounting
Bracket to the wall/structure
For installing the EasyEvPlug™
to the wall/structure
For installing the EasyEvPlug™
to the wall/structure
To store the EV charging Plug
and Cable
For mounting enclosure plate
to the back of the enclosure
body
For Charging Station Cover
Screws
For Holder Installation and
Optional Hardwire Install
15
Allen key 3/16” Commercially Available For installing the enclosure
plate to the back of the
station body.

2.3 Install the Charging Station
1. Secure back piece of the charging station mounting bracket to the wall or other suitable
structure with provided mounting screws. If installing to a wall, ensure the screws are
anchored into a suitable wall stud.
The back piece of the mounting bracket has 3 holes to support attachment to various surfaces.
Please use both provided screws to attach the back piece of the mounting bracket to the wall.
Mounting Screw Recommendations:
• For finished walls supported by wood studs, use #14 or M6 tapping screws. (Supplied)
• For masonry walls, use M6 mechanical screws. (Commercially available)
• Use following torque force:
Figure 2-7. Mounting bracket
16
Screw Torque
M6
1/4”
50 kgf-cm
50 kgf-cm
43.4 lb-in
43.4 lb-in
2. Attach the front piece of the mounting bracket to the back of the charging station using
provided screws.
Figure 2-8. Mounting plate attachment

3. Mount charger on the wall
mounting bracket and lock it with the
pin
4. Follow applicable accessibility
requirements for the mounting
position. The unit shall be mounted at
a sufficient height from ground such
that the height of the storage means
for the coupling device is located
between 24 inches (0.6 m) and 48
inches (1.2 m) from the ground.
5. For Plug-in (NEMA 6-50 or 14-50)
models, Plug in the power cord to
the NEMA 6-50 or 14-50 Wall Outlet/
Receptacle. The NEMA outlet should
be located no less than 20~26”
from the ground or as defined by
applicable, local electrical safety codes
and standards.
Figure 2-10. Plug in the power cord
Figure 2-9. Security pin
17
Figure 2-11. Conduit.
Figure 2-12. Copper terminal, heat shrink tube and copper wire
2.4 Input Wiring Connection
(Optional Hardwire Connection Only)
1. Choose the appropriate conduit in accordance with all applicable, local and electrical
safety codes and standards.
2. Using the appropriate tool, clamp the wire terminal to the copper wire. For non-insulated
terminals, use heat shrink tube to cover the non-insulated portion of the terminal

3. Connecting the electrical wiring to the charging station.
a. Remove the Charing Station front cover by unscrewing screws
Figure 2-13. Four Cap screw locations to remove the Charging Station Cover
Caution:
The LED pipe is attached to the charging station front cover. When front cover is
removed, place the front cover on the surface with front cover down and LED pipe
up. Placing front cover on LED pipe might damage or break LED pipe.
18
b. With the front cover placed to the side, use Philips screwdriver to release terminal screws
of the NEMA 6-50 or 14-50 Plug cable. Loosen the Strain Relief Fitting for the NEMA 6-50 or
14-50 Plug and Remove the Plug. Remove the Strain Relief connector.
c. Insert the wire end passing through the conduit and insert them into the input wiring
hole. (Use Red wire for L1, Black wire for L2, Green wire for G). Attach the copper wire on the
corresponding terminal block. Use the following wire and torque force when connecting to
input terminal block.

Model Terminal Conductor Screw Rating Torque
GRIZZL-E ™ 90C,
copper wire
M4L1, L2, G 8 AWG 16 kgf-cm 13.88 lb-in
Figure 2-14. Input wiring
Caution:
To reduce the risk of fire, connect only to a circuit provided with the appropriate
amperes minimum branch circuit overcurrent protection in accordance with the
National Electrical Code, ANSI/NFPA 70, and the Canadian Electrical Code, Part I,
C22.1.
Model Current Setting Circuit Rating Requirement
GRIZZL-E ™
GRIZZL-E ™
GRIZZL-E ™
32A
24A
16A
40A
30A
20A
GRIZZL-E ™ 40A 50A
19
4. Once the input wiring and conduit are connected, reassemble the charging station.
Reinstall the charging station font cover using the following torque force to secure the
(4) Torx screws:
Screw Torque
M4 16 kgf-cm 13.88 lb-in

2.5 Install EasyEvPlug™
Figure 2-15. EasyEvPlug™
The EasyEvPlug™can be installed at any location near the charging station. Once the
EasyEvPlug™installation location is determined, secure the holder to the wall with the
appropriate screws. EasyEVPlug™is the new innovative plug holder which protects your plug
and has the following features:
No need to aim – flawless plug even in the dark;
Your EV holster will be where it is convenient for you and your EV;
Saves space – special angle for less wall clearance;
Integrated cable management – holds up to 25 feet of cable;
Safety – use simple coupler lock to prevent unauthorized use;
Works with any J1772 EV holster.
20
