ACL805SUW-RDMF - Surface Mount Keypad
with Mifare Reader - Installation Manual
Description / Operation
The ACL805SUW-RDMF is a multiprotocol digital keypad and
Mifare reader for access control applications with backlit keys
and selectable output protocol. These surface mount readers
includes a buzzer and a tri-color LED for state indication (access
granted, access denied or idle).
The ACL800SUW-RDMF has an automatic Wiegand output
(32 or 56 bit) and is capable of reading Mifare cards/fobs
(13.56 MHz).
Specifications
Operating voltage
9 to 14 VDC
Current consumption
110 mA at 12 VDC
Interface Mifare Reader
Wiegand 32 or 56 bit,
according to the ID length of the
card
Wiegand 32 description
32 data bits
Pulse width: 100 µs
Pause: 1 ms
Wiegand 56 description
56 data bits
Pulse width: 100 µs
Pause: 1 ms
Interface Keypad
Wiegand 26, 30, 34, 40, 42, 58 bit,
8 bit per key, 6 bit per key, 4 bit per
key
Wiegand 26 description
even parity + 24 data bits + odd
parity
Pulse width: 100 µs
Pause: 1 ms
P1 = even parity calculated over the bits
2 to 13
P2 = odd parity calculated over the bits
14 to 25
Wiegand 30 description
even parity + 28 data bits + odd
parity
Pulse width: 100 µs
Pause: 1 ms
P1 = even parity calculated over the bits
2 to 15
P2 = odd parity calculated over the bits
16 to 29
Wiegand 34 description
even parity + 32 data bits + odd
parity
Pulse width: 100 µs
Pause: 1 ms
P1 = even parity calculated over the bits
2 to 17
P2 = odd parity calculated over the bits
18 to 33
Wiegand 40 description
even parity + 38 data bits + odd
parity
Pulse width: 100 µs
Pause: 1 ms
P1 = even parity calculated over the bits
2 to 20
P2 = odd parity calculated over the bits
21 to 39
Wiegand 42 description
even parity + 40 data bits + odd
parity
Pulse width: 100 µs
Pause: 1 ms
P1 = even parity calculated over the bits
2 to 21
P2 = odd parity calculated over the bits
22 to 41
Wiegand 58 description
even parity + 56 data bits + odd
parity
Pulse width: 100 µs
Pause: 1 ms
P1 = even parity calculated over the bits
2 to 29
P2 = odd parity calculated over the bits
30 to 57
Wiegand 8 bit per key
description
8 data bits (sent on each key
press)
Pulse width: 100 µs
Pause: 1 ms

2 / 5 P/N 1073514A• REV 01.01 • ISS 11SEP18
Wiegand 6 bit per key
description
6 data bits (sent on each key
press)
Pulse width: 100 µs
Pause: 1 ms
Wiegand 4 bit per key
description
4 data bits (sent on each key
press)
Pulse width: 100 µs
Pause: 1 ms
Operating frequency
13.56 MHz
Card technology
CSN only for the technology : Mifare
Classic, Mifare Plus, Mifare
Ultralight, Mifare DESFire EV1/EV2
Read range
Up to 6 cm,
depending on the card type
PIN Code length
1 to 8 digits
LED control
Yes, by wires
LED
Green : Externally controlled
Red : Externally controlled
Orange : Idle, Key press and Menu
Tamper
Yes
Cable distance
50 m according to Wiegand
standard
Panel connection
Cable, 1 m
Material of design
housing
ABS
Dimensions (W x H x D)
100 x 94 x 30 mm
Operating Temperature
Relative humidity
−20 to +50°C
0 to 95% noncondensing
IP rating
IP65
Color
-S = Silver, -G = Grey
Weight (shipping)
Weight (product)
550 g
250 g

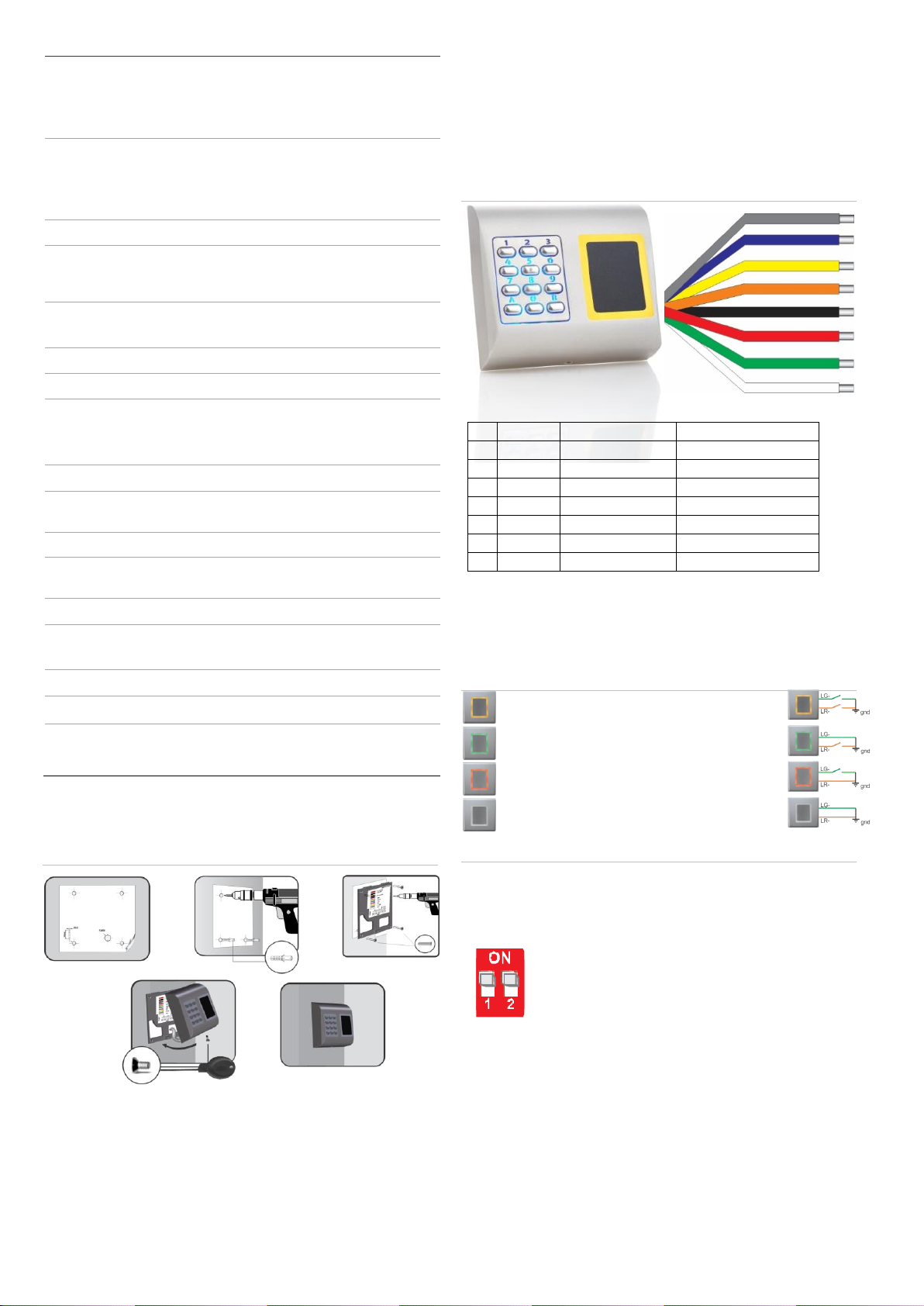

Mounting
Figure 1: Mounting instructions
WIRING
Figure 2: Wiring instructions
Tricolor LED and DIP switch
LED
Figure 3: Led
Backlight and buzzer
1. Backlight in idle mode ON/OFF
2. Buzzer on read card ON/OFF
1
tamp
grey
Tamper
2
tamp
blue
Tamper
3
LG-
yellow
LED Green minus
4
LR-
orange
LED Red minus
5
GND
black
Ground
6
+ 12 V
red
9 to 14 VDC
7
D0
green
Data 0
8
D1
white
Data 1
Orange (Idle Mode): “LG-” and “LR-” not
connected
Green: “LG-” connected to GND
Red: “LR-” connected to GND
No light: “LG-” and “LR-” connected to GND

P/N 1073514A• REV 01.01 • ISS 11SEP18 3 / 5

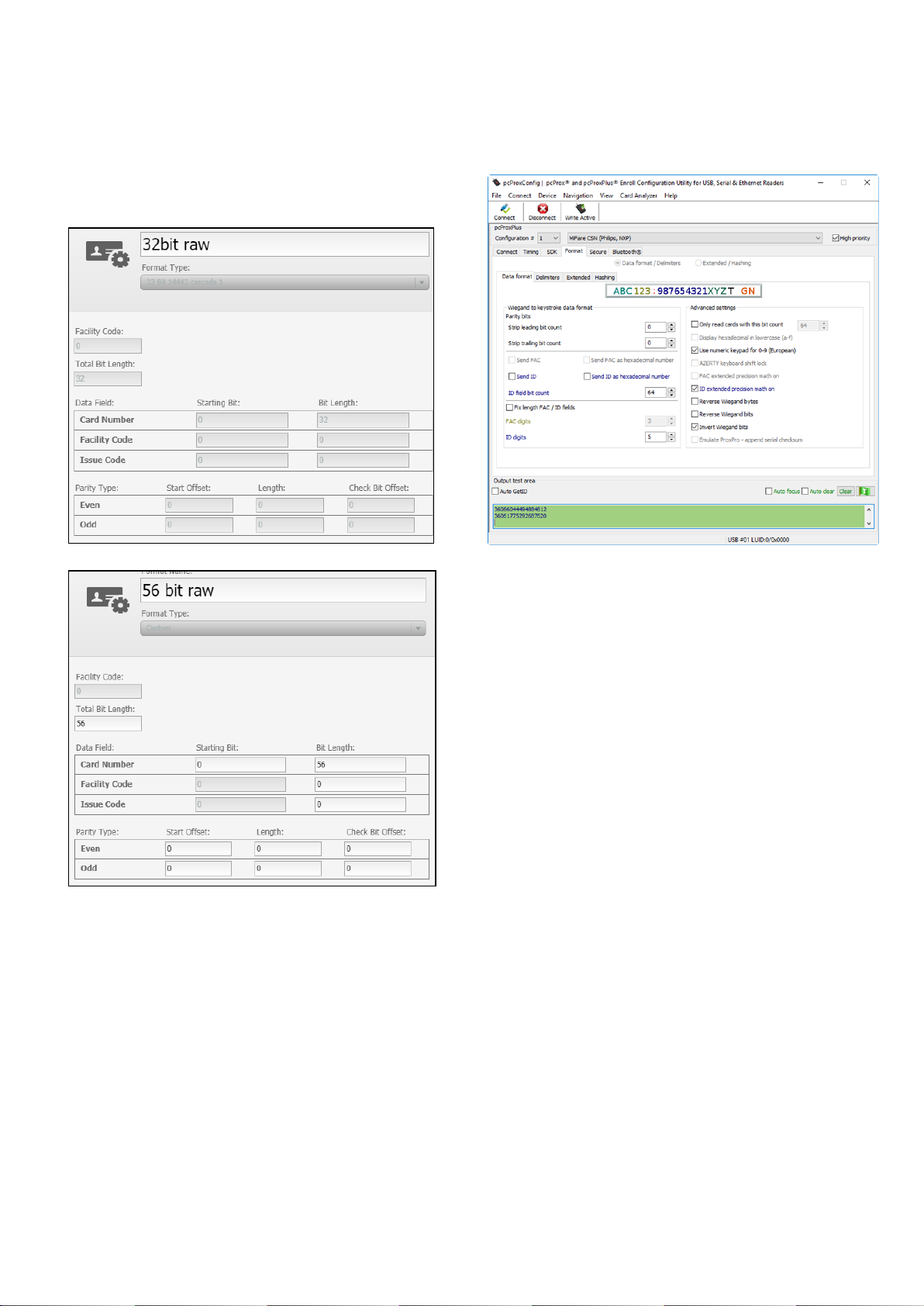

Settings in TruPortal software
Go to System Administration/Card Formats. Create custom
Wiegand Format for Wiegand 56 bit and Wiegand 32 bits.
The reader will send the Wiegand format according to the card
format. If the card presented has 56 bit number, the reader will
send Wiegand 56 bit. If the card presented has 32 bit number,
the reader will send Wiegand 32 bit.
Settings in pcProxConfig software
Select Mifare CSN (Philips, NXP) as card type.
Use these settings in the pcProxConfig software when reading
Mifare card via the TP-RDR-LRN desktop reader..

4 / 5 P/N 1073514A• REV 01.01 • ISS 11SEP18
Keypad programming flowchart
Default values marked with *
Entering Menu is always done with B(3 s) + 000000 if the Master Code is not changed.
Submenu 1 - Change Master Code. The Master Code must be 6 digits. After enrolling new
Master Code the ACL875W automatically exits the Menu and the new master code must be typed
to enter the menu.
Submenu 2 - Select Type of Wiegand. The Wiegand selected must be the same as the
controller’s Wiegand Input where the ACL805SUW-RDMF Keypad is being connected. Example:
If you use a controller that recognizes Wiegand 34 bit, then enter the menu of ACL805SUW-
RDMF, press 2, then press 3.
Submenu 3 - Select Output Protocol. Keypad have the following outputs:
3-1 Single Wiegand - Keypad will send code in wiegand format
3-3 Clock & Data - Keypad will send the code in Clock & Data format
3-5 8 bit per key - Each key press will be sent as 8 bit data immediately. Key press will be sent as following table:
3-6 6 bit per key -
Each key press will be sent as 6 bit data immediately.
3-7 4 bit per key - Each key press will be sent as 4 bit data immediately.
Submenu 4 - PIN Code Length. If “0” is selected, then any PIN Code with any length can be sent,
but the PIN Code is typed with “A” for confirmation (ex. 123 + A). If 1 to 8 is selected the PIN Code
length is set by the number selected.
Key
0
1
2
3
4
5
6
7
8
9
A
B
Wiegand output
240
225
210
195
180
165
150
135
120
105
90
75
*
*
*

P/N 1073514A• REV 01.01 • ISS 11SEP18 5 / 5
Submenu 6 - Presets. The Presets are set of
preprogrammed parameters for easy
programming.
6-1 “Wiegand 26 bit Normal” - Type: Wiegand
26 bit; Output: Single Wiegand; PIN Length: 4
digits;
6-2 “Wiegand 34 bit Normal” - Type: Wiegand
34 bit; Output: Single Wiegand; PIN Length: 4
digits;
Submenu 7 - Site Code Length. Set the code
length sent to Host. Default is “0”. To be used
only in specific cases.
Submenu 8 - Enter Site Code. Put the site
code always in 5 digit format (ex. 00170).
Submenu 9 - Turns ON/OFF the backlight in
idle mode, buzzer on key press, parity bit.
Reset Master Code
1. Disconnect Power
2. Press and hold “A” and reconnect Power.
3. Hold the “A” Key for at least 3 seconds.
Default Master Code: 000000
Regulatory information
Trademarks and
patents
The trade names used in this document may be
trademarks or registered trademarks of the
manufacturers or vendors of the respective
products.
Manufacturer
Interlogix.
2955 Red Hill Avenue, Costa Mesa, CA 92626
5923, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
Certification
European Union
directives
This product and - if applicable - the supplied
accessories too are marked with "CE" and
comply therefore with the applicable harmonized
European standards listed under the EMC
Directive 2014/30/EU, the RoHS Directive
2011/65/EU.
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as
unsorted municipal waste in the European Union.
For proper recycling, return this product to your
local supplier upon the purchase of equivalent
new equipment, or dispose of it at designated
collection points. For more information see:
www.recyclethis.info.
2013/56/EU & 2006/66/EC (battery directive):
This product contains a battery that cannot be
disposed of as unsorted municipal waste in the
European Union. See the product documentation
for specific battery information. The battery is
marked with this symbol, which may include
lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the
battery to your supplier or to a designated
collection point. For more information see:
www.recyclethis.info.
Product warnings
and disclaimers
THESE PRODUCTS ARE INTENDED FOR
SALE TO AND INSTALLATION BY QUALIFIED
PROFESSIONALS. UTC FIRE & SECURITY
CANNOT PROVIDE ANY ASSURANCE THAT
ANY PERSON OR ENTITY BUYING ITS
PRODUCTS, INCLUDING ANY “AUTHORIZED
DEALER” OR “AUTHORIZED RESELLER”, IS
PROPERLY TRAINED OR EXPERIENCED TO
CORRECTLY INSTALL FIRE AND SECURITY
RELATED PRODUCTS.
For more information on warranty disclaimers and
product safety information, please check
www.firesecurityproducts.com/policy/product-
warning/ or scan the following code:
Contact
information and
manuals
For contact information go to: www.interlogix.com
or www.firesecurityproducts.com
To get translations for this and other product
manuals go to: www.firesecurityproducts.com
