uniwatt UHCB User manual

INSUHCB0315
UHCB
S
Y
S
T
È
M
E
Q
U
A
L
I
T
É
C
E
R
T
I
F
I
É
-
R
E
G
I
S
T
E
R
E
D
Q
U
A
L
I
T
Y
S
Y
S
T
E
M
3rd ANGLE PROJECTION
X:\01_PRODUITS\FAMILLES\SHCB- UHCB\DOCUMENTATION\SHCB_ISO
2014-03-10 / aferland
2013-11-29
3e ANGLE DE PROJECTION
1 / 1
DESCRIPTION:
CRÉÉ PAR | CREATED BY:
CRÉÉ LE | CREATED ON:
# PIÈCE | PART #:
A
FORMAT | SIZE:
FEUILLE | SHEET:
XX.X° = ±0.5°
XX° = ±1°
.XXX = ±.015" [ ±.38mm]
CONSENT OF STELPRO DESIGN.
MIS À JOUR | UPDATED:
EMPLACEMENT:
TOLÉRANCES SI NON-SPÉCIFIÉES | TOLERANCES IF NOT SPECIFIED
LINÉAIRE | LINEAR: ANGULAIRE | ANGULAR:
.XX = ±.03" [ ±.76mm]
L'INFORMATION CONTENUE DANS CE DOCUMENT EST
LA PROPRIÉTÉ DE STELPRO DESIGN. EN AUCUN CAS,
L'INFORMATION NE PEUT ÊTRE UTILISÉE, SAUF SOUS
AUTORISATION ÉCRITE DE STELPRO DESIGN.
THE INFORMATION IN THIS DOCUMENT IS THE
PROPERTY OF STELPRO DESIGN. IN ANY CASE, THE
INFORMATION CAN'T BE USED, EXCEPT THE WRITTEN
MATÉRIEL | MATERIAL:
BATHROOM FAN HEATER
REPLACEMENT COMPONENT LIST INCLUDED
UNIWATT is a line of products manufactured by STELPRO. For more information please contact customer service.
User’s gUide
This unit complies
with CSA standards

INSUHCB0315
2
Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them
handy for future reference. If these instructions are not followed, the warranty will be considered null and void and the manufacturer
deems no further responsibility for this product.
This product must be installed by a qualied person and connected by a , according to the 
 effective in your region.
The following instructions must be adhered to in order to avoid personal injuries or property damages, serious injuries and potentially
fatal electric shocks.
Protect the heating unit with the appropriate circuit breaker or fuse, in accordance with the nameplate.
Make sure the line voltage (volt) is consistent with that indicated on the unit’s nameplate.
This unit .
Switch off the power at the circuit breaker/fuse before installing, repairing and cleaning the unit.
Make sure the unit is appropriate for the intended use (if needed, refer to the product catalog or a representative). Use this heater only as described in this
manual. Any other use not recommended by the manufacturer may cause re, electric shock, or injury to persons. Do not use outdoors.

It corresponds to  based on a standard ceiling height of 8 feet (2.44 m). The recommended capacity is usually sufcient for
normal heating needs. Please note that the insulation quality of walls and windows are some of the factors that inuence heat losses, which modify the required
capacity to heat a room. If needed, refer to a specialist (industrial and commercial buildings) who will be able to calculate these heat losses and optimize the
required capacity or consult the “Online heating calculation” section of the Stelpro Design web site (residential buildings). To heat a large room and to increase
your comfort, it is recommended to install several units instead of one. For example, 2 X 1000 W rather than 1 X 2000 W.
Do not install the unit where objects or pieces of furniture could be heat damaged.
If the unit capacity is insufcient for the size of the room, it will be in operation continuously, and may become defective earlier and turn yellow.
 indicated in the installation section.
If the installer or the user modies the unit, he will be held responsible for any damage resulting from this modication, and the CSA certication could be void.
This unit must not come into contact with a water source such as, but not limited to, showers, bathtubs, sinks, toilets, etc. and must be protected from splashes.
Do not use it if any part has been immersed. Moreover, do not turn it on or off when standing in water or if your hands are wet.
When mounting the unit, make sure that the anchorage used can support the total weight of the unit with the mounting brackets.
When cutting or drilling into a wall, do not damage electrical wiring and other hidden utilities.
When starting up the unit for the rst time or after a long period, it is normal that it produces some temporary odours and whitish smoke.
Because this unit is hot when in use, it may pose risks even in normal operation. Therefore, be  and  when using it. To avoid burns, do not
let bare skin touch hot surfaces. The unit must cool down for few minutes since it will stay warm for some time after shut-down.
The bottom of this unit must be installed at least  from the oor and the whole unit must be installed at least from
walls. However, make sure objects or pieces of furniture such as, but not limited to, pillows, bedding, blankets, towels, beds, laundry baskets, clothing, papers,
curtains, etc., do not come into contact with the unit and keep them at least from the front of the heater and keep them away from the sides,
since they are more ammable than walls and oors. Failure to comply with this warning could lead to a re. Some materials are more heat-sensitive than others,
so make sure those near the unit can withstand heat.
Do not insert or allow foreign objects to enter any air vent as this may cause electric shocks, res, or damages to the unit.
This unit has hot and arcing or sparking parts inside. It is not designed to be used or stored in wet areas or areas containing ammable liquids, combustible
materials or corrosive, abrasive, chemical, explosive and ammable substances such as, but not limited to, gasoline, paint, chlorine, sawdust and cleaning
products.
Some areas are dustier than others. Thus, it is the user’s responsibility to evaluate if the unit based on the amount of dirt accumulated on
and inside air vents. Accumulated dirt can lead to a component malfunction or discoloration (yellow). It may cause a re hazard if not installed and maintained in
accordance with these instructions.
The thermal protection activation indicates that the unit has been subjected to abnormal operating conditions. If the thermal protection remains activated or
activates and deactivates repeatedly, it is recommended that a qualied electrician or a certied repair centre examine the unit in order to make sure it is not
damaged. (Refer to the limited warranty)
Before unplugging the unit, all controls must be in the “OFF” position and the current from the main breaker panel should be cut. (The general switch may be
used also, if included.)
If the unit is damaged or defective, discontinue use, cut off power supply at circuit breaker and contact a certied electrician or certied repair centre. (Refer to
the limited warranty)
If you set the thermostat to the lowest temperature set point, the Frost free warning mode will be activated since there is no OFF position.
SAVE THESE INSTRUCTIONS
: When a part of the product specication must be changed to improve operability or other functions, priority is given to the product specication itself. In such
instances, the instruction manual may not entirely match all the functions of the actual product. Therefore, the actual product and packaging, as well as the name
and illustration, may differ from the manual.
IMPORTANT INSTRUCTIONS
WARNING

INSUHCB0315
3

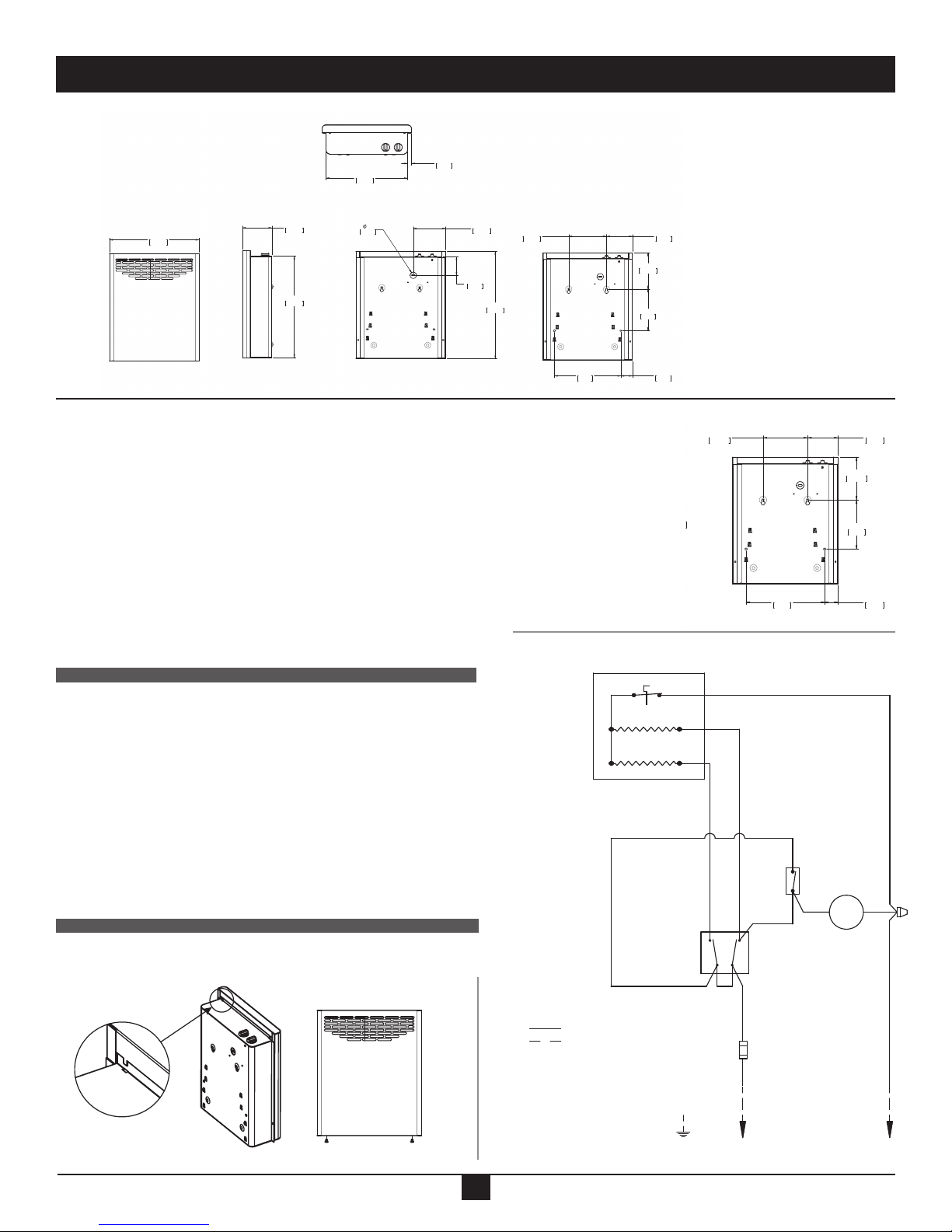

TECHNICAL DRAWINGS & INSTALLATION
N
N
B
E
2L1L
T
TH
M
GND
A
FL
MISE À LA TERRE
MINUTERIE
CONNEXION EXTÉRIEURE
G14
GND
T
THERMOSTATTH
ÉLÉMENT
MOTEURM
E
PROTECTION THERMIQUE
INTÉGRÉE À L'ÉLÉMENT
A
FUSIBLE THERMIQUEFL
GROUND
TIMER
OUTSIDE CONNECTION
G14
GND
T
THERMOSTATTH
ELEMENT
MOTORM
E
BUILT-IN THERMAL
PROTECTION
A
FUSE-LINKFL POWER SUPPLY
ELECTRIC WIRING DIAGRAM
287.5mm
11 5/16"
9/16"
14.2mm
3rd ANGLE PROJECTION
2015-02-05 / aferland
X:\01_PRODUITS\FAMILLES\SHCB- UHCB\DOCUMENTATION\SHCB_CATALOGUE
2013-11-29
3e ANGLE DE PROJECTION
2 / 2
FEUILLE | SHEET:
FORMAT | SIZE: A
XX.X° = ±0.5°
XX° = ±1°
.XXX = ±.015" [ ±.38mm]
.XX = ±.03" [ ±.76mm]
ANGULAIRE | ANGULAR:LINÉAIRE | LINEAR:
TOLÉRANCES SI NON-SPÉCIFIÉES | TOLERANCES IF NOT SPECIFIED
# PIÈCE | PART #:
DESCRIPTION:
CRÉÉ PAR | CREATED BY:
CRÉÉ LE | CREATED ON:
CONSENT OF STELPRO DESIGN.
MIS À JOUR | UPDATED:
EMPLACEMENT:
L'INFORMATION CONTENUE DANS CE DOCUMENT EST
LA PROPRIÉTÉ DE STELPRO DESIGN. EN AUCUN CAS,
L'INFORMATION NE PEUT ÊTRE UTILISÉE, SAUF SOUS
AUTORISATION ÉCRITE DE STELPRO DESIGN.
THE INFORMATION IN THIS DOCUMENT IS THE
PROPERTY OF STELPRO DESIGN. IN ANY CASE, THE
INFORMATION CAN'T BE USED, EXCEPT THE WRITTEN
MATÉRIEL | MATERIAL:
TOP
SIDEFRONT


358.1mm
14 1/8"
4 1/16"
103.3mm
379.3mm
14 15/16"
7/8"
22.2mm
KO 113.5mm
4 7/16"
2 9/16"
64.7mm
12 7/16"
315.8mm
133.4mm
5 1/4"
91.2mm
3 9/16"
128.1mm
5 1/16"
147mm
5 13/16"
40.4mm
1 9/16"
9 1/4"
235mm
              




High temperatures may be generated under certain abnormal conditions. Do no partially or fully cover or obstruct
the front of this heater.
See page 5 for essential features and relation of components.


This heater has been designed for a permanent wall installation in a bathroom,
surface mounted. For indoor use only.

1. Locate the cable coming from the wall.
2. Remove the two (2) screws located underneath the unit and take off the
front cover by pulling it gently downwards.
3. Remove the wiring compartment cover (one (1) screw).
4. Punch out one of the knock outs (KO) which allow for cable entry.
5. Secure the heater to the wall by inserting screws into the holes at the very
back of the heater.
6. Make the appropriate electrical connections (red to red; black to black;
ground fault protection wire (bare wire) to ground fault protection screw).
See electric wiring diagram.
7. Screw the wiring compartment cover back into place.
8. Put the front cover back on.

Insert tabs in the holes on the top of the casing on the rear part of the grille.
Then screw the 2 screws provided in the holes on the bottom of the unit.
hh
287.5mm
11 5/16"
9/16"
14.2mm
3rd ANGLE PROJECTION
2015-02-05 / aferland
X:\01_PRODUITS\FAMILLES\SHCB- UHCB\DOCUMENTATION\SHCB_CATALOGUE
2013-11-29
3e ANGLE DE PROJECTION
2 / 2
FEUILLE | SHEET:
FORMAT | SIZE: A
XX.X° = ±0.5°
XX° = ±1°
.XXX = ±.015" [ ±.38mm]
.XX = ±.03" [ ±.76mm]
ANGULAIRE | ANGULAR:LINÉAIRE | LINEAR:
TOLÉRANCES SI NON-SPÉCIFIÉES | TOLERANCES IF NOT SPECIFIED
# PIÈCE | PART #:
DESCRIPTION:
CRÉÉ PAR | CREATED BY:
CRÉÉ LE | CREATED ON:
CONSENT OF STELPRO DESIGN.
MIS À JOUR | UPDATED:
EMPLACEMENT:
L'INFORMATION CONTENUE DANS CE DOCUMENT EST
LA PROPRIÉTÉ DE STELPRO DESIGN. EN AUCUN CAS,
L'INFORMATION NE PEUT ÊTRE UTILISÉE, SAUF SOUS
AUTORISATION ÉCRITE DE STELPRO DESIGN.
THE INFORMATION IN THIS DOCUMENT IS THE
PROPERTY OF STELPRO DESIGN. IN ANY CASE, THE
INFORMATION CAN'T BE USED, EXCEPT THE WRITTEN
MATÉRIEL | MATERIAL:
TOP
SIDEFRONT


358.1mm
14 1/8"
4 1/16"
103.3mm
379.3mm
14 15/16"
7/8"
22.2mm
KO 113.5mm
4 7/16"
2 9/16"
64.7mm
12 7/16"
315.8mm 133.4mm
5 1/4"
91.2mm
3 9/16"
128.1mm
5 1/16"
147mm
5 13/16"
40.4mm
1 9/16"
9 1/4"
235mm



INSUHCB0315
4
WARNING: the heater must be properly installed before it is used.

• Maintains a stable room temperature.
• Highest setting offers continuous operation of heater.
• Thermostat settings correspond to desired room temperatures and ensure the cycling of the heater.
• Thermostat will not engage the heater to operate when the room temperature is higher than the thermostat setting.
• Thermostat will engage heater to operate continuously when the room temperature is lower than the thermostat setting.

 
•Turn the thermostat (A) clockwise to its halfway point. •Set the timer (B) for the amount of time you wish to heat the room.
The heater will now operate at 1000 W. The heater will now operate at 2000 W for the duration set by the timer.
Should the desired room temperature be too low, turn the thermostat
(A) clockwise to increase the temperature. Should the desired room
temperature be too high, turn the thermostat counter-clockwise to
decrease the temperature.

•Set the timer (B) for the duration you wish to heat at 2000 W.
•Set the thermostat (A) to the desired temperature..
The heater will operate at 2000 W for the selected timer duration and once the time has expired, the heater will continue to operate normally with the
thermostat, offering 1000 W to maintain the desired room temperature.

Although stainless steel is by its very nature corrosion resistant, its nish is not foolproof. The key to maintaining a nice stainless steel nish is preventative cleaning.
Clean the metal when it is dirty; do not wait until a full cleaning is required. Since the acidity level and chlorine content of regular cleaning agents vary greatly, it is
highly recommended to thoroughly rinse the surface with clean water after cleaning. Alternatively, you may use a stainless steel cleaner or clean water and dish
soap. Always follow polish lines.

• chlorine;
• scrubbing pads or similar scrubbing devices (steel wool);
• abrasive cleaning agents; and
• hydrochloric acid products such as bleach because they may stain and/or damage stainless steel surfaces.
OPERATING INSTRUCTIONS & MAINTENANCE



Cut off power supply at circuit breaker/fuse before cleaning this heater. Use a soft rag for dusting. When cleaning, use only a damp rag and non-abrasive dish soap.
Do not use abrasive or chemical cleaners because they may damage the nishing. If the unit is used in a very dusty location, use a vacuum brush to remove dust
and other foreign objects from the grilles. Note that cigarette smoke could yellow the discharge grille and that the best way to prevent it is to clean the unit on a
regular basis.




INSUHCB0315
5
  

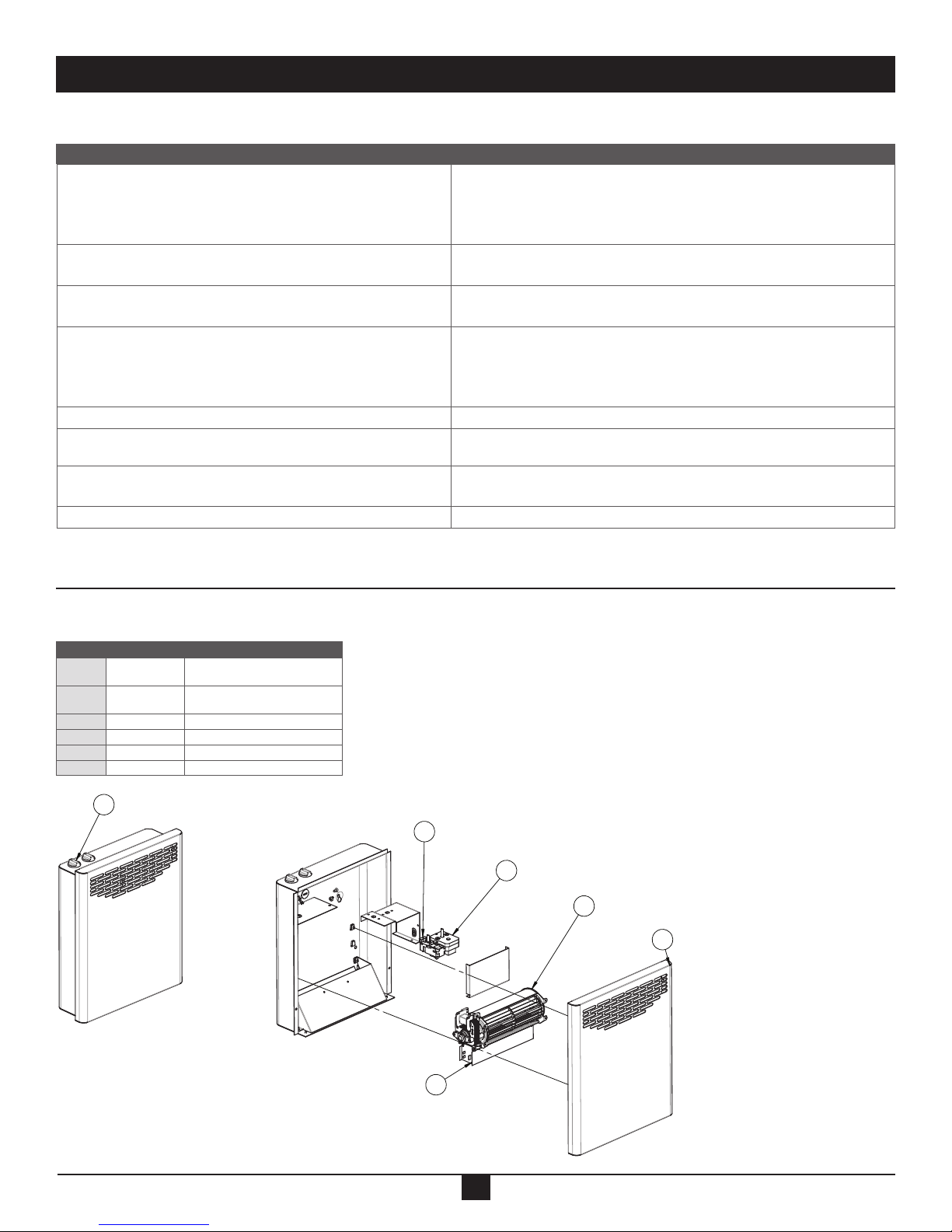

1 BOUT-028 THERMOSTAT/TIMER KNOB
(WHITE)
2 ELF-250 INTEGRATED ELEMENT
PROTECTION
3 MO-076 MOTOR/FAN (240V)
4 M-UHCB05Z1 TOP GRILLE
5 ST-017 THERMOSTAT SP
6 TIM-250 30 MIN. TIMER
 
The unit does not work
- Defective thermostat or wrong thermostat setting
- Open circuit breaker or fuse
- Thermal protection activated
- Faulty connections
The unit runs continuously - Defective thermostat or wrong thermostat setting
- Heat losses greater than the unit capacity
The enclosure is extremely hot - Defective thermal protection
- Blocked air vents
The desired room temperature cannot be reached
- One or more defective elements
- Defective thermostat or wrong thermosat setting
- Voltage lower than indicated on the nameplate
- Heat losses greater than the unit capacity
Overheating - Defective thermostat or wrong thermostat setting
The unit cycles under control of the thermal protection
(overheat indicator) - Blocked air vents
The heater is on and the breaker trips - Faulty connections
- Voltage higher than that indicated on the nameplate
The unit does not heat - One or more defective elements
 If you do not solve the problem after checking these points, cut off the power supply at the main electrical panel and contact our customer service (see the
“Limited warranty” section to obtain the phone numbers).
TROUBLESHOOTING & REPLACEMENT COMPONENT LIST


5
2
3
4
6
1

INSUHCB0315
6
STELPRO DESIGN INC. | Saint-Bruno-de-Montarville | Quebec | J3V 6L7STELPRO DESIGN INC. | Saint-Bruno-de-Montarville | Quebec | J3V 6L7
This limited warranty is offered by Stelpro Design inc. (“Stelpro”) and applies to the following product made by Stelpro: UNIWATT UHCB model. 
. Subject to the terms of this warranty, Stelpro warrants its products and their components against defects in
workmanship and/or materials for the following periods from the date of purchase: . This warranty applies only to the original purchaser; it is non-
transferable and cannot be extended.

If at any time during the warranty period the unit becomes defective, you must cut off the power supply at the main electrical panel and contact 1) your
installer or distributor, 2) your service center or 3) Stelpro’s customer service department. In all cases, you must have a    and
provide the . Stelpro reserves the right to examine or to ask one of its representatives to examine
the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price or repair a
defective part. Please note that repairs made within the warranty period must be authorized in advance in writing by Stelpro and carried out by persons
authorized by Stelpro.
Before returning a product to Stelpro, you must have a Stelpro authorization number (RMA). To obtain it, call the customer service department at:
 (electricians and distributors - French),  (electricians and distributors - English), or  (consumers).
The authorization number must be clearly written on the parcel or it will be refused.

This warranty is exclusive and in lieu of all other representations and warranties (except of title), expressed or implied, and Stelpro expressly disclaims and
excludes any implied warranty of merchantability or implied warranty of tness for a particular purpose.
Stelpro’s liability with respect to products is limited as provided above. Stelpro shall not be subject to any other obligations or liabilities whatsoever,
whether based on contract, tort or other theories of law, with respect to goods or services furnished by it, or any undertakings, acts or omissions relating
thereto. Without limiting the generality of the foregoing, Stelpro expressly disclaims any liability for property or personal injury damages, penalties, special
or punitive damages, damages for lost prots, loss of use of equipment, cost of capital, cost of substitute products, facilities or services, shutdowns,
slowdowns, or for other types of economic loss or for claims of a dealer’s customers or any third party for such damages. Stelpro specically disclaims all
consequential, incidental and contingent damages whatsoever.
This warranty does not cover any damages or failures resulting from: 1) a faulty installation or improper storage; 2) an abusive or abnormal use, lack of
maintenance, improper maintenance (other than that prescribed by Stelpro) or a use other than that for which the unit was designed; 3) a natural disaster
or an event out of Stelpro’s control, including, but not limited to, hurricanes, tornadoes, earthquakes, terrorist attacks, wars, overvoltage, ooding, water
damages, etc. This warranty does not cover any accidental or intentional losses or damages, nor does it cover damages caused by negligence of the user
or owner of the product. Moreover, it does not cover the cost of disconnection, transport, and installation.
The warranty is limited to the repair or the replacement of the unit or the refund of its purchase price, at the . Any parts replaced or
repaired within the warranty period with the written authorization of Stelpro will be warranted for the remainder of the original warranty period. This warranty
will be considered null and void and Stelpro will have the right to refuse any claims if  without the written authorization of
Stelpro and if the nameplate numbers have been removed or modied. This warranty does not cover scratches, dents, corrosion or discoloration caused
by excessive heat, chemical cleaning products and abrasive agents. It does not cover any damage that occurred during the shipping.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages and some of them do not allow limitations on
how long an implied warranty lasts, so these exclusions or limitations may not apply to you. This warranty gives you specic legal rights and you may have
other rights which vary from state to state or from province to province.
limited warranty limited warranty limited warranty limited warranty limited warranty limited
limited warranty limited warranty limited warranty LIMITED WARRANTY LIMITED WARRANTY
limited warranty limited warranty limited warranty limited
warranty limited warranty limited warranty limited warranty
