UNU UNU User manual
Operating manual
Alertness P 14
Safety P 4 Guarantee P 6 Index P 15
Content · 2
Your unu P 9
Contact · 3
Getting to know your unu
At unu we firmly believe that for every challenge there is a suitable solution. So that you
can get to know your unu better, and before you ride off for your next adventure, we
suggest that you have a look through this Operating Manual.
Our hope is that every day you will have as much enjoyment with your unu as we do. If
you want to share with us your unu experience, send us an email, call us on the phone
or simply drop in to visit. We’ll always be happy to hear from you!
Your unu team
Contact
If you have questions or need support just send an email or call us:
Congratulations on your new unu!
Welcome
We are glad that as of today you are part of the unu family and that you want to enjoy
a new way of conquering your city. Our conviction is that urban mobility should be
fun, affordable and environmentally sustainable and we’re happy that you see things
similarly.
At unu we place great importance on excellent service. If you should have any problem
with your scooter our helpful Support Team stands ready to assist. We’ll make sure
you are back on the road as soon as possible. So that your scooter remains as long as
possible in top condition we have worked out an Inspection Plan which you will have
received with your unu. This ensures that whatever the season you can ride your unu in
your city.
Safety · 4
Safety rules
Our wish is that you and those around you experience everyday life without coming to
harm. For this reason we ask you to give your attention to some points to keep in mind
when you are on the road with your unu.
Traffic regulations
Obey the traffic regulations when you are conquering your city on your unu. We
understand that you will sometimes be in a hurry, but this should not mean putting
yourself or others in danger. We believe that it is possible to reach your destination
quickly, to discover your city in new ways, when your driving is considerate of others
and you are relaxed. Take the time you need and make sure your headlight is on even
during daylight hours – that is legally required. When on the road with your unu make
sure you have the following documents with you: identity card, insurance documents,
license plate attached and your unu operating license.
Driving license
Your unu is certified for two persons, although you are obliged to make sure that your
passenger or any luggage you may be carrying is properly secured. You may drive an
unu when you have one of the following driving licenses: Class M or A1 (from age 16),
Class A, B (from age 18, former classes 1, 1a, 1b, 2, 3 and 4.
Safety
Fitness to drive
When you are on the road with your unu please refrain from the consumption of any
drugs or alcohol or the use of medications which can affect your fitness to drive. You
would endanger not only yourself but also others!
Helmet requirement
When driving always wear a helmet so that in the event of an accident you are protected
from the most grave consequences.
Energy recovery
Your unu has bi-directional energy flow. This function is known as KERS (Kinetic
Energy Recovery System) and is a technology known from Formula One racing. Each
application of the brakes results in energy being fed back into the battery. In order to
achieve optimum range, use of the brakes should be thoughtful and anticipatory.
Weather
There is no such thing as the wrong weather for driving your unu. However you should
pay attention when there is rain, snow or storm! When the road surface is wet or difficult
this has implications for you as a driver. In such circumstances you should drive at a
lower speed and with due caution. If you have to make longer journeys in the rain or if
you have given your unu a thorough washing, test your brakes and apply them often
enough to get them ‘dry’ to ensure correct braking performance on your ride.
Safety · 5
Guarantee
The legal warranty provisions are fully applicable. In addition as customer you benefit
from a two-year guarantee for your unu and battery. If you are a business person our
guarantee is extended for twelve months (see https://unumotors.com/warranty).
In order not to lose guarantee coverage for your battery, take it indoors where
it’s warm when outside it is especially cold (temperature lower than -10° Celsius).
When your unu is not driven for a longer period, make sure that your battery is fully
recharged no later than every two months.
If you or any other person not authorized by us undertakes repairs to your unu, makes
modifications or otherwise works on your scooter, the repaired or modified vehicle
will no longer qualify under the guarantee nor will our guarantee cover product
defects which may result from such inappropriate usage or improper activity.
Claims for defects cannot be assigned or transferred to others.
1
2
4
Warranty and guarantee
3
Guarantee · 6
In the event that you operate your unu in a manner not conforming with the regulations,
the guarantee becomes null and void. This is also the case when you enhance the
performance or increase the speed of your scooter, if you exchange or modify the
lighting fixtures, acoustic signals or rear-view mirrors. Such acts are punishable and
prosecution can be a consequence. Do not resort to such measures and stay out
of trouble. Alteration of the chassis number is also grounds for criminal and civil
prosecution and as owner you will be seen as fully liable.
Inspection
Your unu must undergo regular inspection so that you are always safe when driving and
the guarantee cover remains valid. Make yourself familiar with the Inspection Plan you
received together with the COC (Certificate of Conformity). A first inspection must be
undertaken after 500 kilometres with further inspections after 4,000 kilometres, 7,000
kilometres and 10,000 kilometres – roughly every 3,000 kilometres – but at least once a
year you should make an appointment at the garage. The inspection will cover the items
listed. Consult your Inspection Plan for full details.
1 Diskbrake
2 Brake fluid
3 Drumbrake
4 Brake hoses
5 Wheels
6 Tyres
7 Wheel bearings
8 Steering head bearing
9 Screws & nuts
10 Centre & side stands
11 Fork
12 Rear wheel suspension
13 Main motor cable harness
14 Hinterradbefestigung
15 Seat lock & handlebar lock
16 Lighting
17 Horn
18 Moving parts & cable controls
19 Speedometer
20 Battery
21 Charger
22 Function control
Guarantee · 7
Your unu
Tyre pressure
We suggest that you should check your unu regularly before your journeys. You
should pay particular attention that the brakes work correctly, that the tyre pressure is
adequate (between 2.0 and 2.5 bar) and that your lights and horn are in working order.
Attentiveness
It may seem tempting to ride your unu past stationary traffic but you should remember
that this is not allowed. Always have both hands on the handlebars, both feet on the
platform of your unu and under no circumstances stand up. Please avoid distractions
and concentrate on your driving. Make sure you avoid running your scooter against
obstructions such as kerbstones since this will cause needless damage. In traffic always
make sure that you have sufficient distance from other vehicles and from pedestrians so
that in an emergency you have room and time to apply the brakes.
Technical data
Dimensions: 170 cm length; 103 cm height; 66 cm width
Weight: 58 kilos
Akku: 9 kilos
KERS energy recovery: Your unu has an expanded range
through energy recovery.
Maximum load: 150 kilos
Maximum load luggage rack: 5 kilos
Your unu · 9
Accelerator throttle
Seat
Brake fluid
Front wheel brake
Rear light

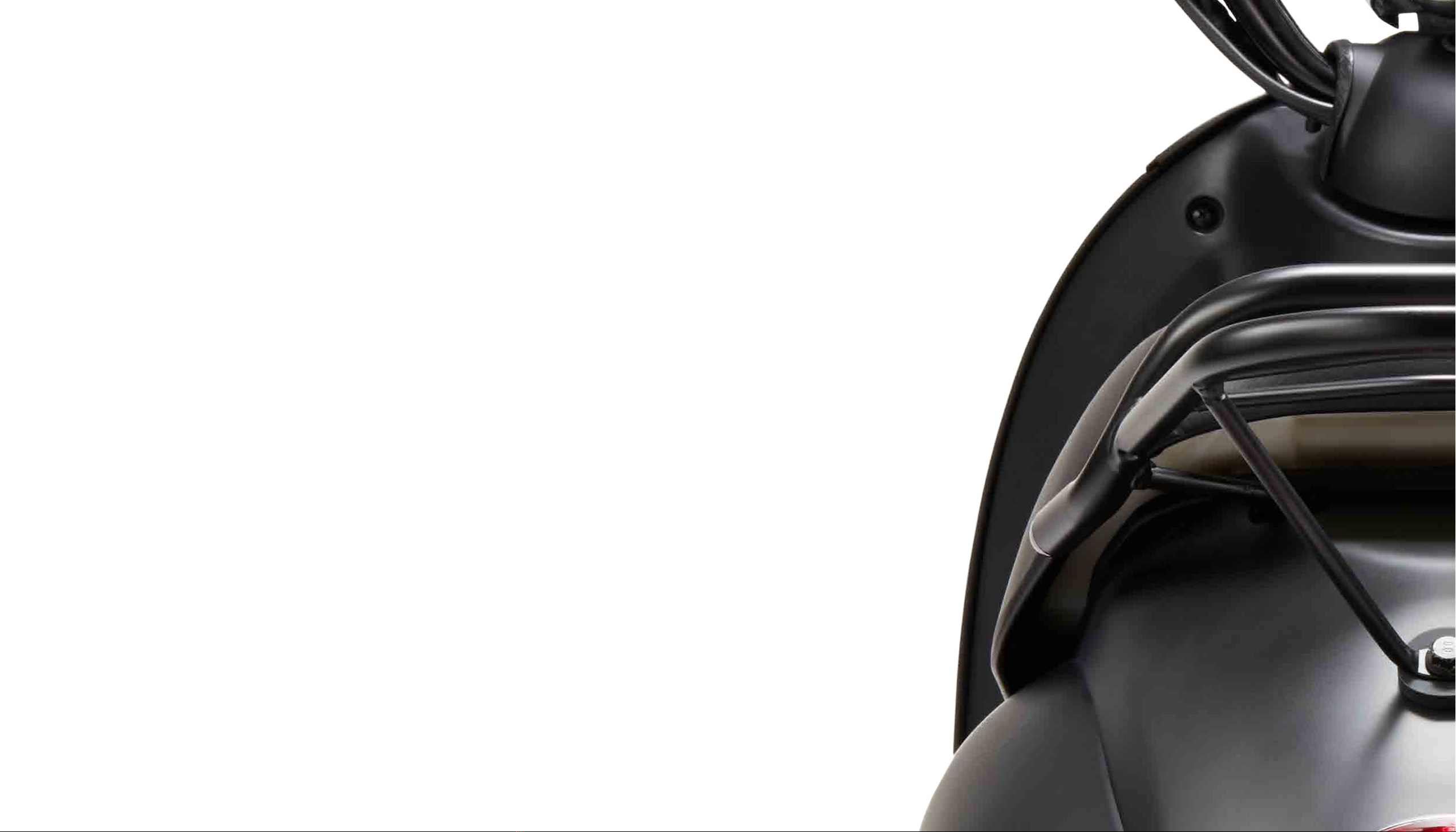

Luggage rack
Turn indicator [rear]
License plate
Drum brake
Rear wheel suspension Shock absorber [front]
Tachoantrieb
Front wheel
Mirrors
Rear wheel brake
Turn indicator [front]
Battery
Side stand
Headlamp
Ignition lock
Disc brake
Speedometer drive
Wheel rims
Heidenau Tyres
Speedometer
Centre stand
Overview
Your unu · 10
Charging
Remove the battery from your unu and connect the charger unit to an electric outlet.
Plug the blue connector into the battery and turn on the charger unit (the switch is on
the side where the connection to the electricity outlet is located). The battery tells the
charger unit when it is fully charged and the process is complete. On the battery next
to the charger connection there is a press button below an LED display. When you
press the button, the LED array will show the charging status (four green and one red
indicates that the battery is fully charged).
Your unu · 11
Brakes
Generally you should apply both brakes carefully and simultaneously. Never use only
the rear wheel brake and you should not set the back wheel screw so tightly that it
blocks the rear wheel. Avoid an abrupt full braking, especially on wet or slippery roads
or on a gravel surface, otherwise your unu can break away in a skid. Brake pads need
a break-in period to achieve maximum brake power and to prevent vitrification. If
possible during the first 100 kilometres try to avoid prolonged brake application and
only gradually increase the intensity of braking actions. If you often drive on gravel
or on streets that have been gritted you should regularly clean the brake disc with a
neutral cleansing agent in order to remove any accumulation of abrasive dirt. The rear
wheel is fitted with a drum brake while the front wheel has a hydraulic disc brake which
calls for a renewal of brake fluid once per year. You can do this yourself or go to the
closest garage.
Battery
The battery is the beating heart of your unu. Take good care of it and
it will provide electrical power for a long time. It is made of lithium-ion
cells with a high energy density. As a result it is not only efficient but at
only 9 kilos light in weight. You can take your battery with you wherever
you please.
Vehicle operation
When your unu is delivered the battery is already in the compartment beneath the seat.
When you make the connection with the cable provided the battery can function. You
will hear a light click when this is the case. The charge status will be shown in the display
so that you are always informed of the range your battery will permit. When close to the
red zone is indicate you should recharge the battery as soon as possible.

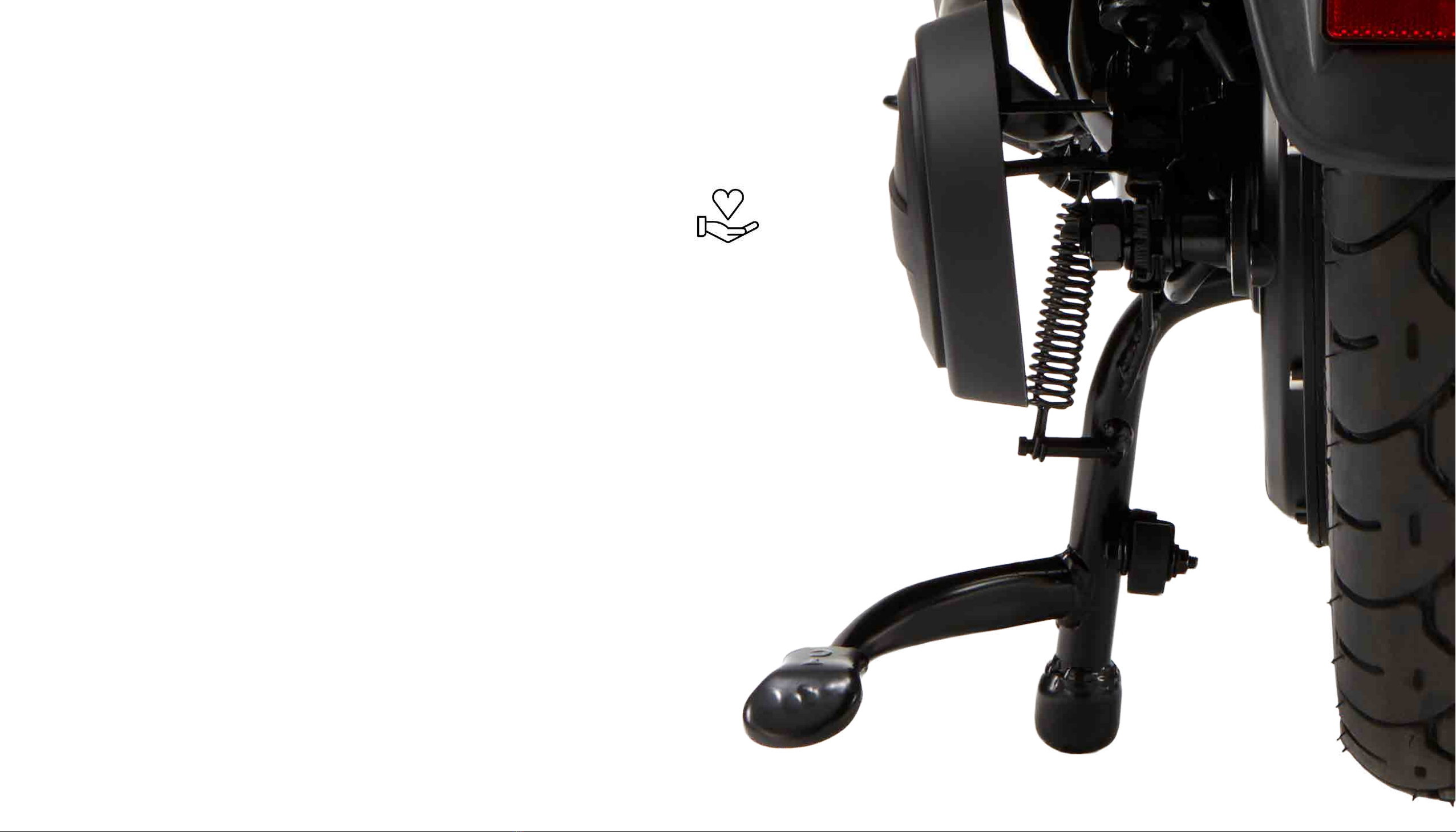

Centre stand
In order to set your unu on its centre stand, take hold of the handlebars with your left
hand and grasp the luggage rack with your right hand. Place your left foot on the stand
assembly and pull the scooter backwards until it rests in place.
Handlebar lock
Turn the handlebars to the left, put the key in the lock and turn it all the way to the left in
order to activate the handlebar lock.
Your unu · 12
Side stand
Even when seated on your unu you can fold out the side stand and thereby activate a
cutting off of electricity supply to the motor. When setting the scooter on its side stand
pay particular attention that your unu will be stable, that the ground is firm and that the
unu will stand at an angle at least 5° from the vertical and, if on a slope, facing uphill.
Ignition lock
Turn the key to the right to start the motor. You will hardly hear anything but the light
array in the charging status display of the speedometer will show that your unu’s motor
is running. Turn the key to the left to switch the engine off.
Opening seat compartment
Turn the key, noting a certain resistance, from the ‘Off‘ position to the left, without
pressing the key into the lock (see Handlebar lock). You will hear a faint click when the
compartment opens.

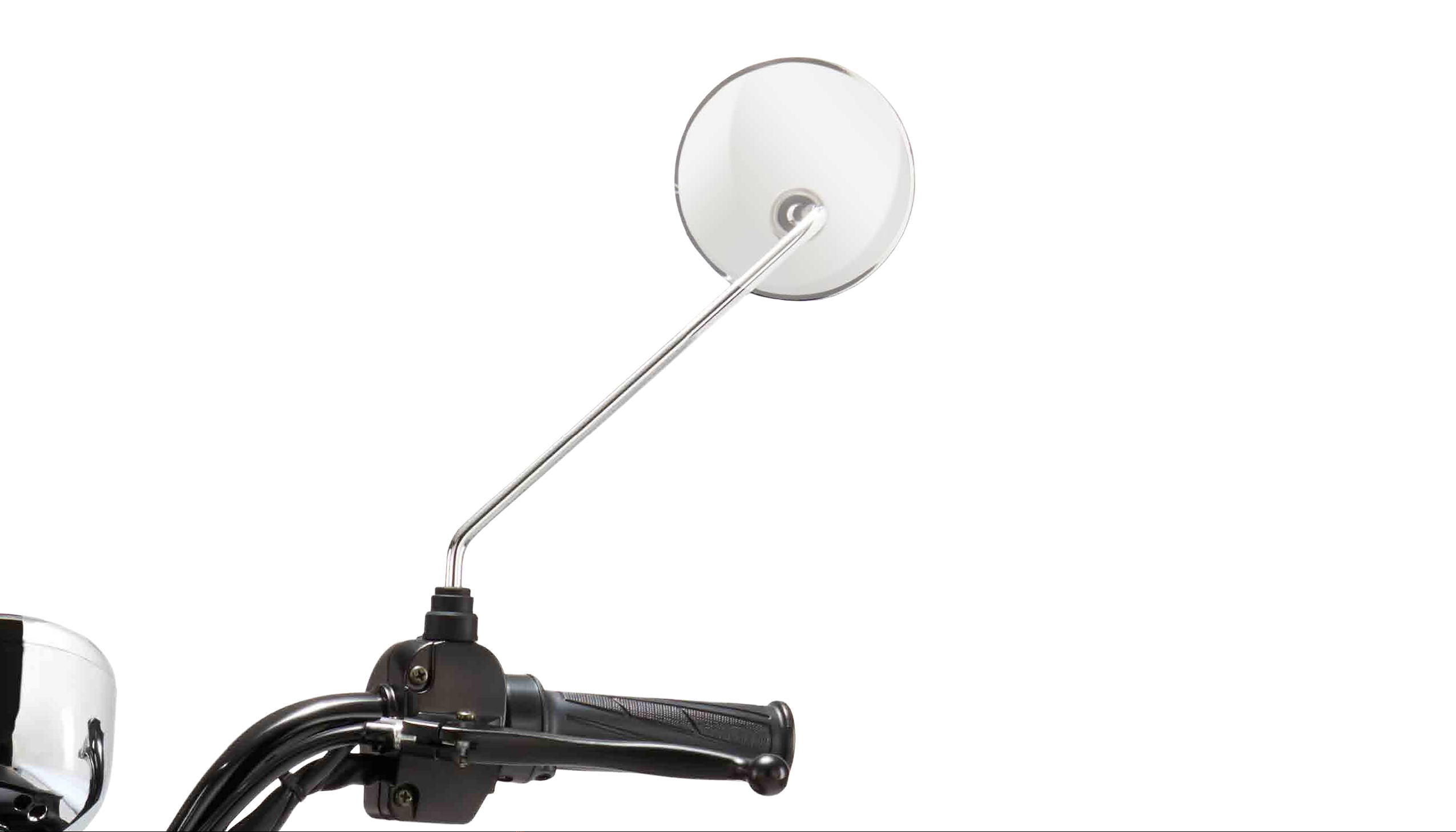

Mirrors
The positioning of the mirrors can be adjusted manually. The construction functions
with a reverse screw system. Install the mirrors in the threaded inlets provided left and
right on the handlebars and turn them on their own axes counter-clockwise. Adjust the
positioning as required and then tighten the nut. Your mirrors should always give you a
good view of the traffic situation behind you.
Your unu · 13
Maintenance
It is best to wash your unu just with water. The bodywork can be polished with a
microfibre cloth. The seat should be cleaned with a damp cloth. If there is significant
amount of dirt to be removed, use a soap-free liquid, for example a non-aggressive
glass cleaner. Just like you, your battery does not like the cold. If you tend not to use
your unu much in winter, please remember to recharge the battery to at least half its
capacity every two months, otherwise it can become deep-discharged and permanently
damaged. Regular charging is a condition of the guarantee. However it should be noted
that your unu will not suffer in winter. You can always place it under a roof overhang or
cover it with protective foil.
Alertness
Alertness · 14
Be alert to your unu
Your unu wants to be a long-lived companion. Look after it and be alert to its condition
over time. We want you to have fun with your scooter and not be inconvenienced by
constant maintenance. But there are things you need to be alert to. Provided that you
respect the Inspection Plan everything should be uncomplicated. However if there is
Accelerator throttle 10
Alertness 14
Attentiveness 9
Battery 5, 6, 7, 9, 10, 11, 12, 14
Brake 5, 7, 9, 10, 11
Brake fluid 7, 11
Brake hoses 7
Cable controls 7
Centre stand 10, 12
Charger 7, 11
Charging 11
Contact 3, 14
Contents 2
Disc brake 7, 10, 11
Driving license 4
Drum brake 7, 10, 11
Energy recovery 5
Fitness to drive 5
Fork 11
Front wheel 10
Front wheel brake 10, 11
Function control 7
Guarantee 6, 7, 14
Handlebar lock 7, 12
Headlamp 10
Helmet requirement 5
Horn 7, 10
Ignition lock 10, 13
Index 15
Inspection 3, 7, 14
License plate 4, 10
Lighting 6, 7
Luggage rack 9, 10, 12
Main motor cable harness 7
Maintenance 14
Mirrors 6, 10, 13
Moving parts 7
Nuts 7, 13
Opening seat compartment 12, 13
Overview 10
Rear light 10
Rear wheel brake 7, 10, 11
Rear wheel suspension 7, 10
Safety 4, 5, 13
Safety rules 4
Screws 7
Seat 4, 10, 12, 13, 14
Shock absorbers 10
Side stand 7, 10, 13
Speedometer 7, 10, 13
Speedometer cable 10
Speedometer drive 10
Steering head bearing 8
Technical data 9
Traffic regulations 4
Turn indicator 10
Tyres 7, 9, 10
Vehicle operation 12
Warranty 6
Weather 5
Welcome 3
Wheel bearings 7
Wheel rims 10
Wheels 7
Your unu 9
Index · 15
Index
Table of contents
Other UNU Scooter manuals
