User Manual
ADSL/ADSL2+ Firewall
Modem Router
UR-101AU

ADSL2+ Combo Modem Router
2
INDEX
1.0 About This Manual ............................................................................................................... 3
1.1 Document Objectives .......................................................................................................... 3
1.2 Product Overview ................................................................................................................ 3
1.3 Product Description ............................................................................................................. 3
2.0 Specification......................................................................................................................... 4
2.1 LED Meaning ....................................................................................................................... 5
2.2 Back Panel Connectors ....................................................................................................... 6
3.0 Hardware Requirements...................................................................................................... 7
3.1 Setting up the Hardware Environment................................................................................. 7
3.2 Powering on ADSL2+ Combo Router.................................................................................. 7
5.0 Configuration Procedures.................................................................................................... 9
7.0 Internet Configuration via Ethernet Port ............................................................................ 17
7.0 Internet Configuration via USB Port .................................................................................. 21
8.0 Configuration of IPTV connection...................................................................................... 63
9.0 Technology Glossary ......................................................................................................... 74
10.0 Introduction of the Web Configuration ............................................................................. 77
10.1 Web Configuration Overview........................................................................................... 77
10.2 Accessing ADSL2+ Combo Router Web Configuration................................................... 77
11.1 Universal Plug and Play Overview................................................................................. 103
11.2 How do I know if I'm using UPnP?................................................................................. 103
11.3 NAT Traversal ................................................................................................................ 103
11.4 Cautions with UPnP ....................................................................................................... 103
11.5 Configuring UPnP .......................................................................................................... 104
11.6 Installing UPnP in Windows Example............................................................................ 105
11.7 Installing UPnP in Windows Me ..................................................................................... 105
11.8 Installing UPnP in Windows XP ..................................................................................... 106
11.9 Using UPnP in Windows XP Example ........................................................................... 107
11.10 Auto-discover Your UPnP-enabled Network Device .................................................... 107
12.0 Web Configuration Easy Access ................................................................................... 109
13.0 Troubleshooting ..............................................................................................................111
A.1 Using LEDs to Diagnose Problems..................................................................................111
A.1.1 Power LED ....................................................................................................................111
A.1.2 LAN LED .......................................................................................................................111
A.1.3 DSL LED ( ACT & LINK)................................................................................................111
A.2 Telnet................................................................................................................................112
A.3 Web Configuration............................................................................................................112
A.4 Login Username and Password .......................................................................................113
A.5 LAN Interface ...................................................................................................................113
A.6 WAN Interface ..................................................................................................................113
A.7 Internet Access.................................................................................................................114
A.8 Remote Node Connection................................................................................................114

ADSL2+ Combo Modem Router
3
1.0 About This Manual
This manual is developed for users, system managers, network managers, and contains installation,
configuration, and operation of the ADSL2+ Combo Router.
1.1 Document Objectives
The objectives of this manual are to describe all the initial hardware installation and basic
configuration procedure for the ADSL2+ Combo Router. After completing the installation and basic
configuration procedures, you can then use the appropriate contents to more completely configure
your system.
1.2 Product Overview
This section provides an overview of the ADSL2+ Combo Router. It also describes the general
applications available with the ADSL2+ Combo Router.
1.3 Product Description
ADSL2+ Combo Router is a low cost, high performance and high-speed device that provides a full
rate ADSL2+ Combo Router with the superb reliability and a complete solution for home and office
router. ADSL2+ Combo Router can have a maximum downstream data rate of up to 24Mbps and an
upstream of up to 1Mbps. When configured as a DHCP server, it will assign IP address to every
connected PC and acts as the only externally recognized Internet device on your local area network.
With build-in NAT, ADSL2+ Combo Router serves as an Internet firewall, protecting your network
from being accessed by outside users. You can safely enjoy the new generation broadband Internet
with ADSL2+ Combo Router.
Note! This section documents general product features
available in the ADSL2+ Combo Router product series. Please
refer to the release notes for a current list of upgraded
hardware and software s
p
ecifications.

ADSL2+ Combo Modem Router
4
2.0 Specification
ADSL Standards supported
●Compliant to ITU-T G.992.1 (G.dmt), G.992.2 (G.lite),
G.992.3 (ADSL2), G.992.4 (splitterless ADSL2), G.992.5 (ADSL2+) for Annex A
●G.lite (G.992.2) with line rate support of up to 1.5Mbps downstream and 512Kbps upstream.
●Supports Multi-Mode standard (ANSI T1.413, Issue 2; G.dmt (G.992.1); G.994.1 and G.996.1(for ISDN only);
G.991.1;G.lite (G992.2)).
●Supports OAM F4/F5 loop-back, AIS and RDI OAM cells.
●ATM Forum UNI 3.1/4.0 PVC.
●Supports up to 8 PVCs (UBR, CBR, VBR).
●Multiple Protocols over AAL5 (RFC 1483).
●PPP over AAL5 (RFC 2364).
●PPP over Ethernet (RFC 2516).
Network Address Translation (NAT)
Network Address Translation (NAT) allows the translation of an Internet protocol address used within one
network (for example a private IP address used in a local network) to a different IP address known within
another network (for example a public IP address used on the Internet).
Universal Plug and Play (UPnP)
Using the standard TCP/IP protocol, the ADSL2+ Combo Router and other UPnP enabled devices can
dynamically join a network, obtain an IP address and convey its capabilities to other devices on the network.
10/100M Auto-negotiation Ethernet/Fast Ethernet Interface
This auto-negotiation feature allows the ADSL2+ Combo Router to detect the speed of incoming
transmissions and adjust appropriately without manual intervention. It allows data transfer of either 10 Mbps
or 100 Mbps in either half-duplex or full-duplex mode depending on your Ethernet network.
Dynamic DNS Support
With Dynamic DNS support, you can have a static hostname alias for a dynamic IP address,
Multiple PVC (Permanent Virtual Circuits) Support
Your ADSL2+ Combo Router supports up to 8 PVC’s.
DHCP Support
DHCP (Dynamic Host Configuration Protocol) allows individual clients (computers) to obtain TCP/IP
configuration at start-up from a centralized DHCP server. The ADSL2+ Combo Router has built-in DHCP
server capability enabled by default. It can assign IP addresses, an IP default gateway and DNS servers to
DHCP clients. The ADSL2+ Combo Router can now also act as a surrogate DHCP server (DHCP Relay)
where it relays IP address assignment from the actual real DHCP server to the clients.

ADSL2+ Combo Modem Router
5
2.1 LED Meaning
Your ADSL2+ Combo Router has indicator lights. Please see below for an explanation of the
function of each indicator light.
Power indicator
Ethernet Active indicator
ADSL Link indicator
Internet Active indicator
USB active indicator
Table 1. LED function
Label Color On Flash Off
Green Ready Not Ready Power Off
Green Ethernet
Connected
Transmit / Receive
Data
Ethernet
Disconnected
Green Connect to
DSLAM
Disconnect to
DSLAM N/A
Green Connect to
Internet
Transmit / Receive
Data
Disconnect to
Internet
Green USB
Connected
Transmit / Receive
Data USB Disconnected

ADSL2+ Combo Modem Router
6
2.2 Back Panel Connectors
Table 2 shows the function of each connector and switch of the ADSL2+ Combo Router’s rear panel.
Figure 1. illustrate the connectors / Figure 2. illustrate the Power Switch..
Table 2. Function / Description of Connectors
Connector Description
SWITCH Power Switch, which used to ON / OFF ADSL2+ Combo Router
POWER Connects to your ADSL router 12V AC power adaptor
RESET Reset bottom, RESET the ADSL2+ router to its default settings
USB USB Jack (USB interface) connects to your computer
LAN RJ-45 Jack (Ethernet Cable) connects to your PC, or HUB
LINE Connects to your ADSL2+ line – for ADSL2+ Line input
Figure1. Rear View of the ADSL2+ Combo Router
2.3 Factory Default Settings
Before configuration, please refer to following default settings,
Web interface:
Username: admin
Password: 1234
LAN IP Settings:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
DHCP:
DHCP Server: Enable

ADSL2+ Combo Modem Router
7
3.0 Hardware Requirements
To use ADSL2+ Combo Router, please have following hardware / accessories ready.
A PC with Pre-installed Ethernet Adapter (Required)
12Vac power adaptor (Included in the package)
RJ-45 Ethernet cable (Included in the package)
RJ-11cable (Included in the package)
3.1 Setting up the Hardware Environment
Please kindly refer to chapter 4.0 “Installation & Setup”
3.2 Powering on ADSL2+ Combo Router
1. Connect the power to the ADSL2+ Combo Router by plugging the power supply into an
appropriate electrical outlet.
2. If the Power LED is off, refer to “Troubleshooting” for information.
Please kindly refer to chapter 4.0 “Installation & Setup”
Note! Be sure that you are well insulated from any power
source to avoid electricity shock.
Note! Use only the manufacturer-approved power supply that
shipped with the ADSL2+ Combo Router.

ADSL2+ Combo Modem Router
8
4.0 Installation & Setup
Follow each STEP carefully and only go to the next step once you have completed the previous
STEP.

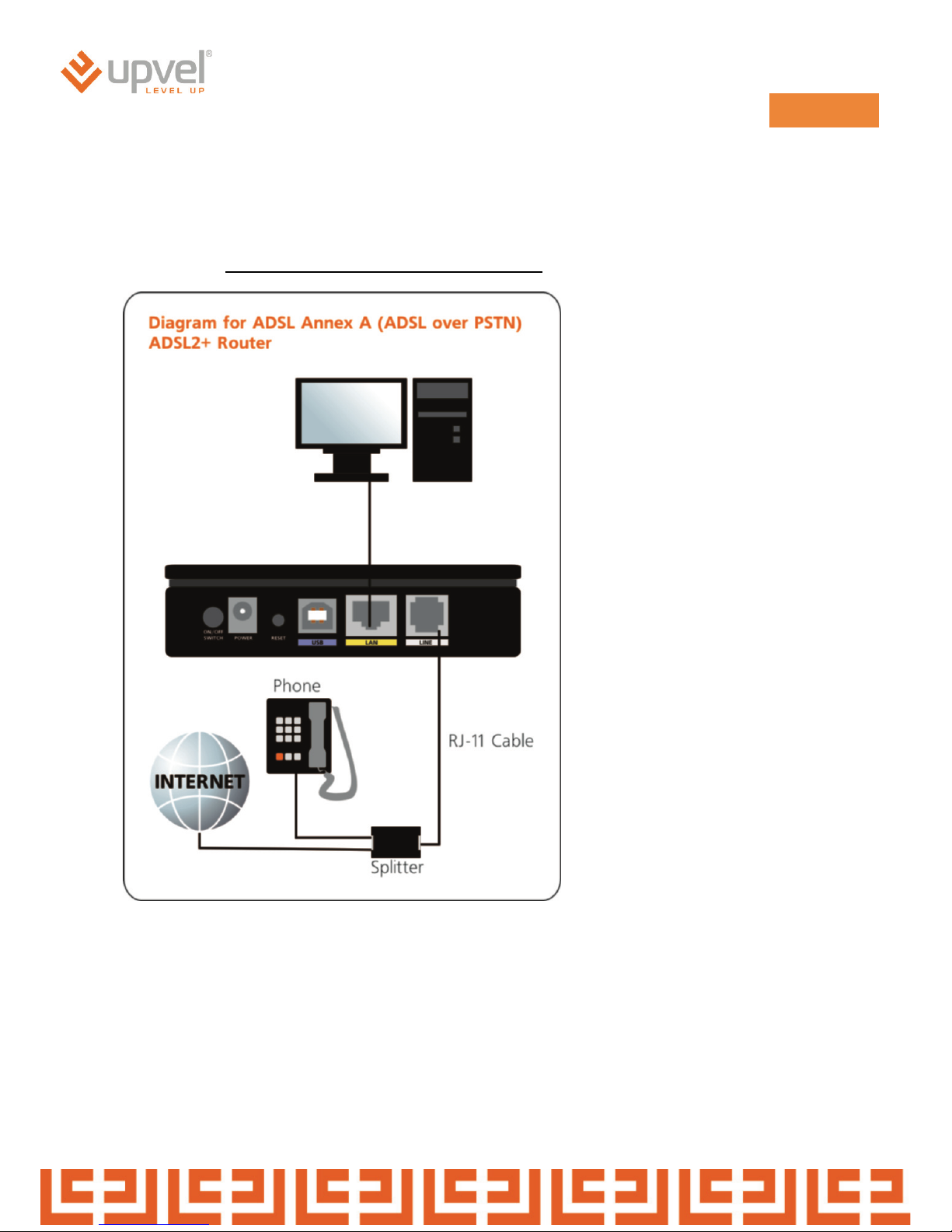

Connection of ADSL2+ Combo Router
If you have a PSTN telephone line (normal analog line) Connect the router as shown below:
1. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet port to ADSL2+ Combo
Router's “LAN” Port.
2. Connect the supplied RJ11 telephone cable from your home's telephone jack to the “LINE”
port of the supplied ATF085A1R splitter. Connect the other supplied RJ11 telephone cable to
the “MODEM” port of the splitter and connect the other end of this cable to the “LINE” port of
your ADSL2+ Combo Router.
3. Connect a RJ11 telephone cable to the “PHONE” port of the splitter and connect the other end
to your telephone.
4. Connect the power adapter to the power inlet “POWER” of the ADSL2+Combo Router and
turn the “ON/OFF SWITCH” switch of your ADSL2+ Combo Router on.

ADSL2+ Combo Modem Router
9
5.0 Configuration Procedures
Before starting the ADSL2+ Combo Router configuration, please kindly configure the PC
computer as below, to have automatic IP address / DNS Server.
For Windows 98SE / ME / 2000 / XP

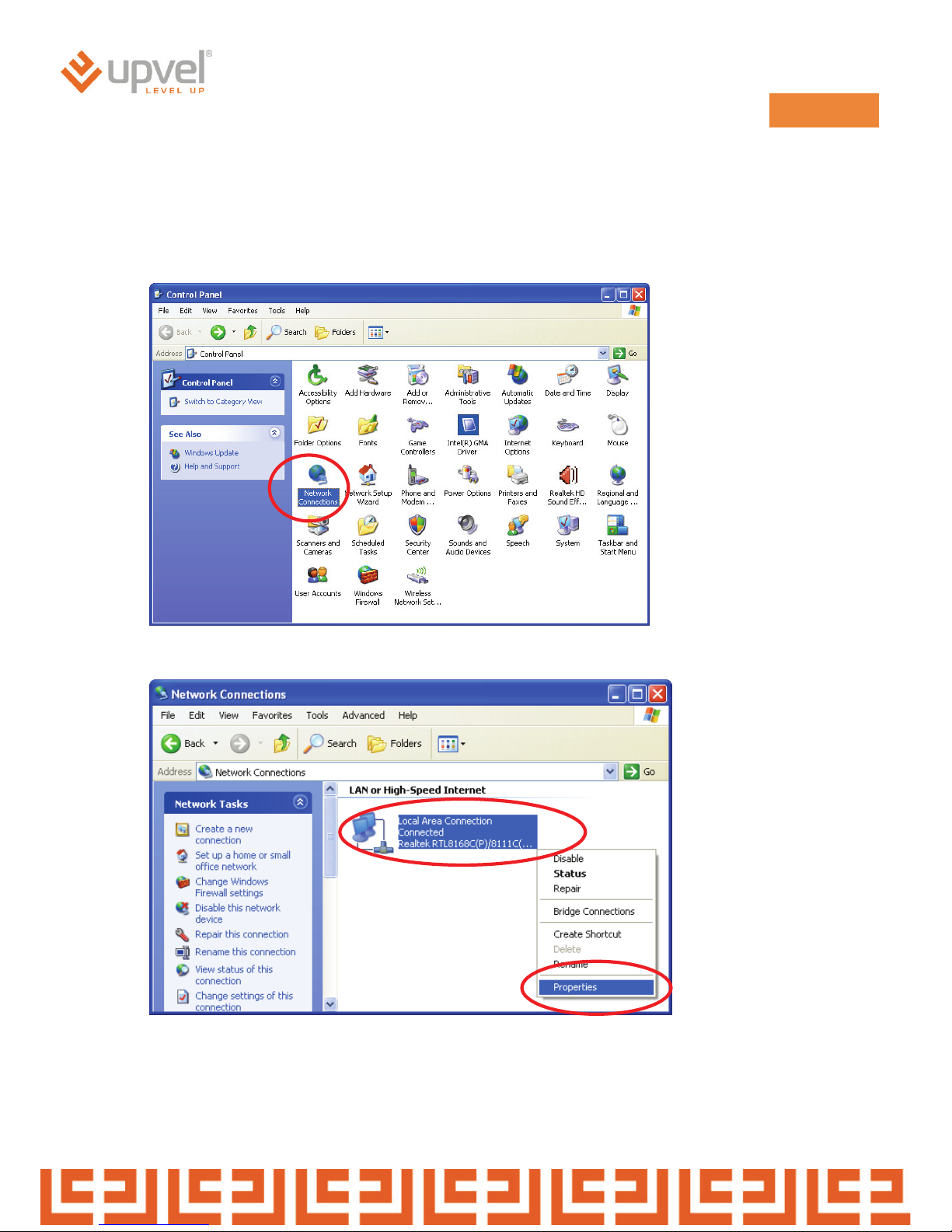

1. Click on “Start” -> “Control Panel” (in Classic View). In the Control Panel, double click
on “Network Connections” to continue.
2. Single RIGHT click on “Local Area connection”, then click “Properties”.

ADSL2+ Combo Modem Router
10
3. Double click on "Internet Protocol (TCP/ IP)".
4. Check "Obtain an IP address automatically" and “Obtain DNS server address
automatically” then click on "OK" to continue.
5. Click "Show icon in notification area when connected" (see screen
image in 3. above) then Click on "OK" to complete the setup procedures.

ADSL2+ Combo Modem Router
11

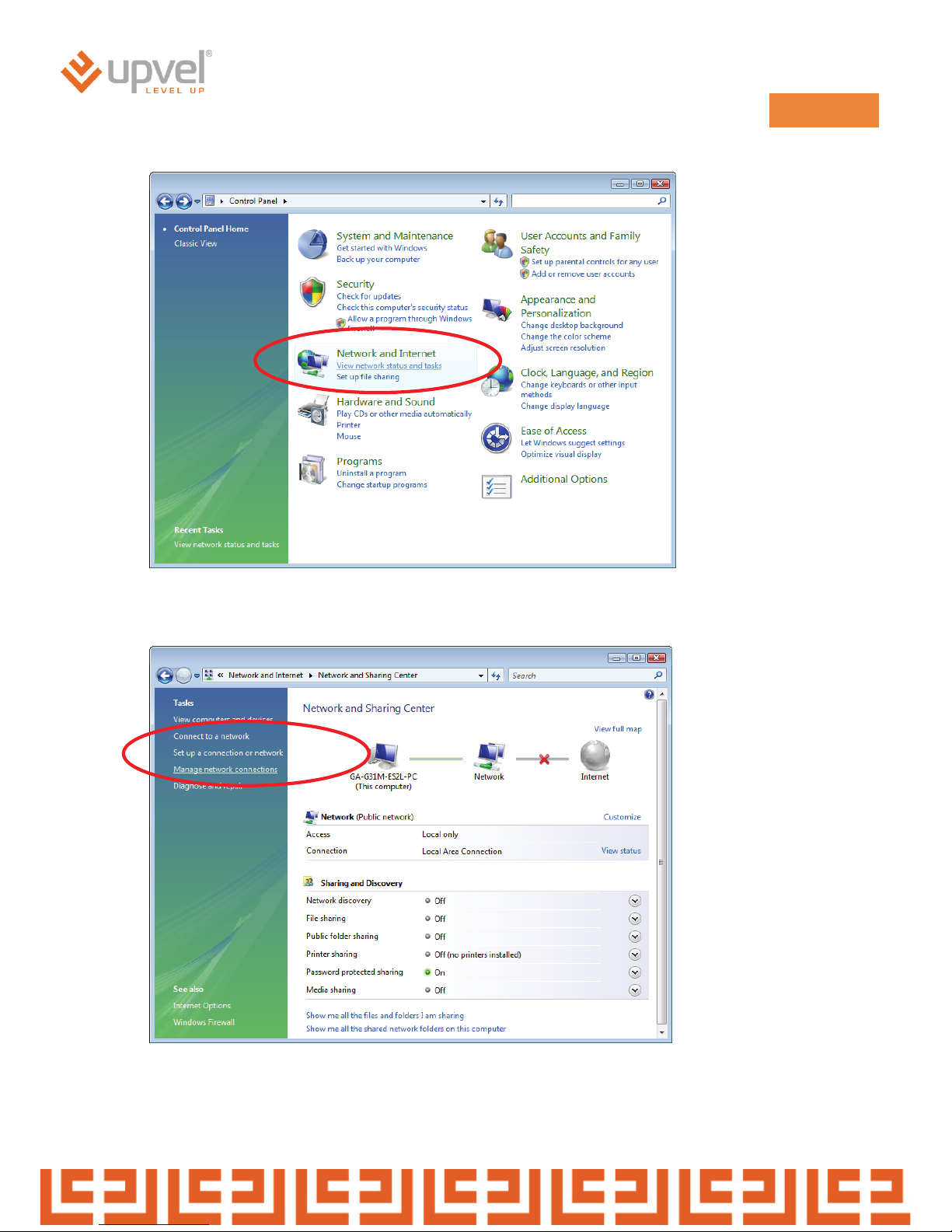

For Windows Vista-32/64
1. Click on “Start” -> “Control Panel” -> “View network status and tasks”.
2. In the Manage network connections, click on “Manage network connections” to
continue.

ADSL2+ Combo Modem Router
12

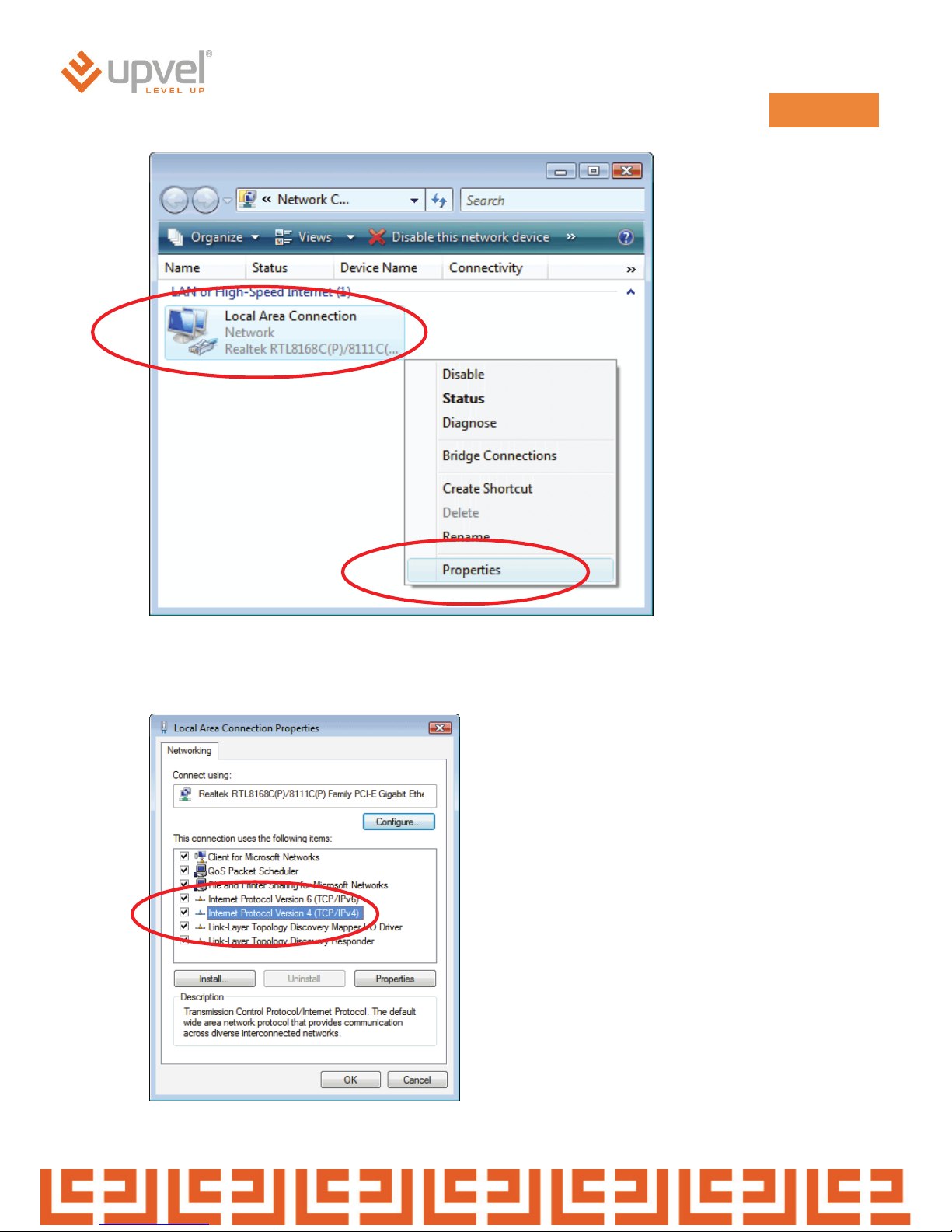

3. Single RIGHT click on “Local Area connection", then click "Properties".
4. The screen will display the information “User Account Control” and click
“Continue” to continue.
5. Double click on "Internet Protocol Version 4 (TCP/IPv4)".

ADSL2+ Combo Modem Router
13

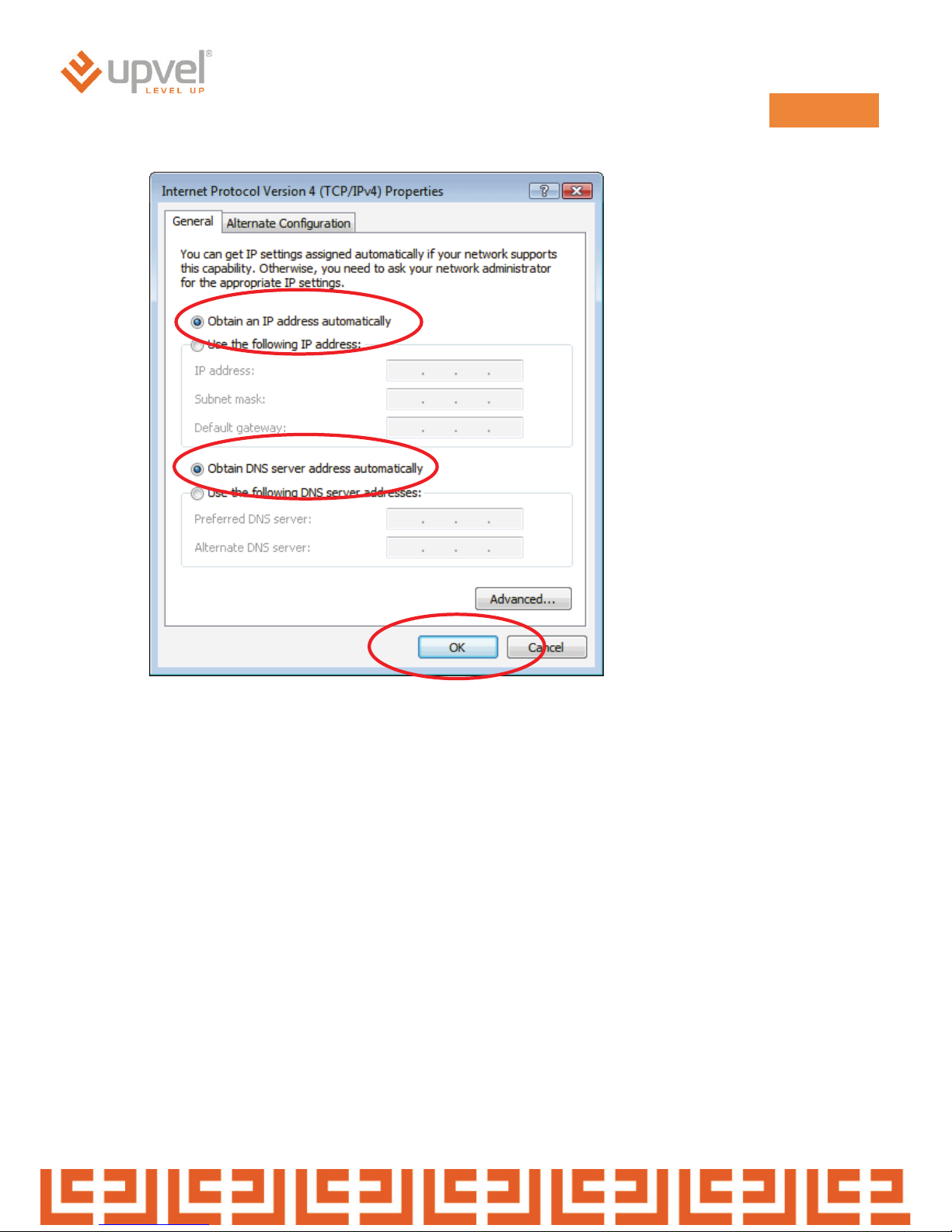

6. Check "Obtain an IP address automatically" and “Obtain DNS server address
automatically” then click on "OK" to continue.

ADSL2+ Combo Modem Router
14

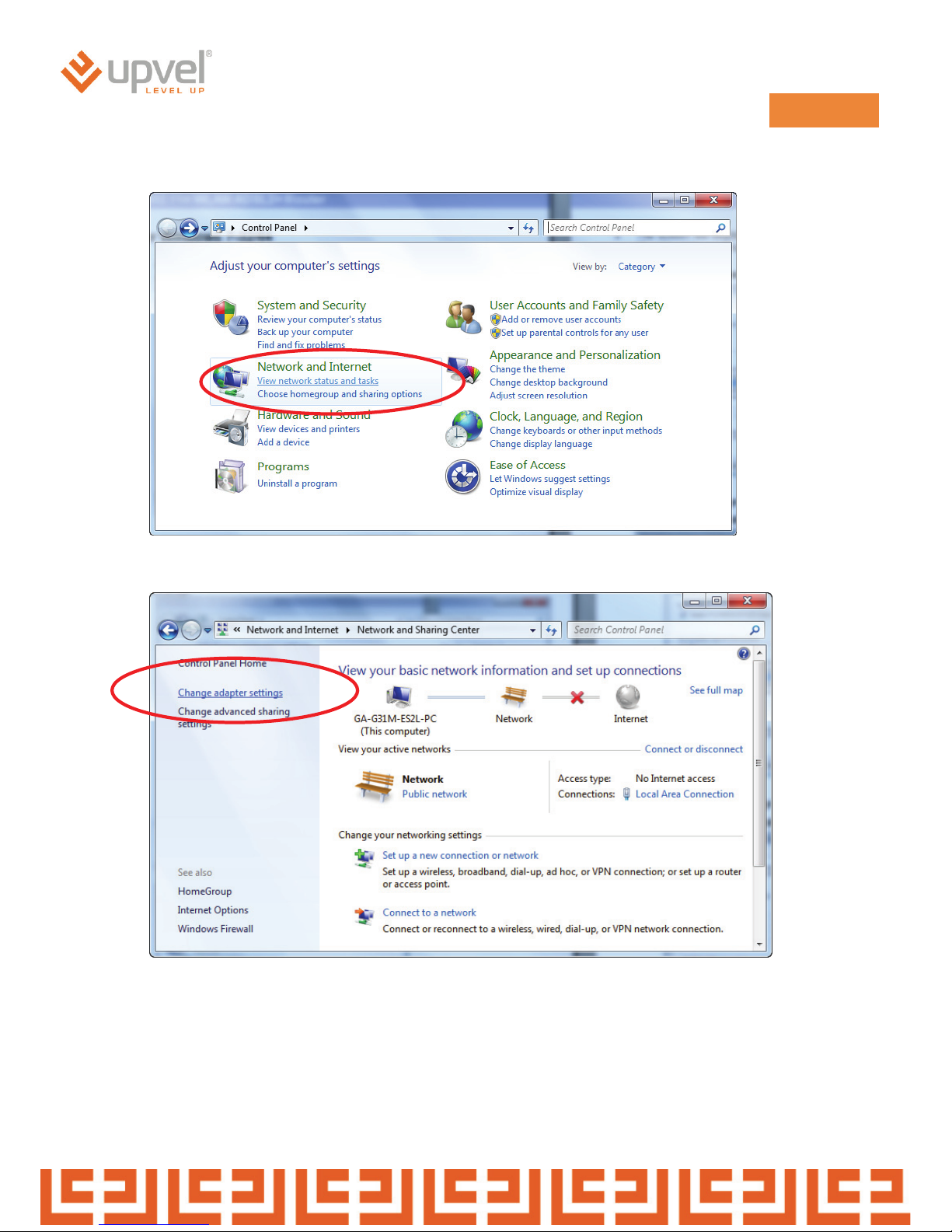

For Windows 7-32/64
1. Click on “Start” -> “Control Panel” (in Category View) -> “View network status and
tasks”.
2. In the Control Panel Home, click on “Change adapter settings” to continue.

ADSL2+ Combo Modem Router
15

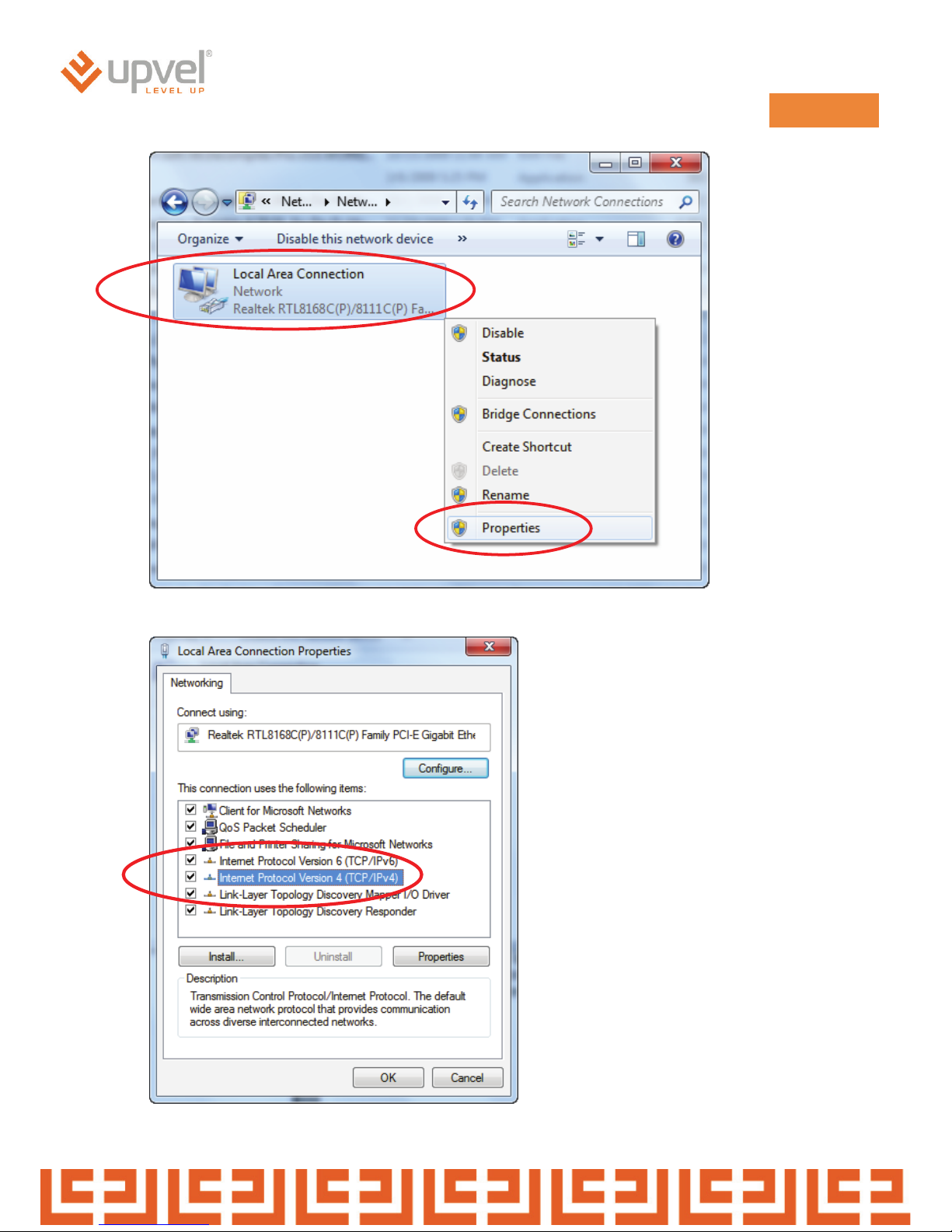

3. Single RIGHT click on “Local Area connection", then click "Properties".
4. Double click on "Internet Protocol Version 4 (TCP/IPv4)".

ADSL2+ Combo Modem Router
16
5. Check "Obtain an IP address automatically" and “Obtain DNS server address
automatically” then click on "OK" to continue.

ADSL2+ Combo Modem Router
17
6.0 Internet Configuration via Ethernet Port
1. Please insert the supplied CD into your CD-ROM drive.
2. The CD should auto-start, displaying the window shown in 3. below. If your CD does
not start automatically, go to Windows Explorer, Select your CD drive and double
click “setup.exe”.

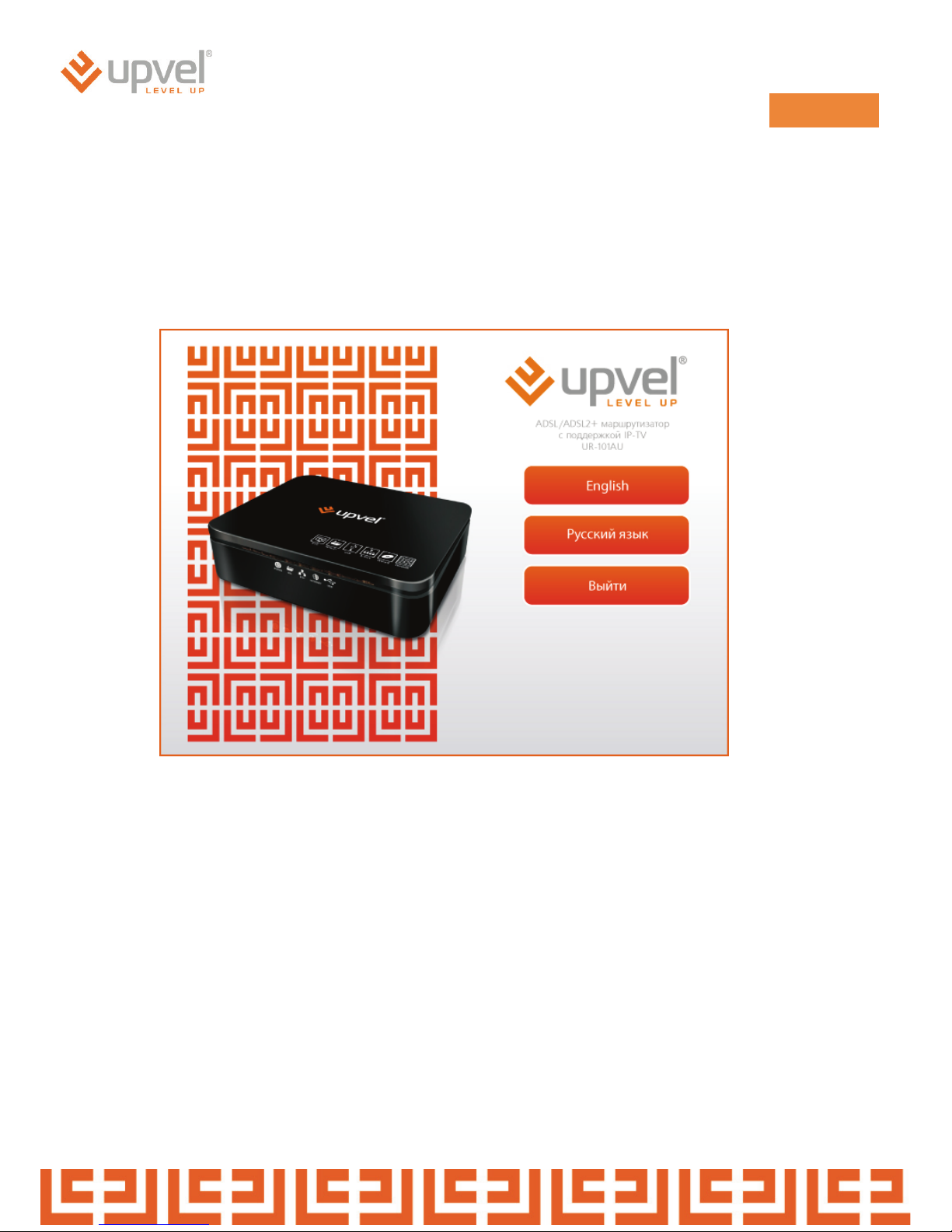

3. Please choose your language and then click button to continue.

ADSL2+ Combo Modem Router
18
4. To configure the device, please click “Configuration”.
5. Please click “Internet Configuration” button to continue.

ADSL2+ Combo Modem Router
19
6. Please click “Internet connection” button to continue.
7. Select your country, town, ISP and settings your ISP (Internet Services Provider)
provided, and enter your required settings. Then press “Save Configuration”.
Please wait for about 60 seconds.

ADSL2+ Combo Modem Router
20
8. When the “Information” screen pop-up, please click “OK” button to exit the
program.
You can now access the Internet!
