Upvel UR-101AU User manual

ADSL2+ Combo Modem Router
1
Quick Installation Guide
UR
-
101
A
U
ADSL
/
ADSL2+ Firewall
Modem Router

ComTW263R4
ADSL2+ Combo Router
System Requirement
1. Pentium 200 MHz processor or above
2. Windows 98SE, Windows Me, Windows 2000, Windows XP, Windows
Vista and Windows 7.
3. 64 MB of RAM or above
4. 25 MB free disk space
Package Contents
For Annex-A ADSL2+ Combo Router
1. ADSL2+ Combo Router
2. CD-ROM (Software & Manual)
3. Quick Installation Guide
4. 1 x Telephone Cable (RJ-11)
5. Ethernet Cable (RJ-45)
6. USB Cable
7. AC Adaptor
8. Annex A ATF085A1R Splitter (Optional, with an extra RJ-11 Telephone
cable)

ADSL2+ Combo Modem Router
3
Installation & Setup
LAN Connection:
Connect an Ethernet cable from your PC's Ethernet port to ADSL2+ Combo
Router's LAN Port.
WAN Connection:
Connect the telephone cable from your home's telephone jack to the
telephone port (LINE) of the ADSL2+ Combo Router, if there is no Splitter
applied.
Power Adapter Connection:
Connect the power adapter to the power inlet (POWER) of the ADSL2+
Combo Router and turn the power switch (ON/OFF SWITCH) on.
USB Connection:
Connect an USB cable from your PC's USB port to ADSL2+ Combo Router's
USB port (USB).
Figure 1: Rear View of the ADSL2+ Combo Router

ComTW263R4
Connection of ADSL2+ Combo Router
If you have a PSTN telephone line (normal analog line) connected the
router as shown below: (Annex-A ADSL2+ Combo Router)
**Use the “ATF085A1R” Annex-A Splitter (Optional)
1. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet port
to ADSL2+ Combo Router's “LAN” Port.
2. Connect the supplied RJ11 telephone cable from your home's telephone
jack to the “LINE” port of the supplied ATF085A1R splitter. Connect the
other supplied RJ11 telephone cable to the “MODEM” port of the splitter
and connect the other end of this cable to the “LINE” port of your
ADSL2+ Combo Router.

ADSL2+ Combo Modem Router
5
3. Connect a RJ11 telephone cable to the “PHONE” port of the splitter and
connect the other end to your telephone.
4. Connect the power adapter to the power inlet “POWER” of the ADSL2+
Combo Router and turn the “ON/OFF SWITCH” switch of your ADSL2+
Combo Router on.
LED Meaning
Your ADSL2+ Combo Router has indicator lights on the front side. Please see
below for an explanation of the function of each indicator light.
Power indicator
Ethernet Active indicator
ADSL Link indicator
Internet Active indicator
USB Active indicator

ComTW263R4
Table 1, LED function
Label Color On Flash Off
Green Ready Not Ready Power Off
Green Ethernet
Connected
Transmit / Receive
Data
Ethernet
Disconnected
Green Connect to
DSLAM Disconnect to DSLAM N/A
Green Connect to
Internet
Transmit / Receive
Data
Disconnect to
Internet
Green USB
Connected
Transmit / Receive
Data
USB
Disconnected
The icons appear on the products are for application indication only.
The trademark or intellectual property is belonging to their respective owners.

ADSL2+ Combo Modem Router
7
Configuration Procedures
Before starting the ADSL2+ Combo Router configuration, please kindly
configure the PC computer as below, to have automatic IP address / DNS
Server.
For Windows 98SE / ME / 2000 / XP
1. Click on "Start” -> “Control Panel” (in Classic View). In the Control
Panel, double click on "Network Connections" to continue.
2. Single RIGHT click on “Local Area connection", then click
"Properties".

ComTW263R4

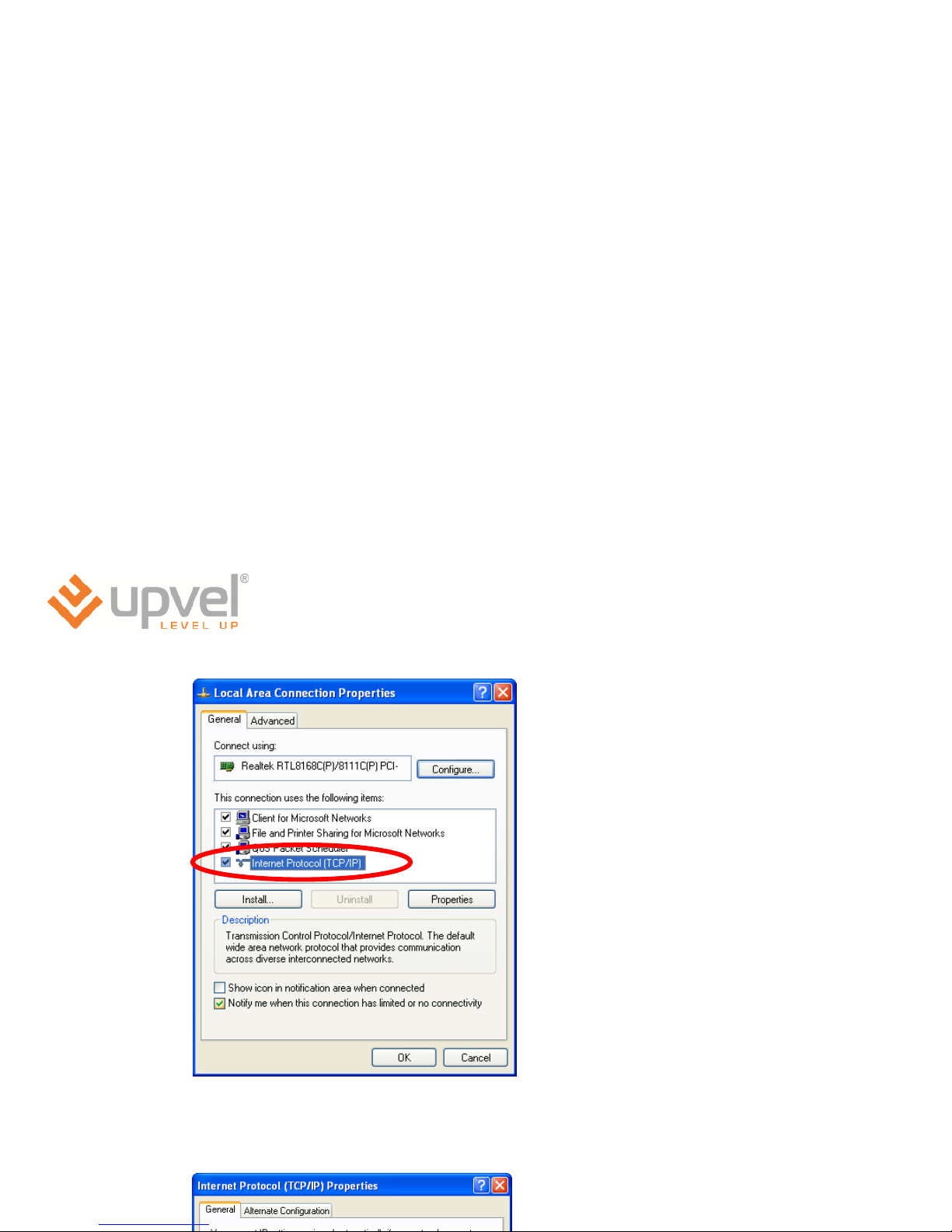

3. Double click on "Internet Protocol (TCP/IP)".
4. Check "Obtain an IP address automatically” and “Obtain DNS
server address automatically” then click on "OK" to continue.
5. Click "Show icon in notification area when connected" (see screen
image in 3. above) then Click on "OK" to complete the setup
procedures.
6.

ADSL2+ Combo Modem Router
9
For Windows Vista-32/64
1. Click on “Start” -> “Control Panel” -> “View network status and
tasks”.
2. Single RIGHT click on “Local Area connection", then click
"Properties".

ComTW263R4
3. Double click on "Internet Protocol Version 4 (TCP/IPv4)"
4. The screen will display the information “User Account Control” and
click “Continue” to continue.
5. Double click on "Internet Protocol Version 4 (TCP/IPv4)".

ADSL2+ Combo Modem Router
11
6. Check "Obtain an IP address automatically" and “Obtain DNS
server address automatically” then click on "OK" to continue.

ComTW263R4
For Windows 7-32/64

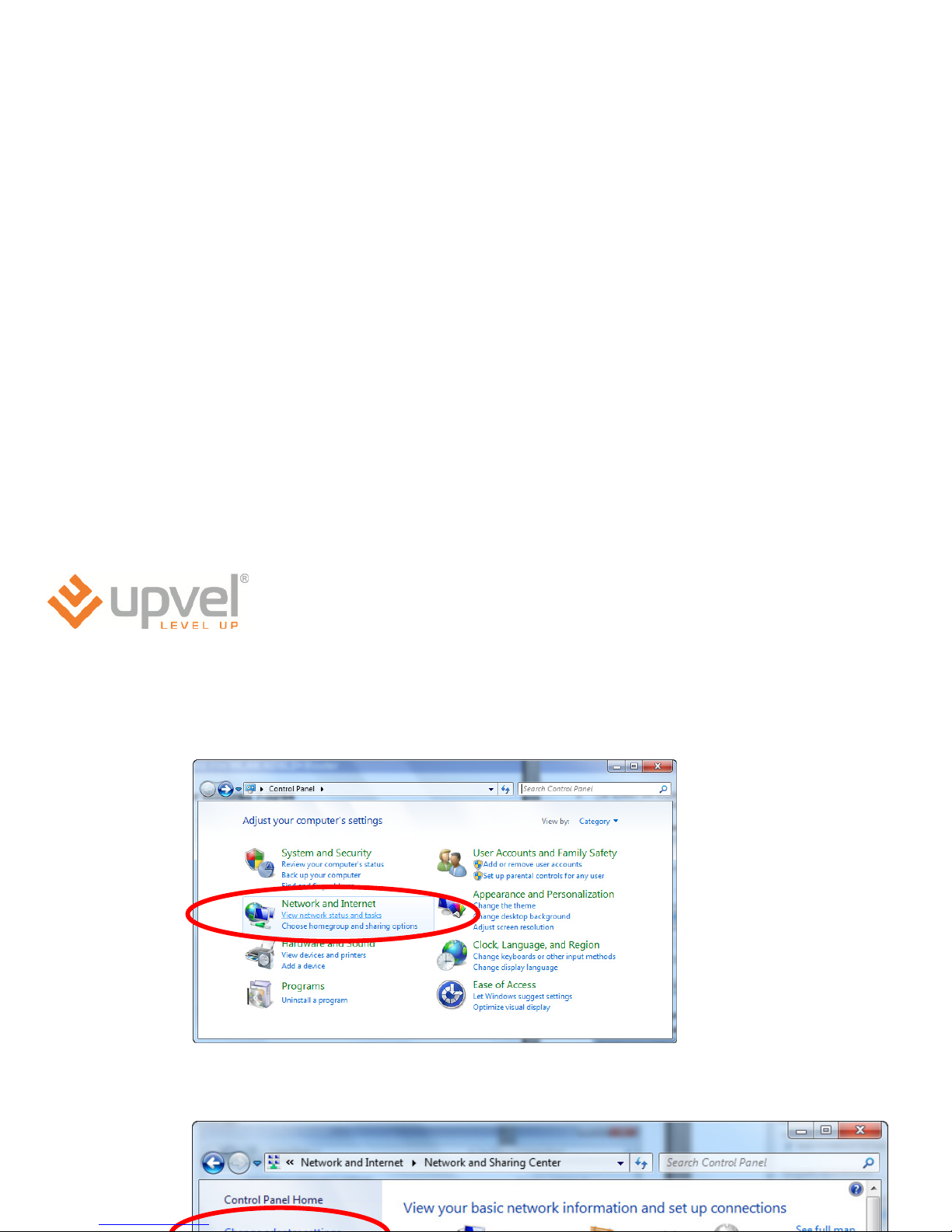

1. Click on “Start” -> “Control Panel” (in Category View) -> “View
network status and tasks”.
2. In the Control Panel Home, click on “Change adapter settings” to
continue.

ADSL2+ Combo Modem Router
13
3. Double click on "Internet Protocol Version 4 (TCP/IPv4)"
4. Double click on "Internet Protocol Version 4 (TCP/IPv4)".

ComTW263R4
5. Check "Obtain an IP address automatically" and “Obtain DNS
server address automatically” then click on "OK" to continue.

ADSL2+ Combo Modem Router
15
Internet Configuration via Ethernet Port
1. Please insert the supplied CD into your CD-ROM drive.
2. The CD should auto-start, displaying the window shown in 3. below. If
your CD does not start automatically, go to Windows Explorer, Select
your CD drive and double click “setup.exe”
3. Please choose your language and then click button to continue.
4. To configure the device, please click “Configuration”.

ComTW263R4

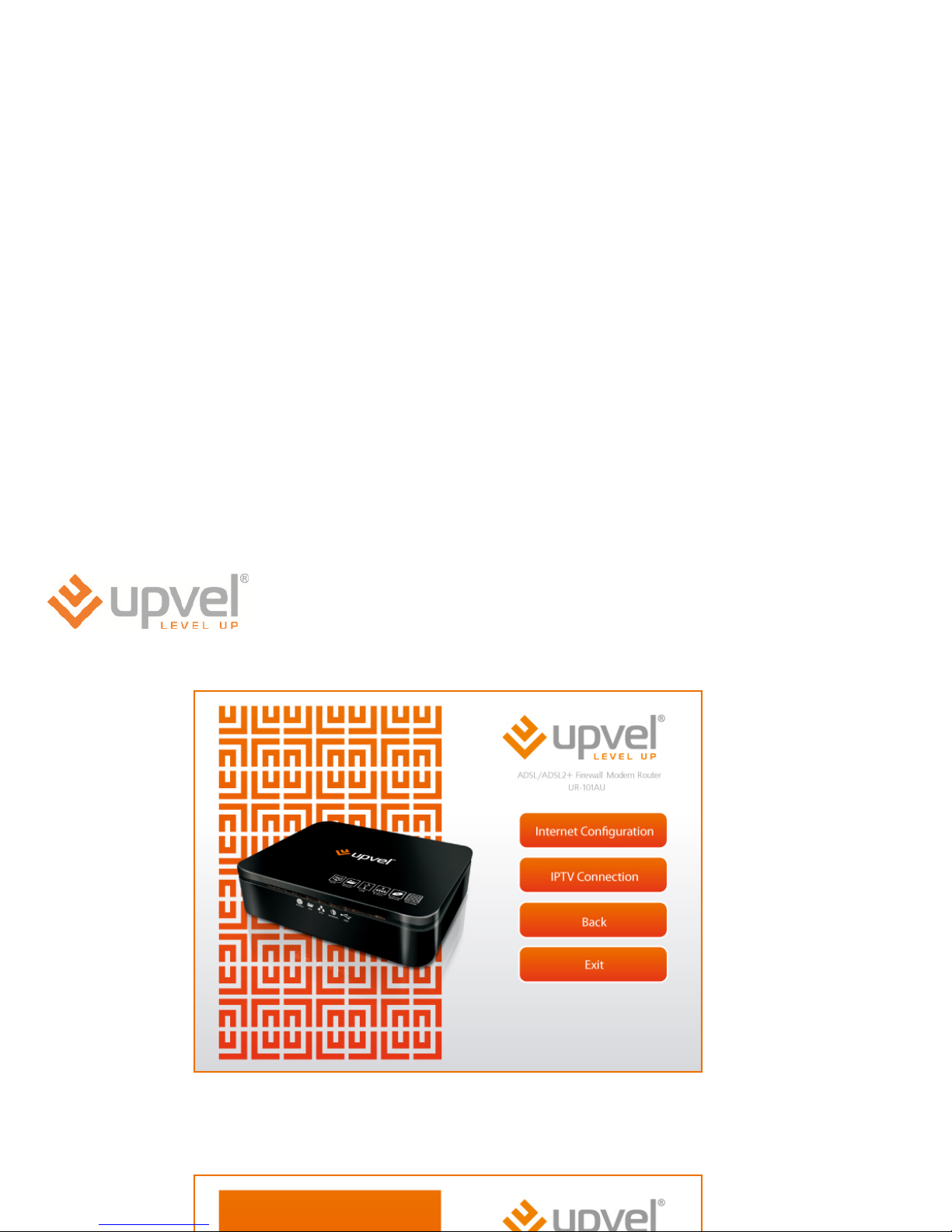

Please click “Internet Configuration” button to continue.
5. Please click “Internet connection” button to continue.

ADSL2+ Combo Modem Router
17
6. Select your country, town, ISP and settings your ISP (Internet
Services Provider) provided, and enter your required settings. Then
press “Save Configuration”. Please wait for about 60 seconds.
7. When the “Information” screen pop-up, please click “OK” button to
exit the program.
You can now access the Internet !

ComTW263R4
Internet Configuration via USB Port
For Windows 98SE / ME / 2000 / XP
1. Make sure to power on ADSL2+ Combo Router.
2. Make sure that you have disconnected the Ethernet RJ45 cable.
Please connect one end of the supplied USB cable to ADSL2+ Combo
Router, and connect the other end of USB cable to the Computer.

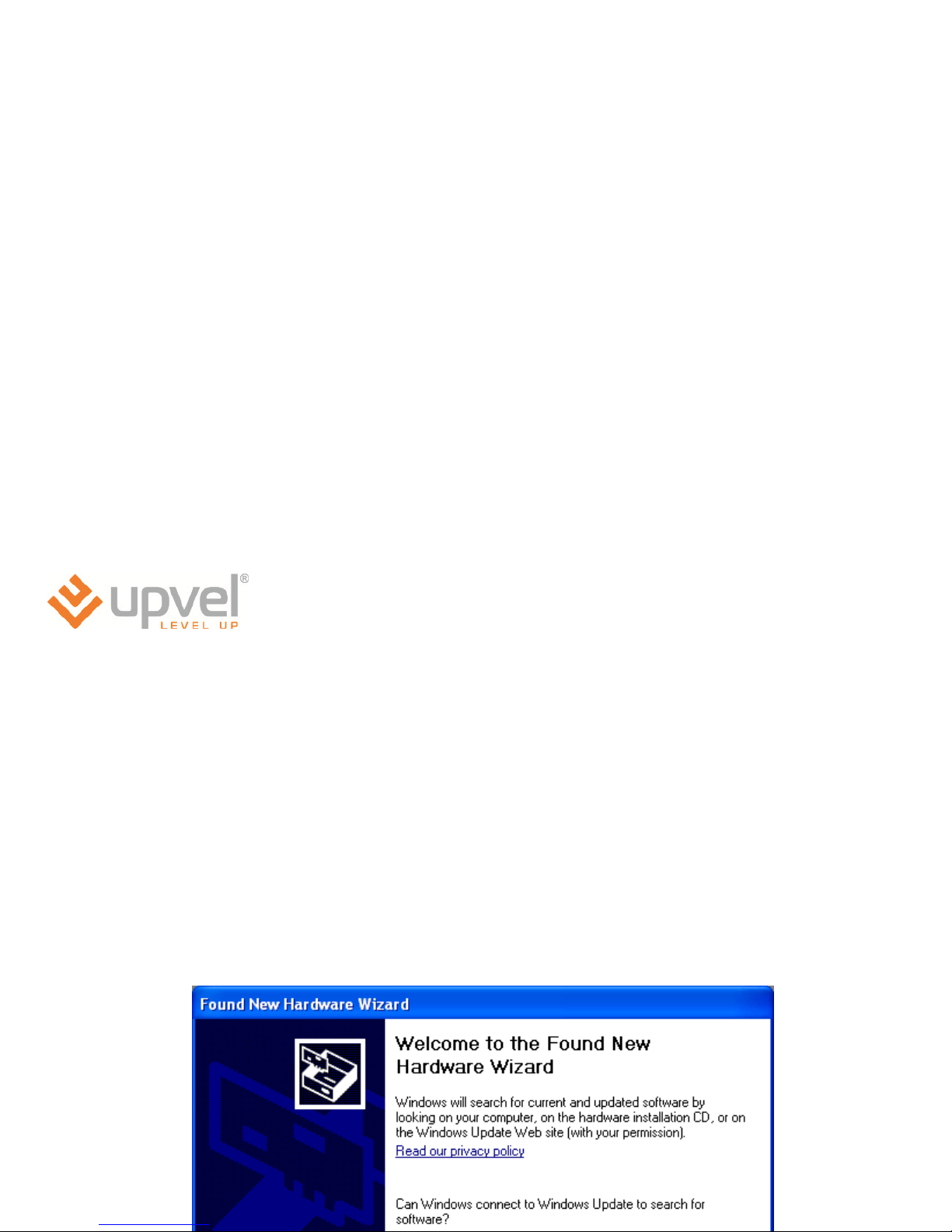

3. Once USB cable connected to ADSL2+ Combo Router and the
following will appear on screen.
Please click “Cancel” to eliminate this “Welcome to the Found New
Hardware Wizard”
4. Please insert the supplied CD into your CD-ROM drive.
5. The CD should auto-start, displaying the window shown in 6. below. If
your CD does not start automatically, go to Windows Explorer, Select
your CD drive and click “setup.exe”

ADSL2+ Combo Modem Router
19
6. Please choose your language and then click button to continue.
7. To configure the device, please click “Configuration”

ComTW263R4
8. Please click “Internet Configuration” to continue.
9. Please click “USB connection” to continue.
