Upvel UR-104AN User manual

CONTENTS
Product overview .................................................................................................... 3
Package contents ................................................................................................... 4
Status LEDs............................................................................................................ 4
LEDs description .................................................................................................... 5
Ports and buttons functionality................................................................................ 6
Router Installation................................................................................................... 7
Configuring your router with Setup Wizard............................................................. 9
Connecting to the Internet via ADSL ................................................................. 11
Connecting to the Internet via Ethernet............................................................. 12
Connecting to the Internet via 3G/4G................................................................ 13
Wireless network configuration.......................................................................... 14
Connection to your wireless network.................................................................... 16
Windows Vista, 7 and 8..................................................................................... 16

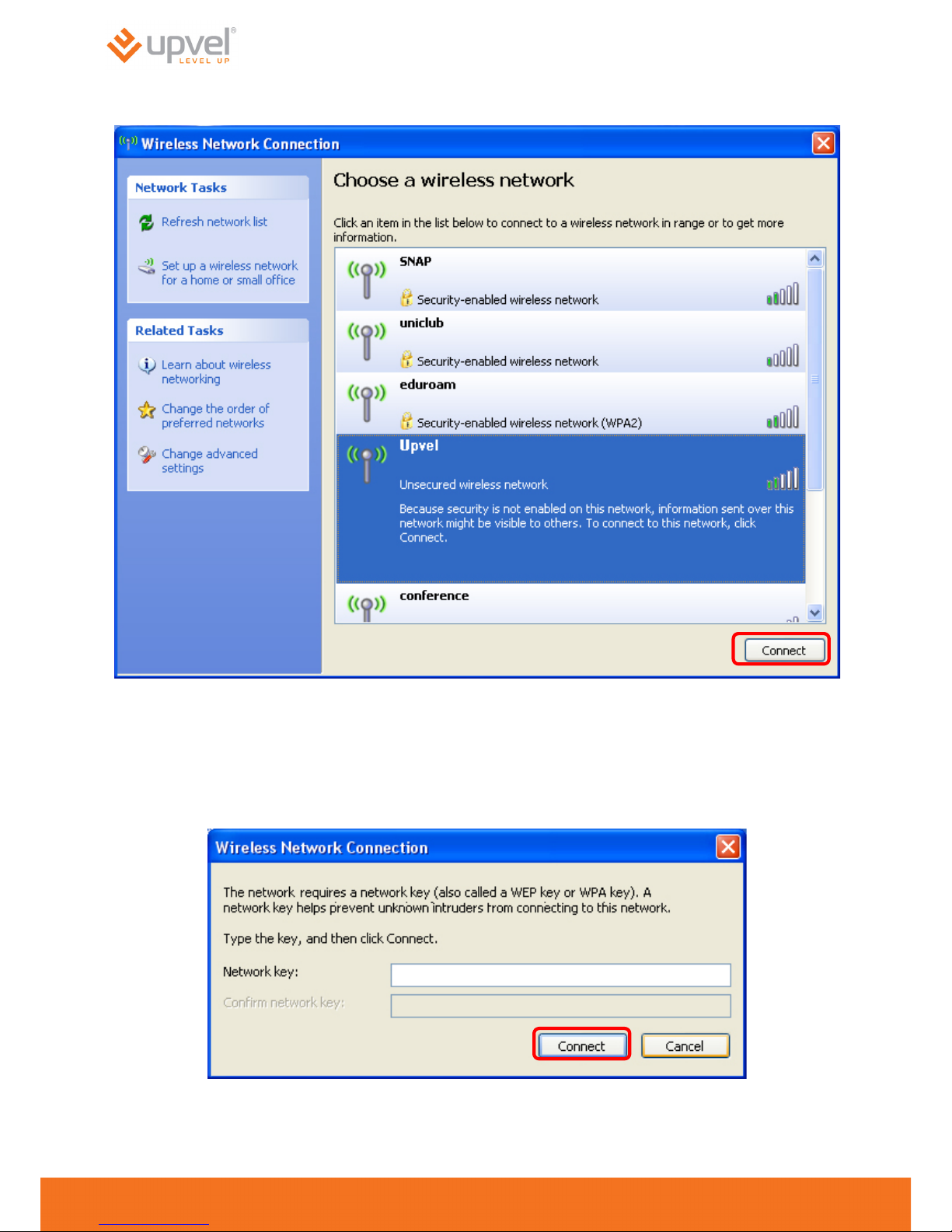

Windows XP ...................................................................................................... 18
Tips on wireless performance optimization........................................................... 20
Configuring your router through Web-interface .................................................... 21
Quick Installation .................................................................................................. 22
Web-interface guide ............................................................................................. 28
Connecting to the Internet via ADSL ................................................................. 29
Connecting to the Internet via Ethernet............................................................. 35
Connecting to the Internet via 3G...................................................................... 39
Interface setup > LAN........................................................................................ 40
Interface setup > Wireless................................................................................. 41
IPTV setup......................................................................................................... 43
Maintenance > Administration ........................................................................... 47
Maintenance > Time zone ................................................................................. 48
Maintenance > Firmware................................................................................... 50
Maintenance > SysRestart ................................................................................ 51
Status > System Log ......................................................................................... 52
Status > Statistics.............................................................................................. 54
Possible troubles while connecting and configuring the router............................. 55
Setting up your network adapter........................................................................... 56
For Windows Vista, 7 and 8............................................................................... 56
For Windows XP................................................................................................ 59
For Mac OS X.................................................................................................... 63
Specification ......................................................................................................... 66
FCC/CE Disclaimer .............................................................................................. 69
GPL/LGPL Information ......................................................................................... 72

3
Product overview
UR-104AN 4 ports ADSL2/2+ Router 10/100 Mbps Ethernet, IPTV and
Ipv6 support
UR-314AN
v2
Wireless N 4 ports ADSL2/2+
Router 1x1
150 Mbps 802.11n Wi-Fi, 10/100
Mbps Ethernet, IPTV and Ipv6
support
UR-
344AN4G
Wireless N 4 ports ADSL2/2+
Router 1x1 + USB host with
3/4G Failover
3G/4G, 150 Mbps 802.11n Wi-Fi,
10/100 Mbps Ethernet, IPTV and
Ipv6 support, 3G/4G backup, Samba
UR-
344AN4G+
Wireless N 4 ports ADSL2/2+
Router 1x1 + USB host w
3/4G Failover + 5dBi
antenna
3G/4G, 150 Mbps 802.11n Wi-Fi,
10/100 Mbps Ethernet, IPTV and
Ipv6 support, 3G/4G backup,
Samba, 5 dBi antenna
UR-
354AN4G
Wireless N 4 ports ADSL2/2+
Router 2x2 + USB host with
3/4G Failover
3G/4G, 300 Mbps 802.11n Wi-Fi,
10/100 Mbps Ethernet, IPTV and
Ipv6 support, 3G/4G backup, Samba

UPVEL ADSL Modem Router
4
Package contents
•ADSL2+ Modem Router
•Quick Installation guide
•CD-ROM (Utility and User’s Guide)
•Power Adapter (please go to page 63 for specifications)
•Network Cable (Twisted Pair Cat5 1,5m/5ft)
•Telephone cable (x2)
•ADSL-splitter
•Warranty certificate

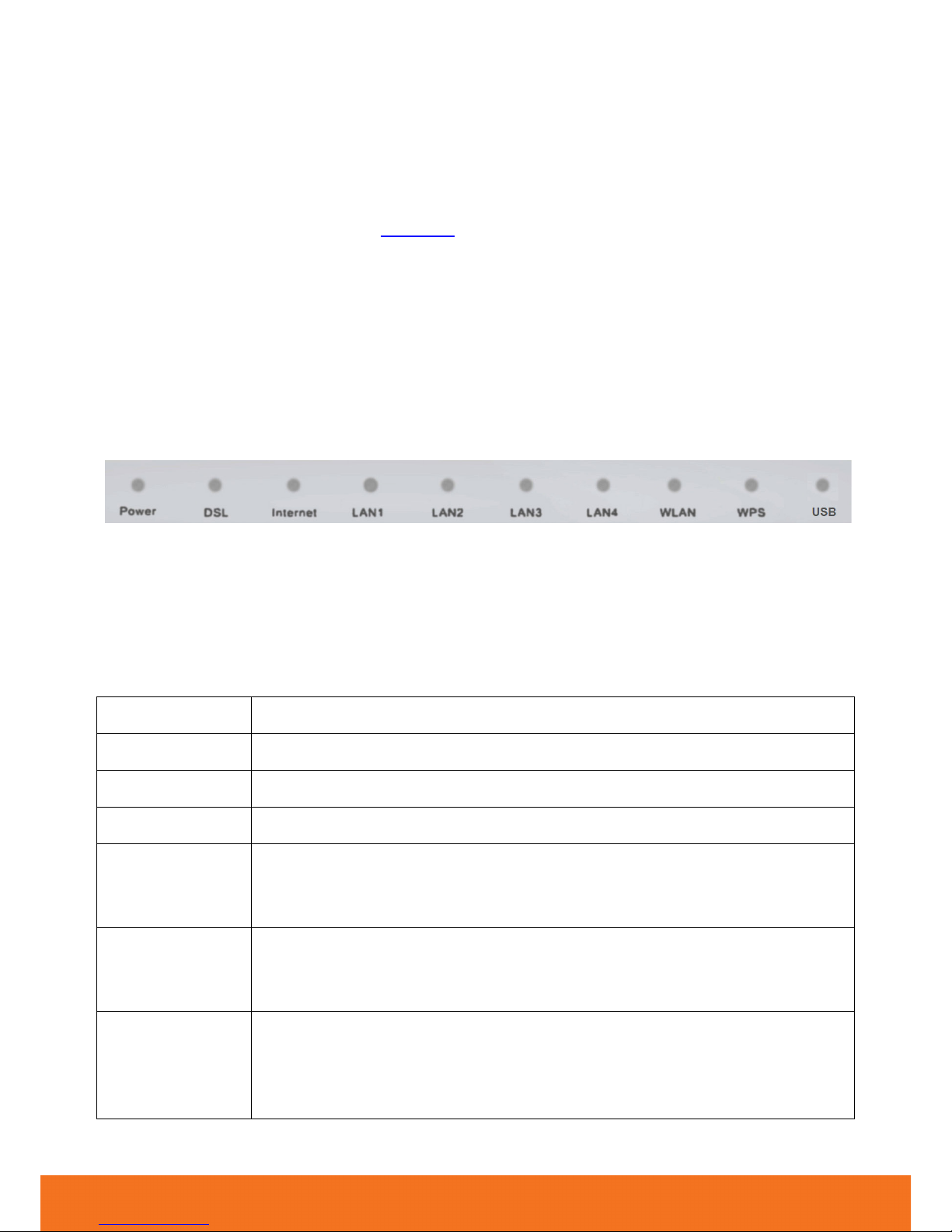

Status LEDs
Depending on your ADSL Modem Router model, features will differ, and
some LEDs may not be available as described below. This User Manual
provides you with notes (in italic), when certain features are only available
in specific models.
Power
Power
DSL
DSL connection
Internet
Internet connection
LAN1~LAN4
Connection to LAN1~LAN4 ports (PCs or other network devices)
WLAN
(all except
UR-104AN)
Wireless network
WPS
(all except
UR-104AN)
Wi-Fi Protected Setup function execution
USB
(UR-44AN4G,
UR-344AN4G+
& UR-45AN4G)
Connection to USB port (3G/4G modem or external storage
device)

5
LEDs description
LED
Solid
Blinking
Off
Power Power is supplied –
Power is not
supplied
DSL
Connected to
DSLAM
Not connected to
DSLAM
–
Internet Public IP address
has been obtained
Data is being
transmitted
Public IP address
hasn’t been
obtained
LAN1~LAN4
Device has been
connected
Data is being
transmitted
Device is not
detected
WLAN
(all except
UR-104AN)
Wireless unit
is on
Data is being
transmitted
Wireless unit
is of
WPS
(all except
UR-104AN)
–
Waiting for WPS
function to be
activated on the
remote device you
are going to connect
(2 min)
WPS function is not
being used
USB
(UR-344AN4G,
UR-344AN4G+
&
UR-345AN4G)
3G/4G modem or
external hard drive
is connected
Data is being
transmitted
USB port is not
being used

UPVEL ADSL Modem Router
6

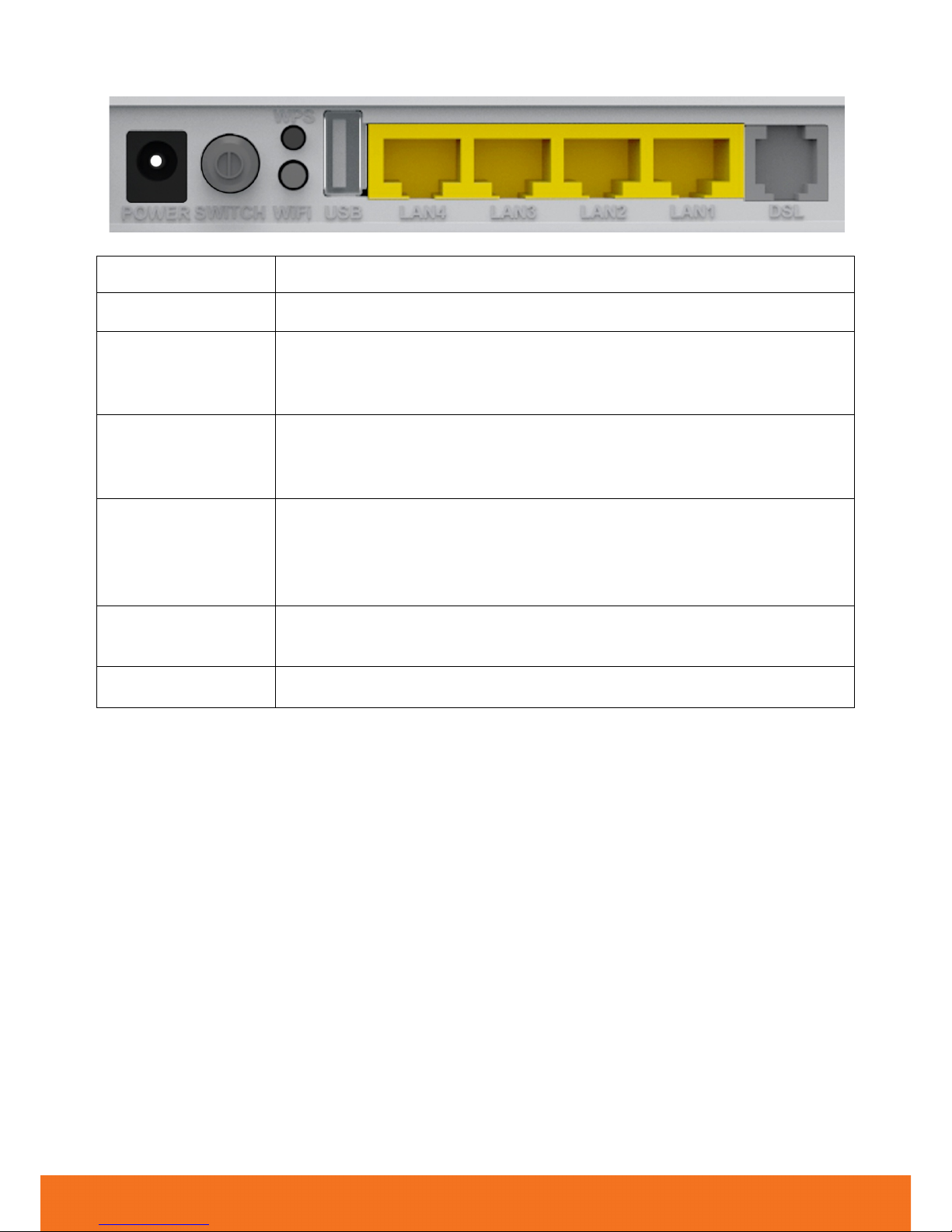

Ports and buttons functionality
POWER
Power cable port
SWITCH
Power On/Off button
WPS
(all except
UR-104AN)
Wi-Fi Protected Setup activation
WiFi
(all except
UR-104AN)
Wireless unit activation/deactivation
USB
(UR-344AN4G,
UR-344AN4G+ &
UR-345AN4G)
Port to connect 3G/4G modem or external hard drive
LAN 1 ~ LAN4
RJ-45 ports to connect PCs and other device at your local
area network
DSL
RJ-11 telephone cable port

7
Router Installation

UPVEL ADSL Modem Router
8
If you connect to the Internet via ADSL:
1. Using the network cable from the package, connect your computer to LAN2 or
LAN3 port of the router. LAN4 port is for IPTV receiver connection.
2. Disconnect the phone cable from the outlet and connect in to the PHONE port
of the splitter.
3. Connect the splitter to your phone outlet.
4. Using the phone cable from the package, connect your router’s DSL port and
splitter’s MODEM port.
5. Plug in the power adapter and connect the power cable to the DC plug. Push
the SWITCH button to turn on your router. The power LED activates and your
router starts to load.
6. After loading is complete your router assigns an IP address to the PC you are
using. On the front panel the relevant LAN LED activates and a notification
appears in Windows tray, informing you that LAN connection established
successfully.
If you connect to the Internet via 3G/4G modem:
(UR-344AN4G, UR-344AN4G+ & UR-345AN4G)
1. Using the network cable from the package, connect your computer to LAN2 or
LAN3 port of the router. LAN4 port is for IPTV receiver connection.
2. Plug the 3G/4G modem to the USB port on the back side of your router.
3. Plug in the power adapter and connect the power cable to the DC plug. Push
the SWITCH button to turn on your router. The power LED activates and your
router starts to load.
4. After loading is complete your router assigns an IP address to the PC you are
using. On the front panel the relevant LAN LED activates and a notification
appears in Windows tray, informing you that LAN connection established
successfully.
If you connect to the Internet via cable/satellite modem or dedicated
Ethernet connection:
1. Using the network cable from the package, connect your computer to LAN2 or
LAN3 port of the router. LAN4 port is for IPTV receiver connection.
2. Connect your cable/satellite modem or your ISP's network cable to LAN1 port of
your router.
3. Plug in the power adapter and connect the power cable to the DC plug. Push
the SWITCH button to turn on your router. The power LED activates and your
router starts to load.
4. After loading is complete your router assigns an IP address to the PC you are
using. On the front panel the relevant LAN LED activates and a notification
appears in Windows tray, informing you that LAN connection established
successfully.

9
Configuring your router with Setup Wizard
1. Insert the CD from the package into your CD-ROM drive.
2. The configuration utility will start automatically and the window represented
below will appear. If it doesn’t, it most likely indicates that CD Autorun function
of your operating system is off. In that case please launch Explorer, open your
CD drive and then launch Autorun.exe.
3. Click Start configuration wizard button.
.
4. Please select your language.
5. In the following window click Configure
your router.
Note. Upvel recommends to upgrade the
Setup Wizard to the latest version before
connecting and configuring the router. If
Internet connection is established utility
will update automatically. The latest
version is available at:
http://www.upvel.com/support/software/u
pvel-master.html

UPVEL ADSL Modem Router
10

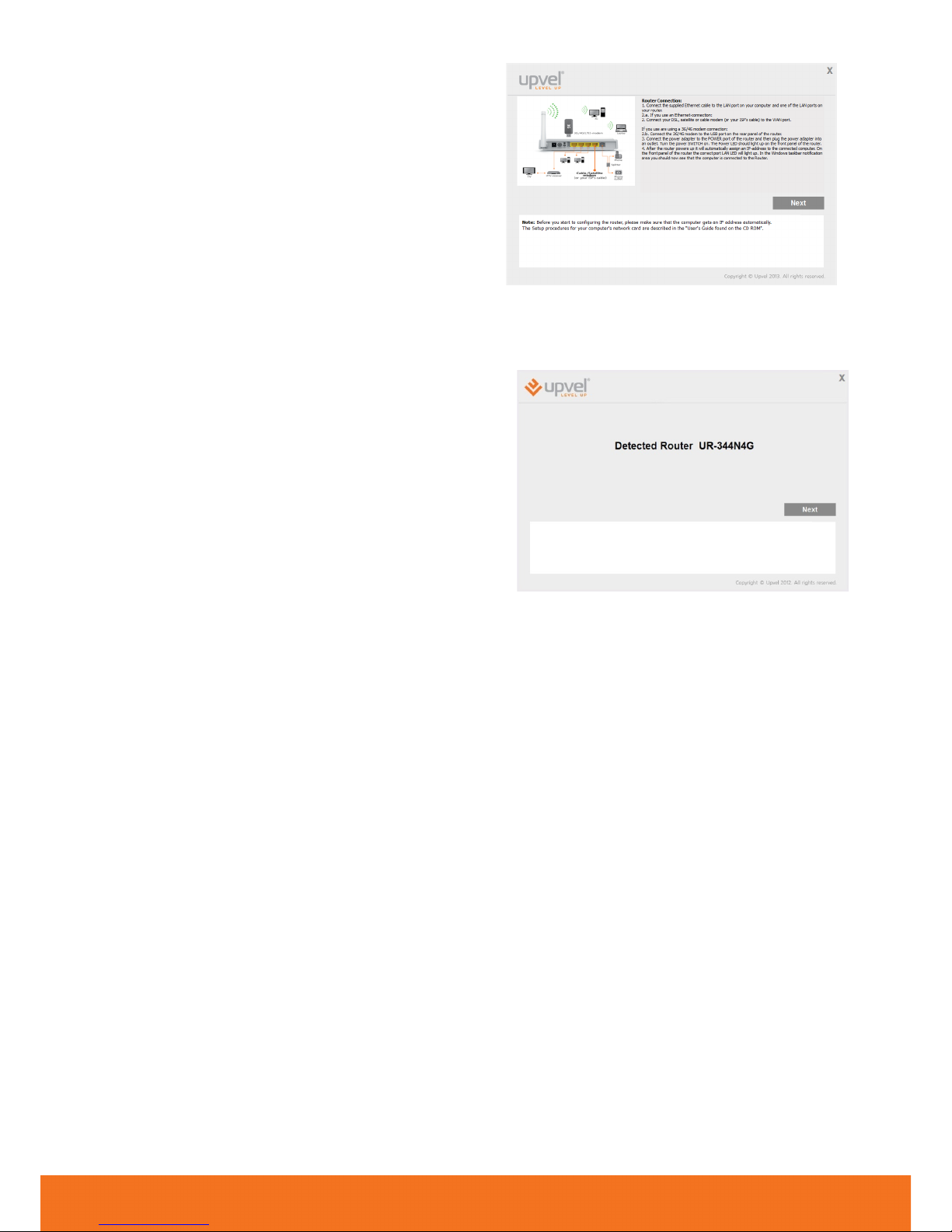

6. Establish all the connections according
to instructions in the window
represented to the right and click Next.
7. In the following window please click Next.
