Adaptable Shower Commode (M83647 Page 1 of 12
Adaptable Shower Commode
Chair Instructions for Use

Adaptable Shower Commode (M83647) Page 2 of 12
Introduction –Adapatable Shower Commode Chair
These instructions aid the user and/or carer about the safe and efficient
use of this product, including assembly, cleaning and maintenance, and
operation of the product.
Ensure that you fully read these instructions before using this product.
The product can be used as an aid for showering or toileting. It comes
with a potty and lid or can be wheeled over most conventional and
disabled toilets. It is suitable for a single occupant up to 160kg (25 stone)
for the standard version (M83647), 260kg (39 stone) for the Heavy Duty
version (N36354) and 300kg (47 stone) for the Bariatric version. The
device is available as an attendant propelled version with 4-braked castors,
or a user propelled version with 2-braked castors and 24” rear wheels. It is
constructed from aluminium and polyurethane (PU) with stainless steel
fasteners so is suitable for use in a bathroom environment.
Personal Safety
Read these instructions carefully before use.
Check all components are secured before use.
Only use on level ground.
When stationary apply the brakes on the wheels. Ensure the brakes
are released before the chair is moved again.
Always ensure that the device is stationary and braked applied
when transferring to and from the device. Swing away the leg rests
before getting in or out of the device. The user should always
remove their feet from the leg rests before swinging the leg rests
away.
Do not lean out of the device.
Ensure that all castors and wheels are set to the same height and
that there is not a significant tilt on the seat.
Be careful of pinch points when rising from or lowering on to the
seat, or when you are removing the potty.
When issuing or reissuing, a risk assessment of the user’s stability
for the device may be required. The chair should also be checked
and cleaned as described in the care and maintenance section.

Adaptable Shower Commode (M83647) Page 3 of 12
Risk of Entrapment
There is a risk of entrapment from user’s thighs slipping in to the aperture
of the seat. This risk is higher for users who have slim thighs and/or use
the device without footrests, aperture cover or potty.
The width of the hygienic cut out is 75mm (3”).
Where there is a risk of entrapment, users should use a comfort seat
without hygienic cut out which is available as an additional item
from Urathon. The product ref for this seat is 90348CS.

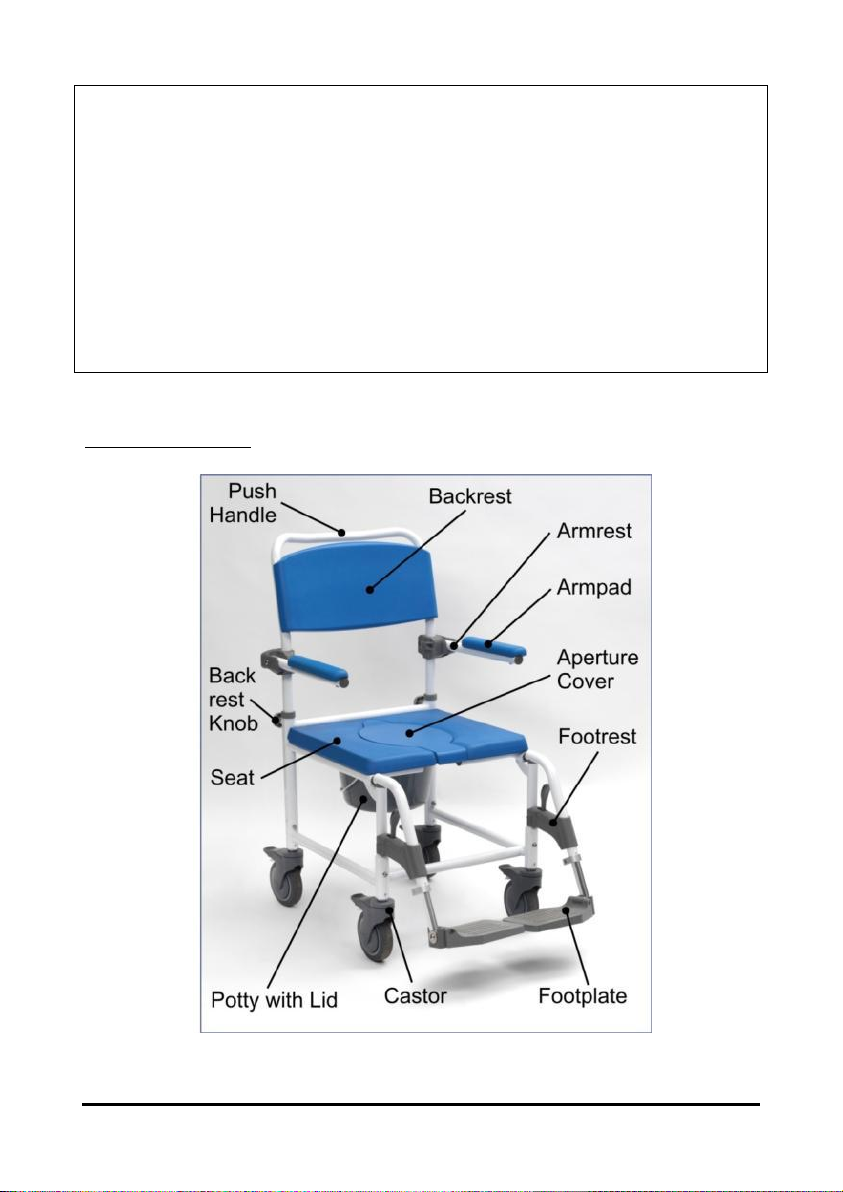

Parts Description
The model shown above is the standard Adaptable Shower commode (without 24” wheels fitted).

Adaptable Shower Commode (M83647) Page 4 of 12
Assembly
1. Insert the backrest in to the
receivers on the chair base
(see photo)
2. Secure by installing the
backrest knobs (arrowed).
Install by screwing the knobs
in clockwise.
3. Attach the footrest by placing
the top bracket in to the
receiver tube at the top of the
frame, ensuring the footrest is
swung back.
Swing the footrest towards
the front of the chair until it
locks in position.
Repeat for the other footrest
and adjust the footplate
height and angle if required
(see instructions)
4. Locate the seat by sliding the back of the seat in to the frame. Then
press down on the whole of the seat until secure. Add the potty and
aperture cover if required (see instructions).
5. If required, install the castors. Follow the procedure on adjusting the
castors for installation and adjustment procedures.

Adaptable Shower Commode (M83647) Page 5 of 12
Footrest Operation and Adjustment
Swinging Footrests In and Out
The footrests can swing in and out
if the user requires this. If required,
first flip up the footplates.
Then, press the lever to unlock the
footrest whilst rotating the footrest
in the required direction.
When required, rotate the footrests
to the forward position until they
automatically lock in position. Flip
down the footplates if required.
Footrest Installation and Removal Follow the Assembly instructions
for details on how to install the footrests. To remove the footrests, swing
out the footrest and lift up to remove.
Footplate Adjustment.
1. To adjust the height of the footplate,
slacken the bolt at the end of the white
tubing of the leg rest, using an Allen key
and turning the bolt anticlockwise. Slide the
footrest to the required height and secure
the footrest by re-tightening the bolt.
Tighten the bolt by turning clockwise with
an Allen key.
2. To adjust the footplate angle,
slacken the bolt near the bottom of
the inner tube (chrome). Adjust the
footplate to the required angle and
resecure the bolt.

Adaptable Shower Commode (M83647) Page 6 of 12

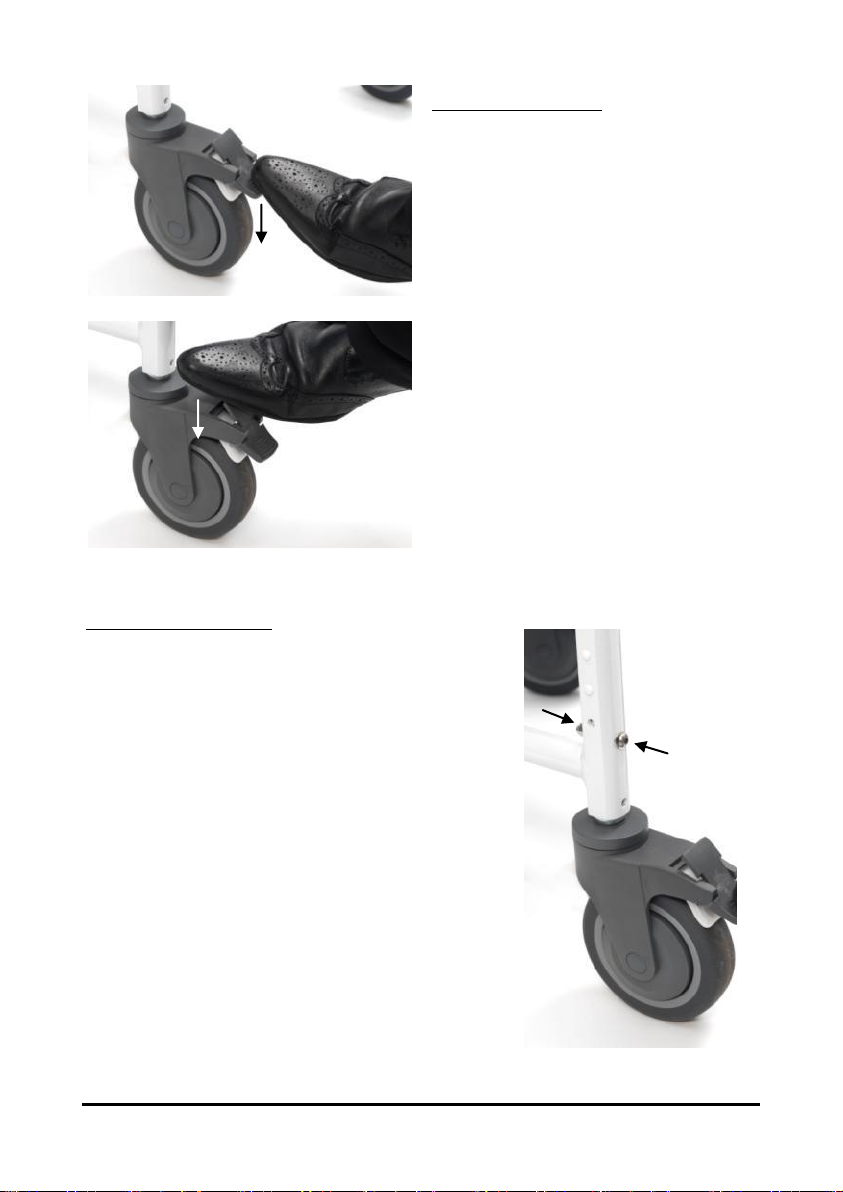

Castor Operation
The castors can be locked so that
the wheel cannot move forwards or
reverse nor will the castor fork
swivel. To lock the castor press
down on the locking tab with a foot
(as shown). To release press the
other side of the locking tab with a
foot. Unless the chair is fitted with
24” wheels, it is recommended that
the castors are always locked when
the chair is stationary.
Note: If fitted with 24” rear wheels,
it is essential that the rear castors
are locked and pointing forward. If
unlocked or locked at an angle they
will interfere with the rear wheels.
Castor Adjustment
The height of the chair and seat can be
altered by adjusting the castor height. To
adjust the castor height, remove the ‘E’ clip or
nut and bolt (arrowed). Reposition the castor
stem to the required position and reattach the
‘E’ clip or nut and bolt. Repeat for the other 3
castors ensuring they are all set at the same
height.
Note:
Models will be supplied with either ‘E’ clips or a nut
and bolt to secure the castor. ‘E’ clips do not
require any tools for height adjustment, whereas
the nut and bolt solution requires a spanner and
Allen key.
LOCK
UN-
LOCK

Adaptable Shower Commode (M83647) Page 7 of 12
Potty Installation and Removal
The potty is installed and removed
by sliding the potty in to the two
rails mounted to the underneath of
the seat. To install, slide the potty
underneath the seat from the rear
of the chair, ensuring the potty sits
on both rails of the seat. Ensure
nobody is sat on the chair when
installing or removing the potty to
prevent any trapping risk.
Cover the potty with the lid to reduce the risk of spillages and
carefully dispose of the potty contents in a sluice or WC. Do not
dispose of in an open drain or sink as this can cause serious health
risks.
The potty can be cleaned and disinfected manually or in an
autoclave / aqueous decontamination machine. It should be
cleaned after each use. Replacement potties are available from
Urathon.
Seat Operation and Removal
The seat is a horse shoe shape with removable cover for the aperture.
When used as a shower chair, it is recommended that the aperture cover
is removed to allow better access to the occupant for cleaning. Ensure
weight is not applied directly to the aperture cover as this can fall through
the seat.
The seat clips on and off the frame. To remove the seat for cleaning, first
remove the potty and aperture cover. Then lift up the front for the seat to
release and slide the seat away from the chair. To attach the seat first
locate the seat by sliding the back of the seat in to the frame, then press
down on the whole of the seat until secure.

Adaptable Shower Commode (M83647) Page 8 of 12
Arm Operation
The arms can flip up to aid side
transfer. Simply lift the front of the
arms to flip up, and then push down
to lower. The brakes should always be
applied before transferring.
24” Rear Wheel Kit - Installation
There is an optional kit available for the Adaptable Shower commode
which adds two 24” wheels and brakes, to allow the commode to be
propelled by either an attendant or the commode user (part code
M83659). To install:
1. Without the 24” wheels, set the castor height to suit to the user.
2. Swivel the two rear castors so they are pointing forward and then
lock. This is to prevent the castors interfering with the 24” wheels
when installed.
3. Install the two brackets which receive the axles for the 24” wheels
so that the rear castors will be approximately 3mm from the ground
when the 24” wheels are added.
4. The wheels have quick release pins as axles. Press the button on
the quick release pin and insert through the centre of the wheel and
then insert the wheel and axle into the bracket mounted to the
chair. After installing, release the button and check the wheels are
secured on to the frame. Repeat for the other wheel.
5. Install the brakes in the position shown overleaf, ensuring that the
brakes operate securely, correctly and easily.
Quick Release Wheel Operation
To remove or install the rear wheels without tools, press the button on
the quick release pin in the centre of the wheel whilst pulling or pushing
to insert or remove the wheel. Ensure the wheel is secure before use.

Adaptable Shower Commode (M83647) Page 9 of 12
Brake Operation
Push the brakes forward to lock
the wheel. Pull the brakes back to
release the brake.
Ensure both brakes are applied
when the chair is stationary and
when the user is side transferring.
Operation – 24” rear wheels
When the 24” rear wheels are installed, the chair can be propelled by
either the attendant or the chair occupant. If the attendant is propelling
the chair, they should propel the chair using the push handle at the rear
and apply the castor brakes when the chair is stationary. If the occupant is
propelling the chair, they should use the handrims mounted on the side of
the wheels to go, manoeuvre and stop and then apply the brakes
(above) when the chair is stationary.
Care and Maintenance
Before each use of the chair, the brakes and tyres should be checked.
The chair should be stored in a dry environment, away from direct
sunlight. When in storage the chair should be kept clean and dust free.
This can be done with a duster or damp cloth.
The chair can be hosed down or wiped down with mild detergent. After
washing, wipe the chair dry. It is recommended that all castors, joints
and fasteners are sprayed with a water dispersing agent.
LOCK
UN-
LOCK

Adaptable Shower Commode (M83647) Page 10 of 12
The polyurethane (PU) and plastic parts of the commode can be cleaned
in an aqueous decontamination machine at 80ºC. Cleaning the
aluminium frame in this way is not recommended as it could cause
damage to paintwork.
The device has an estimated service life of 6 years in a single user
domestic environment, provided that the device has been maintained in
line with manufacturer’s recommendations. If the device is used in a
multi user environment (such as a nursing home or hospital) then
service life may be reduced.
It is recommended that the device is serviced at least annually. If the
device is subject to heavy use and/or use in a multi user environment
then we recommend the device is serviced more frequently. The issuer
or user should routinely check the following items, and when the device
is reissued. It is recommended that an authorised dealer services the
wheelchair annually, where these items should be repaired, replaced,
adjusted and/or lubricated if required:
Tyre wear
Wheel bearings
Castors
Brakes
Leg rest locking mechanism
Seat and Back Pads
Arm Pads
Quick Release Pin
Potty and Lid
‘E’ clips

Adaptable Shower Commode (M83647) Page 11 of 12
Adaptable Shower Commode Specification
M83647 (18” seat – attendant propelled):
Overall (cm):
Seat (cm):
Armrest (cm):
90L x 56.9W x 98.5 - 101H
42.5D x 46.5W x 51 - 53.5H
30L x 5W x 71 – 73.5H
Underseat Clearance: 47.0 - 49.5cm
Total Weight:
Weight Limit:
13.4kg
160kg (25 stone)
(18” seat – user propelled):
Overall (cm):
Seat (cm):
Armrest (cm):
108.5L x 69.5W x 98.5 - 101H
42.5D x 46.5W x 51 - 53.5H
30L x 5W x 71 – 73.5H
Underseat Clearance: 47.0 - 49.5cm
Total Weight:
Weight Limit:
19.4kg
160kg (25 stone)
N36354 (22” seat – attendant propelled):
Overall (cm):
Seat (cm):
Armrest (cm):
90L x 66.9W x 98.5 - 101H
42.5D x 56.5W x 51 - 53.5H
30L x 5W x 71 – 73.5H
Underseat Clearance: 47.0 - 49.5cm
Total Weight:
Weight Limit:
17Kg (37lbs)
260Kg (40 stone)
(23 1/2” seat – Attendant propelled):
Overall (cm):
Seat (cm):
Armrest (cm):
87L x 80W x 99 - 104H
43D x 60W x 51 - 56H
30L x 5W x 70 – 75H
Underseat Clearance: 43.0 - 48cm
Total Weight:
Weight Limit:
23kg
300kg (47 stone)

Adaptable Shower Commode (M83647) Page 12 of 12
Warranty
Your product is warranted to be free of defects in materials and
workmanship for one year from date of purchase. This device was built to
exacting standards and carefully inspected prior to shipment. This warranty
is an expression of our confidence in the materials and workmanship of our
products and our assurance to the customer.
In the event of a defect covered by this warranty, we will at our option
supply parts or replace the device. This warranty does not cover device
failure due to owner misuse or negligence, or normal wear and tear. The
warranty does not extend to non-durable components, such as rubber
accessories, castors and grips, which are subject to normal wear and need
periodic replacement.
If you have any queries or require full warranty conditions, please contact
Urathon. This does not affect your statutory rights.
Urathon Europe Limited
Thane House
Hilmarton
Wiltshire
SN11 8SB UK
Tel. Main Office: 01249 760581
Email: [email protected]
Document Code: M83647_IFU (Issued 04/21)
