urban ambiance UQL1173 User manual

Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
1of6
Part Description Quantity
A Inner Backplate 1pc.
1pc.
4 pcs.
B
CFixture Loop
Package Contents A
B
D
Mounting Screw
C
1pc.
DFixture Body
E
4 pcs.
ECandle Cover
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape,
safety glasses.
Light Source: (4) Candelabra Base 60W Maximum
Estimated Assembly Time: 20-30 minutes
Preparation: Identify and inspect all parts before beginning installation. Check package content list and diagrams
below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or
operate the fixture. Contact customer service for replacement parts.
Installation Instructions: UQL1173
www.urbanambiance.com

1
PART NUMBER
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION REQ.
NO.
2of6
(4) 60W candelabra
base bulbs
(not Supplied)
8.5”
26”
5.5”
7”
12.5”
11”
7.5”
17.5”
GND
SKU: UQL1173

3of6
Figure 1

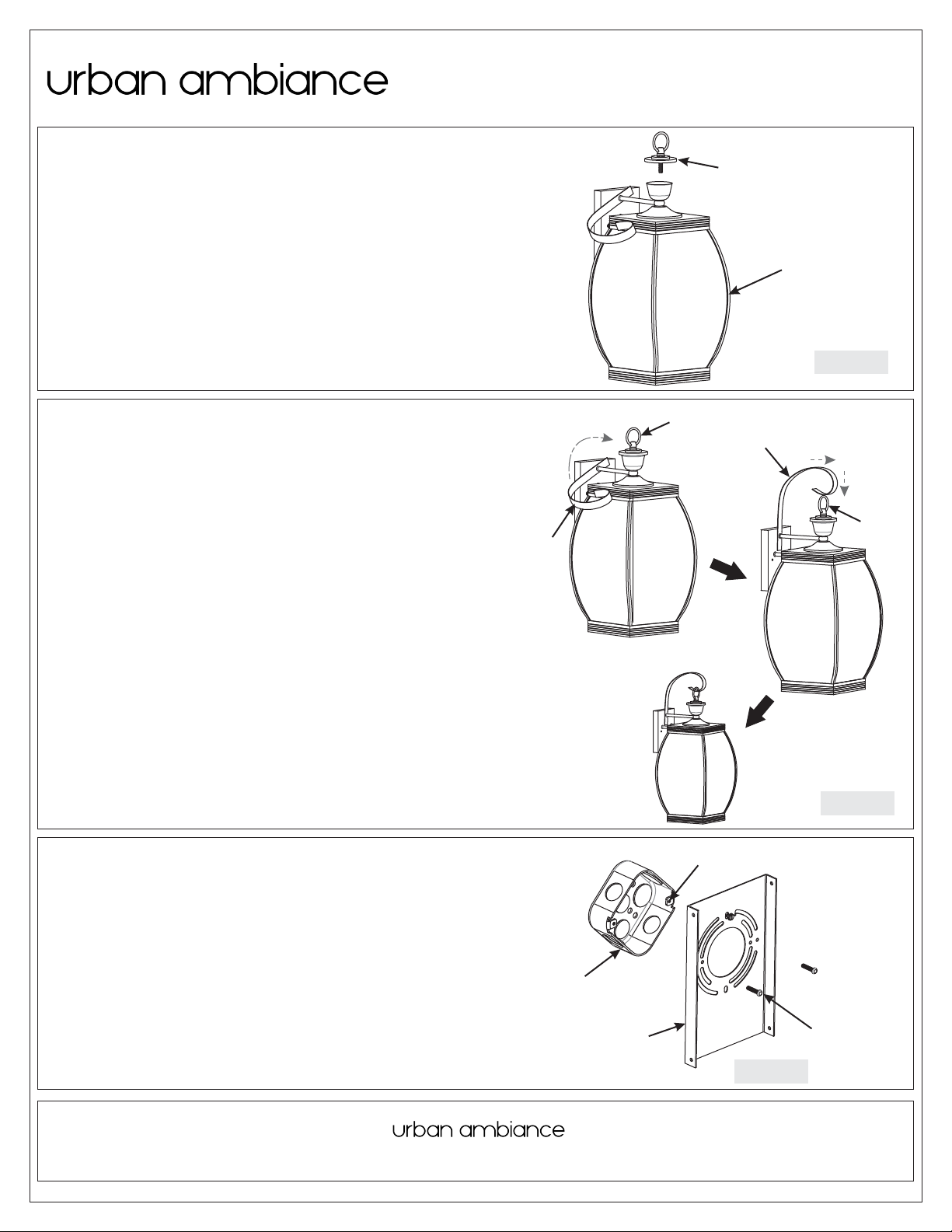

STEP 1 assemble Fixture Loop to Fixture
Body
-
A. Thread Fixture Loop (C) onto Fixture Body (D). Hand
tighten until sung.
Figure 2
Scroll
STEP 2 -Adjust the Scroll
A. Rotate the Scroll onto the top of the Loop. Pull and
press the Scroll inside of the Loop.
R
o
t
a
t
e
Scroll
Press
Pull
Loop
Loop
Fixture Loop
Fixture Body
Figure 3
STEP 3 -Attach Inner Backplate to Outlet
Box
A. Attach the Inner Backplate (A) to Outlet Box and secure
by threading Outlet Box Screws (not supplied) into the
Mounting Holes on the Outlet Box. Tighten until snug.
Outlet Box
Outlet Box
Screw
Mounting Hole
Inner Backplate
Installation Instructions: UQL1173
www.urbanambiance.com

4of6
STEP 4 -Attach Lanyard
A. The purpose of the lanyard is to provide the installer a
means to support the fixture from the junction box while
connecting the electrical wires. This enables the fixture
to hang from the junction box and your hands are free to
make the wire connections.
B. TurntheButtonStopsoitmaybeinsertedintothe
crossbar slot. Make sure the Button Stop is completely
inside the crossbar. Slowly release the fixture to make
sure it is supported by the Button Stop. Proceed to the
wiring steps. Once you are complete with the wiring
there is nothing to do with Lanyard. The Lanyard will
push into the junction box when the fixture is placed for
final mounting.
Inner
Backplate
Slot
Button Stop
Lanyard
Figure 4
Figure 6
STEP 5 Make Wire Connections-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
Figure 5
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Black wire from fixture
Ground wire from supply Ground wire from fixture
Installation Instructions: UQL1173
www.urbanambiance.com

5of6

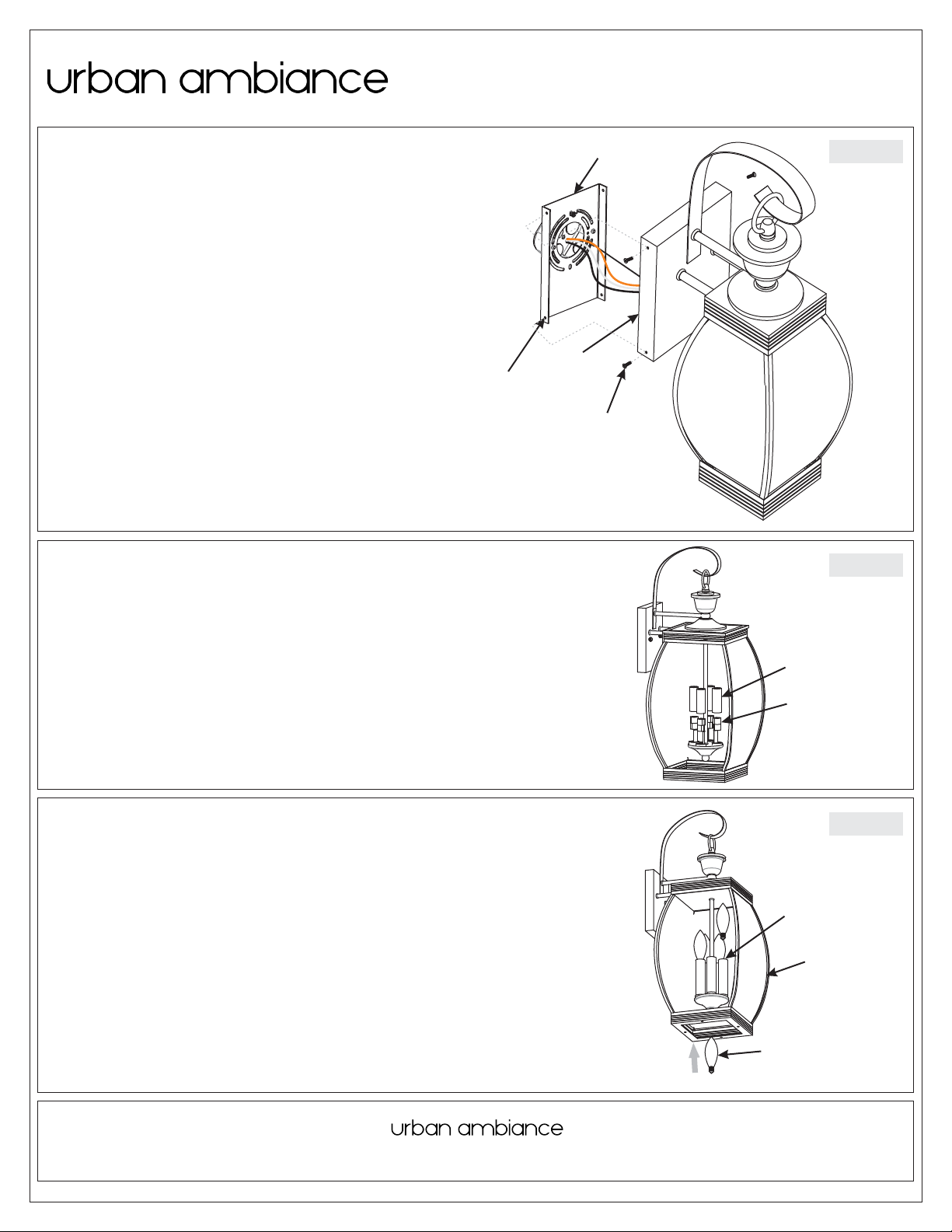

STEP 6 -Attach Fixture Body to Inner
Backplate
A. Place the backplate of the Fixture Body (C) onto the
Inner Backplate (A). Line up holes on both of them.
Thread Mounting Screws (B) into the mounting holes on
the Inner Backplate (A) and hand tighten until snug to
secure them.
Mounting Screw
Backplate
Figure 7
Inner Backplate
Mounting
Hole
STEP 7 Install Candle Cover-
A. Place the Candle Cover (E) over the Socket as shown.
Candle Cover
Figure 8
Socket
STEP 8 -Install Bulb
A. standard bulb with a candelabra screw
base 0
This fixture uses
. Maximum 6 watts.
B. Place the bulb from the bottom of the glass frame. Insert
bulb and screw snugly into place. Socket
Figure 9
Bulb
Glass
Frame
Installation Instructions: UQL1173
www.urbanambiance.com

6of6

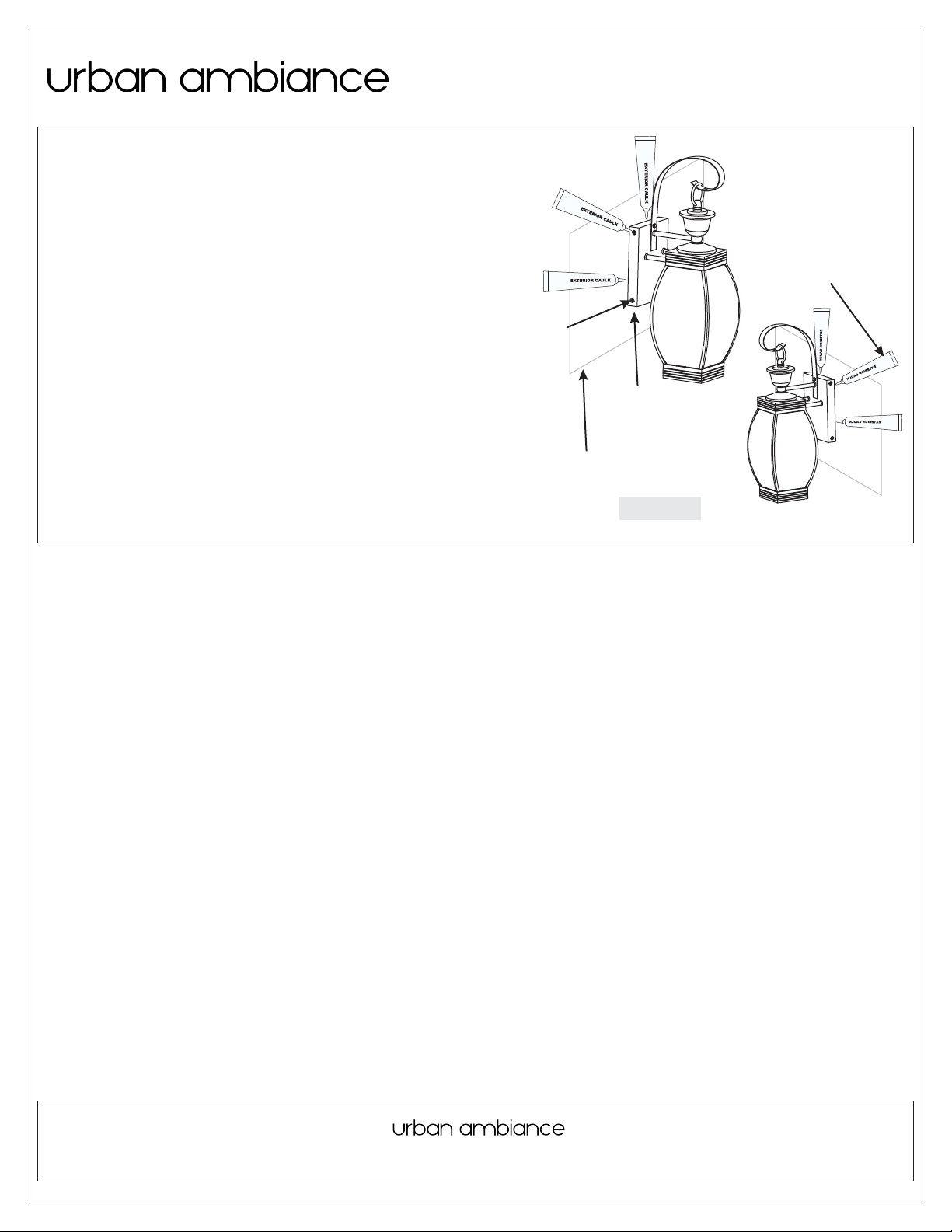

STEP 9 Apply Silicone Sealer to Backplate-
A. To prevent moisture from entering the wire
compartment, apply a small amount of silicone sealer
(not included) to the mounting screws (B). Wipe off
excess caulk.
B. Make sure exterior wall surface and fixture backplate
are free of dirt before applying caulk. Using exterior
grade caulk, start on one side of fixture backplate and
follow contour, where the fixture backplate meets the
exterior wall surface upward. Proceed to caulk over top
of backplate and down other side. Do not caulk bottom
of fixture backplate to ensure proper moisture
drainage.
Your fixture is now assembled and ready to use. Enjoy!
Figure 10
Mounting
Screw
Exterior
Grade Caulk
Outdoor
Fixture
Backplate
Exterior Wall Surface
