urmet domus 1130/11 User manual

Important
–
Please read
The 1130/11 Handset is designed to replace Urmet 5-Wire 12V AC buzzer type handsets only.
Technical support for this product is available by e-mail only.
E-mail details of the fault including clear pictures of the connections inside the old handset to [email protected]
Ensure that you have read this manual before contacting Urmet Technical Support

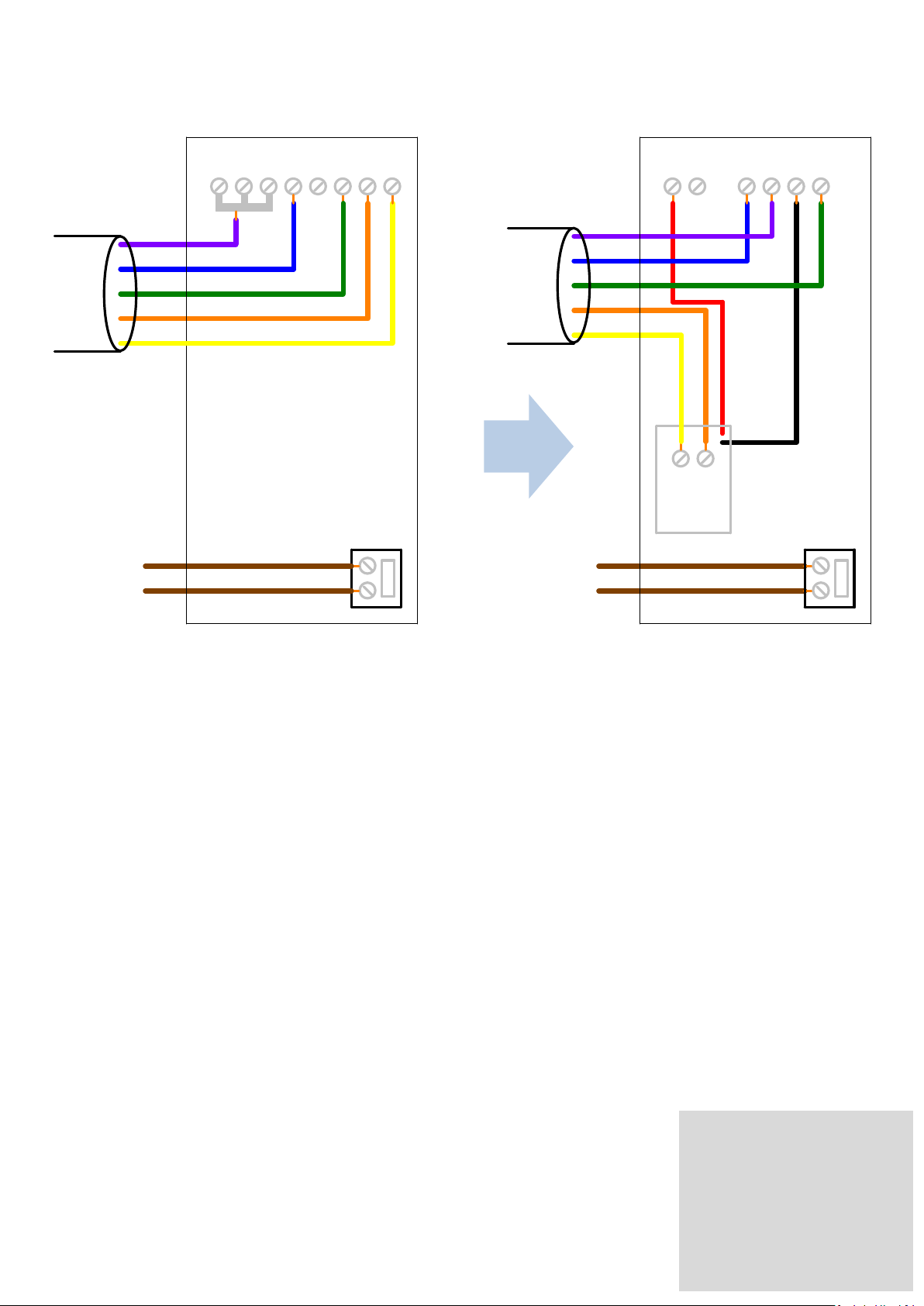

1130/11 Handset installation guide

Note 1. Where 6, 10 and 11 are linked together this is a common 0V. Any wires connected here must be connected to 6 in the 1130/11.
Note 2. The pre-made connections in terminals 1 and 10 should not be touched.
Note 3. Spare button. Volt free normally open contact. Not always used. Any wires connected here must be connected to the
corresponding button in the 1130/11. Note that this button CANNOT be used as an on/off switch.
1130/11 Connection functions
1 Speech from panel to handset
2 Speech from handset to panel
6 0V
9 Lock release
RZ Call
URMET COMMUNICATION
AND SECURITY UK LTD
Urban H
ive, Skyline 120,
Avenue West, Great Notley,
Essex. CM77 7AA
www.urmet.co.uk
technical
@urmet.co.uk
8 9 7 1 2 91 10CA6 6
1
2
RZ
11 10
Existing 5-wire Urmet buzzer type handset Urmet 1130/11 Handset
Note 1
Note 2 Note 2
Note 3 Note 3
