USA Lab RE-501 User manual

Rotary Evaporator Manual
Model: RE-501
5L Rotary Evaporator Manual Lift

Index
1. Safety Instructions and Features
1.1 Safety Instructions
1.2 Purposes and features
1.3 Technical parameters
2. Machine Diagram
3. Control panel operation
3.1 Motor controller
3.2 Temperature controller
4. Preparing for installation
5. Instructions for installation
6. Water and vacuum tubing connections
7. Operation
7.1 Operating method
7.2 Storage
8. Maintenance
9. After-sales service
1 Safety Instructions and Features
1.1 Safety Instructions
ONLY USE DISTILLED WATER IN THE WATER BATH. Any elements, sensors
or switches damaged due to not using distilled water, WILL NOT BE
COVERED UNDER WARRANTY.
The use of Personal Protection Equipment (PPE) is REQUIRED.
Follow all state, local and municipal laws, codes and ordinances.
Please make sure the power connection is correct and well-grounded. (see the technical parameters for
details)
Cooling water line and vacuum line should be unobstructed without any hard bends in the run. Rotate and
push forward to install water and vacuum lines.
If flammable or organic solvent is used, please make sure to clean any solvent immediately and take all fire
safety precautions.
Apply a rag to wipe the glass parts clean after washing away stains; do not use hard objects against the
glass.

Safety Precautions and Explanations
At USA Lab, safety is our number one priority. The following information provides
guidelines for safety when using USA Lab equipment. Any piece of machinery can
become dangerous to personnel when improperly operated or poorly maintained.
ALL employees operating and maintaining USA Lab equipment should be familiar
with its operation, thoroughly trained, and Instructed on the best safety practices.
Most industry accidents are preventable through safety awareness.
Training
It is the responsibility of the customer to ensure that all personnel who will be
expected to operate or maintain the equipment. Participate in training and
instruction sessions to become trained operators. All personnel operating,
inspecting, servicing, or cleaning this equipment must be properly trained in the
operation and machine safety. BEFORE operating this equipment, read the operating
instructions in this equipment manual. Become thoroughly familiar with the
machinery and its controls.

Safety
•Never leave the equipment running unattended and use this equipment only for its intended purpose.
•Ensure that all power sources are turned off when the machine is not in use. This encompasses electrical and
pneumatic power.
•Read the manual for any special operational instructions for each piece of equipment. All USA Lab authored
manuals are typically included with each device as well as posted online.
•Know how the equipment functions and understand the operating and halting processes.
•Wear the appropriate personal protective equipment for the task.
•When working on or around all equipment, avoid wearing loose clothing, jewelry, unrestrained long hair,
loose ties, belts, scarves, or articles that may be caught in moving parts. Keep all extremities away from
moving parts. Entanglement can cause death or severe injury.
•For new equipment, check input voltage and compare with the equipment voltage rating. DO NOT supply the
incorrect power to any equipment for any reason whatsoever. Electrical specifications for your machine are
printed on the machine tag. A properly grounded receptacle is required for safe operation regardless of
voltage requirements.
•Keep the equipment operating zone free of obstacles that could cause a person to trip or fall toward an
operating machine. Keep fingers, hands, or any part of the body out of the machine and away from moving
parts when the machine is operating.
•Any machine with moving parts and/or electrical components can be potentially dangerous no matter how
many safety features it contains. Stay alert and think clearly while operating or servicing the equipment. Be
aware of operations and personnel in your surroundings. Be attentive to indicator lights, warning lights,
and/or operator interface screens displayed on the machine and know how to respond.
•Do not operate machinery if you are fatigued, emotionally distressed, or under the influence of drugs or
alcohol.
•Know where the FIRST AID SAFETY STATION is located.
•Know where the FIRE EXTINGUISHING EQUIPMENT is located.
•Never sit or stand on the machine or on anything that might cause you to fall against the machine.
•Rotating and moving parts are dangerous. Keep clear of the operating area. Never put any foreign object into
the operating area.
•Use proper lifting and transporting devices for heavy equipment. Some types of equipment can be extremely
heavy. An appropriate lifting device should be used.
•Use caution when moving portable equipment. In some cases, the machinery can be heavy and/or may be
top heavy. Portable equipment can gain momentum during transporting and must always be controlled.

Symbols and Warnings
Below are examples of commonly used symbols and what they mean.
Understand them and their potential consequences.

1.2 Purposes and features
RE-501 rotary evaporators are mainly used in the small-scale test and production of biological,
pharmaceutical, chemical, food and other extractions. With 5L capacity and large-diameter rotary
evaporating flasks. When it is placed in a water bath, it allows the solution to spread and evaporate rapidly.
What’s more, the product may be fitted with a multi-purpose water circulating vacuum pump, diaphragm
vacuum pump, or low-temperature circulating vacuum pump, circulating cooler, constant-temperature
circulator, low-temperature circulating pump to form a complete system. Teflon (PTFE) and rubber dual spin
seals are included to ensure the highest vacuum pressure. Accurate and reliable temperature control system
do not affect the vacuum and solution distillation.
1.3 Technical Parameters
Model
RE-501
Optimum Ambient Temperature (°C)
5 - 25°C
Power (Phase / V / A)
2X (Single / 110V / 15A)
Motor Type
Digital DC Stepless
Min - Max Rotation Speed (RPM)
0 - 120 RPM
Motor Wattage (W)
40W
Temperature Control
PID Digital Temperature Control
Max Vacuum Pressure
3.99 Millibar / 3 Torr / 29.98 inHg
Boiling Flask Size (L)
5L
Boiling Flask Flange (mm)
50mm
Receiving Flask Size (L)
3L
Condenser Style
Single Column, Dual Coil
Minimum Evaporative Capacity (L/hr)
Water ≥ 1.5L/hr | Alcohol ≥ 4L/hr
Heating Bath Material
304 Stainless Steel
Heating Bath Size (mm)
325mm x 345mm
Heating Bath Lift Style
Manual Lift
Lift Stroke (mm)
0-120mm
Total Current Draw (kW)
2kW

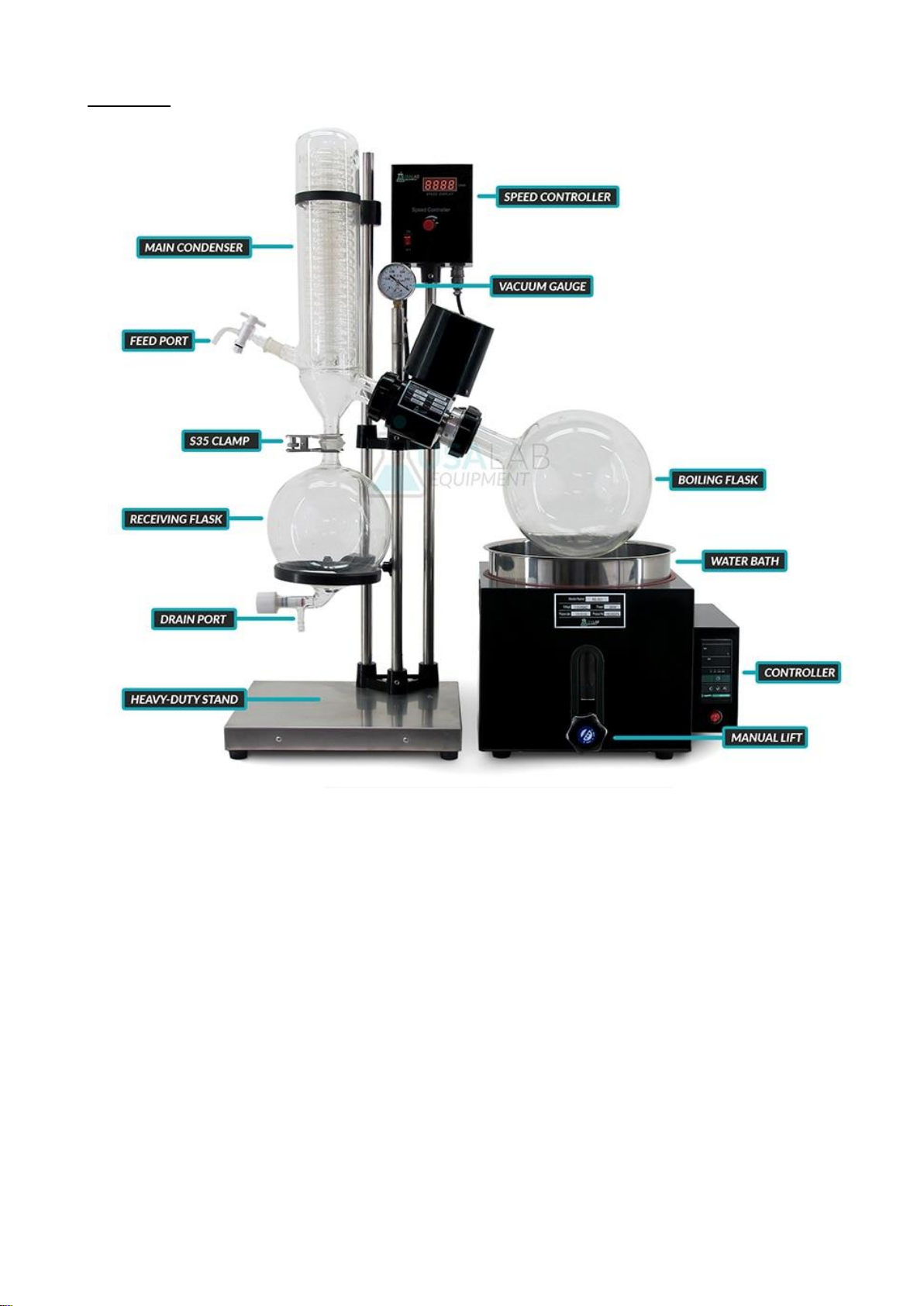

2 Diagram

3 Control Panel Operation
3.1 Motor Controller
3.2 Temperature Controller
To set the temperature of the bath. Press the MENU button and then use the UP or Down arrows until
the Set Value is reached. You can use the left arrow for large changes. Press MENU again to finalize the
changes.

4 Preparing for Installation
1. Please refer to the packing list above to check whether the components and parts are included. If there
are any missing parts, please contact us immediately.
2. Remove any residue on the glass parts before assembly and keep the glass flange surfaces clean; apply
vacuum grease to both sides of the seal ring gasket, ground joints and PTFE gaskets before the installation.
3. Tools that might be needed in the installation include: metric Allen wrenches and a screwdriver.
4. Two professionally installed 5-15 receptacles. (115V 15A50/60Hz) One for the bath and one for the motor
controller.
5 Installation
Precautions: Apply vacuum grease to all seals and ground joints. A properly greased ground joint should
appear transparent. Refer to the diagram in section 2 for accurate installation.
•Put base on a table, users can add four rubber feet if necessary.
•Add the motor into its bracket, adjust to 18.9” from the top of base. Tilt the motor clockwise 25°
degrees and tighten the bracket.
•Install the speed controller and vacuum gauge on the top of the stand according to the diagram.
•Add the vapor duct into the center of the motor (usually pre-installed)
•Insert the glass condenser in left flange of motor head and tighten the collar. (Do not over tighten)
•Put the feed valve into condenser after connecting the PTFE tube. (Heating may be required)
•Put the receiving flask on to the bottom of the condenser using the S35 ground joint and clamp.
•Add the boiling flask to the right of motor using the collar to tighten it. (Do not over tighten)
•Put the water bath under boiling flask, and fill with distilled water 2/3 of the total volume.
•Add the vacuum hose to the two ports on the bottom of the vacuum gauge, one goes to the vacuum
port on the back of the condenser. The other goes to your vacuum pump or cold trap if you are using
a rotary vane pump.
•Add your water lines from your chiller to the condenser coil connections on the back of the
condenser.

6 Water and vacuum tubing connections
7 Operation
7.1 Operating method
Set your chiller for the rated lowest temperature. Always run the loop. Allow the chiller to cool the entire loop
until it is close to the set temperature. Raise the bath until the water covers half of the outside of the flask.
Turn on the bath heating and set between 50C –75C. Turn on the rotation for as fast as possible, while
stable. If the glass wiggles, slow the rotation down. Place the cover over the boiling flask onto the edges of
the bath. The vacuum should be started. Add a tube that runs from the feed port down to your vessel. Start
the run when the chiller reaches 29C, when set for 30C. Open the feed port to begin filling the boiling flask.
Do not fill the flask more than half-way. The evaporation will begin at this point. Evaporation can be boosted
with pre heated solution. 40-45C. It will be necessary to refill the boiling flask over time. When the receiving
flask is full. Turn off the vacuum and vent the vacuum in the system. Empty the receiving flask. Then close
any valves used to vent the vacuum. Turn the vacuum on again and continue to evaporate.
7.2 Storage
For long periods, please shut off the power switch and disconnect the power. Empty the water bath, boiling
flask, receiving flask and condenser coil(s) Allowing time to dry completely. Cover while in storage.

8 Maintenance
1. Please shut off the power switch and disconnect the power cord before any maintenance.
2. Please use damp soft cloth to wipe clean. Stubborn stains should be cleaned by neutral detergents.
3. The maintenance of internal electrical and heating parts must be performed by professionals or trained
electricians.
4. Do not directly splash water over the product or use abrasive powder, diluent, oil, kerosene, acidic
material and similar substances during cleaning, or else shock or other accidents will occur.
Periodic maintenance of the vapor duct is required. See image below for vacuum grease locations. If
the vapor duct is not maintained, vacuum leaks and loud grinding noises in the motor area may occur.

9 Service
Our company provides limited warranty for any product with failures due to manufacturing quality within 12
months after the date of delivery on the premise of normal operation by users. Reasonable repair costs will
be charged for damage caused by improper use. After-sales service Tel：[phone] or
[email protected]
USA Lab reserves the right of ultimate interpretation of the instruction manual. Additionally, USA Lab is not
responsible for damages or injuries caused by improper use; knowingly or unknowingly. Glassware is not
covered under warranty. We ship all glassware products with additional care, but sometimes they arrive
broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will
either send you a brand new piece or send you a refund. Any glassware broken 3 days after or later will not
be covered by warranty. Maintenance items such as seals and gaskets are not covered under the warranty.
Thank you for understanding!
