USECO AFCHCP Series User manual

USECO
735 FLORENCE RD
SAVANNAH, TN 38372
1-800-251-3398
www.useco.com
OPERATION MANUAL
AFCHCP-SERIES
DROP-IN
HOT AND
COLD PANS
AFC-MODELS
AFCHCP-1
AFCHCP-2
AFCHCP-3
AFCHCP-4
AFCHCP-5
AFCHCP-6
INCLUDES
INSTALLATION
USE & CARE
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your USECO dealer.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING
OR INSTALLING THIS APPLIANCE. Contact your USECO DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
INCLUDES (ST) SLOPED UNITS
INCLUDES (SL) SLIM LINE UNITS
INCLUDES 4/3 UNITS

LIMITED WARRANTY STATEMENT
USECO equipment is warranted to be free of defects in material and workmanship for a period of 12 months from the date of shipment from the factory. Warranty applies to the
contiguous 48 states, to the original commercial end user and is not transferable.
Warranty applies only to properly installed equipment under conditions of normal use in standard commercial foodservice operations and receiving proper preventative maintenance.
Normal wear & tear is not covered.
Warranty does not apply to failure from poor or inadequate water supply, improper cleaning, exposure to corrosive and harsh chemicals or acids and does not apply to defects from
misuse, neglect, improper installation, freight damage or accidents, fire, flood, riot or acts of God.
USECO’s warranty does not include any coverage for loss of business, loss of use, loss of time, loss of profits or income, loss of food products or labor cost and is limited to USECO
manufactured products and does not apply to equipment connected to or installed with USECO products. Enough access must be available for service technicians to adequately
service equipment. Equipment built into cabinets, tables or structures by others with insufficient access is not covered under labor warranty
Warranty is void if the equipment has been modified, if parts have been substituted, if the name/ model plate is missing or has been defaced or if the equipment has been repaired or
altered by anyone other than an authorized USECO agent.
Warranty work must be authorized in advance by the USECO factory. Claims for work performed without pre-authorization are subject to rejection. For warranty authorization call
USECO technical service department at 800-251-3398. A service technician will diagnose, and trouble shoot with the end user to find a service solution. If a solution can not be
resolved over the phone, USECO will determine how best to resolve the issue, which may include dispatching a service agent, shipping a part or another method to provide a
solution.
When calling USECO for warranty service please have the following information ready: name and address of business location, contact information, model and serial number, date
of purchase, name of dealer where purchased, credit card information and a description of the service issue.
Warranty covers parts and labor performed during normal business hours. Labor performed after hours, on weekends or holidays are not covered and are at the discretion and
expense of the end user and not paid by USECO. Travel mileage is covered up to 100 miles round trip or up to 2 hours round trip. Additional time and travel will be at the end users’
expense.
USECO’s sole obligation is to repair or replace the product at USECO’s option. This warranty is in lieu of all other warranties expressed or implied, including any warranty of
merchantability, and fitness for a particular purpose
1. Resetting of safety thermostats, circuit breakers, overload protectors, and/ or fuse replacement are not covered by this
warranty unless warranted conditions are the cause.
2. All problems due to operation at voltages or phase other than specified onequipment nameplates are not covered by
this warranty. Conversion to correct voltage and/or phase must be the customer’s responsibility.
3. All problems due to electrical connections not made in accordance with electrical code requirements and wiring
diagrams supplied with the equipment are not covered by this warranty.
4. Replacement of items subject tonormal wear, to include such items as knobs, light bulbs; and normal maintenance
functions including adjustments of micro switches and replacement of fuses and indicating lights are not covered by
warranty.
5. Damage to electrical cords and/or plug due to exposure to excessive heat are not covered by this warranty.
6. Full use, care, and maintenance instructions supplied with each machine. Noted maintenance and preventive maintenance
items, such as servicing and cleaning schedules, are customer responsibility. Those miscellaneous adjustments noted are
customer responsibility. Proper attention to preventive maintenance and scheduled maintenance procedures will prolong the
life of the appliance.
7. Travel mileage is limited to sixty (60) miles from an Authorized Service Agency or one of its sub-service agencies.
8. All labor shall be performed during regular working hours. Overtime premium will be charged to the buyer.
9. All genuine USECO replacement parts are warranted for ninety (90) days from date of purchase on non-warranty
equipment. This parts warranty is limited only to replacement of the defective part(s). Any use of non-genuine USECO
parts completely voids any warranty.
10. Installation, labor, and job checkouts are not considered warranty and are thus not covered by this warranty.
11. Charges incurred by delays, waiting time or operating restrictions that hinder the service technician’s ability to perform
service are not covered by warranty. This includes institutional and correctional facilities.
SHIPPING DAMAGE CLAIM PROCEDURE
NOTE: For your protection, please note that equipment in this shipment was carefully inspected and packaged by skilled
personnel before leaving the factory. Upon acceptance of this shipment, the transportation company assumes fully responsibility
for its safe delivery.
IF SHIPMENTARRIVESDAMAGED:
1. VISIBLE LOSS OR DAMAGE: Be certain that any visible loss or damage is noted on the freight bill or express receipt,
and that the note of loss or damage is signed by the delivery person.
2. FILE CLAIM FOR DAMAGE IMMEDIATELTY: Regardless of the extent of the damage.
3. CONCEALED LOSS OR DAMAGE: If damage is unnoticed until the merchandise is unpacked, notify the transportation
company or carrier immediately, and file “CONCEALED DAMAGE” claim with them. This should be done within fifteen
(15) days from the date the delivery was made to you. Be sure to retain the container for inspection.
USECO cannot assume liability for damage loss incurred in transit. We will, however, at your request, supply you with
the necessary documents to support your claim.
SERVICE POLICY AND PROCEDURE GUIDE
ADDITIONAL WARRANTY EXCLUSIONS

INTRODUCTION
Thank you for purchasing this USECO appliance.
Proper installation, professional operation and consistent maintenance of this appliance will
ensure that it gives you the very best performance and a long, economical service life.
This manual contains the information needed to properly install this appliance, and to use and
care for the appliance in a manner which will ensure its optimum performance.
ELECTRICAL & REFRIGERATION SPECIFICATIONS
MODEL
WARMER
REFRIGERATION
POWER SUPPLY
REQUIREMENT
VOLTS KW
1∅
AMPS HP VOLTS
1∅
AMPS
REFRIGERANT
SYSTEM
AFCHCP-2
240/208
60Hz
2.5/1.9
10.4/9.0
1/4
120 60Hz
3.9
R-
134a
capillary tube
3-
wire: L1, L2, N
#8 AWG min. 60°C
AFCHCP-3
240/208
60Hz
4.0/3.0
16.7/14.4
1/3
120 60Hz
6.2
R-
404a
capillary tube
3-
wire: L1, L2, N
#8 AWG min. 60°C
AFCHCP-4
240/208
60Hz
5.0/3.8
20.8/18.1
1/2
120 60Hz
7
R-
404a
capillary tube
3-
wire: L1, L2, N
#8 AWG min. 60°C
AFCHCP-5
240/208
60Hz
8.0/6.0
33.3/28.9
3/4
120 60Hz
15.8
R-
404a
TXV
3-
wire: L1, L2, N
#8 AWG min. 60°C
AFCHCP-6
240/208
60Hz
8.0/6.0
33.3/28.9
3/4
120 60Hz
15.8
R-
404a
TXV
3-
wire: L1, L2, N
#8 AWG min. 60°C
NOTE: For equipment and cut-out dimensions, refer to the installation instructions
provided with each unit.

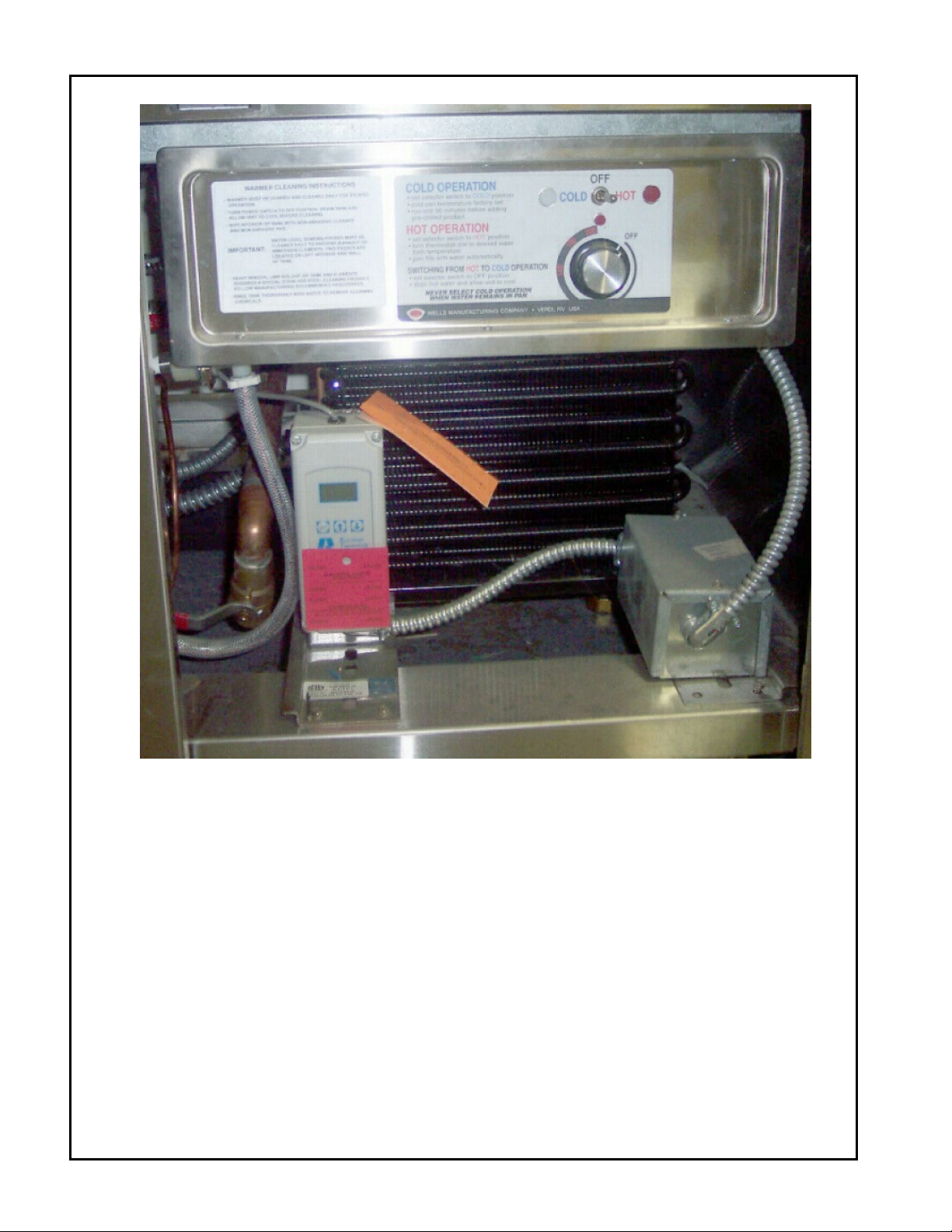

FEATURES & OPERATING CONTROLS

PRECAUTIONS & GENERAL INFORMATION
This appliance is intended for use in commercial establishments only, and is intended to hold pre-chilled
prepared food for human consumption. No other use is recommended or authorized by the manufacturer or its
agents.
Operators of this appliance must be familiar with the appliance use, limitations and associated restrictions.
Operating instructions must be read and understood by all persons using this appliance.
For hot operation, the appropriate water level must be maintained at all times. Food must be kept in appropriate
inserts. Never place food directly into the tank.
Cleanliness of this appliance is essential to good sanitation. Read and follow all included cleaning instructions
and schedules to ensure the safety of the food product.
Disconnect this appliance from electrical power before performing any maintenance or servicing.
DO NOT submerge this appliance in water. This appliance is not jet stream approved. Do not direct water jet or
steam jet at this appliance, or at any control panel or wiring. Do not splash or pour water on, in or over any
controls, control panel or wiring. Do not wash floor around this appliance with water or steam jet.
Exposed surfaces of this appliance during hot operation can be hot to the touch and may cause burns.
DO NOT operate this appliance if the control panel is damaged. Call your authorized USECO agent for service.
The technical content of this manual, including any wiring diagrams, schematics, parts breakdown illustration
and/or adjustment procedures, is intended for use by qualified technical personnel.
Any procedure, which requires the use of tools, must be performed by a qualified technician.
This manual is considered to be a permanent part of the appliance. This manual and all supplied instructions,
diagrams, schematics, parts breakdown illustration, notices and labels must remain with the appliance if it is sold
or moved to another location.
This appliance is made in the USA. Unless otherwise noted, this appliance has American sizes on all hardware.
WARNING: CAUTION: CAUTION:
ELECTRIC RISK OF HOT
SHOCK HAZARD DAMAGE SURFACE
All servicing requiring access to non-insulated DO NOT connect or energize this Exposed surfaces
electrical components must be performed by a appliance until all installation can be hot to the
factory authorized technician. DO NOT open instructions are read and followed. touch and may
any access panel which requires the use of Damage to the appliance will result cause burns.
tools. Failure to follow this warning can if these instructions are not followed.
result in severe electrical shock.
AGENCY LISTING INFORMATION
This appliance is performance tested to NSF Standard 4 for holding hot foods. This appliance
conforms to NSF Standard 4 for sanitation only if installed in accordance with the supplied
Installation Instruction and maintained according to the instructions in this manual.
This appliance performance tested to NSF Standard 7 for storage of potentially hazardous foods.
This appliance meets NSF Standard 7 only when pan rails are installed in the lowest position.
Components used in the manufacture of this unit are Underwriters Laboratory recognized
STD 4 STD 7

INSTALLATION
NOTE: DO NOT discard
the carton or other packing
materials until you have
inspected the appliance for
hidden damage and tested it
for proper operation. Refer to:
SHIPPING DAMAGE CLAIM
PROCEDURE on the inside of this
manual.
WARNING:
RISK OF PERSONAL INJURY
Installation procedures must be
performed by a qualified technician
with full knowledge of all applicable
electrical and plumbing codes.
Failure can result in personal injury
and property damage.
IMPORTANT:
Unit must remain in an upright
position during installation to
prevent damage to the
refrigeration system.
IMPORTANT:
Refrigeration system is air-cooled.
Recommended louvered grills or
equivalent openings front and rear,
each with a minimum size of twice
the surface area of the condenser,
to provide adequate air circulation.
IMPORTANT:
Access is required for the operation
of the drain valve and for
maintenance of the refrigeration unit.
Provide adequate access to the drain
valve and refrigeration unit.
IMPORTANT:
Unit flange must be sealed to the
countertop. Damage caused by leaks
due to improper installation is NOT
covered by warranty.
UNPACKING & INSPECTION
Carefully remove the appliance from the carton. Remove all
protective plastic film, packing materials and accessories from
the appliance before connecting electrical power or otherwise
performing any installation procedure.
Carefully read all instructions in this manual and the
Installation Instruction Sheet packed with the appliance before
starting any installation.
Read and understand all labels and diagrams attached to the
appliance.
Carefully account for all components and accessories before
discarding packing materials. Store all accessories in a
convenient place for a later use.
COMPONENTS
2 ea. PAN RAIL, SIDE
2 ea. PAN RAIL, END
1-5 ea. PAN RAILS, INTERMEDIATE (qty differs w/ unit)
1ea. BACKFLOW PREVENTER ASSEMBLY
1ea. DRAIN VALVE
1ea. DRAIN SCREEN
PREPARATION
Cutout dimensions for tank units and control panels are listed
on the Installation Instructions provided with the unit.
Countertop must be flat and level before the unit is installed.
After cutout is made, add stiffeners or bottom braces to
counter as required to support unit weight.
Provide louvered grills and service access below control panel.
After installation, apply a thin bead of food-grade silicone
sealant around the flange to seal it to the counter.
For installation in plastic counter tops, the counter material
must be protected from the heat of the warmer in order to
prevent discoloration and/or deterioration. The installer
should contact the manufacturer or distributor of the
countertop material for specific installation instructions.
Avoid storing flammable or combustible materials in, on or
near the appliance.

INSTALLATION (continued)
ELECTRICAL INSTALLATION
1. Refer to the nameplate. Verify the electrical
service power. Voltage and phase must
match the nameplate specifications.
Wiring the unit to the wrong voltage can
severely damage the unit or cause noticeably
decreased performance.
2. Available electrical service amperage must
meet or exceed the specifications listed on
the specification sheet provided with the unit.
Connect to the terminal block in the control unit.
wiring must be secured to the control unit with
an appropriate strain relief (provided by installer).
IMPORTANT:
*L1 to L2 must be 240 or 208 volts AC.
*L2 to Neutral must be 120 volts AC.
3. Tank and control must be connected to an
appropriate building ground. Ground
connection will always be marked.
NOTE: Wire gauge, insulation type and temperature
rating, as well as type, size and construction
of conduit, must meet or exceed applicable
specifications of local codes and of the
National Electrical Code.
PLUMBING INSTALLATION
NOTE: Plumb connections must be made in
Compliance with all Federal, State and
Local Plumbing Codes and Ordinances.
IMPORTANT: All drain plumbing must be
performed by a qualified plumber.
1. Install provided 1” drain valve on unit drain.
Plumb to an appropriate waste as required by
local plumbing and sanitation ordinances.
2. Install provided backflow preventer assembly to
the tank water inlet. Attach water outlet tubing
from control unit to the inlet of the backflow preventer.
NOTE: While a backflow preventer is incorporated
into the unit, local codes may require an additional
backflow preventer or vacuum breaker in the water
inlet line.
3. The unit must be installed on a water line with
average pressure between 20 PSI and 90PSI. If your
water pressure exceeds 90 PSI at anytime, a pressure
regulator must be installed in the water supply line to
limit the pressure to not more than 90 PSI in order to
avoid damage to lines and solenoid. Install water
supply to control unit inlet fitting with a ¼” female flare.
4. A water shut-off valve should be installed on the incoming
water line in a convenient location (Use a low restriction
type valve, such as a ¼-turn ball valve, to avoid loss of
water flow thru the valve.
5. Test the operation of the auto fill in the HOT operation mode.
WARNING:
Electric Shock Hazard
All servicing requiring access to
non-insulated electrical
components must be performed by
a factory-authorized technician.
DO NOT open any access panel
that requires the use of tools.
Failure to follow this warning can
result in severe electrical shock.
IMPORTANT:
Contact a licensed electrician to
install the correct circuit and
receptacle (cord-connected units)
or to install and connect electrical
power (field-wired units).
IMPORTANT:
Damage due to being connected to
the wrong voltage or phase is NOT
covered by warranty.
CAUTION:
Risk of Damage
DO NOT connect or energize this
appliance until all installation
instructions are read and followed.
Damage to the appliance will result
if these instructions are not
followed.
CAUTION:
Electrical Shock Hazard
The ground lug of this appliance
must be connected to a suitable
building ground.

OPERATION
HOT OPERATION
CAUTION:
Electrical Shock Hazard
DO NOT splash or pour water
onto control panel or wiring.
1. Verify that drain valve is CLOSED, the
DRAIN SCREEN is in place, and the
ELEMENT COVER is properly positioned
over the heating element.
2. Turn SELECTOR SWITCH TO HOT. The
red HOT indicator will glow and the tank
will begin filling with water.
3. Set the TEMPERATURE CONTROL to the
desired temperature. When the water in the
tank reaches the minimum water level the
heating elements are energized and the water
will begin heating. The HEAT indicator will
glow while the unit is heating.
a. Temperature range is (OFF) - 85°F to
205°F.
b. When the HEAT indicator goes out,
the water in the tank is up to the set
temperature.
4. Install the pan rails
a. Side rails installed first. For normal
hot operation, install the side rails on
the upper pan rail supports.
b. Install the end rails, then any
intermediate rails.
5. Install the end rails or inserts on the pan rails.
IMPORTANT: Always use a pan or insert.
Never place food directly into the tank.
6. Cover pans and inserts to maintain consistent
temperature. Stir thick foods frequently.
SHUT DOWN PROCEDURE
1. Turn SELECTOR SWITCH to OFF. The
red HOT indicator will turn off.
2. Remove all pans and inserts.
3. Open drain valve
CAUTION:
Hot Surfaces
Exposed surfaces can be hot to
the touch and may cause burns.
AFCHCP units are performance
tested to NSF Standard 4 for
holding hot foods.
Always drain unit and allow to
cool before switching to COLD
operation.

CLEANING INSTRUCTIONS
PREPARATIONS: Turn temperature control knob and
selector switch to OFF. Allow tank
to cool before proceeding. Remove
any inserts, pans, and/or adapter
tops (if used). Drain water from
tank.
FREQUENCY: Daily
TOOLS: Warm Water and Mild Detergent
Solution: 10 Parts Warm Water
to 4 Parts Vinegar
Plastic Scouring
Pad Clean Cloth or Sponge
Food-Grade Silicone Sealant
IMPORTANT: DO NOT USE STEEL WOOL FOR CLEANING.
1. Remove, pan rails, element cover and drain screen. Wipe interior of tank using a
clean cloth or sponge and mild detergent.
2. Use a plastic scouring pad to remove any mineral deposits from water level
probes.
3. Rinse tank thoroughly with a vinegar and water solution to neutralize all detergent
or cleanser residue.
4. Pan rails and element cover may be washed in a sink or dishwasher. Allow to dry
thoroughly, then reinstall.
5. Check drain screen, clean if necessary and reinstall.
6. Periodically inspect warmer flange-to-counter seal. Reseal with food-grade
silicone sealant if necessary.
7. Inspect tank and control panel for damage. Damage to the control panel may
allow water to leak into thermostat, causing a potential electric shock hazard.
Contact your USECO dealer to inspect tank if water or grease contamination is
suspected.
8. Inspect cooling louvers in counter. Remove any lint or debris.
Procedure is complete.
CAUTION:
Electrical Shock Hazard
DO NOT splash or pour water
onto control panel or wiring.

MAINTENANCE INSTRUCTIONS
CONDENSER COIL CLEANING INSTRUCTIONS
The condenser coil must be kept clean to allow adequate
air flow for proper heat dissipation. Recommend this
procedure be performed monthly.
1. Turn POWER SWITCH OFF. Disconnect unit
from electrical power.
2. Remove louvers or access panel to allow coil to be
reached.
3. Using a stiff bristle brush, brush lint and debris from
the condenser fins. Brush vertically, top to bottom.
Collect and discard all lint and debris gathered from
this operation.
IMPORTANT: The fins of the condenser are
delicate and easily damaged. Use care to brush in a
vertical motion to avoid damaging the coil fins.
4. Wipe the fan blades to remove accumulated lint.
5. Reconnect to electrical power. Refer to COLD
Operation (page 7) and test for proper operation.
CAUTION:
Personal Injury Hazard
Disconnect appliance from
electrical power before
cleaning condenser coil.
CAUTION:
Personal Injury Hazard
Condenser coil fins are sharp.
Use care to avoid cuts while
cleaning the condenser.
CAUTION:
Hot Surface
Exposed surfaces can be hot to
the touch and may cause burns

MAINTENANCE INSTRUCTIONS
CARE OF STAINLESS STEEL
1. The surface can be damaged by mechanical abrasion, hard water deposits and chlorine:
a. Never use steel wool, wire brushes or metal scrapers to clean the appliance.
These will damage the surface.
b. Hard water deposits left behind when water is evaporated will attack the surface
and allow the stainless steel to rust.
c. Chlorides from chlorinates cleansers, calcium / lie / rust removers (e.g. muriatic
acid), even heavily chlorinated city water will attack the surface and allow the
stainless steel to rust.
d. DO NOT use any highly caustic cleaners. Use of highly caustic cleaners will
damage the surface.
e. LIMIT USE of strong caustic on warmers. Rinse thoroughly with a vinegar and
water solution to neutralize any residue. Failure to do so may cause damage to
the surface and allow the stainless steel to rust.
f. Cleaners containing ammonia will attack the surface and allow the stainless steel
to rust.
2. Use the proper tools in the proper way to clean your USECO warmer:
a. Soft cloth and plastic scouring pads are safe to use on stainless steel surface.
b. Stainless steel pads may be used ONLY IF the scrubbing motion is in the
direction of the visible grain. DO NOT use a circular motion.
c. In the absence of visible grain, use only cloth or plastic pads. Scrub only in a
linear motion along the longest axis of the equipment.
3. Use only non-chloride and non-ammonia cleansers:
a. DO NOT use any cleanser listed as “chlorinated”.
b. DO NOT use any cleanser listing “ammonia” or “ammonium” in its contents.
c. Contact your cleaning materials supplier for suitable alkaline cleansers.
4. Keep your USECO hot and cold pan clean. Clean frequently to avoid build-up of hard,
stubborn stains and hard-to-remove deposits.
a. Rinse thoroughly with a vinegar and water solution to neutralize any residue.
b. For discoloration caused by using the warmer in dry operation, use a cleaner
made specifically for stainless steel.
c. Wipe dry with a soft, clean dry cloth
d. Restore the surface by using a polishing product specifically made for stainless
steel after each cleaning.
5. In areas where tap water has a high mineral content, warmers may develop lime deposits.
Use a non-chloride de-liming agent to remove line deposits. It is important to use Lime
and Scale for Warmer Pans often to prevent a difficult-to-remove build-up of lime
deposits.
CAUTION:
Personal Injury Hazard
Disconnect appliance from electrical
power before cleaning.
USECO hot and cold pans are constructed
of high quality stainless steel. As long as
the stainless steel surface in intact, the
equipment will not rust or corrode.
Recommendation:
A water softening device or a cartridge-
type filtration device may be used to
minimize lime and calcium build-up.

MAINTENANCE INSTRUCTIONS (continued)
IMPORTANT:
DO NOT adjust the differential settings of the refrigeration system. Field adjustments of
the differential settings must be made by qualified refrigeration personnel only.
Unauthorized adjustments of the differential settings will void the warranty.
The temperature setting of the NSF-7 Refrigerated Cold Pan has been pre-set at the
factory to meet most applications. An electronic temperature control maintains food
temperature between 33°F and 41°F.
TEMPERATURE ADJUSTMENT
AFC-1 thru AFC-6
1. The temperature has been preset at
the factory to meet most applications.
2. If temperature adjustments are
required, the pressure switch, located
on the condensing unit, is adjustable.
Temperature adjustment must be
performed by a qualified refrigeration
personnel only.
3. Normal temperature setting would be
28°F.
AFC-1-7 thru AFC-6-7
The LCD Display provides a readout of the
sensor temperature during normal operation.
Use the following to change the set point
temperature:
1. To start programming, press SET key
once. This will access the Fahrenheit/
Celsius mode. The readout will show
the current status, either F (degrees
Fahrenheit) or C (degrees Celsius).
Press either “up arrow” or “down
arrow” to toggle between F and C
designation.
2. Press SET again to access the setpoint.
The LCD will display the current setpoint,
and the S1 annunciator will blink off and
on to indicate that control is in the setpoint
mode. Press either ”up arrow” to increase
the setpoint, or “down arrow” to decrease
the setpoint to the desired temperature.
Factory setpoint is 21°F.

12
MAINTENANCE INSTRUCTIONS (continued)
3. Press the SET key again to access the differential. The LCD will display the
current differential, and the DIF1 annunciator will blink off and on to indicate that
control is in the differential mode.
IMPORTANT: DO NOT adjust the differential settings of the refrigeration
system. Field adjustments of the differential settings must be made by qualified
refrigeration personnel only. Unauthorized adjustment of the differential settings
will void the warranty.
Press either “up arrow” to increase the differential, or “down arrow” to decrease
the differential to the desired setting. Factory differential is 3°F.
4. Press the SET key again to access the Heating / Cooling mode. The LCD will
display the current mode. Either “C1” for cooling or “H1” for heating. The
control must be set to C1 for proper operation of the cold pan.
5. Press the SET key again to complete programming. Programming ends
automatically if no keys are pressed for 30 seconds. Any settings that have been
input to the control will be accepted at that time.
6. Control settings are stored in non-volatile memory. Loss of power to the unit will
not require reprogramming.
IMPORTANT: DO NOT adjust the differential settings of the refrigeration system.
Field adjustments of the differential settings must be made by qualified refrigeration
personnel only. Unauthorized adjustment of the differential settings will void the
warranty.

13
TROUBLESHOOTING SUGGESTIONS
SYMPTOM
POSSIBLE CAUSE
REMEDY
No power to unit Circuit breaker tripped Reset circuit breaker
Power switch OFF Turn power switch ON
Unit won't heat
Selector switch not set to HOT Set to HOT
Insufficient water in tank
Be sure drain valve is closed
Allow to fill above min water level
Temp control not set high enough Set temp control
Min water level sensor dirty Clean water level sensors
Internal damage Contact Authorized USECO
Service Agency for repairs
Unit won't cool
Selector switch not set to COLD Set to COLD
Tank too hot Allow to cool to 100°F or less
Condenser cooling louvers or coil
plugged
Clean condenser louvers and/or
coil
Internal damage
Contact Authorized USECO
Service Agency for repairs
Tank won't fill
Selector switch not set to HOT Set to HOT
Max water level sensor dirty
Clean water level sensors
Drain valve open
Be sure drain valve is closed
Internal damage Contact Authorized USECO
Service Agency for repairs
Tank overflows
Max water level sensor dirty
Clean water level sensors
Internal damage Contact Authorized USECO
Service Agency for repairs
Food not kept cold enough
Food not chilled to start
Add only pre-heated food
Pan rails set too high
For NSF 7 operation use lower
pan rail supports
Refrigerant adjustment needed Contact Authorized USECO
Service Agency for repairs
Food not kept hot enough
Food not warm to start
Add only pre-heated food
Food too thick
Stir thick food frequently
Temp control not set high enough
Set temp control to desired temp
Internal damage Contact Authorized USECO
Service Agency for repairs

PARTS & SERVICE
DESCRIPTION PART NO.
DRAIN SCREEN 21709
SOUP LADEL, 6 oz. 21764
IMPORTANT: Use only factory authorized service parts andreplacement filters.
For factory authorized service, or to order factory authorized replacement part, contact
your USECO authorized service agency or call:
USECO
735 Florence Rd
Savannah, TN 38372
1-800-251-3398
CUSTOMER SERVICE DATA
Please have this information available if calling for service
RESTAURANT __________________________________ LOCATION _________________________
INSTALLATION DATE ____________________________ TECHNICIAN ______________________
SERVICE COMPANY __________________________________________________________________
ADDRESS _____________________________________ STATE ________ ZIP _________________
TELEPHONE NUMBER (______) ________-_____________
EQUIPMENT MODEL NO. _____________________
EQUIPMENT SERIAL NO. _____________________
VOLTAGE: (check one) [ ] 115 [ ] __________

COLD OPERATION
1. Verify that drain valve is OPEN, and the
ELEMENT COVER is properly
positioned over the heating element. The
tank must be dry.
2. Turn SELECTOR SWITCH to COLD.
The white COLD indicator will glow.
When the tank cools to 100°F or less, the
refrigeration system will start.
3. The temperature is factory set to NSF 7
required of 33°F - 41°F.
4. Install the pan rails.
a. Side rails installed first. For
normal cold operation, install the
side rails on the upper pan rail
supports. For holding potentially
hazardous foods, install the side
rails on the lower pan rail
supports.
b. Install the end rails, then any
intermediate rails.
5. Install pans or inserts on the pan rails.
IMPORTANT:
Always use a pan or insert. Never place
food directly into the tank.
IMPORTANT:
For NSF 7 operation, use 12” x 20” x 4”
deep pans, and use the lower pan rail
supports which are recessed 3” from tank
top.
SHUT DOWN PROCEDURE
1. Turn SELECTOR SWITCH to OFF.
The white COLD indicator will turn off.
2. Remove all pans and inserts.
CAUTION:
Electrical Shock Hazard
DO NOT splash or pour water
onto control panel or wiring.
AFCHCP units are performance
tested to NSF Standard 4 for
holding non-critical foods.
AFCHCP units are performance
tested to NSF Standard 7 for
holding potentially hazardous
foods only when the pan rails are
installed on the lower pan rail
supports. Ambient room
temperature must be 86°F (30°C)
or less. Unit maintains pre-
chilled foods at 33°F - 41°F.
Tank must be dry for COLD
operation. Water in the tank will
form ice, compromising the
cooling to the food product. Ice
in the tank will delay the proper
use of the unit when switching to
HOT operation.

MAINTENANCE INSTRUCTIONS (continued)
LIME AND SCALE CLEANER INSTRUCTIONS
Wells Lime and Scale Cleaner for Warmer Pans
(instructions modified for used in Hot and Cold Pan)
NOTE: Perform weekly, or whenever lime or
scale is seen accumulating on the sides of the tank.
1. Add water to tank until water is at normal
operating level or until water covers
accumulated scale.
2. Turn SELECTOR SWITCH to HOT.
Heat water to maximum temperature
(190°F or higher).
3. For AFCHCP-2, use two packages,
-3 use 3 packages, -4 use 4 packages,
-5 use 5 packages, -6 use 6 packages:
Pour contents packages into tank.
Stir to dissolve cleaner. Cover tank.
4. Allow solution to soak at least one hour,
or overnight for heavy scale buildup.
5. After soak period, turn control to OFF
position.
6. Drain hot water from pans.
Scrub with a plastic scouring pad.
Rinse thoroughly with hot water then dry.
7. Refill tank and resume operation.
8. Heavy scale buildup may require
additional treatments.
FIRST AID
EYES: In case of contact,
immediately flush with warm water
for 15 minutes and a consultant a
physician.
SKIN: Wash with soap and water.
INHALATION: Relocate to fresh
air.
INGESTION: If swallowed, drink
plenty of water or milk and consult
a physician.
EMERGENCY PHONE:
(800) 255-3924
IMPORTANT:
Turn selector switch OFF if soaking
overnight.
This manual suits for next models
5
Table of contents
