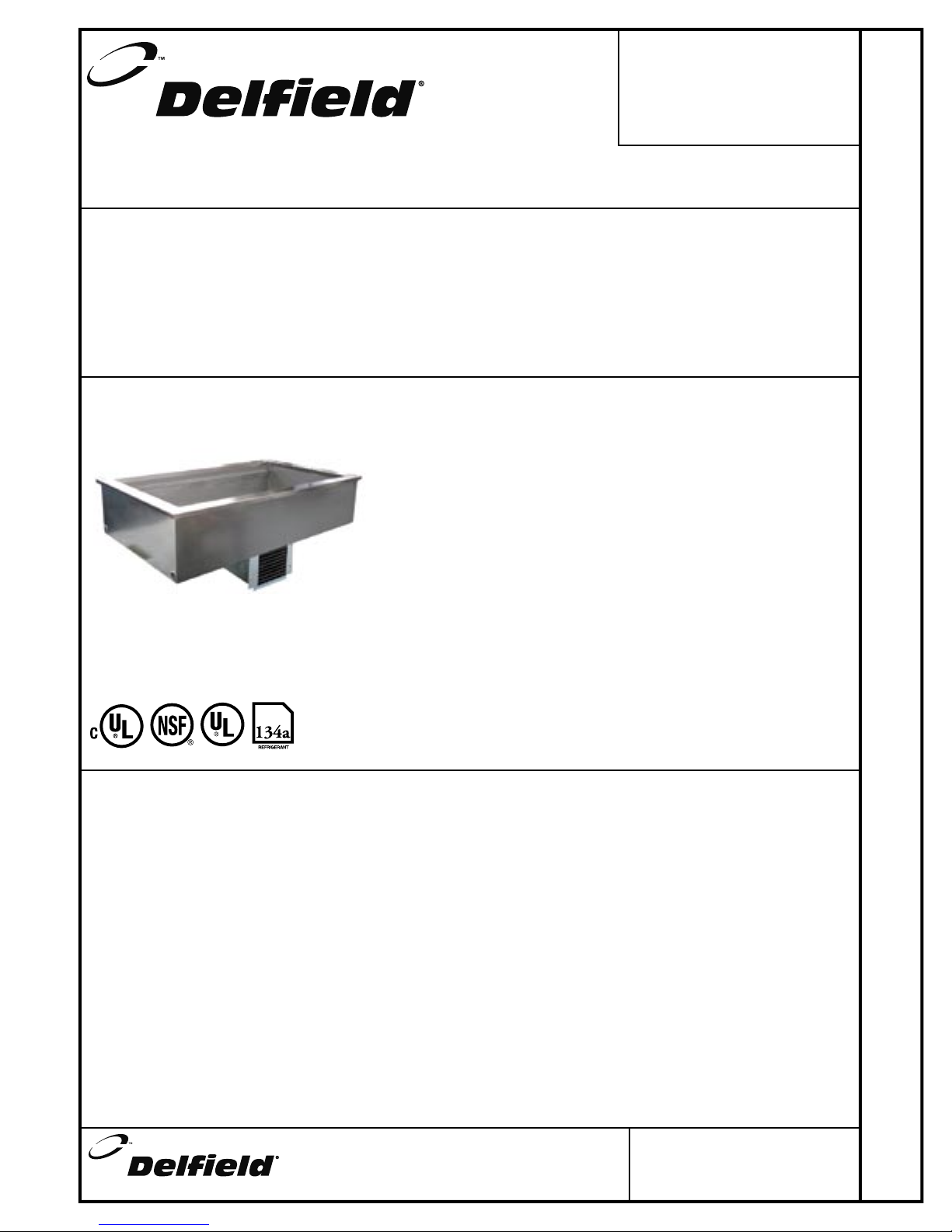

N8100B: DROP-IN SELF-CONTAINED MECHANICALLY COOLED COLD PANS
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
N8100B
Drop-In Self-Contained Mechanically Cooled Cold Pans
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfi eld.com
Phone: [phone]
Fax: [phone]
Email: info@delfi eld.com
Approval _________________
Date ____________________
SPECIFICATIONS
Top is one-piece 20-gauge stainless steel. Interior liner
is 22-gauge stainless steel and is creased to a 1.00”
(2.43cm) diameter drain. Integral V-stamped pan
rest recessed 2" (5.1cm) to accommodate 12” x 20”
(30.5cm x 50.8cm) pans 4” (10.2cm) or 6” (15.2cm)
deep supplied by others. Product temperatures of
33°F (1°C) to 41°F (5°C) are maintained at 86°F
(29˚C) ambient room temperature, meeting NSF 7
requirements. Adapter bars are standard.
Sides and bottom are wrapped with refrigeration
lines and insulated with high-density closed-cell poly-
urethane. Exterior housing is 24-gauge galvanized
steel.
Condensing unit is suspended below the cold
pan on a 16-gauge steel frame and uses HFC-134a
refrigerant. Temperature control has an ON/OFF position to
shut down cold pan. Unit has an 8’ (2.4m) cord and NEMA
5-15P plug.
A stainless steel louver is provided for field installation;
cutout dimension is 12” x 23.5” (30.5cm x 59.7cm).
A second opening at the rear of the cabinet should be
provided at installation to allow for proper air circulation.
MODELS
❑ N8118B 18” mechanically cooled cold pan
❑ N8130B 30” mechanically cooled cold pan
❑ N8143B 43” mechanically cooled cold pan
❑ N8156B 56” mechanically cooled cold pan
OPTIONS AND ACCESSORIES
❑ Custom sizes and styles
❑ Single or double service flip-up sneezeguards
❑ Relocate compressor
❑ Mullion fan assembly
❑ Remote refrigeration (specify refrigerant)
❑ *220V/50 cycle
* Inclusion of this option will alter the electrical
specifications of the unit
STANDARD FEATURES
• NSF-7 certifi ed performance
• Integral V-stamped pan rest
• Polyurethane foam insulation
• Push-in perimeter gasket
• Stainless steel louver provided
• Environmentally friendly HFC-134A
refrigerant
• 1” drain standard
• Thermostat for temperature control
❑ N8169B 69” mechanically cooled cold pan
❑ N8181B 81” mechanically cooled cold pan
Model N8156B

Model #__________
CSI Section 11400
Printed in the USA.
DSN8100B
05/06
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: [phone]
Fax: [phone]
Email: info@delfield.com
Drop-In Self-Contained Mechanically Cooled Cold Pans
21.62"
54.9cm
24.62"
62.53cm
26"
66cm
A
A – 1.25"
A – 3.2cm
A – 4.5"
A – 11.4cm
C
L
B
NOTE: NOT TO SCALE C
21.62"
54.9cm
24.62"
62.53cm
26"
66cm
A
18"
45.7cm
16.75"
42.5cm
13.62"
34.6cm
C
L
4.16"
10.6 cm
NOTE: NOT TO SCALE
NOTE: NOT TO SCALE
14"
35.6cm
C
NOTE: NOT TO SCALE
18"
45.7 cm
C
NOTE: NOT TO SCALE
18"
45.7 cm
NOTE: NOT TO SCALE
10.75"
27.3cm
9.35"
23.7cm
9.35"
23.7cm
14.00"
36.5cm
18"
45.7cm
21.87"
55.6cm
10.75"
27.3cm
TYPICAL PLAN VIEW
N8100B MODELS (EXCEPT N8118B)
FRONT ELEVATION VIEW
MODEL N8118B
TYPICAL ELEVATION VIEW
N8100B MODELS (EXCEPT N8118B)
PLAN VIEW
MODEL N8118B
TYPICAL RIGHT END VIEW
N8100B MODELS (EXCEPT N8118B)
RIGHT END VIEW
MODEL N8118B
4.22"
10.7 cm
11.12"
28.2cm
11.12"
28.2cm
DRAIN LOCATION IF
FACING SERVICE SIDE:
N8118B-BACK, ALL OTHER
N8100B MODELS-LEFT
CB
MODEL COUNTER CUTOUT # OF 12” x 20” VOLTAGE BTU SYS. SHIPPING
NUMBER A B C DIMENSIONS (D x L) PANS HELD HERTZ/PHASE H.P. AMPS LOAD CAP. WEIGHT
N8118B 18” 4.22” 4.16” 17” X 25” 1 115/60/1 1/5 4.0 204 708 103 lbs
45.7cm 10.7cm 10.6cm 43.2cm x 63.5cm 46 kg
N8130B 30.75” 8.75” 6.00” 29.75” x 25” 2 115/60/1 1/5 4.0 379 812 161 lbs
78.1cm 22.72cm 15.24cm 75.6cm x 63.5cm 72 kg
N8143B 43.5” 9.82” 11.31” 42.50” X 25” 3 115/60/1 1/5 4.0 569 889 184 lbs
110.5cm 24.9cm 28.7cm 108.58cm x 63.5cm 83 kg
N8156B 56.25” 9.82” 17.69” 55.25” x 25” 4 115/60/1 1/4 7.0 758 1373 233 lbs
142.9cm 24.9cm 44.9cm 140.3cm x 63.5cm 105 kg
N8169B 69” 9.82” 24.06” 68” X 25” 5 115/60/1 1/4 7.0 948 1469 243 lbs
175.3cm 24.9cm 61.1cm 172.7cm x 63.5cm 109 kg
N8181B 81.75” 9.82” 30.43” 80.75” x 25” 6 115/60/1 1/3 8.0 1138 1547 260 lbs
208cm 24.9cm 77.3cm 205.1cm x 63.5cm 117 kg
Mechanical Data: Standard Unit
