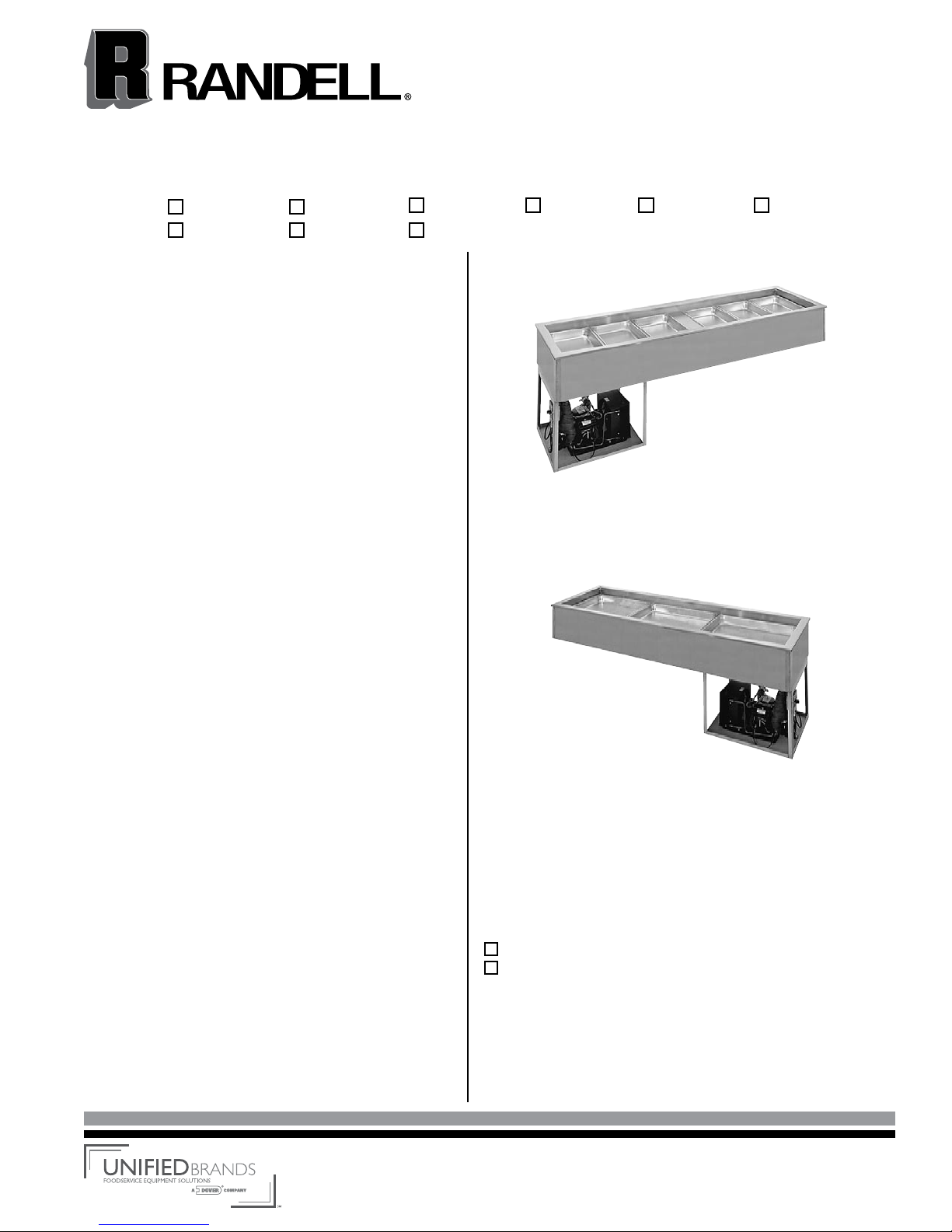

Drop-In Wrapped Coldwall Cold Pan models 9900SCA/SCN
model 9986SCA shown
Specifications:
Condensing unit mounted on a swivel platform that allows for
90 degrees of rotation of intake/exhaust louver, giving customer
the option of mounting our louver on any of the counters four
sides. Model 9918SCA is not available with rotating compressor
housing.
UNIT EXTERIOR: Top and coved corner interior to be constructed
of 18 gauge stainless steel. Exterior body to be corrosion resistant
steel.Condensing unit mounted on corrosion resistant framework,
suspendedbelowunitbody.(1)stainlesssteellouverpanelprovided
for field installation in counter.
UNIT INTERIOR: Interior fitted with 1" drain at one end. Drain
nipple supplied with gate valve. Insulated with CFC free, foamed
in place polyurethane. Recessed, stainless steel ledge provided
for supporting pans, adaptor bars included on SCA units.
REFRIGERATION: CFC free, R-404a refrigeration system to be
wrapped refrigeration construction with thermostatic control for
operatoradjustability.Entiresystemmountedoncorrosionresistant
framework, suspended below unit body. 8' cordset (NEMA 5-15P)
supplied for 115V operation.
Standard Features:
• Swivel base condensing unit allows for unlimited
location of the single air intake/exhaust louver (model 9918SCA
is not available with rotating compressor housing.
• New Randell exclusive easy mount system
• Self-contained, wrapped refrigeration system with thermostatic
control, system utilizes “CFC free”, R-404a refrigerant
• Meets 1998 NSF Std. #7 - holds 41°F product temperatures
• All stainless steel top and coved corner interior
• Drain and gate valve provided
• Foamed in place, “CFC free” urethane insulation
• One dual air movement louver provided
• 9' corset for 120V plug-in operation
Description:
Self-contained, wrapped coldwall drop-in refrigerated cold display
pan with one piece stainless steel interior and top. Drain, and gate
valve provided. R-404a refrigerant, “CFC free”. Wrapped refrig-
eration construction with condensing unit, expansion valve, and
thermostatic control. Cordset for 115V operation.
Meets NSF Std. #7 for holding 41˚F. product temperatures.
model 9918SCA 9928SCA 9943SCA 9957SCA 9972SCA 9986SCA
9946SCN 9966SCN 9987SCN
model 9966SCN shown
• Self-contained,refrigerated unit for cold display without ice
• Custom sizes available
• Easy installation with sliding hood, louver and hold
down brackets
Options & Accessories:
Adaptor bars
Remote on/off switch

Randell, Unified Brands 888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.

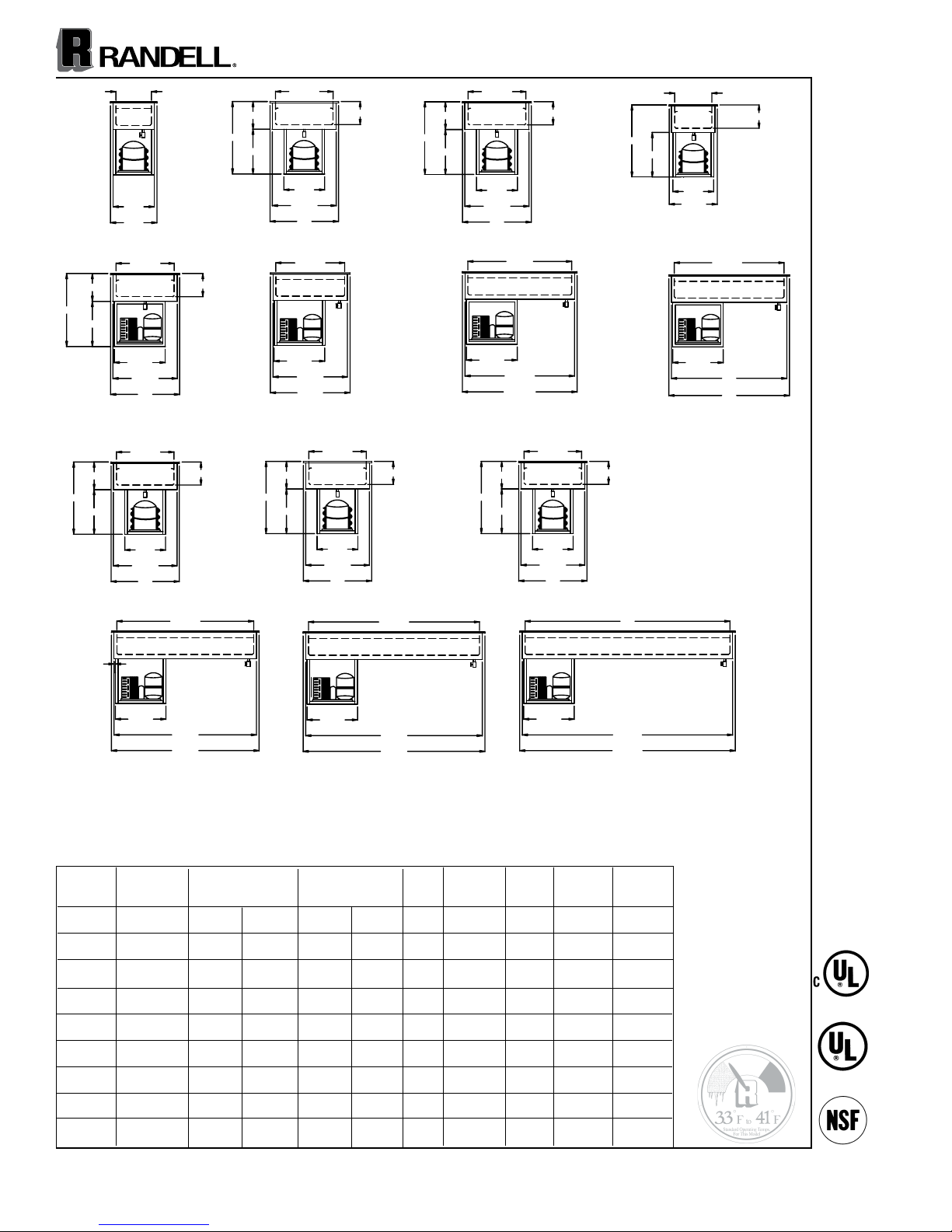

Models 9900SCA/SCN
12"x20" Pan O/A Dimension Cut Out Size
Model Capacity Length Width Length Width H.P. Volts Amps NEMA Ship Wt.
9918SCA 1 17 1/2" 26" 16" 24 3/4" 1/4 115/60/1 5 5-15P 110
9928SCA 2 30 1/4" 26" 28 3/4" 24 3/4" 1/4 115/60/1 5 5-15P 140
9943SCA 3 43 3/8" 26" 41 7/8" 24 3/4" 1/4 115/60/1 5 5-15P 175
9957SCA 4 56 1/4" 26" 54 3/4" 24 3/4" 1/4 115/60/1 5 5-15P 210
9972SCA 5 69 1/4" 26" 67 3/4" 24 3/4" 1/4 115/60/1 5 5-15P 245
9986SCA 6 82 1/8" 26" 80 5/8" 24 3/4" 1/4 115/60/1 5 5-15P 280
9946SCN 2 46" 18 5/16" 44 1/2" 17" 1/4 115/60/1 5 5-15P 140
9966SCN 3 66 3/4" 18 5/16" 65 7/16" 17" 1/4 115/60/1 5 5-15P 175
9987SCN 4 87 1/2" 18 5/16" 86 3/16" 17" 1/4 115/60/1 5 5-15P 210
16" X 24.75"
CUTOUT DIMENSION
MODEL #9918SCA
15.5"
17.5"
13.375"
19.25"
26"
24.25"
27.5"
17"
10.5" 8.75"
21.875"
MODEL #9928SCA
CUTOUT DIMENSION
28.75" X 24.75"
MODEL #9943SCA
CUTOUT DIMENSION
41.875" X 24.75"
27.5"
41.375"
43.375"
19.25"
39.25"
15.5"
24.25"
26"
8.75"
17"
21.875"
10.5"
14.205"
41.875"
44"
46"
18.33"
15.5"
MODEL #9946SCN
CUTOUT DIMENSION
44.5" X 17"
27.5"
19.25"
8.875"
17"
30.25"
26.125"
28.25"
19.25"
15.5"
26"
24.25"
17"
27.5"
21.875"
10.5" 8.75"
0.5"
CUTOUT DIMENSION
54.75" X 24.75"
MODEL #9957SCA
17"
27.5"
21.875"
24.25"
26"
56.25"
54.25"
19.25"
52.125"
10.5"
15.5"
8.75"
CUTOUT DIMENSION
67.75" X 24.75"
MODEL #9972SCA
15.5"
24.25"
26"
21.875"
67.25"
69.25"
19.25"
65.125"
17"
27.5"
10.5" 8.75"
CUTOUT DIMENSION
80.625" X 24.75"
MODEL #9986SCA
10.5"
26"
27.5"
17"
80.125"
82.125"
19.25"
78"
15.5"
24.25"
8.75"
21.875"
Designed to hold 33˚F - 41˚F food in
4" deep pans as required to meet
NSF Std. 7.
