Short Form Specifications
Top is one piece 20-gauge stainless steel. Interior liner is 22-gauge
stainless steel and is creased to 1.00” (2.54 cm) diameter drain. Unit
has a sectional, removable perforated stainless steel false bottom
and is provided with adapter bars to allow placement of 12” x 20”
(30.5 cm x 50.8 cm) pans. Unit is supplied with 1” (2.54 cm) plas-
tic drain to be installed by customer. Exterior housing is 22-gauge
galvanized steel. Unit is insulated with high density closed cell poly-
urethane.
Optional Accessories & Modifications
• Custom sizes and styles
• Single or double service flip-up sneezeguards
NOTE: NOT TO SCALE CNOTE: NOT TO SCALE
9.35"
24cm
10.75"
27.3cm
21.62"
55 cm
24.75"
63cm
26"
66cm
A
A – 2.75"
A – 7 cm
A – 6"
A – 15.2 cm
C
L
B
NOTE: NOT TO SCALE C
21.62"
55 cm
24.75"
63cm
26"
66 cm
A
14"
35.6 cm
13.68"
34.75 cm
C
L
C
B
NOTE: NOT TO SCALE
PLAN VIEW
MODEL N8018
TYPICAL PLAN VIEW
N8000 MODELS (EXCEPT N8018)
TYPICAL ELEVATION VIEW
ALL N8000 MODELS
TYPICAL RIGHT END VIEW
ALL N8000 MODELS
MODEL COUNTER CUTOUT # OF 12” X 20” SHIPPING
NUMBER A B C DIMENSIONS (D x L) PANS HELD WEIGHT
N8018 18” 6.84” 4.06” 17” x 25” 1 37 lbs
45.7cm 17.3cm 10.3cm 43.2cm x 63.5cm 17 kg
N8030 30.75” 8.68” 6.06” 29.75” x 25” 2 100 lbs
78.1cm 22cm 15.3cm 75.6cm x 63.5cm 45 kg
N8043 43.5” 9.82” 11.31” 42.50” x 25” 3 118 lbs
110.5cm 24.9cm 28.7cm 107.9cm x 63.5cm 53 kg
N8056 56.25” 9.82” 17.69” 55.25” x 25” 4 145 lbs
142.9cm 24.9cm 44.9cm 140.3cm x 63.5cm 65 kg
N8069 69” 9.82” 24.06” 68” x 25” 5 164 lbs
175.3cm 24.9cm 61.1cm 172.7cm x 63.5cm 74 kg
N8081 81.75” 9.82” 30.43” 80.75” x 25” 6 190 lbs
208cm 24.9cm 77.3cm 205.1cm x 63.5cm 86 kg
Mechanical Data: Standard Unit
Model N8056
N8000
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2003 The Delfield Company. All rights reserved. Printed in U.S.A.

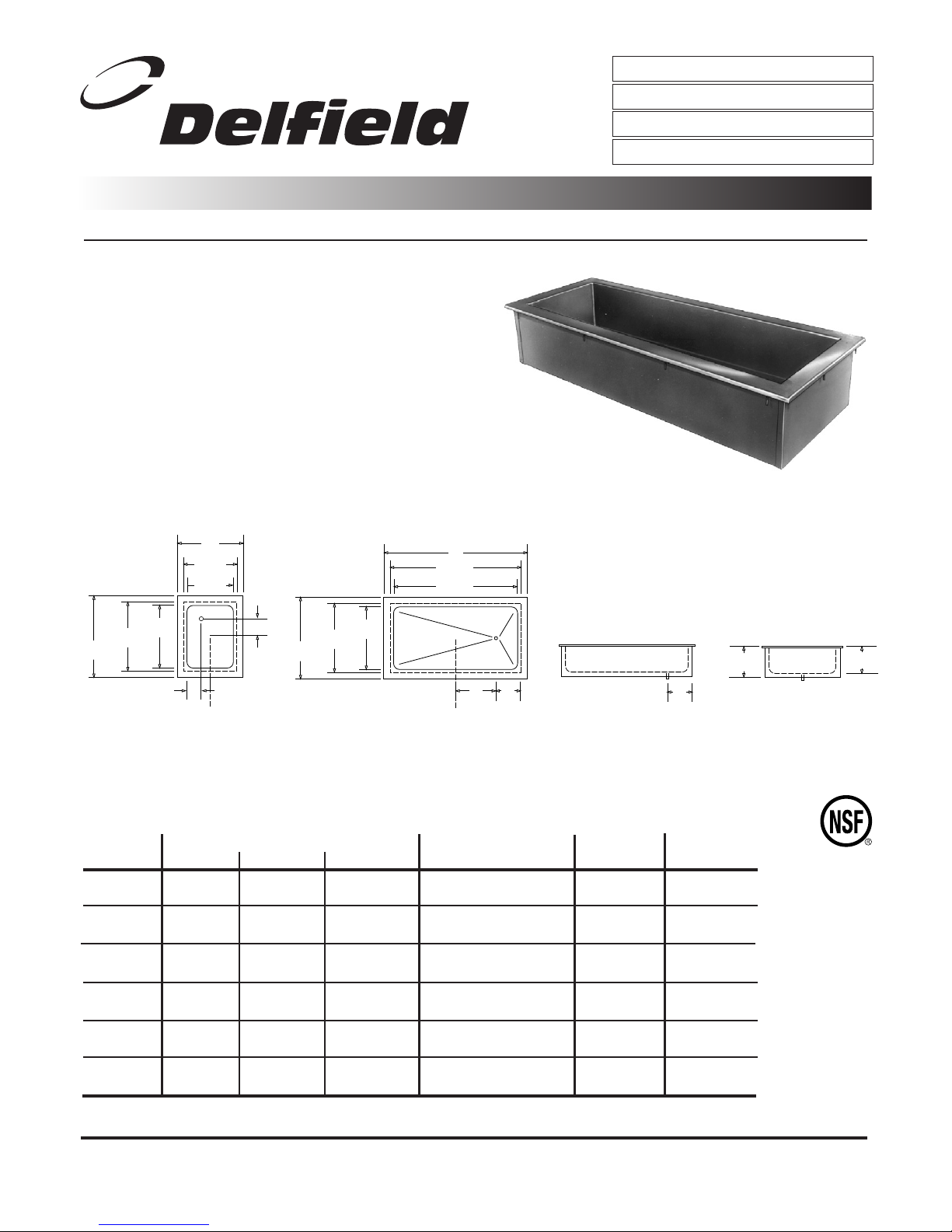

Drop-In Ice Cooled Cold Pans
PROJECT
ITEM #
QUANTITY DATE
APPROVAL

Short Form Specifications
Top is one piece 20-gauge stainless steel. Interior liner is
22-gauge stainless steel and is creased to 1.00” (2.54 cm)
diameter drain. Unit shall have a sectional, removable perfo-
rated stainless steel false bottom. Unit shall be provided with
adapter bars to allow placement of 12” x 20” (30.5 cm x 50.8
cm) pans. Unit is supplied with 1” (2.54 cm) plastic drain to
be installed by customer. Exterior housing shall be 22-gauge
galvanized steel. Unit shall be insulated with high density
closed cell polyurethane.
Optional Accessories & Modifications
• Custom sizes and styles
• Single or double service flip-up sneezeguards
N8000N
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2003 The Delfield Company. All rights reserved. Printed in U.S.A.
DS8000N 03/03

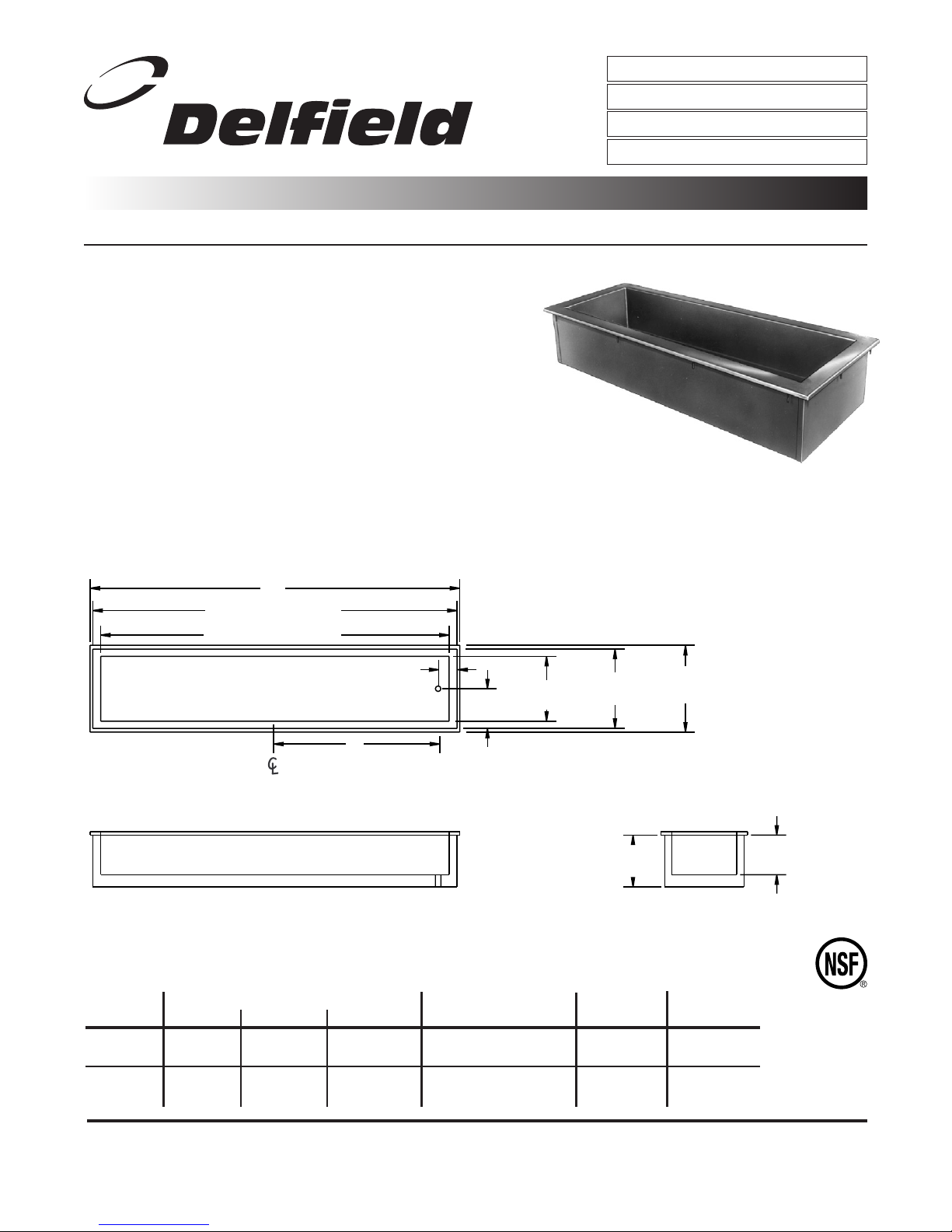

Narrow Drop-In Ice Cooled Cold Pans
Model N8046N
(pans by others)
MODEL COUNTER CUTOUT # OF 12” X 20” SHIPPING
NUMBER A B C DIMENSIONS (D x L) PANS HELD WEIGHT
N8046N 46.75” 14.41” 8.25” 17” x 45.75” 2 100 lbs
118.75 cm 36.60 cm 20.95 cm 43.18 cm x 116.20 cm 46 kg
N8068N 67.5” 14.41” 18.64” 17” x 66.50” 3 120 lbs
171.5cm 36.60 cm 47.35 cm 43.18 cm x 168.91 cm 55 kg
Mechanical Data: Standard Unit
11.87"
30.2 cm
14.49"
36.8 cm
15.87"
40.3 cm
7.25"
18.4 cm
C
A
A-0.96" 2.4 cm
A-3.88" 9.9 cm
7.25"
18.4 cm
9.50"
24.1 cm
B
TYPICAL PLAN VIEW
TYPICAL ELEVATION VIEW TYPICAL END VIEW
