Thank you for purchasing the Midori™UDC3 LED Light Source which utilizes
solid-state illumination technology. The UDC3 fiber-optic illuminator is intended
for industrial applications that require a handheld light source with high output,
efficient, compact, and lightweight illumination. The UDC3 utilizes eco-friendly LED
lighting technology, exhibits instant-on and electronic intensity dimming capability
with long operating lifetime. The UDC3 is equipped with a rotary collar receptacle
to accommodate common threaded light posts or thumb screw on portable visual
scopes.
PREFACE
TABLE OF
CONTENTS

Operating Manualwww.ushio.com 3
Caution
Caution: Hot Surface
Manufacturer
Hazard Warning
Bright Light
Important Information
Do not dispose of this product as unsorted municipal waste.
Prepare this product for reuse or separate collection as specified
by Directive 2002/96/EC of the European Parliament and the
Council of the European Union on Waste Electronic and Electrical
Equipment (WEEE). If this product is contaminated, this directive
does not apply.
INTRODUCTION
SECTION 1
1.1 SYSTEM SYMBOL DESCRIPTIONS

Midori™UDC3 www.ushio.com4
Please be sure to handle UDC3 unit with care at all times. The
electrical and optical components may be damaged by physical
trauma, extreme temperatures, or fluid invasion.
This manual describes the proper procedures for using the UDC3
unit. This also contains pertinent information on the proper care
and handling during use and storage.
Please read this entire manual carefully before using the UDC3
unit. If you have any questions concerning the material contained
in this manual or the operation or safety of the equipment, please
contact our Customer Service Department at CustomerService@
Ushio.com.
Check all items upon receipt to assure damage has not occurred
during shipment. Verify compatibility of all components and
accessories used with the UDC3 unit.
Since the UDC3 unit uses proprietary components, there are no
user serviceable or replaceable parts inside the unit.
Avoid storing or using the UDC3 unit in areas of heavy traffic where
it may sustain physical damage.
Unit MAY GET HOT. Provide adequate ventilation to prevent
overheating.
DO NOT IMMERSE or store liquids above or on the UDC3 unit.
Any changes or modifications made to this UDC3 unit that are not
expressly approved by manufacturer will void the warranty.
The high intensity light at the front of the UDC3 unit and at the tip
of borescope will create bright light. To minimize risk of injury, avoid
direct viewing or contact.
This equipment is not suitable for use in the presence of flammable
mixture.
1.2 WARNINGS AND PRECAUTIONS

Operating Manualwww.ushio.com 5
Fitting Style: The adapter nut allows the UDC3 to attach to the user’s borescope.
Rotate the nut clockwise to attach the UDC3 to a borescope and counterclockwise
to remove. The standard configuration of the Ushio UDC3 is with an adapter nut
that threads onto the standard universal light guide post’s Storz/ACMI adapter
thread or by thumb screw for Olympus style ferrule.
WARNING!
Upon power up, the UDC3 drives the LED to high output intensity.
Avoid looking directly at the LED during initial turn ON or anytime
while unit is ON.
Light Intensity Buttons:
Momentary pressing button or holding
down the button next to this symbol
decreases the intensity of the light.
Momentary pressing button or holding
down the button next to this symbol
increases the intensity of the light.
Battery Hatch Door: The battery cover seals the battery and electronics within
the body of the UDC3.
2.1 BODY DIAGRAM AND DESCRIPTIONS
Battery Hatch Door
Intensity ButtonsPower Button
Figure 1: UDC3 Body Diagram; Fitting Style
UDC3 UNIT DESCRIPTION AND
SPECIFICATIONS
SECTION 2
Power Button: The GREEN power button controls the ON/OFF of the UDC3.

Midori™UDC3 www.ushio.com6
2.2 SPECIFICATIONS
Dimensions
Length: 24mm (0.94”)
Width: 46mm (1.8”)
Height: 81mm (3.2”)
Weight: 126.8g (4.5 oz)
Illumination System
Type & Power Rating: Light Emitting Diode (LED); 3 Watts
Color Temperature: 5700K (Nominal)
LED (die) Life Expectancy: 35,000 Hours*
Nominal Cix & Ciy: 0.33, 0.34
Power System
Power Source: Battery Powered (2 x RCR123A)
Battery Type: (2) Lithium Ion RCR123A 3.7V,
750mAh Minimum
Battery Life at Full LED Power: 80 Minutes
Battery Charge Time: 2 Hours
Battery Recharge Cycles: 500 Charge Cycles
Environment
Operating Ambient Temperature Range: 10°C to 40°C (50°F to 104°F)
Storage Temperature Range: -15°C to 55°C (-5°F to 131°F)
Humidity: 0 – 95% RH
Mode of Operation: Continuous
* Based on LED manufacture recommended operating parameters.

Operating Manualwww.ushio.com 7
Mechanical Dimensions
[6.70]
0.26
[77.2]
3.04
[24.0]
0.94
[46.0]
1.81
[27.5]
Ø1.08
[24.0]
0.94
[27.5]
Ø1.08
Dimensions are inches [mm]
Order Code Product ID Description
1003987 UDC3-03 UAI ACMI Black Midori 3W Direct Connect
1004146 UDC3-07 UAI Olympus Black 3W Direct Connect
5002490 UPS-02 UPS-02 RCR123A Li-Ion Battery
5002491 UPC-02 2-bay Smart Charger
5002532 UPS-04 AC Main Adapter
2.3 PRODUCT ORDERING INFORMATION

Midori™UDC3 www.ushio.com8
The UDC3 unit’s internal LED operates on 2 rechargeable Lithium-Ion batteries.
When new or fully charged batteries are installed, the battery capacity is ~80
minutes at full intensity and ~110 minutes at 75% intensity of continuous operation.
Battery Installation
1. At the bottom of the UDC3’s battery hatch door, rotate the locking knob
counterclockwise until the line on the knob is pointing 90° from the indentation
mark on the hatch. Remove the hatch. Refer to figure 2.
2. Insert the batteries into the unit using the battery symbol orientation as
a guide. The negative terminal of each battery should be in contact with the
spring on each circuit board, refer to figure 3. Attach the hatch door then rotate
the locking knob clockwise until the line on the knob is pointing toward the
indentation mark.
Note: For added safety,the battery hatch door may only be inserted into
the UDC3 body in one direction. If the door does not easily slide into
the case, rotate the hatch door 180°. This ensures the battery polarity
cannot be reversed.
To remove batteries, rotate the battery hatch door knob counterclockwise a quarter
turn until it stops, remove the door and allow the batteries to slide out.
3.1 OPERATION
Figure 2: Bottom View
Figure 3: UDC3 Battery Installation
UDC3 OPERATION, BATTERIES AND
CHARGER
SECTION 3

Operating Manualwww.ushio.com 9
Figure 4: Standard Universal Light Guide Post
Thumb Screw
ACMI Snap-Ring Groove
Wolf Adapter Thread
Storz Adapter Thread
Installing UDC3 to User’s Borescope
1. Hold the UDC3 so the main body fits comfortably in one hand, allowing easy
manipulation of the adapter nut with the thumb and forefinger.
2. Tighten the adapter nut onto the light guide post by turning rotary collar or
thumb screw clockwise. Do not turn the UDC3 body.
Using the UDC3
1. Turn the UDC3 ON by pressing the GREEN Power ON/OFF button, refer to
figure 5.
WARNING!
Upon power up, the UDC3 drives the LED to high output intensity.
Avoid looking directly at the LED during initial turn ON or anytime
while unit is ON.
2. Adjust light intensity as needed, refer to figure 6.
Momentary pressing button or holding down the button next to this
symbol decreases the intensity of the light.
Momentary pressing button or holding down the button next to this
symbol increases the intensity of the light.

Midori™UDC3 www.ushio.com10
Figure 5: GREEN Power Button Figure 6: Intensity Control Switches
3. After use, turn the UDC3 OFF by pressing the GREEN power button.
4. Remove the UDC3 from the borescope by rotating the adapter nut
counterclockwise.
5. Remove batteries when UDC3 is not in use for extended periods of time.
Batteries and Charger (Included)

Operating Manualwww.ushio.com 11
3.2 BATTERY
Standard Part: RCR123A (Circuit Protected)
Type: Li-Ion
Capacity: 750mAh
Output Voltage: 3.7V
Operation Temperature: -4°F to 140°F, or -20°C to 60°C
Battery Recharge Cycles: 500 Charge Cycles
Battery Charge Time: Up to 4 Hour
Dimensions: Diameter: 16.9mm x Length: 34.3mm
Battery Weight: 40g
Manufacturer / Part Number: Tenergy Item #34253
WARNING!
USE ONLY APPROVED BATTERIES.
Use only pairs of fully charged batteries. Do not mix newly charged
and depleted batteries.
Never mix rechargeable battery with non-rechargeable batteries.
Do not incinerate, disassemble, overcharge or short circuit the
battery.
Do not expose the battery to high temperatures above 122ºF/50ºC.
CAUTION!
The batteries should be removed from the UDC PSC unit if it will not
be used for extended time.
RCR123A Li-Ion Rechargeable Battery

Midori™UDC3 www.ushio.com12
Charging the Batteries
1. Connect charger to a powered USB port or adapter. LCD on the charger will
turn on to indicate it’s properly powered.
2. Insert 1 ~ 2 battery into the slot, make sure + / - are correctly used.
3. Charging will auto start,
– Battery type screen will show the battery type being detected.
– (CHARGE) will show on the [status] screen.
4. When charging is done, ( ) will be displayed on the digital screen of the LCD.
5. Remove battery after it’s fully charged.
Reverse / Bad Cell / Short Circuit
Reverse the battery polarity, incorrectly inserting the battery, inserting alkaline
battery or short circuit will result in charging failure, the “Error” icon will be shown
on the LCD display and capacity gauge for the corresponding slot will flash rapidly.
Should this occur, please reposition / replace / remove the battery from the slot.

Operating Manualwww.ushio.com 13
3.3 CHARGER
Quick Reference
ALCD Display
BSLOT BUTTON Press to switch charging status between slot 1 and 2
CMODE BUTTON Press to change charging speed (Li-ion. LiFeP04, IMR only)
B+CActive / Deactivate LiFePO4 Mode
DCharging slot 1
ECharging slot 2
FMicro USB input port 5V DC 2A
Charger Features
• Manufacturer supplied charger is a 2-bay battery smart charger with MCU control
which features:
– Independent charging channels;
– Constant current and constant voltage charging;

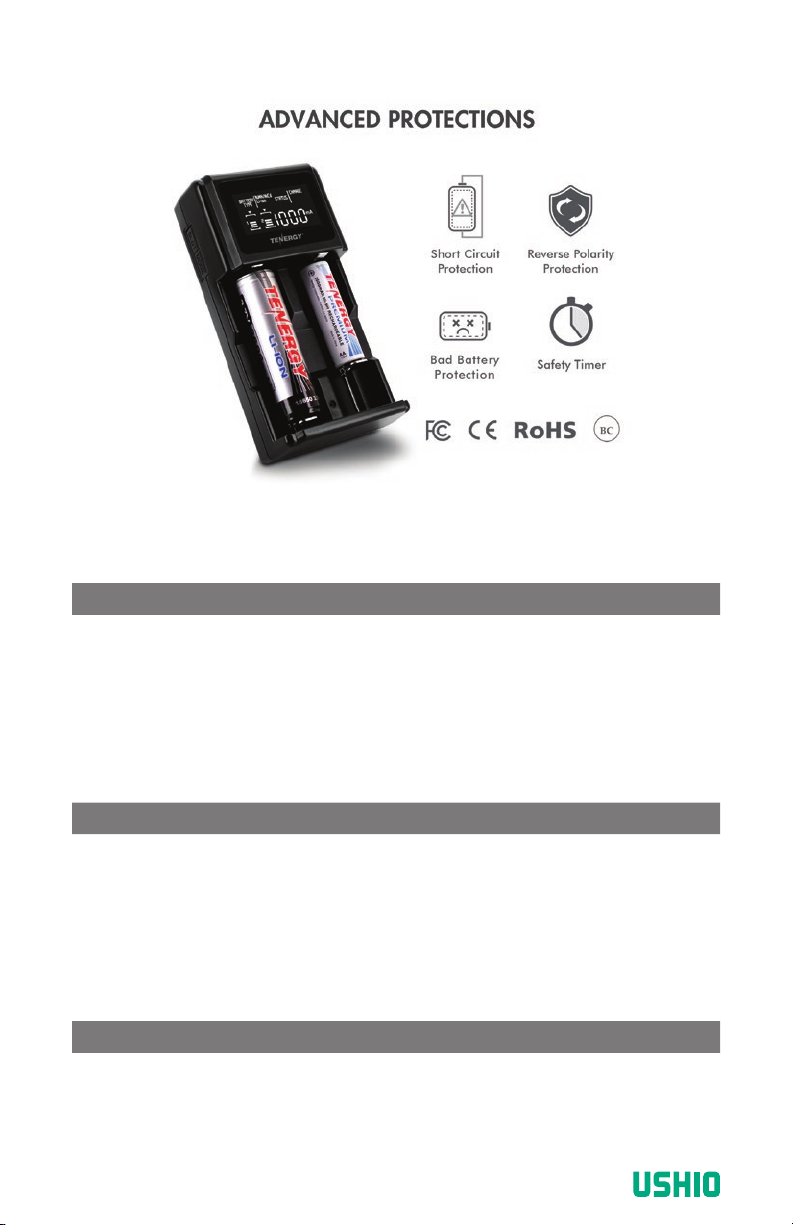

– Ensures the quality and safety of charging process.
• Two-color LEDs indicate charging status.
• Each LED indicates the corresponding channel.

Midori™UDC3 www.ushio.com14
Input/Output Characteristics of Charger
Input: 5V DC 2A
Output: 4.2V DC 500mA/1 000mA (Li-ion/I MR)
3.7V DC 500mA/1 000mA (LiFePO4)
1.48V DC 500mA (Ni-MH/Ni-CD)
Status Display: Backlit LCD
Built-In Protections: Short-circuit, Reverse Polarity, Bad Cell
Detection, Safety Timer
Compatible Rechargeable Battery
Ni-MH / Ni-Cd: AA / AAA / AAAA / CID / Sub C
IMR / Li-ion / LiFeP04: 18650, 26650, 22650, 18490,18350, 17670,
17500, 14500, 10440, 16340
Electrical Characteristics
Tenergy 2-bay Battery Smart Charger
Mechanical Dimensions
Dimensions
Length: 130mm
Width: 68mm
Height: 38.5mm
Weight: 130g

Operating Manualwww.ushio.com 15
Important Safety Instructions
1. SAVE THESE INSTRUCTIONS & CAREFULLY FOLLOW THEM, TO REDUCE
THE RISK DANGER OF FIRE OR ELECTRIC SHOCK.
2. This charger is intended for Ni-MH, Ni-CD, Li-ion, and LiFePo4 rechargeable
batteries only. Attempting to charge non-rechargeable batteries may cause
personal injury and damage to the charger.
3. Do not expose charger to water or moisture. For indoor usage only.
4. Remove from power when not in use.
5. Do not operate the charger if it has been subjected to shock or damage. Take it
to a qualified serviceman for repair.
6. Do not disassemble the charger. Incorrect reassembly may result in a risk of
electric shock or fire.
7. Unplug the charger from USB port before attempting any maintenance or
cleaning. Use damp cloth to clean the surface, do not immerse into water.
8. Before scrapping your charger, remove batteries from the unit and recycle or
dispose the batteries safety.
9. This appliance is not recommended for children under 8 years old or persons
with reduced physical, sensory, or mental capabilities. Adult supervision is
recommended to prevent hazards that may be involved.
10. Do not let children play with the appliance, it is not a toy.
11. Cleaning and user maintenance shall not be made by children without adult
supervision.
CAUTION!
• DO NOT use charger to charge other type of batteries.
• DO NOT operate the charger when the temperature is higher
than 40°C. We recommend operating when the temperature is
lower than 35°C. Batteries may get warm during charging.
• USE ONLY Tenergy Battery #96116.
• DO NOT use charger and batteries in any acidic, alkaline or
corrosive environment.
• DO NOT expose charger to rain, snow, water, gas, oil, etc.
• DO NOT short circuit charging terminals.
WARNING!
• Do not expose charger to fire, water or moisture.
• To avoid electrical shock, do not disassemble the charger.
• No user-serviceable parts inside the charger.
• Follow local regulations for disposal of electrical components or
batteries.

Midori™UDC3 www.ushio.com16
When 2 batteries are charging at the same time, press
SLOT to select the charging slot (1) or (2). Then you
can view the individual charging information (ie. Battery
Type, Charging Status, Charging current, Charging
voltage & Charging time) for the selected charging slot.
To change charging speed: Default charging speed is
500mA, this can be increased to 1000mA for Li-ion,
IMR, and LiFeP04 batteries, to do that, simply press
[mode] button once. Digital screen will show the
updated charging current. (1000mA charging current is
NOT available for NIMH and NICO).
Note: 2A USB power source is needed to charge 2x Li-ion battery at
1000mA speed setting
Tip: It is safe to use 1A current option for Li-ion, IMR and LiFeP04
batteries as long as its capacity is higher than 1000mAh, for capacity
1000mAh or below, please stay with the default charging current
500ma for better battery life span.
Activate / Deactivate LiFeP04 charging mode: To
properly charge a LiFEpo4 battery (please check label
on battery to identify if it’s LiFeP04), LiFeP04 charging
mode will need to be manually activated.
To do that:
1. Press “slot” and “mode” button together.
2. Battery type screen will show [LiFeP04].
3. LiFeP04 charging mode is enabled
4. To get out of LiFeP04 charging mode, press 2 buttons together again.
Slot / Mode

Operating Manualwww.ushio.com 17
LCD Reference
A - Battery Charging Type Detection
NiMH / NiCd
Li-ion It will be shown by Auto Detection
LiFePo4 It will be shown ONLY when the SLOT & MODE
buttons are pressed, please read SLOT/ MODE
before use.
B - Charging Status
CHARGE Charging starts
FINISH Charging is finished
ERROR Charging is failed ( See more in Reverse/ Bad Cell/
Short Circuit)
C - Battery Gauge
▼Indicates the selected charging slot ( 1 ) or ( 2 )
Charging starts and the
first block will be flashing
Charging is finished and
all blocks are shown
Charging is failed and
the whole icon will be
flashing
D - Time, Voltage, Current & Finish
Time Shows the time spent for charging
Voltage Shows the charging voltage
Current Shows the charging current
Finish Charging finish ( FULL)
Time, voltage and current will be shown alternatively by 5 sec interval.

Midori™UDC3 www.ushio.com18
The UDC3 unit is rated for water resistance. The UDC3 unit is rated for slight water
contact and mild detergent cleaning solutions only. However, it should NOT BE
IMMERSED in water or cleaning solutions for any prolonged periods of time. After
cleaning, remove UDC3 unit from cleaning solution, dry and store the device in a
clean and dry environment.
WARNING!
Failure to comply with the following may result in damage to the
UDC3 unit and will void the product warranty.
Use caution when cleaning the UDC3 unit; some methods may be harmful and
could result in extensive damage. Manual cleaning is the recommended method.
Certain cleaning agents may damage the device’s materials. Only use water with a
mild detergent such as a nonabrasive hand or dishwashing soap. Do not immerse
the UDC3 unit in an ultrasonic cleaner.
CAUTION!
Ensure that the battery hatch door is fully tightened on the O-ring
seal to prevent liquid intrusion into the battery compartment.
Never use any organic solvents to clean the UDC3 unit, other than
isopropyl alcohol.
CARE AND MAINTENANCE
SECTION 4
4.1 CLEANING THE UDC3 UNIT

Operating Manualwww.ushio.com 19
If the UDC3 unit comes in contact with liquid, rinse with isopropyl alcohol and then
dry with compressed air, commercial compressed gas canisters or dry damp cloth.
Note: Air dry is highly recommended to reduce contamination of the
optical components and reduce the possibility of oxidation of the
materials used in the construction of the UDC3 unit.
CAUTION!
Do not allow the UDC3 unit to remain in liquid cleaning solution for
prolonged period of time.
In addition, thoroughly dry the battery hatch door seal around the O-ring, with
compressed air or by thoroughly wiping any excess liquid from this area, prior to
removing the battery hatch door. This will prevent any trapped fluid from entering
the battery compartment and exposing the electronics to fluids.
CAUTION!
Ensure there is no trapped liquid between the battery hatch door
and body prior to removing the battery hatch door.
4.2 DRYING THE UDC3 UNIT

Midori™UDC3 www.ushio.com20
PROBLEM POSSIBLE CAUSE ACTION
Loss of Illumination
Battery charge is low Replace batteries with freshly
charged batteries.
Batteries cannot supply
sufficient current at this
power setting.
Replace batteries with freshly
charged batteries.
Verify batteries have been
installed in the correct
orientation.
Battery mismatch
Reduce the light intensity
and continue using the
current battery. Recharge the
batteries as soon as possible.
UDC3 Light Output
Flashing
Battery charge is low
Reduce the light intensity and
continue using the current
battery.
This is normal behavior
indicator when the
battery charge is low.
Remaining run time is
about 2 minutes.
Recharge the batteries as
soon as possible.
Light Guide Does
Not Attach Properly
to the Borescope
The borescope has
an adapter on its light
post.
Remove the adapter and try
attaching again.
The borescope and
UDC3 do not have a
compatible coupling
system.
Use an adapter sleeve or
switch to UDC3 with a different
type of adapter nut.
Light Intensity is
Low
Foreign material or film
on LED output taper.
VERY carefully clean the
LED surface from visible
contamination with a cotton
swap and isopropyl alcohol.
Do not use acetone or other
solvents.
UDC3 Becomes
Hot After Prolonged
Use at Full Power
UDC3 has been left
on for more than 30
minutes.
Turn the UDC3 OFF for a few
minutes to permit adequate
cool down of the body.
TROUBLESHOOTING
SECTION 5
