Ushio UIT-0 Series User manual

Supported Version
USW0145(U)
USW0155(B)
Contents of this User’s Manual may change without notice.
Due to design improvements, and/or specication and app changes,
All company names and products names in this manual are the
property of their respective trademark holders.
REV.1.1
User's Manual and Troubleshooting Guide
Thin UV Irradiance Meter
UIT-θ SeriesUIT-θ Series

Introduction Safety Notes Overview
Features Hardware Package
System Congration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Specication Disclaimer
Others
Thank you for purchasing the UIT-θ series, the thin UV irradiance meter.
This operating manual explains the outline, handling methods, and specications of the "UIT-θseries"
thin UV Irradiance Meter.
Please keep the manuals close at hand for ease of reference.
Copyrights
Microsoft is a trademark of Microsoft in the USA.
Windows is a registered trademark of Microsoft in the USA.
System names and product names in this manual are not always followed by a trademark.
These safety notes are intended to help you use this device properly and safely. These notes contain
essential and crucial instructions that must be followed at all times. Please read and understand these
notes before reading the rest of the manual and guide.
Safety Notes
Introduction Safety Notes
WARNING
●
The UV light leaking from the ultraviolet curing unit will soon damage users' eyes and skin.
Be sure to wear protection and cover your skin to protect against UV light when measuring
irradiance near the leak. Typical recommended protective glasses are shown below.
・
RS-24U(SPL3-5) RIKEN OPTECH CORP
●
The UIT-θ series may be very hot immediately after measurement in a hot environment or
measurement of high-intensity UV light. Wait until the UIT-θ series becomes cool enough to hold
before handling it.
●
Do not use any USB cables that have been damaged or deformed. Doing so could result in
smoke, overheating, or fire.
● Carefully read and correctly follow the instruction in this user’s manual about the use of USB
cables. Replace any cable that looks defective or damaged.
● Do not wash the device with water, or disassemble or tamper with it in any way.
Doing so could result in electric shock, fire, or smoke.
●
When powering the device thru a USB connector, use a PC with a limited-energy circuit USB out-
put, or an AC adapter with a limited-energy circuit used to power PCs.
● Take measures to eliminate static electricity before use.
WARNING
CAUTION
This icon indicates a possible danger of loss of life or injury.
This icon indicates a possible danger of injury to personnel or physical damage.
This icon indicates important information concerning easy-to-make mistakes that can adversely
affect operation and maintenance. Not following the instructions given could result in damage to
the device.
Introduction
IMPORTANT
CAUTION
2Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Congration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Specication Disclaimer
Others
Safety Notes
CAUTION
●At least one minute should be allowed between two consecutive measurements.
If the UIT-θ series is not fully cooled, the subsequent measurement may be disabled.
●The photodetector contains optical components. Keep and use it at the appropriate temperature
and humidity.In particular, the optical lter performs best in an environment of the specied
temperature and humidity. Outside this environment, the lter cannot perform optimally and
may deteriorate. Always use a desiccator or similar to keep the photodetector at the specied
temperature and humidity.
●Immediately after using the UIT-θ series, keep it in its storage case and then in a desiccator or
similar to keep the UIT-θ series at the specied temperature and humidity.
●The optical components of the photodetector may swiftly deteriorate when stored in a high-
humidity environment (70% RH or more). In such cases, they should be calibrated more
frequently than the USHIO calibration cycle (every 6 months).
●High-intensity UV light will accelerate the deterioration of the optical components in the
photodetector, whereupon the deteriorated photodetector may show lower irradiance values
than expected.
●When connecting and removing the USB cable, do so carefully; do not jam the connector or yank
the cord.
●Never expose the UIT-θ series body to any shock or impact, since this may damage the
components and cause the unit to malfunction.
●Contamination and dirt on the photodetector will cause measurement errors.
Be sure to check the photodetector for contamination and dirt before starting the measurement.
If any are present, wipe them o with dry clean gauze.
●The UIT-θ series houses a temperature sensor to protect the internal electronic circuit.
When used in a hot environment at a temperature exceeding the permissible operating range,
the UIT-θ series will overheat and cease operation with "TEMP Error." Shut down power to the
UIT-θ series and allow to naturally cool to reset the error.
●The sensitivity of the photodetector is calibrated by monochromatic and parallel light.
When measuring the irradiance of monochromatic and parallel light, photodetectors of the same
type show the same irradiance value to within ±5% or less.
To measure the irradiance of light of a certain wavelength distribution, see "Specications"
(Spectroscopic sensitivity characteristics of the photodetector) of these Operating Manuals.
This Spectroscopic sensitivity characteristics is a central value. When measuring the irradiance of
a general light source of a certain wavelength distribution, photodetectors of the same type may
show dierent irradiance values due to the Spectroscopic sensitivity characteristics.
●Use alcohol to wipe the UIT-θ series body clean. Do not apply alcohol to the photodetector,
target marks, and their vicinity. Be very careful not to let alcohol inltrate the UIT-θ series body
through the holes of the photodetector, the rear of its body, and the USB connector hole.
The ingress of alcohol within the UIT-θ series body will cause it to deteriorate and damage its
optical element and internal circuit.Never use organic solvents such as thinner and acetone since
they will damage the external surfaces, optical element, and internal circuit of the UIT-θ series.
●The equipment shown in this catalog, any products using the equipment or technologies related
to the equipment fall under the category of security control related to freight or technologies
under the provisions of the Foreign Exchange and Foreign Trade Control Law. You must obtain
permission from the Government of Japan before exporting them from Japan.
Introduction Safety Notes
IMPORTANT
3Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Congration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Specication Disclaimer
Others
Precautions Concerning Handling of Coin Type Lithium Rechargeable Battery (CLB)
When used improperly, the CLB may be deformed, leak its liquid content (from inside the CLB body),
give o heat, explode, or catch re since it contains combustible substances such as organic solvents,
which may cause personal injuries and apparatus failures. Be sure to observe the warnings and
precautions below. USHIO is not liable for CLB damage caused by other uses not described here.
WARNING
●Do not dip the CLB in liquid such as water or sea water. Do not wet the CLB with liquid, since this
may cause it to short-circuit, give o heat, or break down.
●The CLB has xed polarities (plus and minus). If the CLB is not tted to its charger or apparatus,
do not try to mount it forcibly. Check whether the polarity is reversed. If so, the CLB is reversely
charged and an abnormal chemical reaction takes place in the CLB, which means the CLB will be
deformed, leak liquid, give o heat, explode, or catch re.
●Do not throw the CLB into a re. If this is done, the CLB will leak combustible electrolyte,
explode, or catch re.
●Do not heat up the CLB. Heat will increase its internal pressure, causing it to leak liquid, explode,
give o heat, or catch re.
●Never reverse the polarity of the CLB. If this is done, the CLB may be charged reversely, which
may cause an abnormal chemical reaction inside the CLB or unexpected discharging over-
current, which means the CLB will be deformed, leak liquid, give o heat, explode, or catch re.
●Do not connect the (+) and (-) polarities of the CLB with a metallic wire or similar or carry or store
the CLB together with a metallic necklace or hairpins. These metallic items may short-circuit the
CLB and cause excessive current to ow, which means the CLB will give o heat, explode,
or catch re, or the metallic wire, necklace, or hairpin will give o great heat.
●Do not expose the CLB to any excessive shock or impact. Do not throw or roughly handle the
CLB, which may cause it to short circuit.
Consequently, the CLB will be deformed, leak liquid, give o heat, explode, or catch re.
●Never nail, hammer, or stamp the CLB. The CLB will break, deformed, give o heat, explode, or
catch re.
●Never disassemble or modify the CLB. Its insulator may be damaged and the CLB will give o
heat, explode, or catch re.
●Recharge the CLB at least once every six months, even when it will not be used for an extended
period. If it is not recharged, the battery performance and service life will decline due
to abnormal internal chemical reactions caused by excessive discharging.
Consequently, the CLB will be deformed, leak liquid, give o heat, or catch re.
●Charge the CLB under the USHIO specied charging conditions. If charged under other
conditions (higher temperature, higher voltage, greater current than specied, or by a modied
charger), the CLB will be deformed, give o heat, explode, or catch re.
●Do not use, keep, or leave the CLB near re, a stove, in vehicle parking under the sun, or in direct
sunlight that may increase the temperature of the CLB, When the CLB becomes very hot, its
components will be damaged and form an internal short-circuit, which means the CLB will give
o heat, explode, or catch re.
Conditions of Using the CLB safety
Introduction Safety Notes
4Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Congration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Specication Disclaimer
Others
●Never ingest the CLB and always keep out of reach of infants.
If a child swallow the CLB, he/she will need to go to a doctor or emergency department.
●Never put the CLB in a microwave oven or high-pressure container. If this is done, the CLB will
quickly heat up and the airtightness will be lost, which means the CLB will give o heat, explode,
or catch re.
●If you nd the CLB smoking, hot, discolored, deformed, or faulty while in use, charged, or in stock,
you must immediately remove it from the device or charger and discard it adequately. If the CLB
is used in such a state, it will give o heat, explode, or catch re.
●When nding the CLB oozing liquid or sensing a parching smell, you must immediately keep it
away from re. The leaking CLB content (electrolyte) will easily catch re and the CLB will explode.
●If a substance leaking from the CLB gets into your eye(s), ush with a strong steady stream of
clean water under a faucet immediately WITHOUT rubbing your eyes then see an eye doctor for
treatment. Chemical substances in your eyes will injure them and in the worst cases, may blind
you.
●Stop charging the CLB if charging is not completed within a specied period, otherwise the CLB
may give o heat, explode, or catch re.
●Do not use, keep, or leave the CLB near re, near a stove, in a vehicle under the sun, or in direct
sunlight that may increase the temperature of the CLB. When the CLB becomes very hot, its
separator will be damaged and form an internal short-circuit, which means the CLB will give o
heat, explode, or catch re.
Introduction Safety Notes
Precautions Concerning Handling of Coin Type Lithium Rechargeable Battery (CLB)
CAUTION
WARNING
5Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Con gration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Speci cation Disclaimer
Others
CONTENTS
Introduction ・
Safety Notes ............. 2
Overview
・
Features .................................................................................................................. 7
Hardware Package
・
System Congration .................................................................................................................. 8
Hardware Components .................................................................................................................. 9
Inspection Before Use
・
App Install ...............................................................................................................10
Measurement Methods ..........13
1. Measurement Workow...............................................................................13
2. Preparation for Measurement............................................................14
2.
１Initial Setting............................................................................................14
2 . 2 Range Switching..................................................................................15
3. Logging Measurement....................................................................................16
3.1 Logging Measurement Method...............................16
3. 2 Sleep Mode...................................................................................................17
3 . 3 Status Display............................................................................................17
4 . Real-time Measurement.............................................................................18
5. Save Data
（CSV）
Output ............................................................................19
5.1 For Logging Measurement................................................19
5. 2 For Real-time Measurement.......................................... 20
6. Calibration Coecient.....................................................................................21
How to use BladeNavi
７
. Main Menu......................................................................................................................... 22
7.1 Menu Bar............................................................................................................ 23
7. 2 Status Display............................................................................................ 24
7. 3
Measurement Button･Mesurement Value.......... 25
7. 4 Judge Display
・
XY Cursor Setting........................ 25
7. 5 Graph Window
・
XY Scale Setting........................ 26
８. Setting Window ・
Error History Window..................... 27
Troubleshooting .............................................................................................................. 29
Warranty and After Service .............................................................................................................. 33
Specication .............................................................................................................. 36
Disclaimer
・
Others .............................................................................................................. 39
6Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Congration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Specication Disclaimer
Others
Overview Features
Overview
The UIT-θ series is a compact Thin UV irradiance meter with a built-in power supply. Irradiance
measurement in a specific wavelength range is possible and single unit logging measurement can be
performed.
By connecting to a Microsoft Windows computer, you can use the dedicated software to set up the
device and import data.
Features
（1）
Thin UV irradiance meter can perform two types of measurements according to the customer's
application.
①
Logging measurement with the thin illuminance meter alone
(Operation by built-in rechargeable battery)
②Real-time measurement with the thin illuminance meter connected to a personal computer
(Operation by supplying power from the USB port of a personal computer)
（2） The thin illuminometer application “BladeNavi” that runs on Microsoft Windows is available. By using
this,you can set the main unit, check the status, import data, and display graphs. In addition, the
measured data can be output as csv format data, which can be reprocessed with applications such
as spreadsheet software.
7Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Con gration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Speci cation Disclaimer
Others
System Congration
The following is the basic UIT-θ system configuration.
Hardware Package System Con gration
CAUTION
Connect the UIT-θ directly to the USB port of the personal computer. The operation of the
UIT-θ may not be assured if it is connected to the PC via a hub or other device.
Hardware Package
（１）
............................................ UIT-θ
（With USB cover）1
（２）
............................................ USB cable 1
（３）
............................................ Storage case 1
CD-ROM※1
A． BladeNavi Software
B. User's Manual and Troubleshooting Guide
（These are all distributed as electronic data in a CD-ROM.）
※1 The UIT-θ is not accompanied by the CD-ROM as standard.
When you need it, please contact the USHIO Sales Division or your local USHIO distributor.
Personal computer(PC)
• PC is not included in this product.
• Please prepare PC at user side.
UIT-θ
Connected to USB port
UIT-θ
USB cable
CD-ROM
(electronic data)
Storage case
8Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Con gration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Speci cation Disclaimer
Others
①Photodetector
Receives light for measurement.
To measure the irradiance of the spotlight, aim the light at the target mark of the photodetector.
②Sleep reset switch
Resets the Sleep mode of the UIT-θ.
③Status display LED
Displays the operation mode during logging measurement.
④Range switching
The measurement range can be switched.
⑤USB interface connector port
Connects a USB cable.
Protect this connector port with an accompanying USB cover against UV light in the logging
measurement (to be described later).
Hardware Components
Hardware Components
①Photo
Detector
②Sleep reset switch
③Status display LED
④Range
switching
Target Mark
Front viewLeft side view Rear side view
Bottom view
⑤USB interface connector port
（With USB cover）
The sleep reset switch should be lightly pressed with a pointed object.
In some cases, the switch may be damaged and measurement may not be possible.
IMPORTANT
9Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Congration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Specication Disclaimer
Others
Inspection Before Use
You need to download a free app from our homepage.※２
After registering, download the latest application from the following URL.
（URL
：
https://member.ushio.co.jp/en/members/mypage/products/=/product=1016）
※２ CD-ROMs can also be provided.
If you need it, please contact our sales department or the supplier.
• Charge up the UIT-θ in advance. (It takes about 3 to 4 hours to fully charge the exhausted UIT-θ.)
• To charge up, connect the UIT-θ to your personal computer with the USB cable. The UIT-θ is charged
while the personal computer is active.
(No "BladeNavi" operation is required to charge up the UIT-θ.)
• It takes about 1.5 to 2 hours to fully charge up the UIT-θ.
At the time of purchase, it might UIT-θ has not been fully charged.
If this is the first time you use or when the battery level is low, please charge.
Charge it once every 6 months.
Do not connect UIT-Θ before installing BladeNavi.If it is connected, delete the UIT-Θ USB driver
in Device Manager.BladeNavi may not be able to connect.
IMPORTANT
IMPORTANT
Inspection Before Use App Install
10 Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Con gration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Speci cation Disclaimer
Others
App Install
How to install USB driver
①Copy the two compressed les from the download or CD-ROM to the desktop of a personal
computer.
②Please unzip the le "uit_theta_usb_win10.zip".
When unzipped, there are the following two les. Select the “uit_theta_usb_win10.inf” le, right click
and select “Install”. Files should be placed in the same folder.
③When the installation is complete, the following pop-up appears.
Inspection Before Use App Install
11 Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Con gration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Speci cation Disclaimer
Others
App Install
How to install App
①If an older version of the app is installed, uninstall it.
Unzip the "BladeNavi_v4.30_Installer.zip" le provided from the URL or CD-ROM.
When unzipped, there are the following two les. Select setup.exe and double-click to start it.
②Follow the instructions to install. When the installation is complete, it is nished.
Inspection Before Use App Install
12 Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Con gration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Speci cation Disclaimer
Others
Measurement Methods
Measurement Methods
1 Measurement Workow
There are two measurement methods, logging measurement and real-time measurement.
Before use, see “Inspection Before Use” on page 10.
Connect UIT-θ and personal computer with USB cable
Activate the BladeNavi software
Initial setting (UIT-θ, BladeNavi)
Logging measurement
Measurement
Real-time measurement
Shut o the USB power supply
(disconnect the USB cable)
Preparation
Press [START] button in BladeNavi
screen to start measurement
Logging measurement starts
when irradiance is detected
End
Press the [STOP] button to end
the measurement.
The measurement ends when the
USB power is supplied .
Acquisition of measurement data Saving measurement data
Installed at measurement
position
Installed at measurement
position
13 Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Congration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Specication Disclaimer
Others

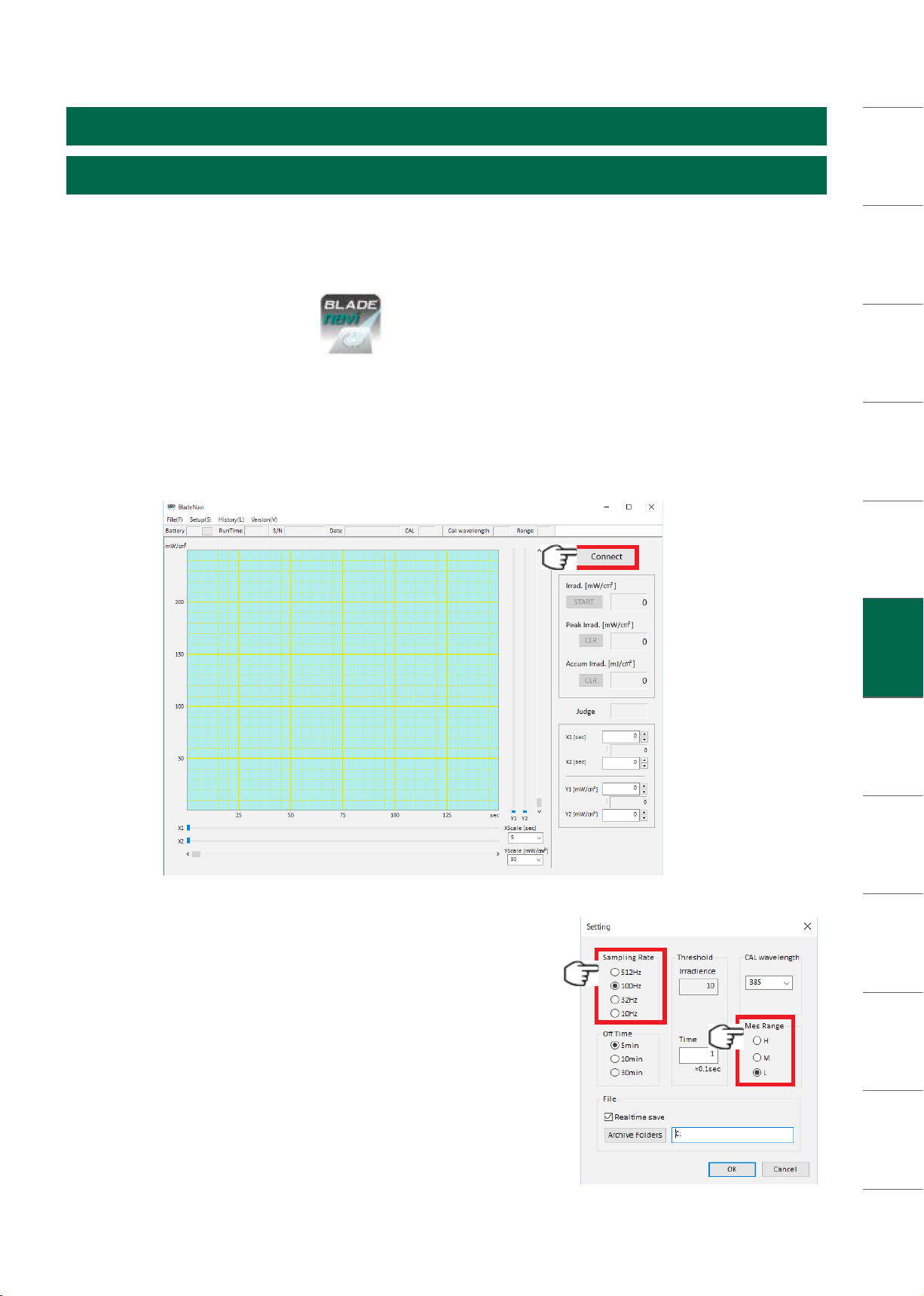

This chapter describes the initial settings.
①
Activate the BladeNavi software
②
Connect UIT-θ and personal computer with USB cable
③
Click the [Connect] button on the BladeNavi main window. The UIT-θ starts to communicate with the
personal computer.
④
Click [Setup (S)] →[Detail] on the menu bar to display the
Setting screen.
Combine the UIT-θ and BladeNavi measurement range and
irradiate light as strong as the target light to check whether
the measurement range is appropriate.
(For details on changing the measurement range, see
“2.2 Range switching” on page 15.)
⑤
Set the logging sampling rate on the screen in ④, and
the initial settings are complete.
2.1 Initial Setting
BladeNavi
2 Preparation for Measurement
Measurement Methods
14 Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Con gration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Speci cation Disclaimer
Others
By switching the range SW of the body, it is possible to change the measuring resolution.
Measurement resolution and Measurable irradiance range of each range will be as follows.
(Please change the measurement range of “BladeNavi” along with UIT-θ)
The following table shows the measurement resolution and measurable irradiance for each range.
2.2 Range Switching
Measurement range Measurement resolution
（mW/cm2）
Measurable irradiance range
（mW/cm2）
H 1 0~20,000
M0.1 0.0~2,000.0
L0.01 0.00~200.00
Measurement range Measurement resolution
（mW/cm2）
Measurable irradiance range
（mW/cm2）
H 1 0~9,999
M0.1 0.0~999.9
L0.01 0.00~99.99
In order to display the correct measurement results, you'll need to match the measurement
range of the main body side and the application side.
For details of the procedure for changing the measurement range, see p.14 "2.1 Initial Setting".
H M L
UIT-θ
(Rear side)
Model
：
UIT-θ365
Model
：
UIT-θLED
Match
IMPORTANT
Measurement Methods
15 Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Congration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Specication Disclaimer
Others
①The logging measurement mode is set when the USB power supply of your PC, to which the UIT-θ
is connected, is shut o (or when the power cable is disconnected).
②UIT-θ starts logging when the irradiance exceeds the internal threshold value and satises the set time
(p.27 “Time”).
③In logging mode, irradiance is measured at the set sampling rate, and the data is saved in memory.
④The sampling rate can be selected from 512Hz, 100Hz, 32Hz and 10Hz.
⑤When the measured irradiance goes below the threshold value in the logging measurement, the UIT-θ
stops the logging measurement and returns to the logging standby mode.
⑥When no light is incident in logging mode (irradiance below the internal threshold) and the set time
(p.27 “Time”) is met, logging mode ends and the unit enters logging standby mode. If the logging
standby mode continues for the set time (p.27 “O time”), it enters sleep mode (see “3.2 Sleep mode”
on page 17).
⑦The UIT-θ can store data of up to 64 regular measurement cycles (between the start and end of
logging).
(Data of fewer cycles may be stored if the measurement data of each cycle is greater.)
The maximum recording time per measurement cycle is 20 minutes at the 100-Hz sampling rate,
assuming that the data recording area is not used for the purpose (except for measurement).
Data cannot be recorded in the UIT-θ under the conditions below.
• Data of 64 measurement cycles are already recorded.
• The entire data storage area to the end is occupied by the logging data.
• The UIT-θ is unable to measure because of the battery becoming exhausted.
• The UIT-θ is out of order. (For details on errors, refer to p.28 "Troubleshooting".)
"Logging measurements" are performed solely by the UIT-θ. While performing the irradiance
measurement, the UIT-θ records its data in memory (FRAM) at the same time.
3 Logging Measurement
3.1 Logging measurement method
IMPORTANT
IMPORTANT
The data obtained by the logging standby mode is not stored in memory.
The sampling rate during the logging standby mode is 10Hz.
When "BladeNavi" is already started and "connected" to the UIT-θ, be sure to click [Disconnect]
button before disconnecting the USB cable of the UIT-θ .
Measurement Methods
16 Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Con gration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Speci cation Disclaimer
Others
3.2 Sleep Mode
3.3 Status Display
The UIT-θ enters the Sleep mode to minimize battery exhaustion when the logging standby mode state
continues for a specied time period in the logging mode.※3
※３ If the temperature exceeds 60 seconds for more than 10 seconds during logging measurement, the
mode will shift to sleep mode.
（１）
The factory-set time to transfer to the Sleep mode is 5 minutes.
This time can be selected from 5, 10, and 30 minutes on the Setting window of "BladeNavi."
（See “O Time” on page 27 for details.）
（２）
You can reset sleep mode in one of the following ways:
・
Press the sleep reset switch.The sleep reset switch is located in the slot near the USB connector
port on the back of UIT-θ.
(Refer to “Hardware Components” ②on page 9 for details.)
Press lightly for about 1 second with a pointed object.
・
Connect UIT-θ to the PC with the USB cable and remove the USB cable again.
(There is no need to start BladeNavi and connect to UIT-θ. If BladeNavi is already active and
connected to UIT-θ, follow the specied disconnection procedure.)
You can check the status with the LED near the sleep release switch on the back of UIT-Θ.The following
table shows each status and LED status.
Operating state Status display LED
State of logging standby mode ☼Flashes once (Period 1s)
State of completion
of logging measurement ☼ ☼ Flashes twice (Period 1s)
State of sleep mode ○T u r n o 
UIT-θ
(Rear side)
Measurement Methods
17 Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Con gration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Speci cation Disclaimer
Others
Real-time measurement is performed with UIT-θ connected to a personal computer, and the acquired
data is displayed on the personal computer.
4 Real-time Measurement
①
Connect UIT-θ and a personal computer with a USB cable.
②
Click the [Connect] button on the BladeNavi main window. The UIT-θ starts to communicate with the
personal computer.
③
Click the START button on the “BladeNavi” main screen to start measurement.
During the measurement, the irradiance value, peak irradiance value, and integrated light intensity
value cells turn green and the values are updated.Irradiance values are plotted in time series in
the graph window.
(Clicking the [CLR] button for Peak Irrad and Accum Irrad will reset the previous value.)
In real-time mode, the sampling rate is xed at 32Hz and the maximum monitoring time is 20 minutes.
※In real-time mode, the irradiance value (Irrad.) And peak irradiance value (Peak irrad.) Are updated
and plotted every 0.5 seconds. The cumulative irradiance (Accume Irrad.) Is updated and plotted
Measurement Methods
every second. (For details, refer to p.25 “7.3 Measurement Button ･Measurement Value”.)
18 Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Con gration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Speci cation Disclaimer
Others
5 Saved Data (CSV) Output
After measurement, you can import data using the following procedure.
5.1 For Logging Measurement
①
Activate the BladeNavi software.
②
Connect UIT-θ and personal computer with USB cable.
③
Click the [Connect] button on the BladeNavi main window. The UIT-θ starts to communicate with the
personal computer.
④
Choose [File] --> [Logging Data Capture.] You can transfer the recorded irradiance data from the UIT-θ
to the personal computer.Data is transferred by each measurement cycle (between the start and end
of logging). (Hereinafter, the group of this data set is called a data group.)
For example, ten data groups are captured in logging, ten data transfers are made.
⑤
At the end of data capturing, the data is graphically displayed. Select X- and Y-scales to adjust the
graph area.On the graph, data values in each group are displayed together. The measurement interval
between data groups is omitted when plotted on the graph.
⑥
Choose [File] --> [Save]. You can save the captured data in CSV format.
※CSV-format data can be processed by others.
⑦
The rst line contains “Data size” and “Sampling rate (0: 100 Hz, 1: 32 Hz, 2: 10 Hz, 3: 512 Hz)” and
“Measurement range setting (0: H, 1: M , 2: L) is displayed.
From the second, "irradiance", "temperature", "irradiance" ... "irradiance" (4 or 10 irradiance data per line)
is recorded.
Measured data
(irradiance)
Measured data
(temperature)
Measured data
(irradiance)
Measurement Range
Data size
Sampling rate
Sampling rate
Measurement Range
Measured data
Data size
First data group
Measurement Methods
Please note that the output format of the data at 32Hz is different.
The data at 32Hz will display 4 irradiance values per line. (Others will be 10)
IMPORTANT
19 Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01

Introduction Safety Notes Overview
Features Hardware Package
System Con gration
Hardware Components
Inspection Before Use App Install Measurement
Methods How to use
BladeNavi Troubleshooting
Warranty & After Service
Speci cation Disclaimer
Others
5.2 For Real-time Measurement
①
When the real-time mode ends, the measurement results are saved in CSV format in the folder
specied on the “Setting Window”.
Click the [STOP] button to finish. The file is not saved if the measurement is completed by other
than the [STOP] button, such as by disconnecting the USB.
The le name is the time stamp at the start of measurement. (According to the clock of the personal
computer used)
File name: Year, month, day, hour, minute, second (in the case of January 2, 2019, 3:45:56,
“20190102034556”)
※App version v.2.01 or later. (Notation may vary depending on the version.)
②The data consists of “irradiance value”, “peak irradiance value”, “integrated irradiance value”, and
“time stamp”. (Separated by commas)
Measured data
(irradiance)
Measured data
(Peak irradiance)
Time stamp
Measured data
(integrated irradiance）
IMPORTANT
Measurement Methods
During the measurement, if the irradiance value is 0, the data will not be saved. Please check
the timestamp before using the data.
IMPORTANT
20 Copyright © 2019, USHIO INC. All Rights Reserved. DOC1050921-01
