TECHNICAL DATA
Thank you for selecting and buying V-TAC Product. V-TAC will serve you the best.
Please read these instructions carefully & keep this user manual handy for future
reference. If you have any another query, please contact our dealer or local vendor
from whom you have purchased the product. They are trained and ready to serve you
at the best.
INTRODUCTION
Multi-Language Manual QR CODE
Please scan the QR code to access the manual
in multiple languages.
Model VT-2002
Battery capacity 2016Wh
Dimension
25Kg
Ac Rated Output 2000W
AC Input 1600W
Telescoping handle 1.2m
Solar Charge DC: 12-60V Max
700W solar panel
AC Output 230V, Pure Sine Wave
2000W, Peak 4000W
Auxiliary Charge
Output 13.5V 9A (Max 100W)
5v 2.4A
USB Output Port
470x367x292mm
Net Weight
QC Output 5V/9V/12V/18W
USB-C Output
5V 3A/9V 3A/12V 3A
/15V 3A/ 20V3.25A
PD65W
Wireless Charging
Output 15W
Cycle Life Cycled > 2000
LiFePO4 Battery

PARTS & DESCRIPTION
PACKAGING LIST
Power supply
Charging
Wire User Guide
User guide
WARNING
1. Please make sure to turn off the power before starting
the installation.
2. Installation must be performed by a qualified electrician.
3. Please read all instructions before using this product.
4. In order to reduce the risk, close supervision is required
when using this product near children.
5. The use of accessories recommended or sold by non
professional product manufacturers may lead to the risk of
electric shock.
6. When the product is not in use, please pull the power
plug out of the product socket.
7. It is forbidden to dismantle the product, which may lead
to unpredictable risks such as fire, explosion or electric
shock.
8. Do not use damaged wires or plugs or damaged output
cables to use the product, which may cause electric shock.
Caution, risk
of electric
shock.
This marking indicates that
this product should not be
disposed of with other
household wastes.
20
PAP
9. Please charge the product in a well ventilated place.
Do not restrict the ventilation of the product in any
way.
10. Please put the product in a well ventilated and dry
place to avoid the risk of electric shock due to water
intrusion.
11. It is forbidden to expose the product to fire or
temperature higher than 130°C, which may lead to fire,
explosion and other safety accidents.
12. It is forbidden to use or place the product under
high temperature (direct hot sunshine or hot car
interior), otherwise the internal battery may overheat,
catch fire or function failure, shorten the service life
and other risks.
13. Please charge the product every three months to
prevent the battery from running out.
7
10
4
8
5
2
21
9
11
3
17
18
20
6
12
13
14
16
15
1
19

Before using or storing the product, please use the charger to charge the product. When charging, the
indicator light is blue. The LED screen will display the current charging ratio and charging power. When the
LED screen shows 100% power, it means full charge. The charging process is about 2 hours. The current
power can be viewed through the LED screen.
CHARGING MODE
PRECAUTIONS FOR USE
1. ⑦ Press the button, the screen lights up, about 60 seconds aer the screen backlight automatically closed.
2. When ②④⑧⑨the button is pressed, the output port is turned on to power the device.
3.When the power output port is not used, press the 2,4,8,9 button to turn it off to save power.
4. Low temperature may affect the battery capacity of the product, the product can be charged in the
temperature range of 0 ~ 40 °C, in the temperature range of-10 ~ 40°C for equipment use.
5. The first use of the product is recommended to be fully charged, to avoid the lack of power to your use of
inconvenience. Aer the device is fully charged, the fan will continue to work for about 2 minutes aer the
charging power cord is unplugged, which is used for cooling the device (the specific time may vary with the
scene temperature) , pay attention to prevent dust particles or foreign matter from being inhaled into the
equipment, otherwise it will easily lead to internal equipment damage.
6. Aer the discharge is terminated, the device fan will continue to work to reduce the device temperature to a
reasonable temperature for about 30 minutes (the time may vary with the scene temperature) . At the same
time charge and discharge, current more than 15A or equipment temperature is too high, will trigger automatic
power-off protection.
7. During the charging and discharging process, please connect the device with the charging and discharging
device, then turn on the charging and discharging. Otherwise, there might be a spark.
Standard charger,
about 2 hours
(the charging time is determined by the intensity of sunlight).
Support solar photovoltaic panel MPPT function charging (12-60V)
The above data are from the laboratory. The test data may vary due to the use environment, use method and
other factors, and the charging time will be different.
Car charger
about 2 hours
700W solar photovoltaic panel,
about 5 hours.
10 QC3.0 Output
11 Auxiliary Charge Output
35V/2.4A Quick Charge
2AC Switch
4Wireless charging Switch
7Power Switch (click on start,
press 3 seconds to shut down)
9USB Output Switch
8DC Switch
515W - Wireless charging
6Rollable wheels
1LCD Screen
16 AC fast charging
14 DC charging
It can be charged by solar energy
15
16
Safety Switch
18 Telescoping handle
19 Portable Handle
17 230V output
12 Cooling outlet
13 Wire control interface
20 Cushion Foot Pad
21 PD65W-Output

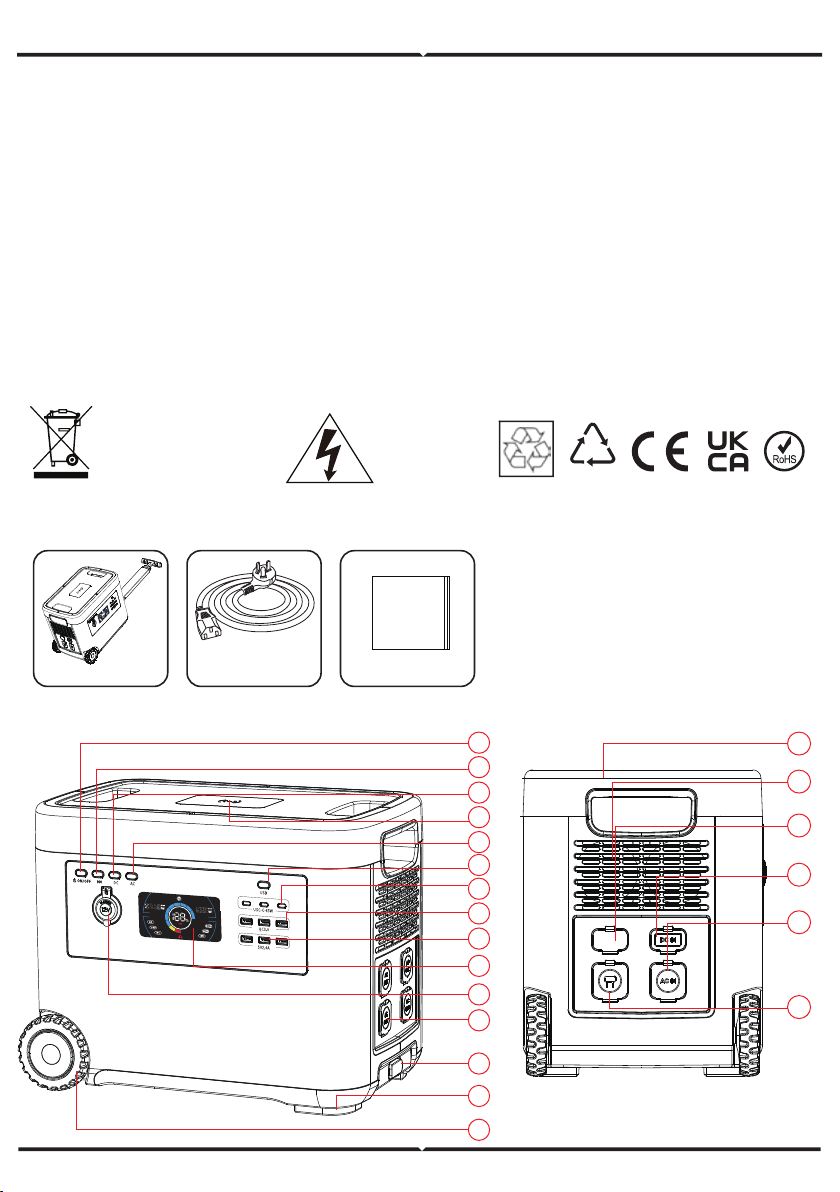

PARTS & DESCRIPTION
FAQS
TROUBLESHOOTING
1. Can the product be brought on the plane?
No, because this product is a lithium battery product.
According to the
international air transport standard regulations, carrying
lithium battery products can not exceed 100Wh.
2. If the power of the equipment is within the rated
output power range of the product, it cannot be used?
a. The power consumption of the product is less than 20%;
it needs to be supplemented.
b. When some equipments start, the products which are
larger than the peak value of rated power cannot be
used;
3. Why is there sound when using it?
The product adopts air cooling system, and the built-in
fan is better to help product heat dissipation. It is
normal to have slight noise when using.
4. Is the charger heating normal when charging?
Charging charger heating is a normal phenomenon,
standard charger in line with national safety standards,
you can rest assured to use!
Equipment failure, please restart
AC Output Power
）CD/CA（rewoPtuptuO
Output Frequency 50Hz
Output Frequency 60Hz
AC working indicator
USB working indicator
DC working indicator
Wireless charging working
Cooling Fan working

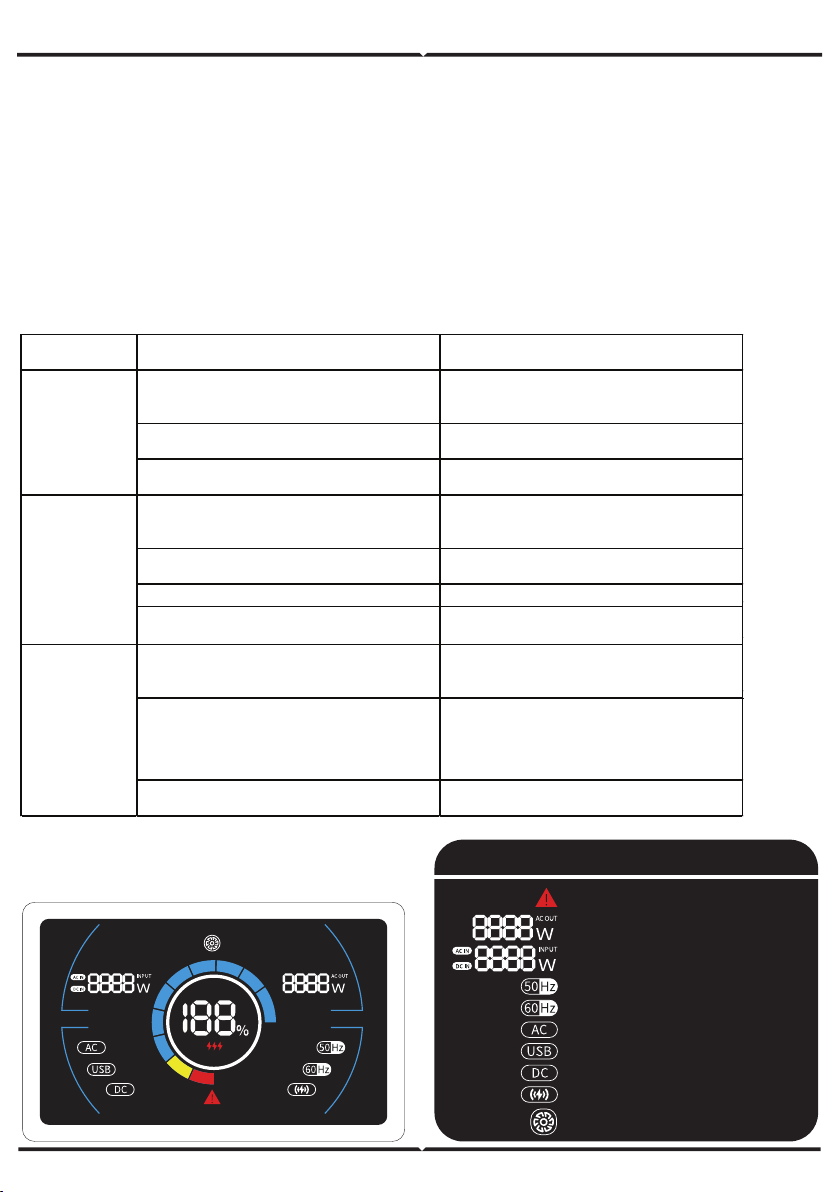

ICONS AND DESCRIPTION
FAULT
PHENOMENON TROUBLESHOOTING SOLUTIONS
1. The charger and product are not in good
contact with the mains power supply (the
charging indicator is not on at this time)
Check whether the charger and product are
in good contact with the main power
2. The contact is good, but the charging
indicator is not on If the charger is broken, please contact the customer service
If the product is broken, please contact the
customer service
1. The connection line between the
equipment and the product is not plugged
in properly
Make the equipment well connected with
the product
2. The output port switch is not turned on Turn on the port output switch, and the
indicator light will be on
3. Low power consumption Charging the product
4. There is no output after eliminating
according to 1.2.3 above If the product is broken, contact the customer service for handling
1. The nominal power or instantaneous
starting power of the equipment used is
greater than the power of the product
Select higher power energy storage
products
2. If the equipment used is short circuit, an
alarm symbol will appear on the display
screen, an alarm sound will be send and the
product will automatically turn off the
output within 15 seconds
It is not a product problem.
It is recommended to replace the
equipment.
3. The output will still be turned off after
removing according to the above 1.2 point If the product is broken, contact the after-
sales department for handling
The product has
no output
The product
cannot be
charged
With device
output interrupt
3. If the charging indicator light is on, it still
can't be charged

Portable
Power Station
2000W
V-TAC.EU | VTACEXPORTS.COM

Intelligent monitoring
Real-time monitoring of
product performance.
Short-circuit protection
Auto-cut circuit when
short occurs.
Overcharge protection
Prevent battery from overcharging
and auto-stop when fully charged.
Overpower protection
Product has dynamic power protection
which will auto-stop output when
overpower occurs.
Battery balance system
Extend the service life of batteries
and ensure the consistency of
batteries.
Temperature protection
Guarantee battery working
at safe temperature.
Over-current protection
Auto-cut circuit when
overcurrent occurs.
Over-voltage protection
Protect product from high or
low voltage harm to ensure
product and facilities safe.
Battery Pack :
Ac Rated Output :
AC Input :
Solar Charge :
AC Output:
Car Charge Output :
USB-A Output :
USB-A Output:
USB-C Output :
Wireless Charging Output:
Cycle Life :
2016Wh
2000W
1600W
DC12V-60V/ Max 400W solar panel
Pure Sine Wave 2200W, Max 4000W
13.5V 9A (max 100W）
5V 2.4A
5V/9V/12V/18W
5V 3A/9V 3A/12V 3A/15V 3A/20V3.25A PD65W
15W
Cycled > 2000 LiFePO4 Battery
The product has built-in high-efficiency 32700 lithium iron phosphate cell, safe battery BMS management
system and high-efficiency energy conversion circuit, which can be placed indoors or in cars. And can be
used as home, office, outdoor emergency backup power supply. Charging can choose mains electricity or
solar power to charge the product, without external adapter, the product is directly connected to the mains
power supply, charging capacity can reach 98% in 1.6 hours, to achieve a real sense of fast charging. The
product system can provide rated 240V 2500W AC output, and is equipped with 5V, 12V, 15V, 20V DC
output and 15W wireless charging output to meet the requirements of different scenarios. Meanwhile,
advanced power management system is configured to ensure long battery life and safety.
LISTING DETAILS
GENERAL DATA
Qty:
Net Weight :
Product Size :
1pc/box
25KG
470*367*292 mm
MASTER BOX PACKAGING
Model:
SKU Code:
EAN Code:
VT-2002
11445
3800157692250

High efficient
solar charger
MPPT technology
for efficient charging
Enhanced battery
life with Intelligent
BMS
Advanced power
management system -
power efficient
Solar energy Charging
Maximum power point tracking
MPPT

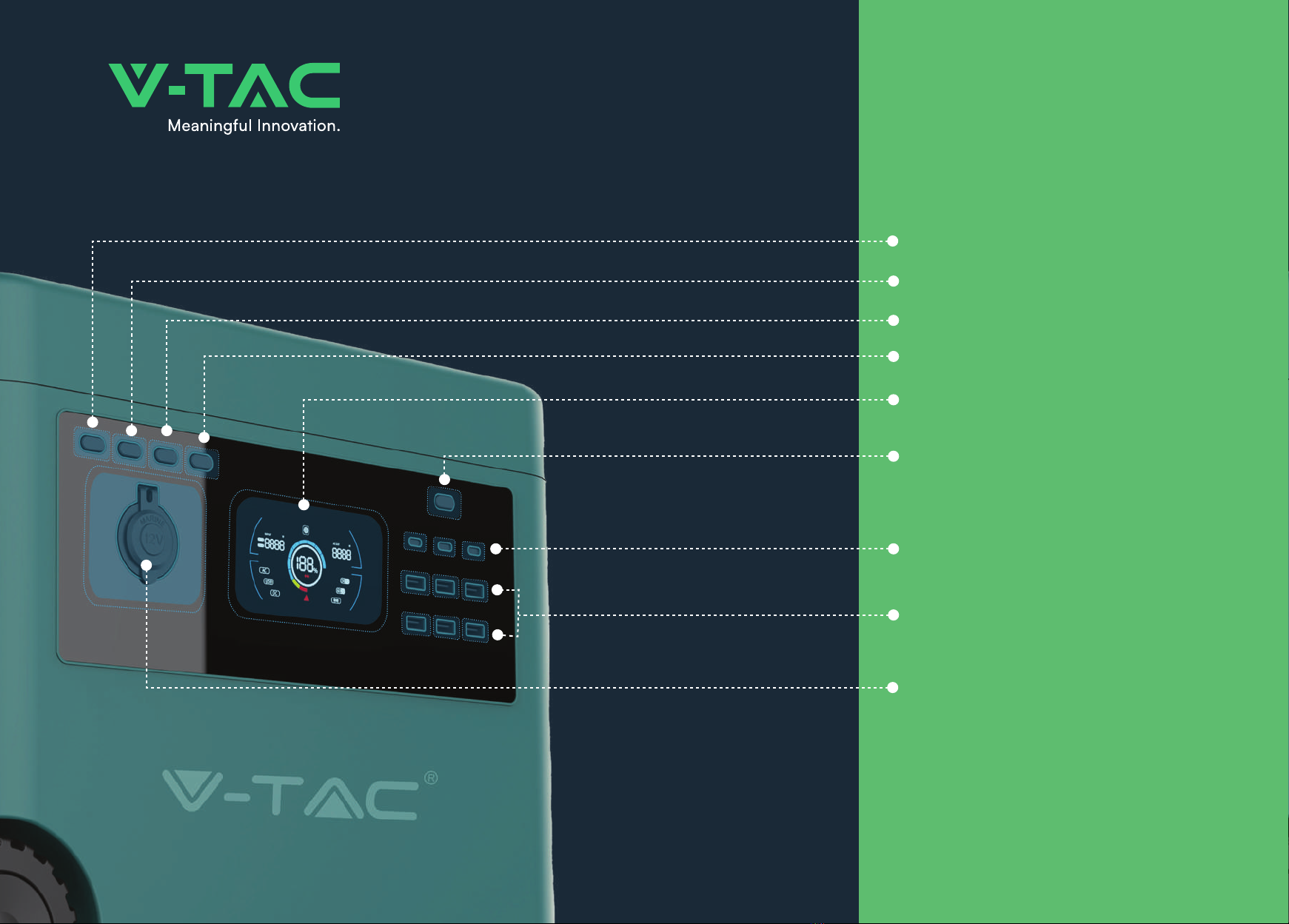

LED High-brightness
Display Screen
Power button
Auxiliary Charge Output
DC on/o switch
Wireless on/o switch
AC on/o switch
Display screen
USB on/o switch
TYPE-C output ports
USB output ports

AC Output 230V x 3
Power a wide range
of appliances with
multiple AC output

WiFi Port
Fuse
Solar charge port
Input: AC Quick Charge
Power a wide range
of appliances with
multiple DC output

Wireless
charger
Power Delivery
15W

Trolley-style
design
Telescoping handle
to prioritize ease of
movement

Travel Leisure
Home Professional
Drone LaptopCamera
Blender MobilePrinter Drill Chainsaw Tools
Fan Mini CoolerElectric Grill
Stay powered and connected. Charge your
devices anywhere – less time worrying
about running low on battery and more time
enjoying your trip.
New spot for your hobbies? Or just a new
space for the family to hang out in? Power up
your new space of comfort and fun.
Say goodbye to the inconvenience of sudden
outages – power up your basic home
appliances whenever you need them. Also
perfect for those working in flexible setups.
Ideal for power tools, workshops,
renovations, construction, outdoor house
cleaning, and outdoor events.
Bring the power right where you need it. Our
portable power stations aim to help you power
basic necessities wherever you are – whether
it be in mobile homes, camp sites, and more.
Each unit features intelligent energy
monitoring, short circuit protection,
overcharge & overpower protection,
anti-overheating, and voltage protection.
Made with high quality, long-life lithium
batteries that are consistent and reliable.
Choose the option that best suits your needs
300W
SKU 11441
500W
SKU 11442
1000W
SKU 11443

CERTIFICATE OF CONFORMITY
Certificate No.: TBC-C-202305-0154-1
Applicant
:
V-TAC EXPORTS LIMITED
Address
:
Room 301 Kam ON Building 176A, Queen’s Road Central
HongKong
Manufacturer
:
Dongguan Zhiding Innovation Electronics Co., Ltd.
Address
:
Floor 5, building 6, Wanjin hi tech Industrial Park, No. 10, Qiaoxi
Second Road, Qiaotou town, Dongguan, China
Product
:
portable energy storage power station
Brand Name
:
Model(s)
:
VT-2002
According to the Council Directive 2014/53/EU
Applied Standards and Test Reports:
Article
Standard
Test Report No.
3.1(a) Health
EN IEC 62311:2020
TBR-C-202305-0154-5
3.1(a) Safety
EN IEC 62368-1:2020+A11:2020
TBR-C-202305-0154-2
3.1(b) EMC
ETSI EN 301 489-1 V2.2.3:2019
ETSI EN 301 489-3 V2.3.2:2023
TBR-C-202305-0154-1
3.2 Radio
ETSI EN 303 417 V1.1.1:2017
TBR-C-202305-0154-4
The certificate applies to the tested sample above mentioned only and shall not
imply an assessment of the whole production. It is only valid in connection with
the test report number.

CERTIFICATE OF CONFORMITY
Certificate No.: TBC-C-202305-0154-1
Technical Description:
Frequency Range
:
Wireless Charging: 110KHz~205KHz
Max Field Strength
:
55.24dBuA/m
The EUT described above has been tested by us with the listed standards according
to the Council Directive 2014/53/EU relating to radio equipment, and found in
compliance with all essential requirements of the Directive. It is possible to use CE
marking to demonstrate the compliance with the Radio Equipment Directive.
Notes
1. Should the specified regulations or standards be amended during the validity of
this certificate, the product(s) is/are to be re-approved prior to it/them being
placed on the market.
2. The manufacturer shall take all measures necessary so that the manufacturing
process and its monitoring ensure conformity of the manufactured radio
equipment with the approved type described in this certificate and with the
requirements of Directive 2014/53/EU that apply to it.
3.The CE mark shall be affixed to each item of radio equipment that is in
conformity with the type described in this certificate and that satisfies the
applicable Directive requirements.
Justin Zhang
(Manager)
May 19, 2023

Declaration of Conformity
Certificate No.：TBC-C-202305-0154-2
Applicant Company
:
V-TAC EXPORTS LIMITED
Company Address
:
Room 301 Kam ON Building 176A ,Queen’s Road Central
HongKong
Sample Name
:
portable energy storage power supply
Trade Mark
:
Basic Model No.
:
VT-2002
Series Model No.
:
/
Tested according to
:
IEC 62321-3-1:2013, IEC 62321-5:2013,
IEC 62321-4:2013+AMD1: 2017 CSV,
IEC 62321-6:2015, IEC 62321-7-1:2015,
IEC 62321-7-2:2017, IEC 62321-8:2017
The submitted products have been tested by us with the listed standards.
This Attestation of Compliance is issued according to the council Directive
2011/65/EU and its amendment directives (EU) 2015/863. It confirms that the listed
product complies with all essential requirements of the RoHS Directive and applies
only to the sample and its technical documentation submitted to Shenzhen Toby
Laboratories Inc. for testing.
After preparation of the necessary technical documentation as well as the EC
conformity declaration the required CE marking can be affixed on the product. Other
relevant Directives have to be observed.It is only valid in conjunction with the test
report number:TBR-C-202305-0154-3.
RoHS
...........................
Manager
May 18,2023
